Shifeng Fengchi 4X2(6 wheels) 84 hp Truck Mounted Crane

Export reference
From $17,222
MSRP ¥12.4M CNY
Emission: China V
Fuel: Diesel
Wheelbase:: 3300mm
Cab dimensions:: 5.995×2.255×2.85m
Type:: truck-mounted crane
GVWR:: 4.495ton
Lifting capacity: 0.5ton
Drive 4X2 (6 wheels)
Horsepower 87
Rated mass: 0.365ton

Overview

The Shifeng Fengchi 4X2(6 wheels) 84 hp Truck Mounted Crane is a truck-mounted crane featuring 0.5ton tank capacity, 4.495t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 87 hp, China V emissions and Diesel fuel.

China V 87 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.995×2.255×2.85m
Type: truck-mounted crane
Drive type: 4X2
Wheelbase: 3300mm
Rated mass: 0.365ton
GVWR: 4.495ton
Front/rear suspension: 1.14/1.555m
Energy Type: Diesel
Body Parameters
Crane model: SQ3.2
Lifting capacity: 0.5ton
crane self-weight: 1.58ton
Vehicle certification code: SSF5042JSQJ54
Body Brand: Shifeng
Engine parameters
Engine Brand: Xichai
Engine Model: Xichai4DW93-84E5
fuel type: Diesel
Displacement: 2.54L
Emission standard: China V
Max output power: 64kW
Max hp: 87Horsepower
Max torque: 220N·m
Max torque speed: 1900-2100rpm
Rated speed: 3000rpm
Chassis Specs
Chassis Brand: Shifeng
Chassis Series: Fengchi
Chassis Model: SSF1042HDJ54
rear axle description: One-piece
Axle ratio: 6.167
Leaf spring count: 3/5+3(9/10+5)
Transmission Parameters
Number of gears: 5Gear
Transmission Model: WLYWLY5T26-1
Cab parameters
Cab: flat front single-row
Tire
Tire Size: 7.50-16LT 6PR
Number of tires: 6pcs

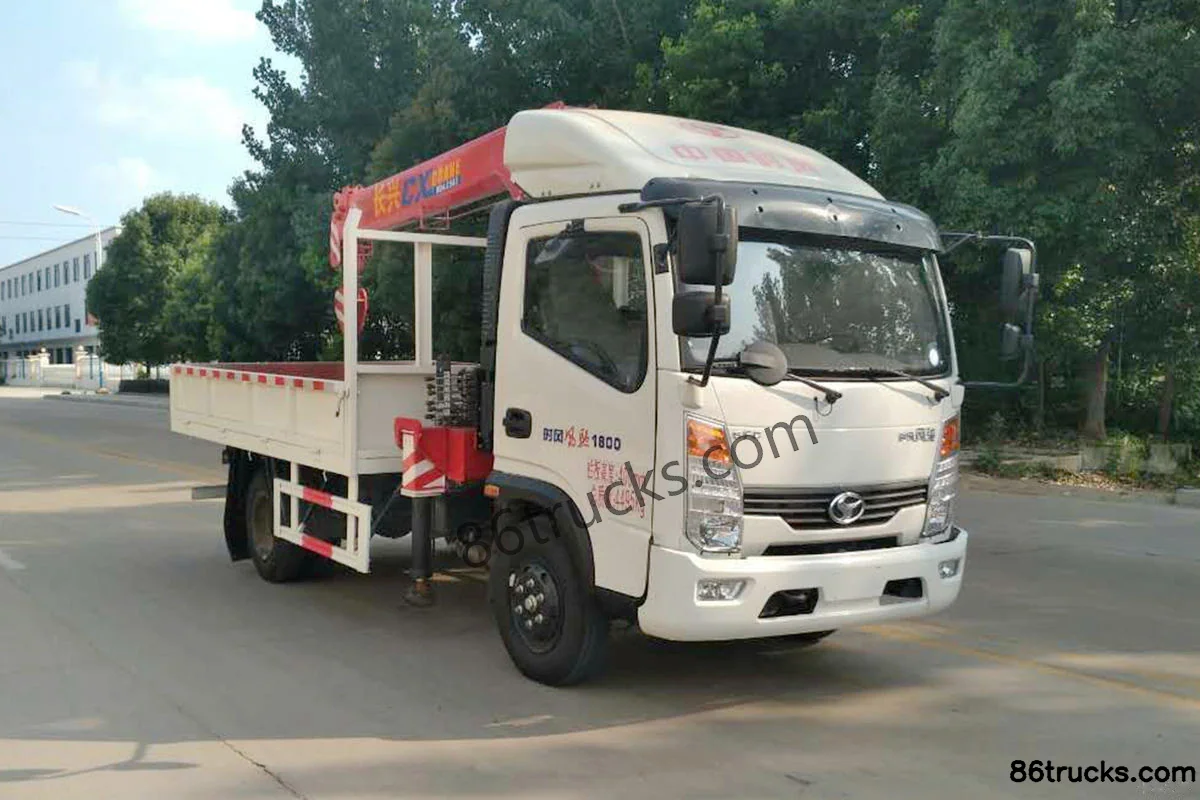

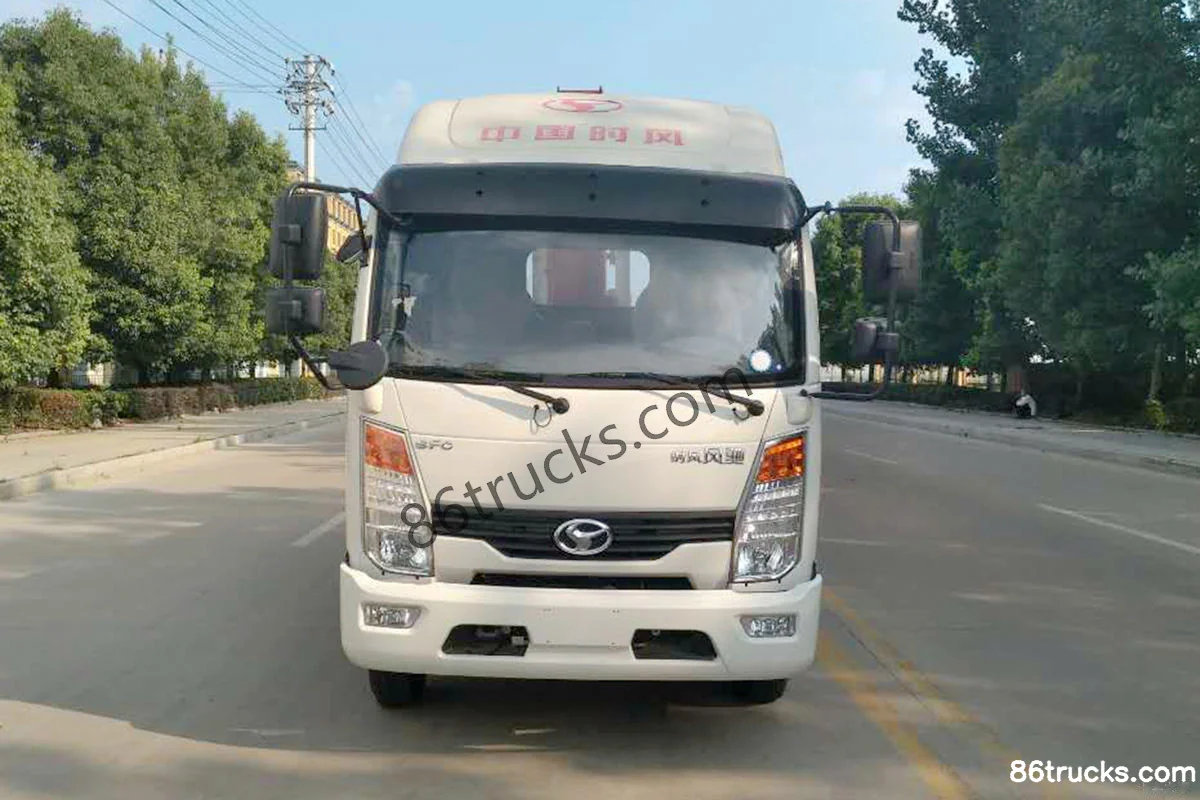

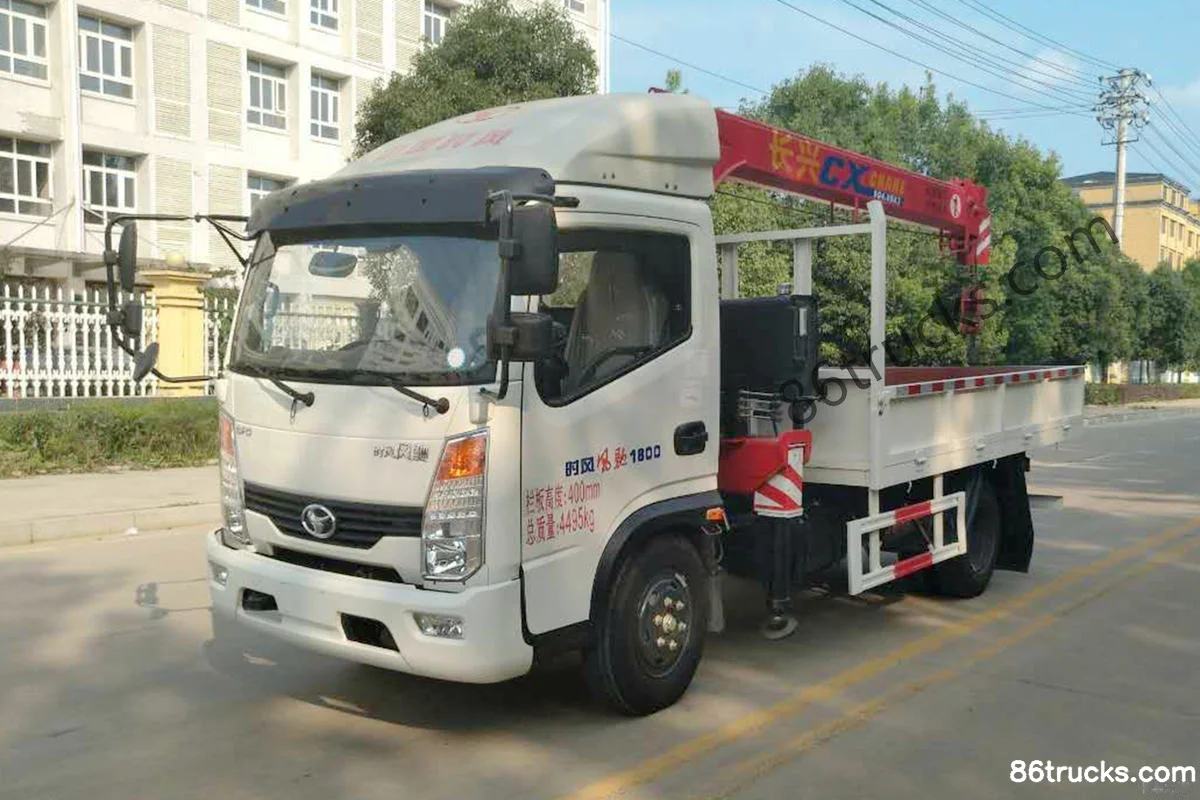

Photos

Exterior3

3 photos

FAQ

What is the export price of Shifeng Fengchi 4X2(6 wheels) 84 hp Truck Mounted Crane, and what does it include?

Shifeng Fengchi 4X2(6 wheels) 84 hp Truck Mounted Crane export reference is about From $17,222; MSRP is ¥12.4M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Shifeng Fengchi 4X2(6 wheels) 84 hp Truck Mounted Crane use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Shifeng Fengchi 4X2(6 wheels) 84 hp Truck Mounted Crane?

Key specs of Shifeng Fengchi 4X2(6 wheels) 84 hp Truck Mounted Crane: Drive: 4x2; Horsepower: 87 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Shifeng Fengchi 4X2(6 wheels) 84 hp Truck Mounted Crane suited for?

Shifeng Fengchi 4X2(6 wheels) 84 hp Truck Mounted Crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Shifeng Fengchi 4X2(6 wheels) 84 hp Truck Mounted Crane differ from other variants in the same series?

Shifeng Fengchi 4X2(6 wheels) 84 hp Truck Mounted Crane belongs to Shifeng Fengchi (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Shifeng Fengchi 4X2(6 wheels) 84 hp Truck Mounted Crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Shifeng Fengchi 4X2(6 wheels) 84 hp Truck Mounted Crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
