Tangjun Ouling T6 Series 140hp 4X2(6 wheels) 5.3m dump truck

Export reference
From $22,611
MSRP ¥16.28M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.61ton
Wheelbase:: 4500mm
Tire Size:: 9.00R20
Rated payload: 7.995ton
Drive 4X2 (6 wheels)
Horsepower 140
Cargo box type: Dump type

Overview

The Tangjun Ouling T6 Series 140hp 4X2(6 wheels) 5.3m dump truck is a Light Truck featuring 7.995t payload, 15.8t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a WeichaiWP4.1Q140E50 engine, 140 hp, China V emissions and Fast Gear transmission.

China V 140 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZB3160UPF9V
Drive type: 4X2
Wheelbase: 4500mm
engine: WeichaiWP4.1Q140E50
transmission: Fast Gear8JS85E
Rear Axle Ratio: 5.375
Cab length: 7.92m
Cab width: 2.44m
Cab height: 2.975m
Front track width: 1760mm
rear track: 1725mm
Curb Weight: 7.61ton
Rated payload: 7.995ton
GVWR: 15.8ton
Origin: Zibo, Shandong
tonnage class: Light Truck
Approach angle: 20°
departure angle: 21°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP4.1Q140E50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.088L
Emission standard: China V
Max output power: 103kW
Max hp: 140Horsepower
Max torque: 450N·m
Max torque speed: 1400-1800rpm
Rated speed: 2600rpm
Engine Type: Common Rail+SCR
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.3m
Cargo box width: 2.2m
Cargo box height: 0.8m
Chassis Specs
Front axle allowable load: 5600kg
rear axle allowable load: 10200kg
Axle ratio: 5.375
Leaf spring count: 9/11+8
Tire
Tire Size: 9.00R20
Number of tires: 6pcs
Control configuration
ABS:

Photos

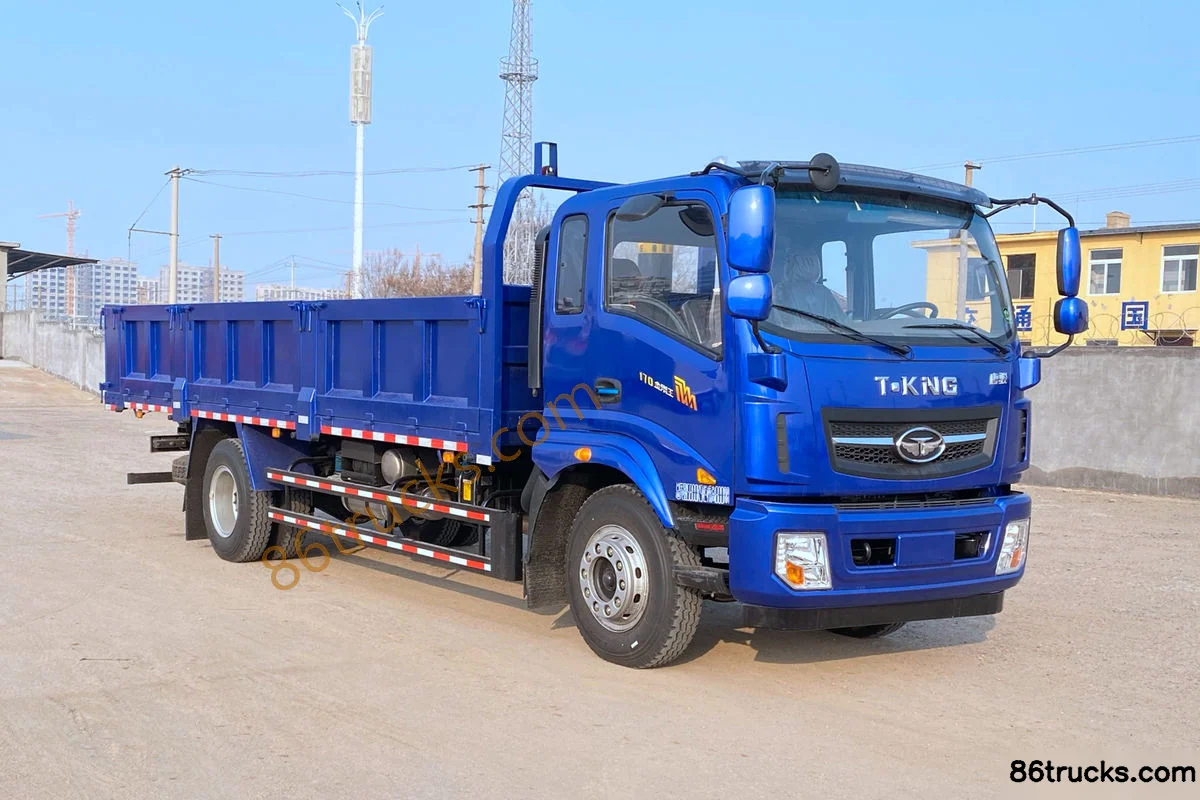

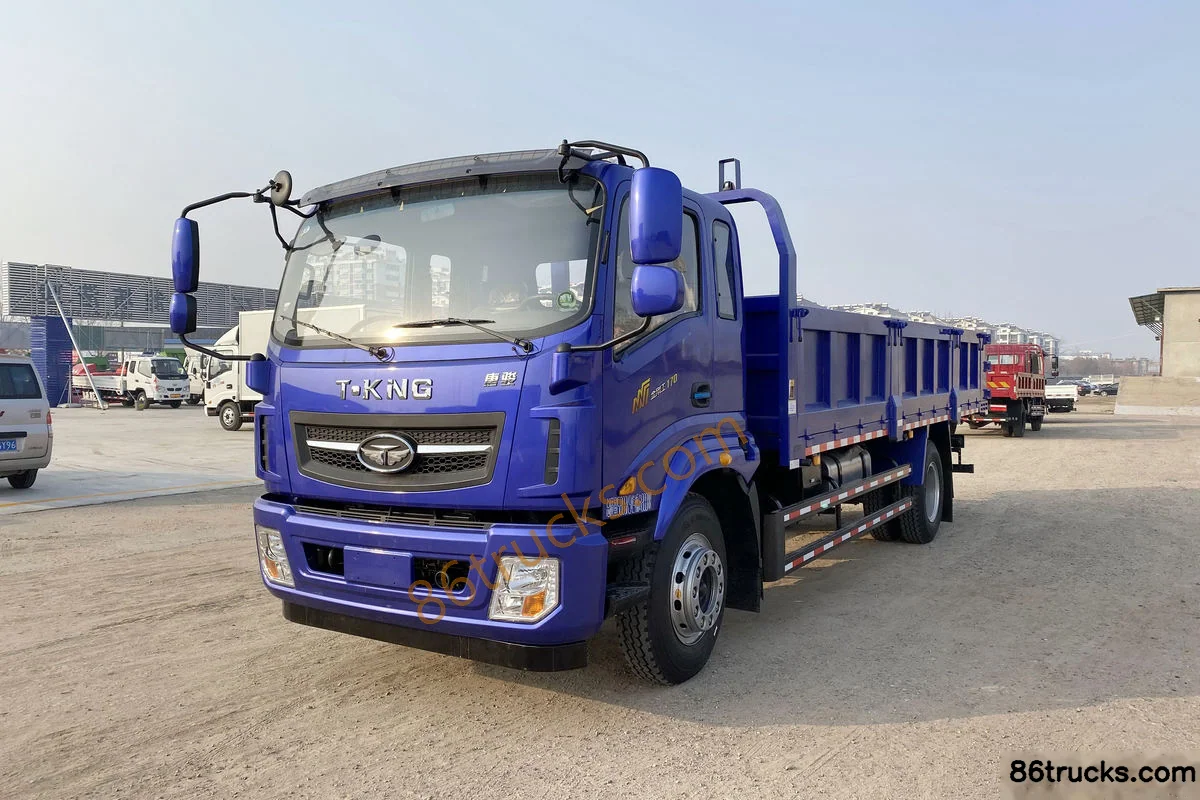

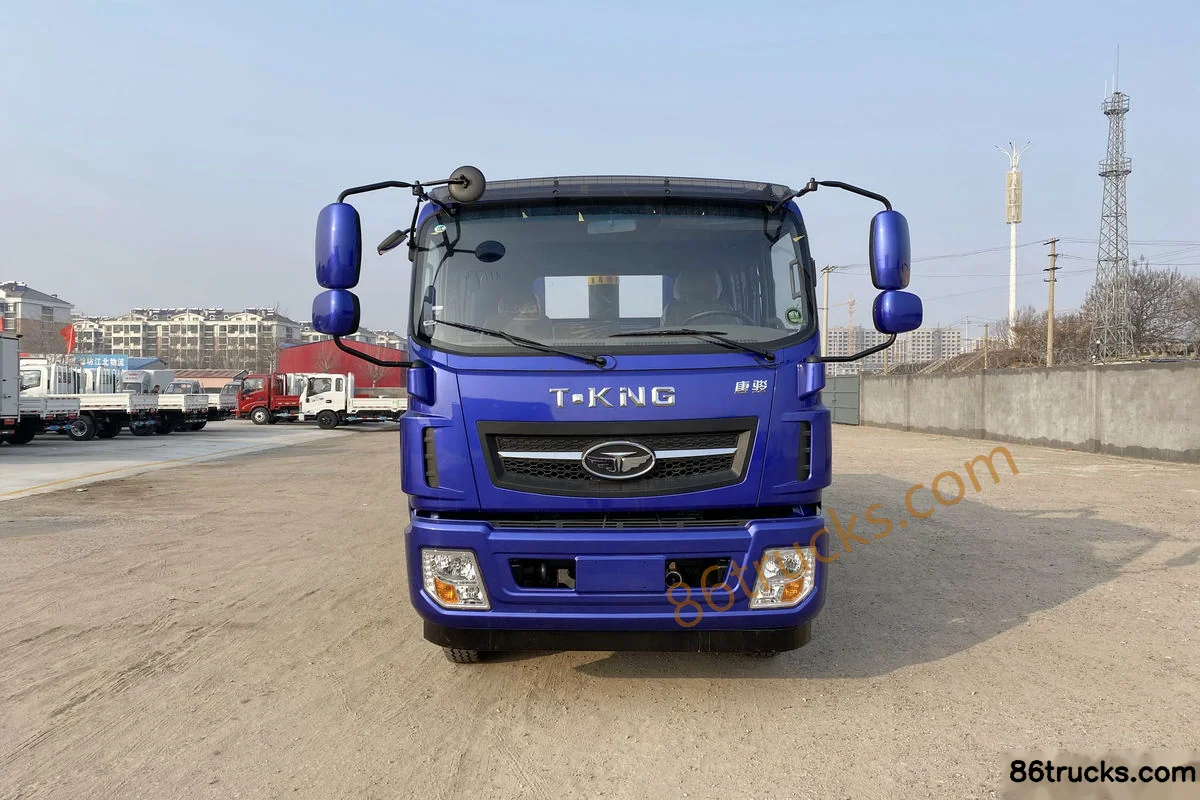

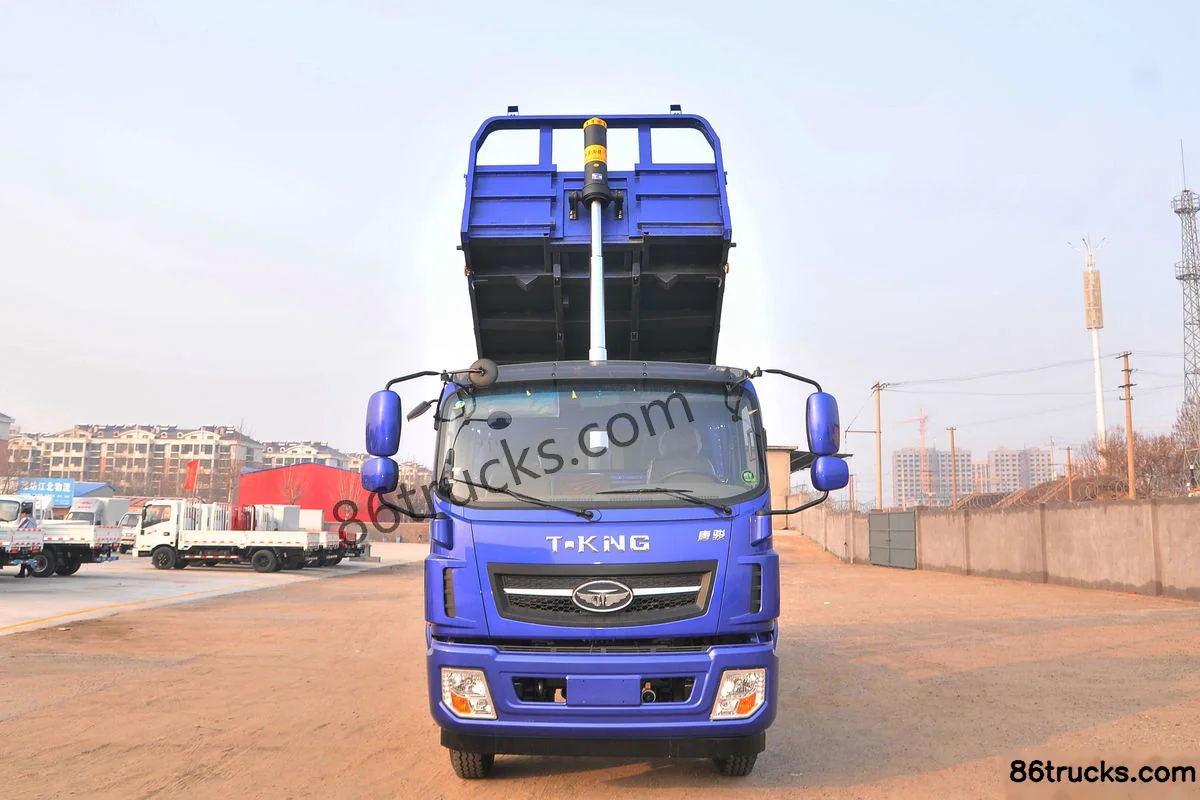

Exterior3

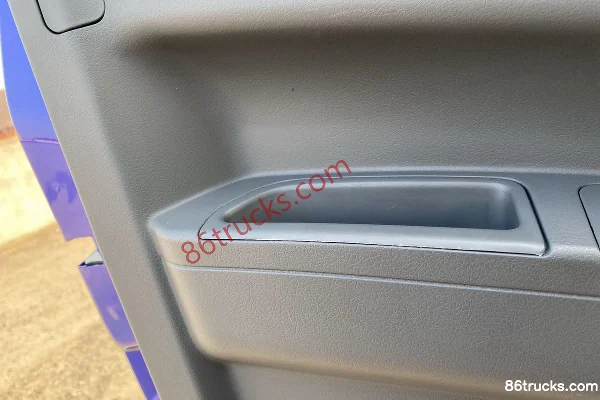

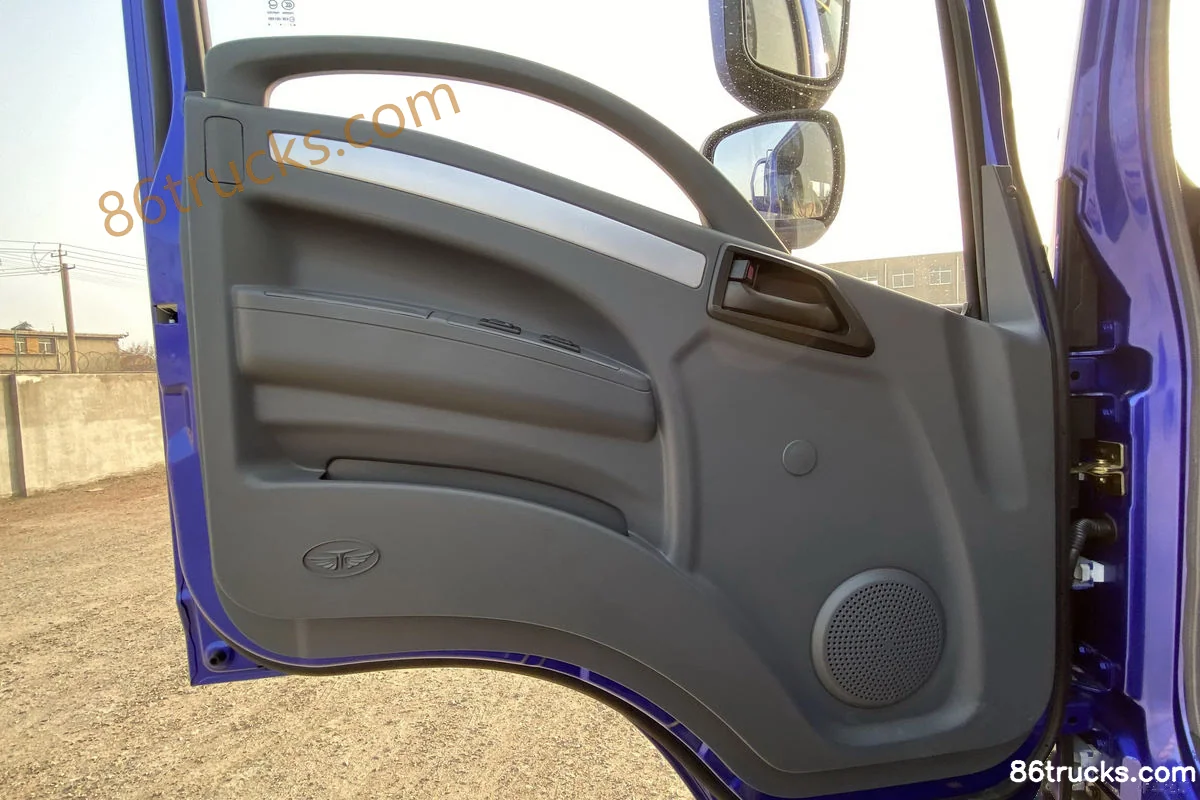

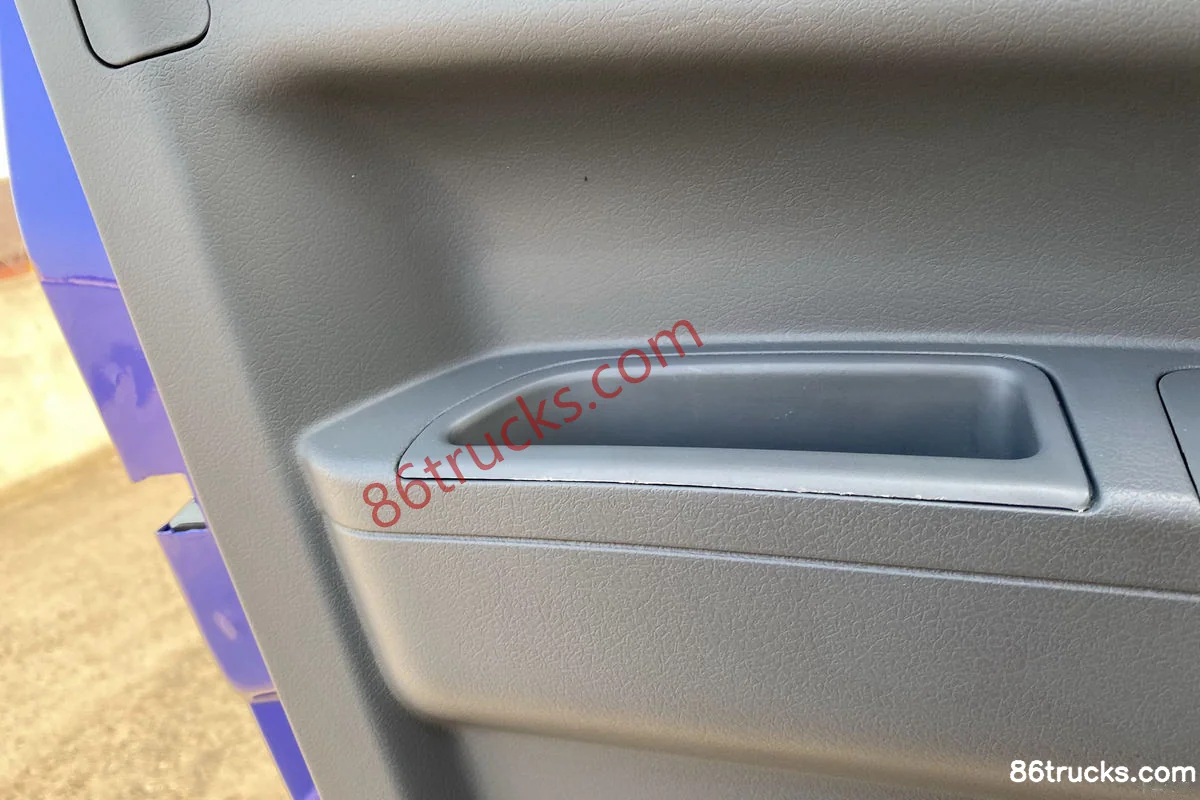

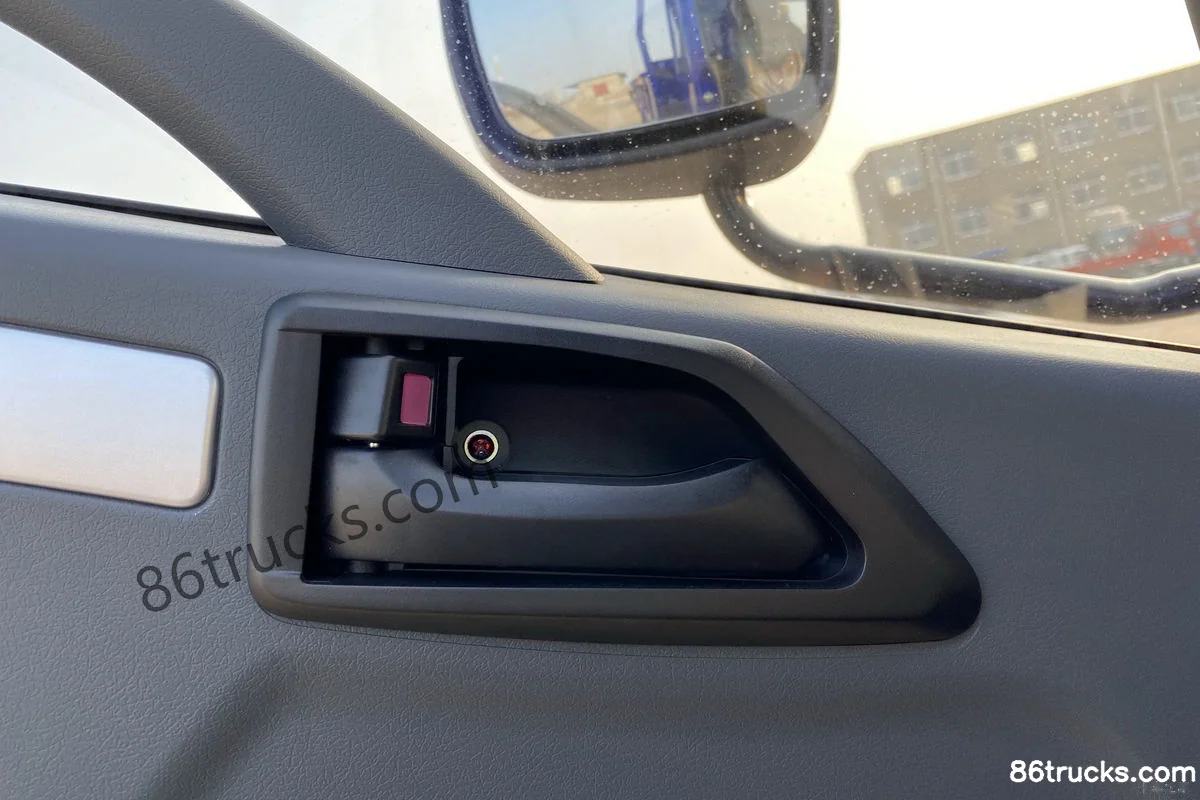

Cab3

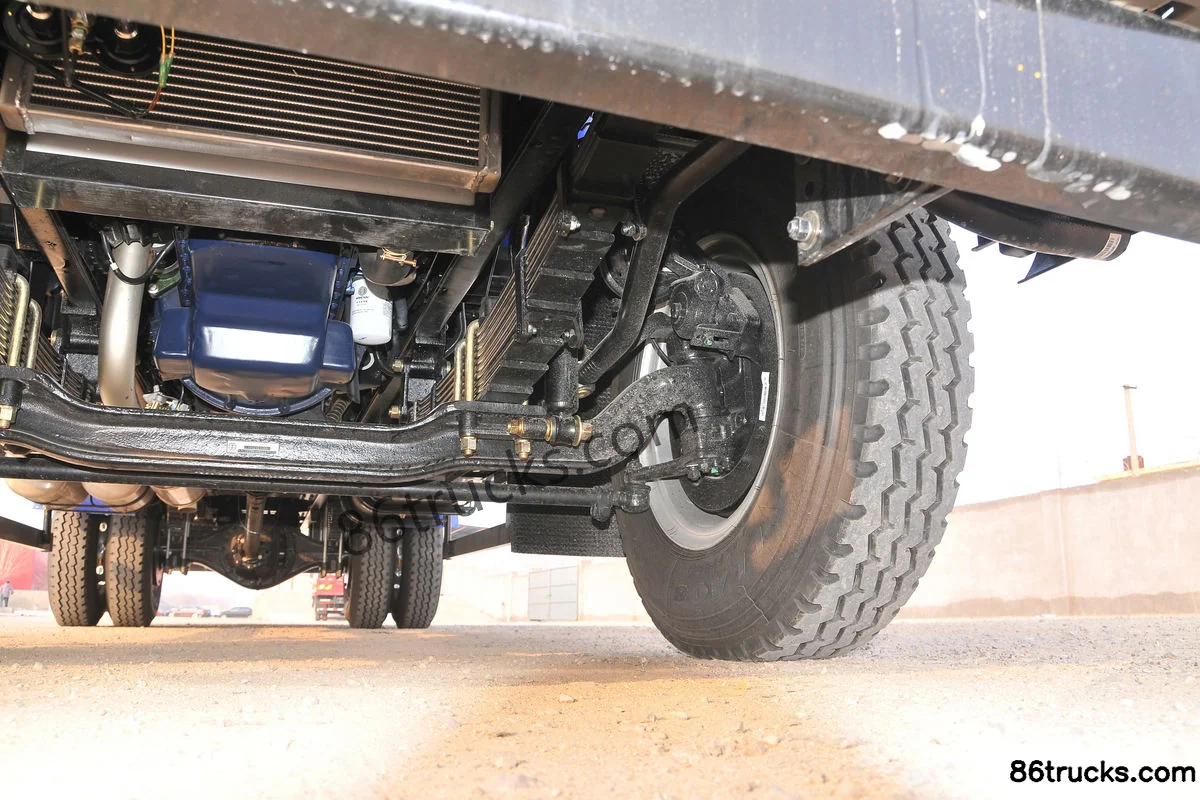

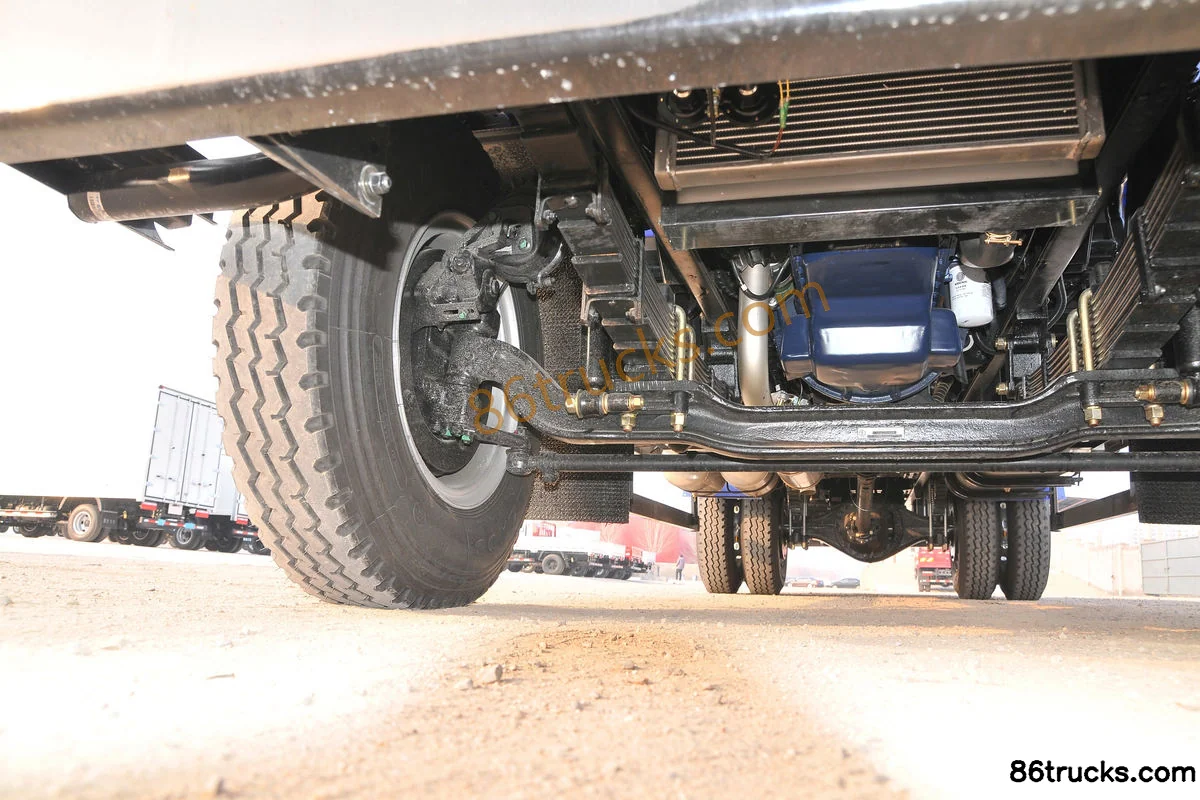

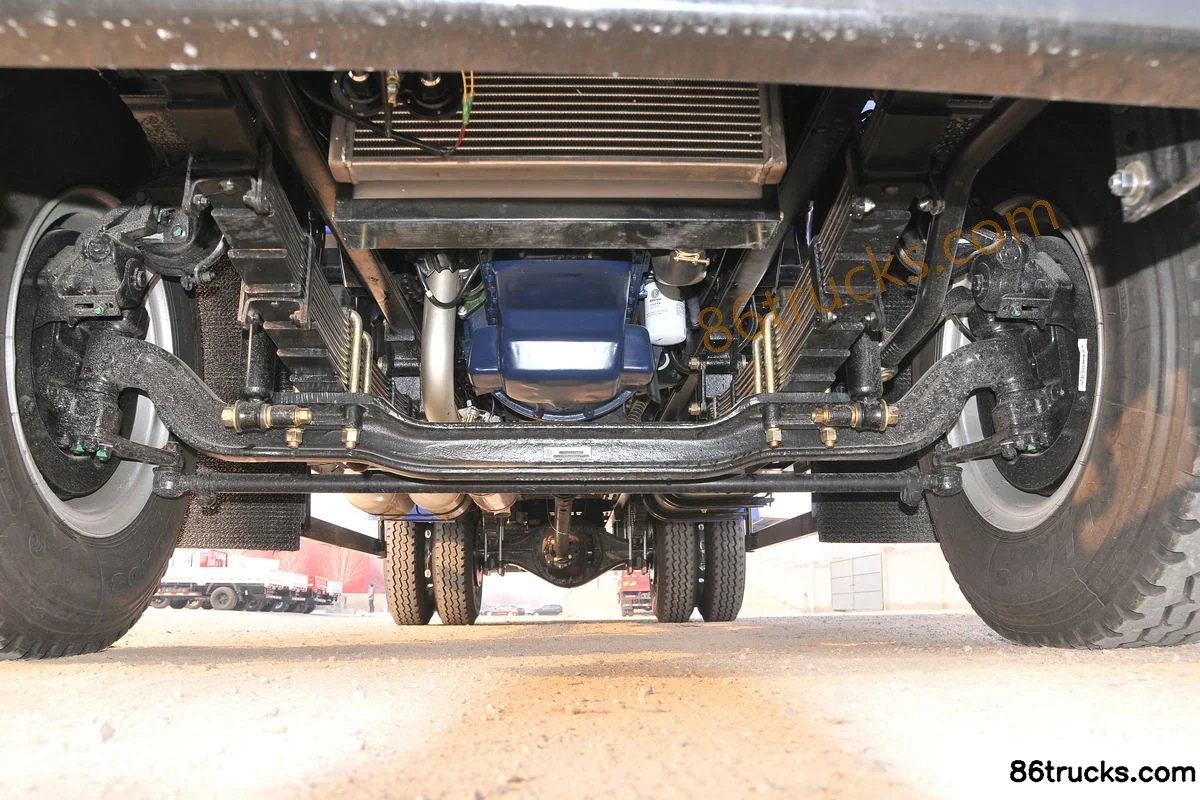

Chassis3

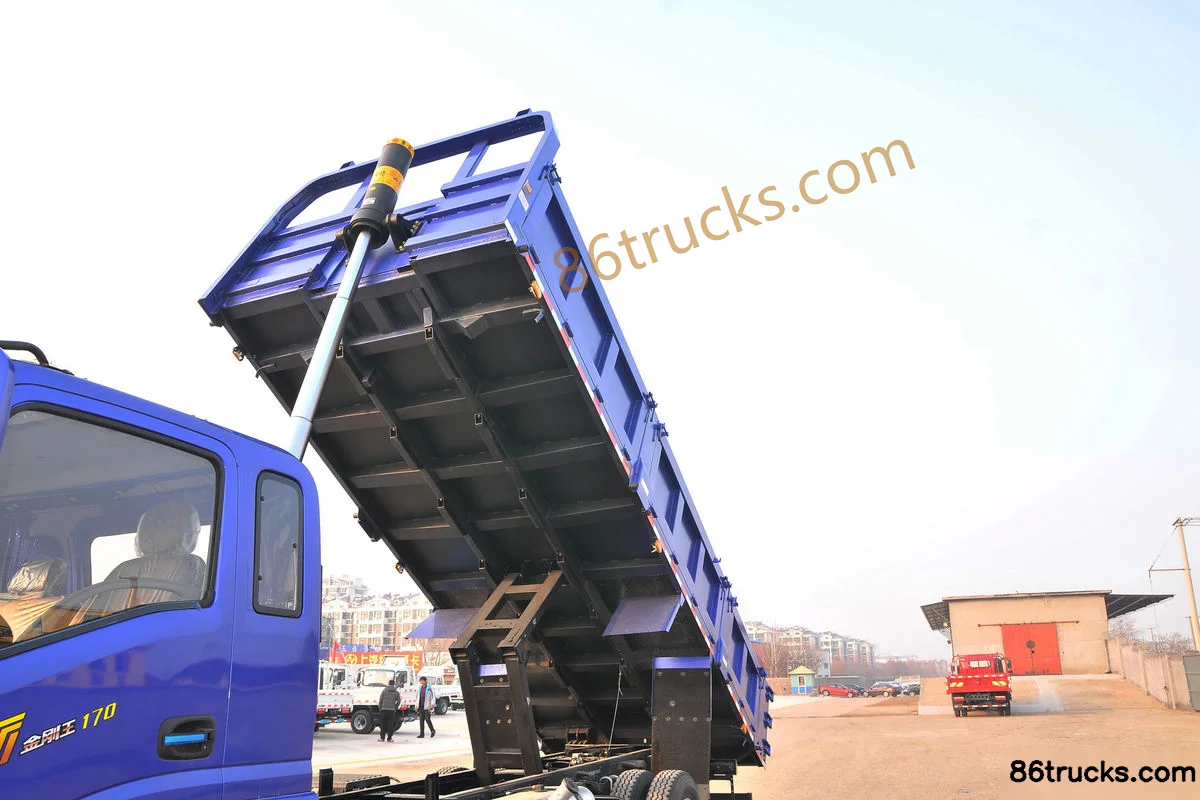

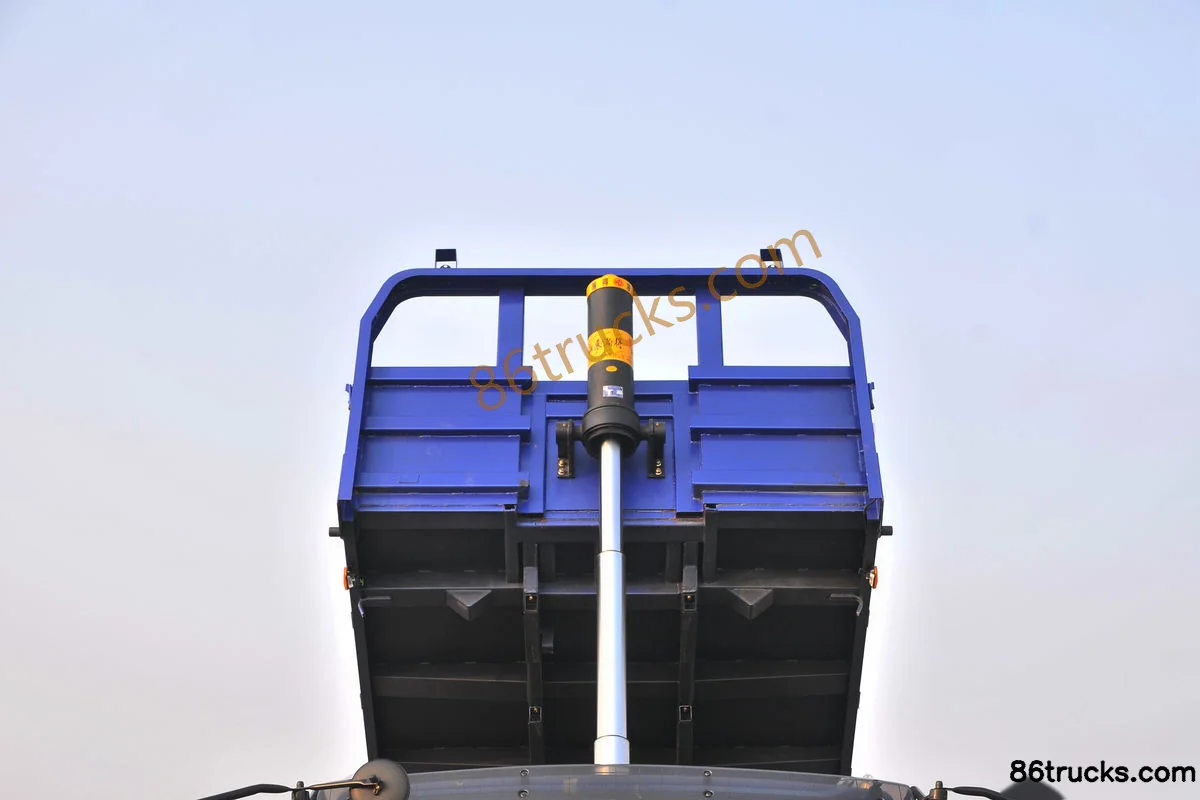

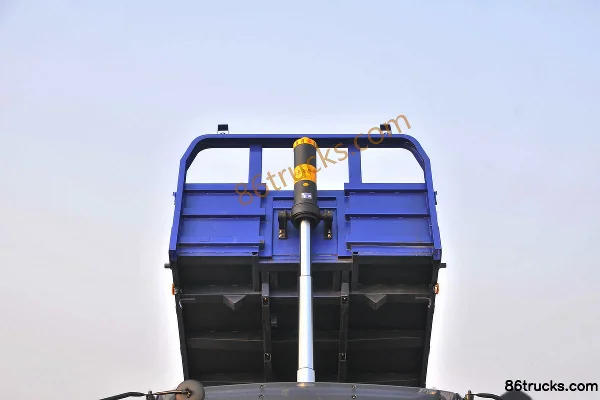

Body3

12 photos

FAQ

What is the export price of Tangjun Ouling T6 Series 140hp 4X2(6 wheels) 5.3m dump truck, and what does it include?

Tangjun Ouling T6 Series 140hp 4X2(6 wheels) 5.3m dump truck export reference is about From $22,611; MSRP is ¥16.28M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Tangjun Ouling T6 Series 140hp 4X2(6 wheels) 5.3m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Tangjun Ouling T6 Series 140hp 4X2(6 wheels) 5.3m dump truck?

Key specs of Tangjun Ouling T6 Series 140hp 4X2(6 wheels) 5.3m dump truck: Drive: 4x2; Horsepower: 140 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Tangjun Ouling T6 Series 140hp 4X2(6 wheels) 5.3m dump truck suited for?

Tangjun Ouling T6 Series 140hp 4X2(6 wheels) 5.3m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Tangjun Ouling T6 Series 140hp 4X2(6 wheels) 5.3m dump truck differ from other variants in the same series?

Tangjun Ouling T6 Series 140hp 4X2(6 wheels) 5.3m dump truck belongs to Tangjun T6 Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Tangjun Ouling T6 Series 140hp 4X2(6 wheels) 5.3m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Tangjun Ouling T6 Series 140hp 4X2(6 wheels) 5.3m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
