JAC Kaida G 95hp 4X2(6 wheels) 2.8m Dump Truck

Export reference
From $15,278
MSRP ¥11M CNY
Emission: China VI
Fuel: Diesel
Transmission: Mengwo
Curb Weight:: 2.6ton
Wheelbase:: 2550mm
Tire Size:: 185R15LT 8PR/245/70R17.5 18PR
Rated payload: 1.76ton
Drive 4X2 (6 wheels)
Horsepower 95
Cargo box length: 2.8m

Overview

The JAC Kaida G 95hp 4X2(6 wheels) 2.8m Dump Truck is a Light Truck featuring 1.76t payload, 4.49t GVW, 2.8m cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a QuanchaiQ23-95E60 engine, 95 hp, China VI emissions and Mengwo transmission.

China VI 95 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC3040PV4K1B3DS
Drive type: 4X2
Wheelbase: 2550mm
engine: QuanchaiQ23-95E60
transmission: MengwoMW5G28
Rear Axle Ratio: 4.875
Cab length: 4.995m
Cab width: 1.8m
Cab height: 2m
Front track width: 1400mm
rear track: 1380mm
Curb Weight: 2.6ton
Rated payload: 1.76ton
GVWR: 4.49ton
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 23°
departure angle: 24°
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiQ23-95E60
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.3L
Emission standard: China VI
Max output power: 70kW
Max hp: 95Horsepower
Max torque: 240N·m
Max torque speed: 2000rpm
Rated speed: 3000rpm
Transmission Parameters
Transmission Model: MengwoMW5G28
Transmission Brand: Mengwo
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box length: 2.8m
Cargo box width: 1.7m
Cargo box height: 0.4m
Cab parameters
Cab: Single Row
Cab width: 1626mm
seating capacity: 2Personnel
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 60L
Chassis Specs
Front axle allowable load: 1570kg
rear axle allowable load: 2920kg
Axle ratio: 4.875
Leaf spring count: 4/4+3
Tire
Tire Size: 185R15LT 8PR/245/70R17.5 18PR
Number of tires: 4pcs
Control configuration
ABS:

Photos

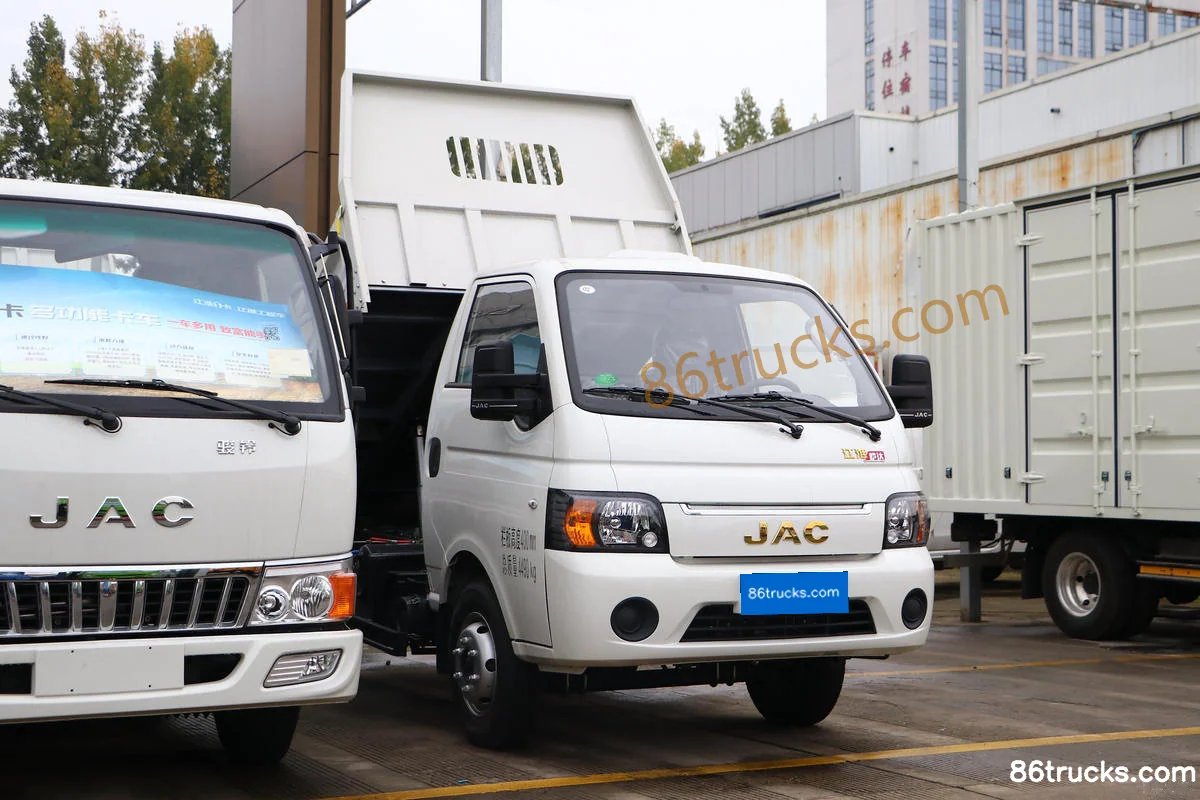

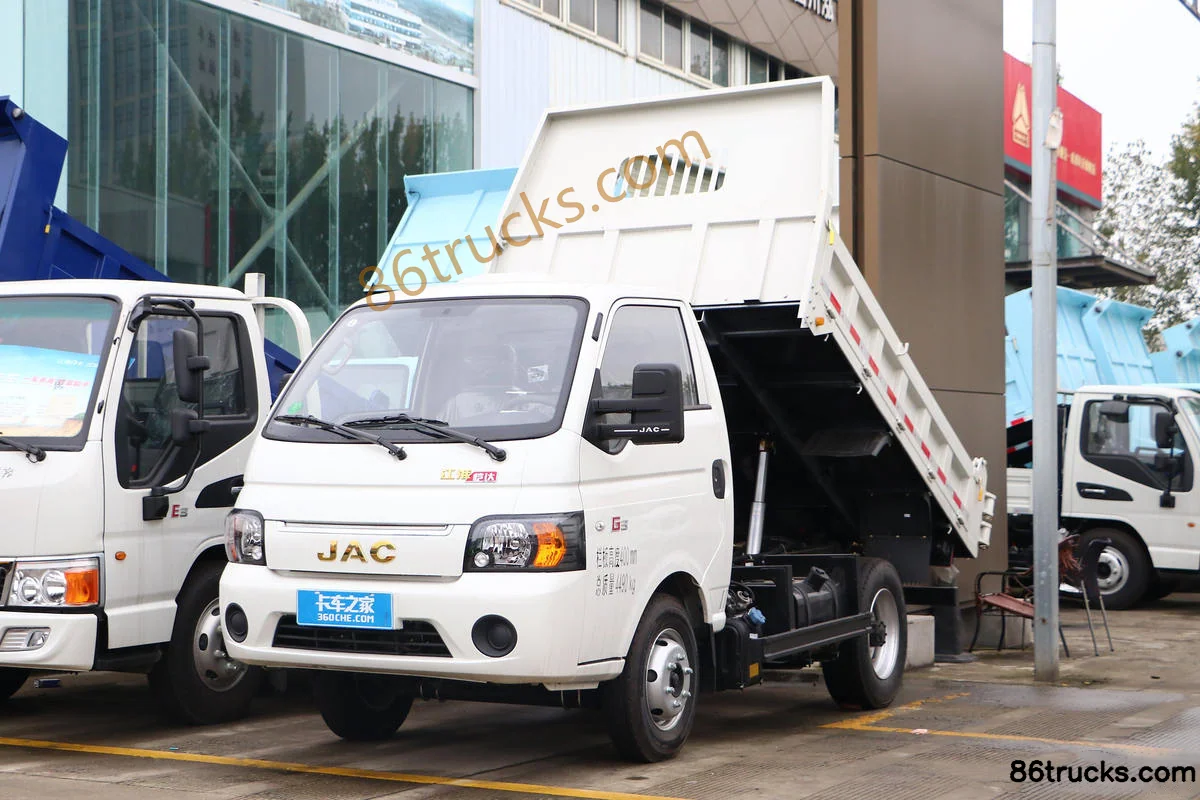

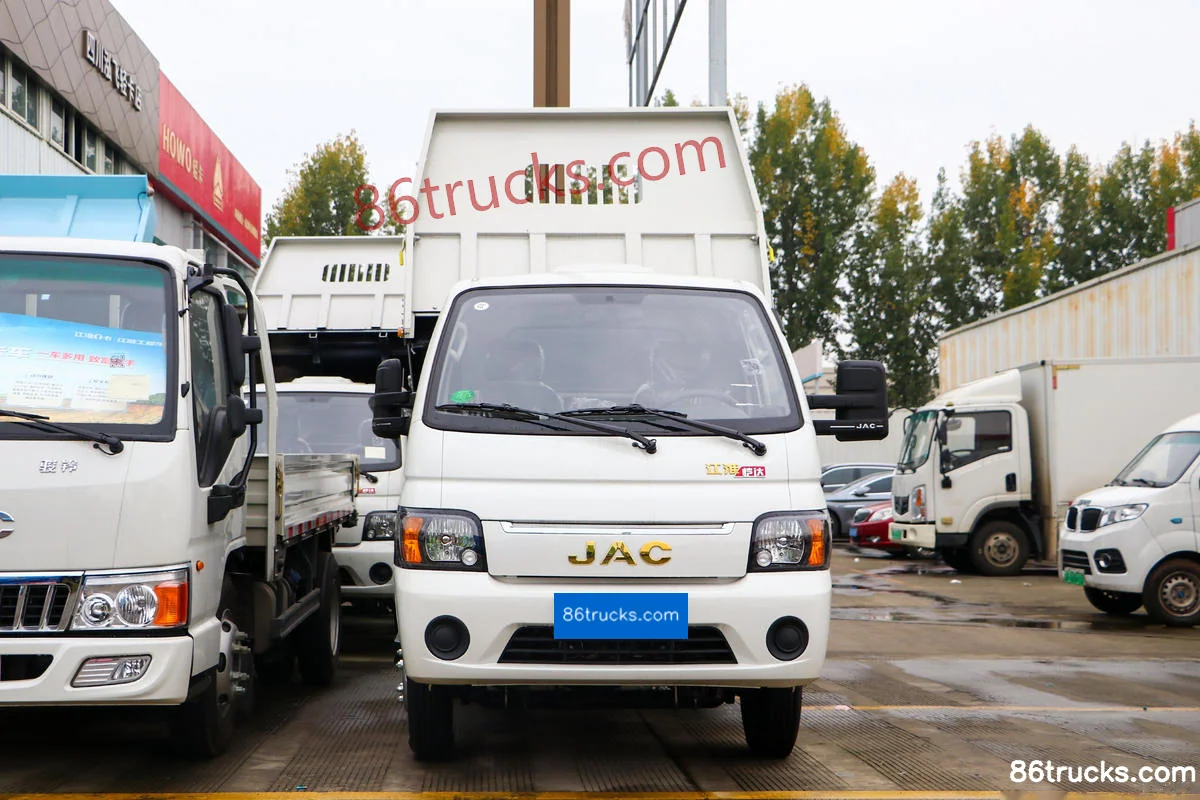

Exterior3

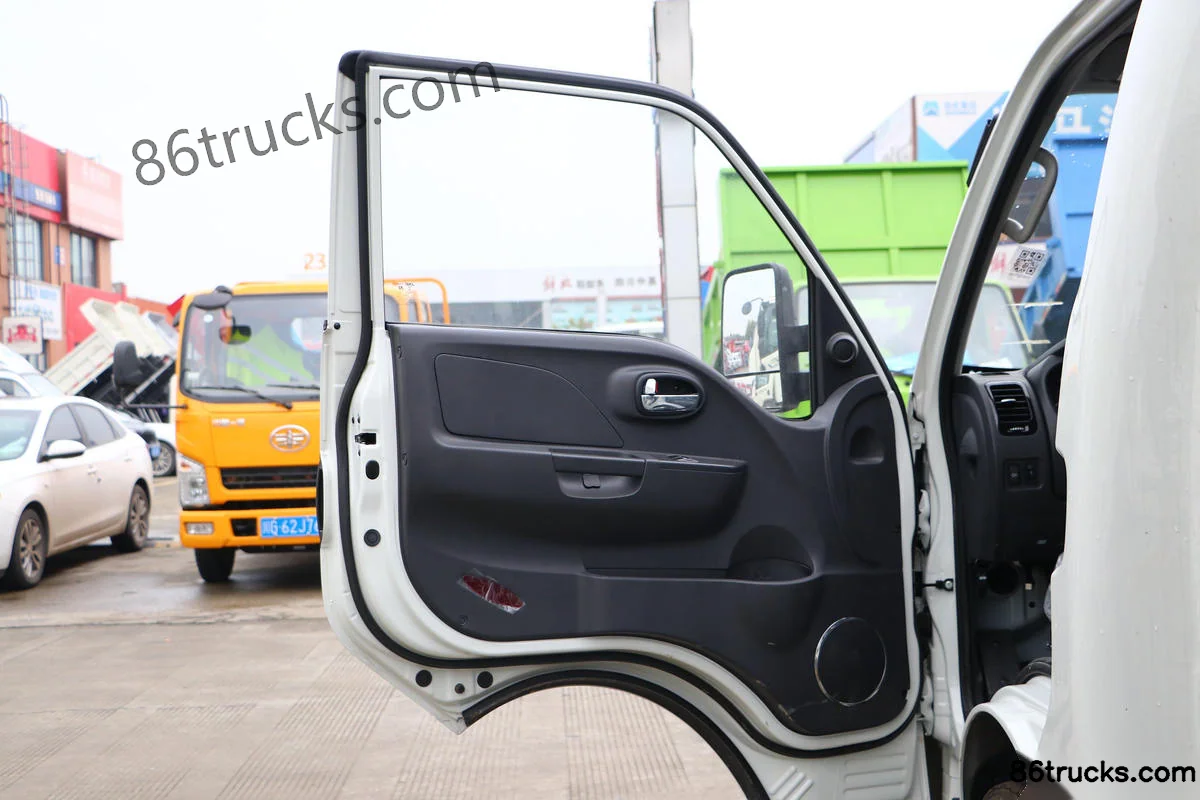

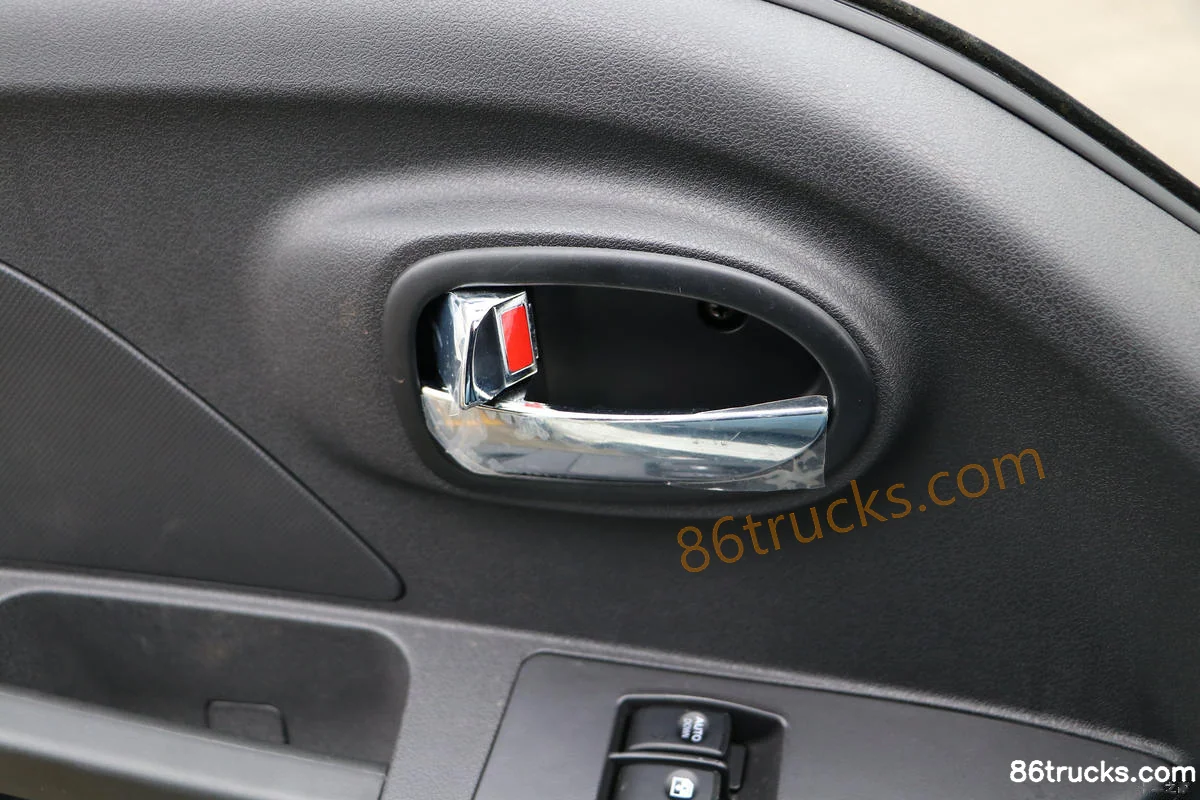

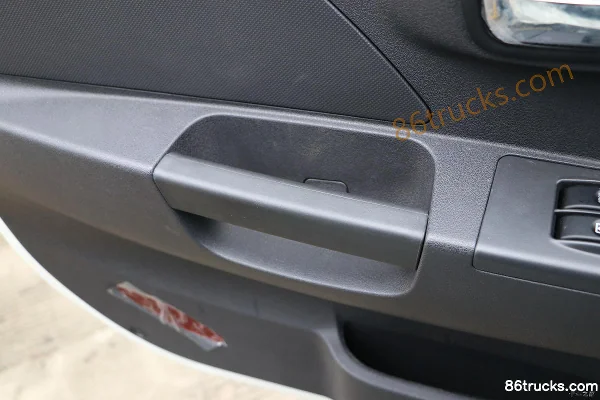

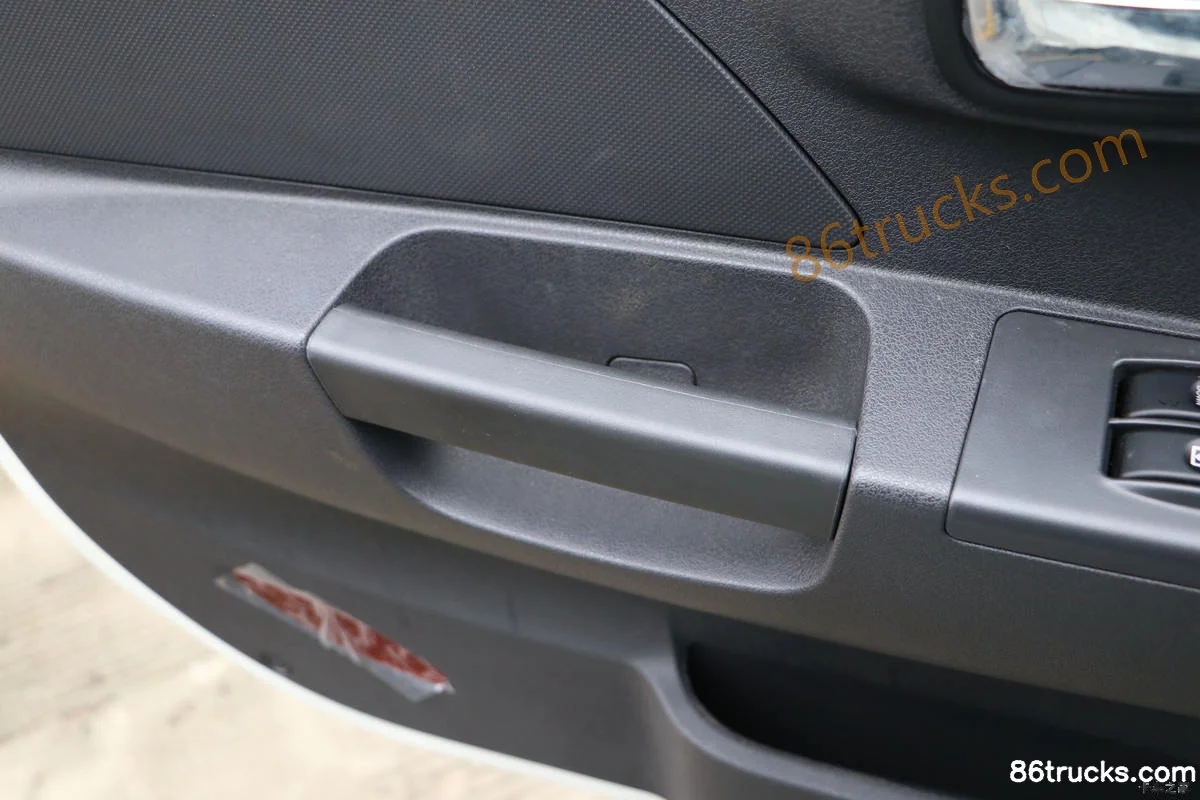

Cab3

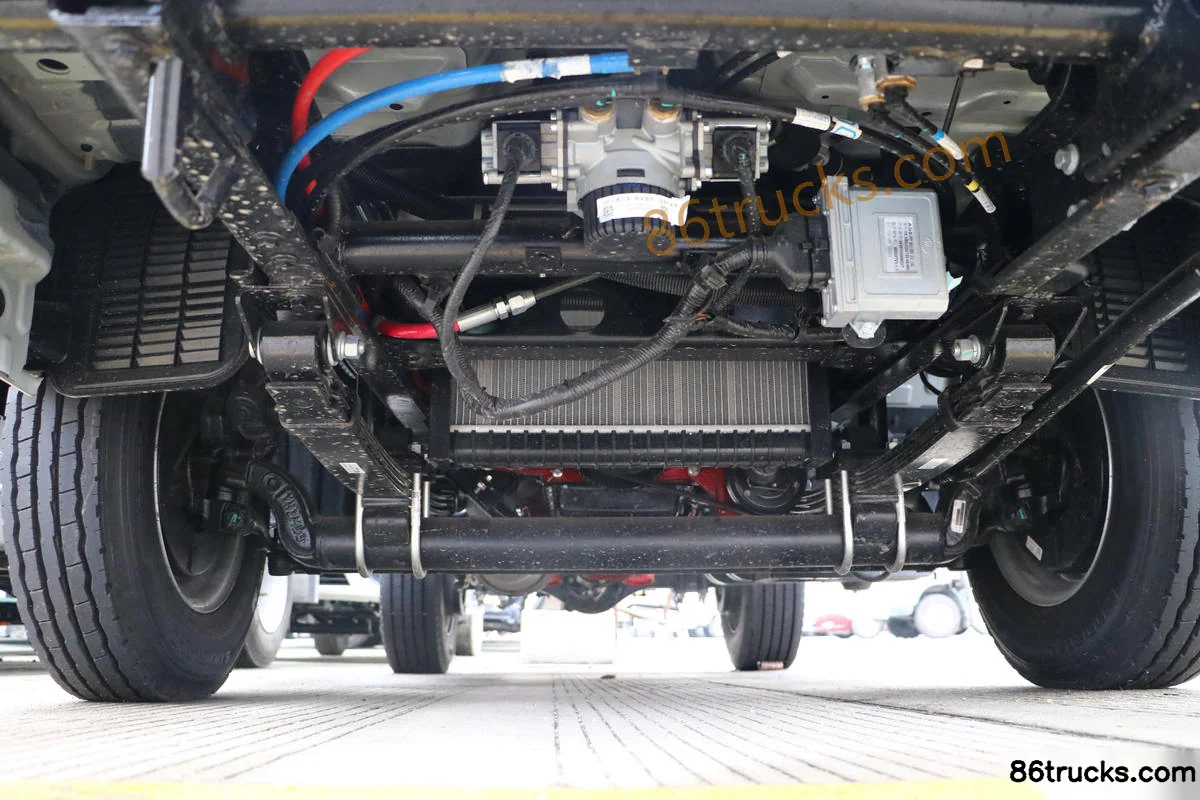

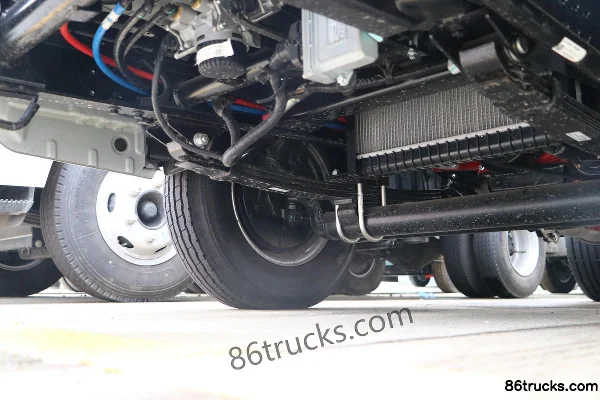

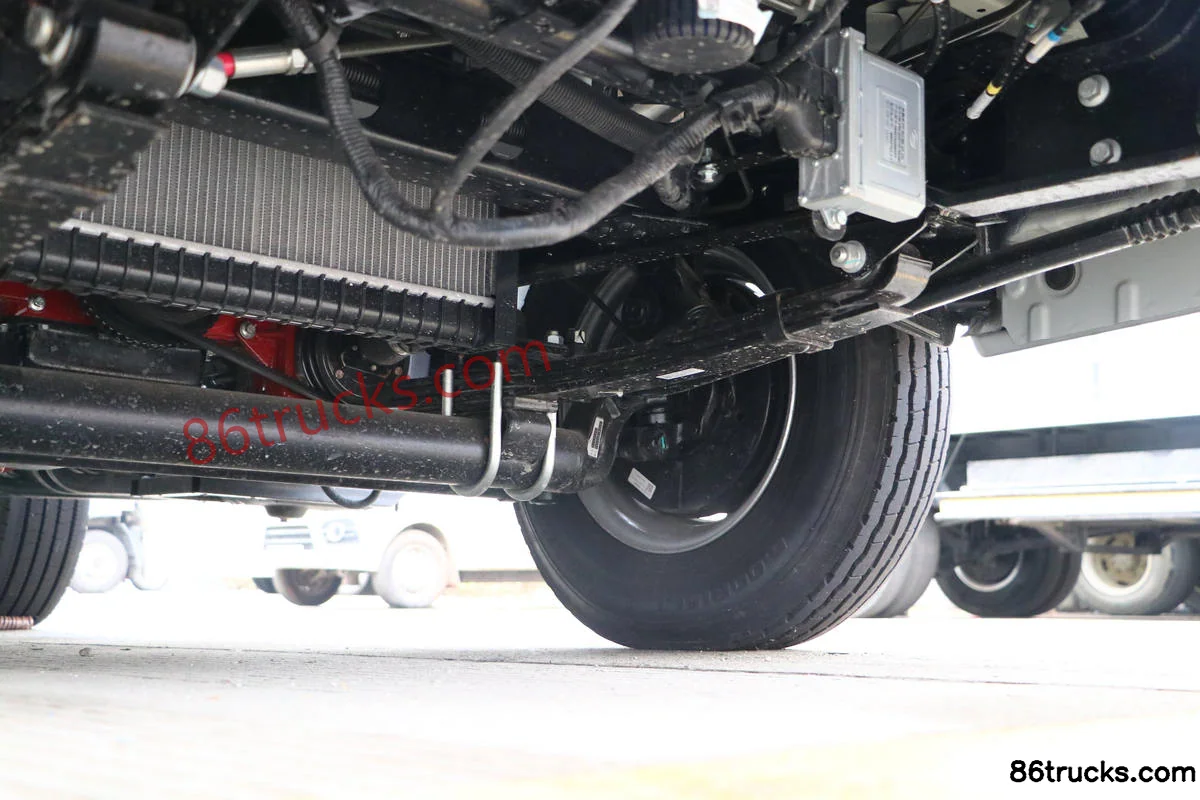

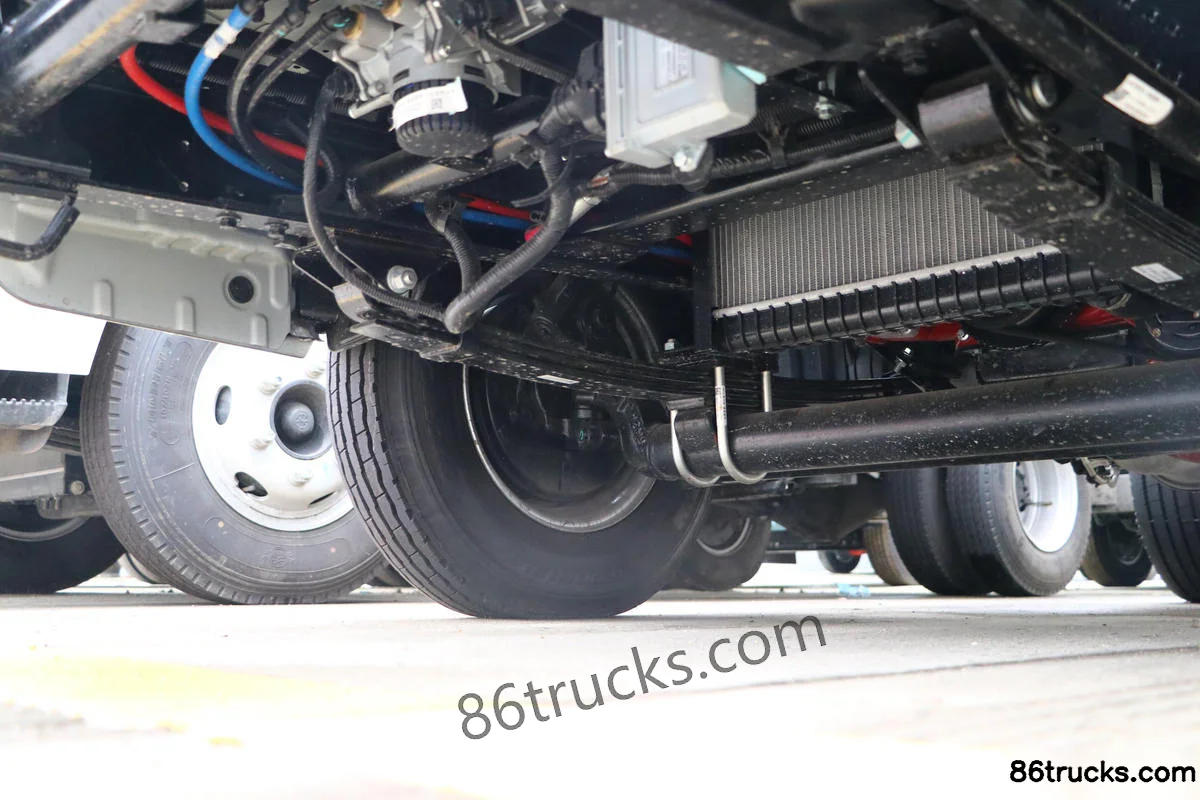

Chassis3

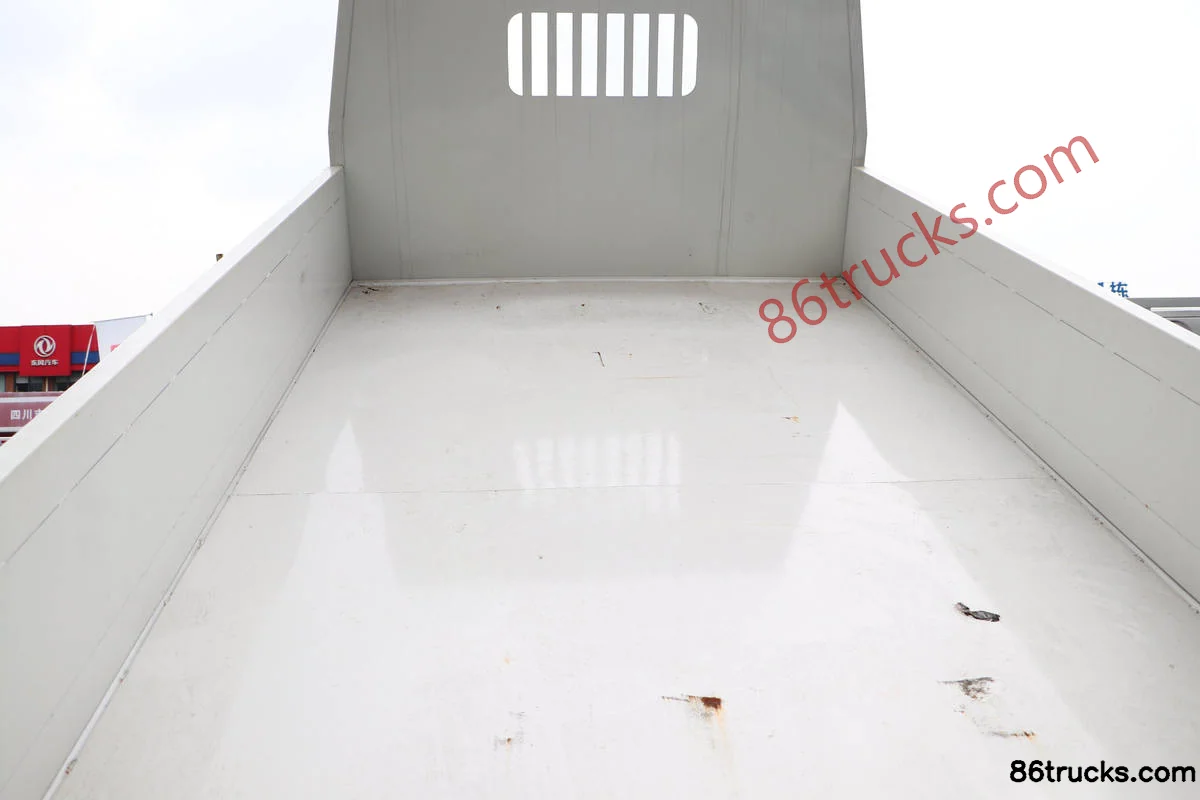

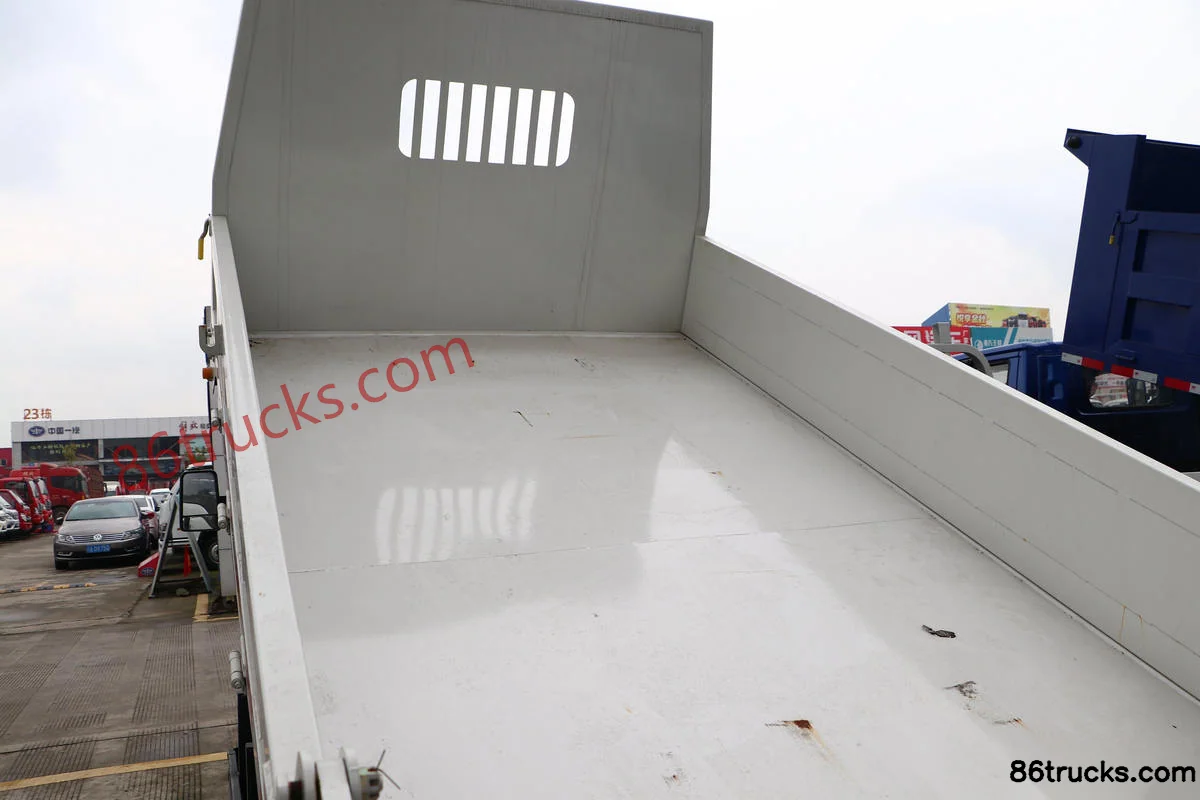

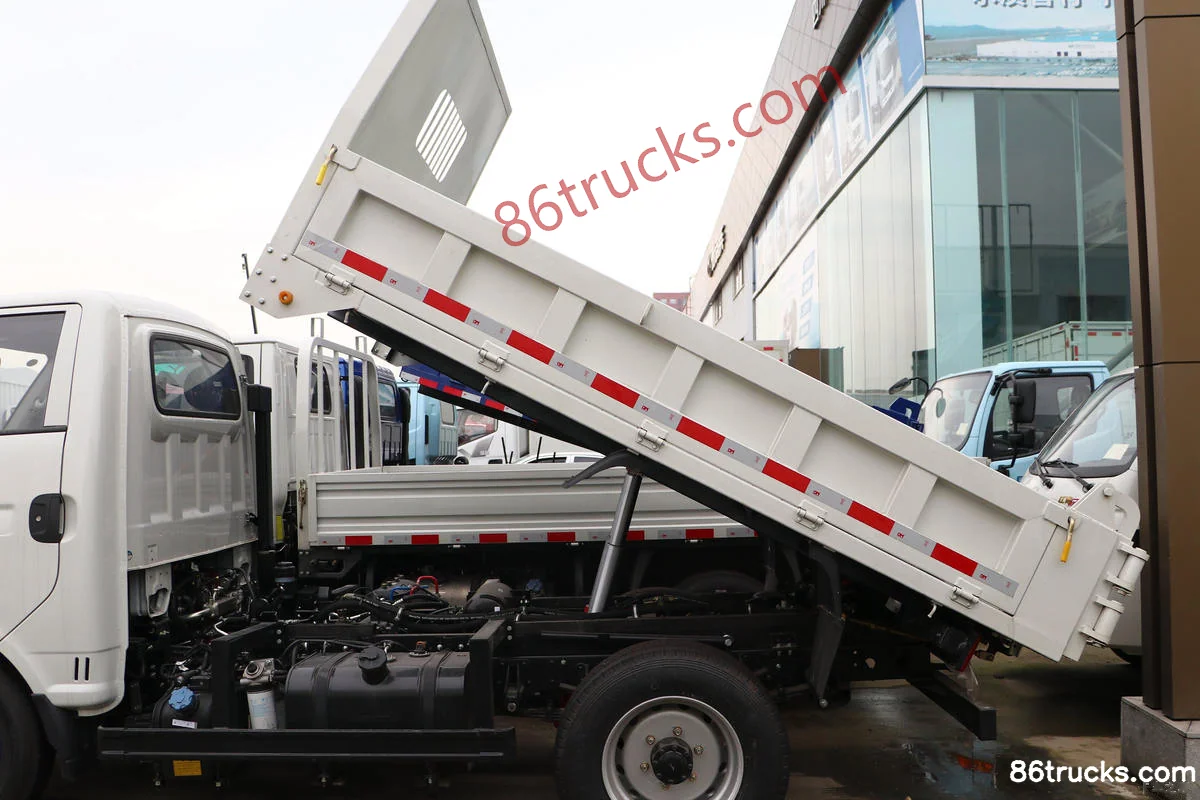

Body3

12 photos

FAQ

What is the export price of JAC Kaida G 95hp 4X2(6 wheels) 2.8m Dump Truck, and what does it include?

JAC Kaida G 95hp 4X2(6 wheels) 2.8m Dump Truck export reference is about From $15,278; MSRP is ¥11M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Kaida G 95hp 4X2(6 wheels) 2.8m Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Kaida G 95hp 4X2(6 wheels) 2.8m Dump Truck?

Key specs of JAC Kaida G 95hp 4X2(6 wheels) 2.8m Dump Truck: Drive: 4x2; Horsepower: 95 hp; Emission: China VI; Fuel: Diesel; Transmission: Mengwo. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kaida G 95hp 4X2(6 wheels) 2.8m Dump Truck suited for?

JAC Kaida G 95hp 4X2(6 wheels) 2.8m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JAC Kaida G 95hp 4X2(6 wheels) 2.8m Dump Truck differ from other variants in the same series?

JAC Kaida G 95hp 4X2(6 wheels) 2.8m Dump Truck belongs to JACG Mini Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kaida G 95hp 4X2(6 wheels) 2.8m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kaida G 95hp 4X2(6 wheels) 2.8m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
