SAIC Hongyan Jiehu H6 8X4(12 wheels) 7.8m Battery Swap Electric Dump Truck 282kWh

Export reference
MSRP N/A
Rated payload:: 11.27ton
Transmission: Fast GearFast Gear
Wheelbase:: 2000+4600+1400mm
Cargo box type:: Dump type
Model code (announced):: CQ3310BEVES486
Cab length:: 11.91m
Drive 8X4 (12 wheels)
CLTC range: 188km
Motor 1 Model: TZ400XSTPG04
Curb Weight: 19.6ton

Overview

The SAIC Hongyan Jiehu H6 8X4(12 wheels) 7.8m Battery Swap Electric Dump Truck 282kWh is a Heavy truck featuring 188km battery/range, TZ400XSTPG04 motor, 8X4 (12 wheels) drive and 11.27t payload. On the powertrain side, it comes with Fast GearFast Gear transmission.

8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CQ3310BEVES486
Drive type: 8X4
Wheelbase: 2000+4600+1400mm
Cab length: 11.91m
Cab width: 2.55m
Cab height: 3.42m
CLTC range: 188km
Curb Weight: 19.6ton
Rated payload: 11.27ton
GVWR: 31ton
Max. speed: 85km/h
Origin: Chongqing
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Model: TZ400XSTPG04
total rated power: 250kW
Peak power: 360kW
total rated torque: 1600N·m
total peak torque: 2500N·m
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 282kWh
Energy Density: 155
Transmission Parameters
Number of gears: 6Gear
Transmission Model: Fast GearFast Gear 6E240
Transmission Brand: Fast GearFast Gear
Forward gears: 6Gear
Cargo box parameters
Cargo box type: Dump type
Cargo box length: 7.8m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: 2.3m, flat roof, long cab
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: HDZ300
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

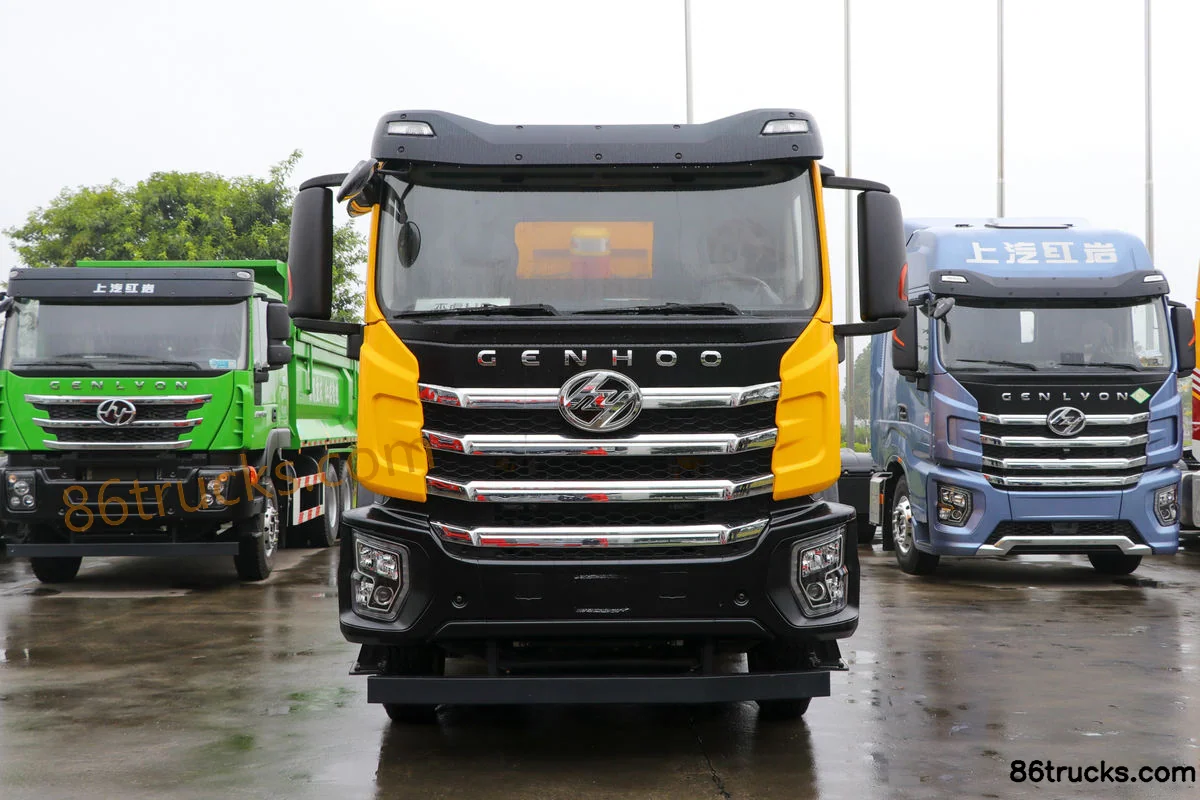

Exterior1

1 photos

FAQ

What are the key specs of SAIC Hongyan Jiehu H6 8X4(12 wheels) 7.8m Battery Swap Electric Dump Truck 282kWh?

Key specs of SAIC Hongyan Jiehu H6 8X4(12 wheels) 7.8m Battery Swap Electric Dump Truck 282kWh: Drive: 8x4; Transmission: Fast GearFast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SAIC Hongyan Jiehu H6 8X4(12 wheels) 7.8m Battery Swap Electric Dump Truck 282kWh suited for?

SAIC Hongyan Jiehu H6 8X4(12 wheels) 7.8m Battery Swap Electric Dump Truck 282kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SAIC Hongyan Jiehu H6 8X4(12 wheels) 7.8m Battery Swap Electric Dump Truck 282kWh differ from other variants in the same series?

SAIC Hongyan Jiehu H6 8X4(12 wheels) 7.8m Battery Swap Electric Dump Truck 282kWh belongs to SAIC Hongyan Genho Heavy Truck (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC Hongyan Jiehu H6 8X4(12 wheels) 7.8m Battery Swap Electric Dump Truck 282kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC Hongyan Jiehu H6 8X4(12 wheels) 7.8m Battery Swap Electric Dump Truck 282kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
