Foton Xiaoyun L2 110hp 4X2(6 wheels) 4.15m Single Row Dump Truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 2.72ton
Wheelbase:: 3360mm
Tire Size:: 7.00R16
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 110
Cargo box type: Dump type

Overview

The Foton Xiaoyun L2 110hp 4X2(6 wheels) 4.15m Single Row Dump Truck is a Light Truck featuring 1.645t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Foton4J28TC engine, 110 hp, China IV emissions and Fast Gear transmission.

China IV 110 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ3045D9JDA-1
Drive type: 4X2
Wheelbase: 3360mm
engine: Foton4J28TC
transmission: Fast Gear6J36CT
Rear Axle Ratio: 5.375
Cab length: 5.995m
Cab width: 2.09m
Cab height: 2.36m
Front track width: 1530mm
rear track: 1500mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Shandong Zhucheng
tonnage class: Light Truck
Approach angle: 17°
departure angle: 15°
Remarks: Spare tire
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: Foton4J28TC
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.771L
Emission standard: China IV
Max output power: 81kW
Max hp: 110Horsepower
Max torque: 280N·m
Max torque speed: 1700-2300rpm
Rated speed: 3600rpm
Engine Type: Inline, vertical, water-cooled
Transmission Parameters
Transmission Model: Fast Gear6J36CT
Transmission Brand: Fast Gear
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.15m
Cargo box width: 1.9m
Cargo box height: 0.4m
Cab parameters
Driver seat type: air suspension seat
Chassis Specs
Frame Dimensions: Riveted 192×65×6/800mm
rear axle description: 1046
rear axle allowable load: 2695kg
Axle ratio: 5.375
Leaf spring count: 3/6+6
Tire
Tire Size: 7.00R16
Number of tires: 6pcs
interior configuration
Power Windows:
Service brake
Parking brake: Spring brake

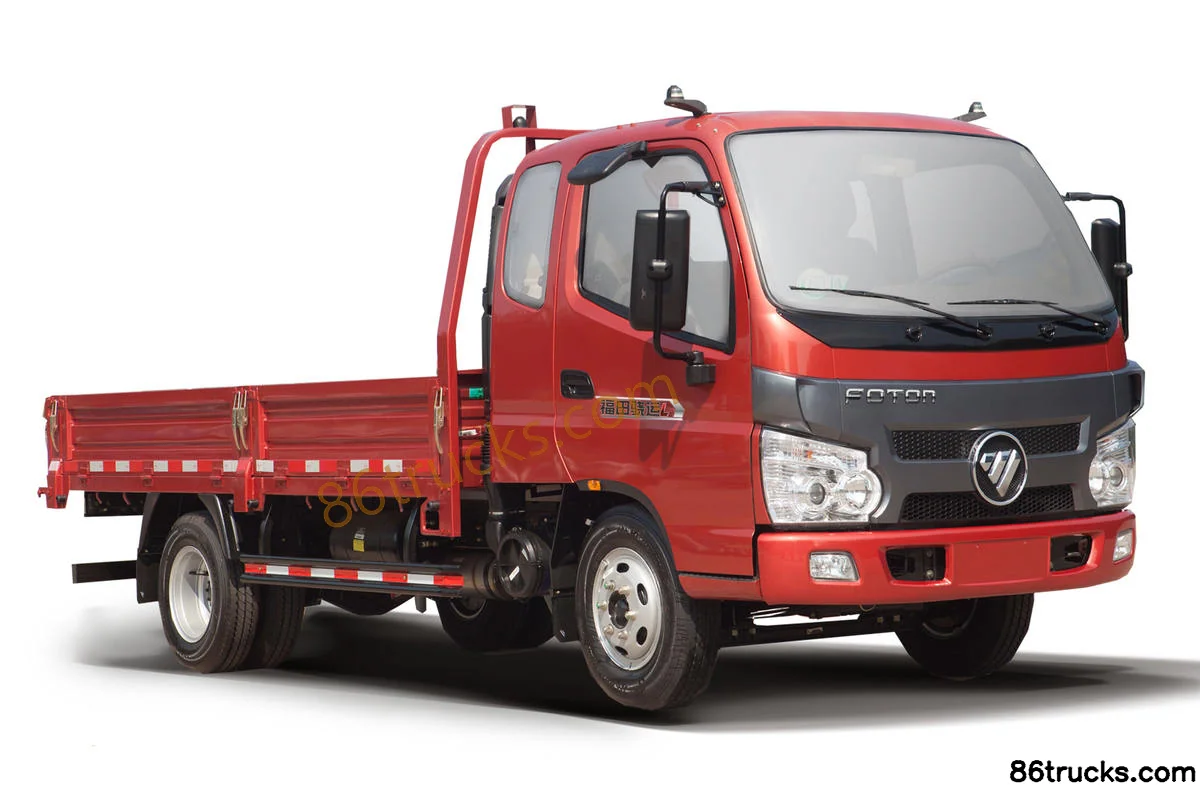

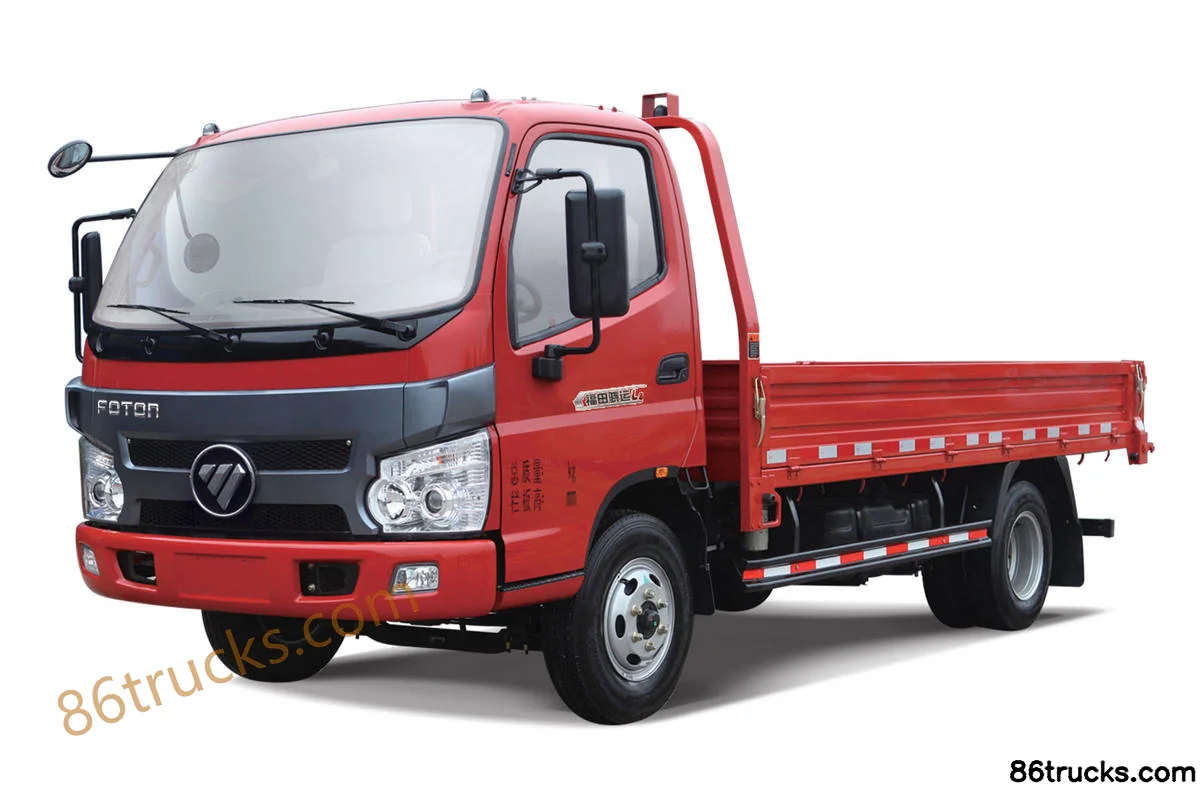

Photos

Exterior2

2 photos

FAQ

What emission standard does Foton Xiaoyun L2 110hp 4X2(6 wheels) 4.15m Single Row Dump Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Xiaoyun L2 110hp 4X2(6 wheels) 4.15m Single Row Dump Truck?

Key specs of Foton Xiaoyun L2 110hp 4X2(6 wheels) 4.15m Single Row Dump Truck: Drive: 4x2; Horsepower: 110 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Xiaoyun L2 110hp 4X2(6 wheels) 4.15m Single Row Dump Truck suited for?

Foton Xiaoyun L2 110hp 4X2(6 wheels) 4.15m Single Row Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton Xiaoyun L2 110hp 4X2(6 wheels) 4.15m Single Row Dump Truck differ from other variants in the same series?

Foton Xiaoyun L2 110hp 4X2(6 wheels) 4.15m Single Row Dump Truck belongs to Foton Xiaoyun Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Xiaoyun L2 110hp 4X2(6 wheels) 4.15m Single Row Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Xiaoyun L2 110hp 4X2(6 wheels) 4.15m Single Row Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
