Sinotruk Warrior M3 190 hp 4X4(6 wheels) Fast Gear 10-Speed 4m Clamshell Garbage Truck

Export reference
From $48,611
MSRP ¥35M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 9.2ton
Wheelbase:: 3650mm
Tire Size:: 10.00R20 18PR
Rated payload: 8.605ton
Drive 4X4 (6 wheels)
Horsepower 190
Cargo box length: 4m

Overview

The Sinotruk Warrior M3 190 hp 4X4(6 wheels) Fast Gear 10-Speed 4m Clamshell Garbage Truck is a Medium-duty truck featuring 8.605t payload, 18t GVW, 4m cargo body and 4X4 (6 wheels) drive. On the powertrain side, it comes with a WeichaiWP4.1NQ190E61 engine, 190 hp, China VI emissions and Fast Gear transmission.

China VI 190 Diesel 4X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ2188ZZDK27FB1
Drive type: 4X4
Wheelbase: 3650mm
engine: WeichaiWP4.1NQ190E61
transmission: Fast Gear10JS90-B
Rear Axle Ratio: 6.73
Cab length: 6.6m
Cab width: 2.545m
Cab height: 3.6m
Front track width: 1800mm
rear track: 1750mm
Curb Weight: 9.2ton
Rated payload: 8.605ton
GVWR: 18ton
Origin: Yong'an, Fujian
tonnage class: Medium-duty truck
Approach angle: 24°
departure angle: 18°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WP4.1NQ190E61
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.088L
Emission standard: China VI
Max output power: 140kW
Max hp: 190Horsepower
Max torque: 680N·m
Max torque speed: 1300-1900rpm
Rated speed: 2600rpm
Engine Type: High-pressure common rail, EGR+DOC+DPF+SCR
Transmission Parameters
Transmission Model: 10JS90-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 4m
Cargo box width: 2.2m
Cargo box height: 0.8m
Cab parameters
Cab width: 2080mm
seating capacity: 3Personnel
Chassis Specs
Front axle allowable load: 6500kg
rear axle allowable load: 11500kg
Axle ratio: 6.73
Leaf spring count: 9/11+8
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:

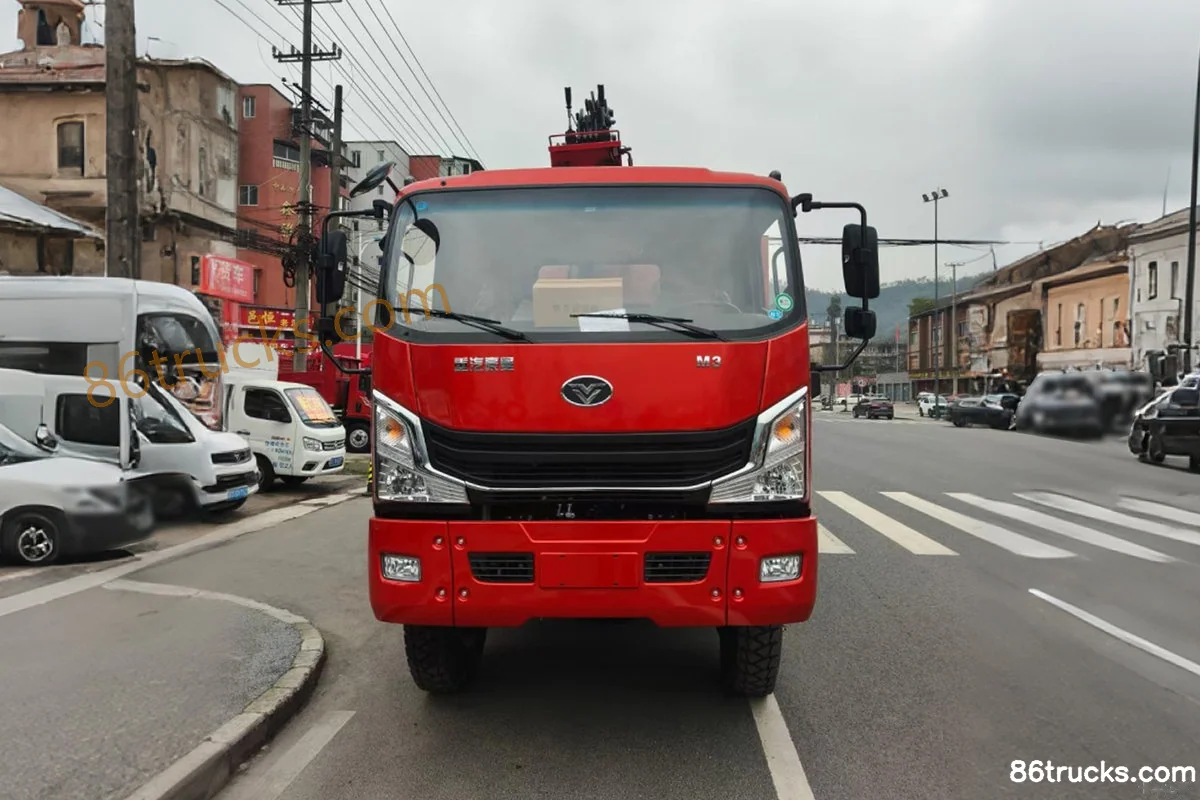

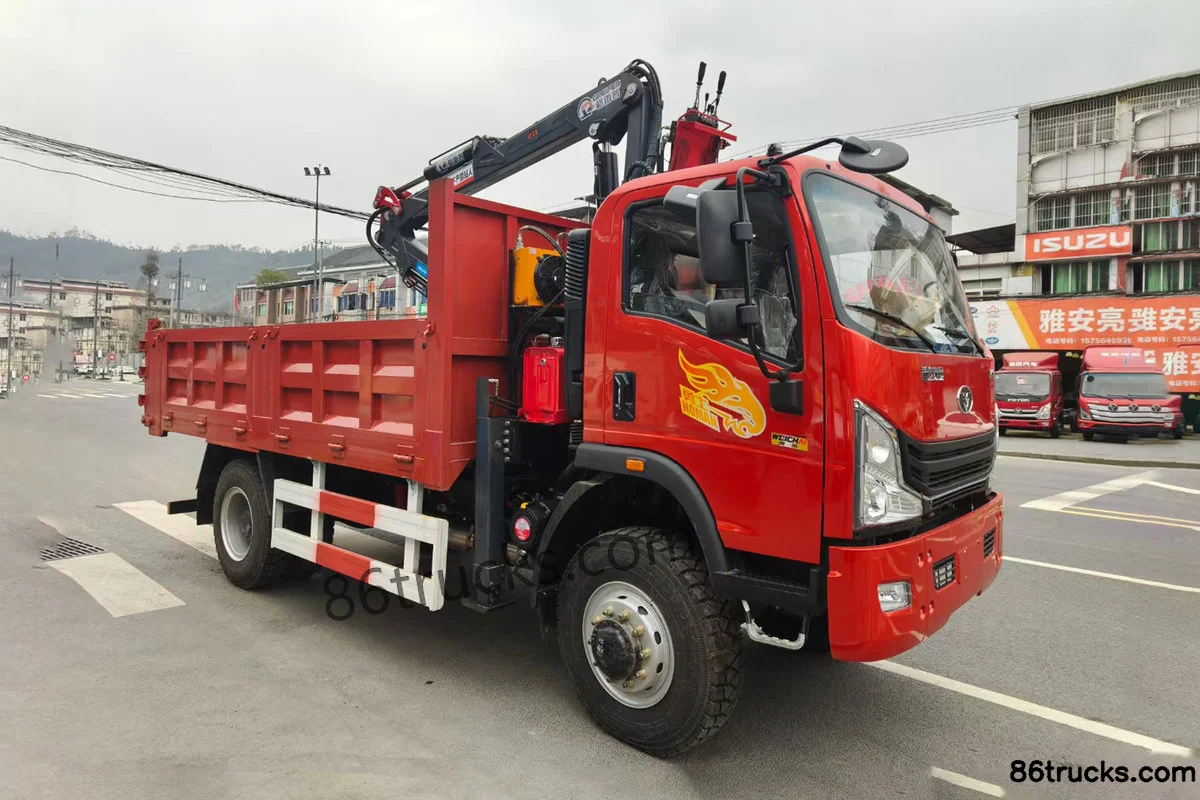

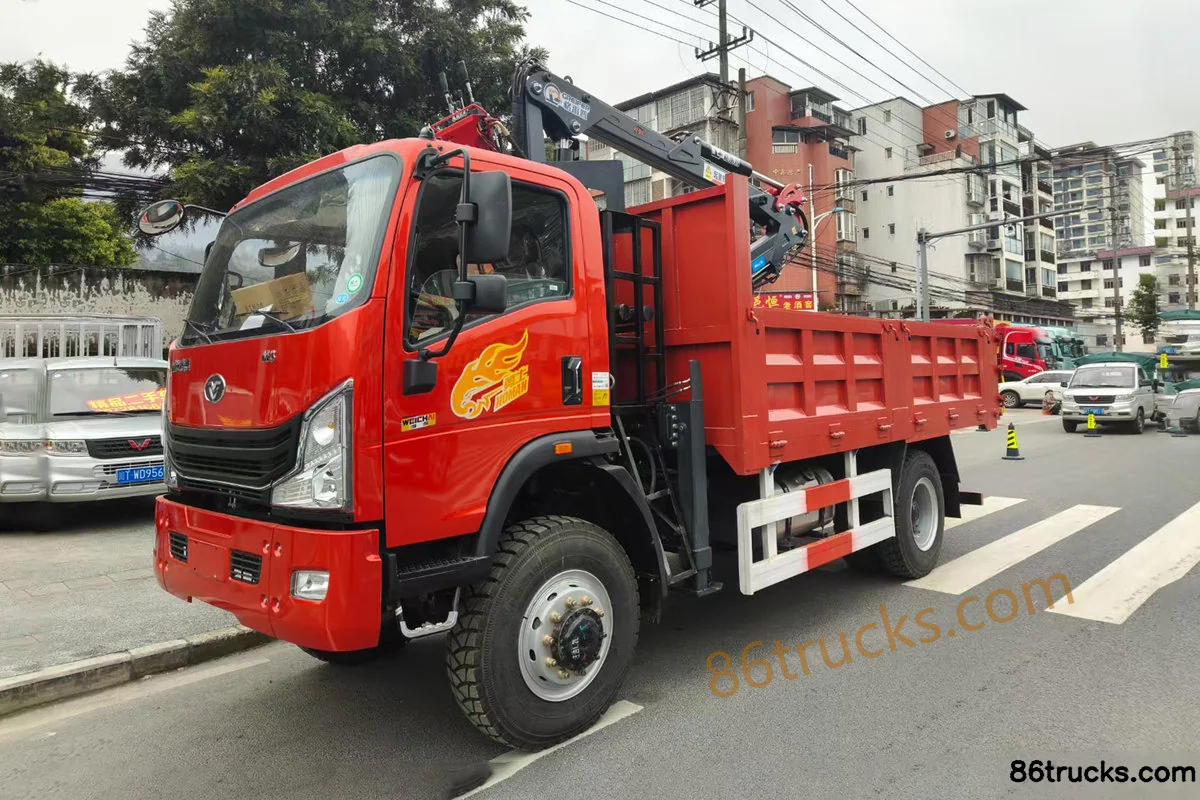

Photos

Exterior3

3 photos

FAQ

What is the export price of Sinotruk Warrior M3 190 hp 4X4(6 wheels) Fast Gear 10-Speed 4m Clamshell Garbage Truck, and what does it include?

Sinotruk Warrior M3 190 hp 4X4(6 wheels) Fast Gear 10-Speed 4m Clamshell Garbage Truck export reference is about From $48,611; MSRP is ¥35M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Warrior M3 190 hp 4X4(6 wheels) Fast Gear 10-Speed 4m Clamshell Garbage Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Warrior M3 190 hp 4X4(6 wheels) Fast Gear 10-Speed 4m Clamshell Garbage Truck?

Key specs of Sinotruk Warrior M3 190 hp 4X4(6 wheels) Fast Gear 10-Speed 4m Clamshell Garbage Truck: Drive: 4x4; Horsepower: 190 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Warrior M3 190 hp 4X4(6 wheels) Fast Gear 10-Speed 4m Clamshell Garbage Truck suited for?

Sinotruk Warrior M3 190 hp 4X4(6 wheels) Fast Gear 10-Speed 4m Clamshell Garbage Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Warrior M3 190 hp 4X4(6 wheels) Fast Gear 10-Speed 4m Clamshell Garbage Truck differ from other variants in the same series?

Sinotruk Warrior M3 190 hp 4X4(6 wheels) Fast Gear 10-Speed 4m Clamshell Garbage Truck belongs to Sinotruk Warrior M3 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Warrior M3 190 hp 4X4(6 wheels) Fast Gear 10-Speed 4m Clamshell Garbage Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Warrior M3 190 hp 4X4(6 wheels) Fast Gear 10-Speed 4m Clamshell Garbage Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
