Sinotruk V1 2.5L Diesel 160 hp 4X2(6 wheels) Fast Gear 8-speed 3.8m Single-row Dump Truck

Export reference
From $17,361
MSRP ¥12.5M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 4.5ton
Wheelbase:: 3200mm
Tire Size:: 265/70R19.5 16PR
Rated payload: 9.17ton
Drive 4X2 (6 wheels)
Horsepower 160
Cargo box length: 3.8m

Overview

The Sinotruk V1 2.5L Diesel 160 hp 4X2(6 wheels) Fast Gear 8-speed 3.8m Single-row Dump Truck is a Medium-duty truck featuring 9.17t payload, 13.8t GVW, 3.8m cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCF25160-66A engine, 160 hp, China VI emissions and Fast Gear transmission.

China VI 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW3144G321BFA
Drive type: 4X2
Wheelbase: 3200mm
engine: YuchaiYCF25160-66A
transmission: Fast Gear8J45T
Rear Axle Ratio: 5.286
Cab length: 5.925m
Cab width: 2.36m
Cab height: 2.58m
Front track width: 1650mm
rear track: 1580mm
Curb Weight: 4.5ton
Rated payload: 9.17ton
GVWR: 13.8ton
Origin: Chengdu, Sichuan
tonnage class: Medium-duty truck
Approach angle: 17°
departure angle: 17°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCF25160-66A
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.488L
Emission standard: China VI
Max output power: 116kW
Max hp: 160Horsepower
Transmission Parameters
Transmission Model: 8J45T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 3.8m
Cargo box width: 2.2m
Cargo box height: 0.6m
Cab parameters
seating capacity: 2Personnel
Chassis Specs
Front axle description: 2.4T
Front axle allowable load: 4850kg
rear axle description: 7.2T
rear axle allowable load: 8950kg
Axle ratio: 5.286
Leaf spring count: 5/7+5
Tire
Tire Size: 265/70R19.5 16PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
External audio input (AUX/USB/iPod etc.):
lighting configuration
Headlight height adjustment:
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

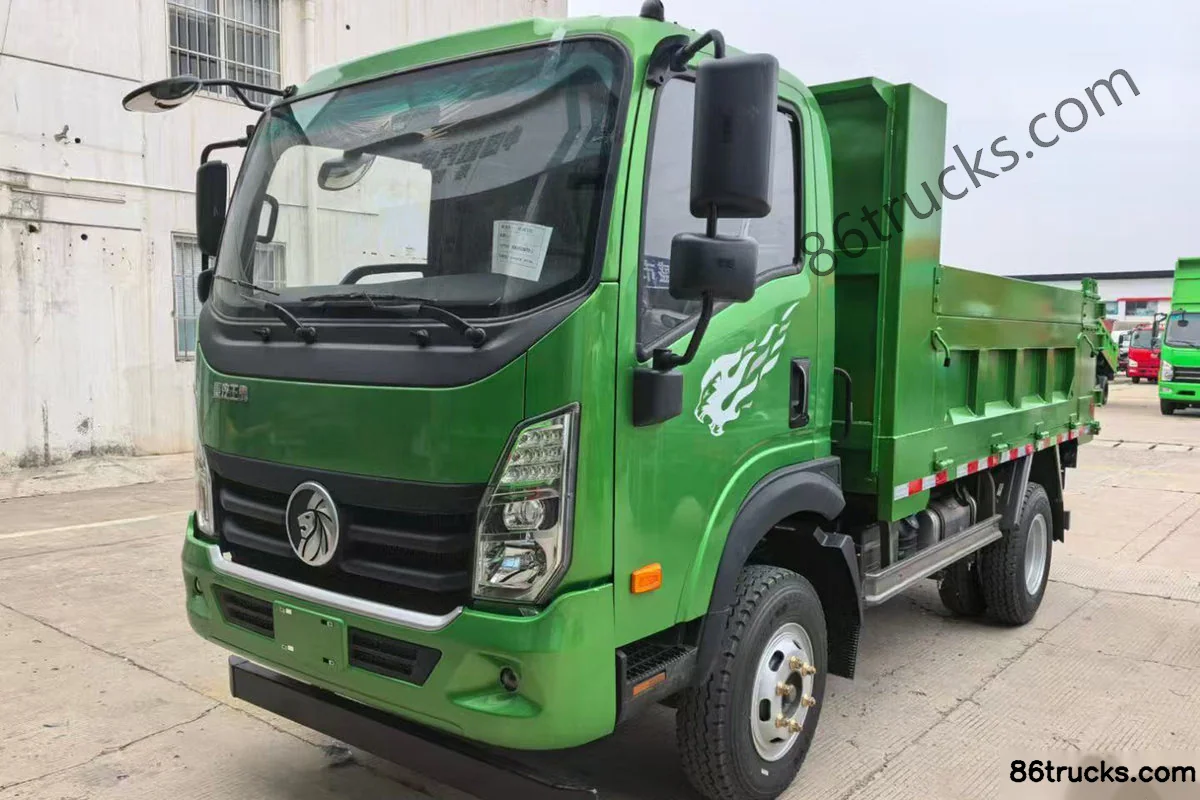

Exterior1

1 photos

FAQ

What is the export price of Sinotruk V1 2.5L Diesel 160 hp 4X2(6 wheels) Fast Gear 8-speed 3.8m Single-row Dump Truck, and what does it include?

Sinotruk V1 2.5L Diesel 160 hp 4X2(6 wheels) Fast Gear 8-speed 3.8m Single-row Dump Truck export reference is about From $17,361; MSRP is ¥12.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk V1 2.5L Diesel 160 hp 4X2(6 wheels) Fast Gear 8-speed 3.8m Single-row Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk V1 2.5L Diesel 160 hp 4X2(6 wheels) Fast Gear 8-speed 3.8m Single-row Dump Truck?

Key specs of Sinotruk V1 2.5L Diesel 160 hp 4X2(6 wheels) Fast Gear 8-speed 3.8m Single-row Dump Truck: Drive: 4x2; Horsepower: 160 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk V1 2.5L Diesel 160 hp 4X2(6 wheels) Fast Gear 8-speed 3.8m Single-row Dump Truck suited for?

Sinotruk V1 2.5L Diesel 160 hp 4X2(6 wheels) Fast Gear 8-speed 3.8m Single-row Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk V1 2.5L Diesel 160 hp 4X2(6 wheels) Fast Gear 8-speed 3.8m Single-row Dump Truck differ from other variants in the same series?

Sinotruk V1 2.5L Diesel 160 hp 4X2(6 wheels) Fast Gear 8-speed 3.8m Single-row Dump Truck belongs to SinotrukV1 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk V1 2.5L Diesel 160 hp 4X2(6 wheels) Fast Gear 8-speed 3.8m Single-row Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk V1 2.5L Diesel 160 hp 4X2(6 wheels) Fast Gear 8-speed 3.8m Single-row Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
