FAW Jiefang Hu VH King Edition 160hp 4X2(6 wheels) 4.15m dump truck

Export reference
From $21,806
MSRP ¥15.7M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 2.72ton
Wheelbase:: 3300mm
Tire Size:: 8.25R16 6PR
Rated payload: 1.58ton
Drive 4X2 (6 wheels)
Horsepower 160
Cargo box type: Dump type

Overview

The FAW Jiefang Hu VH King Edition 160hp 4X2(6 wheels) 4.15m dump truck is a Light Truck featuring 1.58t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a WeichaiWP4.1Q160E50 engine, 160 hp, China V emissions and Fast Gear transmission.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA3041P40K2L1E5A84
Drive type: 4X2
Wheelbase: 3300mm
engine: WeichaiWP4.1Q160E50
transmission: Fast Gear8JS75C
Rear Axle Ratio: 4.33
Cab length: 5.998m
Cab width: 2.42m
Cab height: 2.495m
Front track width: 1640,1665,1706,1730,1800mm
rear track: 1540,1600,1658,1740mm
Curb Weight: 2.72ton
Rated payload: 1.58ton
GVWR: 4.495ton
Origin: Qingdao, Shandong
tonnage class: Light Truck
Approach angle: 21°
departure angle: 17°
Remarks: Optional ratio 4.875
Version: King Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP4.1Q160E50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.088L
Emission standard: China V
Max output power: 115kW
Max hp: 160Horsepower
Max torque: 520N·m
Max torque speed: 1400-1800rpm
Rated speed: 2600rpm
Engine Type: Common Rail+SCR
Transmission Parameters
Transmission Model: Fast Gear8JS75C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.15m
Cargo box width: 2.3m
Cargo box height: 0.55m
Cab parameters
Cab: Hu VH flat roof single row cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 150L
Chassis Specs
Front axle allowable load: 1900kg
Frame Dimensions: 220*75*6mm
rear axle description: 1080 reinforced axle
rear axle allowable load: 2595kg
Axle ratio: 4.33
Leaf spring count: 7/10+3
Suspension (front/rear): leaf spring suspension

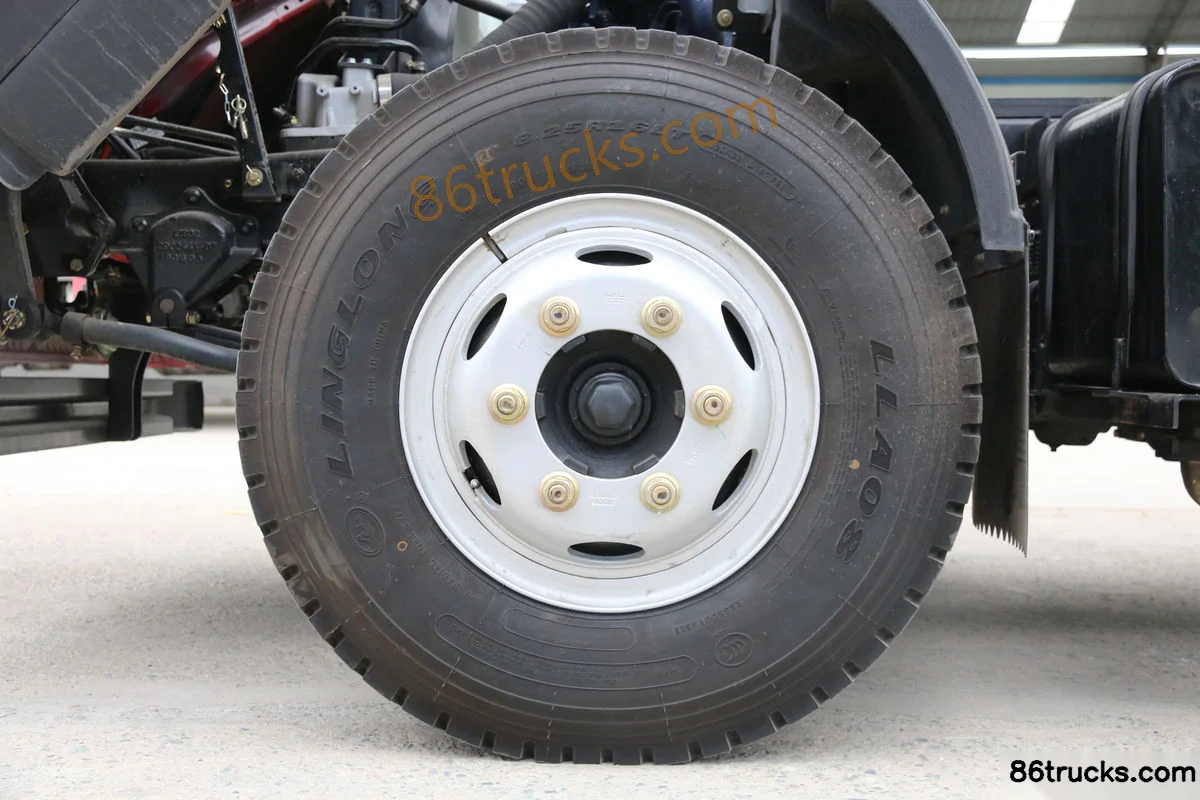

Tire
Tire Size: 8.25R16 6PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

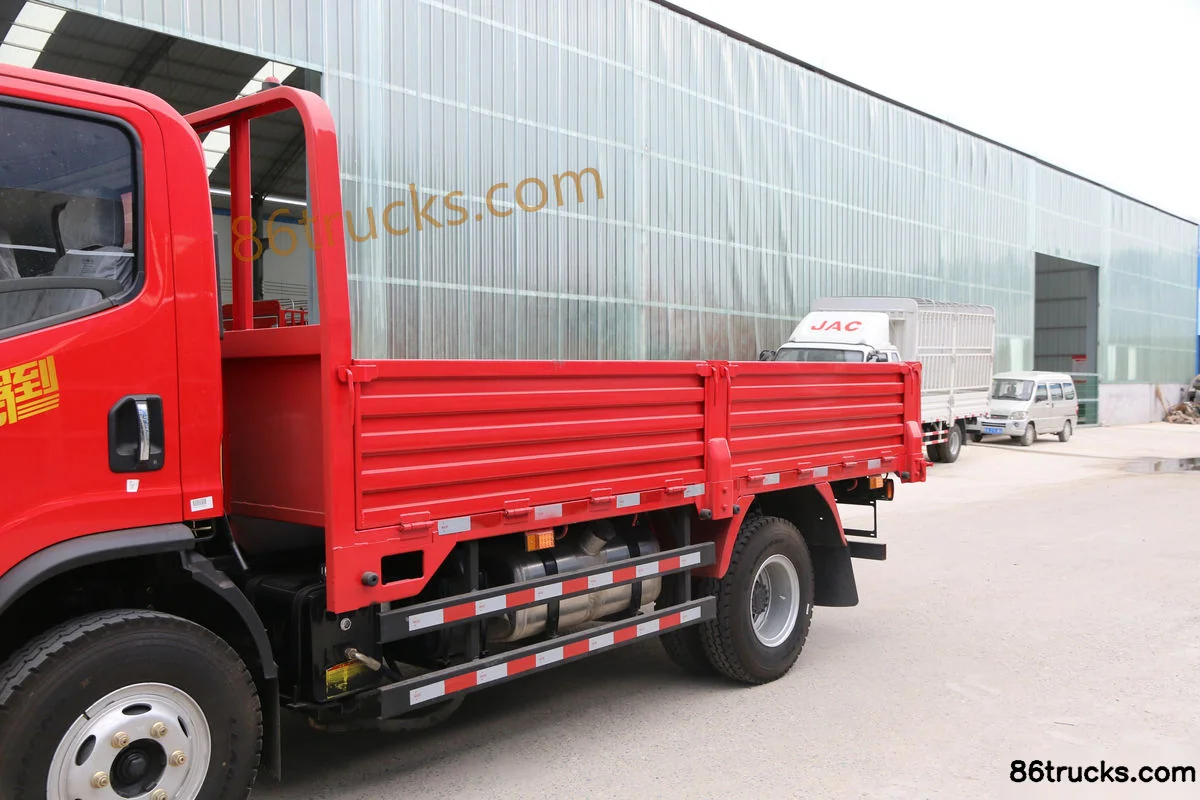

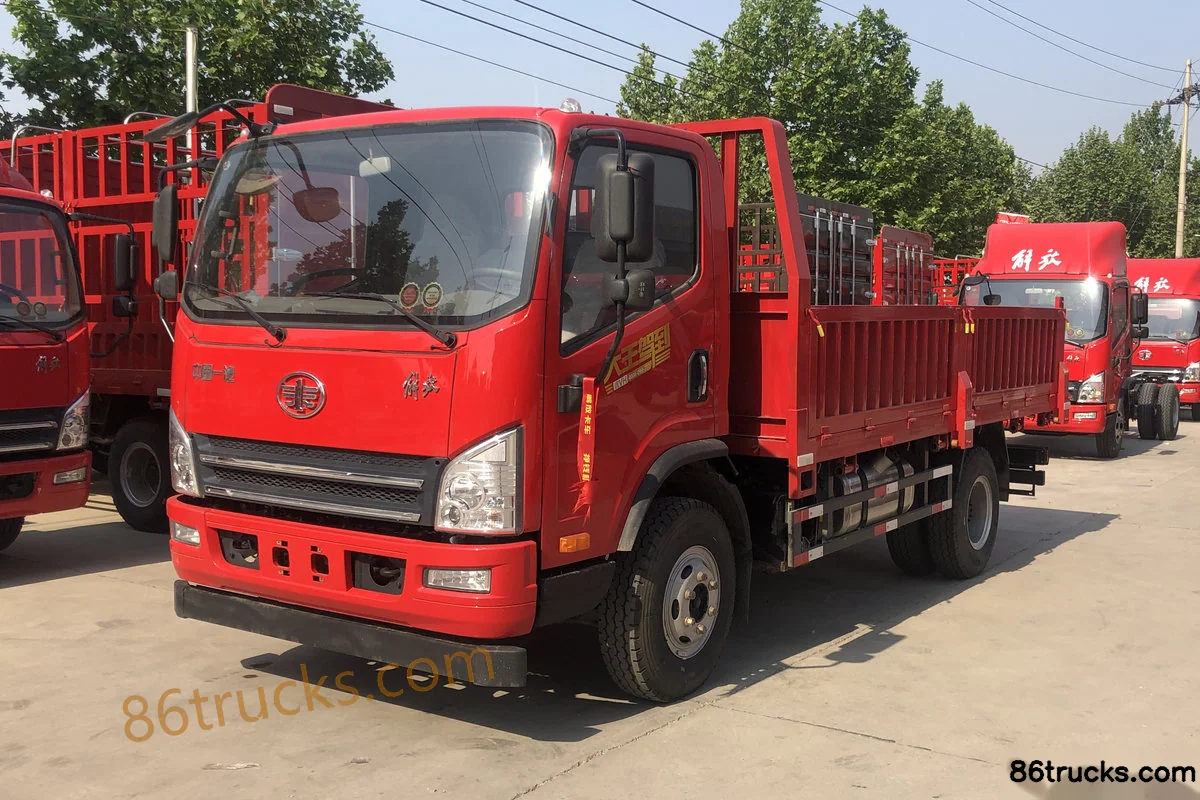

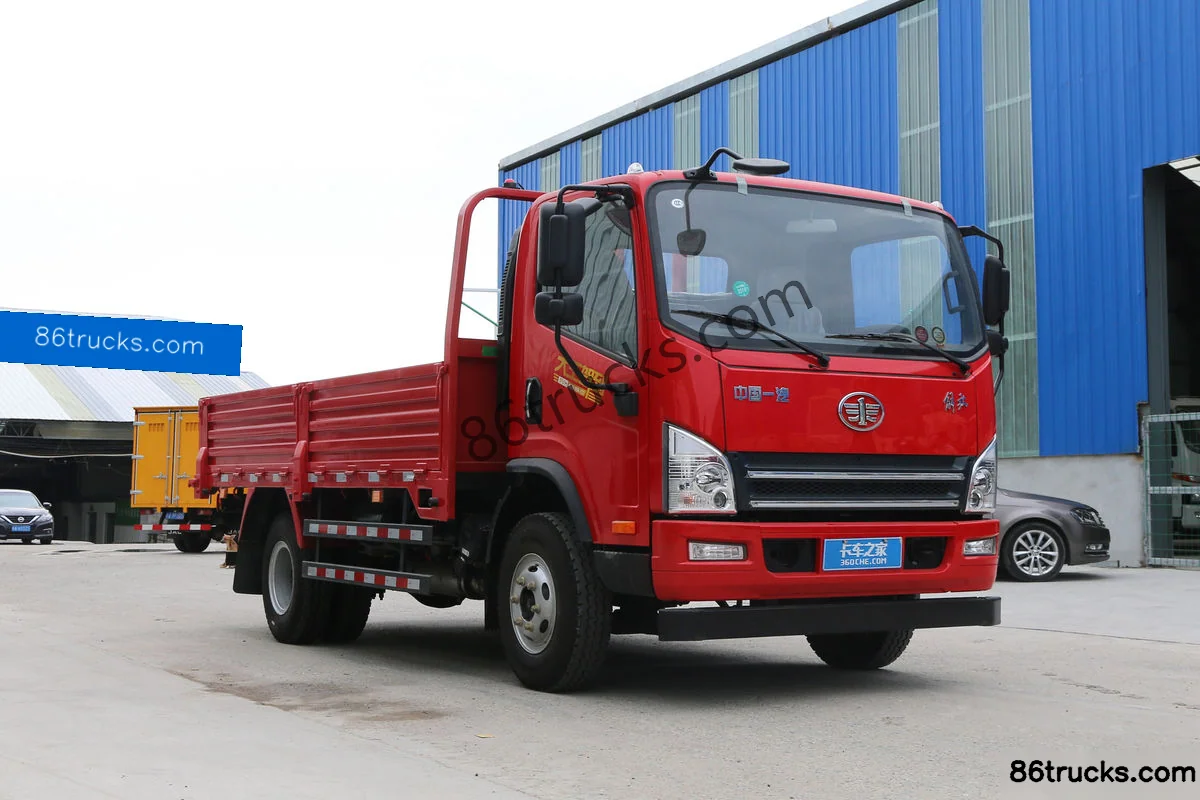

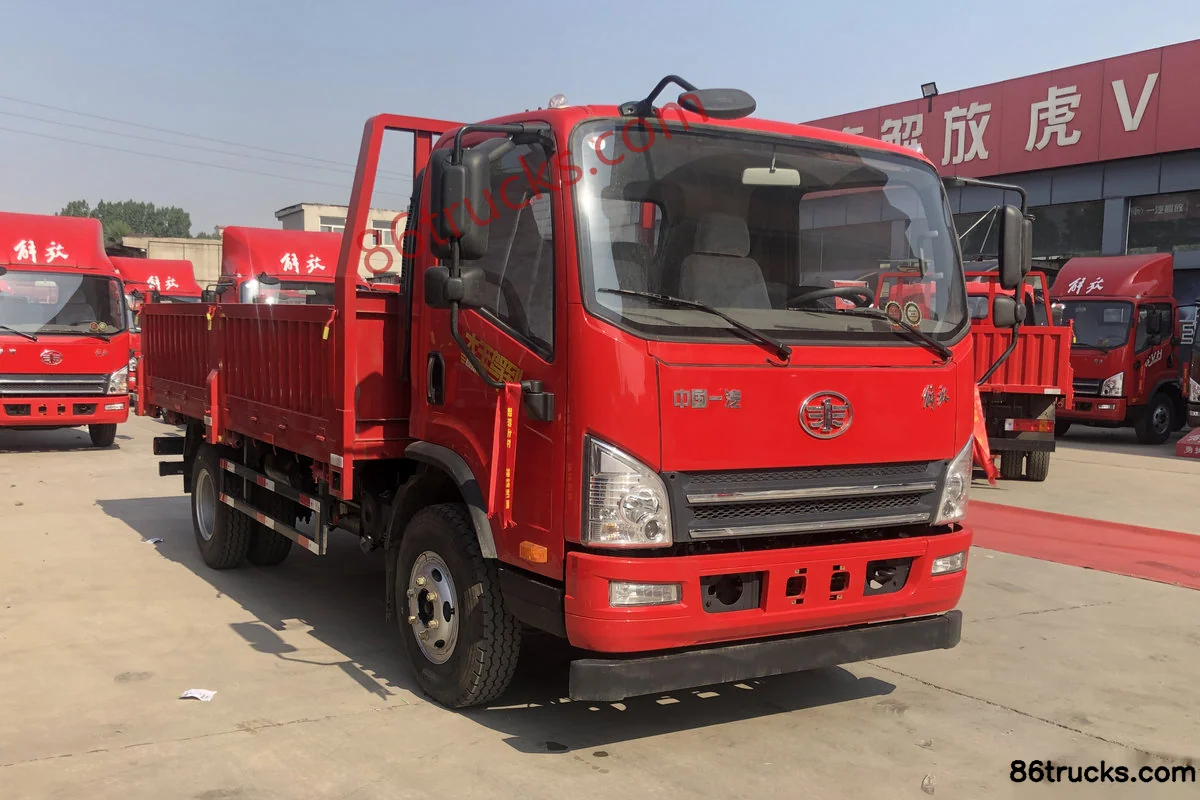

Exterior3

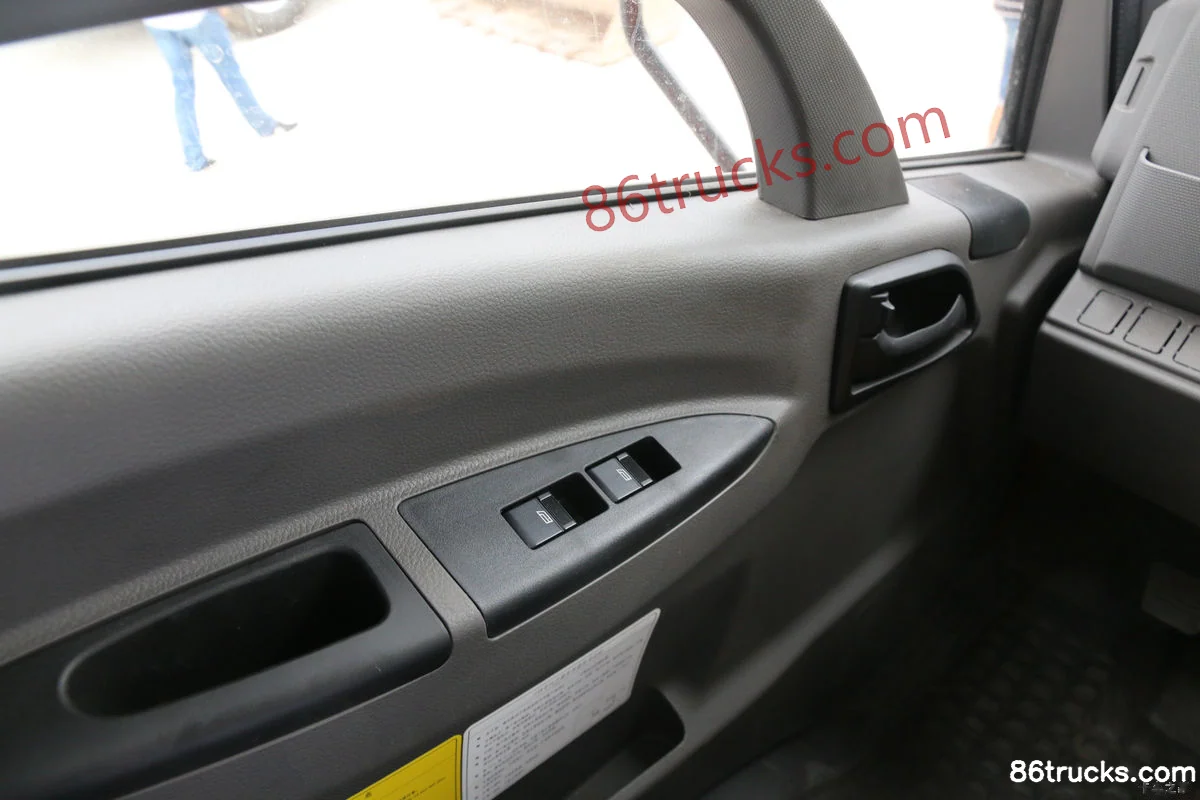

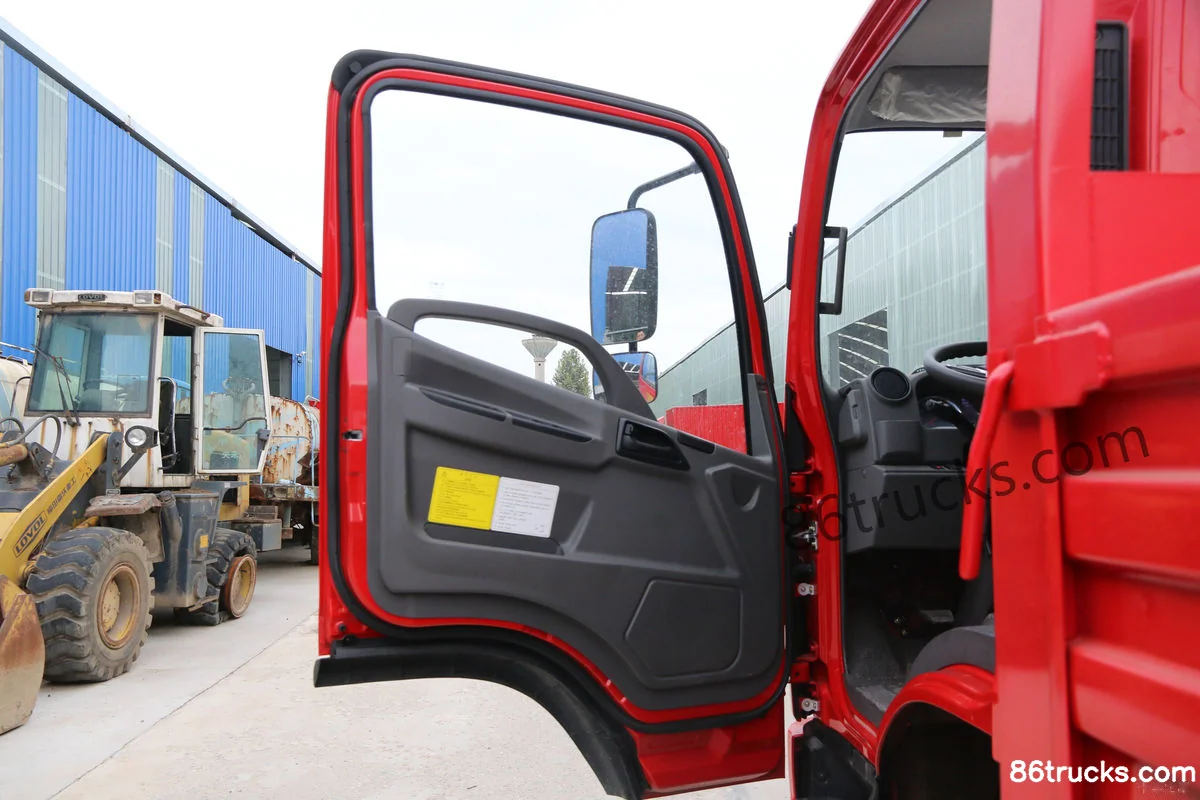

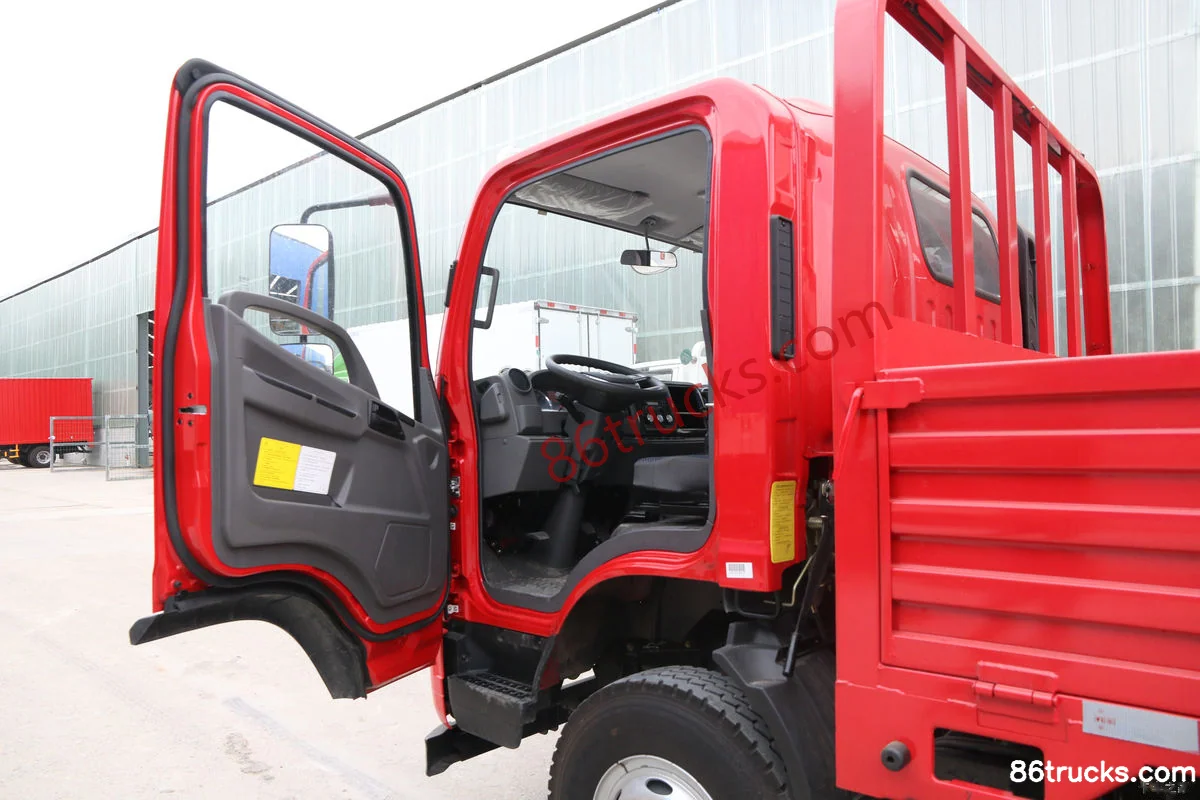

Cab3

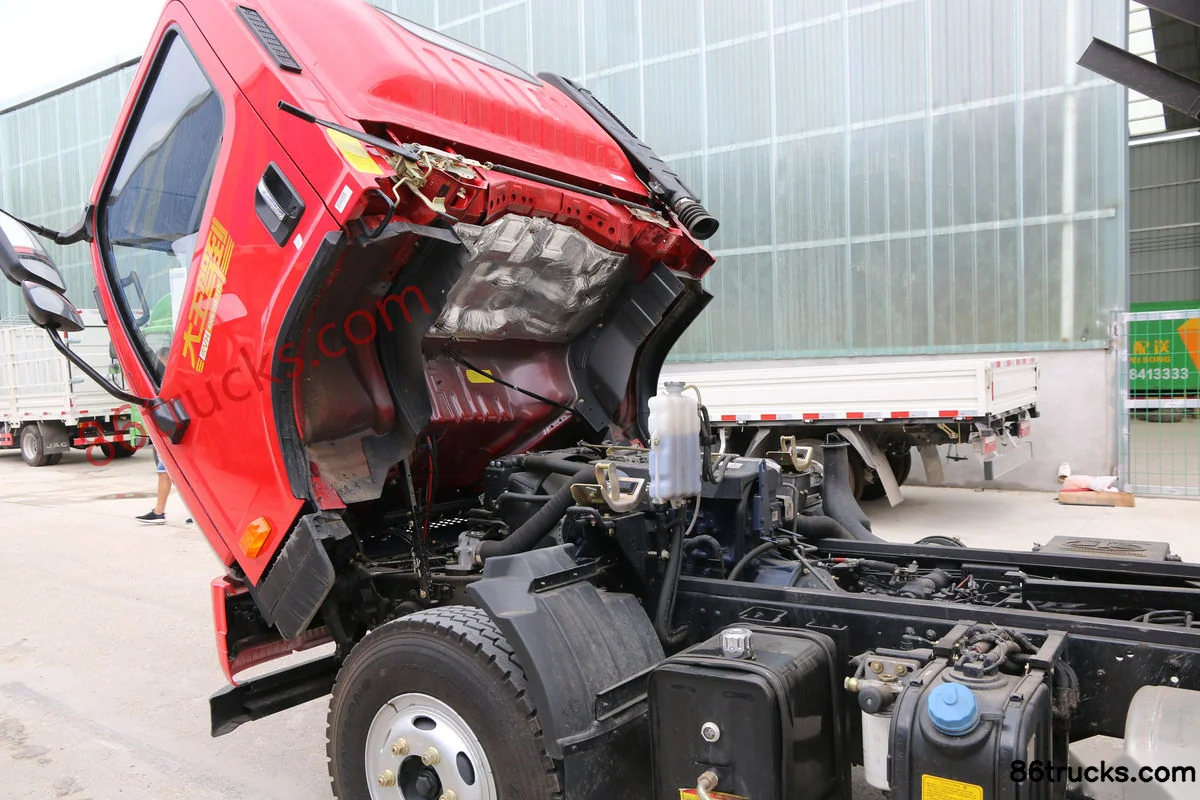

Chassis3

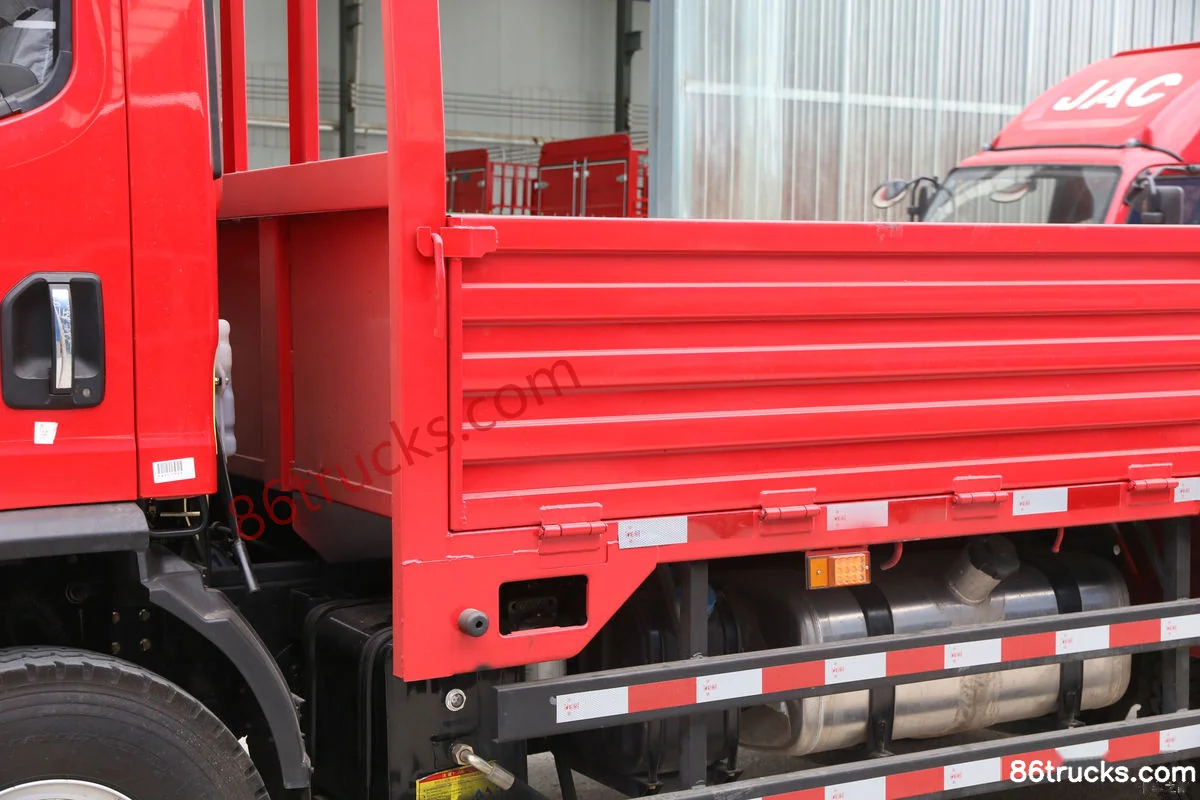

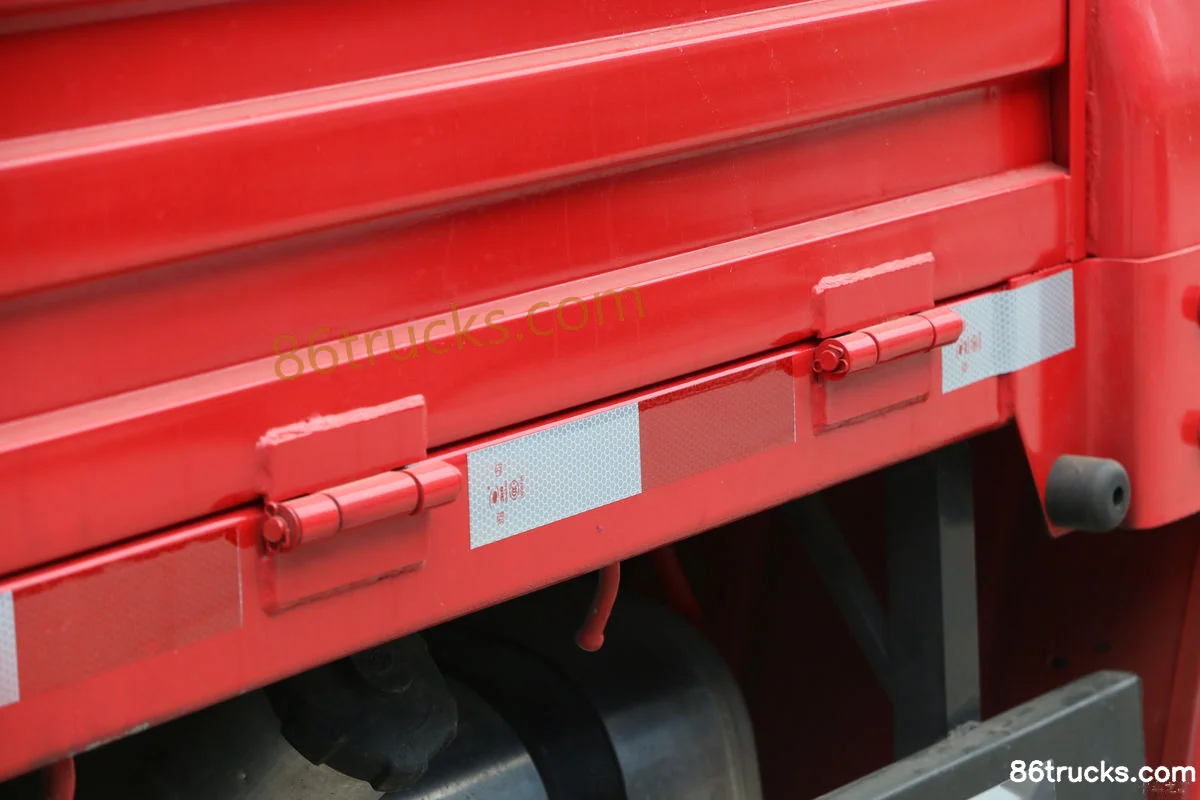

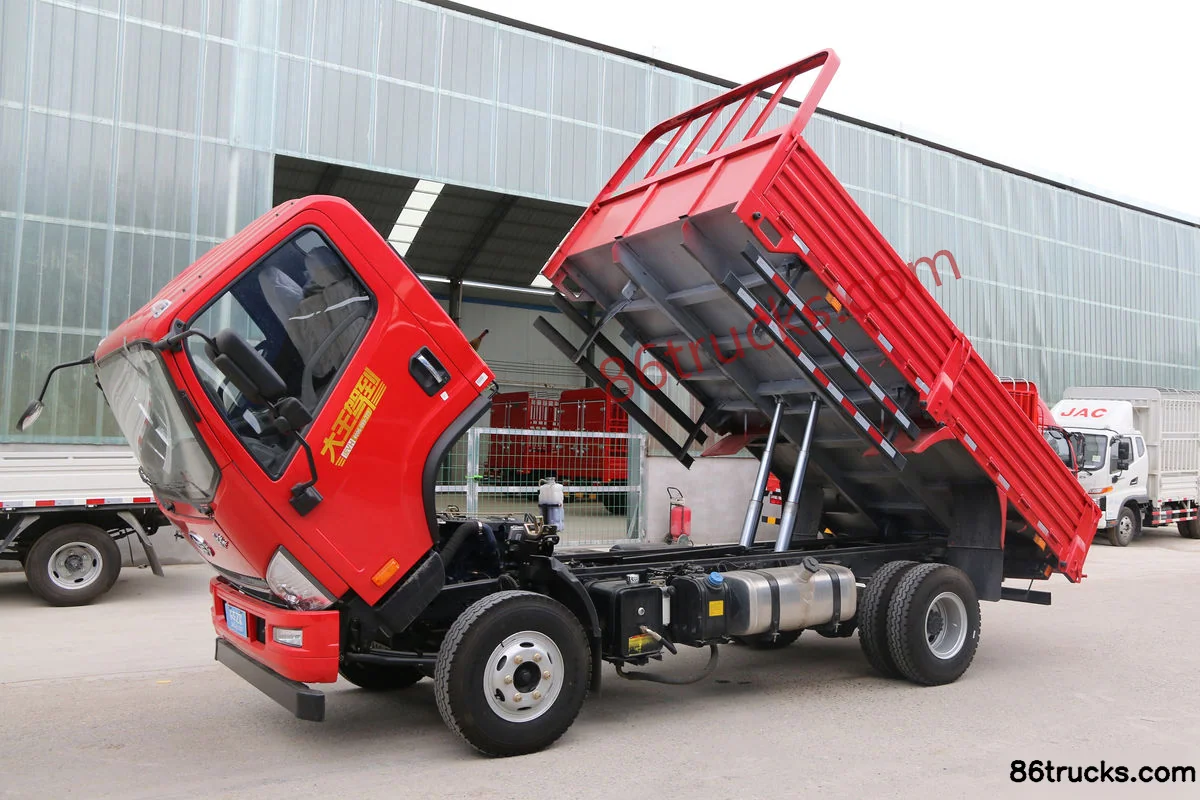

Body3

12 photos

FAQ

What is the export price of FAW Jiefang Hu VH King Edition 160hp 4X2(6 wheels) 4.15m dump truck, and what does it include?

FAW Jiefang Hu VH King Edition 160hp 4X2(6 wheels) 4.15m dump truck export reference is about From $21,806; MSRP is ¥15.7M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Hu VH King Edition 160hp 4X2(6 wheels) 4.15m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Hu VH King Edition 160hp 4X2(6 wheels) 4.15m dump truck?

Key specs of FAW Jiefang Hu VH King Edition 160hp 4X2(6 wheels) 4.15m dump truck: Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Hu VH King Edition 160hp 4X2(6 wheels) 4.15m dump truck suited for?

FAW Jiefang Hu VH King Edition 160hp 4X2(6 wheels) 4.15m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Hu VH King Edition 160hp 4X2(6 wheels) 4.15m dump truck differ from other variants in the same series?

FAW Jiefang Hu VH King Edition 160hp 4X2(6 wheels) 4.15m dump truck belongs to FAW Jiefang Hu V Light-duty Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Hu VH King Edition 160hp 4X2(6 wheels) 4.15m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Hu VH King Edition 160hp 4X2(6 wheels) 4.15m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
