Fuwa FM24GP02AA trailer axle (1820mm track)

Export reference
MSRP N/A
Applicable Tire:: 11R22.5;12R22.5
Front/rear track width:: 1820mm
Brake:: drum brake
Axle Model: FM24GP02AA
Brake size: Φ420X220
Axle Type: Trailer axle

Overview

The Fuhua Axle Fuwa FM24GP02AA trailer axle (1820mm track) is a parts product with spec FM24GP02AA and Φ420X220 size.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Axle Model: FM24GP02AA
Axle Type: Trailer axle
Applicable Tire: 11R22.5;12R22.5
Rated axle load: 13000ton
Front/rear track width: 1820mm
Brake: drum brake
Brake size: Φ420X220
Rim Used: 20/22.5inch
Wheel Bolts: 10xM22x1.5 ISOmm
Remarks: suspension center distance: ≥940mm

Photos

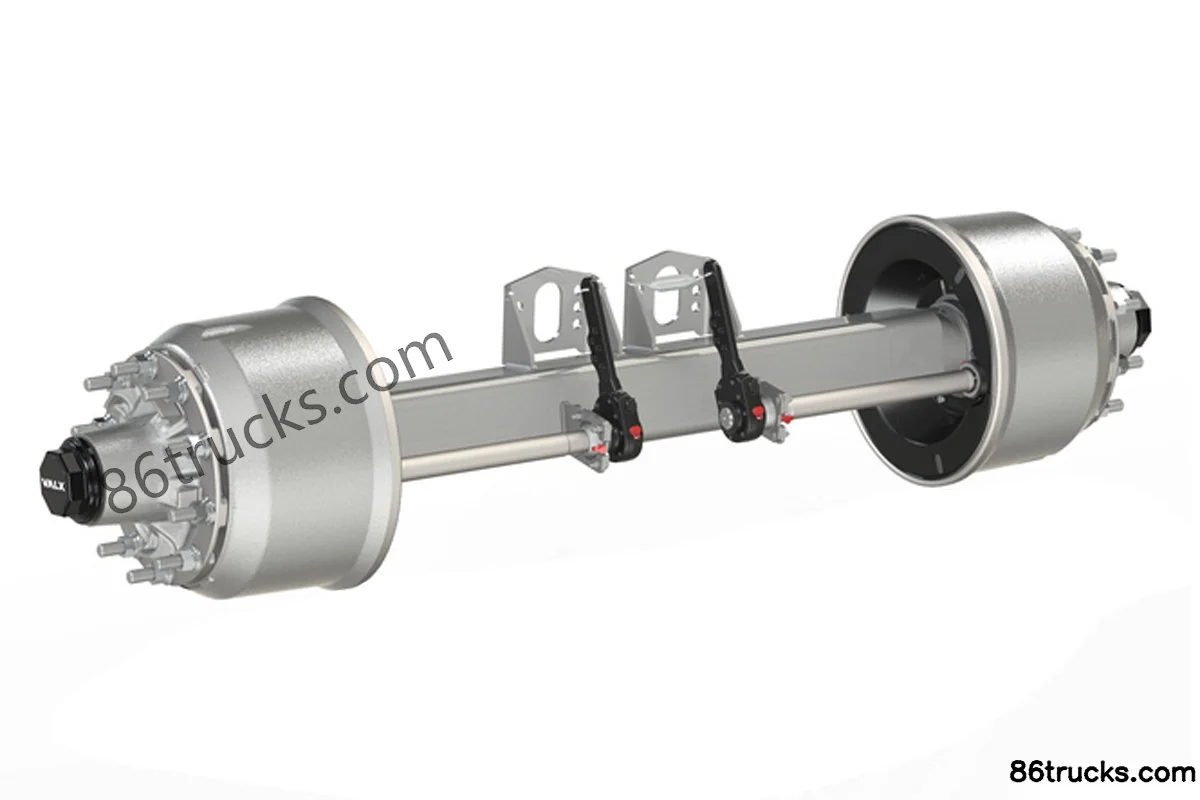

Exterior1
