MaxxForce 9.3L 397 hp 9.3L China V Diesel Engine

Export reference
MSRP N/A
Min. fuel consumption at full load:: 195g/kW.h
Compression ratio:: 17.5
Bore × Stroke:: 117x146mm
Engine Model: MaxxForce 9.3L
Engine Series: MaxxForce
Intake type: Electronically controlled variable cross-section turbocharger

Overview

The JAC MaxxForce 9.3L 397 hp 9.3L China V Diesel Engine is a parts product with spec MaxxForce 9.3L.

China V 397 Diesel

Model Specs

Legend: ● Standard ○ Optional - N/A

Engine parameters
Engine Series: MaxxForce
Engine manufacturer: JAC
Intake type: Electronically controlled variable cross-section turbocharger
Min. fuel consumption at full load: 195g/kW.h
Compression ratio: 17.5
Bore × Stroke: 117x146mm
Engine Brand: JAC
Engine Model: MaxxForce 9.3L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.3L
Emission standard: China V
Max output power: 292kW
Max hp: 397Horsepower
Max torque: 1750N·m
Max torque speed: 1100-1400rpm
Rated speed: 2000rpm
Engine Type: Inline 6-cylinder, electronically controlled variable geometry turbocharger

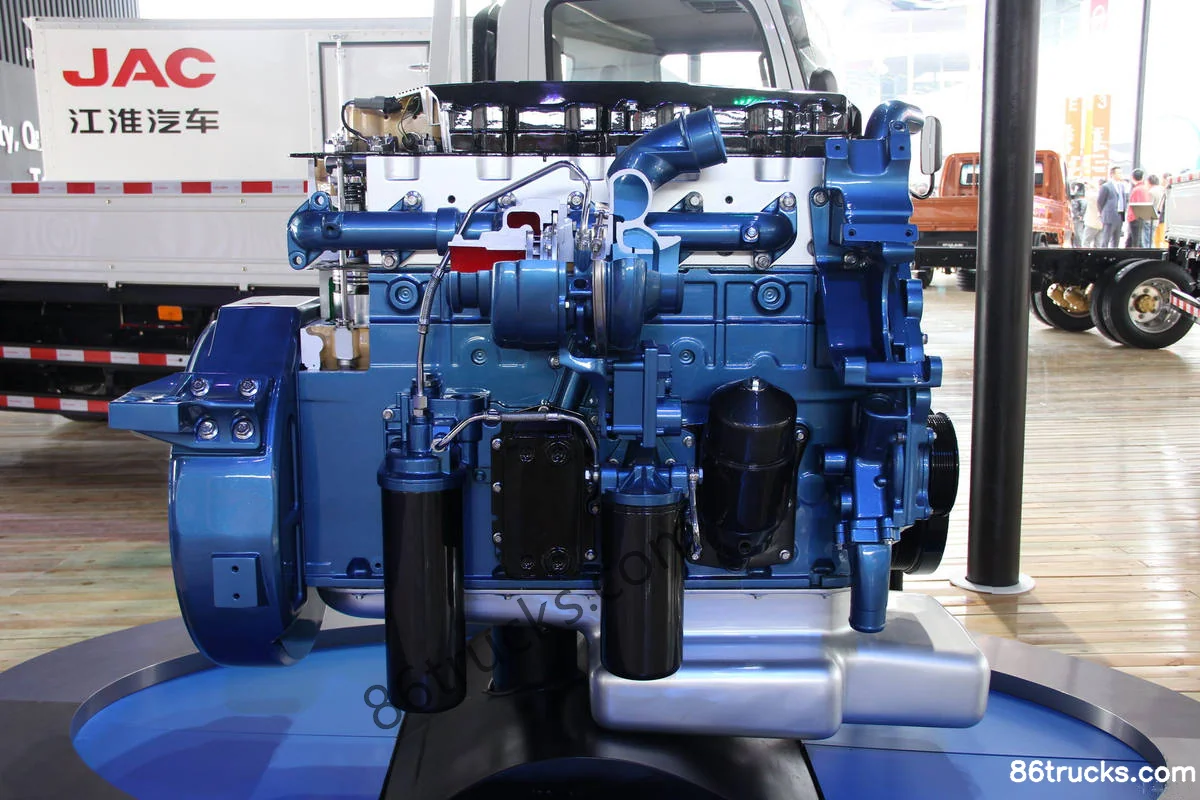

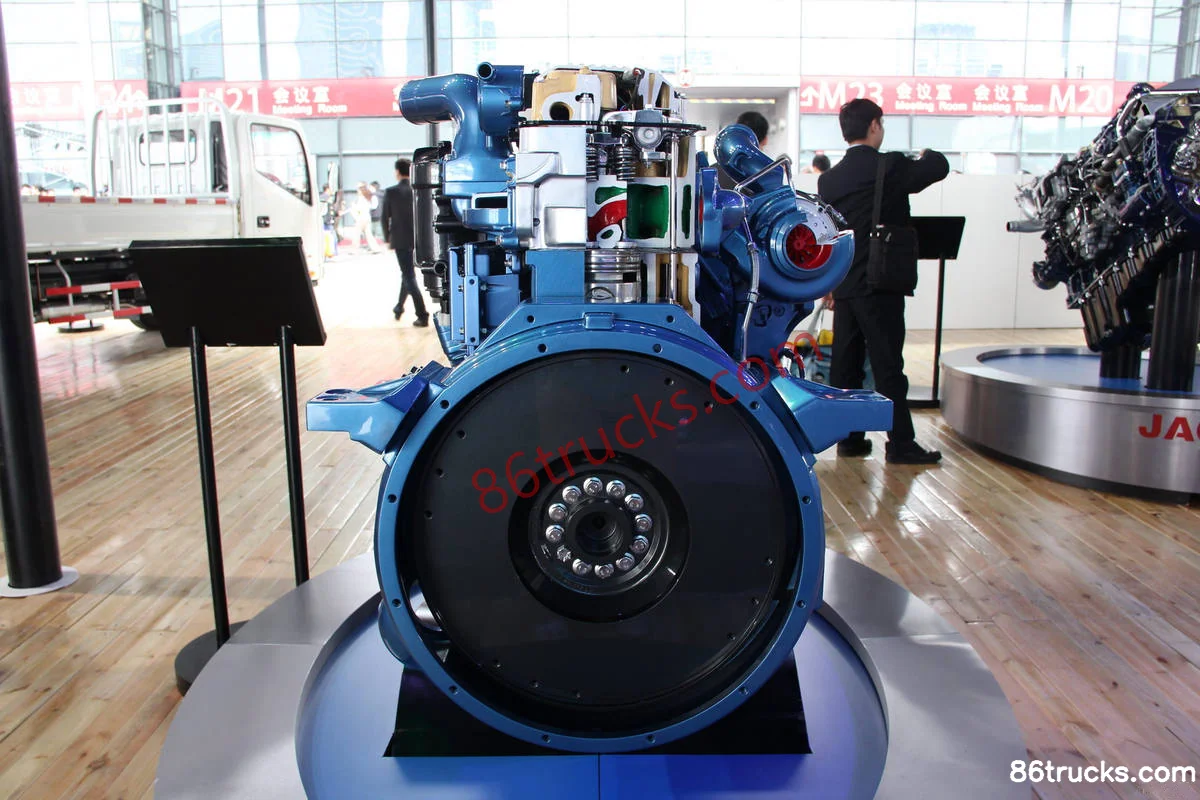

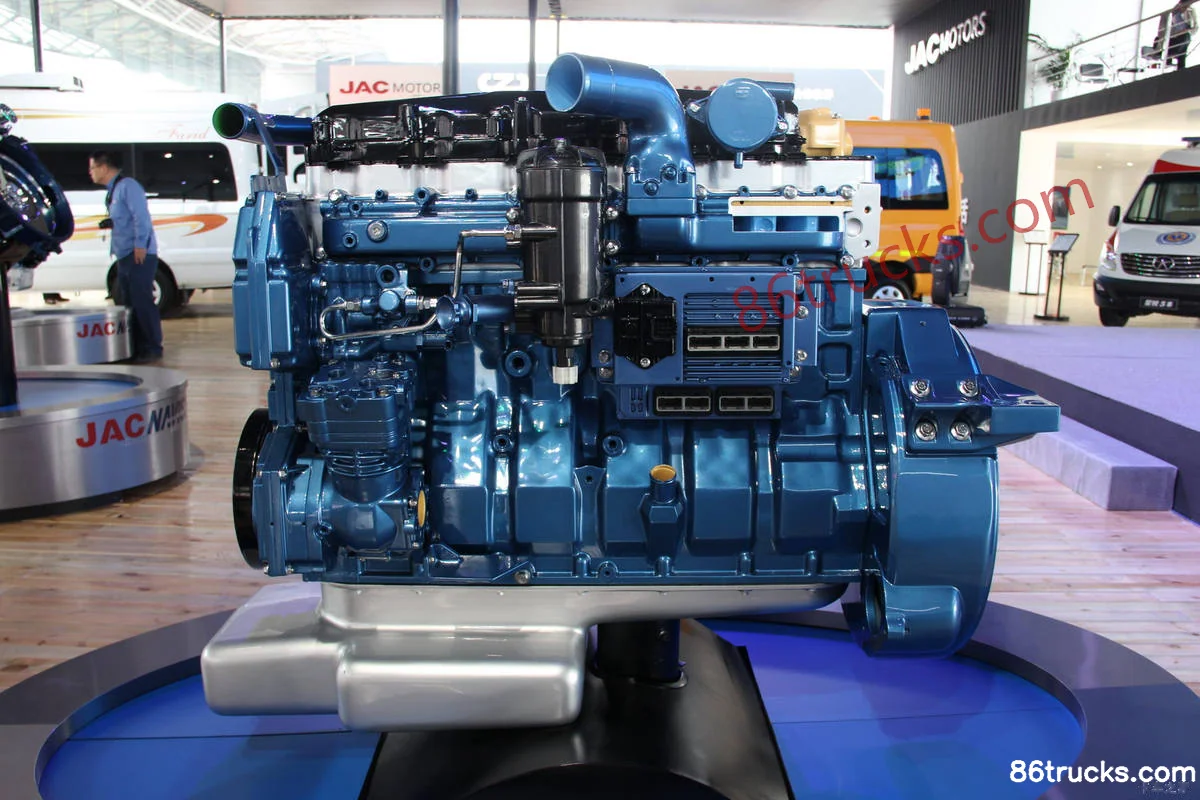

Photos

Exterior3

3 photos

FAQ

What emission standard does MaxxForce 9.3L 397 hp 9.3L China V Diesel Engine use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of MaxxForce 9.3L 397 hp 9.3L China V Diesel Engine?

Key specs of MaxxForce 9.3L 397 hp 9.3L China V Diesel Engine: Horsepower: 397 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is MaxxForce 9.3L 397 hp 9.3L China V Diesel Engine suited for?

Match MaxxForce 9.3L 397 hp 9.3L China V Diesel Engine to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does MaxxForce 9.3L 397 hp 9.3L China V Diesel Engine differ from other variants in the same series?

MaxxForce 9.3L 397 hp 9.3L China V Diesel Engine belongs to JAC Maixifu (engine). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for MaxxForce 9.3L 397 hp 9.3L China V Diesel Engine?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export MaxxForce 9.3L 397 hp 9.3L China V Diesel Engine?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
