NanJun Ruisheng 4X2(6 wheels) 3.15m Electric Dump Truck 98kWh

Export reference
MSRP N/A
Front axle allowable load:: 1522kg
Wheelbase:: 2650mm
Cargo box length:: 3.15m
Model code (announced):: NJA6040EDM26BEV
tonnage class:: Light Truck
Energy Type:: Electric
Drive 4X2 (6 wheels)
Battery Brand: CATL
Motor 1 Model: TZ262XSSFX02
Curb Weight: 3.18ton

Overview

The NanJun Ruisheng 4X2(6 wheels) 3.15m Electric Dump Truck 98kWh is a Light Truck featuring CATL battery/range, TZ262XSSFX02 motor, 4X2 (6 wheels) drive and 1522kg payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJA6040EDM26BEV
Drive type: 4X2
Wheelbase: 2650mm
Curb Weight: 3.18ton
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Model: TZ262XSSFX02
Motor Type: Permanent magnet synchronous motor
Peak power: 220kW
Battery/Charging
Battery Brand: CATL
Battery rated voltage: 566.72V
Battery capacity: 98kWh
Transmission Parameters
Number of gears: 4Gear
shift type: AT automatic
Transmission Model: Fast Gear4E50
Cargo box parameters
Cargo box length: 3.15m
Cargo box width: 1.8m
Cargo box height: 0.8m
Chassis Specs
Front axle allowable load: 1522kg
rear axle allowable load: 1554kg
Tire
Tire Size: 7.00R16LT
Control configuration
ABS:
Power steering: Electric Power Steering
interior configuration
AC control type: Manual
Service brake
Brake Type: Air brake
Parking brake: Spring brake

Photos

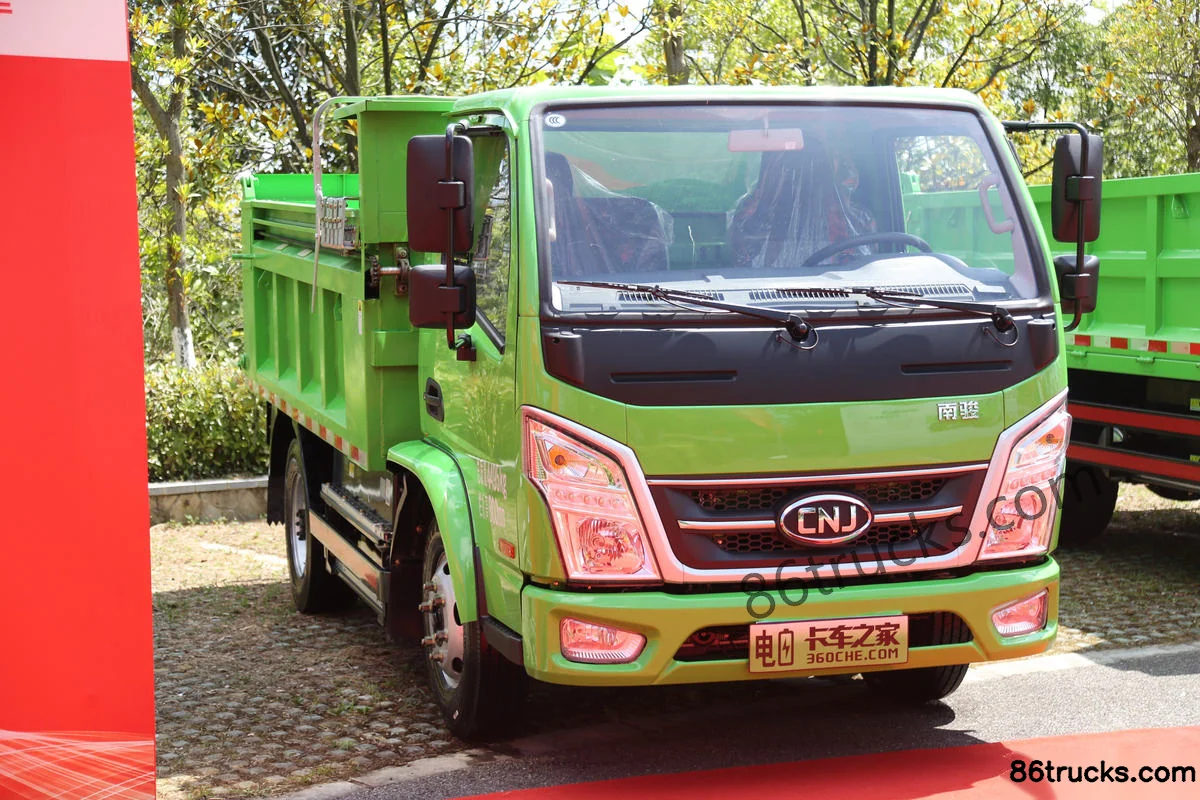

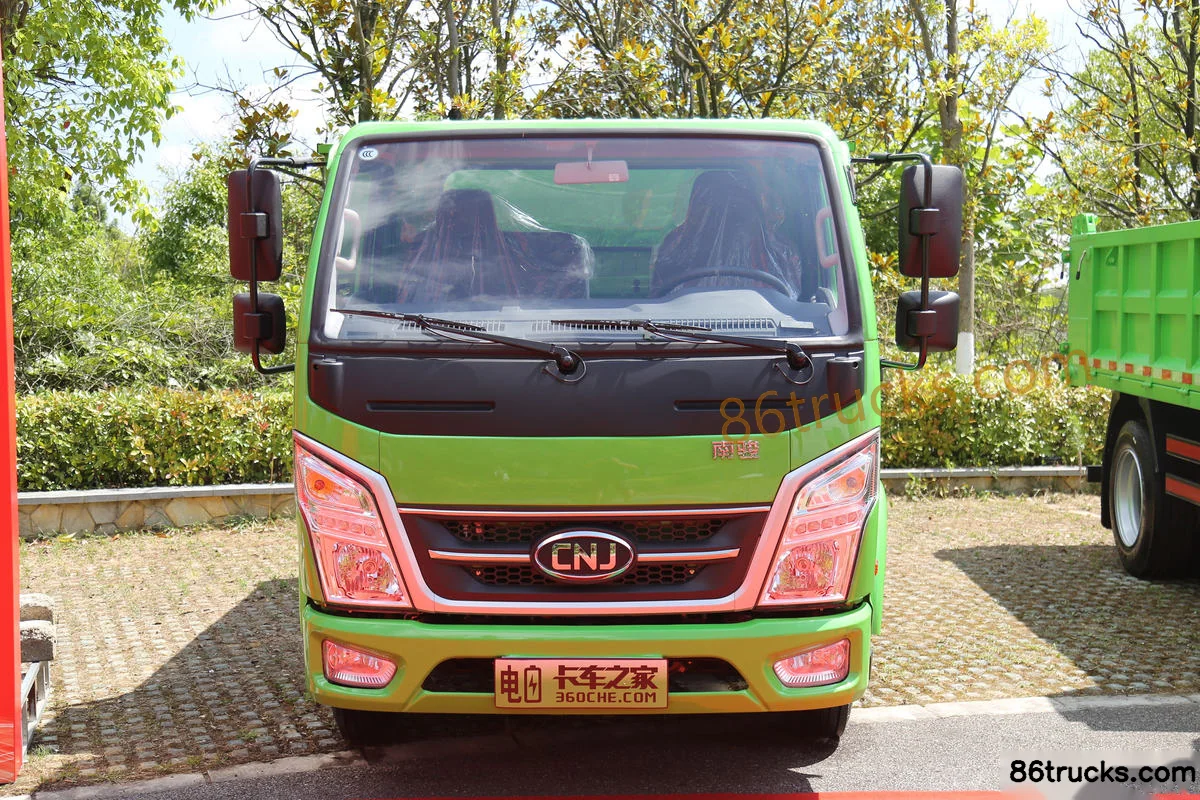

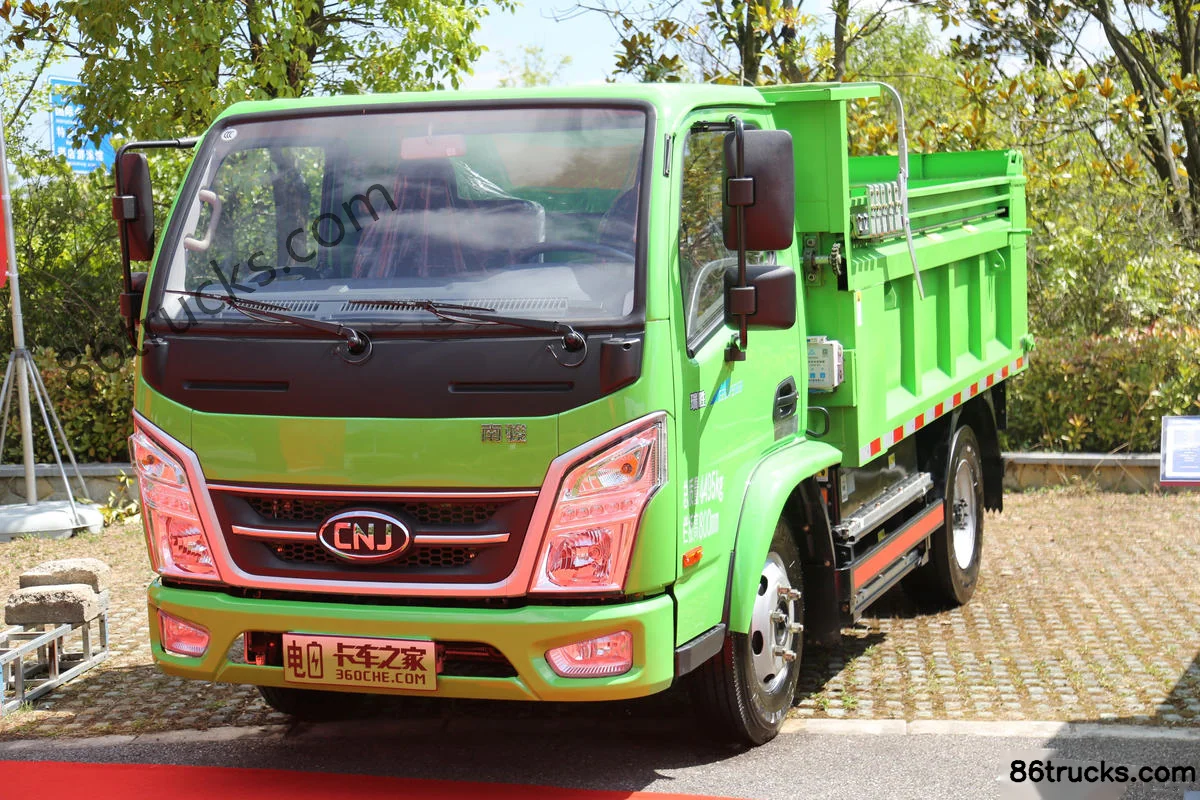

Exterior3

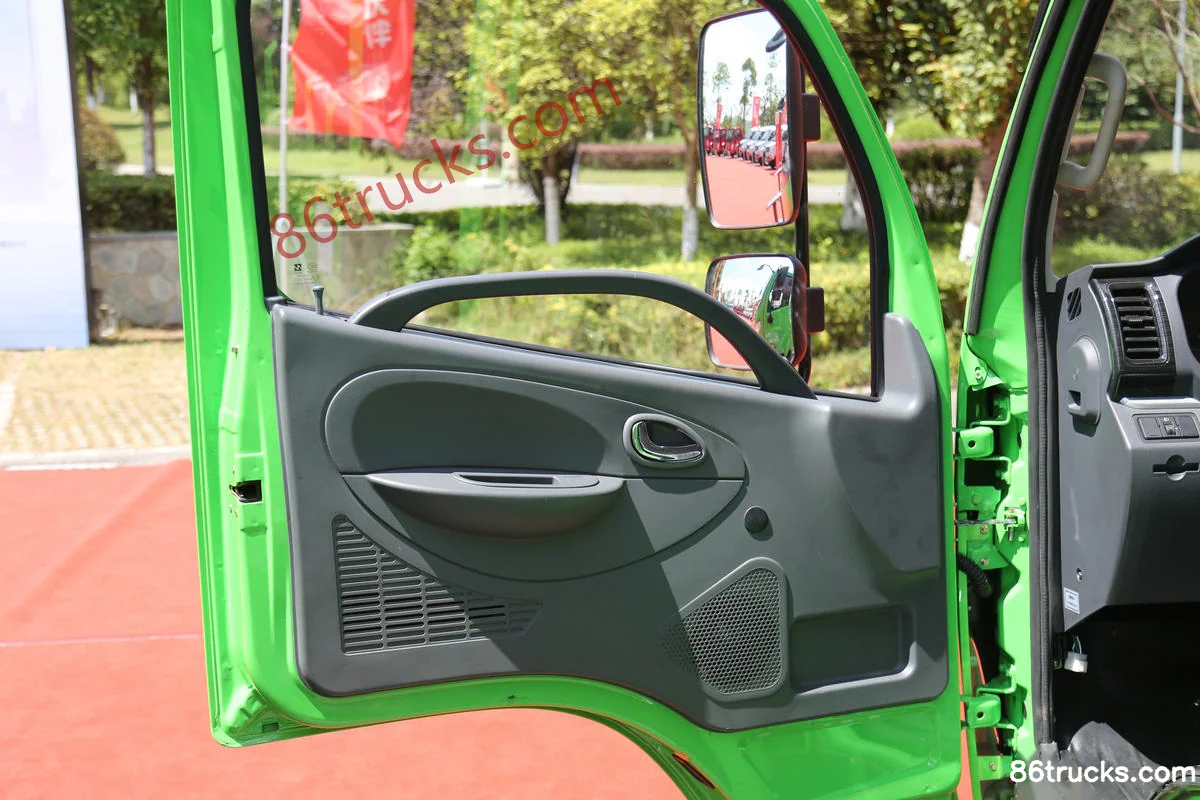

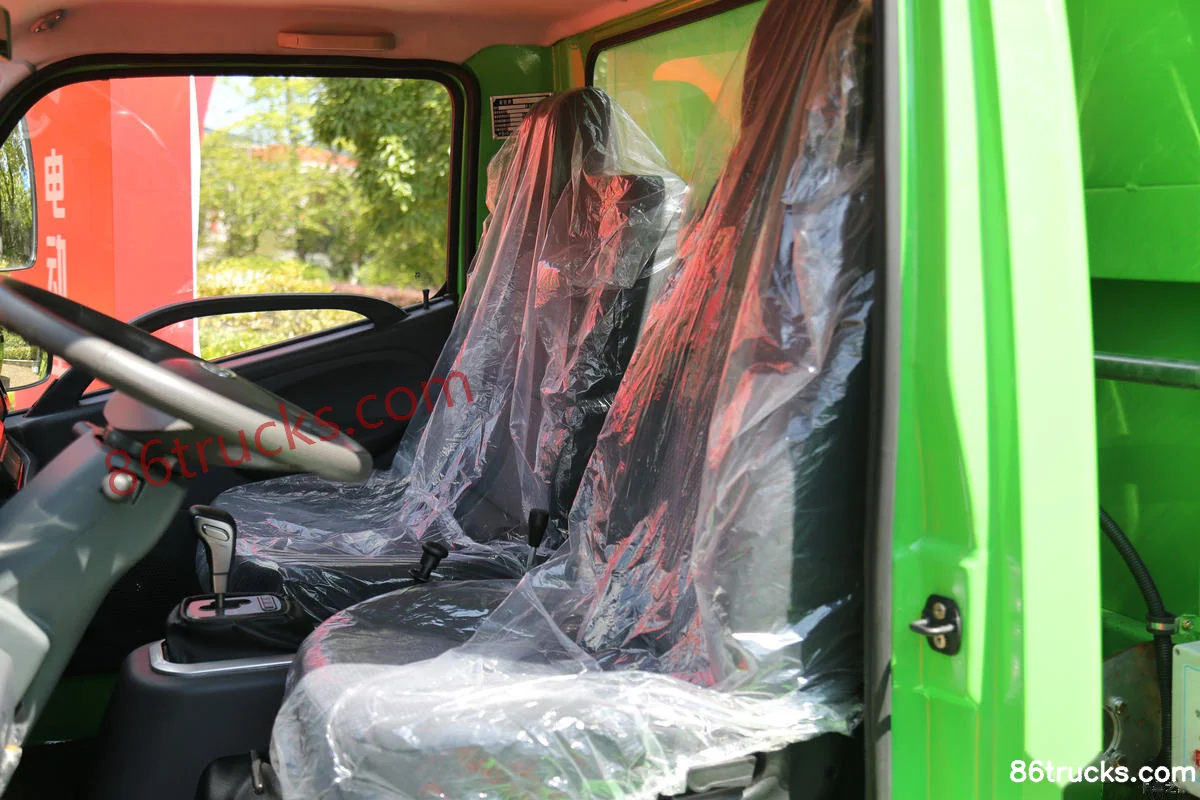

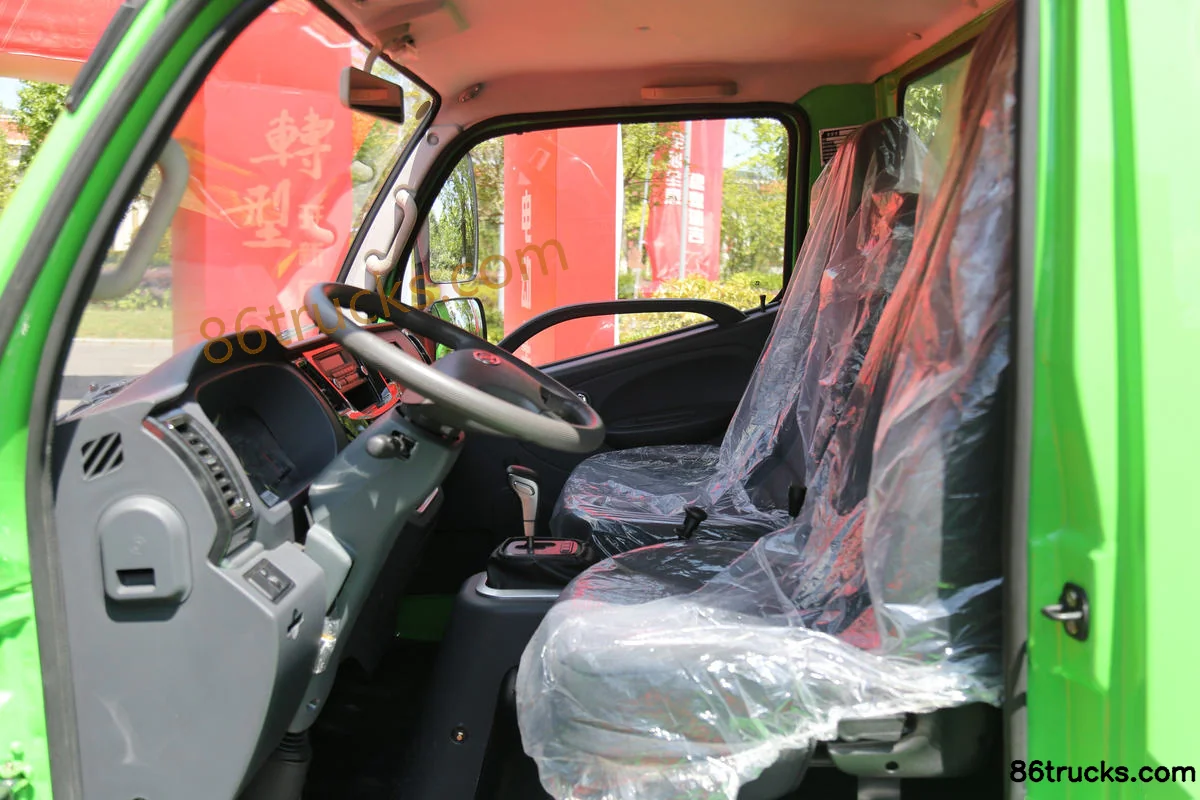

Cab3

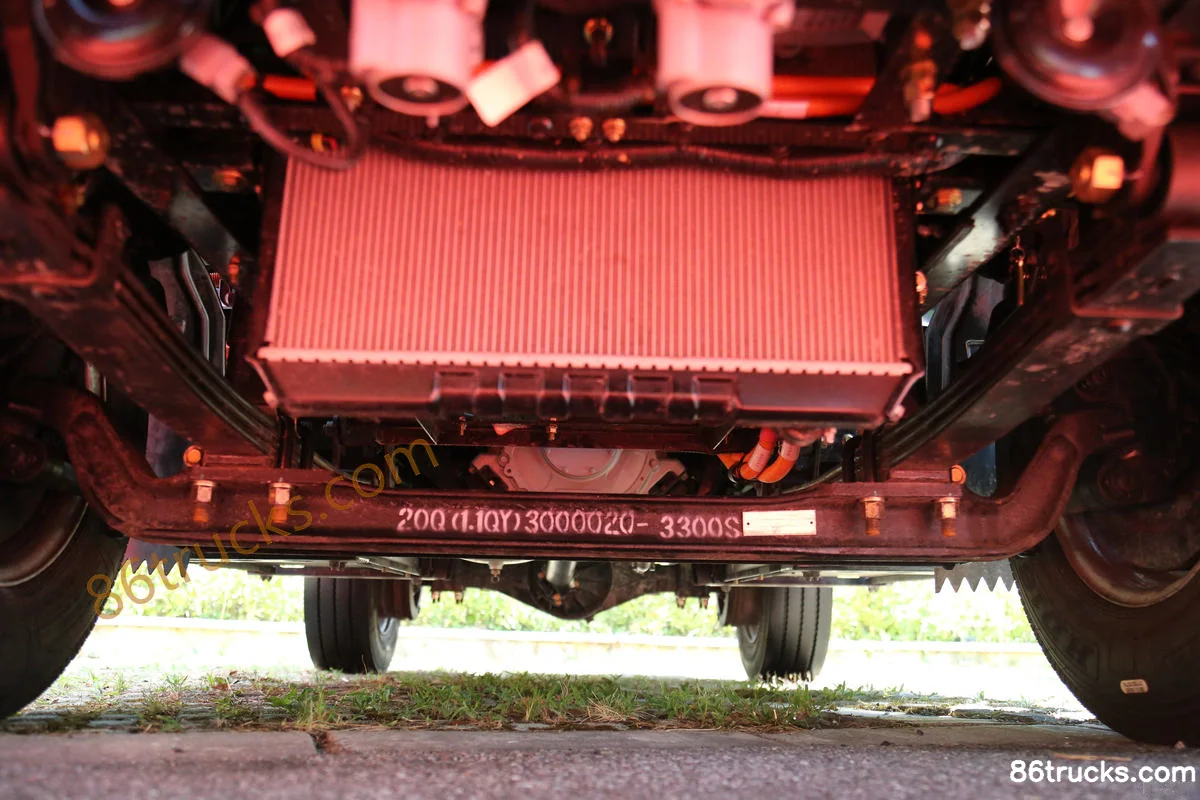

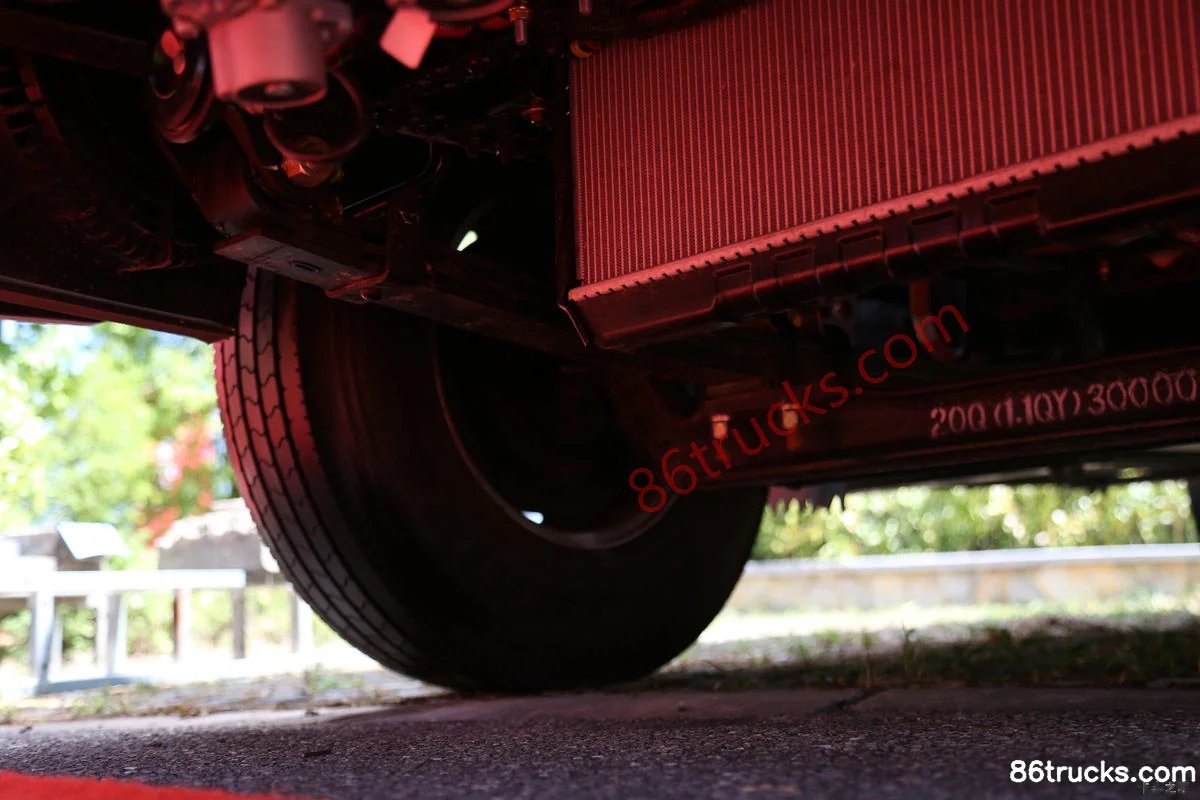

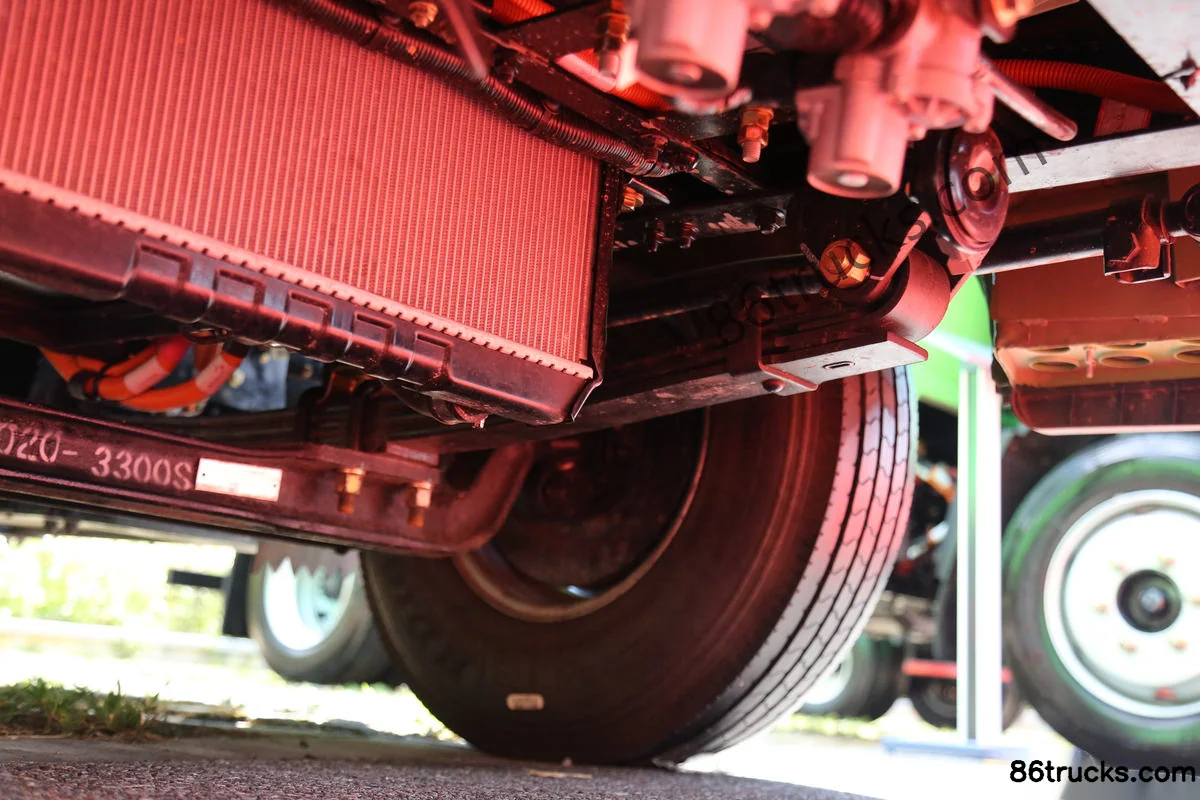

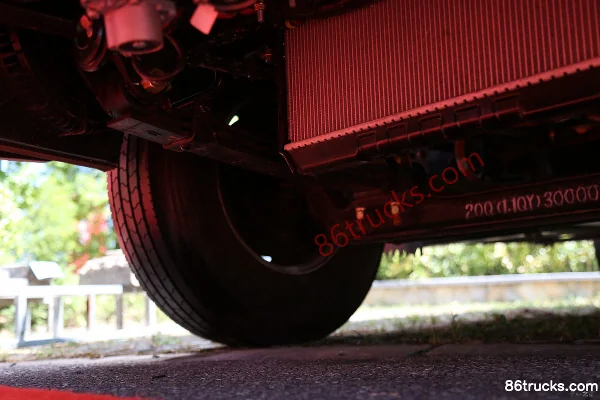

Chassis3

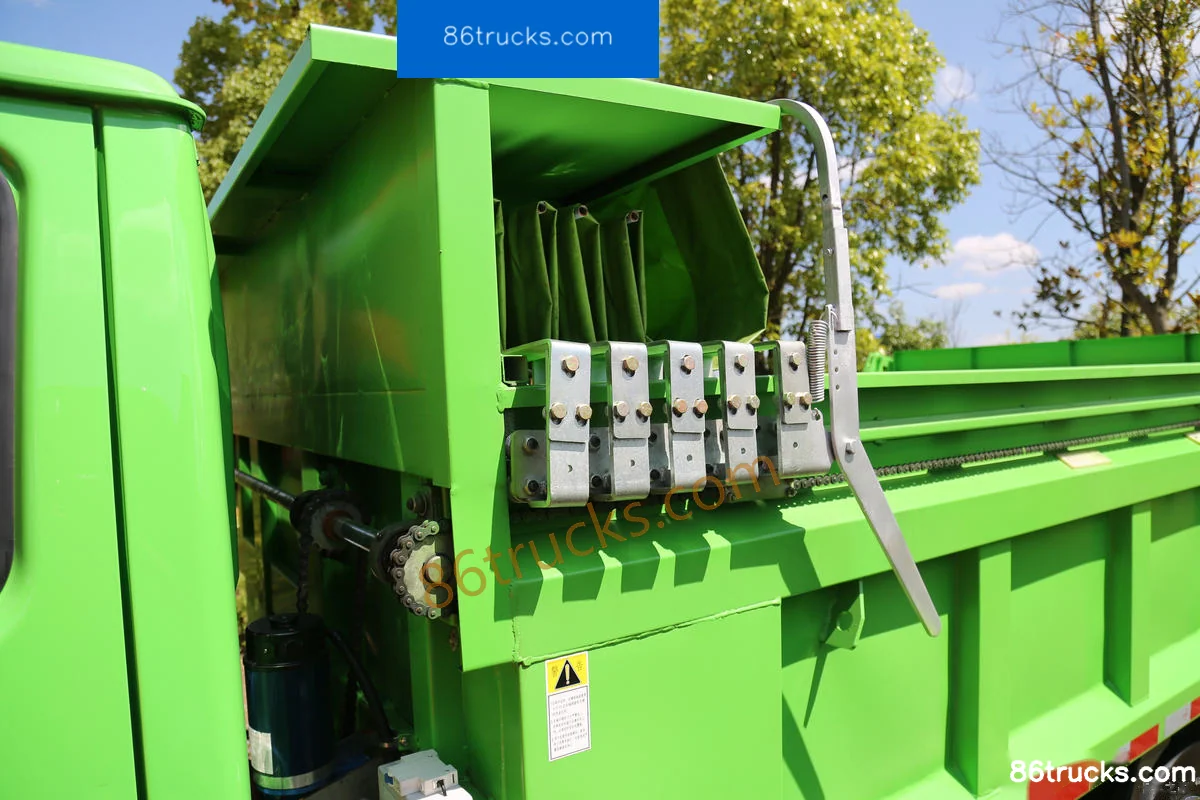

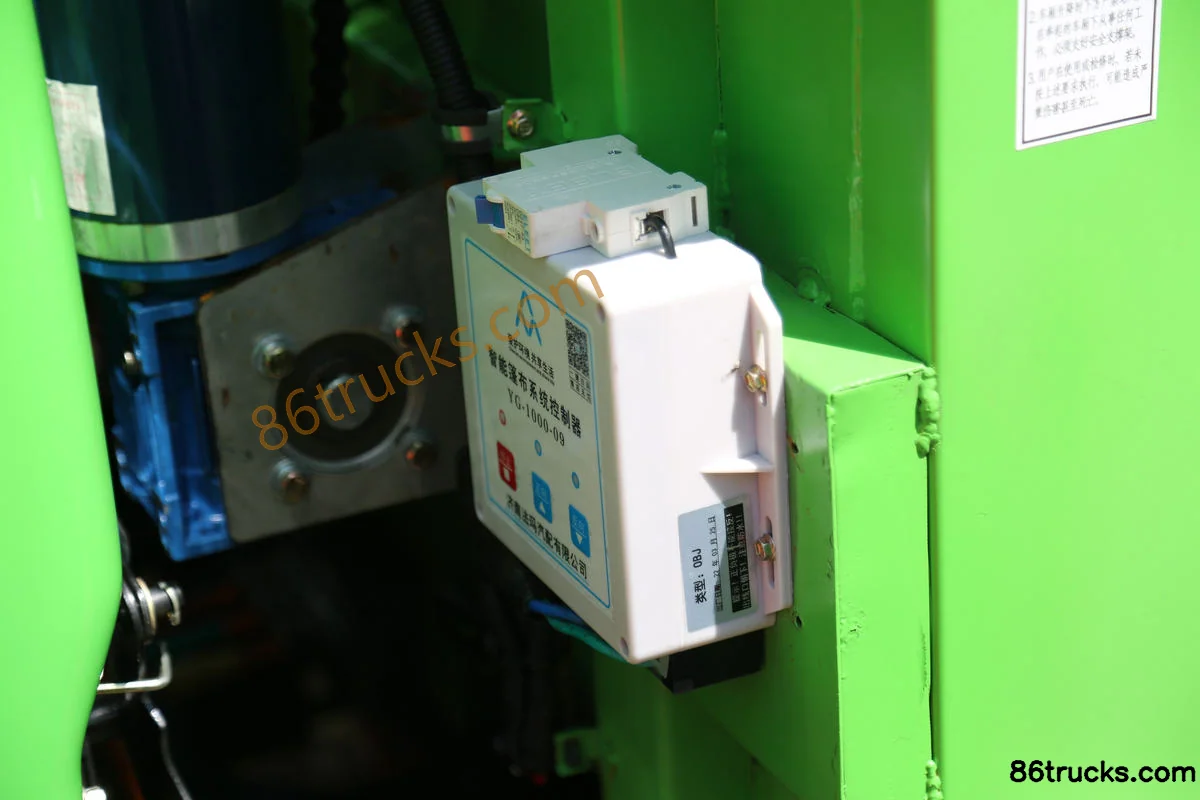

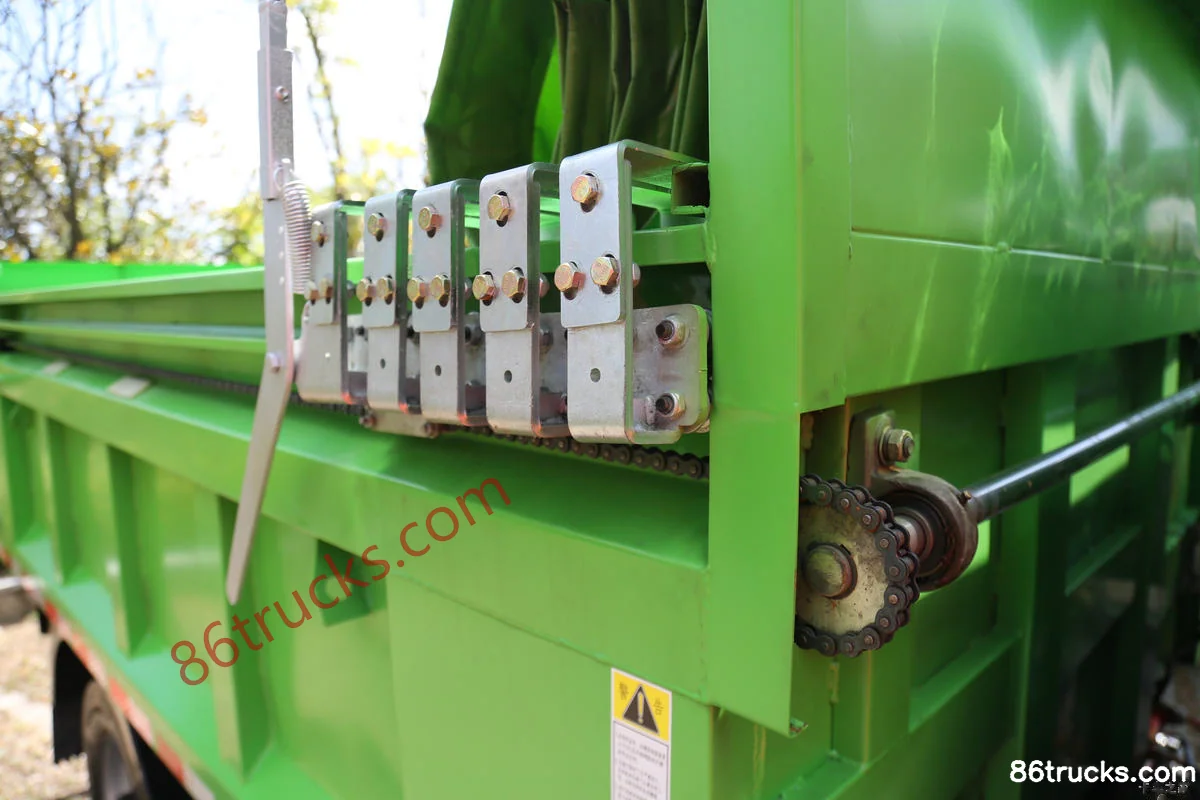

Body3

12 photos

FAQ

What are the key specs of NanJun Ruisheng 4X2(6 wheels) 3.15m Electric Dump Truck 98kWh?

Key specs of NanJun Ruisheng 4X2(6 wheels) 3.15m Electric Dump Truck 98kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is NanJun Ruisheng 4X2(6 wheels) 3.15m Electric Dump Truck 98kWh suited for?

NanJun Ruisheng 4X2(6 wheels) 3.15m Electric Dump Truck 98kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does NanJun Ruisheng 4X2(6 wheels) 3.15m Electric Dump Truck 98kWh differ from other variants in the same series?

NanJun Ruisheng 4X2(6 wheels) 3.15m Electric Dump Truck 98kWh belongs to NanJun Ruisheng (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for NanJun Ruisheng 4X2(6 wheels) 3.15m Electric Dump Truck 98kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export NanJun Ruisheng 4X2(6 wheels) 3.15m Electric Dump Truck 98kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
