Sanhuan Shitong Chuangke 170hp 4X2(6 wheels) 4m Cab-over Dump Truck

Export reference
From $23,611
MSRP ¥17M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 5.6ton
Wheelbase:: 3550mm
Tire Size:: 8.25R20 14PR
Rated payload: 4.205ton
Drive 4X2 (6 wheels)
Horsepower 170
Cargo box type: Rear-dump body

Overview

The Sanhuan Shitong Chuangke 170hp 4X2(6 wheels) 4m Cab-over Dump Truck is a Medium-duty truck featuring 4.205t payload, 10t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCDV3663-170 engine, 170 hp, China VI emissions and Fast Gear transmission.

China VI 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): STQ3101L03Y1N6
Drive type: 4X2
Wheelbase: 3550mm
engine: YuchaiYCDV3663-170
transmission: Fast Gear 8-speed
Rear Axle Ratio: 6.166
Cab length: 6.285m
Cab width: 2.29m
Cab height: 3.1m
Front track width: 1750mm
rear track: 1660mm
Curb Weight: 5.6ton
Rated payload: 4.205ton
GVWR: 10ton
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 23°
departure angle: 18°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCDV3663-170
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.621L
Emission standard: China VI
Max output power: 125kW
Max hp: 170Horsepower
Transmission Parameters
Transmission Model: Fast Gear 8-speed
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 4m
Cargo box width: 2.1m
Cargo box height: 0.8m
Cab parameters
Cab: Sleeper cab
Cab width: 1995mm
seating capacity: 3Personnel
fuel tank
Fuel tank material: Iron
Chassis Specs
Front axle allowable load: 3600kg
rear axle description: 6T
rear axle allowable load: 6400kg
Axle ratio: 6.166
Leaf spring count: 8/11+8
Tire
Tire Size: 8.25R20 14PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Multimedia features
Bluetooth / hands-free calling:
Radio:
Service brake
Parking brake: Spring brake
smart configuration
Cruise control (CCS):

Photos

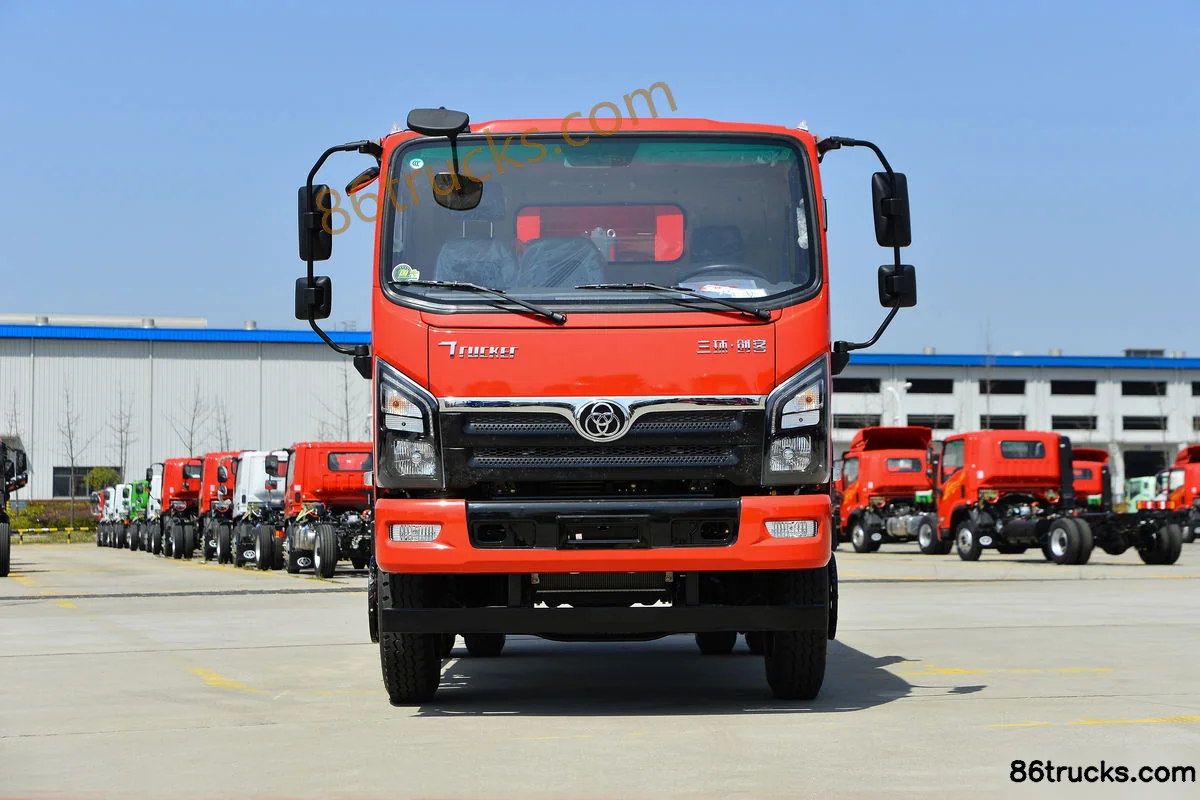

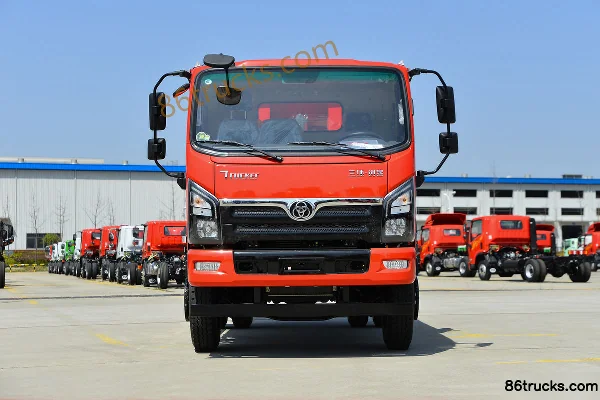

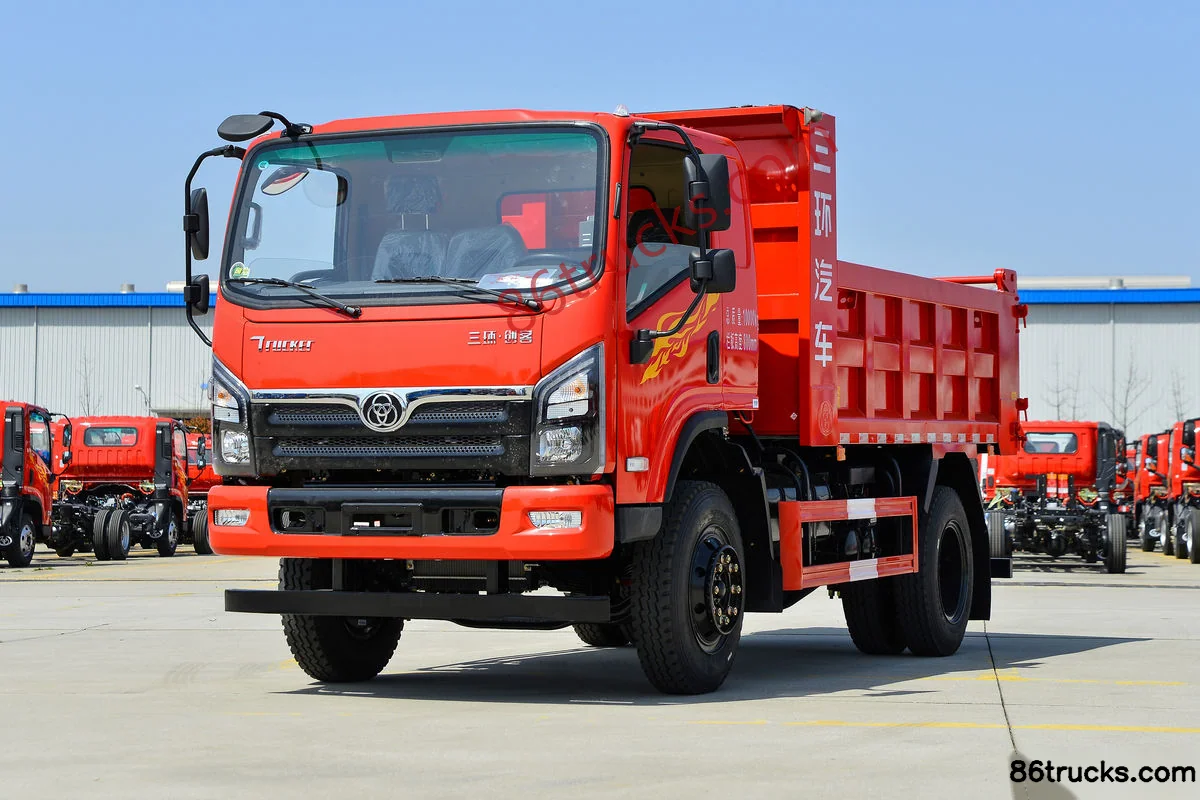

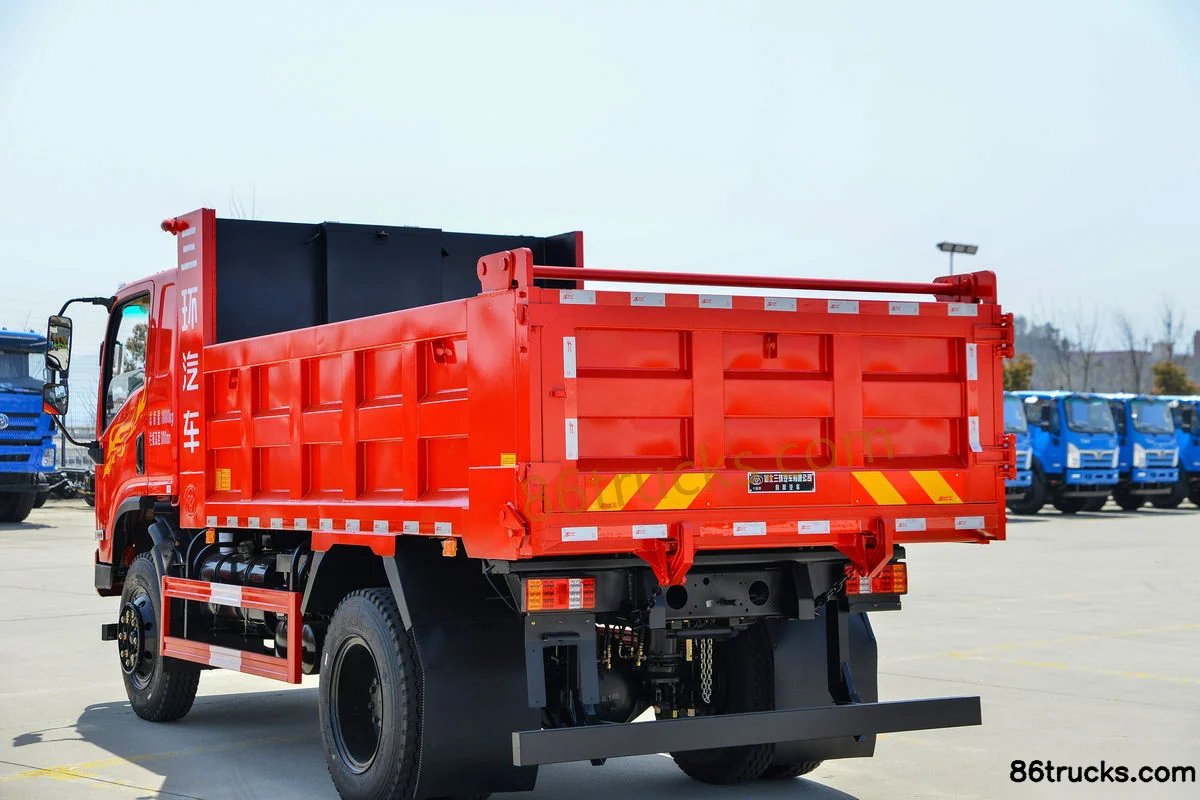

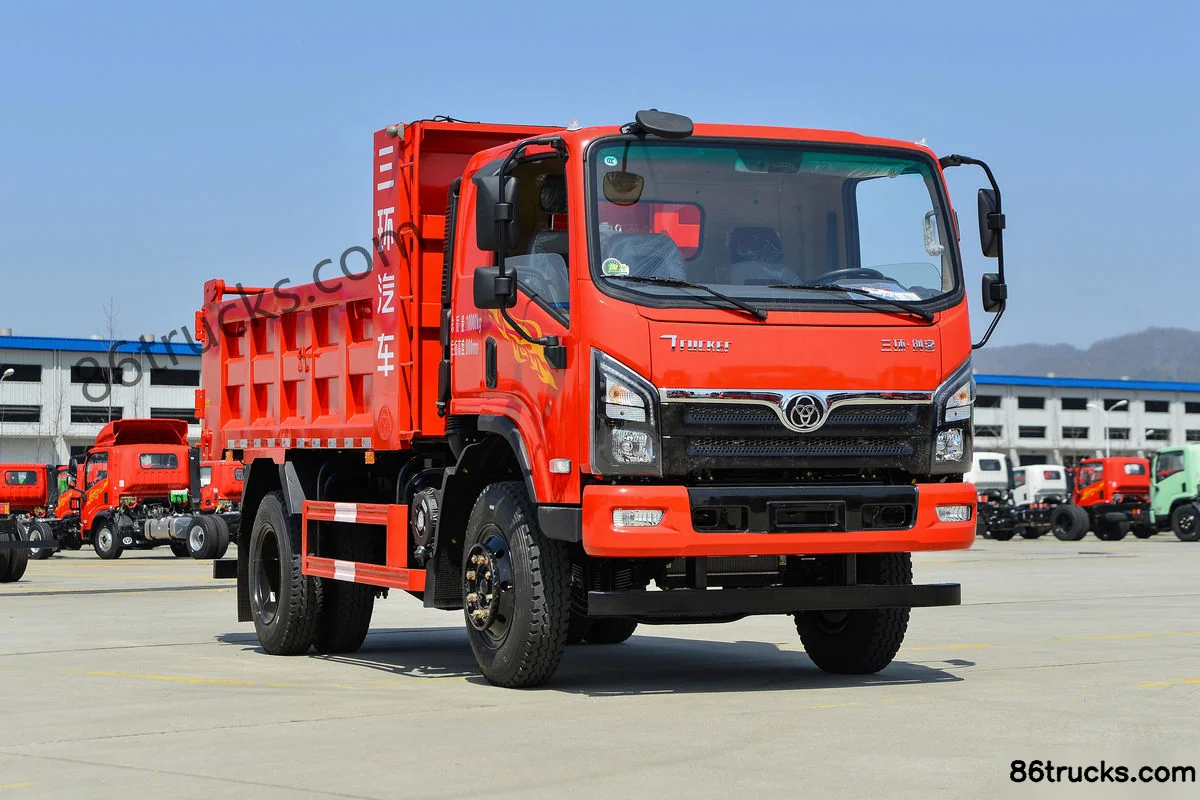

Exterior3

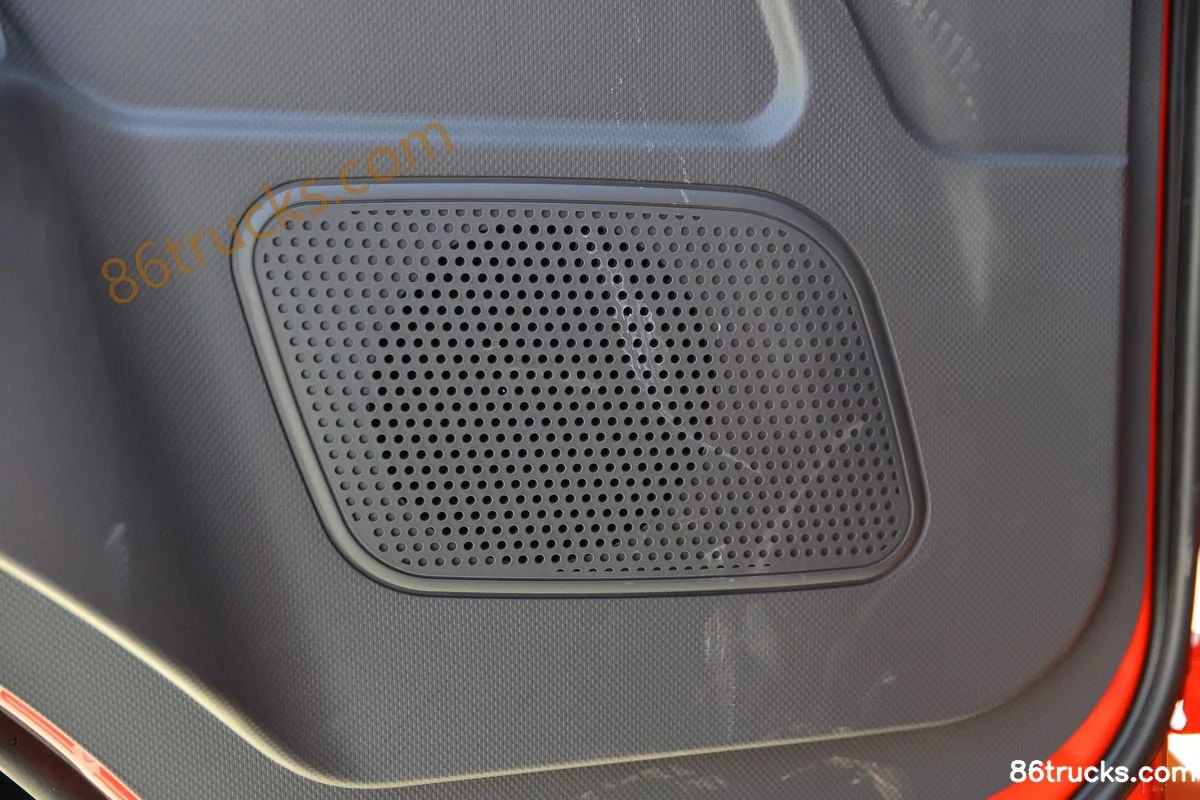

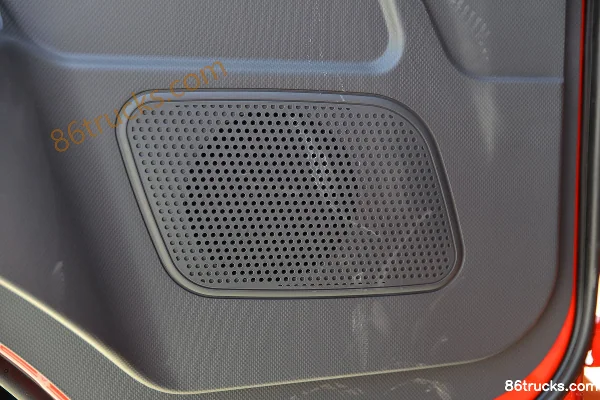

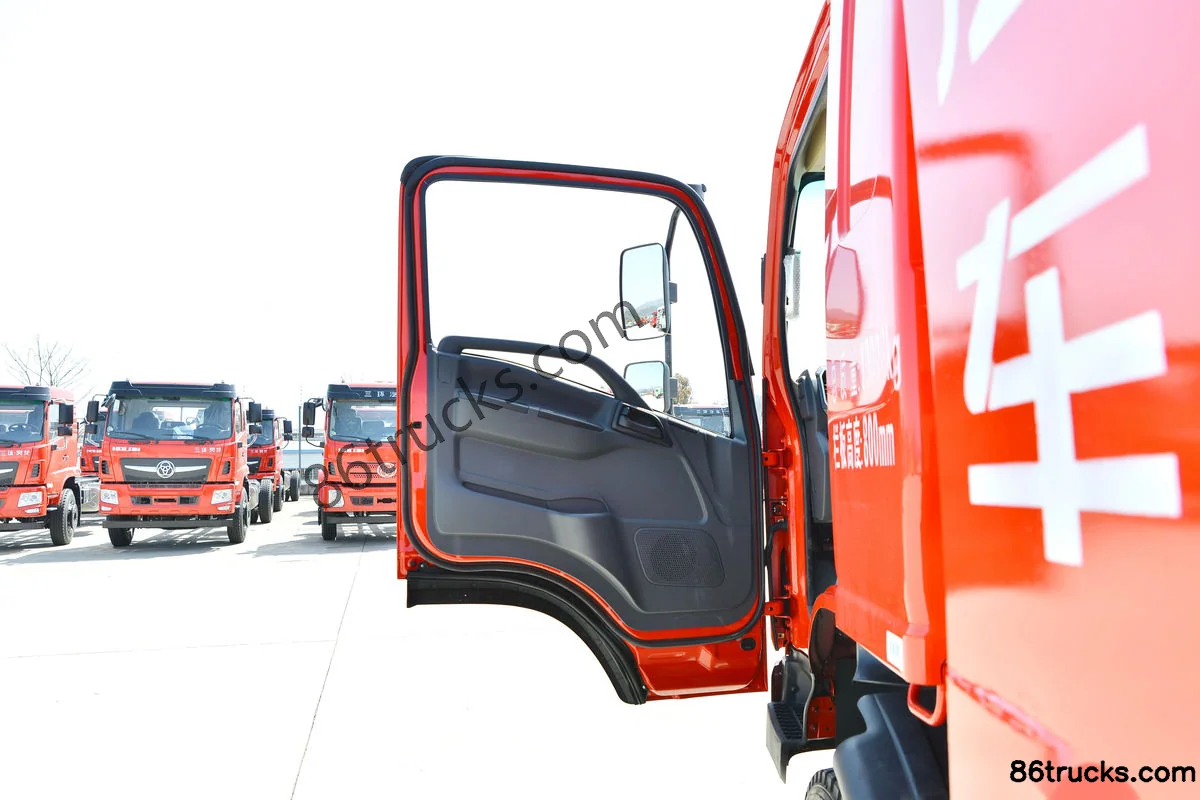

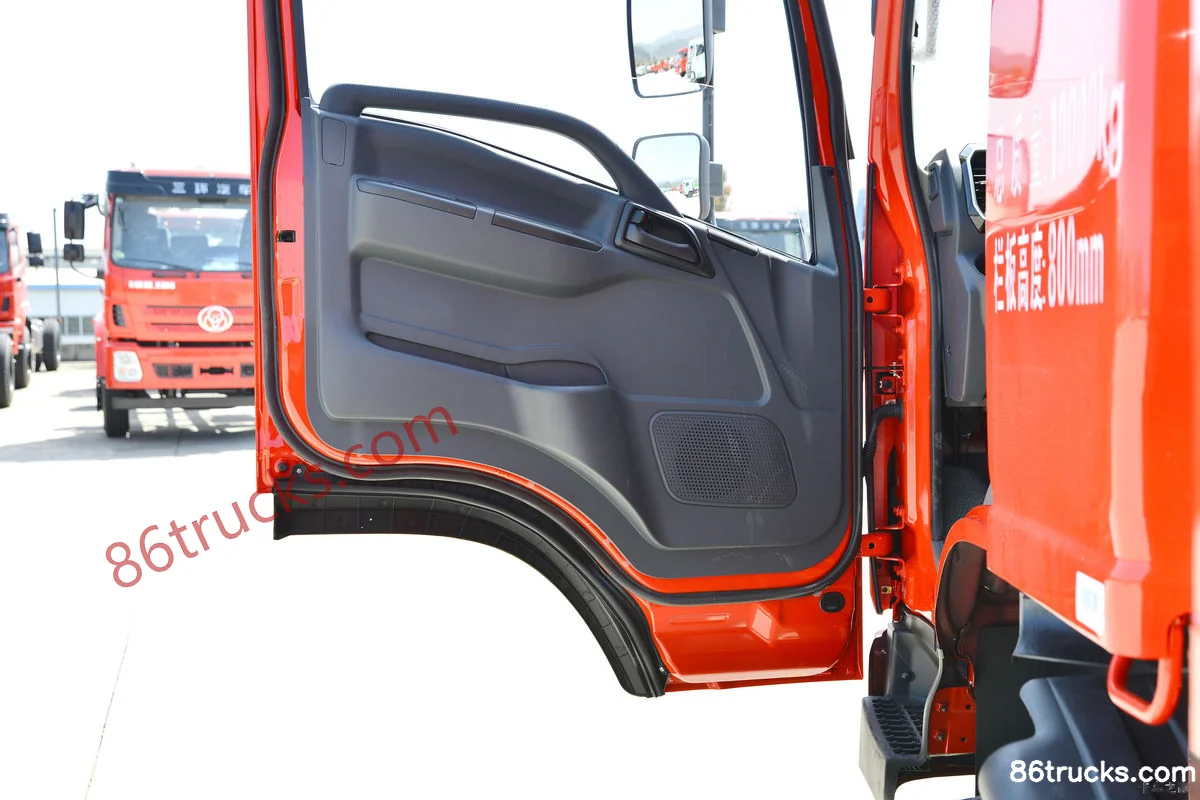

Cab3

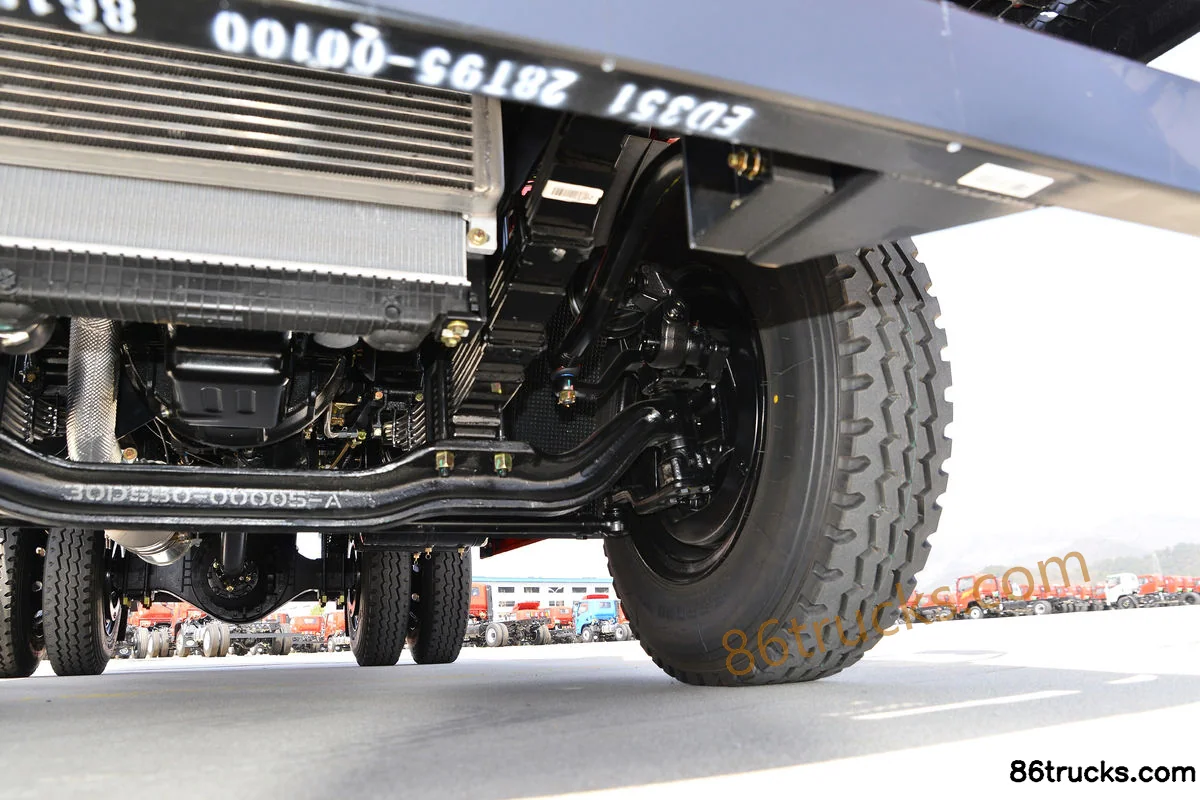

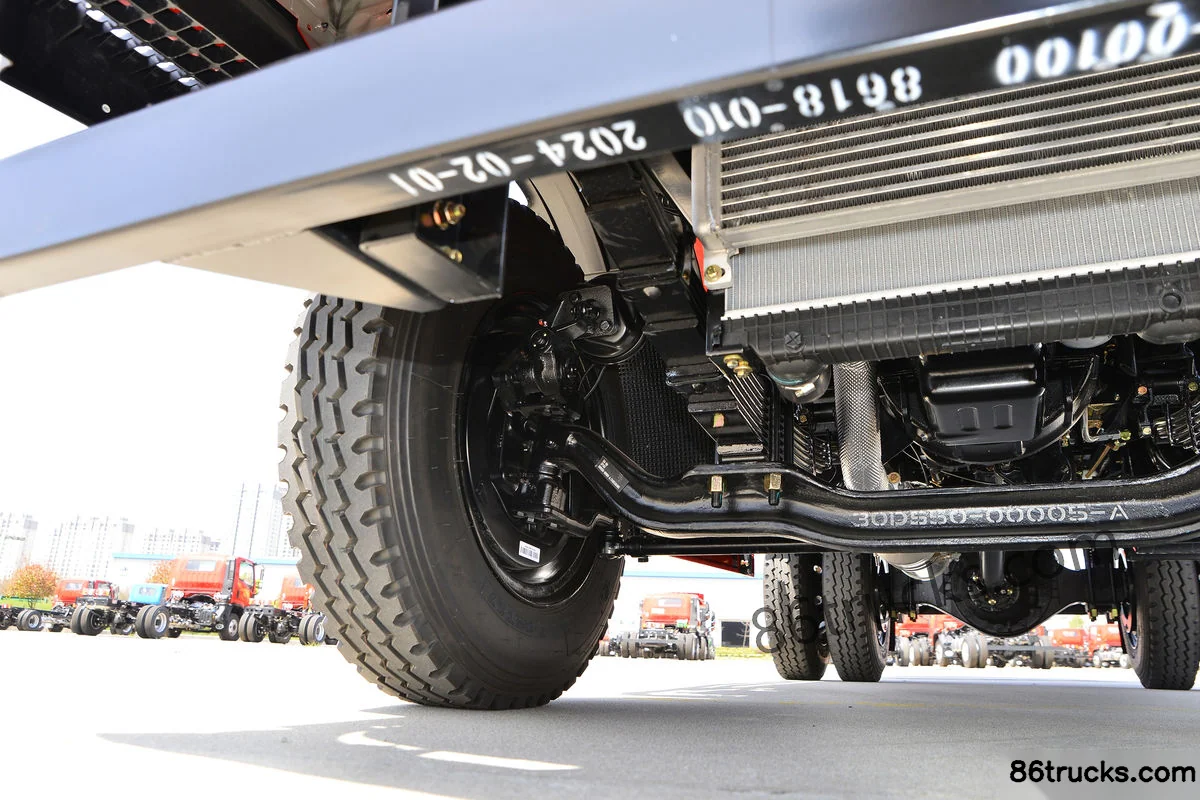

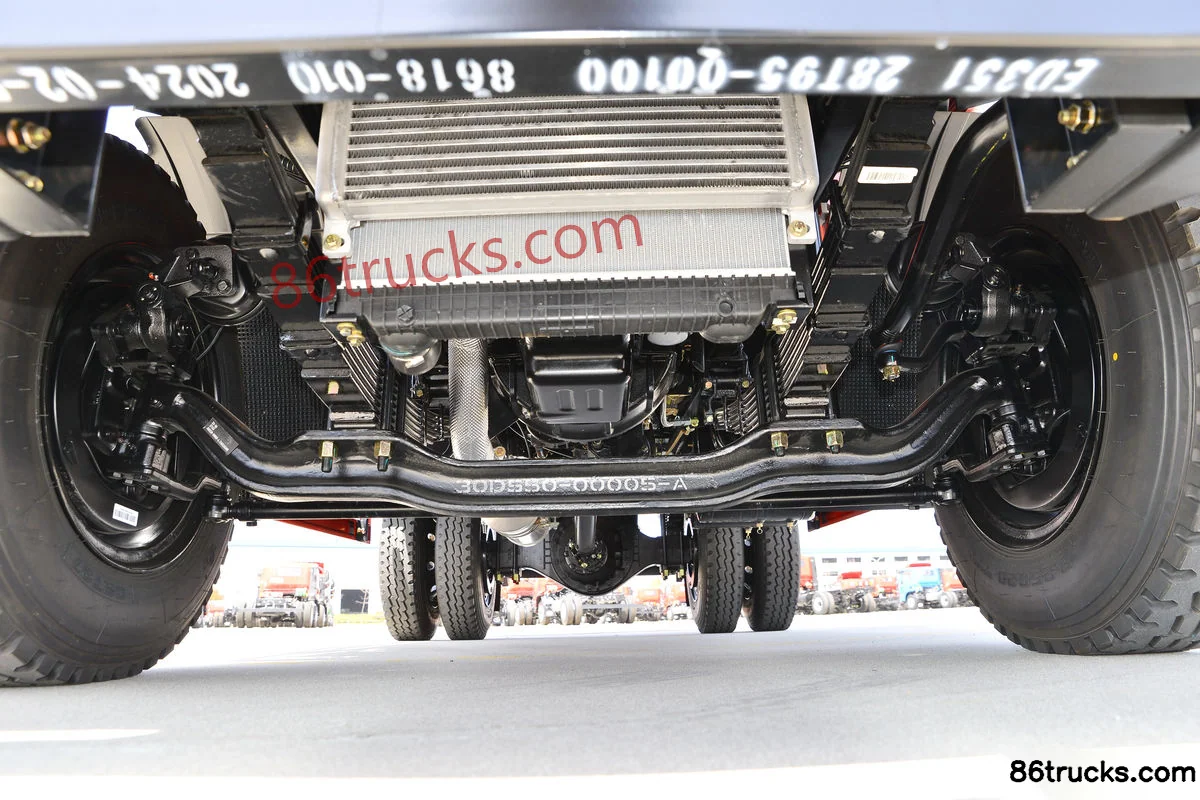

Chassis3

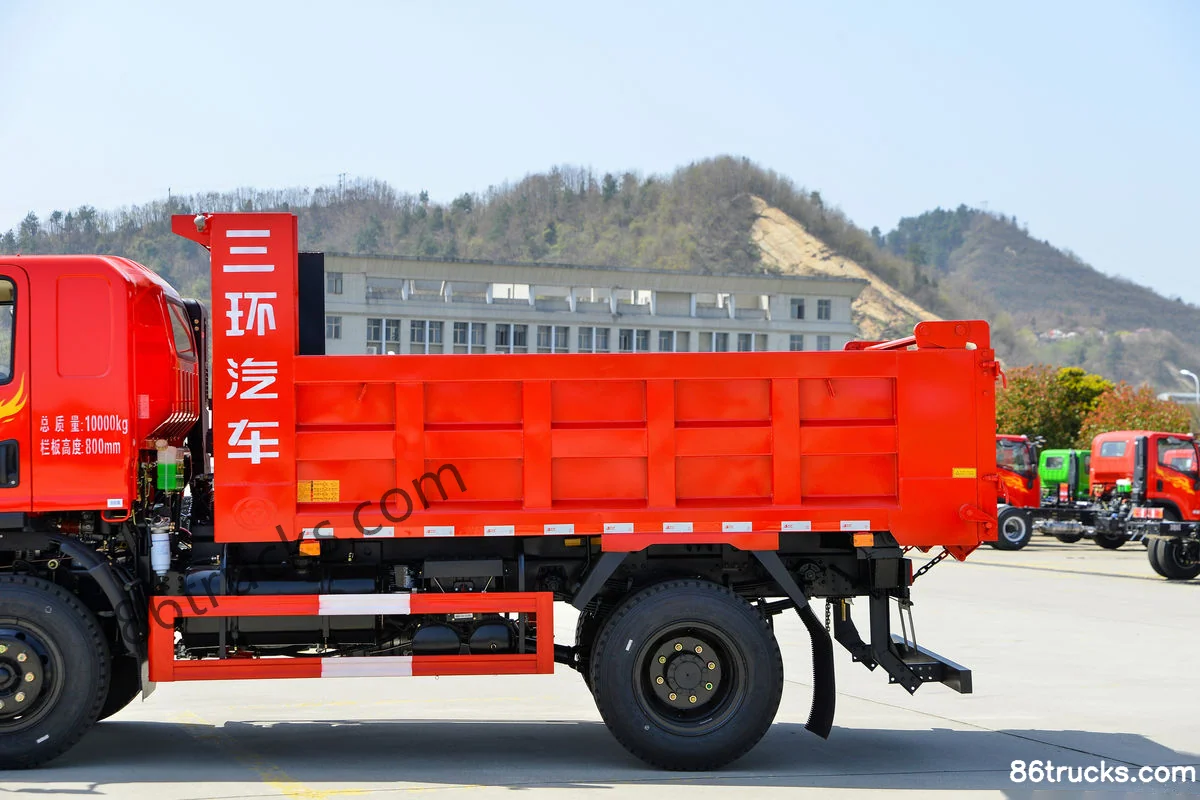

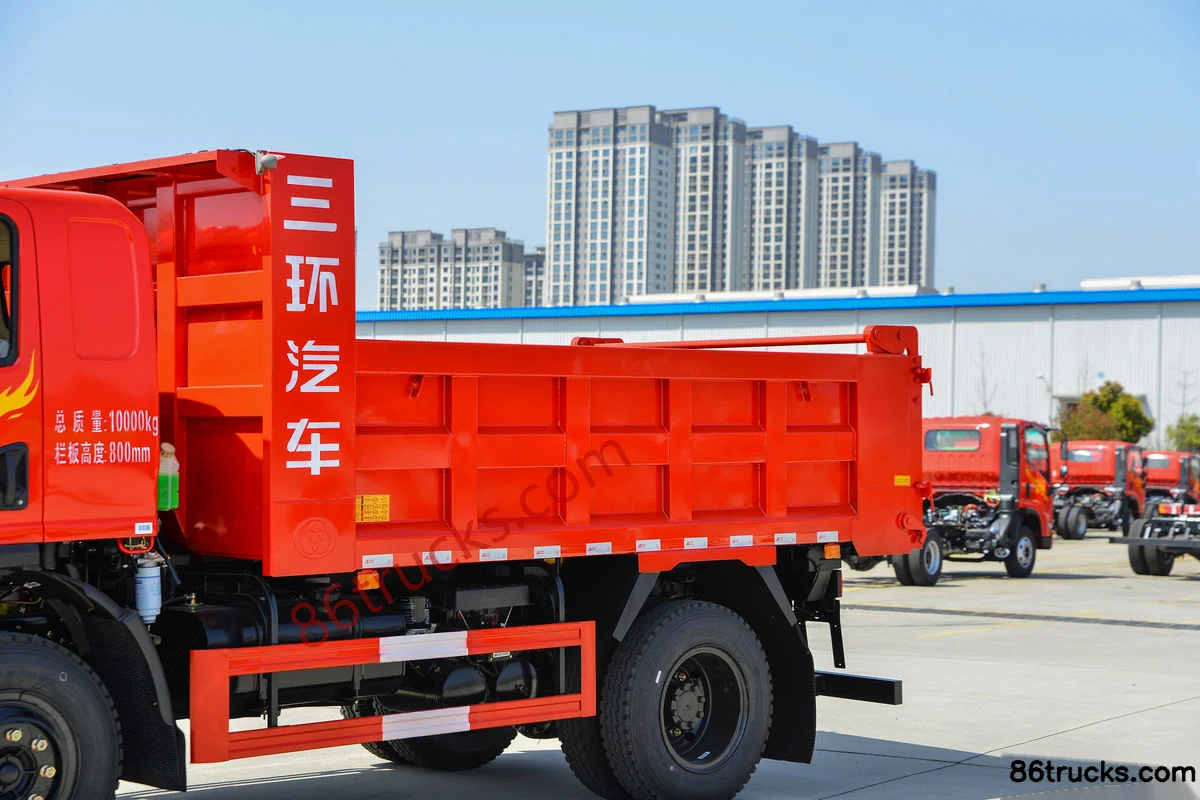

Body3

12 photos

FAQ

What is the export price of Sanhuan Shitong Chuangke 170hp 4X2(6 wheels) 4m Cab-over Dump Truck, and what does it include?

Sanhuan Shitong Chuangke 170hp 4X2(6 wheels) 4m Cab-over Dump Truck export reference is about From $23,611; MSRP is ¥17M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sanhuan Shitong Chuangke 170hp 4X2(6 wheels) 4m Cab-over Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sanhuan Shitong Chuangke 170hp 4X2(6 wheels) 4m Cab-over Dump Truck?

Key specs of Sanhuan Shitong Chuangke 170hp 4X2(6 wheels) 4m Cab-over Dump Truck: Drive: 4x2; Horsepower: 170 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanhuan Shitong Chuangke 170hp 4X2(6 wheels) 4m Cab-over Dump Truck suited for?

Sanhuan Shitong Chuangke 170hp 4X2(6 wheels) 4m Cab-over Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sanhuan Shitong Chuangke 170hp 4X2(6 wheels) 4m Cab-over Dump Truck differ from other variants in the same series?

Sanhuan Shitong Chuangke 170hp 4X2(6 wheels) 4m Cab-over Dump Truck belongs to Sanhuan Shitong Chuanke Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanhuan Shitong Chuangke 170hp 4X2(6 wheels) 4m Cab-over Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanhuan Shitong Chuangke 170hp 4X2(6 wheels) 4m Cab-over Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
