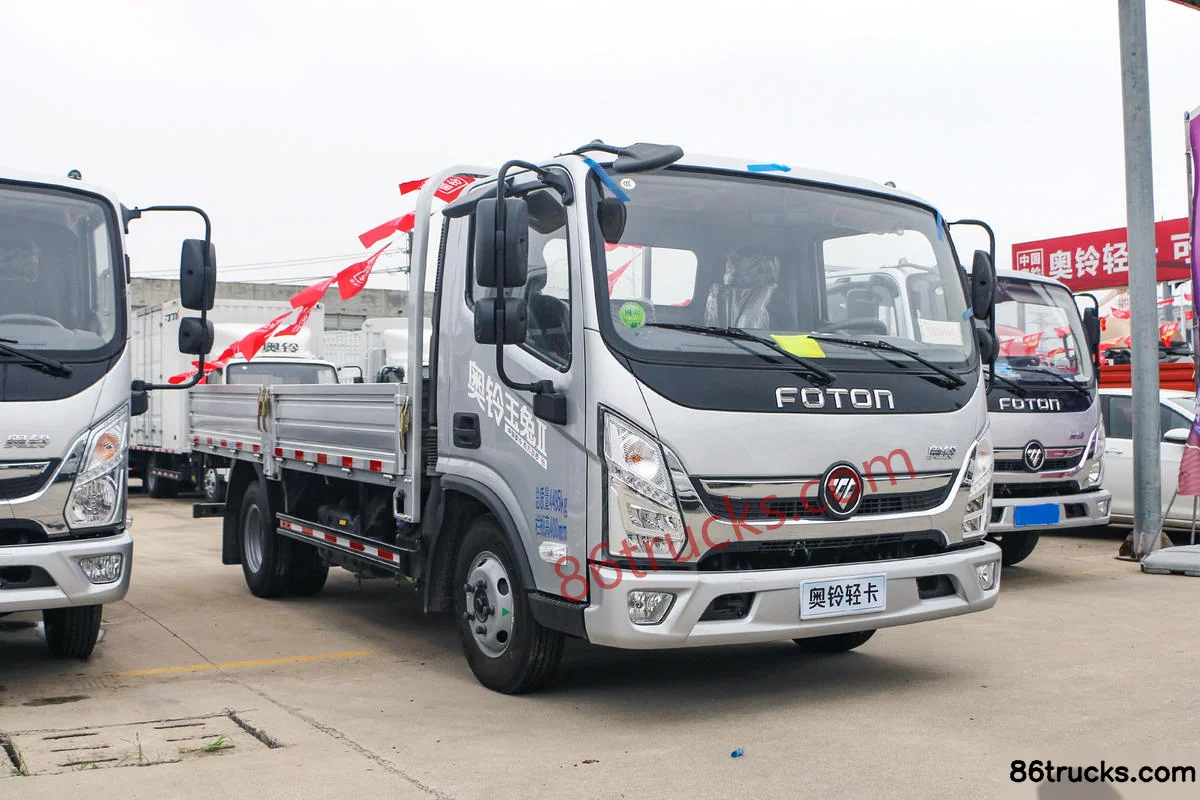

Foton Yutu II 152 hp 4X2(6 wheels) 4.17m AMT automatic single-row flatbed light truck (China VI)

Export reference
From $14,722
MSRP ¥10.6M CNY
Horsepower: 152
Emission: China VI
Fuel: Diesel
Engine: Quanchai2.5L
Transmission: Fast Gear
Curb Weight:: 2.565ton
seating capacity: 3Personnel
Rated payload: 1.735ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Foton Yutu II 152 hp 4X2(6 wheels) 4.17m AMT automatic single-row flatbed light truck (China VI) is a Light Truck featuring 4.17m cargo length, stake body cargo body, 3Personnel volume and 1.735t payload. On the powertrain side, it comes with a Quanchai2.5L engine, 152 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 152 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1048V9JDA-AB2
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: QuanchaiQ25-152E60
transmission: Fast GearF6JZ45AM
Rear Axle Ratio: 4.33
Cab length: 5.995m
Cab width: 2.2m
Cab height: 2.33m
Front track width: 1730mm
rear track: 1615mm
Curb Weight: 2.565ton
Rated payload: 1.735ton
GVWR: 4.495ton
Max. speed: 105km/h
Origin: Shandong Zhucheng
tonnage class: Light Truck
Approach angle: 19°
departure angle: 16°
Front/rear suspension: 1.11/1.525m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiQ25-152E60
Engine info: Quanchai2.5L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.5L
Emission standard: China VI
Max output power: 112kW
Max hp: 152Horsepower
Max torque: 440N·m
Max torque speed: 1400rpm
Rated speed: 3000rpm
Transmission Parameters
Transmission Model: Fast GearF6JZ45AM
Transmission Brand: Fast Gear
shift method: AMT manual/auto
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.17m
Cargo box width: 2.1m
Cargo box height: 0.4m
*Cargo box interior width: 2.0999999046326
Cab parameters
Cab width: 2060mm
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1575kg
rear axle allowable load: 2920kg
Axle ratio: 4.33
Leaf spring count: 3/5+2
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
LCD instrument cluster:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

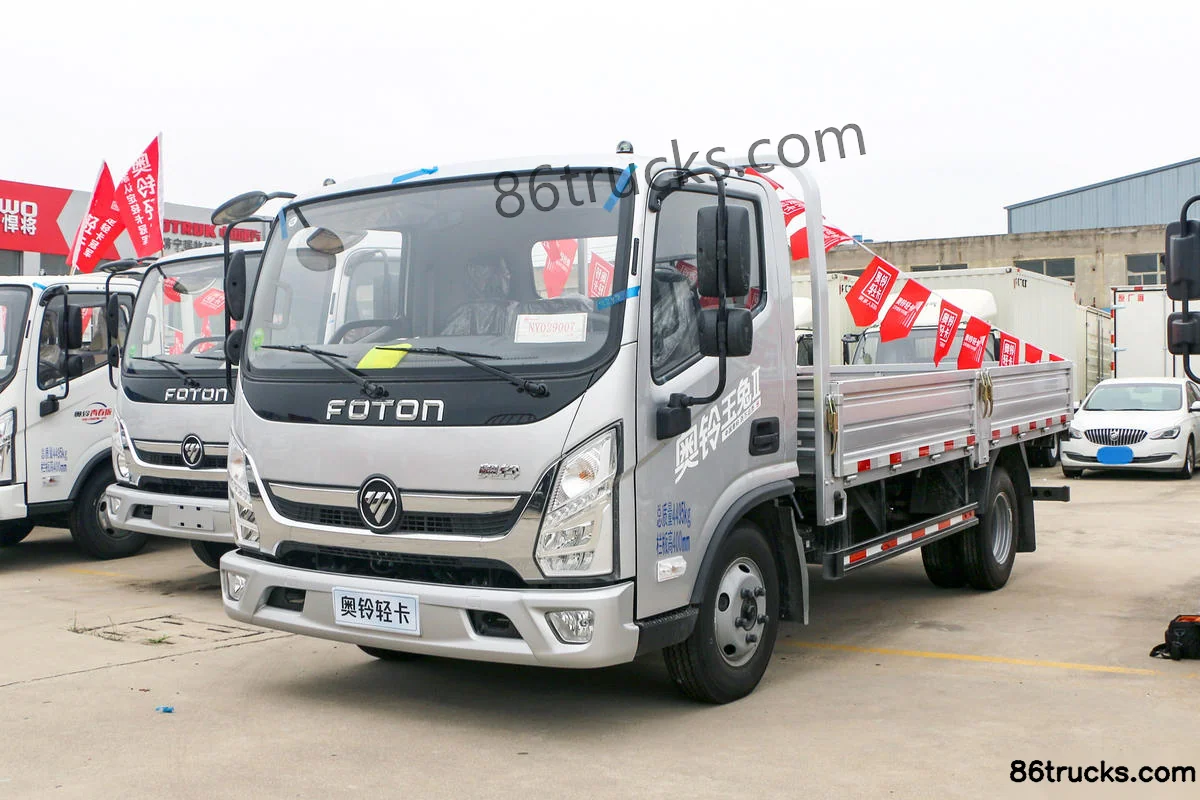

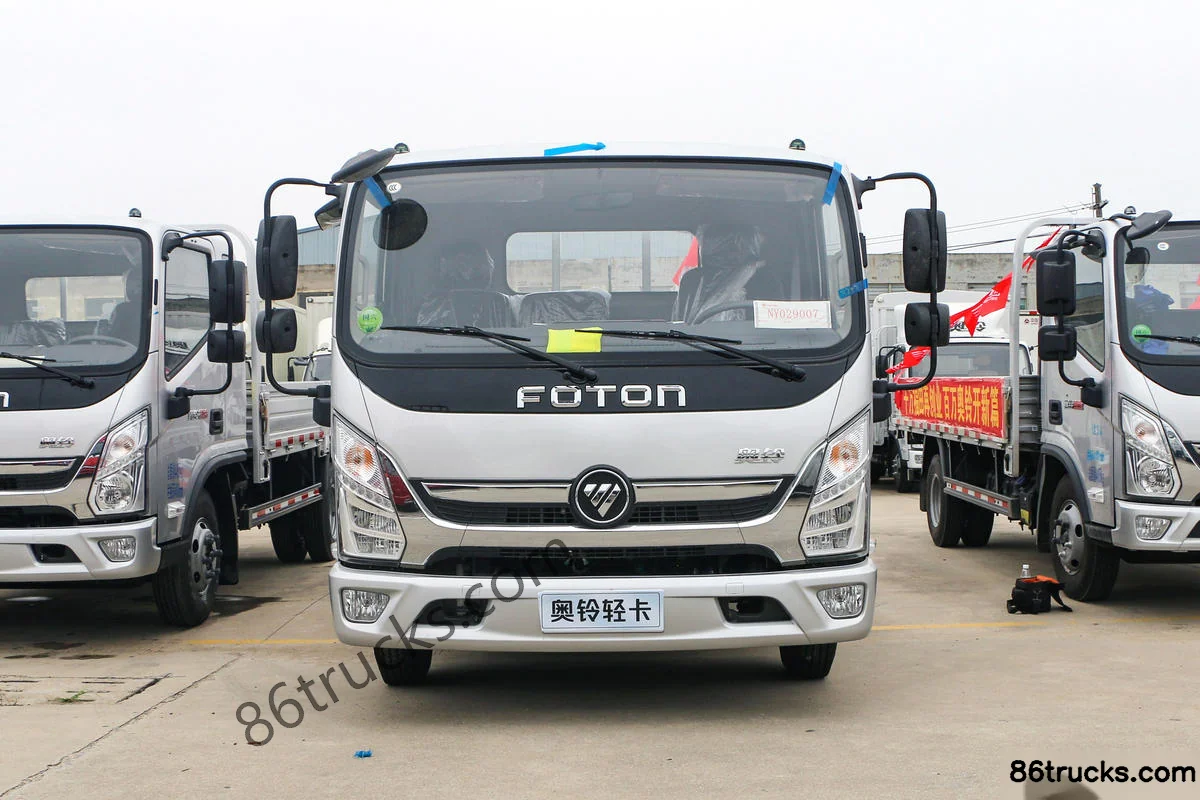

Exterior3

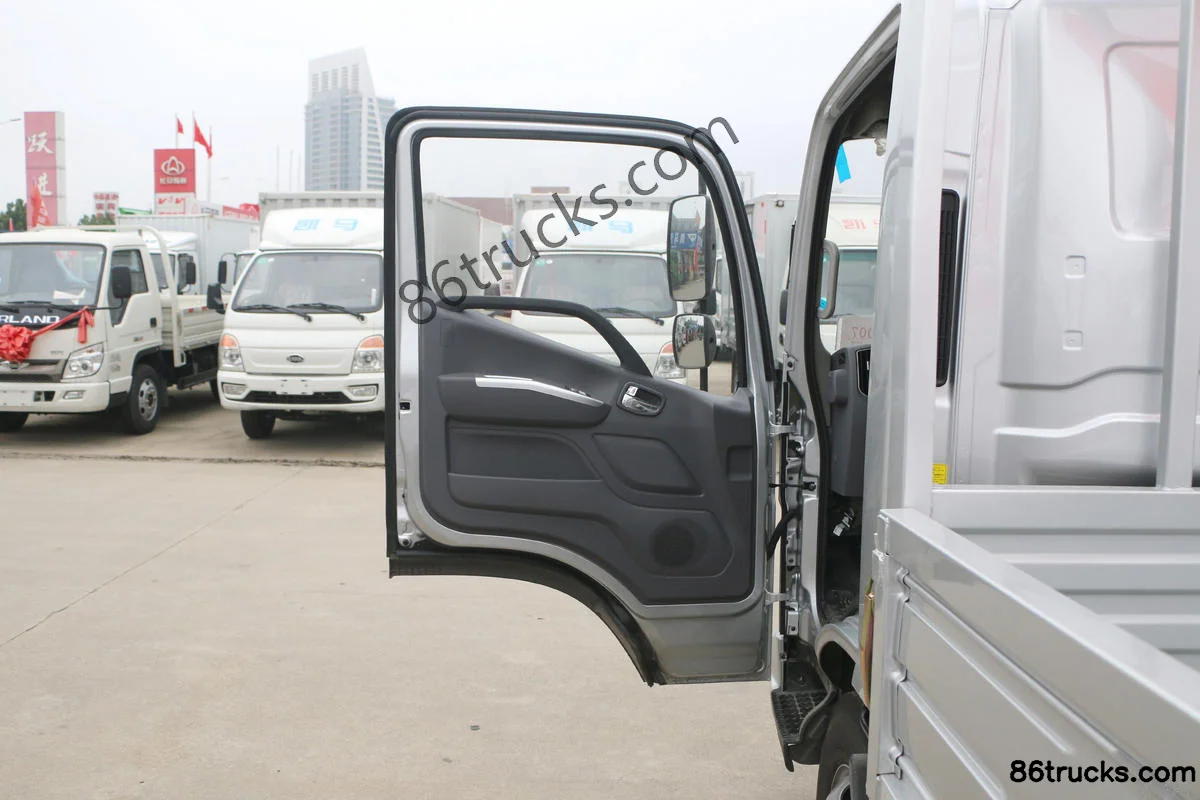

Cab3

Chassis3

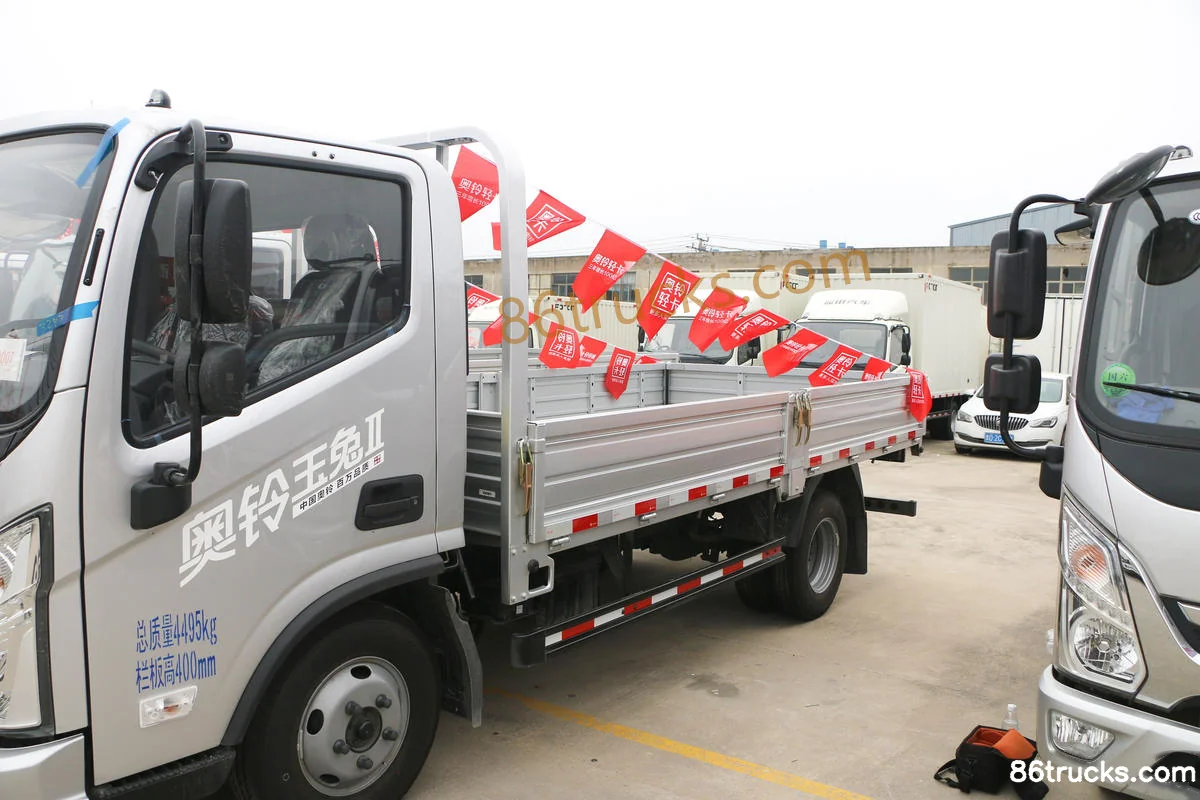

Body3

12 photos

FAQ

What is the export price of Foton Yutu II 152 hp 4X2(6 wheels) 4.17m AMT automatic single-row flatbed light truck (China VI), and what does it include?

Foton Yutu II 152 hp 4X2(6 wheels) 4.17m AMT automatic single-row flatbed light truck (China VI) export reference is about From $14,722; MSRP is ¥10.6M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Yutu II 152 hp 4X2(6 wheels) 4.17m AMT automatic single-row flatbed light truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Yutu II 152 hp 4X2(6 wheels) 4.17m AMT automatic single-row flatbed light truck (China VI)?

Key specs of Foton Yutu II 152 hp 4X2(6 wheels) 4.17m AMT automatic single-row flatbed light truck (China VI): Drive: 4x2; Horsepower: 152 hp; Emission: China VI; Fuel: Diesel; Engine: Quanchai2.5L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Yutu II 152 hp 4X2(6 wheels) 4.17m AMT automatic single-row flatbed light truck (China VI) suited for?

Foton Yutu II 152 hp 4X2(6 wheels) 4.17m AMT automatic single-row flatbed light truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Yutu II 152 hp 4X2(6 wheels) 4.17m AMT automatic single-row flatbed light truck (China VI) differ from other variants in the same series?

Foton Yutu II 152 hp 4X2(6 wheels) 4.17m AMT automatic single-row flatbed light truck (China VI) belongs to Foton Yutu 2 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Yutu II 152 hp 4X2(6 wheels) 4.17m AMT automatic single-row flatbed light truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Yutu II 152 hp 4X2(6 wheels) 4.17m AMT automatic single-row flatbed light truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
