Dongfeng F5 150hp 4X2(6 wheels) green sprinkler truck (Chengliwei brand)

Export reference
MSRP N/A
Curb Weight:: 5.87ton
Emission: China VI
Fuel: Diesel
Wheelbase:: 3950mm
Cab dimensions:: 8.3×2.5×3.35m
Truck Type:: landscaping sprinkler truck
Tank Dimensions (L×W×H): 4.1×2.35×1.5m
Rated payload: 10ton
Drive 4X2 (6 wheels)
Horsepower 150

Overview

The Dongfeng F5 150hp 4X2(6 wheels) green sprinkler truck (Chengliwei brand) is a water sprinkler truck featuring 4.1×2.35×1.5m tank capacity, 10t payload, 10.5m³ volume and 5.87ton GVW. On the powertrain side, it comes with 150 hp, 4X2 (6 wheels) drive, China VI emissions and Diesel fuel.

China VI 150 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.3×2.5×3.35m
Truck Type: landscaping sprinkler truck
Drive type: 4X2
Wheelbase: 3950mm
Vehicle origin: Suizhou, Hubei
Front track width: 1820mm
rear track: 1800mm
Curb Weight: 5.87ton
Rated payload: 10ton
Max. speed: 88km/h
Front/rear suspension: 1.25/2.55m
Energy Type: Diesel
Body Parameters
Tank Dimensions (L×W×H): 4.1×2.35×1.5m
Vehicle certification code: CLW5162GPSHDL
Body Brand: Chengliwei
Engine parameters
Engine Model: Yunnei PowerD25TCIF1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.5L
Emission standard: China VI
Max output power: 110kW
Max hp: 150Horsepower
Rated speed: 3000rpm
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC
Cargo box parameters
Box volume: 10.5m³
Chassis Specs
Chassis Brand: Dongfeng
Chassis Series: Huashen F5
Chassis Model: EQ1160GL6DJ
Axle ratio: 6.83
Leaf spring count: 9/11+8
Transmission Parameters
Number of gears: 6Gear
Transmission Model: WLY 6-speed
Tire
Tire Size: 9.00R20
Number of tires: 6pcs

Photos

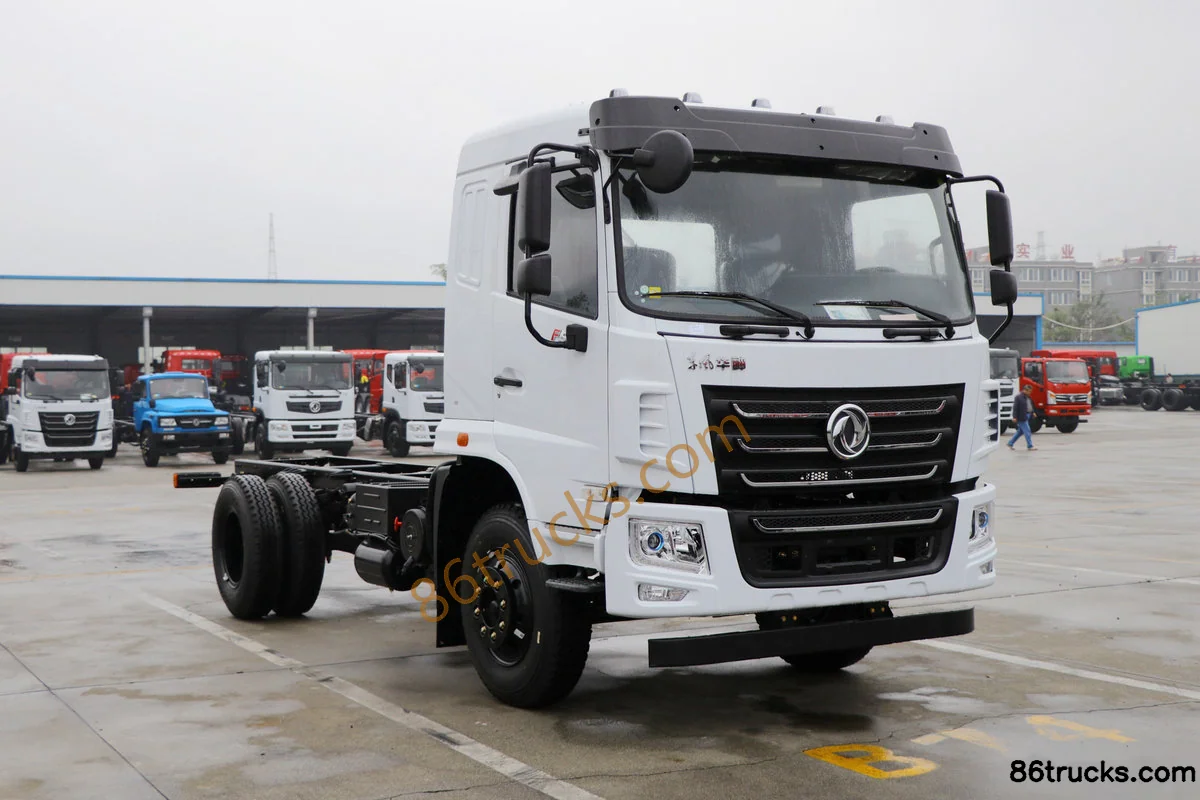

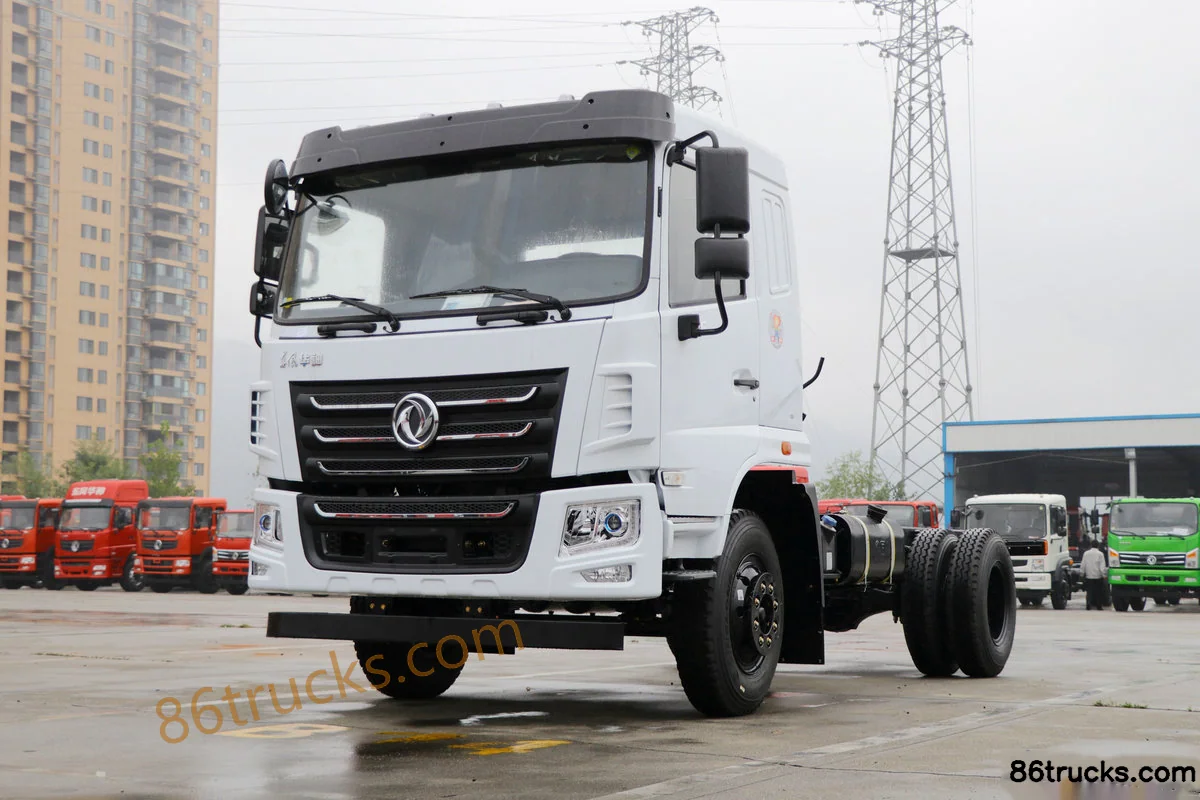

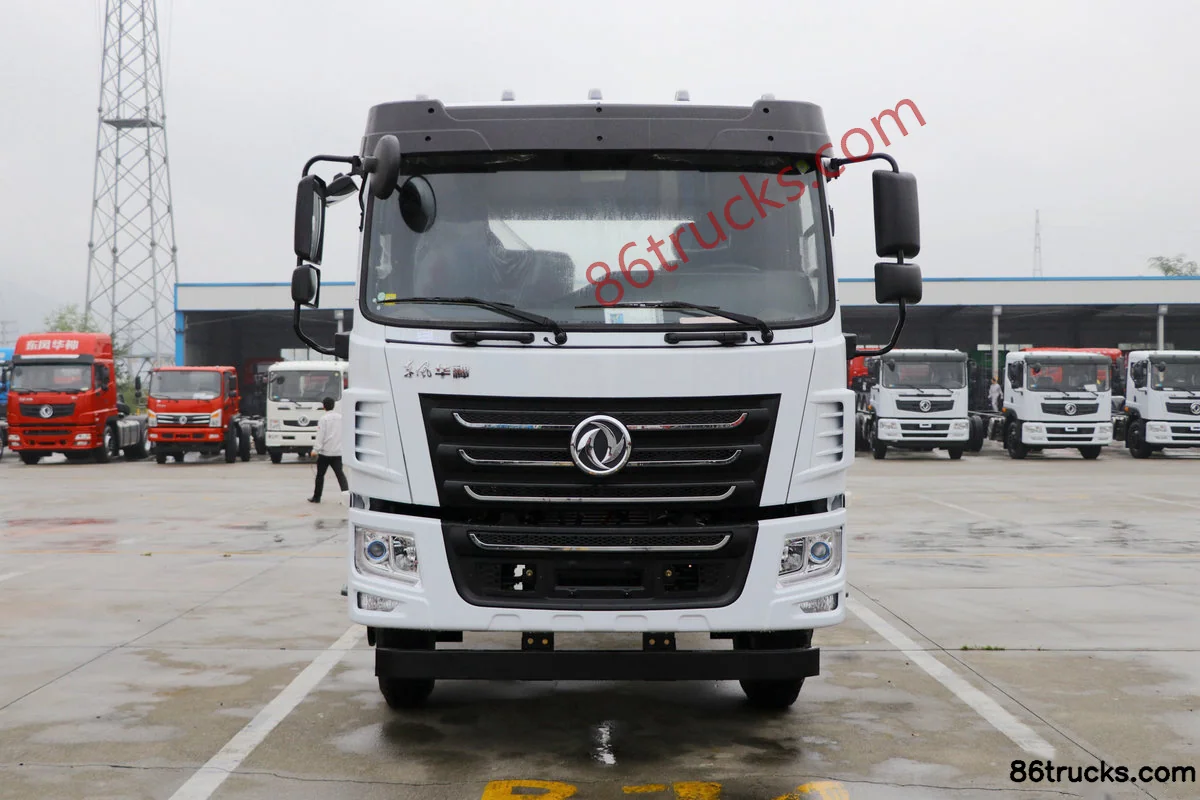

Exterior3

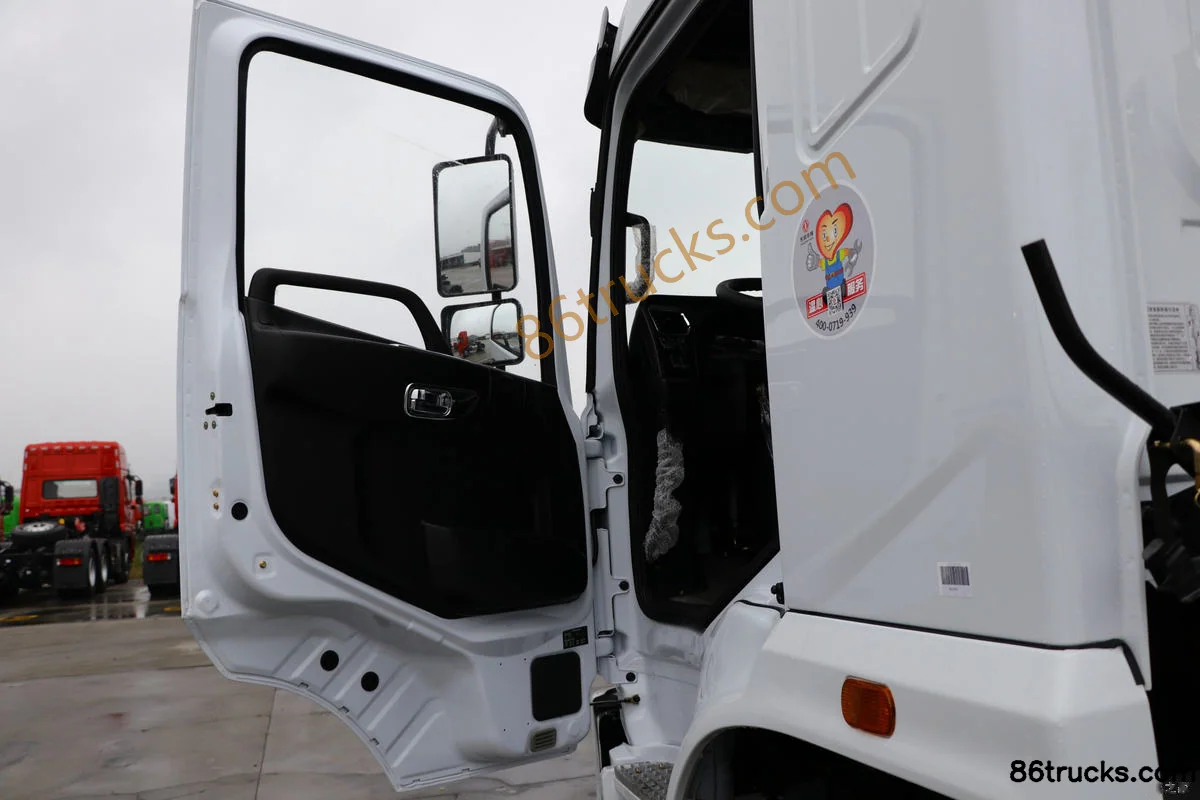

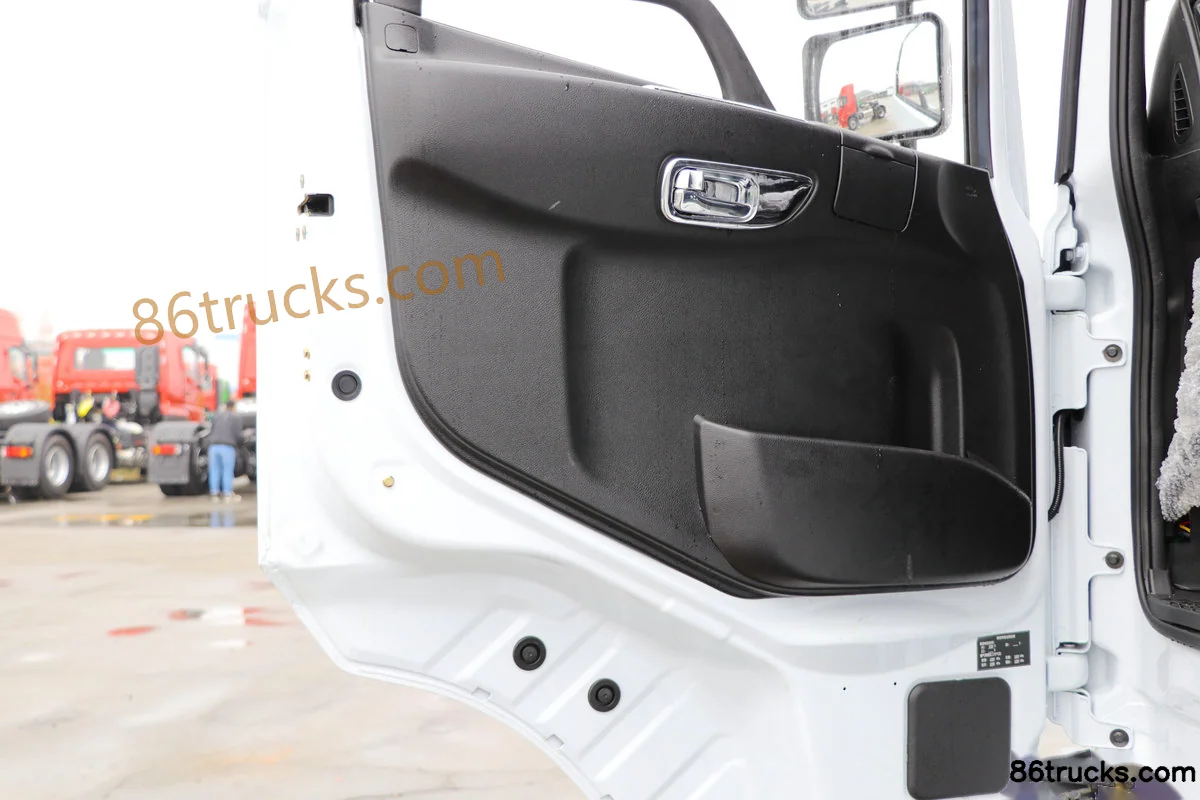

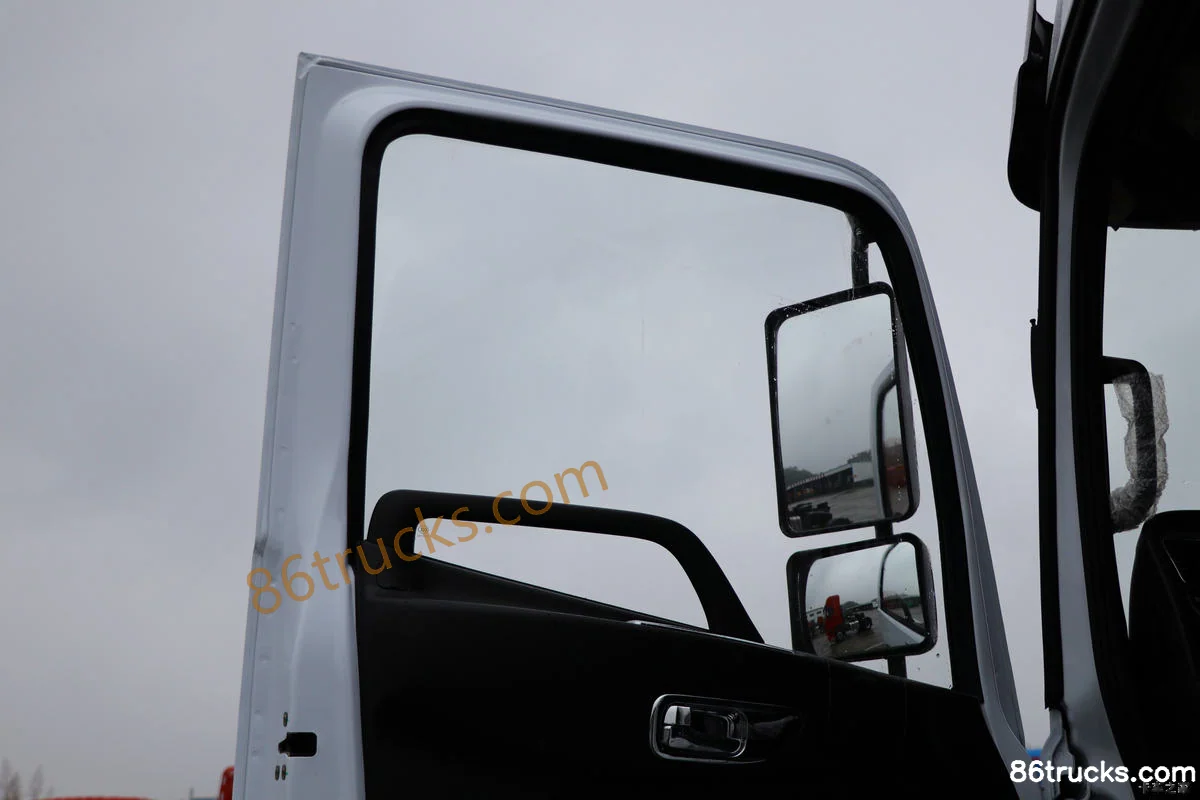

Cab3

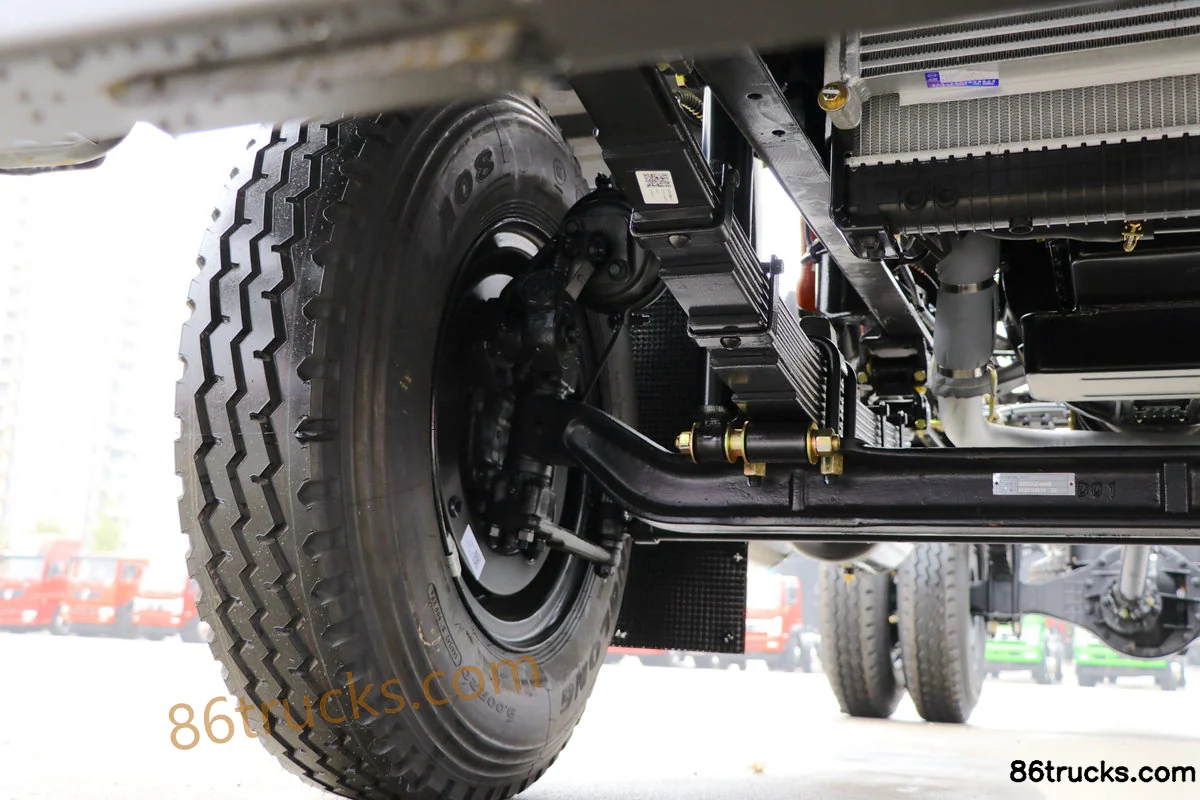

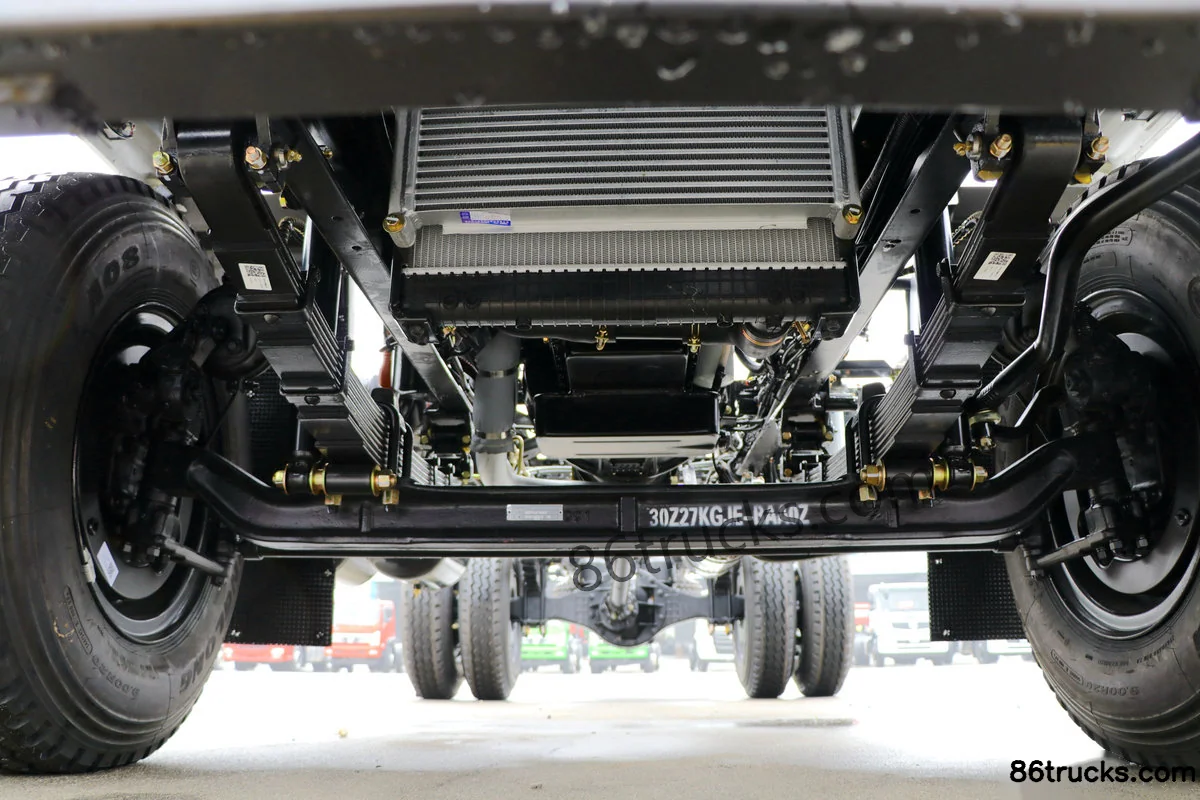

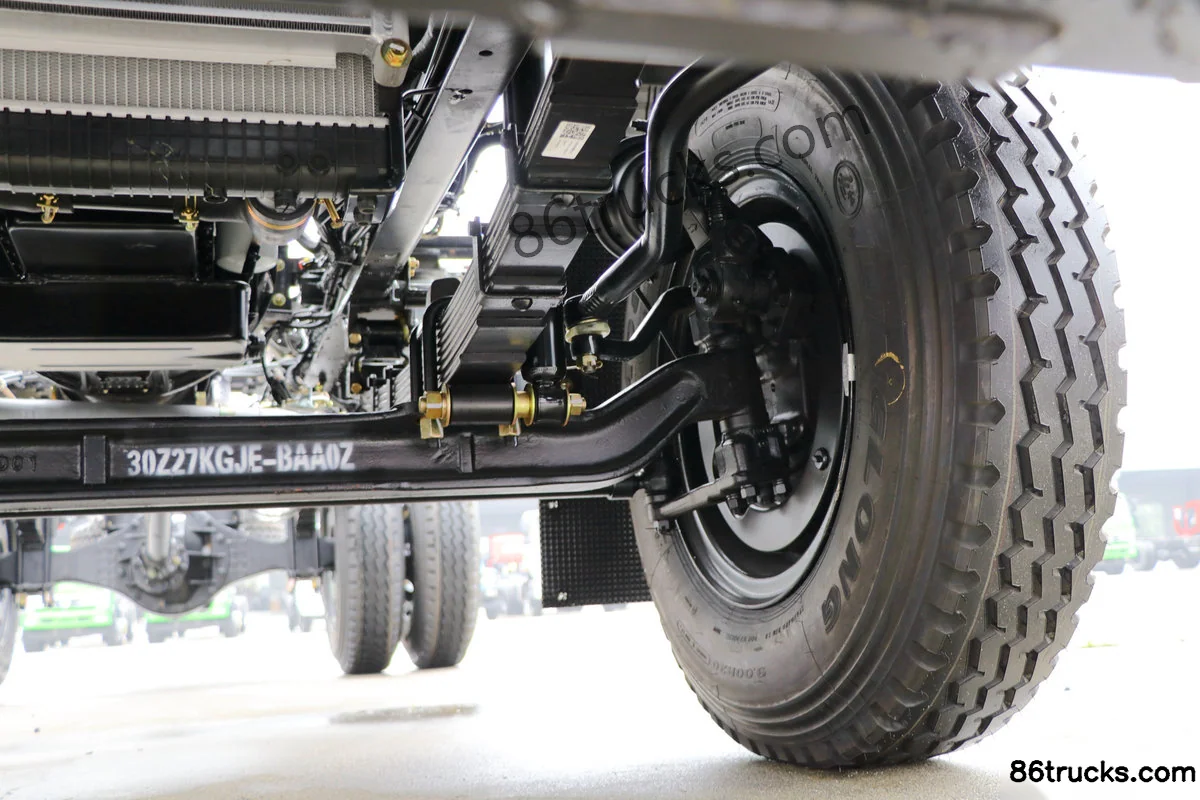

Chassis3

9 photos

FAQ

What emission standard does Dongfeng F5 150hp 4X2(6 wheels) green sprinkler truck (Chengliwei brand) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng F5 150hp 4X2(6 wheels) green sprinkler truck (Chengliwei brand)?

Key specs of Dongfeng F5 150hp 4X2(6 wheels) green sprinkler truck (Chengliwei brand): Drive: 4x2; Horsepower: 150 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng F5 150hp 4X2(6 wheels) green sprinkler truck (Chengliwei brand) suited for?

Dongfeng F5 150hp 4X2(6 wheels) green sprinkler truck (Chengliwei brand) is a water sprinkler truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dongfeng F5 150hp 4X2(6 wheels) green sprinkler truck (Chengliwei brand) differ from other variants in the same series?

Dongfeng F5 150hp 4X2(6 wheels) green sprinkler truck (Chengliwei brand) belongs to Chengliwei Dongfeng Chassis (water sprinkler truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng F5 150hp 4X2(6 wheels) green sprinkler truck (Chengliwei brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng F5 150hp 4X2(6 wheels) green sprinkler truck (Chengliwei brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
