Qingling Isuzu 700P 189 hp 4X2(6 wheels) 3.82m Dump Truck (China VI)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: Isuzu
Curb Weight:: 4.5ton
Wheelbase:: 3360mm
Tire Size:: 235/75R17.5 16PR
Rated payload: 5.855ton
Drive 4X2 (6 wheels)
Horsepower 189
Cargo box type: Dump type

Overview

The Qingling Isuzu 700P 189 hp 4X2(6 wheels) 3.82m Dump Truck (China VI) is a Light Truck featuring 5.855t payload, 10.55t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Qingling Isuzu4HK1-TCG61 engine, 189 hp, China VI emissions and Isuzu transmission.

China VI 189 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): QL3110ZANHA
Drive type: 4X2
Wheelbase: 3360mm
engine: Qingling Isuzu4HK1-TCG61
transmission: IsuzuMLD-6Q
Rear Axle Ratio: 4.1
Cab length: 5.8m
Cab width: 2.335m
Cab height: 2.48m
Front track width: 1680mm
rear track: 1650mm
Curb Weight: 4.5ton
Rated payload: 5.855ton
GVWR: 10.55ton
Origin: Jiulongpo, Chongqing
tonnage class: Light Truck
Approach angle: 15°
departure angle: 20°
Remarks: Optional ratio 4.11
Energy Type: Diesel
Engine parameters
Engine Brand: Qingling Isuzu
Engine Model: Qingling Isuzu4HK1-TCG61
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 5.193L
Emission standard: China VI
Max output power: 139kW
Max hp: 189Horsepower
Max torque: 507N·m
Max torque speed: 1600-2600rpm
Rated speed: 2600rpm
Transmission Parameters
Transmission Model: IsuzuMLD-6Q
Transmission Brand: Isuzu
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.82m
Cargo box width: 2.105m
Cargo box height: 0.8m
Cab parameters
Cab: Single Row
Cab width: 1995mm
fuel tank
Fuel tank capacity: 100L
Chassis Specs
Front axle allowable load: 3500kg
rear axle allowable load: 7050kg
Axle ratio: 4.1
Leaf spring count: 8/10+6
Tire
Tire Size: 235/75R17.5 16PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
Radio:
lighting configuration
Front fog lamp:

Photos

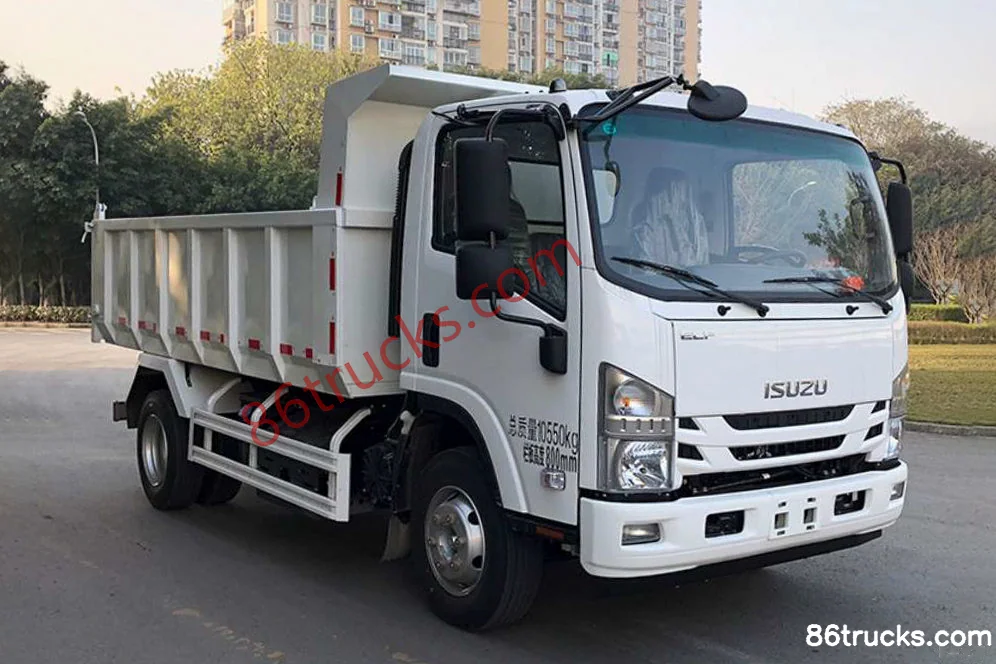

Exterior1

1 photos

FAQ

What emission standard does Qingling Isuzu 700P 189 hp 4X2(6 wheels) 3.82m Dump Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Qingling Isuzu 700P 189 hp 4X2(6 wheels) 3.82m Dump Truck (China VI)?

Key specs of Qingling Isuzu 700P 189 hp 4X2(6 wheels) 3.82m Dump Truck (China VI): Drive: 4x2; Horsepower: 189 hp; Emission: China VI; Fuel: Diesel; Transmission: Isuzu. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Qingling Isuzu 700P 189 hp 4X2(6 wheels) 3.82m Dump Truck (China VI) suited for?

Qingling Isuzu 700P 189 hp 4X2(6 wheels) 3.82m Dump Truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Qingling Isuzu 700P 189 hp 4X2(6 wheels) 3.82m Dump Truck (China VI) differ from other variants in the same series?

Qingling Isuzu 700P 189 hp 4X2(6 wheels) 3.82m Dump Truck (China VI) belongs to Qingling Isuzu 700P Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Qingling Isuzu 700P 189 hp 4X2(6 wheels) 3.82m Dump Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Qingling Isuzu 700P 189 hp 4X2(6 wheels) 3.82m Dump Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
