Jindong JDS5T35E 5-Speed Manual Transmission

Export reference
MSRP N/A
Features:: 1. JD5T35E is an improved shift performance version based on 535; external mounting dimensions identical to 535. 2. 1st/reverse sliding sleeve; 2nd/3rd slider synchronizer; 4th/5th slider synchronizer; improved JD5T35E offers clearer shifts, longer life, higher load capacity, better overload performance. 3. With front and rear auxiliary boxes; auxiliary box can be manual or pneumatic. 4. Overdrive version can use 4/5 shift mechanism to eliminate U-shift pattern.
Max input torque:: 350N·m
1st gear ratio:: 5.056
Jindong JDS5T35E 5-Speed Manual Transmission exterior
View more photos (1)
Transmission Model: JDS5T35E
Transmission Brand: Jindong
Matching Range: Mainly matched with 4100/4102/4105 and similar engines

Overview

The Jindong JDS5T35E 5-Speed Manual Transmission is a parts product with spec JDS5T35E.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters
Transmission Brand: Jindong
Transmission series: 5-speed series
Matching Range: Mainly matched with 4100/4102/4105 and similar engines
Features: 1. JD5T35E is an improved shift performance version based on 535; external mounting dimensions identical to 535. 2. 1st/reverse sliding sleeve; 2nd/3rd slider synchronizer; 4th/5th slider synchronizer; improved JD5T35E offers clearer shifts, longer life, higher load capacity, better overload performance. 3. With front and rear auxiliary boxes; auxiliary box can be manual or pneumatic. 4. Overdrive version can use 4/5 shift mechanism to eliminate U-shift pattern.
Max input torque: 350N·m
1st gear ratio: 5.056
synchronizer: Slider-type synchronizer
Main box center distance: 100mm
2nd gear ratio: 2.534
3rd gear ratio: 1.509
4th gear ratio:
5th gear ratio: 0.761
Reverse Gear 1 Ratio: 4.575
Transmission weight: 100kg
Transmission oil capacity: 4.575+3.5L
Control type: Available with remote control and direct control
Number of gears: 5Gear
shift type: Manual
Transmission Model: JDS5T35E
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:

Photos

Exterior1

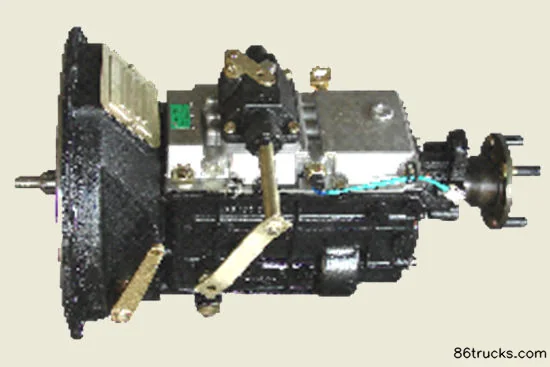

Jindong JDS5T35E 5-Speed Manual Transmission Exterior (1) | 86Trucks
