SHACMAN Commercial Vehicle Xuande Wing 6 300 hp 8X4(12 wheels) 7.4 m³ concrete mixer truck (China VI)

Export reference
From $42,958
MSRP ¥30.93M CNY
Fuel: Diesel
Curb Weight:: 14.5ton
Wheelbase:: 1800+3200+1300mm
Tire Size:: 11.00R20
Cab dimensions:: 10.1×2.5×3.95m
Truck Type:: Concrete mixer truck
Rated payload: 16.305ton
Drive 8X4 (12 wheels)
Horsepower 300
Emission China V

Overview

The SHACMAN Commercial Vehicle Xuande Wing 6 300 hp 8X4(12 wheels) 7.4 m³ concrete mixer truck (China VI) is a concrete mixer truck featuring 16.305t payload, 14.5ton GVW, 8X4 (12 wheels) drive and 10.1×2.5×3.95m cab. On the powertrain side, it comes with 300 hp, China V emissions and Diesel fuel.

China V 300 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.1×2.5×3.95m
Drive type: 8X4
Truck Type: Concrete mixer truck
Wheelbase: 1800+3200+1300mm
Vehicle origin: Xi'an, Shaanxi
Front/rear track width: Front track: 1940/1940mm; Rear track: 1860/1860
Curb Weight: 14.5ton
Rated payload: 16.305ton
Max. speed: 85km/h
Front/rear suspension: 1.45/2.35m
Engine parameters
Injection System: Common Rail (China V)
Engine Model: WeichaiWP7.300E51
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.47L
Emission standard: China V
Max output power: 220kW
Max hp: 300Horsepower
Rated speed: 2300rpm
Engine Type: Inline 6-cylinder, electronic high-pressure common rail, SCR
Body Parameters
Mixing drum capacity: 7.4m³
Vehicle certification code: SX5310GJBGP5326
Body Brand: SHACMAN Commercial Vehicle
Chassis Specs
Chassis Series: Xuande Yi6
Chassis Model: SX1310GP5
Front axle description: 153B+153B/5T+5T
Frame Dimensions: 280/8+6 double-layermm
rear axle description: STR11T+STR11T/11T+11T
Axle ratio: 5.262
Leaf spring count: 9/9/10
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Fast Gear10JSD140B
Tire
Tire Size: 11.00R20
Number of tires: 12pcs

Photos

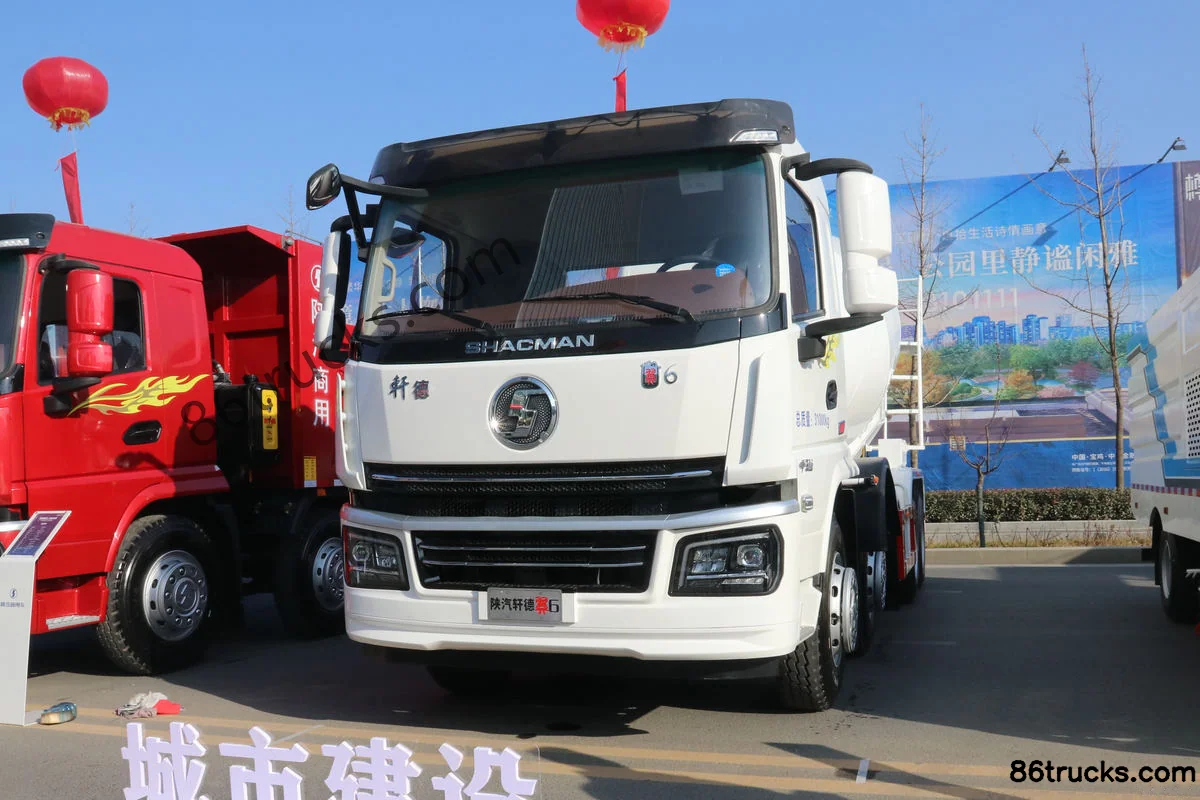

Exterior1

1 photos

FAQ

What is the export price of SHACMAN Commercial Vehicle Xuande Wing 6 300 hp 8X4(12 wheels) 7.4 m³ concrete mixer truck (China VI), and what does it include?

SHACMAN Commercial Vehicle Xuande Wing 6 300 hp 8X4(12 wheels) 7.4 m³ concrete mixer truck (China VI) export reference is about From $42,958; MSRP is ¥30.93M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Commercial Vehicle Xuande Wing 6 300 hp 8X4(12 wheels) 7.4 m³ concrete mixer truck (China VI) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Commercial Vehicle Xuande Wing 6 300 hp 8X4(12 wheels) 7.4 m³ concrete mixer truck (China VI)?

Key specs of SHACMAN Commercial Vehicle Xuande Wing 6 300 hp 8X4(12 wheels) 7.4 m³ concrete mixer truck (China VI): Drive: 8x4; Horsepower: 300 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Commercial Vehicle Xuande Wing 6 300 hp 8X4(12 wheels) 7.4 m³ concrete mixer truck (China VI) suited for?

SHACMAN Commercial Vehicle Xuande Wing 6 300 hp 8X4(12 wheels) 7.4 m³ concrete mixer truck (China VI) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Commercial Vehicle Xuande Wing 6 300 hp 8X4(12 wheels) 7.4 m³ concrete mixer truck (China VI) differ from other variants in the same series?

SHACMAN Commercial Vehicle Xuande Wing 6 300 hp 8X4(12 wheels) 7.4 m³ concrete mixer truck (China VI) belongs to SHACMAN Commercial Vehicle Xuande Yi 6 (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Commercial Vehicle Xuande Wing 6 300 hp 8X4(12 wheels) 7.4 m³ concrete mixer truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Commercial Vehicle Xuande Wing 6 300 hp 8X4(12 wheels) 7.4 m³ concrete mixer truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
