Sinotruk Youshi Heavy-Duty 88hp 4X2(6 wheels) 3.1m dump truck

Export reference
From $11,569
MSRP ¥8.33M CNY
Emission: China V
Fuel: Diesel
Transmission: Mengwo
Curb Weight:: 2.37ton
Wheelbase:: 3050mm
Tire Size:: 6.00R15LT 10PR
Rated payload: 1.995ton
Drive 4X2 (6 wheels)
Horsepower 88
Cargo box length: 3.1m

Overview

The Sinotruk Youshi Heavy-Duty 88hp 4X2(6 wheels) 3.1m dump truck is a mini truck featuring 1.995t payload, 4.495t GVW, 3.1m cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Quanchai4A2-88C50 engine, 88 hp, China V emissions and Mengwo transmission.

China V 88 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW3040N1M5
Drive type: 4X2
Wheelbase: 3050mm
engine: Quanchai4A2-88C50
transmission: MengwoMR85SH
Rear Axle Ratio: 5.375
Cab length: 5.165m
Cab width: 1.75m
Cab height: 2.12m
Front track width: 1380mm
rear track: 1310mm
Curb Weight: 2.37ton
Rated payload: 1.995ton
GVWR: 4.495ton
Origin: Chengdu, Sichuan
tonnage class: mini truck
Approach angle: 34°
departure angle: 15°
Version: Heavy-duty version
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: Quanchai4A2-88C50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.27L
Emission standard: China V
Max output power: 65kW
Max hp: 88Horsepower
Max torque: 240N·m
Max torque speed: 2000rpm
Rated speed: 3200rpm
Transmission Parameters
Transmission Model: MengwoMR85SH
Transmission Brand: Mengwo
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
hydraulic cylinder brand & model: φ90×375
Cargo box length: 3.1m
Cargo box width: 1.75m
Cargo box height: 0.4m
Cab parameters
Cab: Single Row
Cab width: 1650mm
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 60L
Chassis Specs
Front axle description: 1T
Front axle allowable load: 1650kg
rear axle description: 2.7T
rear axle allowable load: 2845kg
Axle ratio: 5.375
Leaf spring count: 5/7
Tire
Tire Size: 6.00R15LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Power Windows:
Remote key:
Electronic Central Lock:
Service brake
Parking brake: Spring brake

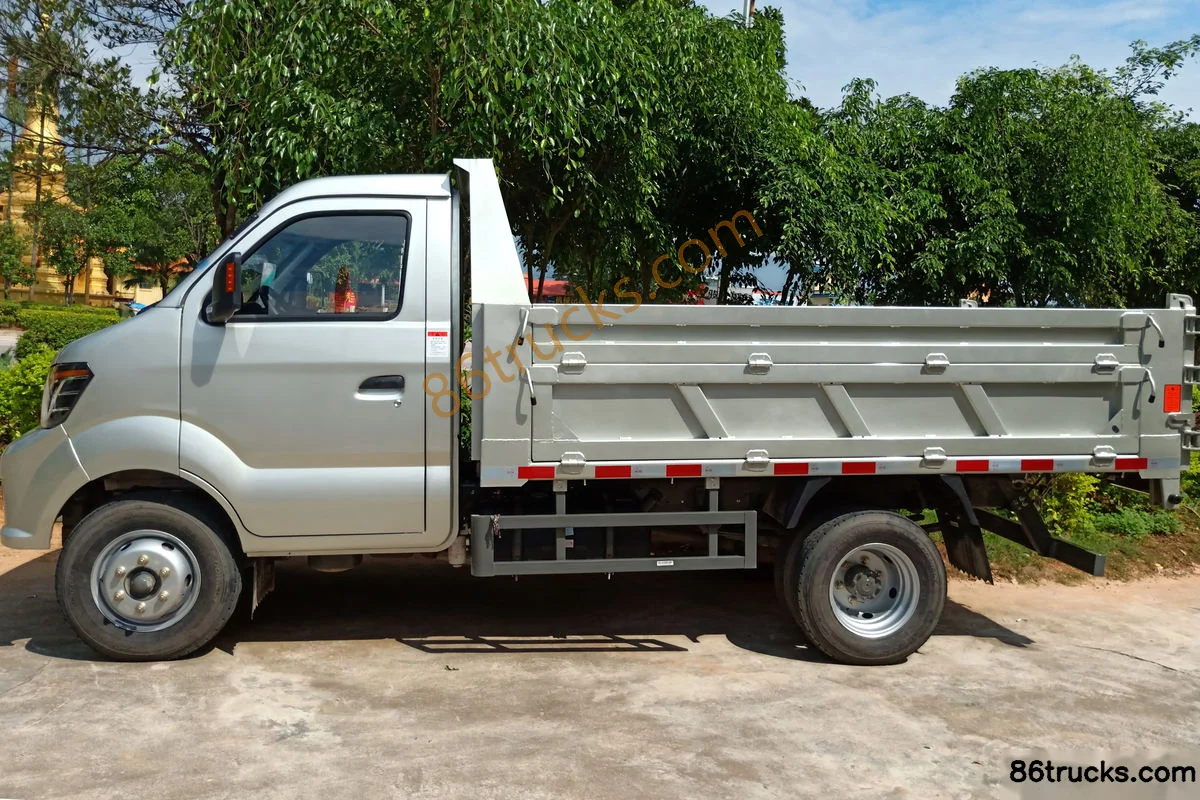

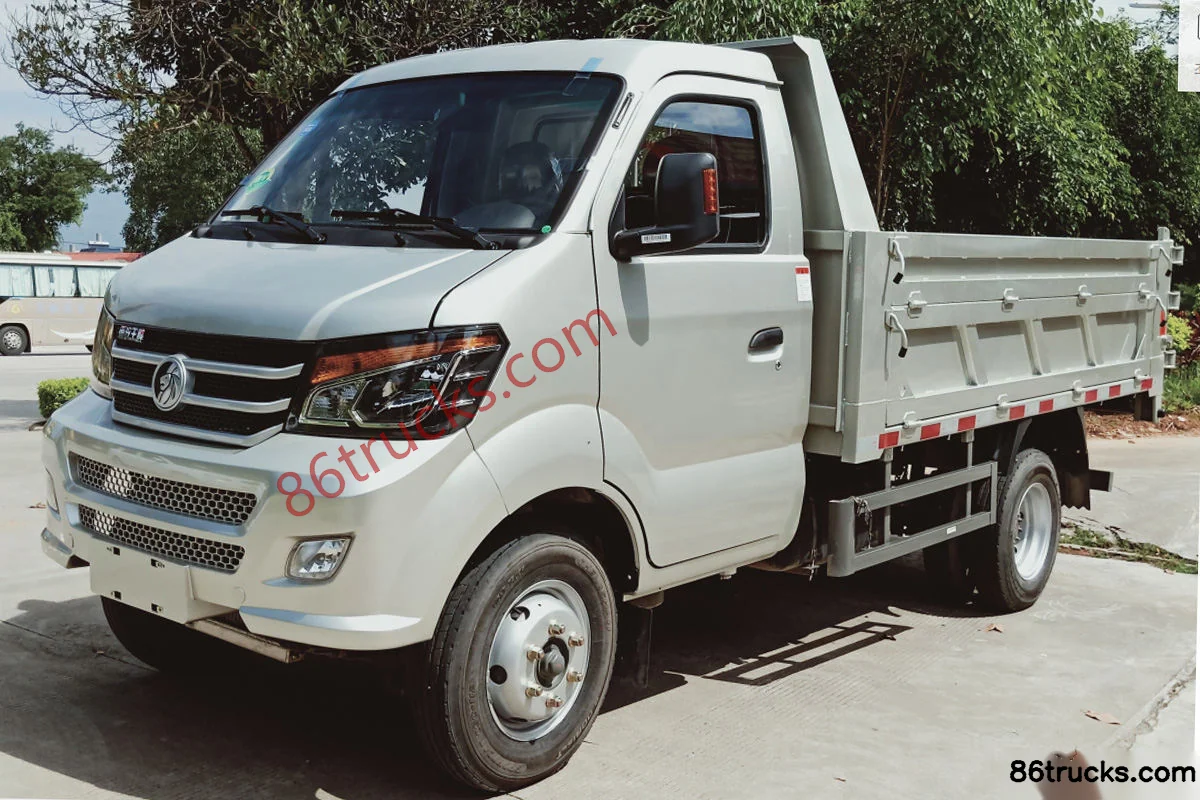

Photos

Exterior2

2 photos

FAQ

What is the export price of Sinotruk Youshi Heavy-Duty 88hp 4X2(6 wheels) 3.1m dump truck, and what does it include?

Sinotruk Youshi Heavy-Duty 88hp 4X2(6 wheels) 3.1m dump truck export reference is about From $11,569; MSRP is ¥8.33M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Youshi Heavy-Duty 88hp 4X2(6 wheels) 3.1m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Youshi Heavy-Duty 88hp 4X2(6 wheels) 3.1m dump truck?

Key specs of Sinotruk Youshi Heavy-Duty 88hp 4X2(6 wheels) 3.1m dump truck: Drive: 4x2; Horsepower: 88 hp; Emission: China V; Fuel: Diesel; Transmission: Mengwo. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Youshi Heavy-Duty 88hp 4X2(6 wheels) 3.1m dump truck suited for?

Sinotruk Youshi Heavy-Duty 88hp 4X2(6 wheels) 3.1m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Youshi Heavy-Duty 88hp 4X2(6 wheels) 3.1m dump truck differ from other variants in the same series?

Sinotruk Youshi Heavy-Duty 88hp 4X2(6 wheels) 3.1m dump truck belongs to Sinotruk Youshi Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Youshi Heavy-Duty 88hp 4X2(6 wheels) 3.1m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Youshi Heavy-Duty 88hp 4X2(6 wheels) 3.1m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
