Dongfeng DF361S 3.6t grade steering axle

Export reference
MSRP N/A
Applicable Tire:: 9.00-20
Front/rear track width:: 1816-1975mm
Brake:: Air brake actuator
Axle Model: 3.6-ton steering axle
Brake size: Φ400×130
Axle Type: Steering axle

Overview

The Dongfeng DF361S 3.6t grade steering axle is a parts product with spec 3.6-ton steering axle and Φ400×130 size.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Axle Model: 3.6-ton steering axle
Axle Type: Steering axle
Applicable Tire: 9.00-20
Rated axle load: 3600ton
Front/rear track width: 1816-1975mm
Brake: Air brake actuator
Brake size: Φ400×130
Rim Used: 7.0-20inch
Wheel Bolts: Φ275-8×M20×1.5mm
Remarks: I-beam; kingpin inclination 7°, wheel camber 1°, inner wheel steering angle 40°, outer wheel steering angle 33°

Photos

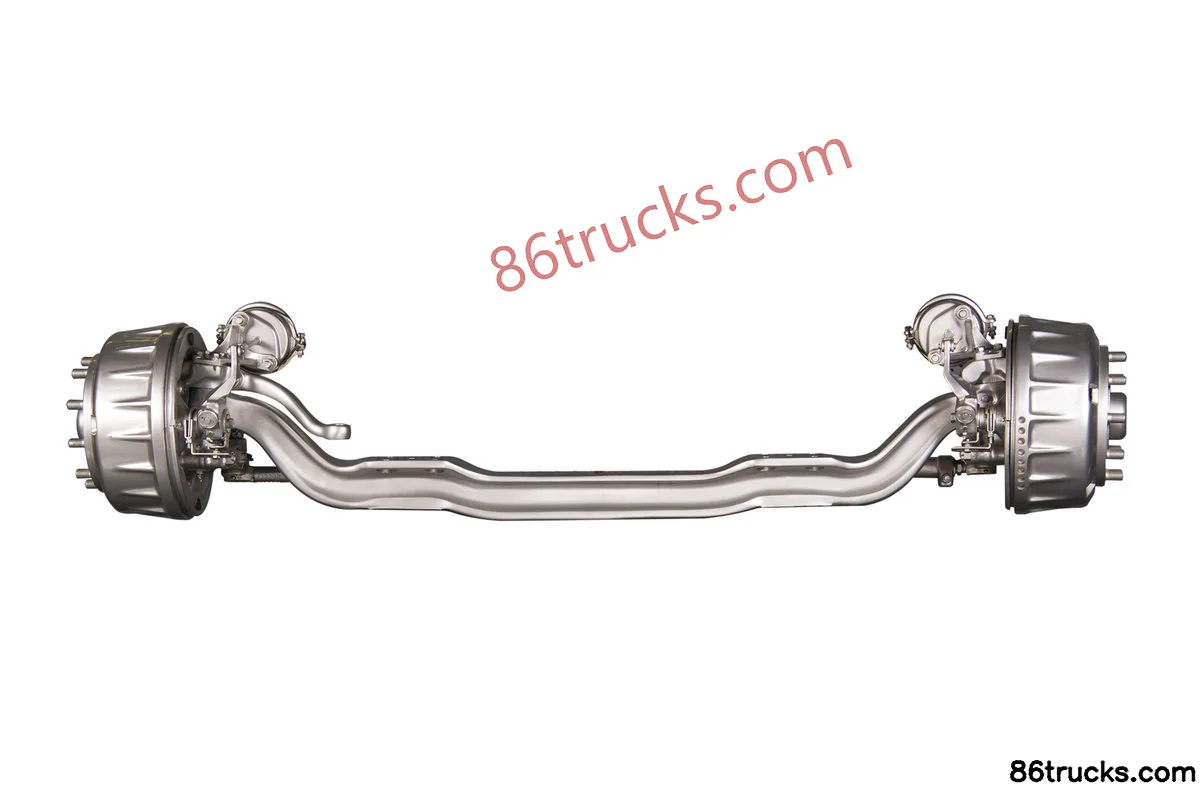

Exterior1
