Foton Auman VT 9 series heavy truck 336 hp 6X4(10 wheels) 5.4m dump truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: Dachi
Curb Weight:: 12.165ton
Wheelbase:: 3825+1350mm
Tire Size:: 11.00R20
Rated payload: 12.705ton
Drive 6X4 (10 wheels)
Horsepower 336
Cargo box type: Rear-dump body

Overview

The Foton Auman VT 9 series heavy truck 336 hp 6X4(10 wheels) 5.4m dump truck is a Heavy truck featuring 12.705t payload, 25t GVW, Rear-dump body cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP10.336E40 engine, 336 hp, China IV emissions and Dachi transmission.

China IV 336 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ3258DLPJB-XB
Drive type: 6X4
Wheelbase: 3825+1350mm
engine: WeichaiWP10.336E40
transmission: Dachi 10-speed
Rear Axle Ratio: 5.875
Cab length: 8.262m
Cab width: 2.495m
Cab height: 3.4m
Front track width: 2005mm
rear track: 1865/1865mm
Curb Weight: 12.165ton
Rated payload: 12.705ton
GVWR: 25ton
Origin: Beijing
tonnage class: Heavy truck
Approach angle: 18°
departure angle: 29°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.336E40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China IV
Max output power: 247kW
Max hp: 336Horsepower
Max torque: 1500N·m
Max torque speed: 1300-1600rpm
Rated speed: 1900rpm
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled
Transmission Parameters
Transmission Brand: Dachi
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.4m
Cargo box width: 2.3m
Cargo box height: 1.1m
fuel tank
Fuel tank capacity: 400L
Chassis Specs
rear axle description: Tandem axle
rear axle allowable load: 18000kg
Axle ratio: 5.875
Leaf spring count: 9/12,10/12
Tire
Tire Size: 11.00R20
Number of tires: 10pcs

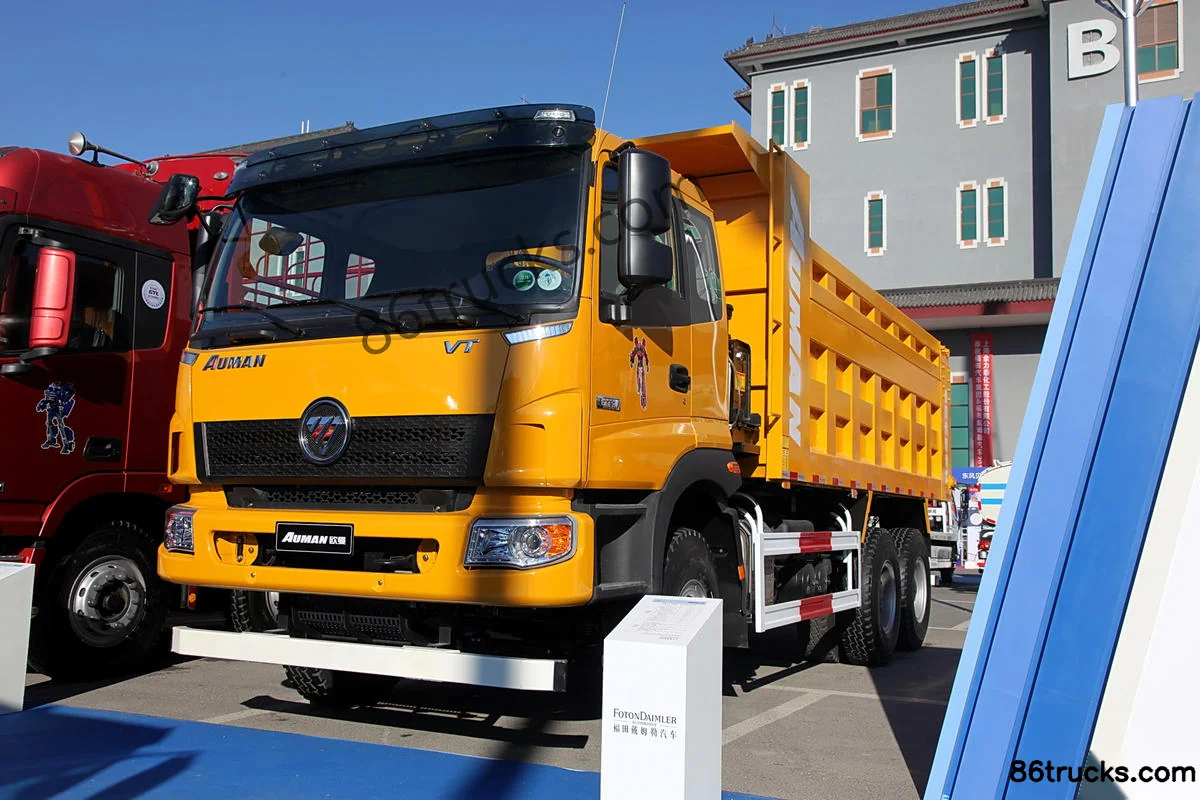

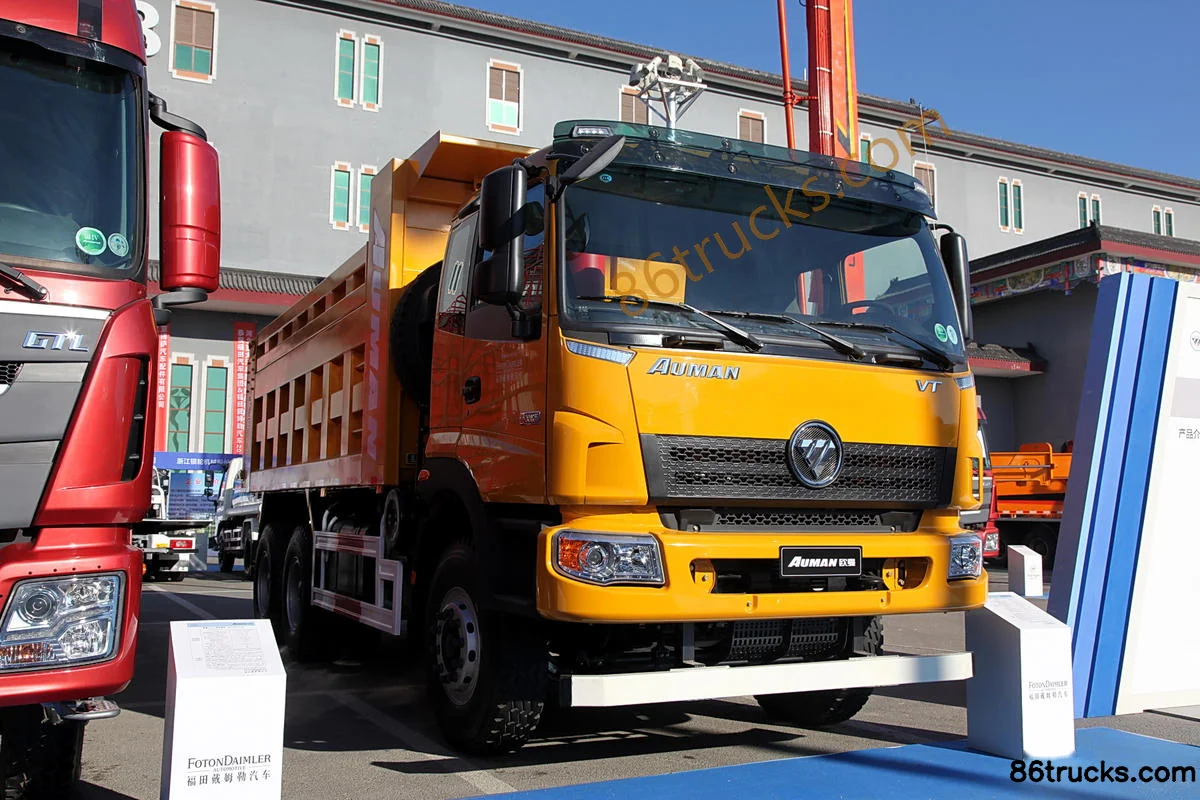

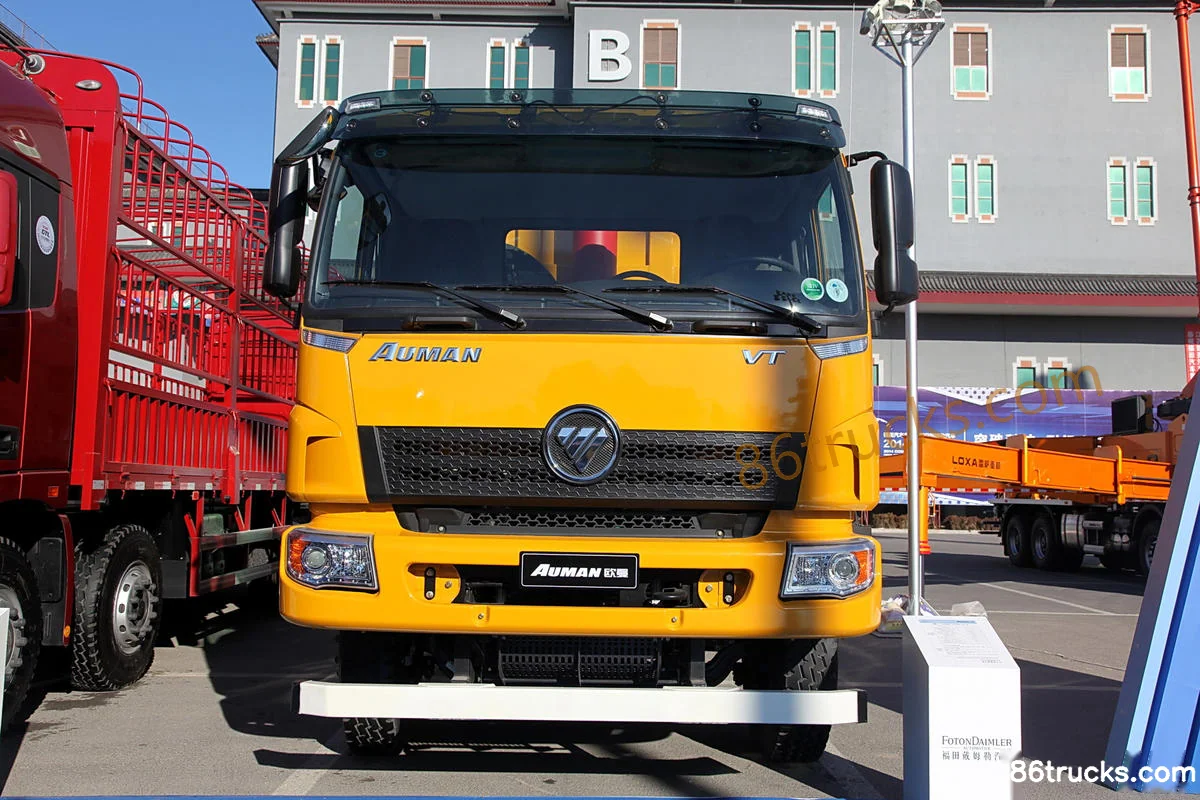

Photos

Exterior3

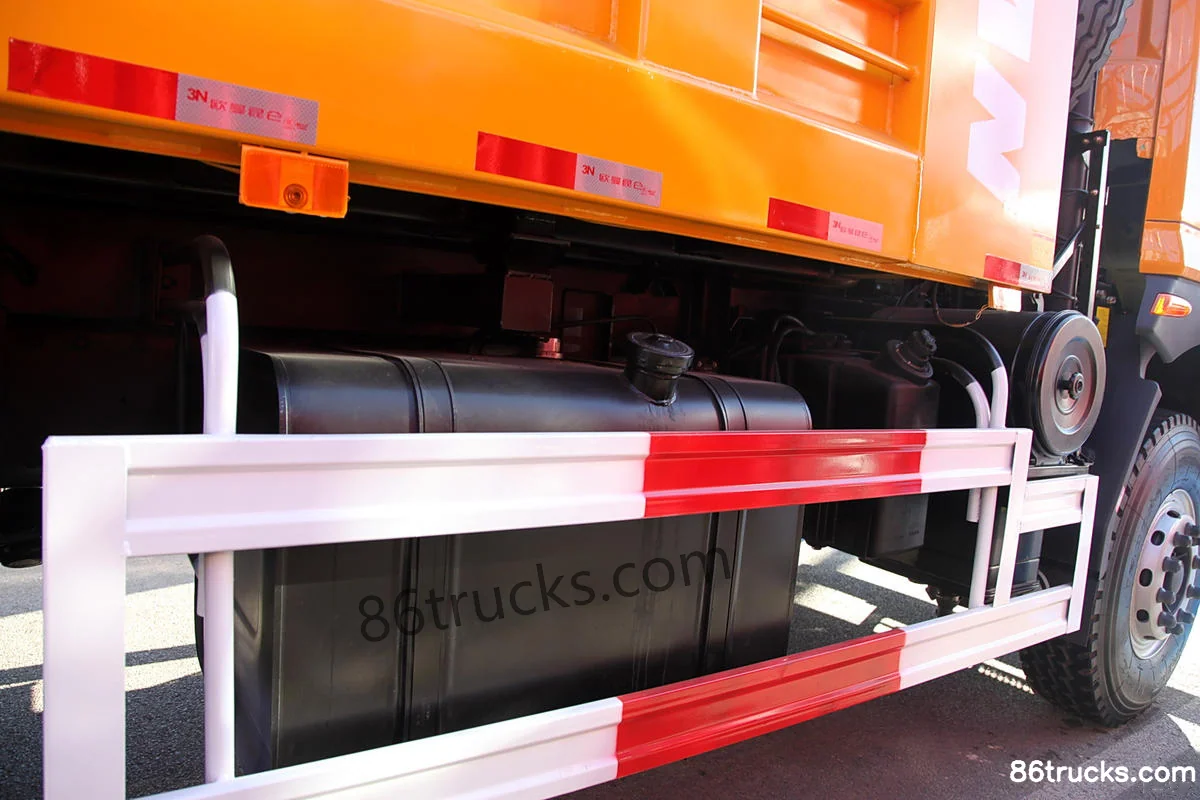

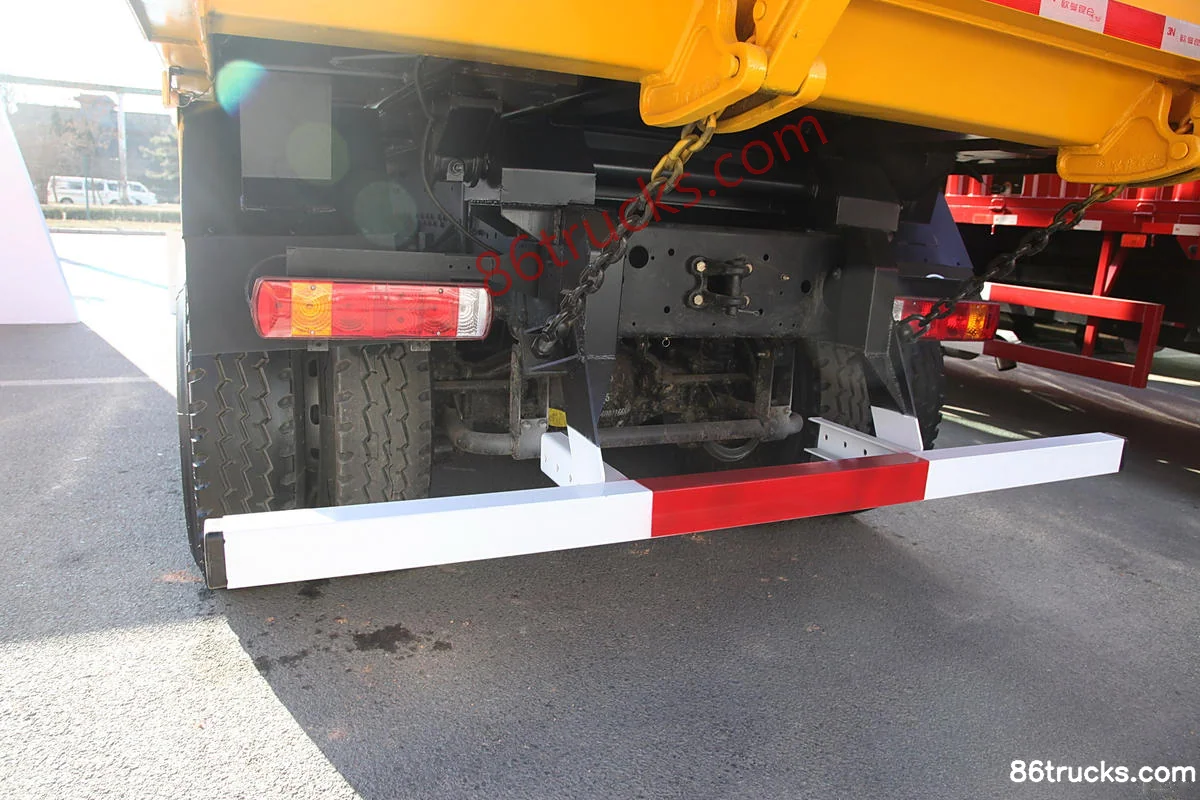

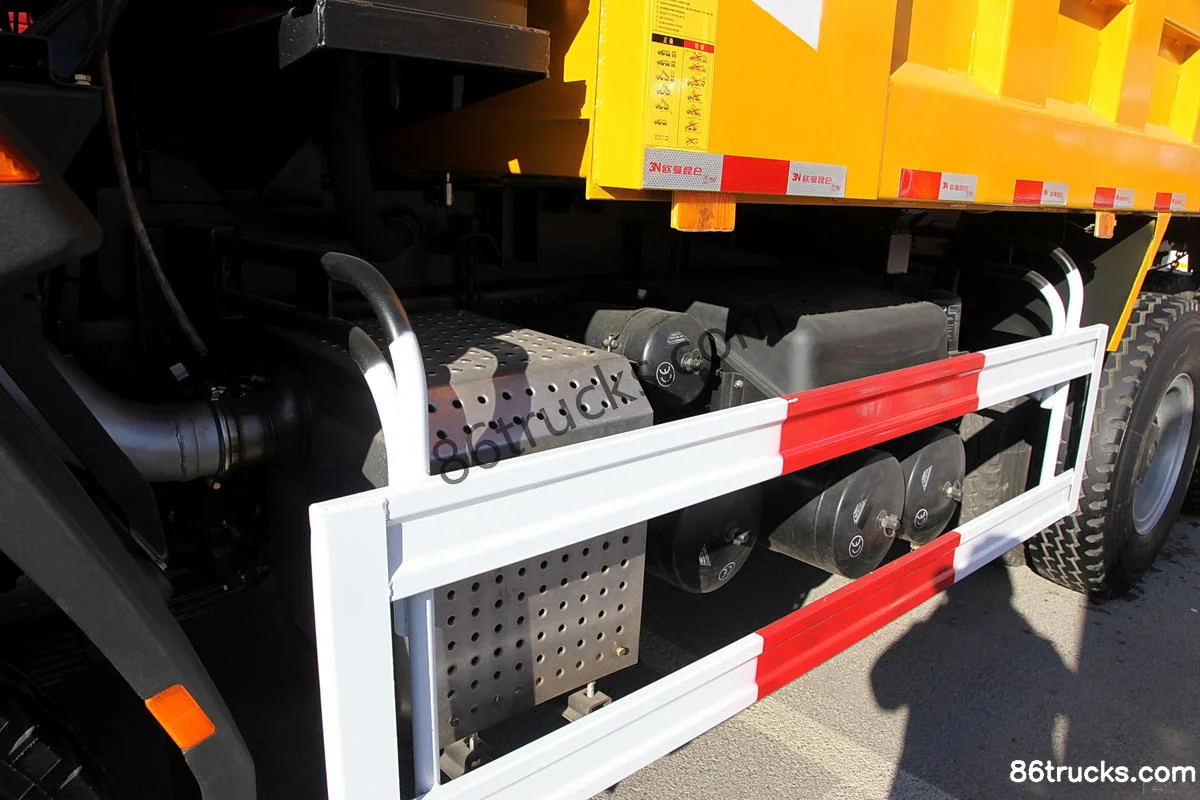

Chassis3

6 photos

FAQ

What emission standard does Foton Auman VT 9 series heavy truck 336 hp 6X4(10 wheels) 5.4m dump truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Auman VT 9 series heavy truck 336 hp 6X4(10 wheels) 5.4m dump truck?

Key specs of Foton Auman VT 9 series heavy truck 336 hp 6X4(10 wheels) 5.4m dump truck: Drive: 6x4; Horsepower: 336 hp; Emission: China IV; Fuel: Diesel; Transmission: Dachi. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Auman VT 9 series heavy truck 336 hp 6X4(10 wheels) 5.4m dump truck suited for?

Foton Auman VT 9 series heavy truck 336 hp 6X4(10 wheels) 5.4m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton Auman VT 9 series heavy truck 336 hp 6X4(10 wheels) 5.4m dump truck differ from other variants in the same series?

Foton Auman VT 9 series heavy truck 336 hp 6X4(10 wheels) 5.4m dump truck belongs to Foton Auman VT Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Auman VT 9 series heavy truck 336 hp 6X4(10 wheels) 5.4m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Auman VT 9 series heavy truck 336 hp 6X4(10 wheels) 5.4m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
