FAW Jiefang CA8TA135M 8-speed Manual Transmission

Export reference
MSRP N/A
Features:: 1. Dual H-shift: driver shifts between high/low range via lateral movement of the gear lever, simple and reliable. Twin countershaft design improves transmission reliability and reduces axial length, optimizing the driveshaft installation angle. 2. Fine-pitch gear design ensures smoother operation, lower noise, and longer service life. 3. Main box uses sliding sleeve engagement with large chamfer for easier shifting. 4. Helical gears in the auxiliary box reduce noise and improve reliability. 5. BorgWarner auxiliary box synchronizer extends service life and ensures reliable shifting; main box has no synchronizer to reduce failure points. 6. Supports remote single or dual lever operation. 7. Optional rear-mounted PTO.
Max input torque:: 1350N·m
1st gear ratio:: 11.716

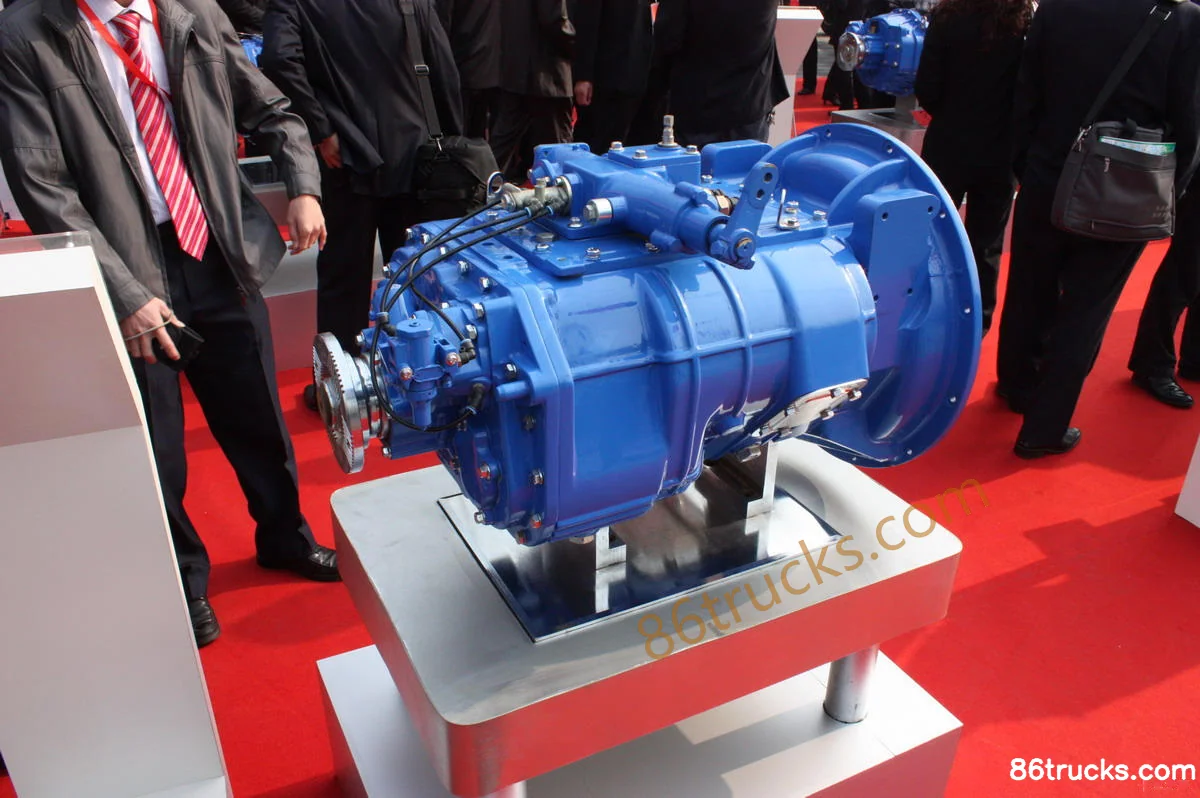

FAW Jiefang CA8TA135M 8-speed Manual Transmission exterior
View more photos (3)
Transmission Model: CA8TA135M
Transmission Brand: FAW Jiefang
Matching Range: This series transmission input torque: 1350 Nm, suitable for various highway cargo trucks, construction dump trucks, and highway tractor trucks.

Overview

The FAW Jiefang CA8TA135M 8-speed Manual Transmission is a parts product with spec CA8TA135M.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters
Transmission Brand: FAW Jiefang
Transmission series: CA8TA(X) Series
Matching Range: This series transmission input torque: 1350 Nm, suitable for various highway cargo trucks, construction dump trucks, and highway tractor trucks.
Features: 1. Dual H-shift: driver shifts between high/low range via lateral movement of the gear lever, simple and reliable. Twin countershaft design improves transmission reliability and reduces axial length, optimizing the driveshaft installation angle. 2. Fine-pitch gear design ensures smoother operation, lower noise, and longer service life. 3. Main box uses sliding sleeve engagement with large chamfer for easier shifting. 4. Helical gears in the auxiliary box reduce noise and improve reliability. 5. BorgWarner auxiliary box synchronizer extends service life and ensures reliable shifting; main box has no synchronizer to reduce failure points. 6. Supports remote single or dual lever operation. 7. Optional rear-mounted PTO.
Max input torque: 1350N·m
1st gear ratio: 11.716
2nd gear ratio: 7.902
synchronizer: Yes
3rd gear ratio: 5.57
4th gear ratio: 4.075
5th gear ratio: 2.875
6th gear ratio: 1.939
7th gear ratio: 1.367
8th gear ratio:
Reverse Gear 1 Ratio: 13.784
Transmission weight: 340kg
Transmission oil capacity: 13/13.5 (with PTO)L
Control type: direct control, remote single/double lever control
Number of gears: 8Gear
shift type: Manual
Transmission Model: CA8TA135M
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears:

Photos

Exterior3

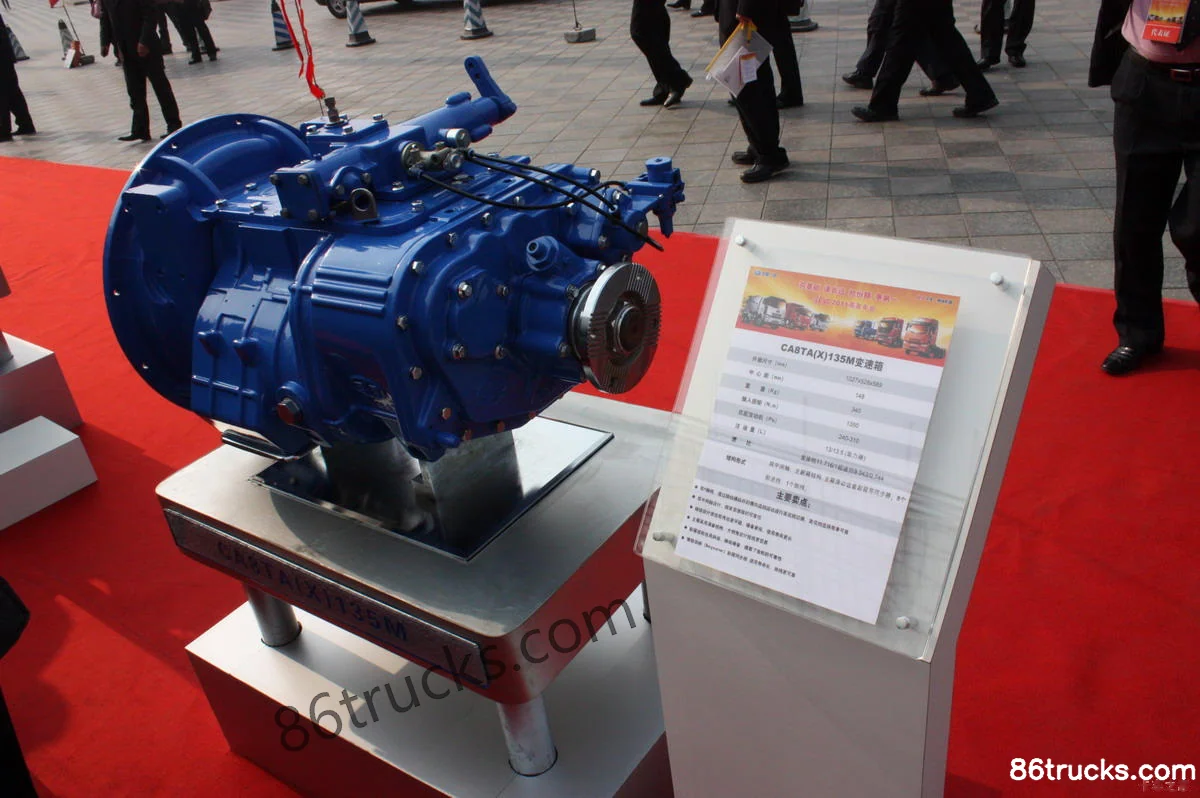

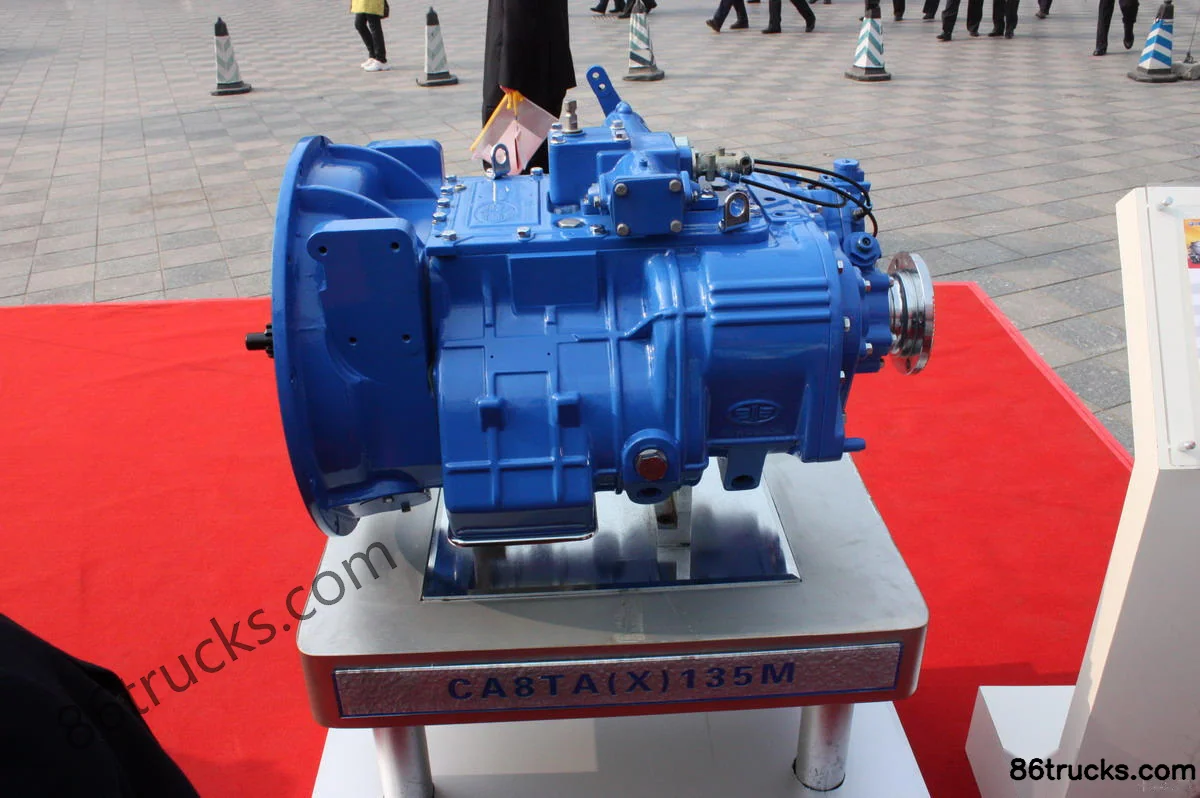

FAW Jiefang CA8TA135M 8-speed Manual Transmission Exterior (1) | 86Trucks FAW Jiefang CA8TA135M 8-speed Manual Transmission Exterior (2) | 86Trucks FAW Jiefang CA8TA135M 8-speed Manual Transmission Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is FAW Jiefang CA8TA135M 8-speed Manual Transmission suited for?

Match FAW Jiefang CA8TA135M 8-speed Manual Transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does FAW Jiefang CA8TA135M 8-speed Manual Transmission differ from other variants in the same series?

FAW Jiefang CA8TA135M 8-speed Manual Transmission belongs to FAW Jiefang CA8TA(X) Series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang CA8TA135M 8-speed Manual Transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang CA8TA135M 8-speed Manual Transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
