FAW Jiefang CA8TA(X) Series transmission
Main model photos
13 photos
Models
On sale
FAW Jiefang CA8TAX100FS 8-Speed Manual Transmission
EXW
Export quote
FAW Jiefang CA8TAX100M1 Full Synchronizer 8-Speed Manual Transmission
EXW
Export quote

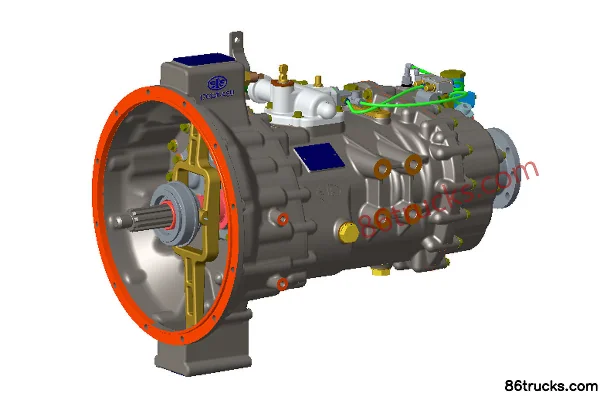

FAW Jiefang CA8TAX090M1 Full Synchronizer 8-Speed Manual Transmission
EXW
Export quote
FAW Jiefang CA8TAX110M1 8-Speed Manual Transmission
EXW
Export quote
Series Specs
Transmission Parameters
Transmission Brand: FAW Jiefang
Transmission series: CA8TA(X) Series
Matching Range: Suitable for medium-duty tractor trucks, dump trucks, and cargo trucks in the 160–240 hp power range, widely adapted to current road conditions and transport needs in China. / Suitable for medium-duty tractor trucks, dump trucks, and cargo trucks in the 160–260 hp power range, widely adapted to current road conditions and transport needs in China. / This series transmission input torque: 1350 Nm, suitable for various highway cargo trucks, construction dump trucks, and highway tractor trucks.
Features: FAW Group's twin-countershaft full-synchronizer transmission for the medium truck market. Main box manual, auxiliary box pneumatic; 8 forward gears and 2 reverse gears. Stable, reliable, easy shifting, long oil change interval. / FAW Group's twin-countershaft transmission for the medium truck market. Main box manual, auxiliary box pneumatic; 8 forward gears and 2 reverse gears. Stable, reliable, easy shifting, with oil change interval up to 50,000 km. / Twin countershaft, main & auxiliary box structure, auxiliary box with synchronizer / 1. Dual H-shift: driver shifts between high/low range via lateral movement of the gear lever, simple and reliable. Twin countershaft design improves transmission reliability and reduces axial length, optimizing the driveshaft installation angle. 2. Fine-pitch gear design ensures smoother operation, lower noise, and longer service life. 3. Main box uses sliding sleeve engagement with large chamfer for easier shifting. 4. Helical gears in the auxiliary box reduce noise and improve reliability. 5. BorgWarner auxiliary box synchronizer extends service life and ensures reliable shifting; main box has no synchronizer to reduce failure points. 6. Supports remote single or dual lever operation. 7. Optional rear-mounted PTO.
Max input torque: 1000 / 900 / 1100 / 1350N·m
1st gear ratio: 9.569 / 7.323 / 9.543 / 11.716
Main box center distance: 110mm
2nd gear ratio: 6.482 / 5.218 / 6.436 / 7.902
synchronizer: Yes / Yes (Auxiliary box synchronizer, main box sliding gear sleeve)
3rd gear ratio: 4.434 / 3.761 / 4.464 / 5.57
4th gear ratio: 3.258 / 2.84 / 3.319 / 4.075
5th gear ratio: 2.158 / 1.947 / 2.138 / 2.875
Auxiliary box center distance: 110mm
6th gear ratio: 1.462 / 1.388 / 1.442 / 1.939
7th gear ratio: 1 / 1.367
8th gear ratio: 0.735 / 0.755 / 0.744 / 1
Reverse Gear 1 Ratio: 10.073 / 7.323 / 11.227 / 13.784
Transmission weight: 198 / 198.4 / 186 / 340kg
Transmission oil capacity: 9.5 / 10/10.5 (with PTO) / 9.4/9.9 (with PTO) / 13/13.5 (with PTO)L
Control type: direct control, remote single/double lever control
Number of gears: 8Gear
shift type: Manual
Transmission Model: CA8TAX100F / CA8TAX100FS / CA8TAX100M1 / CA8TAX090M1 / CA8TAX110M1 / CA8TAX100M / CA8TAX090M / CA8TAX135M / CA8TA135M
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2 / 1pcs
