FAW Jiefang CA8TAX090M 8-Speed Manual Transmission

Export reference
MSRP N/A
Features:: FAW Group's twin-countershaft transmission for the medium truck market. Main box manual, auxiliary box pneumatic; 8 forward gears and 2 reverse gears. Stable, reliable, easy shifting, with oil change interval up to 50,000 km.
Max input torque:: 900N·m
1st gear ratio:: 9.569
FAW Jiefang CA8TAX090M 8-Speed Manual Transmission exterior
View more photos (3)
Transmission Model: CA8TAX090M
Transmission Brand: FAW Jiefang
Matching Range: Suitable for medium-duty tractor trucks, dump trucks, and cargo trucks in the 160–260 hp power range, widely adapted to current road conditions and transport needs in China.

Overview

The FAW Jiefang CA8TAX090M 8-Speed Manual Transmission is a parts product with spec CA8TAX090M.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters
Transmission Brand: FAW Jiefang
Transmission series: CA8TA(X) Series
Matching Range: Suitable for medium-duty tractor trucks, dump trucks, and cargo trucks in the 160–260 hp power range, widely adapted to current road conditions and transport needs in China.
Features: FAW Group's twin-countershaft transmission for the medium truck market. Main box manual, auxiliary box pneumatic; 8 forward gears and 2 reverse gears. Stable, reliable, easy shifting, with oil change interval up to 50,000 km.
Max input torque: 900N·m
1st gear ratio: 9.569
synchronizer: Yes (Auxiliary box synchronizer, main box sliding gear sleeve)
Main box center distance: 110mm
2nd gear ratio: 6.482
3rd gear ratio: 4.434
4th gear ratio: 3.258
5th gear ratio: 2.158
Auxiliary box center distance: 110mm
6th gear ratio: 1.462
7th gear ratio:
8th gear ratio: 0.735
Reverse Gear 1 Ratio: 10.073
Transmission weight: 186kg
Transmission oil capacity: 9.4/9.9 (with PTO)L
Number of gears: 8Gear
Transmission Model: CA8TAX090M
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs

Photos

Exterior3

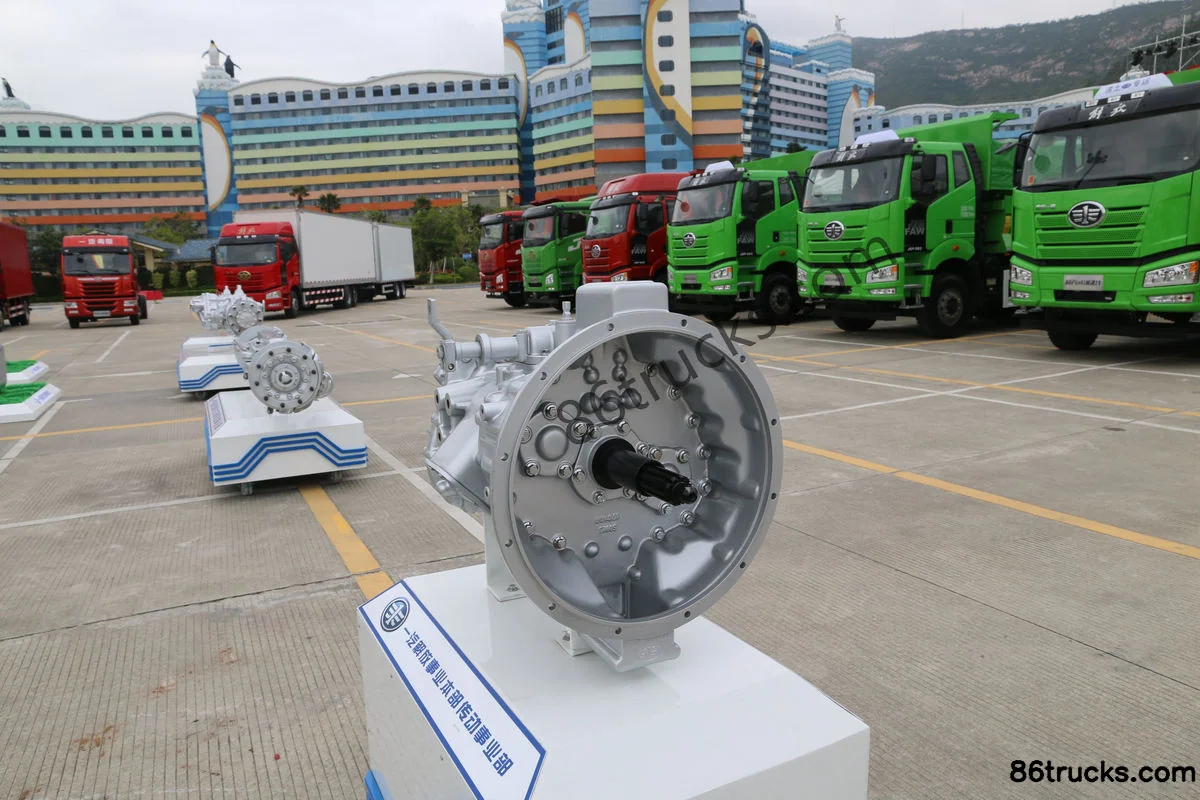

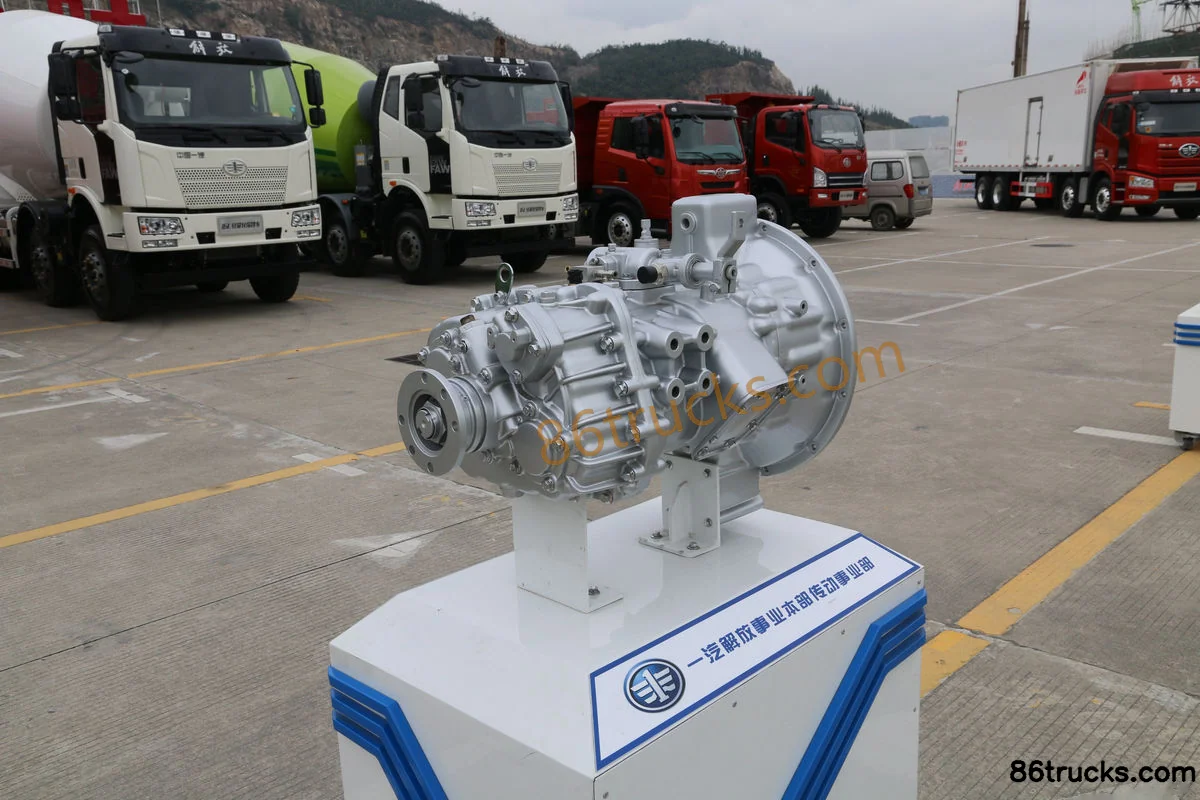

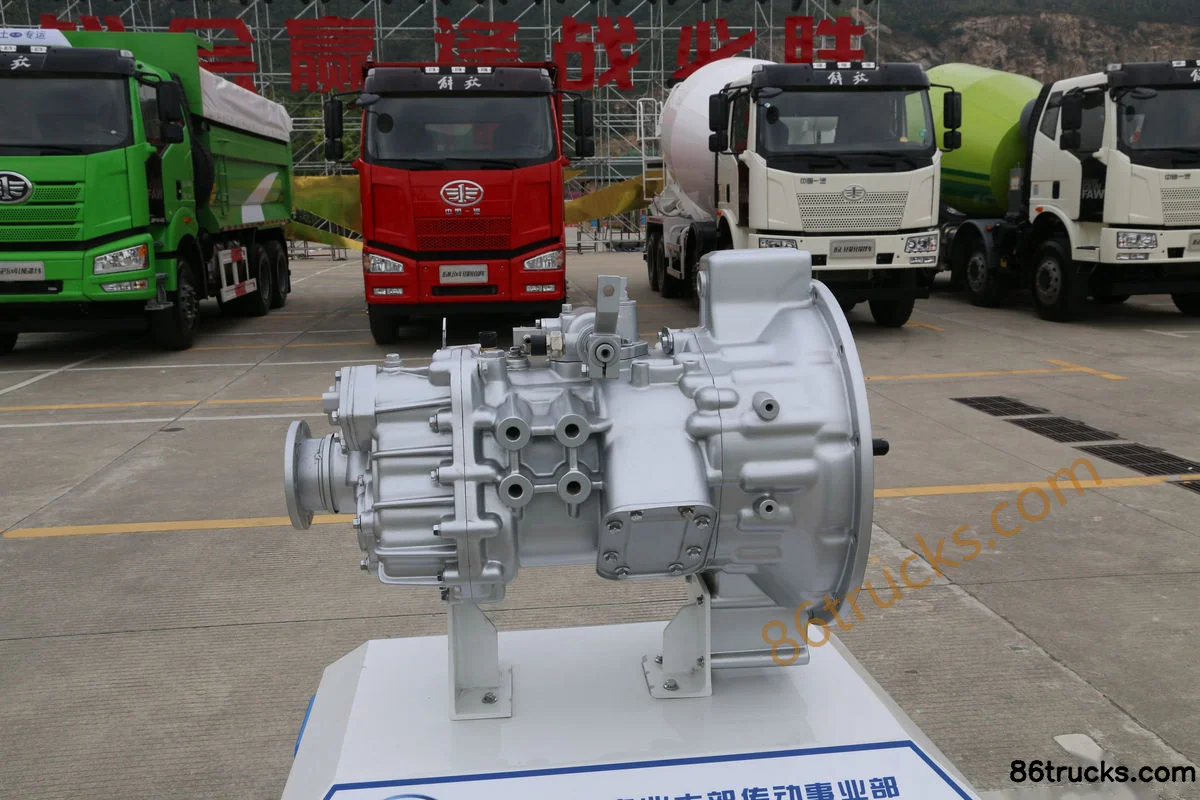

FAW Jiefang CA8TAX090M 8-Speed Manual Transmission Exterior (1) | 86Trucks FAW Jiefang CA8TAX090M 8-Speed Manual Transmission Exterior (2) | 86Trucks FAW Jiefang CA8TAX090M 8-Speed Manual Transmission Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is FAW Jiefang CA8TAX090M 8-Speed Manual Transmission suited for?

Match FAW Jiefang CA8TAX090M 8-Speed Manual Transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does FAW Jiefang CA8TAX090M 8-Speed Manual Transmission differ from other variants in the same series?

FAW Jiefang CA8TAX090M 8-Speed Manual Transmission belongs to FAW Jiefang CA8TA(X) Series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang CA8TAX090M 8-Speed Manual Transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang CA8TAX090M 8-Speed Manual Transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
