WLY WLY9G90 9-Speed Manual Transmission
EXW
Export quote
WLY WLY9-speed series transmission
Main model photos
3 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| WLY WLY9G90 9-Speed Manual Transmission | — | ||
| WLY WLY9S150H 9-speed manual transmission | — | ||
| WLYWLY9W85 9-Speed Manual Transmission | — | ||
| WLY 9W60 9-speed manual transmission | — | ||
| WLY 9W120 9-speed manual transmission | — |

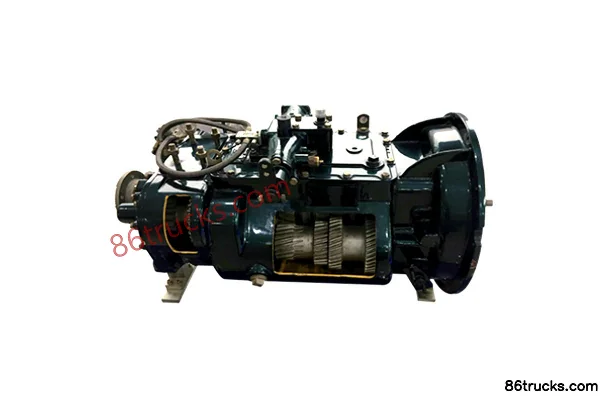

WLY WLY9S150H 9-speed manual transmission
EXW
Export quote
WLYWLY9W85 9-Speed Manual Transmission
EXW
Export quote
WLY 9W60 9-speed manual transmission
EXW
Export quote
WLY 9W120 9-speed manual transmission
EXW
Export quote
Series Specs
Transmission Parameters
Transmission Brand: WLY
Transmission series: WLY 9 series / WLY9S150 / WLY 9-speed series
Matching Range: Suitable for heavy-duty medium trucks; compatible with various engines up to 800 Nm
Features: Wide ratio range, strong climbing ability / Wide ratio range, small steps, good fuel economy; twin countershaft, splitter synchronizer / Front single, rear dual, full synchronizer / Twin countershaft, full synchronizer / Twin countershaft, auxiliary box synchronizer / Front single, rear single, main-sub box structure
Max input torque: 900 / 1500 / 850 / 600 / 1200 / 1000 / 1100 / 1490 / 1350 / 1190 / 1300 / 750 / 450N·m
1st gear ratio: 10.71 / 12.48 / 12.58 / 13.44 / 12.77 / 12.674 / 11.12 / 12.21 / 10.12 / 11.55 / 12.73 / 12.104 / 13.02
synchronizer: Yes
Main box center distance: 123 / 110 / 148.2 / 160 / 130 / 121 / 108mm
2nd gear ratio: 8.234 / 8.29 / 9.05 / 9.54 / 8.3 / 9.061 / 6.57 / 8.12 / 8.36 / 6.74 / 8.913 / 8.704 / 8.925 / 8.797
3rd gear ratio: 5.684 / 6.08 / 6.62 / 6.43 / 5.95 / 6.542 / 4.65 / 5.93 / 6.13 / 4.95 / 6.606 / 6.375 / 6.145 / 6.085
4th gear ratio: 4.07 / 4.53 / 4.83 / 4.41 / 4.3 / 4.96 / 3.37 / 4.45 / 4.58 / 4.839 / 4.651 / 4.2 / 4.185
5th gear ratio: 3.228 / 3.38 / 3.53 / 3.32 / 3.36 / 3.56 / 2.73 / 2.47 / 3.37 / 2.66 / 3.571 / 3.4 / 3.112 / 3.101
6th gear ratio: 2.023 / 2.47 / 2.56 / 2.16 / 2.54 / 1.94 / 2.42 / 2.48 / 2.01 / 2.496 / 2.125 / 2.102
7th gear ratio: 1.397 / 1.81 / 1.88 / 1.46 / 1.77 / 1.84 / 1.39 / 1.37 / 1.82 / 1.48 / 1.85 / 1.875 / 1.463 / 1.454
8th gear ratio: 1 / 1.35 / 1.37 / 1.28 / 1.39 / 1.32 / 1.36 / 1.85 / 1.368
Reverse Gear 1 Ratio: 9.924 / 12.99 / 12.48 / 13.62 / 11.22 / 12.91 / 11.55 / 12.72 / 13.11 / 10.62 / 9.881 / 12.49 / 12.76
Transmission weight: 170 / 330 / 190 / 335 / 345 / 265 / 255 / 325 / 310 / 285 / 248 / 220 / 175kg
Transmission oil capacity: 9.5 / 13 / 12 / 9 / 7.7 / 5.5 / 6L
9th gear ratio: 0.793 / 1 / 0.75 / 0.82 / 0.73 / 0.79 / 0.72 / 0.741
Number of gears: 9Gear
shift type: Manual
Transmission Model: WLY9G90 / WLY9S150H / WLY9W85 / WLY9W60 / WLY9W120 / WLY9W150 / WLY9W100 / WLY9S110TB / WLY9S110TA / WLY9S110T / WLY9S110B / WLY9S110A / WLY9S110 / WLY9S150T / WLY9S150A / WLY9S150 / WLY9S150G / WLY9S150F / WLY9S150E / WLY9S150D / WLY9S150C / WLY9S150B / WLY9S130TB / WLY9S130TA / WLY9S130T / WLY9S130B / WLY9S130A / WLY9S130 / WLY9D90 / WLY9D75 / WLY9D60 / WLY9D50
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
FAQ
What kind of truck is WLY WLY WLY9-speed series transmission?
WLY WLY WLY9-speed series is an export-oriented transmission lineup with about 32 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is transmission typically used for?
For transmission, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does WLY WLY9-speed series transmission include?
WLY WLY9-speed series transmission currently lists about 32 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for WLY WLY9-speed series transmission?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
