DongfengLiuqi ChenglongH7 Heavy Truck 350 hp 8X2(10 wheels) 9.6m Stake Truck Chassis

Export reference
From $44,167
MSRP ¥31.8M CNY
Horsepower: 350
Emission: China V
Fuel: Diesel
Engine: WeichaiWP10
Transmission: Fast Gear
Curb Weight:: 9ton
seating capacity: 2Personnel
Rated payload: 19.5ton
Drive 8X2 (10 wheels)
Cargo box type: Stake type

Overview

The DongfengLiuqi ChenglongH7 Heavy Truck 350 hp 8X2(10 wheels) 9.6m Stake Truck Chassis is a Heavy-duty cargo trucks featuring 9.6m cargo length, Stake type cargo body, 2Personnel volume and 19.5t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP10 engine, 350 hp, 8X2 (10 wheels) drive and China V emissions.

China V 350 Diesel 8X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ5320CCYH7EB
Type: Chassis
Drive type: 8X2
Wheelbase: 1950+4100+1350mm
Box length class: 9.6m
engine: WeichaiWP10.350E53
transmission: Fast Gear12JSD160TA
Rear Axle Ratio: 3.7
Cab length: 12m
Cab width: 2.55m
Cab height: 3.95m
Front track width: 2020/2020mm
rear track: 1860/1860mm
Curb Weight: 9ton
Rated payload: 19.5ton
GVWR: 32ton
Max. speed: 90km/h
Origin: Liuzhou, Guangxi
tonnage class: Heavy-duty cargo trucks
Approach angle: 19°
departure angle: 11°
market segment: Agricultural product transport, green channel
Remarks: Electro-hydraulic tilt, laminated glass, LCD instrument, multi-state switch, electromagnetic clutch fan, automatic adjuster arm.
Front/rear suspension: 1.512/3.088m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.350E53
Engine info: WeichaiWP10
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.726L
Emission standard: China V
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1600N·m
Max torque speed: 1200-1600rpm
Rated speed: 1900rpm
Engine Type: Electronic high-pressure common rail + SCR
Transmission Parameters
Transmission Model: Fast Gear12JSD160TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.6m
Cargo box width: 2.45m
*Cargo box interior width: 2.4500000476837
Cab parameters
Cab: H73D Cab
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 600L
Chassis Specs
Front axle allowable load: 6750/6750kg
rear axle description: FS160 rear axle
rear axle allowable load: 7000/11500kg
Axle ratio: 3.7
Leaf spring count: 3/3/-/-
Aluminum wheels:
Tire

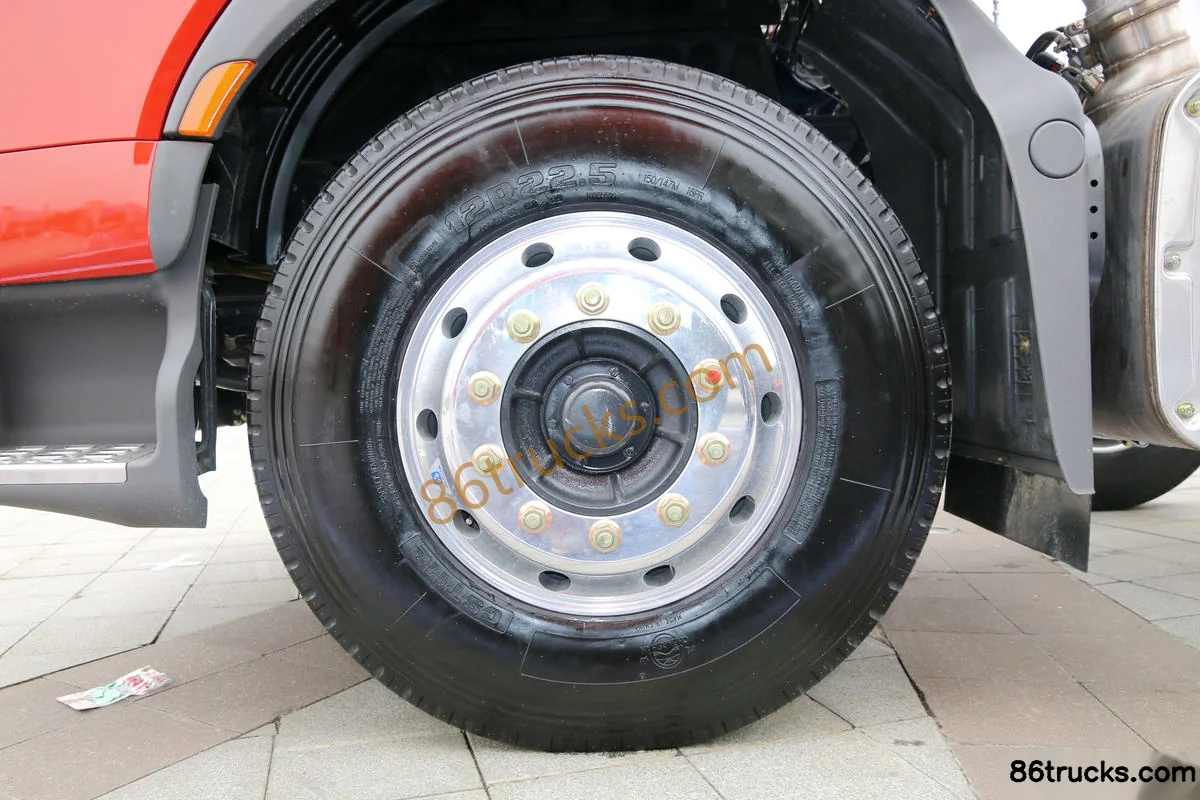

Tire Size: 11.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Steering Wheel Material: leather
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Exterior features
Aluminum air tank:
Multimedia features
GPS/Beidou driving recorder:
smart configuration
Cruise control (CCS):

Photos

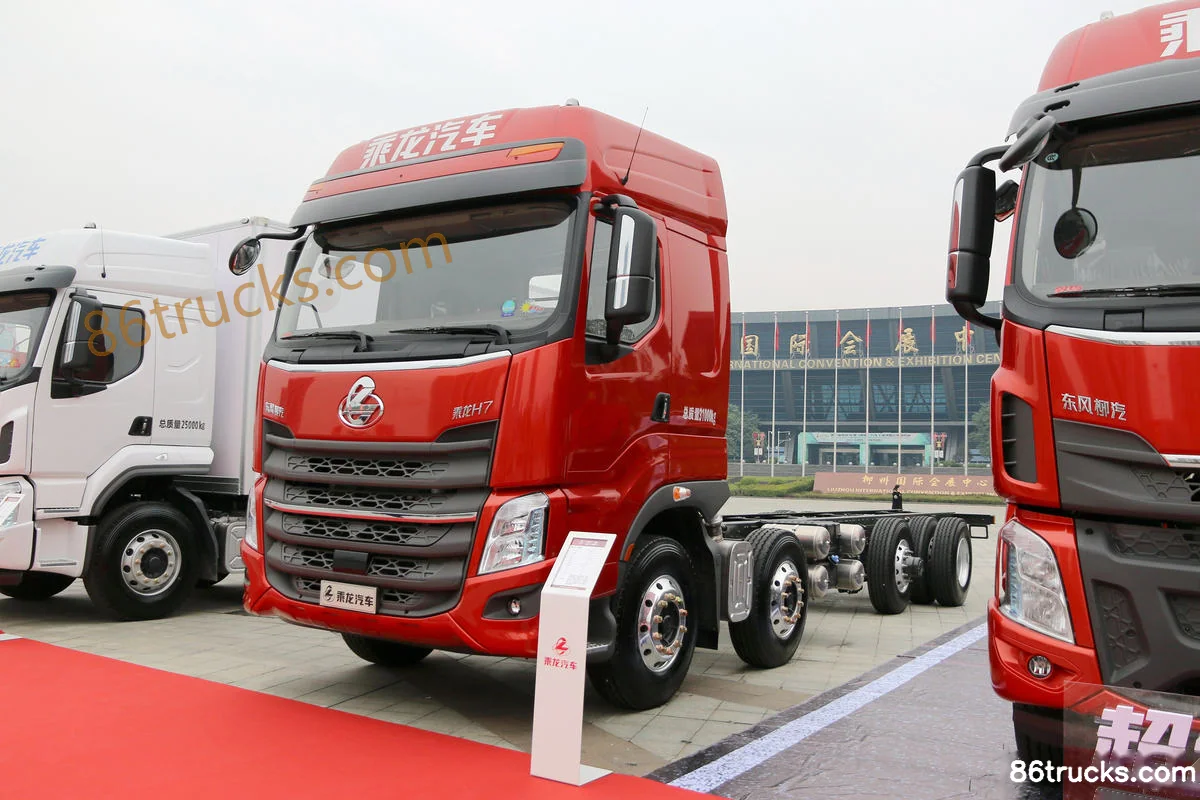

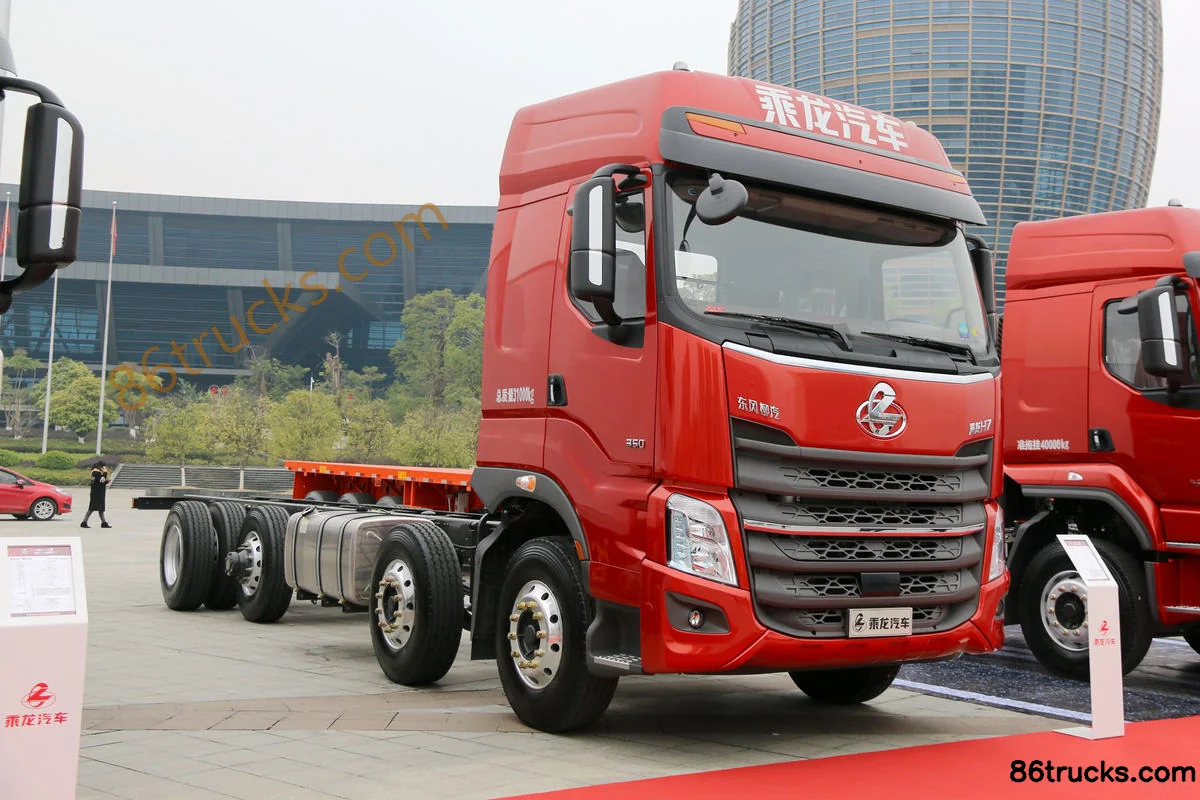

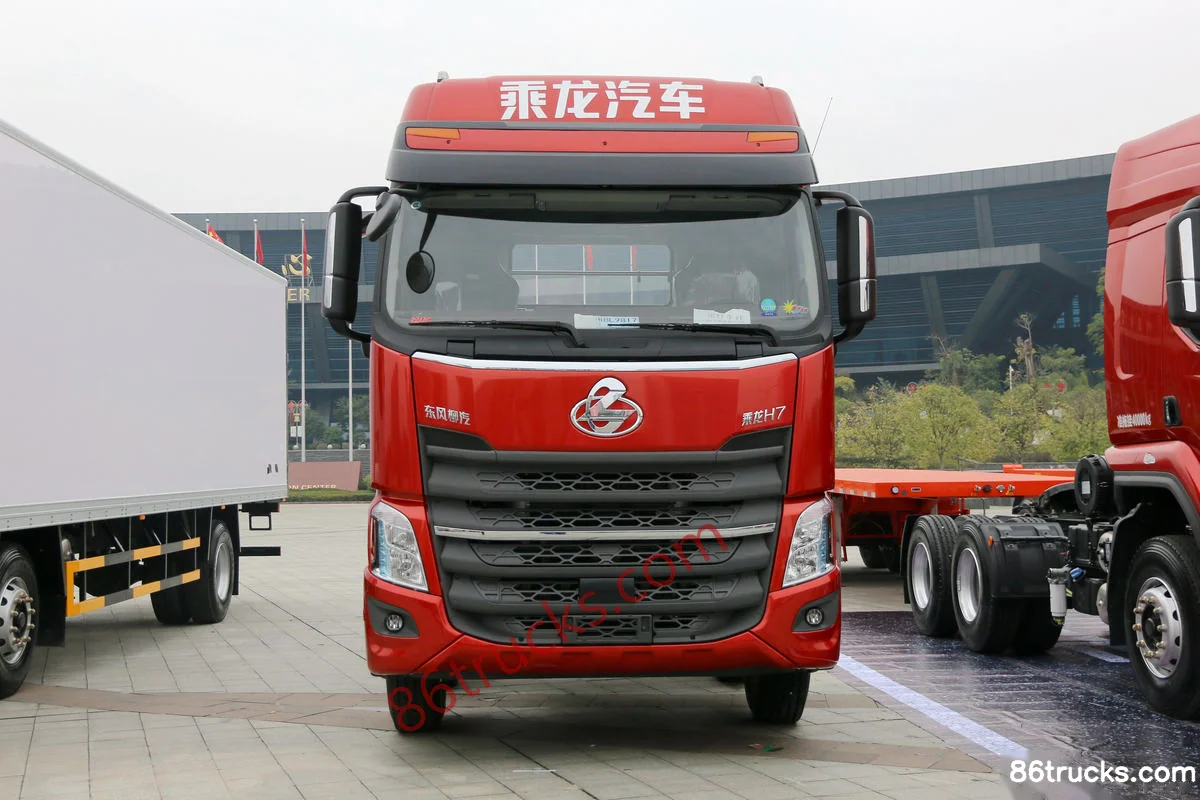

Exterior3

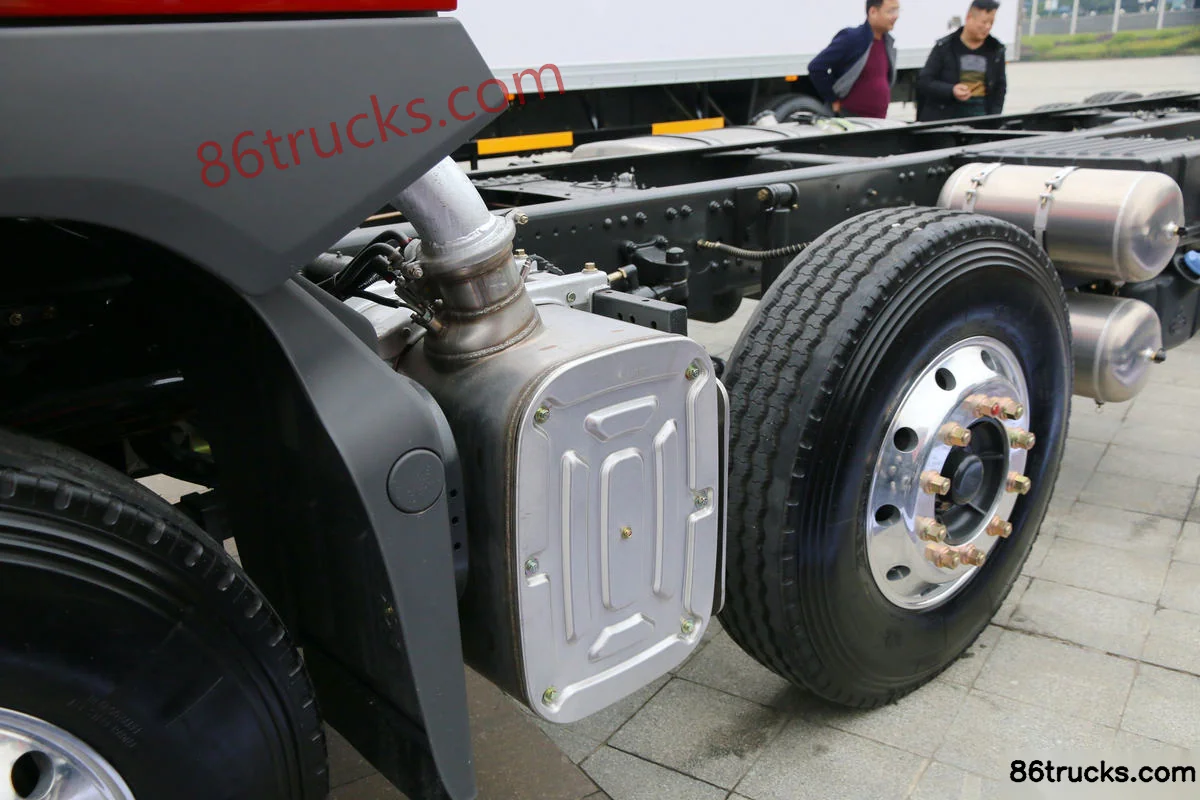

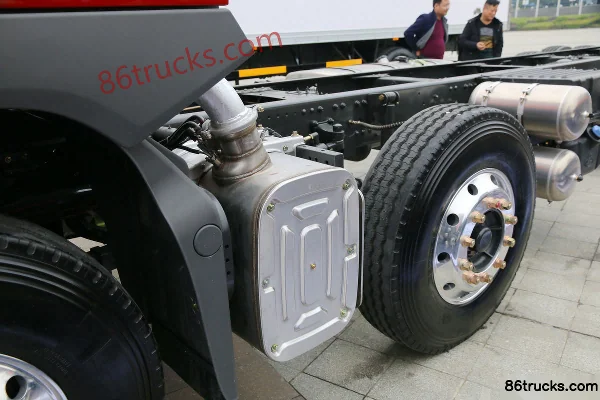

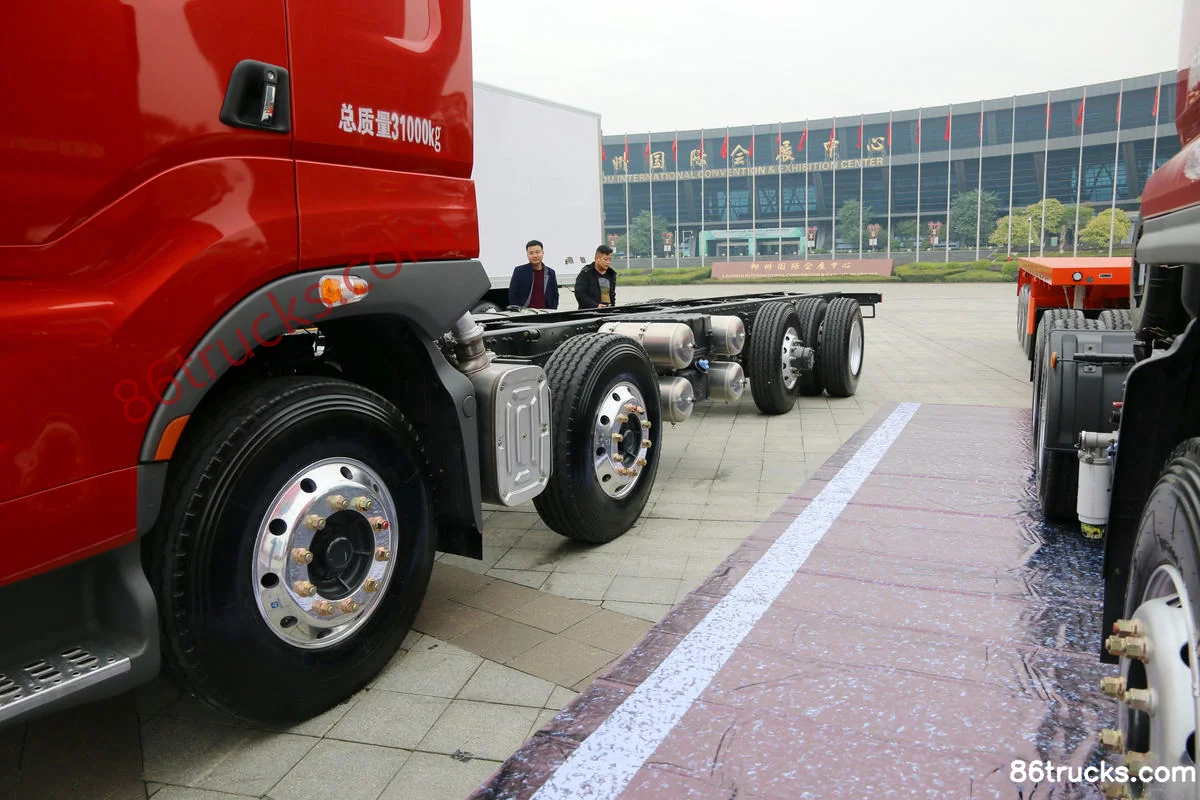

Chassis3

6 photos

FAQ

What is the export price of DongfengLiuqi ChenglongH7 Heavy Truck 350 hp 8X2(10 wheels) 9.6m Stake Truck Chassis, and what does it include?

DongfengLiuqi ChenglongH7 Heavy Truck 350 hp 8X2(10 wheels) 9.6m Stake Truck Chassis export reference is about From $44,167; MSRP is ¥31.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does DongfengLiuqi ChenglongH7 Heavy Truck 350 hp 8X2(10 wheels) 9.6m Stake Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of DongfengLiuqi ChenglongH7 Heavy Truck 350 hp 8X2(10 wheels) 9.6m Stake Truck Chassis?

Key specs of DongfengLiuqi ChenglongH7 Heavy Truck 350 hp 8X2(10 wheels) 9.6m Stake Truck Chassis: Drive: 8x2; Horsepower: 350 hp; Emission: China V; Fuel: Diesel; Engine: WeichaiWP10; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is DongfengLiuqi ChenglongH7 Heavy Truck 350 hp 8X2(10 wheels) 9.6m Stake Truck Chassis suited for?

DongfengLiuqi ChenglongH7 Heavy Truck 350 hp 8X2(10 wheels) 9.6m Stake Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does DongfengLiuqi ChenglongH7 Heavy Truck 350 hp 8X2(10 wheels) 9.6m Stake Truck Chassis differ from other variants in the same series?

DongfengLiuqi ChenglongH7 Heavy Truck 350 hp 8X2(10 wheels) 9.6m Stake Truck Chassis belongs to Dongfeng Chenglong H7 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for DongfengLiuqi ChenglongH7 Heavy Truck 350 hp 8X2(10 wheels) 9.6m Stake Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export DongfengLiuqi ChenglongH7 Heavy Truck 350 hp 8X2(10 wheels) 9.6m Stake Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
