Shijun Geaolei Heavy Truck 336 hp 6X4(10 wheels) 5.8m LNG Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: LNG (liquefied natural gas)
Transmission: Fast Gear
Curb Weight:: 11.925ton
Wheelbase:: 3800+1350mm
Tire Size:: 12.00R20
Rated payload: 12.945ton
Drive 6X4 (10 wheels)
Horsepower 336
Cargo box type: Rear-dump body

Overview

The Shijun Geaolei Heavy Truck 336 hp 6X4(10 wheels) 5.8m LNG Dump Truck is a Heavy truck featuring 12.945t payload, 25t GVW, Rear-dump body cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP10NG336E50 engine, 336 hp, China V emissions and Fast Gear transmission.

China V 336 LNG (liquefied natural gas) 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LFJ3255G11
Drive type: 6X4
Wheelbase: 3800+1350mm
engine: WeichaiWP10NG336E50
transmission: Fast Gear9JS150
Cab length: 8.6m
Cab width: 2.49m
Cab height: 3.585m
Front track width: 2050mm
rear track: 1860/1860mm
Curb Weight: 11.925ton
Rated payload: 12.945ton
GVWR: 25ton
Origin: Dali, Yunnan
tonnage class: Heavy truck
Approach angle: 20°
departure angle: 15°
Version: LNG Edition
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10NG336E50
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Displacement: 9.726L
Emission standard: China V
Max output power: 247kW
Max hp: 336Horsepower
Max torque: 1350N·m
Max torque speed: 1400-1600rpm
Rated speed: 2200rpm
Engine Type: Single-point injection + oxidation catalyst
Transmission Parameters
Transmission Model: Fast Gear9JS150
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.8m
Cargo box width: 2.3m
Cargo box height: 1.1m
Chassis Specs
rear axle description: STR16T (tandem axle)
Leaf spring count: 9/12
Tire
Tire Size: 12.00R20
Number of tires: 10pcs

Photos

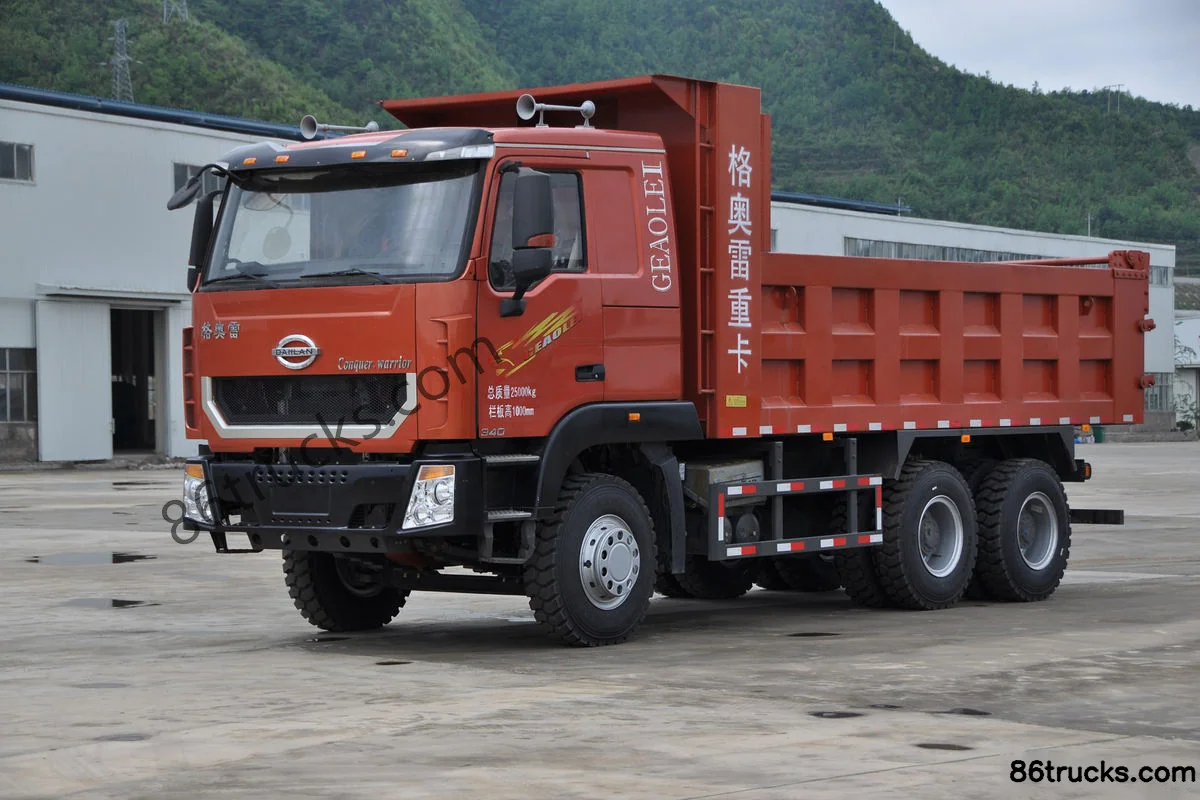

Exterior1

1 photos

FAQ

What emission standard does Shijun Geaolei Heavy Truck 336 hp 6X4(10 wheels) 5.8m LNG Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Shijun Geaolei Heavy Truck 336 hp 6X4(10 wheels) 5.8m LNG Dump Truck?

Key specs of Shijun Geaolei Heavy Truck 336 hp 6X4(10 wheels) 5.8m LNG Dump Truck: Drive: 6x4; Horsepower: 336 hp; Emission: China V; Fuel: LNG (liquefied natural gas); Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Shijun Geaolei Heavy Truck 336 hp 6X4(10 wheels) 5.8m LNG Dump Truck suited for?

Shijun Geaolei Heavy Truck 336 hp 6X4(10 wheels) 5.8m LNG Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Shijun Geaolei Heavy Truck 336 hp 6X4(10 wheels) 5.8m LNG Dump Truck differ from other variants in the same series?

Shijun Geaolei Heavy Truck 336 hp 6X4(10 wheels) 5.8m LNG Dump Truck belongs to Shijun Ge'aolei Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Shijun Geaolei Heavy Truck 336 hp 6X4(10 wheels) 5.8m LNG Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Shijun Geaolei Heavy Truck 336 hp 6X4(10 wheels) 5.8m LNG Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
