ZOOMLION 260-ton All Terrain Crane (QAY260)

Export reference
MSRP N/A
Max travel speed:: 72km/h
Max gradeability:: 50%
Min turning radius:: 12m
Min ground clearance:: 355cm
Rated lifting capacity:: 260ton
Max lift height:: 62.6m
ZOOMLION 260-ton All Terrain Crane (QAY260) exterior
View more photos (3)
Operating weight: 72ton
Max output power: 420kW
Machine dimensions: L×W×H: 17.58×3×4m
Model: QAY260

Overview

The ZOOMLION 260-ton All Terrain Crane (QAY260) is a crane truck featuring 72ton GVW and 420kW power.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Machine dimensions: L×W×H: 17.58×3×4m
Model: QAY260
Operating weight: 72ton
Max travel speed: 72km/h
Max gradeability: 50%
Min turning radius: 12m
Min ground clearance: 355cm
Lifting capacity
Rated lifting capacity: 260ton
Max lift height: 62.6m
auxiliary jib length: 34m
auxiliary jib installation angle: 30°
Operating Parameters
Boom full raise/lower time: 90sec
Swing Speed: 1.5r/min
Max hoisting speed of main winch: 124m/min
Auxiliary winch max lift speed: 70m/min
Outrigger span: longitudinal × lateral: 8.8m
Boom elevation angle range: 82°
Boom full extension time: 600sec
Engine parameters
Engine Model: OM502LA
Max output power: 420kW
Rated speed: 1800rpm

Photos

Exterior3

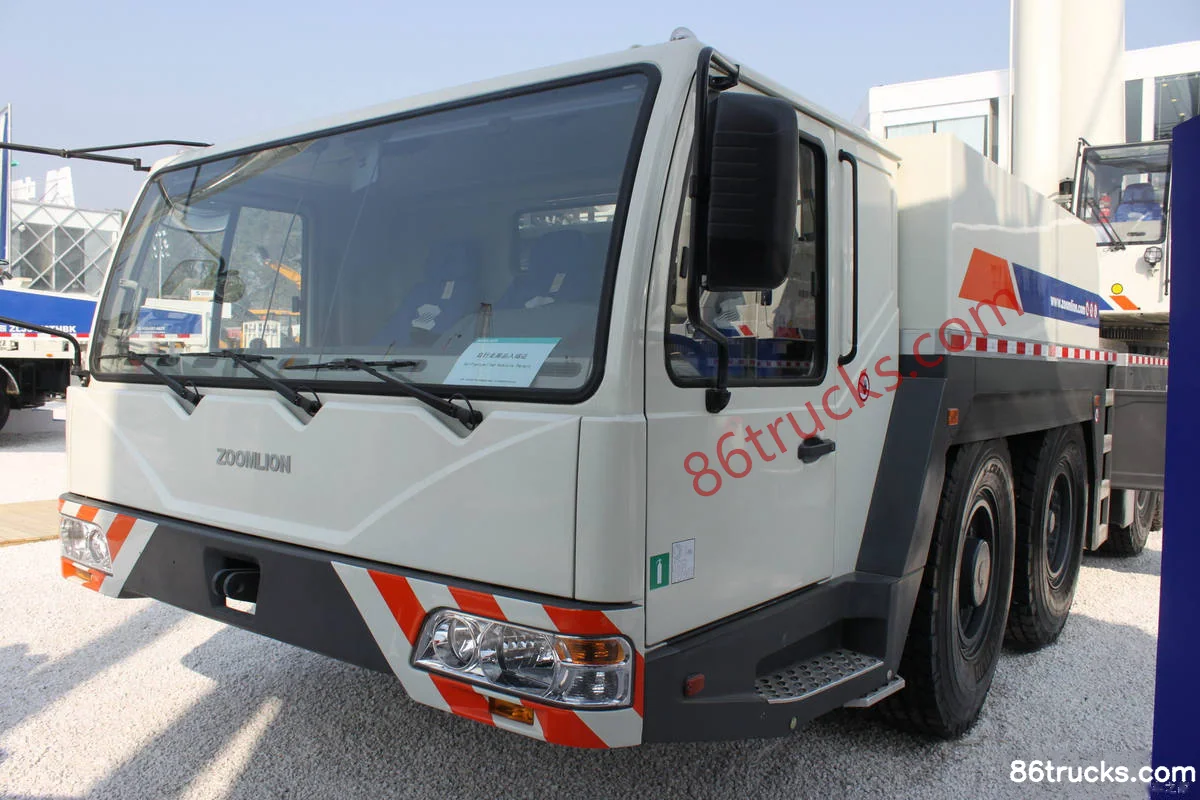

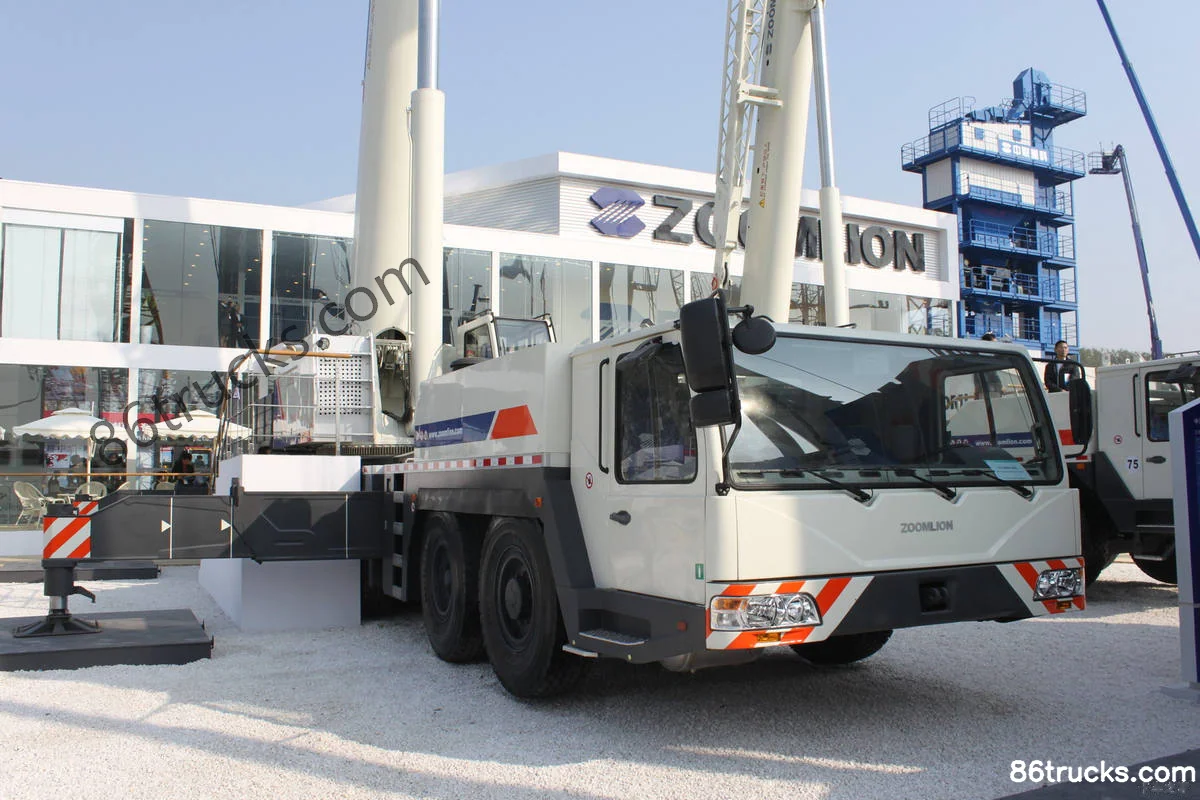

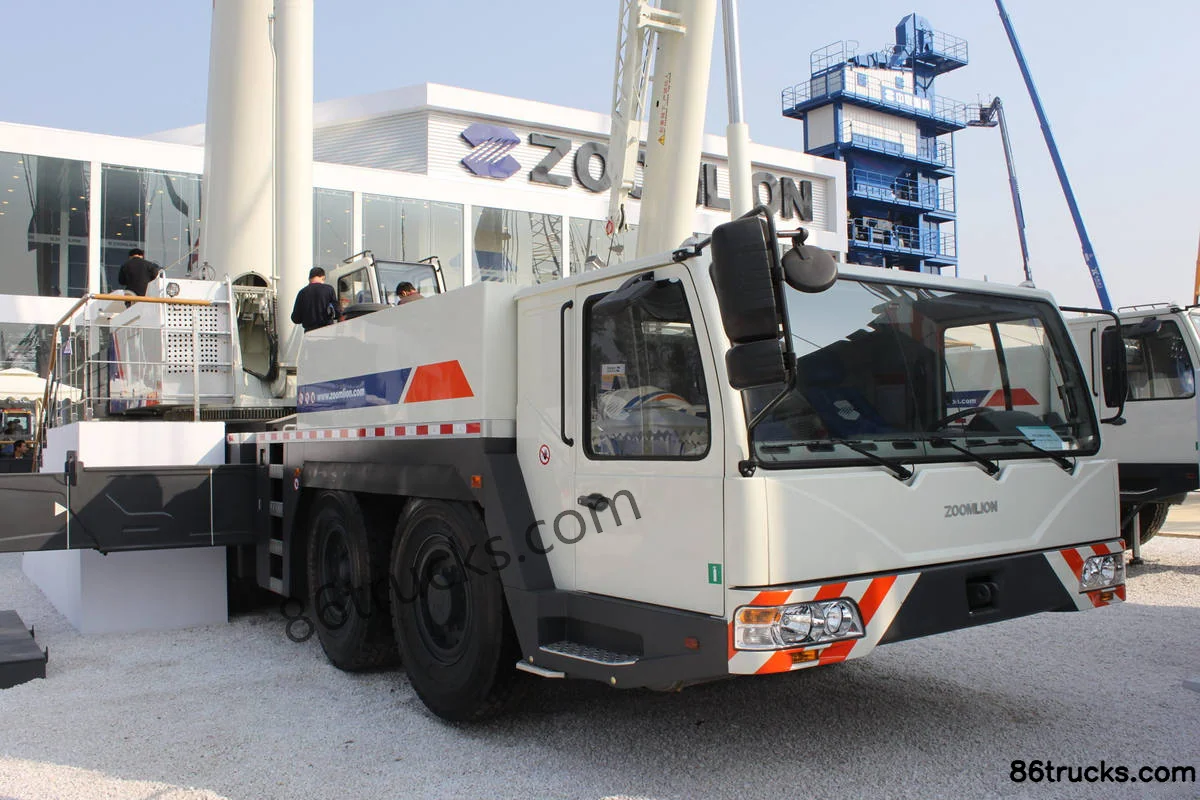

ZOOMLION 260-ton All Terrain Crane (QAY260) Exterior (1) | 86Trucks ZOOMLION 260-ton All Terrain Crane (QAY260) Exterior (2) | 86Trucks ZOOMLION 260-ton All Terrain Crane (QAY260) Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is ZOOMLION 260-ton All Terrain Crane (QAY260) suited for?

ZOOMLION 260-ton All Terrain Crane (QAY260) is a crane truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does ZOOMLION 260-ton All Terrain Crane (QAY260) differ from other variants in the same series?

ZOOMLION 260-ton All Terrain Crane (QAY260) belongs to ZOOMLION All-Terrain Crane (crane truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for ZOOMLION 260-ton All Terrain Crane (QAY260)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export ZOOMLION 260-ton All Terrain Crane (QAY260)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
