Hitachi ZX250LC-3 Medium Excavator

Export reference
MSRP N/A
Model:: ZX250LC-3
Engine Model:: crawler excavator
Tonnage:: 19.2ton
Machine dimensions:: 10.15×3.19×3.07mm
Min ground clearance:: 460cm
Travel speed:: 5.5/3.4km/h
Operating weight: 25ton
Bucket capacity: 1.2cubic meter
Fuel Tank Capacity: 500L
Max output power: 132kW

Overview

The Hitachi ZX250LC-3 Medium Excavator is a excavator featuring 25ton GVW, 1.2cubic meter bucket capacity, 500L tank capacity and 132kW power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model: ZX250LC-3
Engine Model: crawler excavator
Tonnage: 19.2ton
Bucket capacity: 1.2cubic meter
Operating weight: 25ton
Machine dimensions: 10.15×3.19×3.07mm
Min ground clearance: 460cm
Oil capacity
Fuel Tank Capacity: 500L
hydraulic oil tank: 243L
performance specs
Travel speed: 5.5/3.4km/h
Bucket digging force: 180kN
Arm Digging Force: 125kN
Operating Range
Max digging radius: 10290mm
Max digging depth: 6960mm
Max digging height: 10160mm
Max unloading height: 7220mm
Engine parameters
Engine Model: IsuzuAI-4HK1X
Max output power: 132kW

Photos

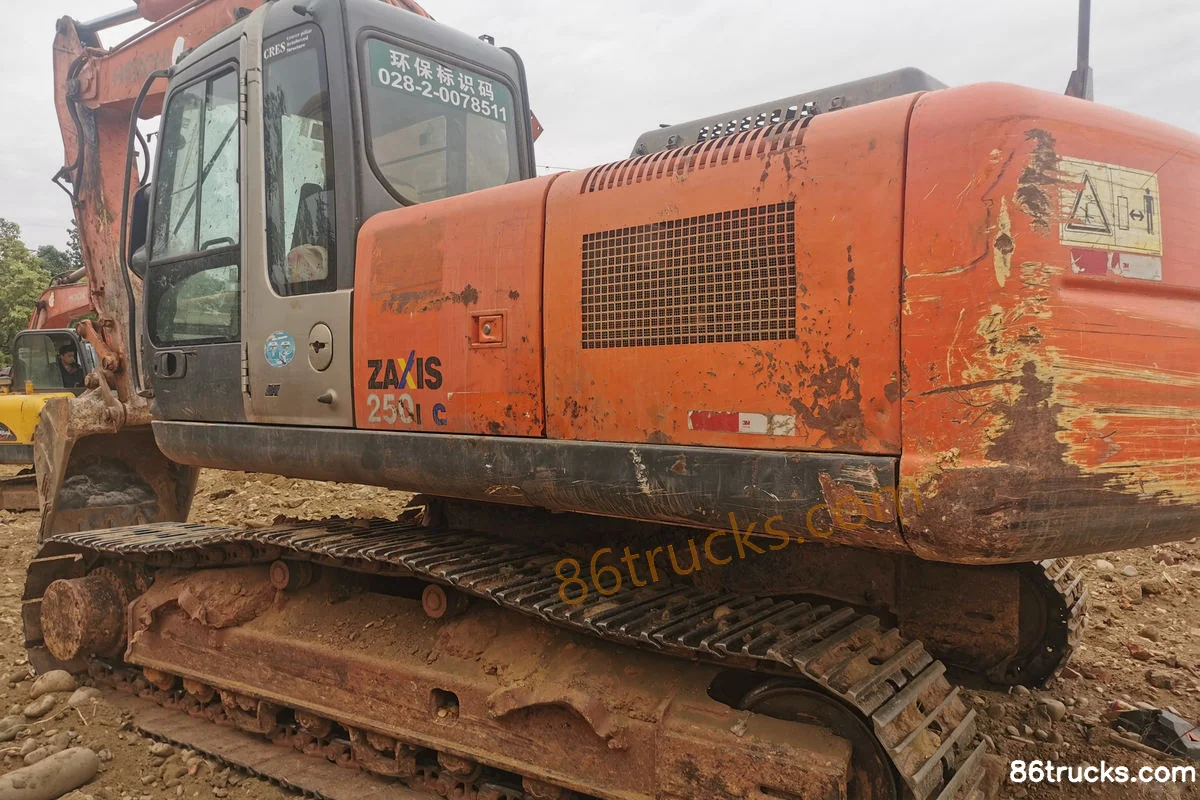

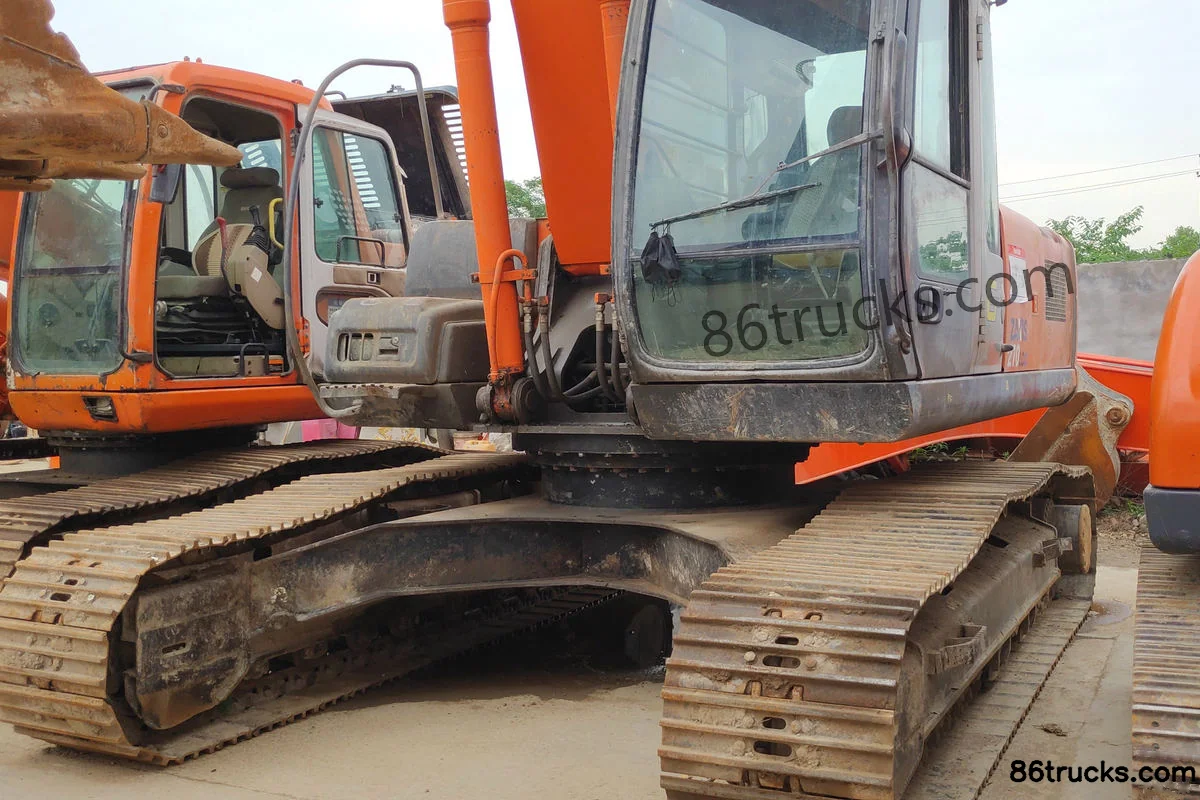

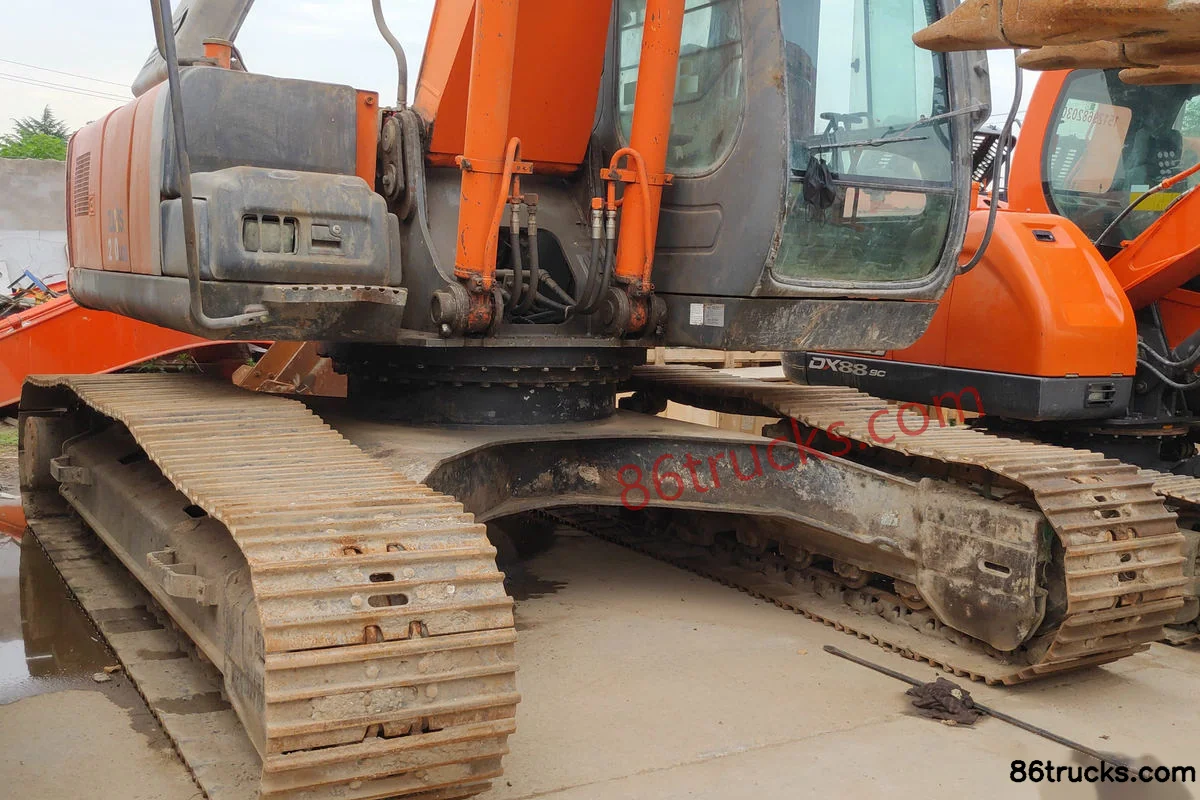

Exterior3

3 photos

FAQ

What transport jobs is Hitachi ZX250LC-3 Medium Excavator suited for?

Hitachi ZX250LC-3 Medium Excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Hitachi ZX250LC-3 Medium Excavator differ from other variants in the same series?

Hitachi ZX250LC-3 Medium Excavator belongs to Hitachi Hitachi Crawler Excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hitachi ZX250LC-3 Medium Excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hitachi ZX250LC-3 Medium Excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
