Yuejin Kaituo X500 Transport 160 hp 6X2(8 wheels) 6.5m dump truck

Export reference
From $25,778
MSRP ¥18.56M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 11.805ton
Wheelbase:: 1730+3610mm
Tire Size:: 10.00-20 18PR
Rated payload: 12.75ton
Drive 6X2 (8 wheels)
Horsepower 160
Cargo box length: 6.5m

Overview

The Yuejin Kaituo X500 Transport 160 hp 6X2(8 wheels) 6.5m dump truck is a Light Truck featuring 12.75t payload, 24.75t GVW, 6.5m cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a YuchaiYC4E160-56 engine, 160 hp, China V emissions and Fast Gear transmission.

China V 160 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SH3252VGDDWW4
Drive type: 6X2
Wheelbase: 1730+3610mm
engine: YuchaiYC4E160-56
transmission: Fast Gear8JS85E
Rear Axle Ratio: 6.5
Cab length: 9.255m
Cab width: 2.5m
Cab height: 2.85m
Front track width: 1800/1800mm
rear track: 1750mm
Curb Weight: 11.805ton
Rated payload: 12.75ton
GVWR: 24.75ton
Origin: Nanjing, Jiangsu
tonnage class: Light Truck
Approach angle: 30°
departure angle: 13°
Remarks: Cab with tilt, power steering, spare tire.
Version: Transport type
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4E160-56
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.26L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 600N·m
Max torque speed: 1300-1600rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
hydraulic cylinder brand & model: 160
Cargo box length: 6.5m
Cargo box width: 2.28m
Cargo box height: 0.8m
Body Parameters
Lifting type: Front lift cylinder
Cab parameters
Cab: Wide-body Extended Cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 160L
Chassis Specs
Front axle allowable load: 6700/6700kg
Frame Dimensions: 300×8+6+6mm
rear axle description: 153D axle, 10-ton
rear axle allowable load: 11350kg
Axle ratio: 6.5
Leaf spring count: 9/9/13+8
Tire
Tire Size: 10.00-20 18PR
Tire Type: Steel-belted tire
Number of tires: 8pcs
Control configuration
ABS:
interior configuration
Power Windows:
Service brake
Parking brake: Spring brake

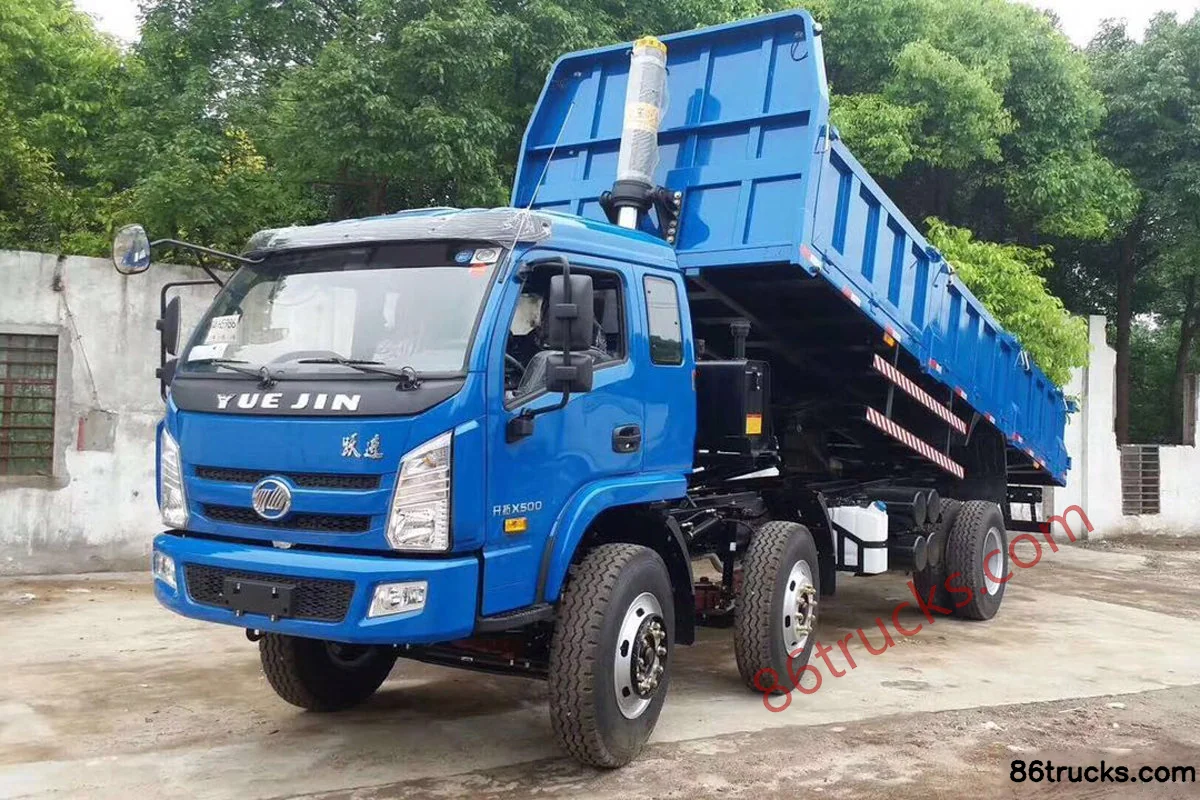

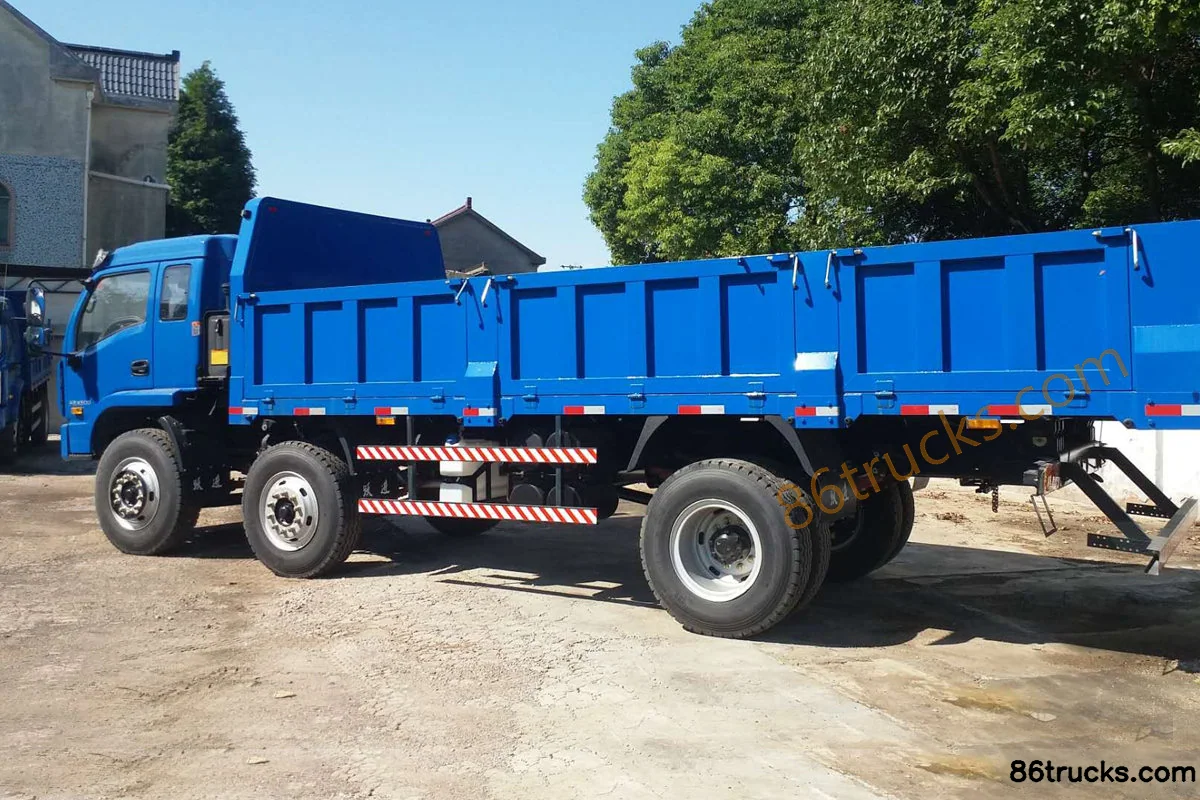

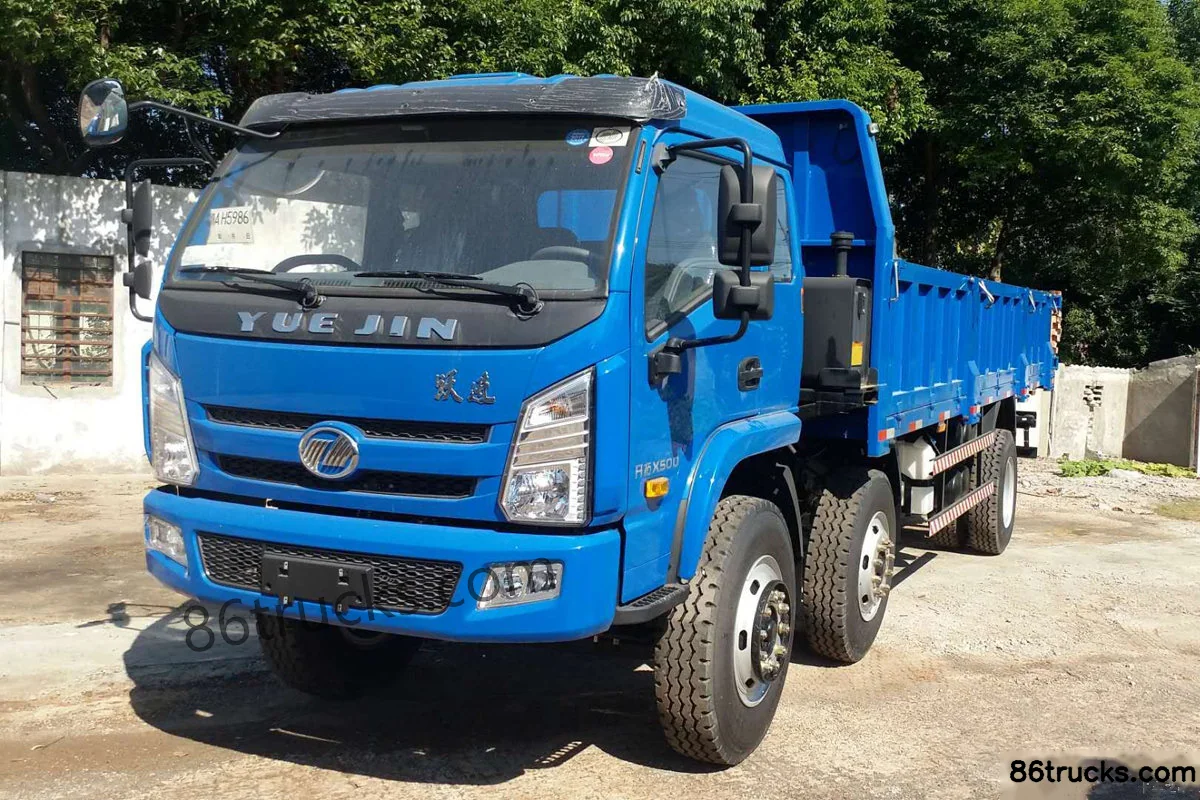

Photos

Exterior3

3 photos

FAQ

What is the export price of Yuejin Kaituo X500 Transport 160 hp 6X2(8 wheels) 6.5m dump truck, and what does it include?

Yuejin Kaituo X500 Transport 160 hp 6X2(8 wheels) 6.5m dump truck export reference is about From $25,778; MSRP is ¥18.56M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Yuejin Kaituo X500 Transport 160 hp 6X2(8 wheels) 6.5m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Yuejin Kaituo X500 Transport 160 hp 6X2(8 wheels) 6.5m dump truck?

Key specs of Yuejin Kaituo X500 Transport 160 hp 6X2(8 wheels) 6.5m dump truck: Drive: 6x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuejin Kaituo X500 Transport 160 hp 6X2(8 wheels) 6.5m dump truck suited for?

Yuejin Kaituo X500 Transport 160 hp 6X2(8 wheels) 6.5m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Yuejin Kaituo X500 Transport 160 hp 6X2(8 wheels) 6.5m dump truck differ from other variants in the same series?

Yuejin Kaituo X500 Transport 160 hp 6X2(8 wheels) 6.5m dump truck belongs to Yuejin Kaituo X500 Light-duty Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuejin Kaituo X500 Transport 160 hp 6X2(8 wheels) 6.5m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuejin Kaituo X500 Transport 160 hp 6X2(8 wheels) 6.5m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
