Sinotruk V7-X 31T 8X4(12 wheels) 8m³ Battery Swap Electric Concrete Mixer Truck 282kWh

Export reference
From $138,889
MSRP ¥100M CNY
Wheelbase:: 1800+3050+1350mm
Tire Size:: 11R22.5 18PR
Cab dimensions:: 9.96×2.52×3.83m
Truck Type:: Battery swap electric concrete mixer truck
Vehicle origin:: Chengdu, Sichuan
Front/rear track width:: Front track: 2022/2022; Rear track: 1860/1860mm
Rated payload: 16.87ton
Drive 8X4 (12 wheels)
Fuel Electric
Curb Weight: 13.9ton

Overview

The Sinotruk V7-X 31T 8X4(12 wheels) 8m³ Battery Swap Electric Concrete Mixer Truck 282kWh is a concrete mixer truck featuring 16.87t payload, 13.9ton GVW, 8X4 (12 wheels) drive and Sleeper cab cab. On the powertrain side, it comes with Electric fuel.

Electric 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.96×2.52×3.83m
Drive type: 8X4
Truck Type: Battery swap electric concrete mixer truck
Vehicle origin: Chengdu, Sichuan
Front/rear track width: Front track: 2022/2022; Rear track: 1860/1860mm
Wheelbase: 1800+3050+1350mm
Curb Weight: 13.9ton
Rated payload: 16.87ton
Max. speed: 80km/h
Front/rear suspension: 1.5/2.26m
electric motor
Motor 1 Brand: Sinotruk Group Chengdu Wangpai Commercial Vehicle Co., Ltd.
Motor 1 Model: TZ370XSCDW03
Motor Type: Permanent magnet synchronous motor
total rated power: 280kW
Peak power: 410kW
total rated torque: 1400N·m
total peak torque: 2500N·m
Body Parameters
Mixing drum capacity: 8m³
Vehicle certification code: ZZ5314GJBV3061Z11SEV
Body Brand: Sinotruk Group Chengdu Commercial Vehicle
Engine parameters
fuel type: Electric
Chassis Specs
Chassis Series: V7-X
Chassis Model: ZZ1312V3567Z11SEV
Leaf spring count: 11/11/12,5/5/5,4/4/-,5/5/-,9/9/10
Transmission Parameters
Number of gears: 4Gear
Transmission Model: TS-0425C
Cab parameters
Cab: Sleeper cab
Tire
Tire Size: 11R22.5 18PR
Number of tires: 12pcs

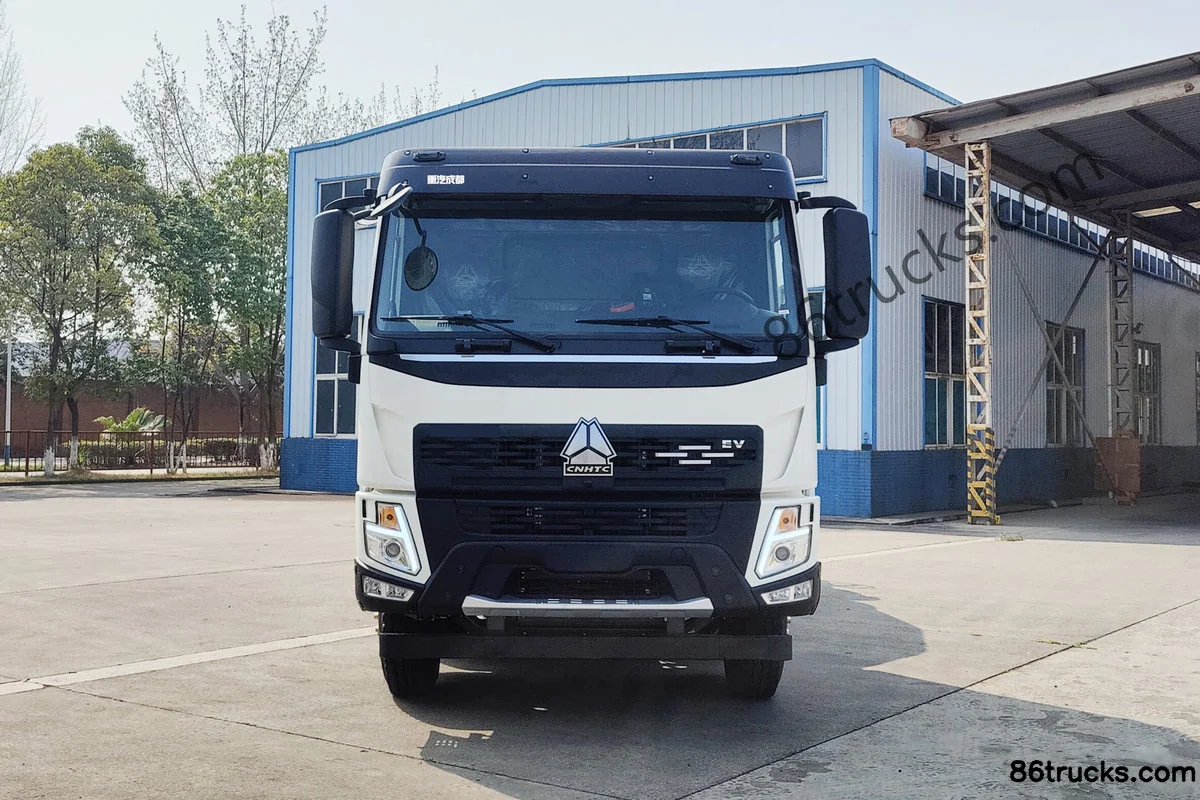

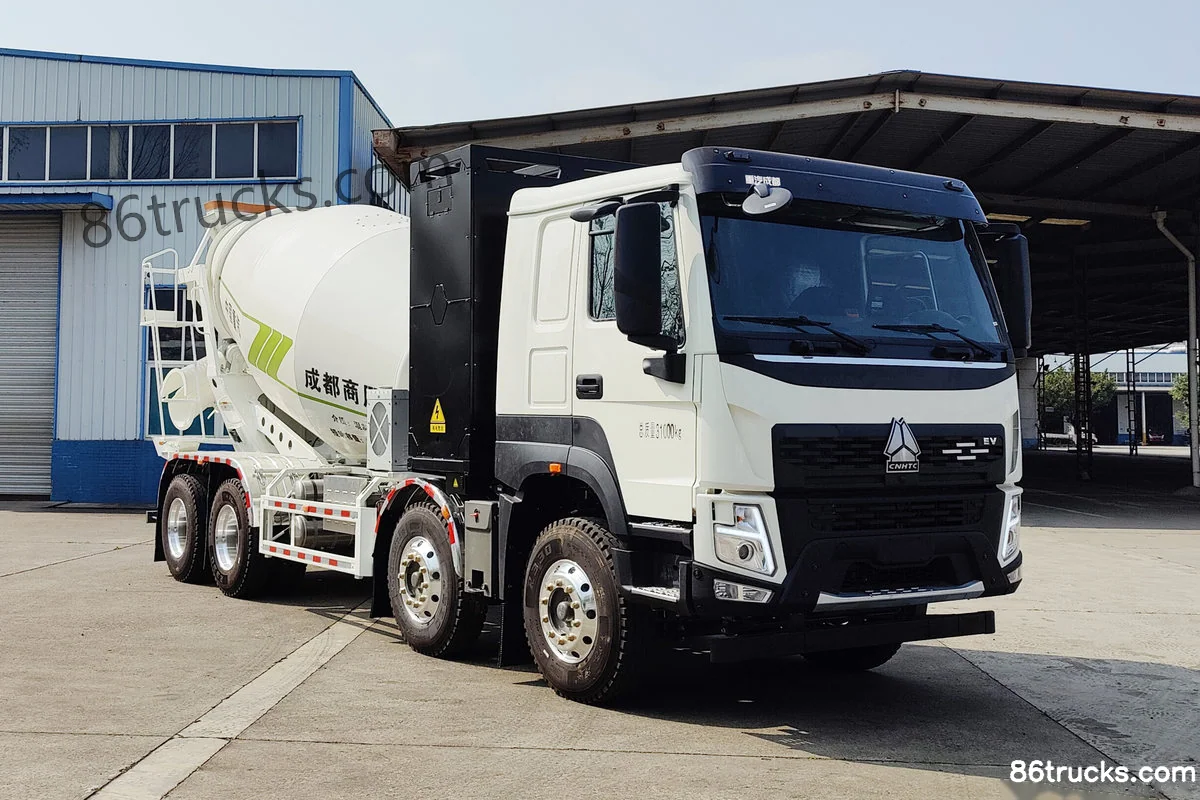

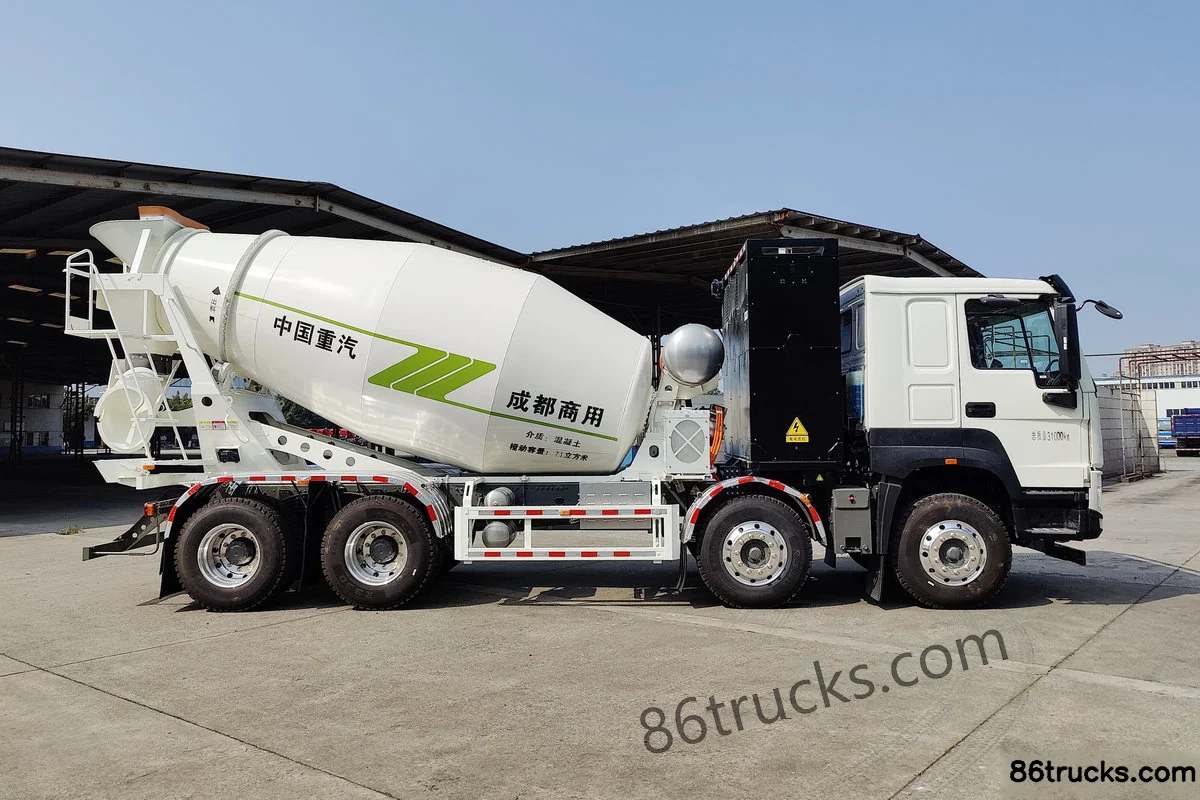

Photos

Exterior3

3 photos

FAQ

What is the export price of Sinotruk V7-X 31T 8X4(12 wheels) 8m³ Battery Swap Electric Concrete Mixer Truck 282kWh, and what does it include?

Sinotruk V7-X 31T 8X4(12 wheels) 8m³ Battery Swap Electric Concrete Mixer Truck 282kWh export reference is about From $138,889; MSRP is ¥100M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Sinotruk V7-X 31T 8X4(12 wheels) 8m³ Battery Swap Electric Concrete Mixer Truck 282kWh?

Key specs of Sinotruk V7-X 31T 8X4(12 wheels) 8m³ Battery Swap Electric Concrete Mixer Truck 282kWh: Drive: 8x4; Fuel: Electric. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk V7-X 31T 8X4(12 wheels) 8m³ Battery Swap Electric Concrete Mixer Truck 282kWh suited for?

Sinotruk V7-X 31T 8X4(12 wheels) 8m³ Battery Swap Electric Concrete Mixer Truck 282kWh is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk V7-X 31T 8X4(12 wheels) 8m³ Battery Swap Electric Concrete Mixer Truck 282kWh differ from other variants in the same series?

Sinotruk V7-X 31T 8X4(12 wheels) 8m³ Battery Swap Electric Concrete Mixer Truck 282kWh belongs to SinotrukHOWOV7-X (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk V7-X 31T 8X4(12 wheels) 8m³ Battery Swap Electric Concrete Mixer Truck 282kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk V7-X 31T 8X4(12 wheels) 8m³ Battery Swap Electric Concrete Mixer Truck 282kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
