FAW Jiefang Qingdao JH6 heavy truck 550hp 8X4(12 wheels) 8.8m dump truck

Export reference
From $55,556
MSRP ¥40M CNY
Emission: China V
Fuel: Diesel
Transmission: FAW Jiefang
Curb Weight:: 15.5ton
Wheelbase:: 1900+4900+1350mm
Tire Size:: 12.00R20
FAW Jiefang Qingdao JH6 heavy truck 550hp 8X4(12 wheels) 8.8m dump truck exterior
View more photos (12)
Rated payload: 15.37ton
Drive 8X4 (12 wheels)
Horsepower 550
Cargo box type: Dump type

Overview

The FAW Jiefang Qingdao JH6 heavy truck 550hp 8X4(12 wheels) 8.8m dump truck is a Heavy truck featuring 15.37t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a XichaiCA6DM3-55E51 engine, 550 hp, China V emissions and FAW Jiefang transmission.

China V 550 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): CA3311P27K15L6T4E5A80
Drive type: 8X4
Wheelbase: 1900+4900+1350mm
engine: XichaiCA6DM3-55E51
transmission: FAW Jiefang 12-speed
Rear Axle Ratio: 5.921
Cab length: 11.945m
Cab width: 2.55m
Cab height: 3.85m
Front track width: 2020/2020mm
rear track: 1878/1878mm
Curb Weight: 15.5ton
Rated payload: 15.37ton
GVWR: 31ton
Origin: Qingdao/Chengdu
tonnage class: Heavy truck
Approach angle: 18°
departure angle: 40°
Remarks: Upgraded chassis, 180AH battery, imported clutch, 600L steel fuel tank (dump truck), WABCO clutch booster, internal spline PTO with control mechanism, full-vehicle WABCO valves, front underrun protection, front axle stabilizer bar, dual steering arms, Camel battery, oil filter, electronically controlled silicone oil fan clutch, with water separator, new regulations, dual I-rod rear balance suspension, 4U bolts, 8.8 steel wheel, small bumper, speed limited to 89 km/h, off-road tread tires, BoschDeNOx 2.2 urea system
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DM3-55E51(2)
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 12.52L
Emission standard: China V
Max output power: 407kW
Max hp: 550Horsepower
Max torque: 2600N·m
Max torque speed: 1200-1300rpm
Rated speed: 1800rpm
Engine Type: 6-cylinder inline, direct injection, turbocharged intercooled, electronic common rail
Transmission Parameters
Transmission Model: FAW Jiefang 12-speed
Transmission Brand: FAW Jiefang
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 8.8m
Cargo box width: 2.35m
Cargo box height: 1.6m
Cab parameters
Cab width: 2500mm
Cab tilting: Electric
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 600L
Chassis Specs
Front axle description: 2055 Front Axle
Front axle allowable load: 6500/6500kg
Frame Dimensions: 300*80*(8+8+5)mm
rear axle description: 300 hub reduction axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.921
Leaf spring count: 11/13/13
Tire
Tire Size: 12.00R20
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Multimedia features
GPS/Beidou driving recorder:

Photos

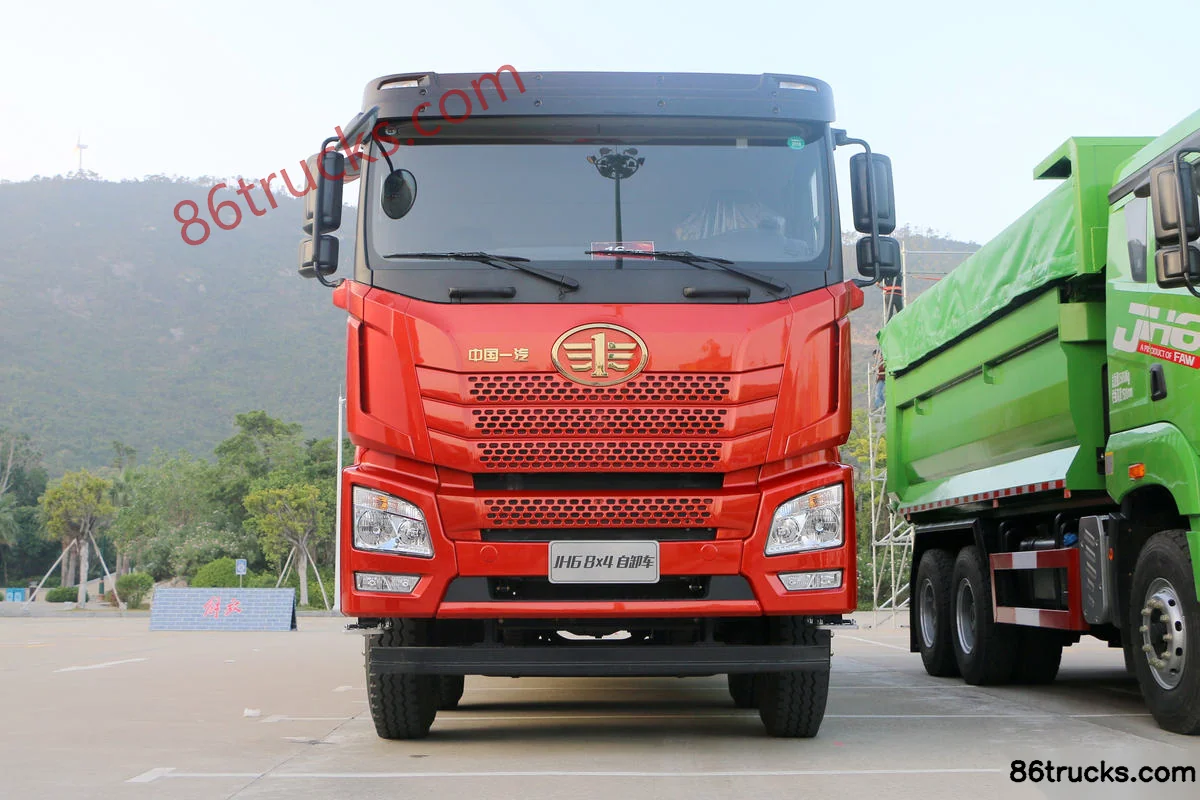

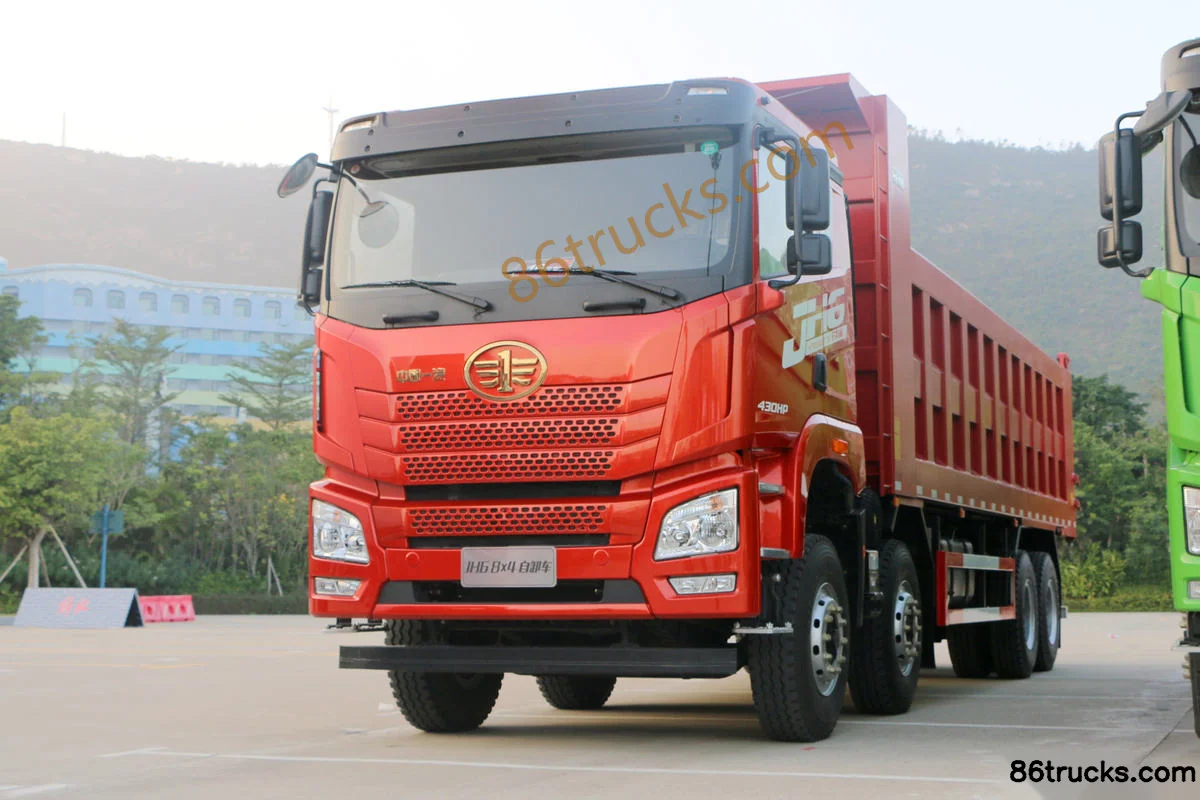

Exterior3

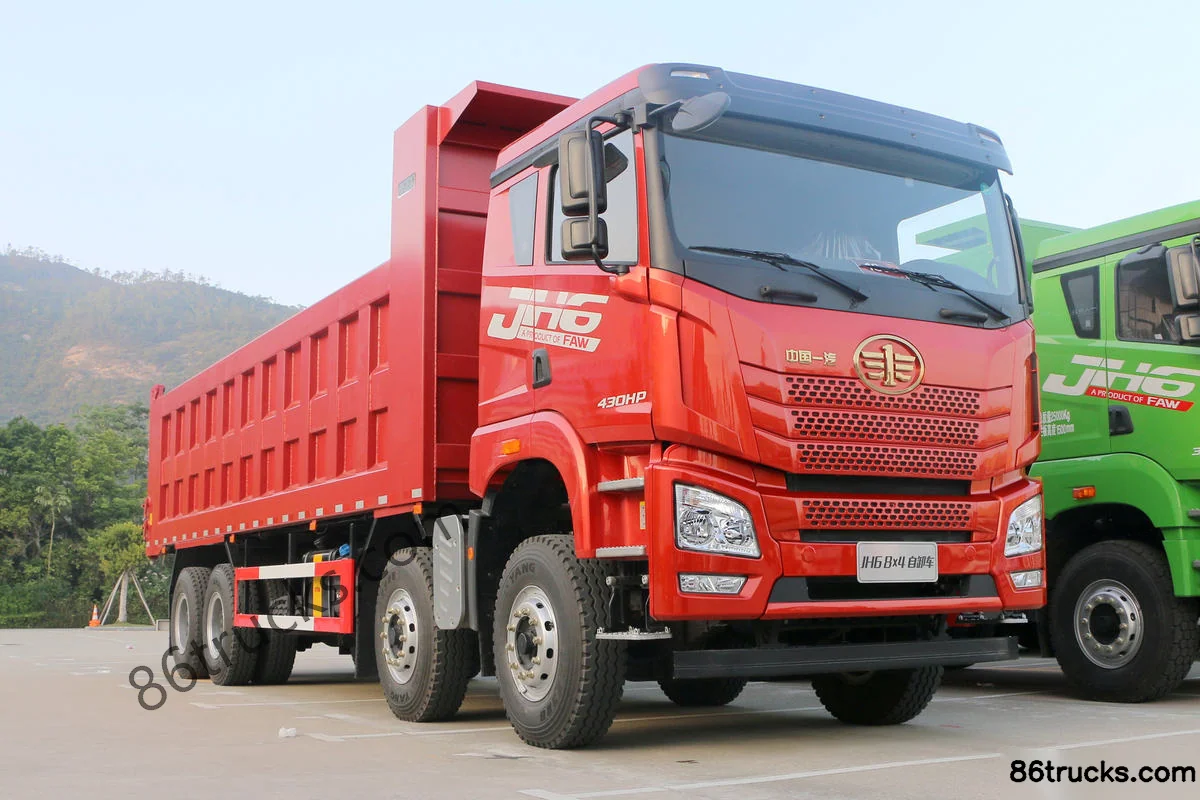

FAW Jiefang Qingdao JH6 heavy truck 550hp 8X4(12 wheels) 8.8m dump truck Exterior (1) | 86Trucks FAW Jiefang Qingdao JH6 heavy truck 550hp 8X4(12 wheels) 8.8m dump truck Exterior (2) | 86Trucks FAW Jiefang Qingdao JH6 heavy truck 550hp 8X4(12 wheels) 8.8m dump truck Exterior (3) | 86Trucks

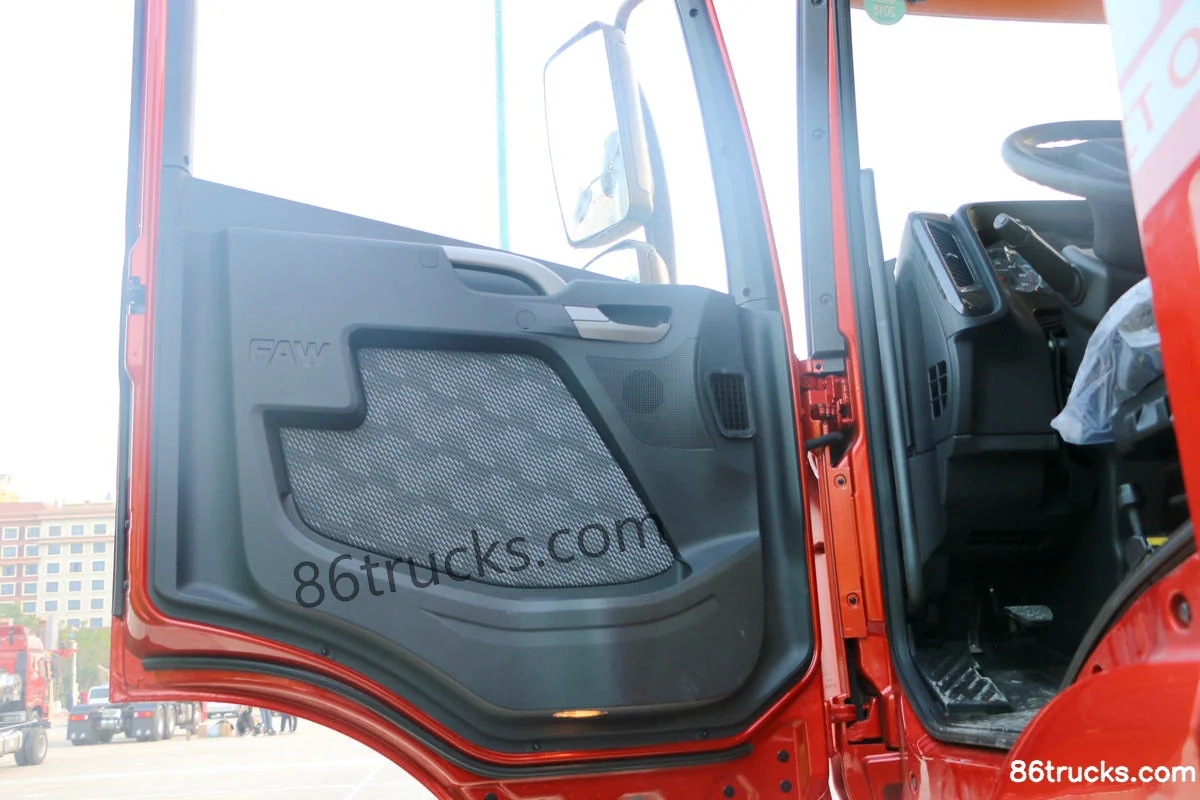

Cab3

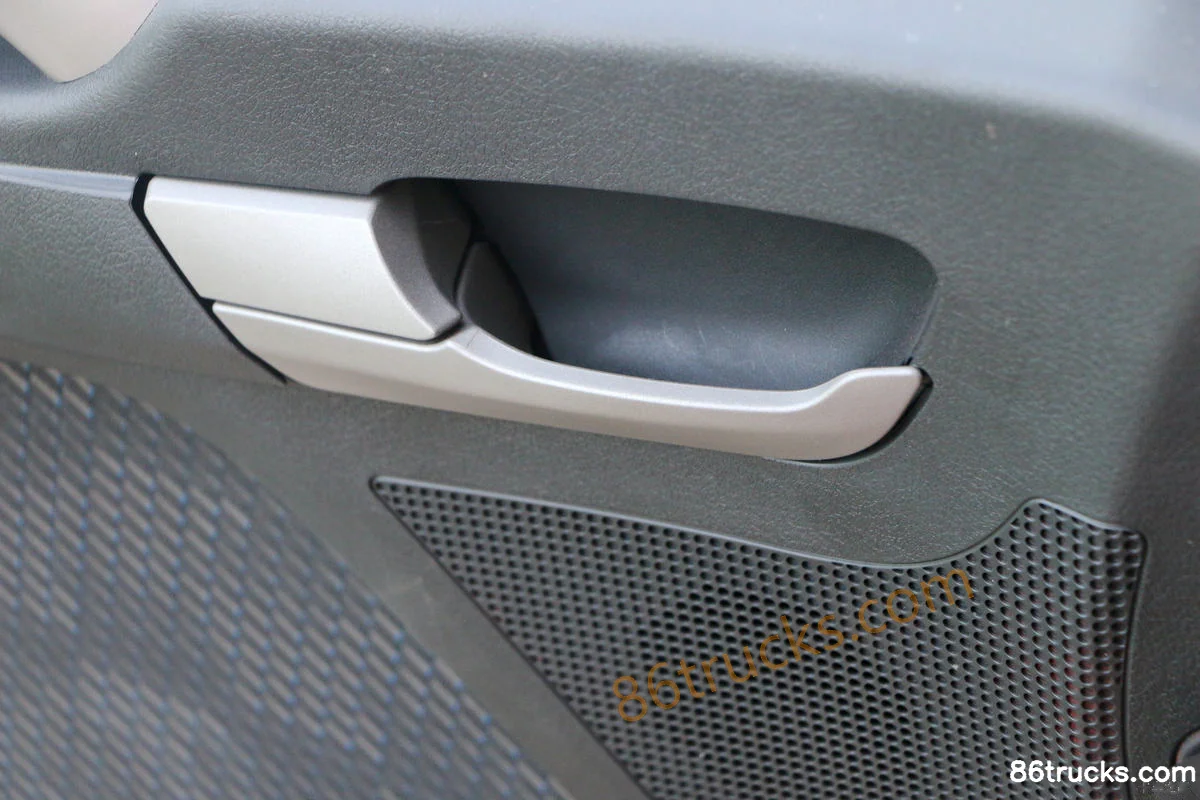

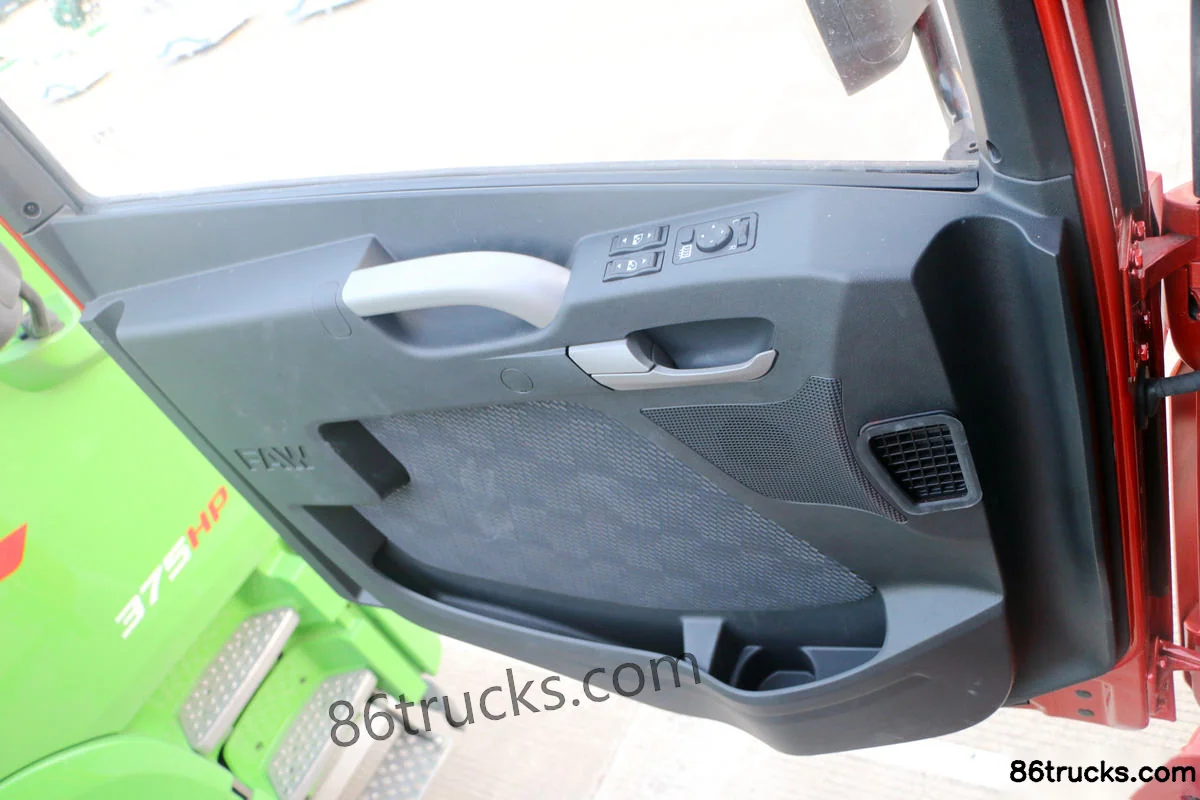

FAW Jiefang Qingdao JH6 heavy truck 550hp 8X4(12 wheels) 8.8m dump truck Cab (1) | 86Trucks FAW Jiefang Qingdao JH6 heavy truck 550hp 8X4(12 wheels) 8.8m dump truck Cab (2) | 86Trucks FAW Jiefang Qingdao JH6 heavy truck 550hp 8X4(12 wheels) 8.8m dump truck Cab (3) | 86Trucks

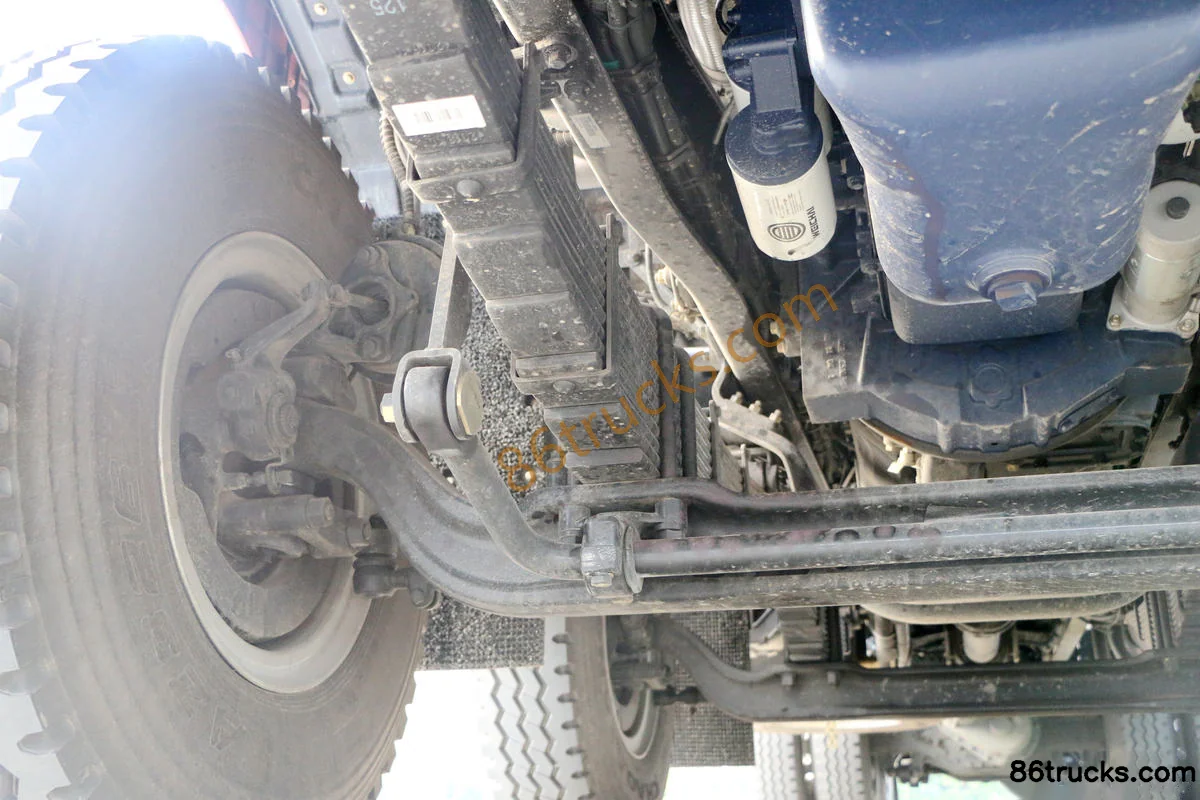

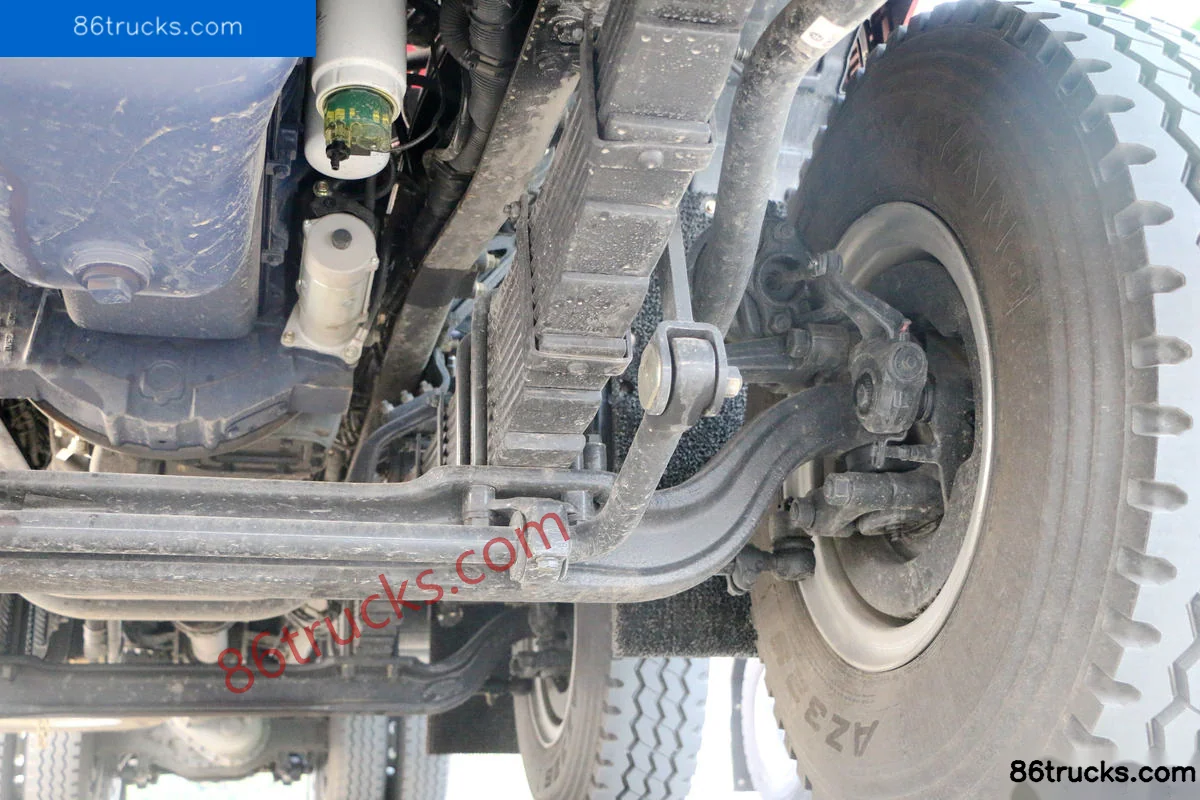

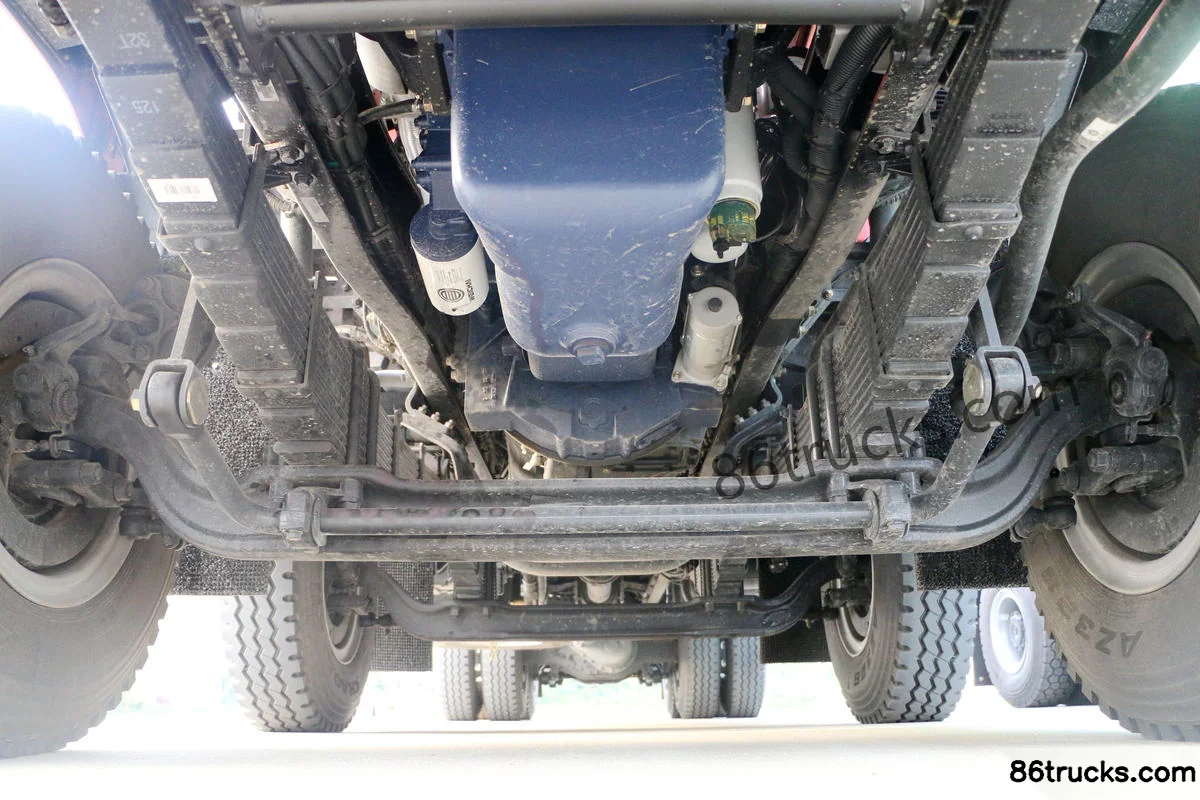

Chassis3

FAW Jiefang Qingdao JH6 heavy truck 550hp 8X4(12 wheels) 8.8m dump truck Chassis (1) | 86Trucks FAW Jiefang Qingdao JH6 heavy truck 550hp 8X4(12 wheels) 8.8m dump truck Chassis (2) | 86Trucks FAW Jiefang Qingdao JH6 heavy truck 550hp 8X4(12 wheels) 8.8m dump truck Chassis (3) | 86Trucks

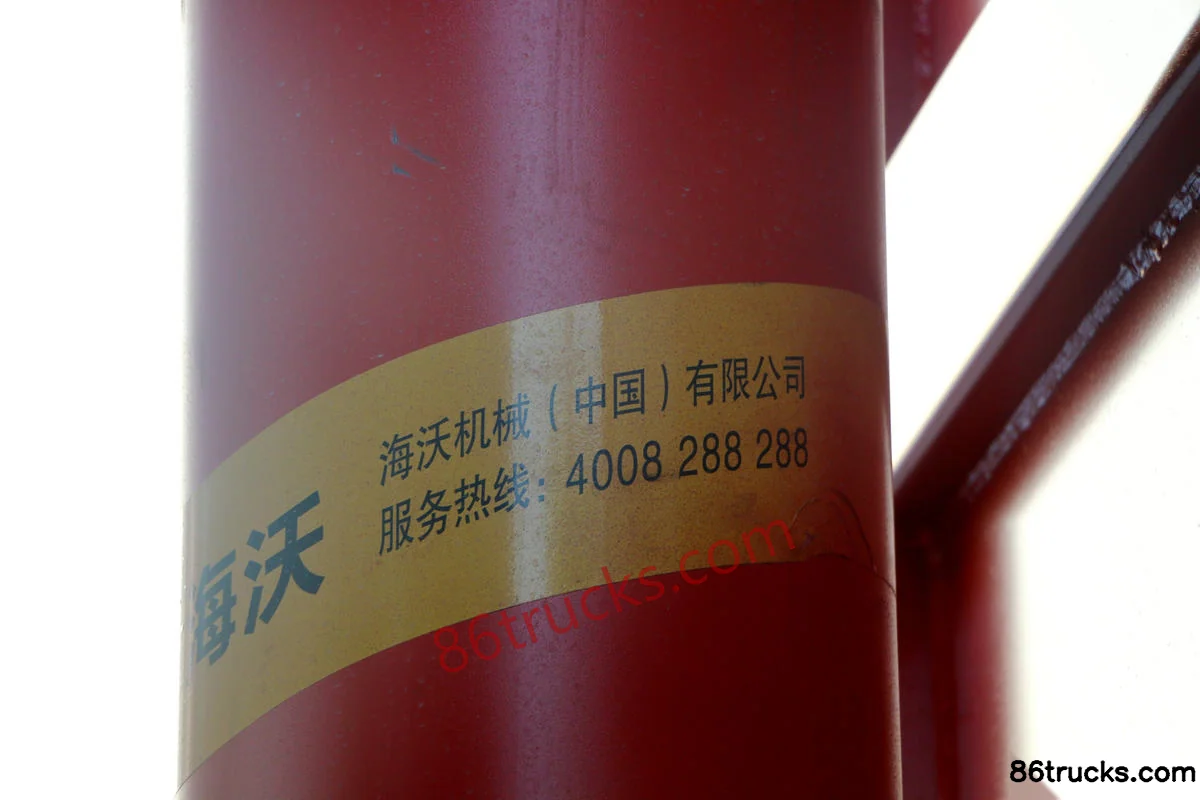

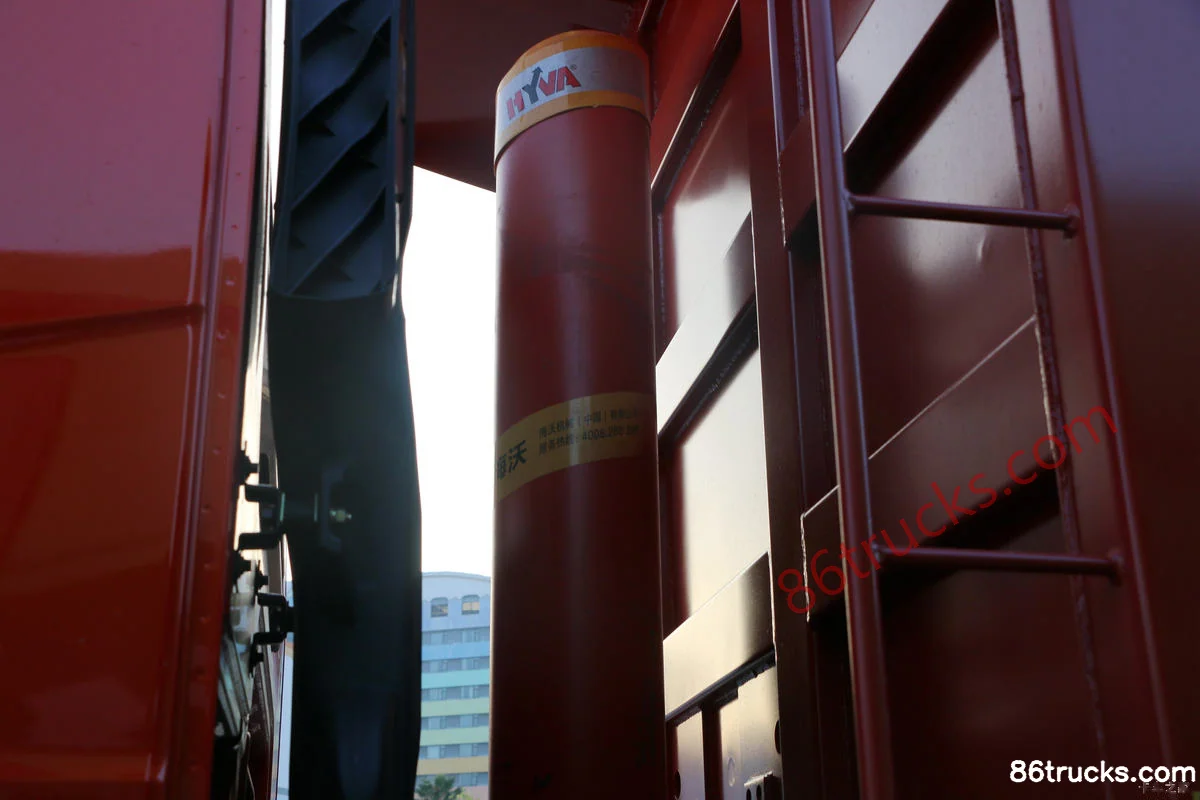

Body3

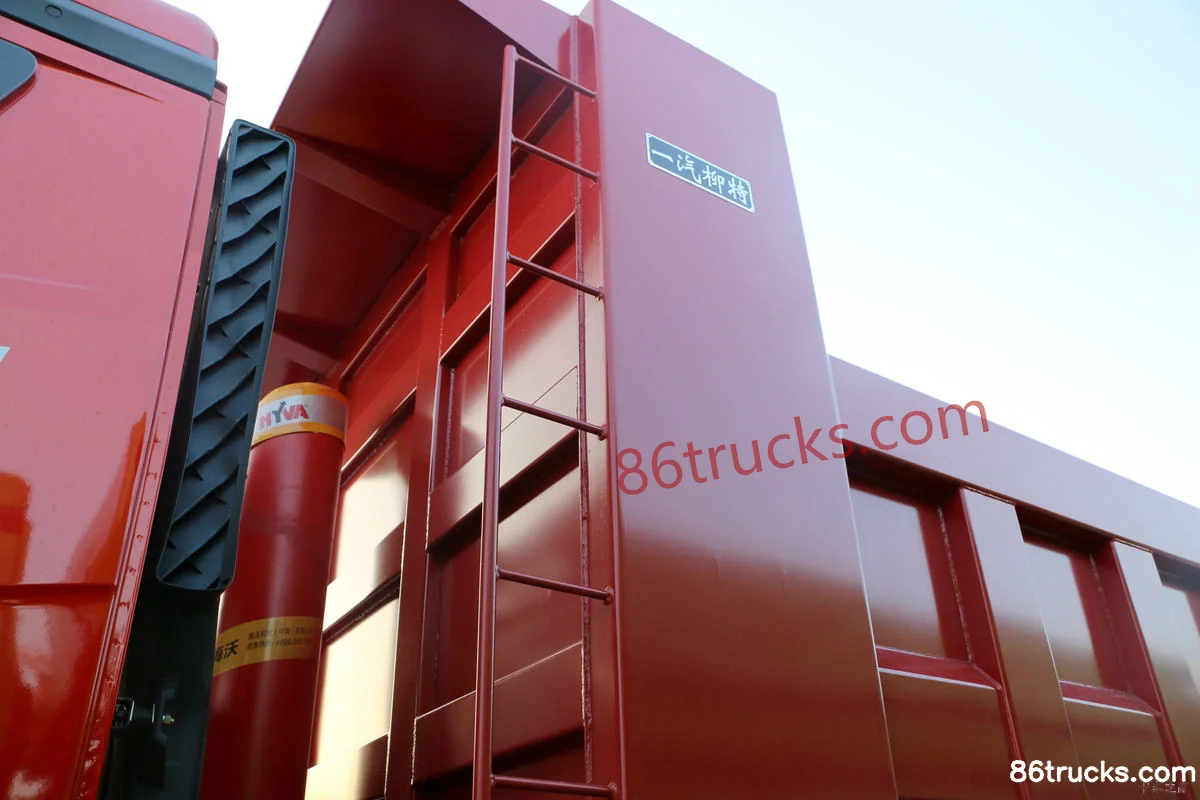

FAW Jiefang Qingdao JH6 heavy truck 550hp 8X4(12 wheels) 8.8m dump truck Body (1) | 86Trucks FAW Jiefang Qingdao JH6 heavy truck 550hp 8X4(12 wheels) 8.8m dump truck Body (2) | 86Trucks FAW Jiefang Qingdao JH6 heavy truck 550hp 8X4(12 wheels) 8.8m dump truck Body (3) | 86Trucks

12 photos

FAQ

What is the export price of FAW Jiefang Qingdao JH6 heavy truck 550hp 8X4(12 wheels) 8.8m dump truck, and what does it include?

FAW Jiefang Qingdao JH6 heavy truck 550hp 8X4(12 wheels) 8.8m dump truck export reference is about From $55,556; MSRP is ¥40M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao JH6 heavy truck 550hp 8X4(12 wheels) 8.8m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao JH6 heavy truck 550hp 8X4(12 wheels) 8.8m dump truck?

Key specs of FAW Jiefang Qingdao JH6 heavy truck 550hp 8X4(12 wheels) 8.8m dump truck: Drive: 8x4; Horsepower: 550 hp; Emission: China V; Fuel: Diesel; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao JH6 heavy truck 550hp 8X4(12 wheels) 8.8m dump truck suited for?

FAW Jiefang Qingdao JH6 heavy truck 550hp 8X4(12 wheels) 8.8m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Qingdao JH6 heavy truck 550hp 8X4(12 wheels) 8.8m dump truck differ from other variants in the same series?

FAW Jiefang Qingdao JH6 heavy truck 550hp 8X4(12 wheels) 8.8m dump truck belongs to FAW Jiefang Qingdao JH6 heavy truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao JH6 heavy truck 550hp 8X4(12 wheels) 8.8m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao JH6 heavy truck 550hp 8X4(12 wheels) 8.8m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
