Beiben NG80 Series Heavy Truck 290 hp 6X4(10 wheels) 5.6m Dump Truck

Export reference
From $46,778
MSRP ¥33.68M CNY
Emission: China III / Euro III
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 12.4ton
Wheelbase:: 3800+1450mm
Tire Size:: 12.00-20
Rated payload: 12.47ton
Drive 6X4 (10 wheels)
Horsepower 290
Cargo box type: Rear-dump body

Overview

The Beiben NG80 Series Heavy Truck 290 hp 6X4(10 wheels) 5.6m Dump Truck is a Heavy truck featuring 12.47t payload, 25t GVW, Rear-dump body cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP10.290 engine, 290 hp, China III / Euro III emissions and Fast Gear transmission.

China III / Euro III 290 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ND3251B38J
Drive type: 6X4
Wheelbase: 3800+1450mm
engine: WeichaiWP10.290
transmission: Fast Gear9JS135
Rear Axle Ratio: 5.9
Cab length: 8.45m
Cab width: 2.5m
Cab height: 3.31m
Front track width: 1995mm
rear track: 1808/1808mm
Curb Weight: 12.4ton
Rated payload: 12.47ton
GVWR: 25ton
Origin: Baotou, Inner Mongolia
tonnage class: Heavy truck
Approach angle: 26°
departure angle: 32°
Remarks: Optional: A/C, sun visor, front grille panel, eco top cover, 5-door cargo body. Eco top cover weight 220kg. When external dimensions (mm) 8450×2500×3310, rear overhang (mm) 1790, cargo body internal dimensions (mm) 5600×2300×1150; when external dimensions (mm) 8350×2500×3310, rear overhang (mm) 1690, cargo body internal dimensions (mm) 5400×2300×1200; rear dump discharge.
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.290
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China III / Euro III
Max output power: 213kW
Max hp: 290Horsepower
Max torque: 1160N·m
Max torque speed: 1200-1600rpm
Rated speed: 2200rpm
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled
Transmission Parameters
Transmission Model: Fast Gear9JS135
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.6m
Cargo box width: 2.3m
Cargo box height: 1.15m
fuel tank
Fuel tank capacity: 400L
Chassis Specs
rear axle allowable load: 18000kg
Axle ratio: 5.9
Leaf spring count: 10/13
Tire
Tire Size: 12.00-20
Number of tires: 10pcs

Photos

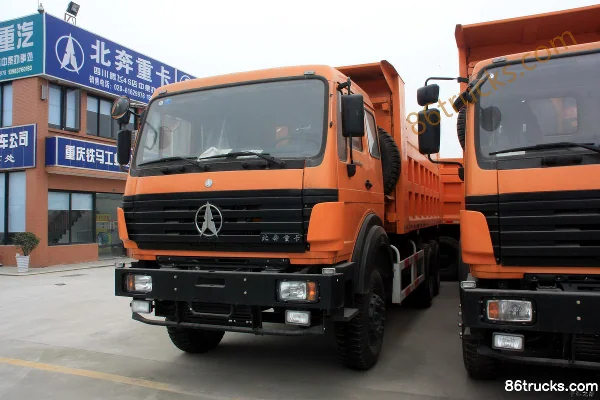

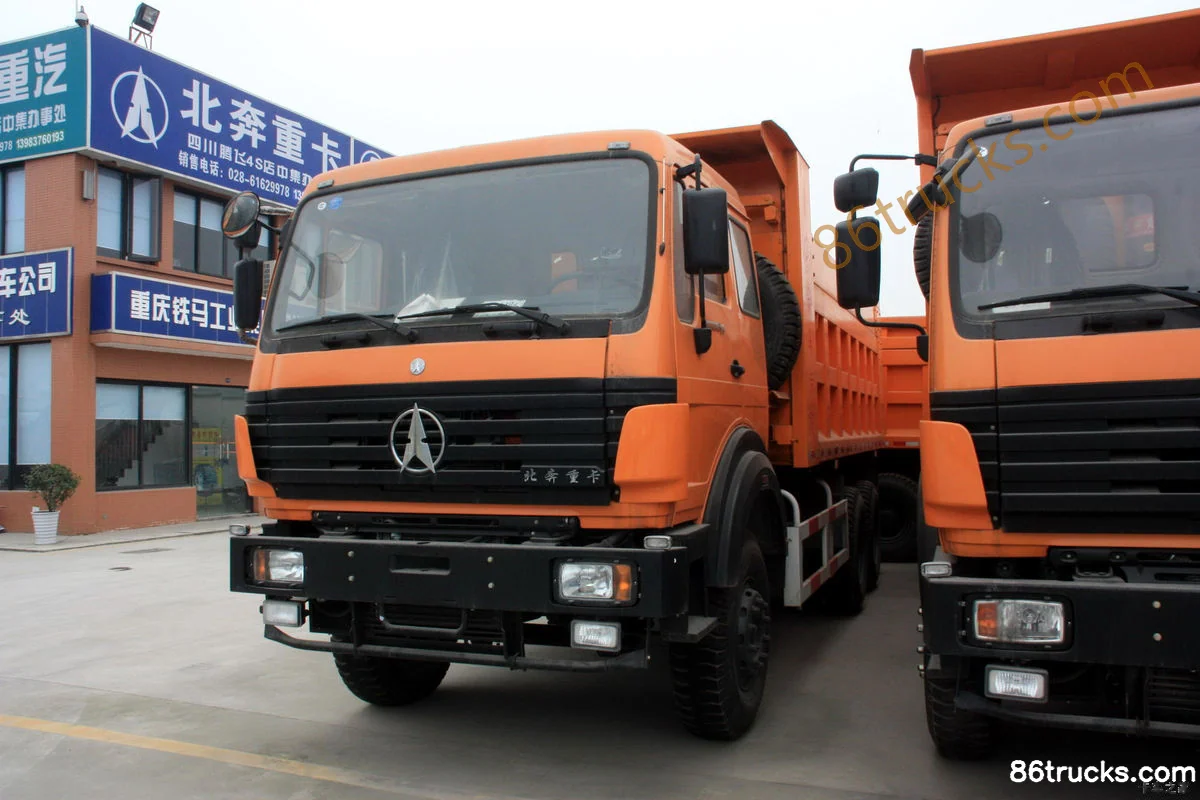

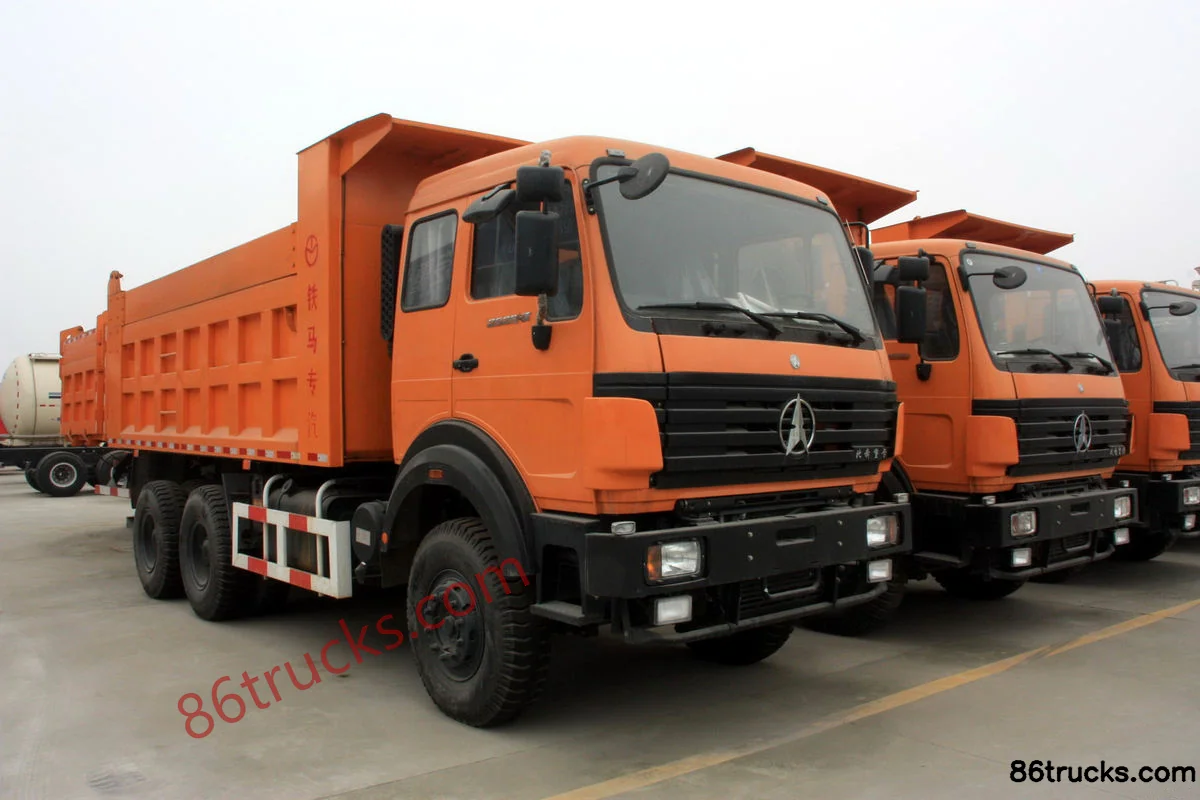

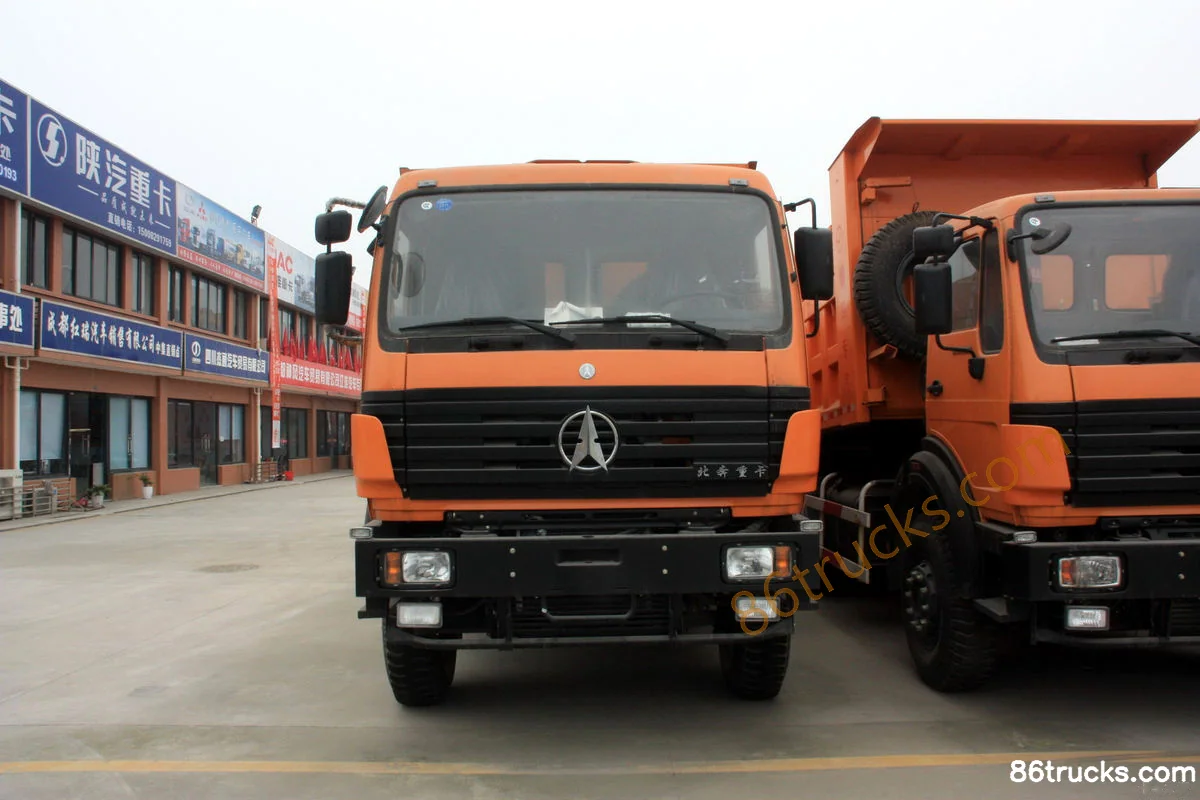

Exterior3

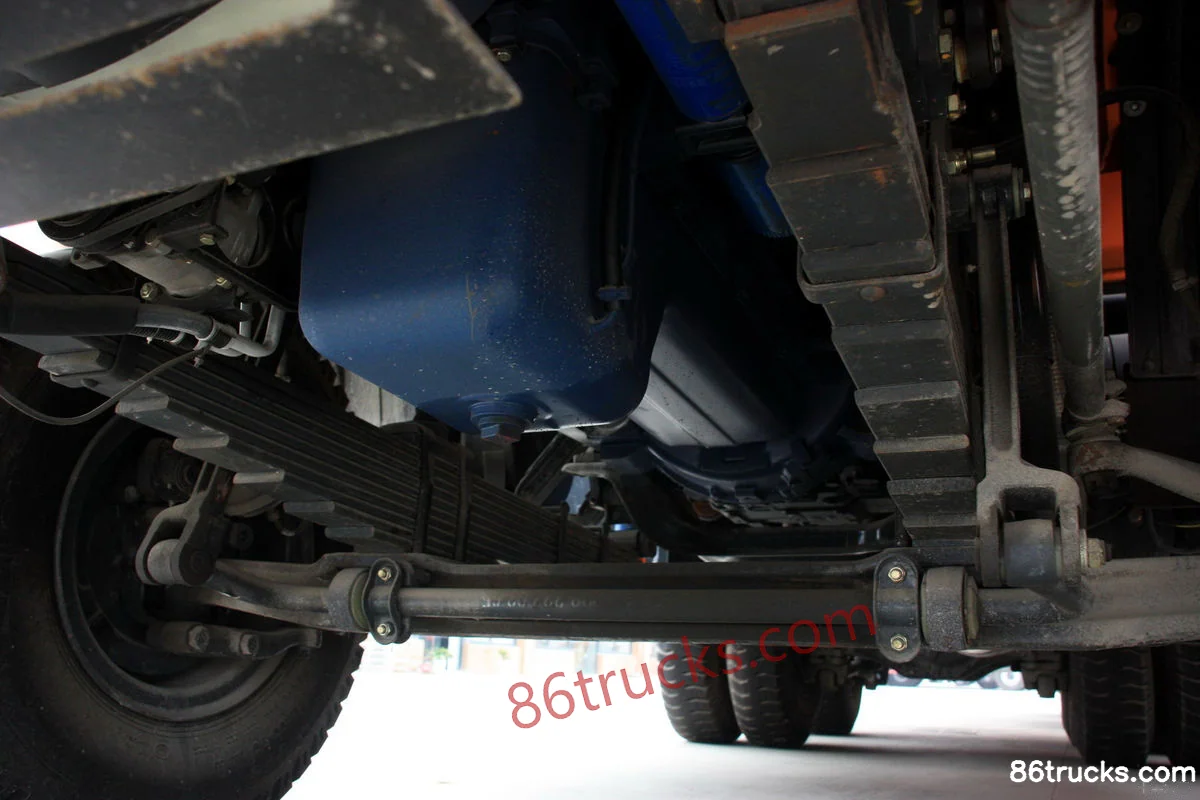

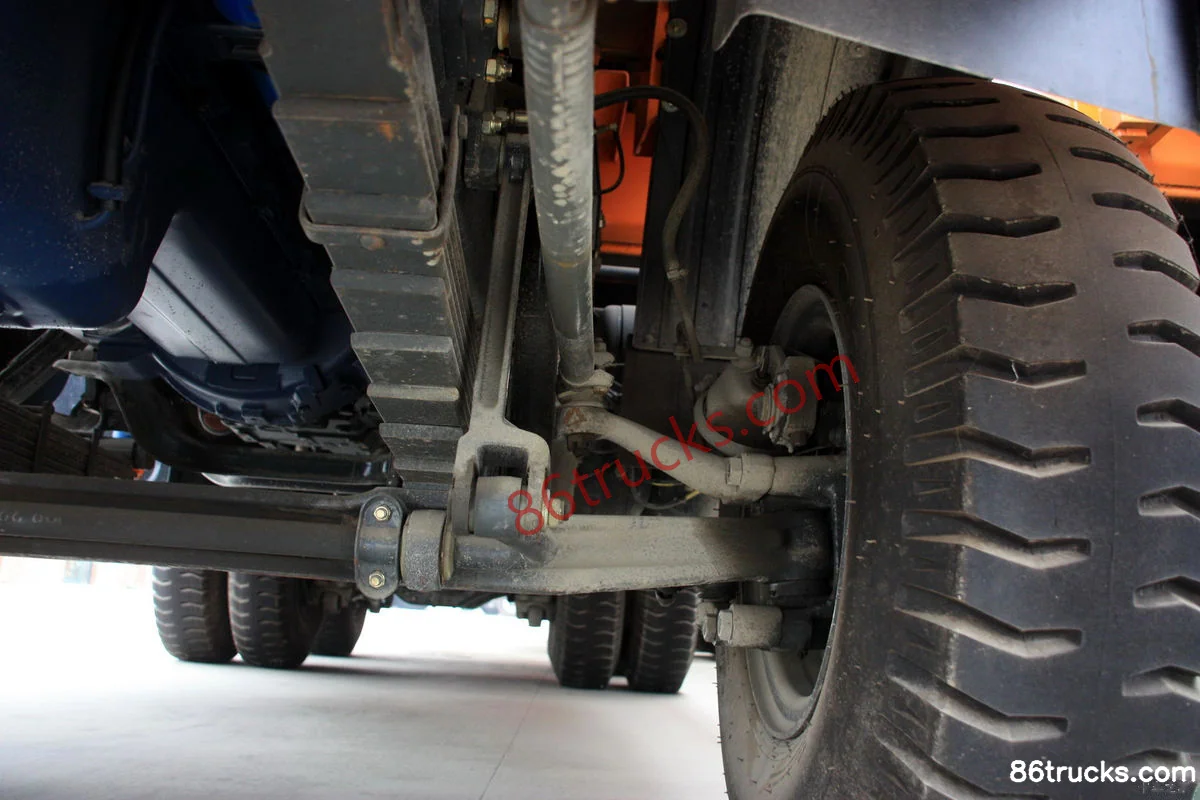

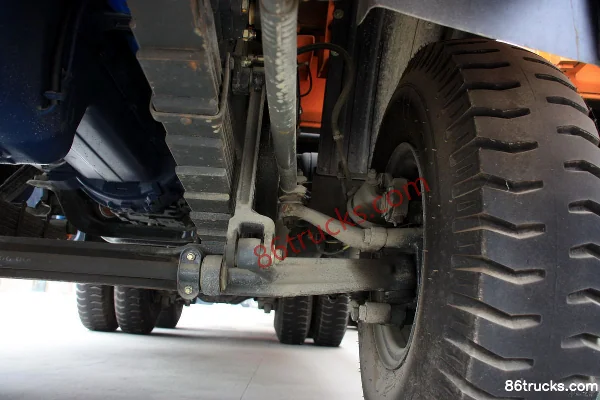

Chassis3

6 photos

FAQ

What is the export price of Beiben NG80 Series Heavy Truck 290 hp 6X4(10 wheels) 5.6m Dump Truck, and what does it include?

Beiben NG80 Series Heavy Truck 290 hp 6X4(10 wheels) 5.6m Dump Truck export reference is about From $46,778; MSRP is ¥33.68M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Beiben NG80 Series Heavy Truck 290 hp 6X4(10 wheels) 5.6m Dump Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Beiben NG80 Series Heavy Truck 290 hp 6X4(10 wheels) 5.6m Dump Truck?

Key specs of Beiben NG80 Series Heavy Truck 290 hp 6X4(10 wheels) 5.6m Dump Truck: Drive: 6x4; Horsepower: 290 hp; Emission: China III / Euro III; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Beiben NG80 Series Heavy Truck 290 hp 6X4(10 wheels) 5.6m Dump Truck suited for?

Beiben NG80 Series Heavy Truck 290 hp 6X4(10 wheels) 5.6m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Beiben NG80 Series Heavy Truck 290 hp 6X4(10 wheels) 5.6m Dump Truck differ from other variants in the same series?

Beiben NG80 Series Heavy Truck 290 hp 6X4(10 wheels) 5.6m Dump Truck belongs to Beiben NG80 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Beiben NG80 Series Heavy Truck 290 hp 6X4(10 wheels) 5.6m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Beiben NG80 Series Heavy Truck 290 hp 6X4(10 wheels) 5.6m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
