SHACMAN Delong M6000C 6.8L Diesel 320hp 4X2(6 wheels) WLY 10-Speed AMT Automatic 9.8m Box Cargo Truck

Export reference

MSRP N/A

Horsepower: 320

Fuel: Diesel

Engine: Weichai6.8L

Transmission: WLY

Curb Weight:: 7.99ton

Wheelbase:: 7250mm

SHACMAN Delong M6000C 6.8L Diesel 320hp 4X2(6 wheels) WLY 10-Speed AMT Automatic 9.8m Box Cargo Truck exterior

View more photos (6)

seating capacity: 2Personnel

Rated payload: 9.88ton

Drive 4X2 (6 wheels)

Cargo box type: Van body

Overview

The SHACMAN Delong M6000C 6.8L Diesel 320hp 4X2(6 wheels) WLY 10-Speed AMT Automatic 9.8m Box Cargo Truck is a Medium-duty truck featuring 9.8m cargo length, Van body cargo body, 2Personnel volume and 9.88t payload. On the powertrain side, it comes with a Weichai6.8L engine, 320 hp, 4X2 (6 wheels) drive and WLY transmission.

320 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info

Model code (announced): SX5189XXYVB7213

Type: enclosed cargo truck

Drive type: 4X2

Wheelbase: 7250mm

Box length class: 9.8m

engine: CumminsB7.0NS6B350

transmission: WLY10AG120TO

Rear Axle Ratio: 3.7

Cab length: 12m

Cab width: 2.55m

Cab height: 4m

Front track width: 2090mm

rear track: 1880mm

Curb Weight: 7.99ton

Rated payload: 9.88ton

GVWR: 18ton

Max. speed: 89km/h

Origin: Xi'an, Shaanxi

tonnage class: Medium-duty truck

Approach angle: 15°

departure angle: 9°

Remarks: Fatigue driving warning, 220Ah maintenance-free battery, 4-way camera + Tianxingzhi Smart Edition, power windows, seat ventilation & heating, 900mm extra-wide bunk,

Front/rear suspension: 1.375/3.375m

Energy Type: Diesel

Engine parameters

Engine Brand: Weichai

Engine Model: WP7H320E68

Engine info: Weichai6.8L

Number of cylinders: 6cylinder

fuel type: Diesel

Cylinder arrangement: Inline

Displacement: 6.8L

Max output power: 235kW

Max hp: 320Horsepower

Max torque: 1300N·m

Rated speed: 2100rpm

Engine Type: High-pressure common rail + DOC + DPF + SCR

Transmission Parameters

Transmission Model: 10AG120TO

Transmission Brand: WLY

shift method: AMT manual/auto

Forward gears: 10Gear

Number of Reverse Gears: 2pcs

Housing Material: aluminum alloy

Cargo box parameters

Cargo box type: Van body

Cargo box length: 9.8m

Cargo box width: 2.5m

Cargo box height: 2.7m

Cab parameters

Cab: High roof

Cab suspension: Four-point air suspension

Cab tilting: Electric

seating capacity: 2Personnel

Seat rows: Sleeper cab

Driver seat type: air suspension seat

fuel tank

Fuel tank capacity: 600L

Chassis Specs

Front axle allowable load: 6500kg

rear axle description: HandeMAN technology disc brake maintenance-free front axle

rear axle allowable load: 11500kg

Axle ratio: 3.7

Leaf spring count: 2/4

Aluminum wheels:

Tire

Tire Size: 275/80R22.5 18PR

Number of tires: 6pcs

Control configuration

ABS:

interior configuration

Multifunction steering wheel:

AC control type: Automatic

Independent Heater:

Power Windows:

Power Mirrors:

Electric Heated Rearview Mirror:

Remote key:

Electronic Central Lock:

Service brake

Brake Type: Air brake

Parking brake: Spring brake

hydraulic retarder:

Front wheel brake: Drum Type

Rear Wheel Brake: Drum Type

smart configuration

Cruise control (CCS):

Lane Departure Warning System (LDWS):

Photos

Exterior3

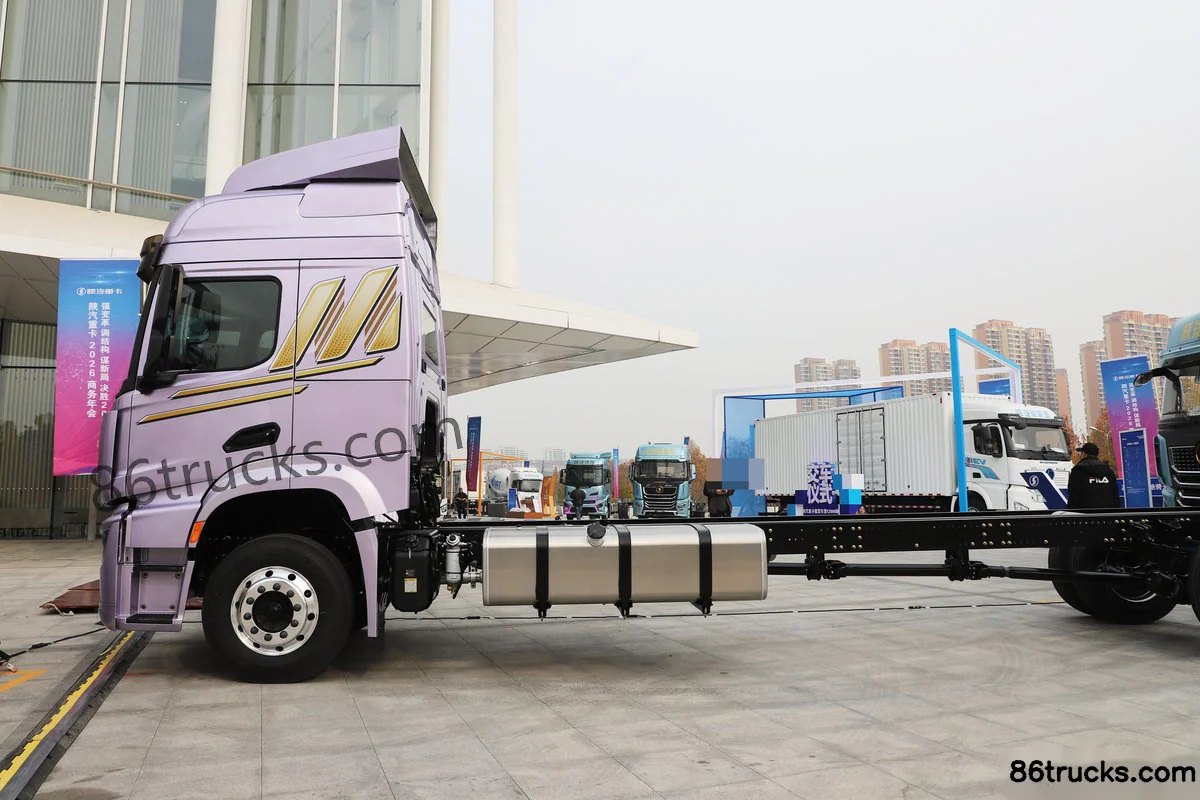

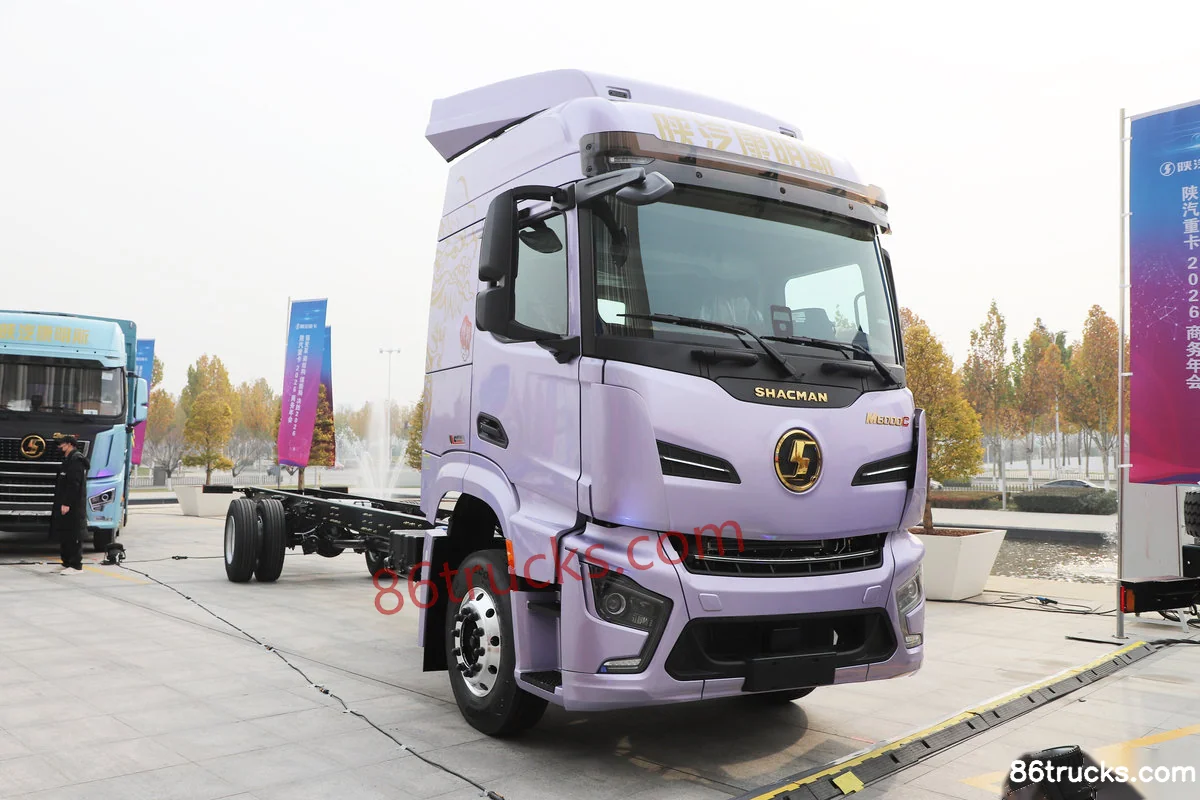

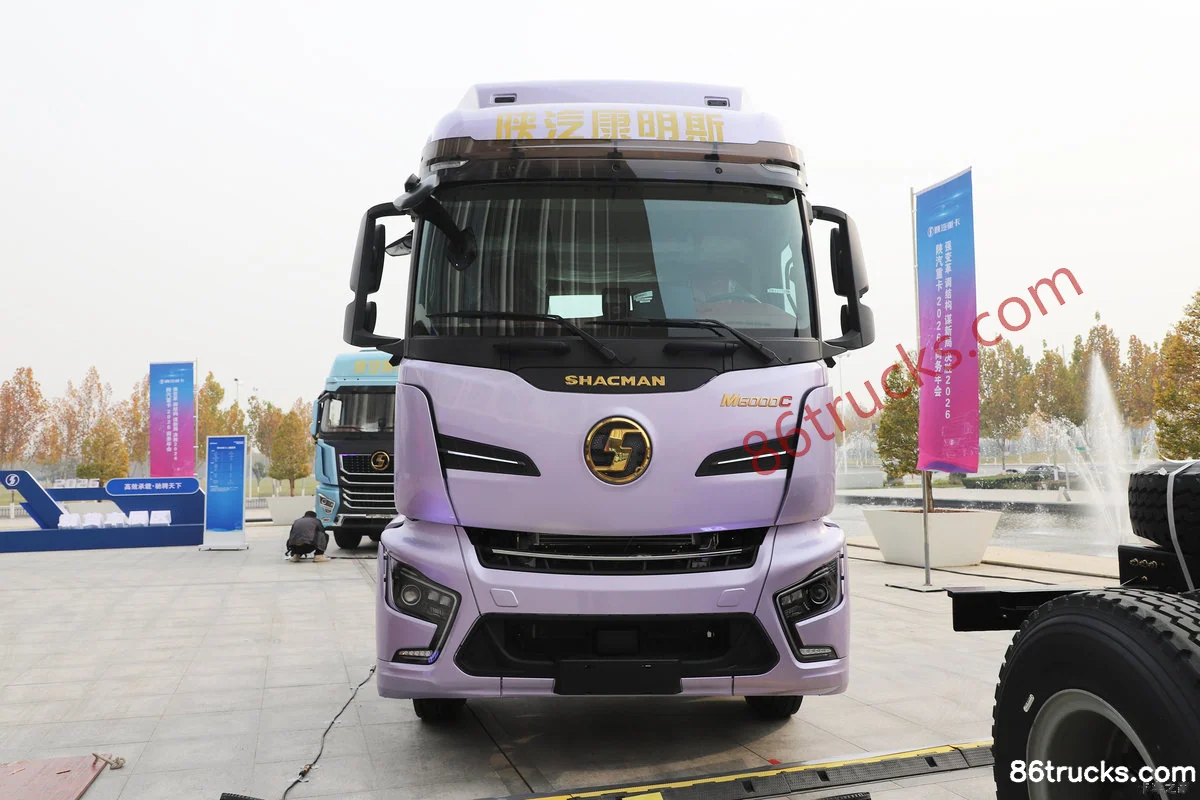

SHACMAN Delong M6000C 6.8L Diesel 320hp 4X2(6 wheels) WLY 10-Speed AMT Automatic 9.8m Box Cargo Truck Exterior (1) | 86Trucks

SHACMAN Delong M6000C 6.8L Diesel 320hp 4X2(6 wheels) WLY 10-Speed AMT Automatic 9.8m Box Cargo Truck Exterior (2) | 86Trucks

SHACMAN Delong M6000C 6.8L Diesel 320hp 4X2(6 wheels) WLY 10-Speed AMT Automatic 9.8m Box Cargo Truck Exterior (3) | 86Trucks

Chassis3

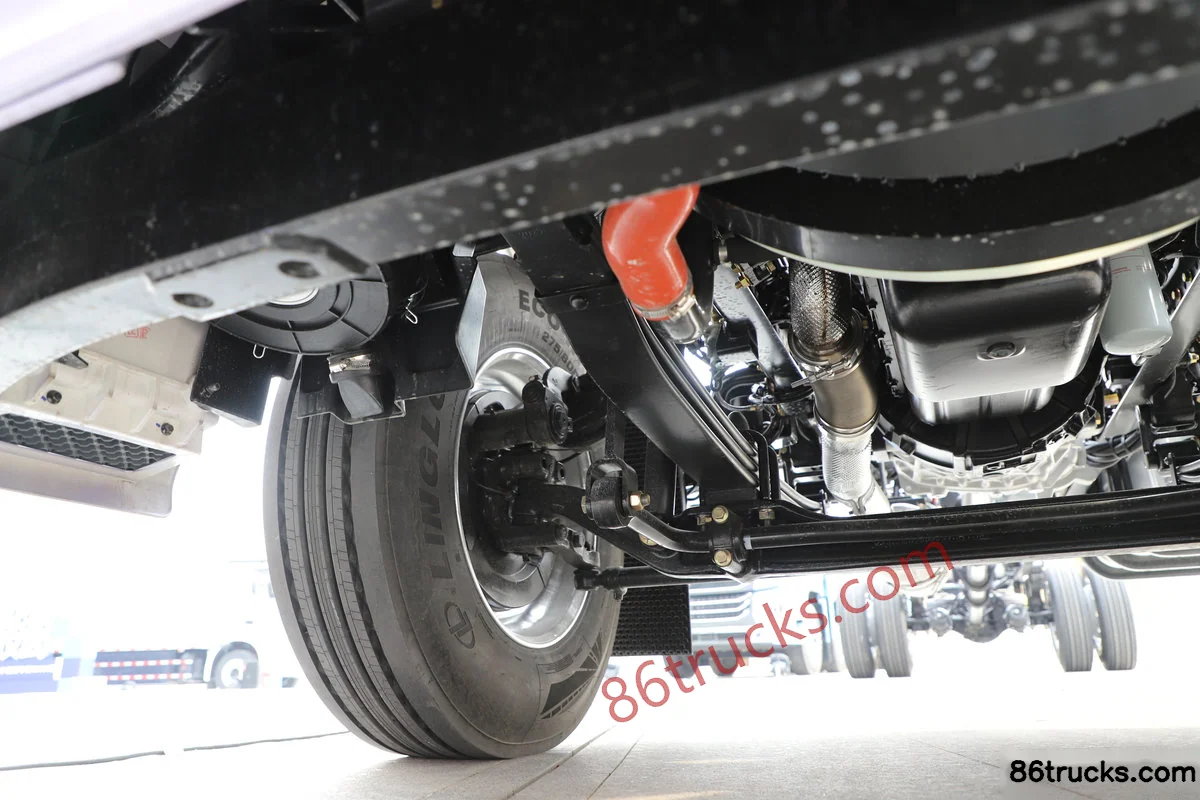

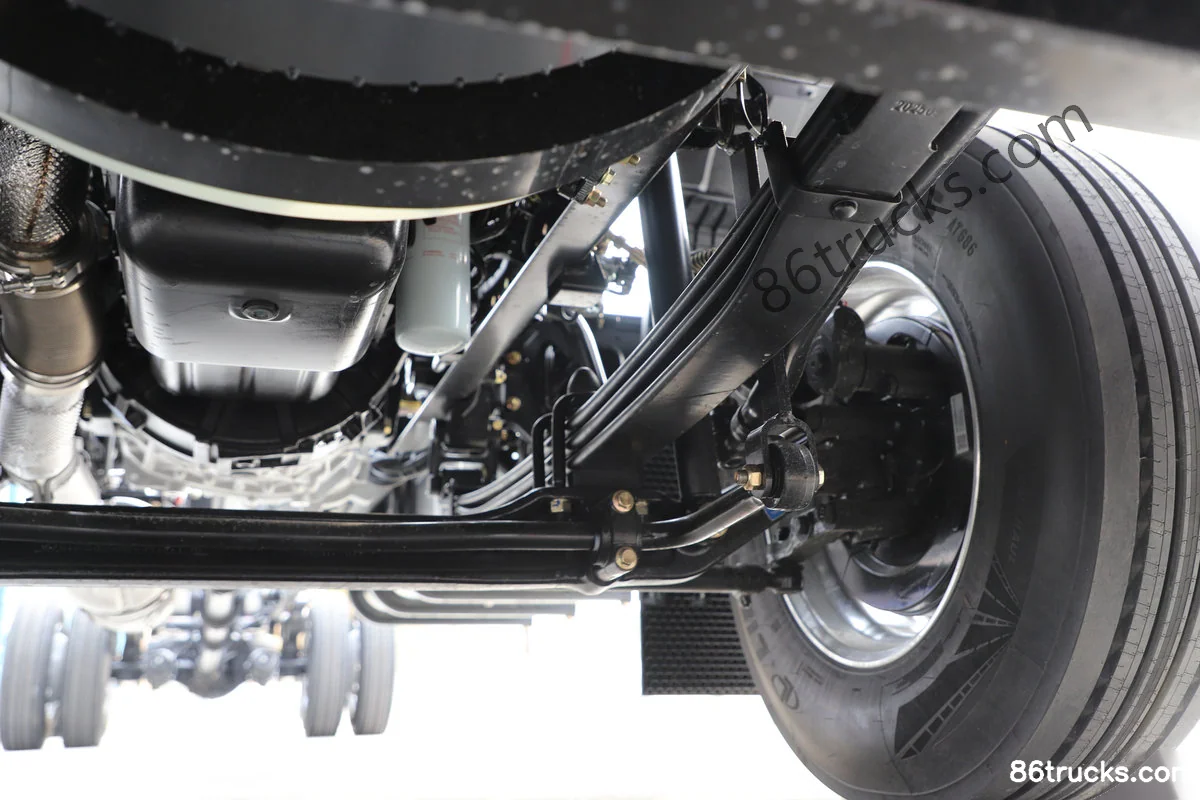

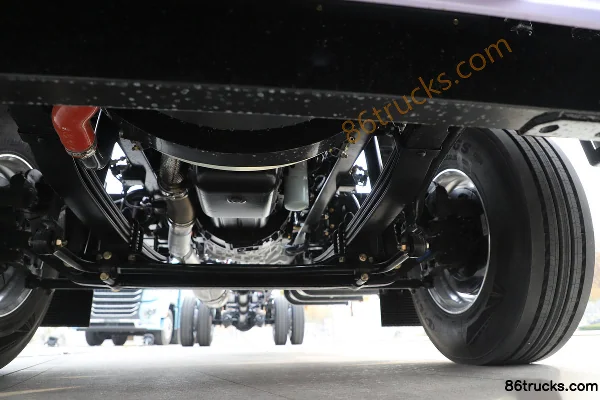

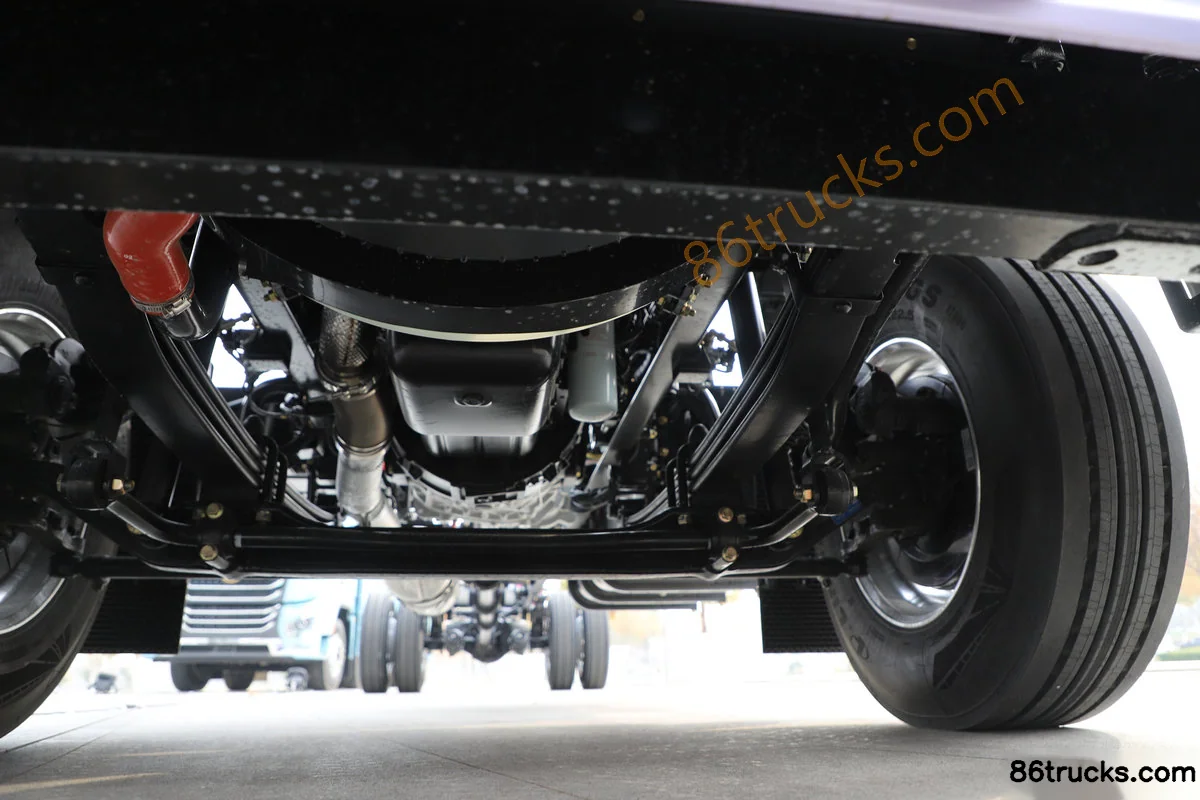

SHACMAN Delong M6000C 6.8L Diesel 320hp 4X2(6 wheels) WLY 10-Speed AMT Automatic 9.8m Box Cargo Truck Chassis (1) | 86Trucks

SHACMAN Delong M6000C 6.8L Diesel 320hp 4X2(6 wheels) WLY 10-Speed AMT Automatic 9.8m Box Cargo Truck Chassis (2) | 86Trucks

SHACMAN Delong M6000C 6.8L Diesel 320hp 4X2(6 wheels) WLY 10-Speed AMT Automatic 9.8m Box Cargo Truck Chassis (3) | 86Trucks

6 photos

FAQ

What are the key specs of SHACMAN Delong M6000C 6.8L Diesel 320hp 4X2(6 wheels) WLY 10-Speed AMT Automatic 9.8m Box Cargo Truck?

Key specs of SHACMAN Delong M6000C 6.8L Diesel 320hp 4X2(6 wheels) WLY 10-Speed AMT Automatic 9.8m Box Cargo Truck: Drive: 4x2; Horsepower: 320 hp; Fuel: Diesel; Engine: Weichai6.8L; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong M6000C 6.8L Diesel 320hp 4X2(6 wheels) WLY 10-Speed AMT Automatic 9.8m Box Cargo Truck suited for?

SHACMAN Delong M6000C 6.8L Diesel 320hp 4X2(6 wheels) WLY 10-Speed AMT Automatic 9.8m Box Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does SHACMAN Delong M6000C 6.8L Diesel 320hp 4X2(6 wheels) WLY 10-Speed AMT Automatic 9.8m Box Cargo Truck differ from other variants in the same series?

SHACMAN Delong M6000C 6.8L Diesel 320hp 4X2(6 wheels) WLY 10-Speed AMT Automatic 9.8m Box Cargo Truck belongs to SHACMAN Delong M6000 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong M6000C 6.8L Diesel 320hp 4X2(6 wheels) WLY 10-Speed AMT Automatic 9.8m Box Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong M6000C 6.8L Diesel 320hp 4X2(6 wheels) WLY 10-Speed AMT Automatic 9.8m Box Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
