JAC Gallop K5L 220 hp 4X2(6 wheels) water sprinkler truck

Export reference
From $33,333
MSRP ¥24M CNY
Curb Weight:: 7.355ton
Emission: China V
Fuel: Diesel
Wheelbase:: 4500mm
Cab dimensions:: 7.95×2.485×3.05m
Truck Type:: Water Sprinkler Truck
Tank Dimensions (L×W×H): 2.35×1.45×4.6m
Rated payload: 10.45ton
Drive 4X2 (6 wheels)
Horsepower 220

Overview

The JAC Gallop K5L 220 hp 4X2(6 wheels) water sprinkler truck is a water sprinkler truck featuring 2.35×1.45×4.6m tank capacity, 10.45t payload, 10.9m³ volume and 7.355ton GVW. On the powertrain side, it comes with 220 hp, 4X2 (6 wheels) drive, China V emissions and Diesel fuel.

China V 220 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.95×2.485×3.05m
Drive type: 4X2
Truck Type: Water Sprinkler Truck
Vehicle origin: Hefei, Anhui
Wheelbase: 4500mm
Front track width: 1785mm
rear track: 1810mm
Curb Weight: 7.355ton
Rated payload: 10.45ton
Max. speed: 100km/h
Front/rear suspension: 1.4/2.05m
Energy Type: Diesel
Body Parameters
Tank Dimensions (L×W×H): 2.35×1.45×4.6m
Vehicle certification code: HFC5180GSSVZ
Body Brand: JAC Gallop
Engine parameters
Engine Model: Yunnei PowerD45TCIE1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.46L
Emission standard: China V
Max output power: 162kW
Max hp: 220Horsepower
Rated speed: 2400rpm
Cargo box parameters
Box volume: 10.9m³
Chassis Specs
Chassis Brand: JAC Gallop
Chassis Series: GallopK5L
Chassis Model: HFC5181XXYP3K2A47V
Front axle description: 4.5t
Frame Dimensions: 245×75×7mm
rear axle description: 9t
Leaf spring count: 3/4+3,3/9+7,9/9+7
Transmission Parameters
Number of gears: 6Gear
Transmission Model: FAWCA6T138
Cab parameters
Cab: K5L semi-high roof
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs

Photos

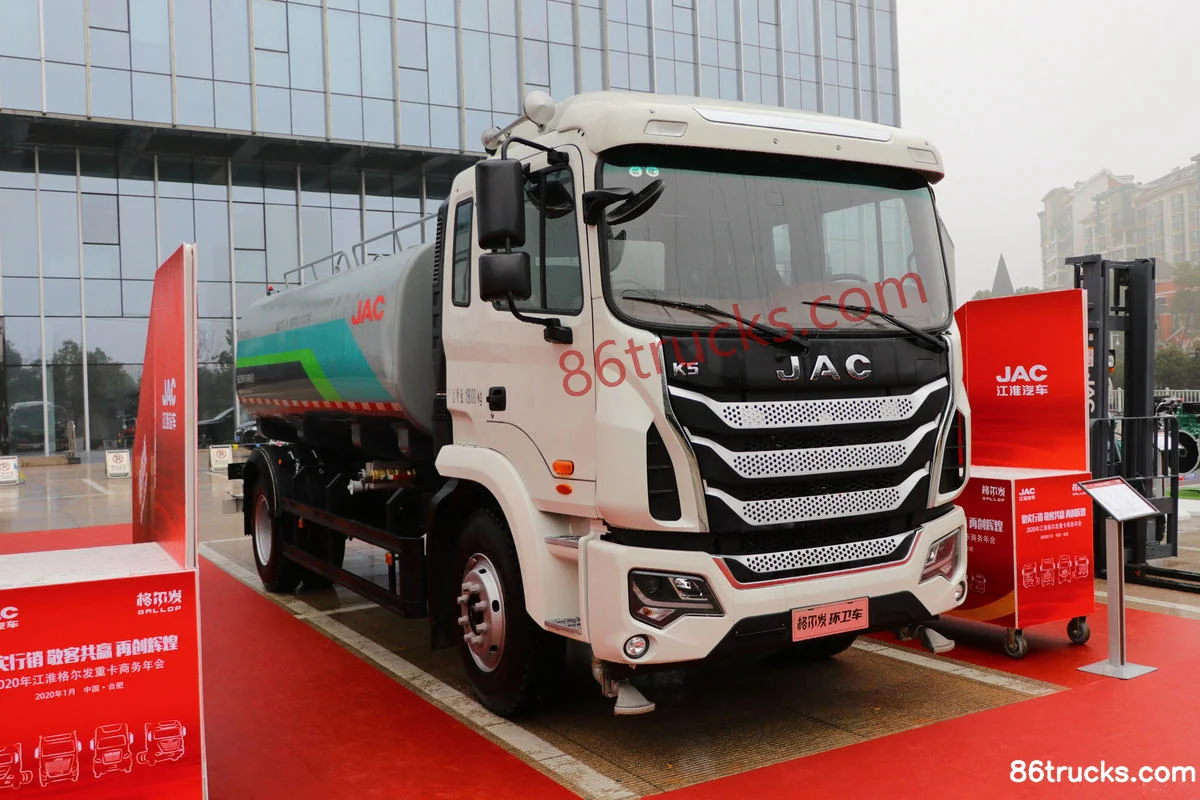

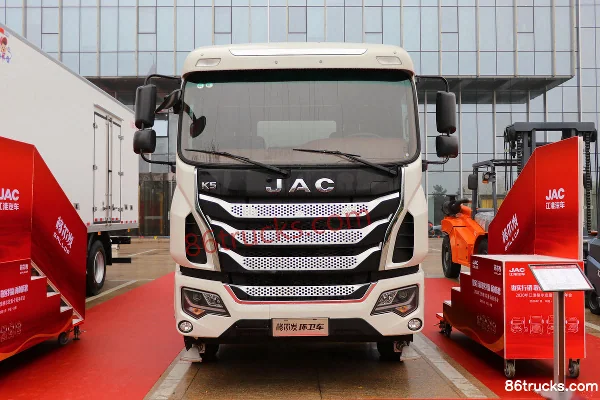

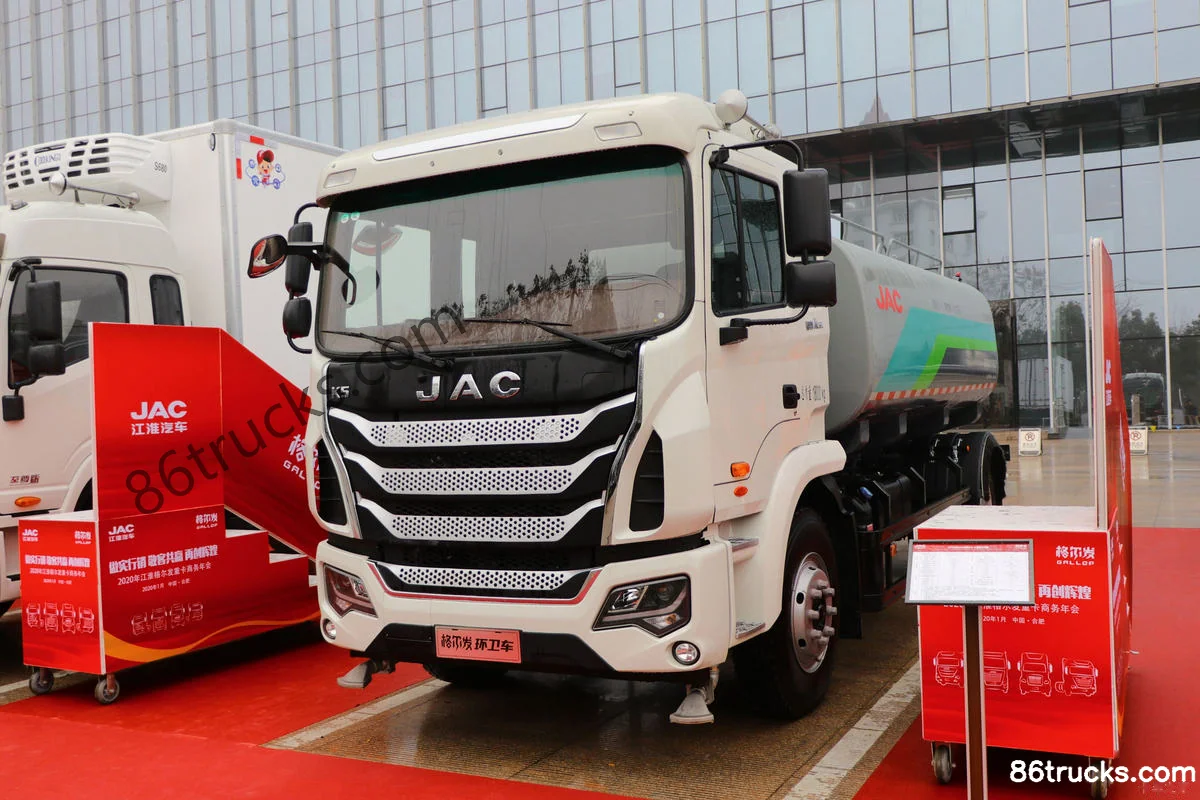

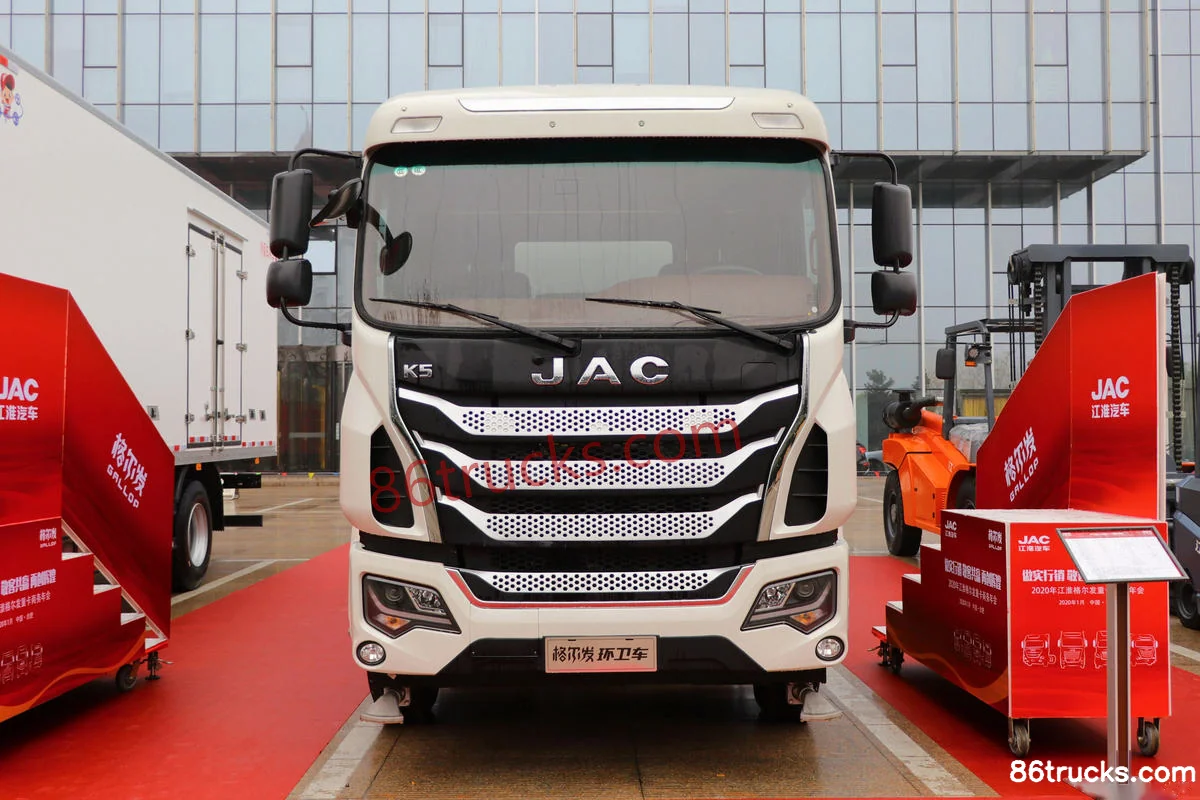

Exterior3

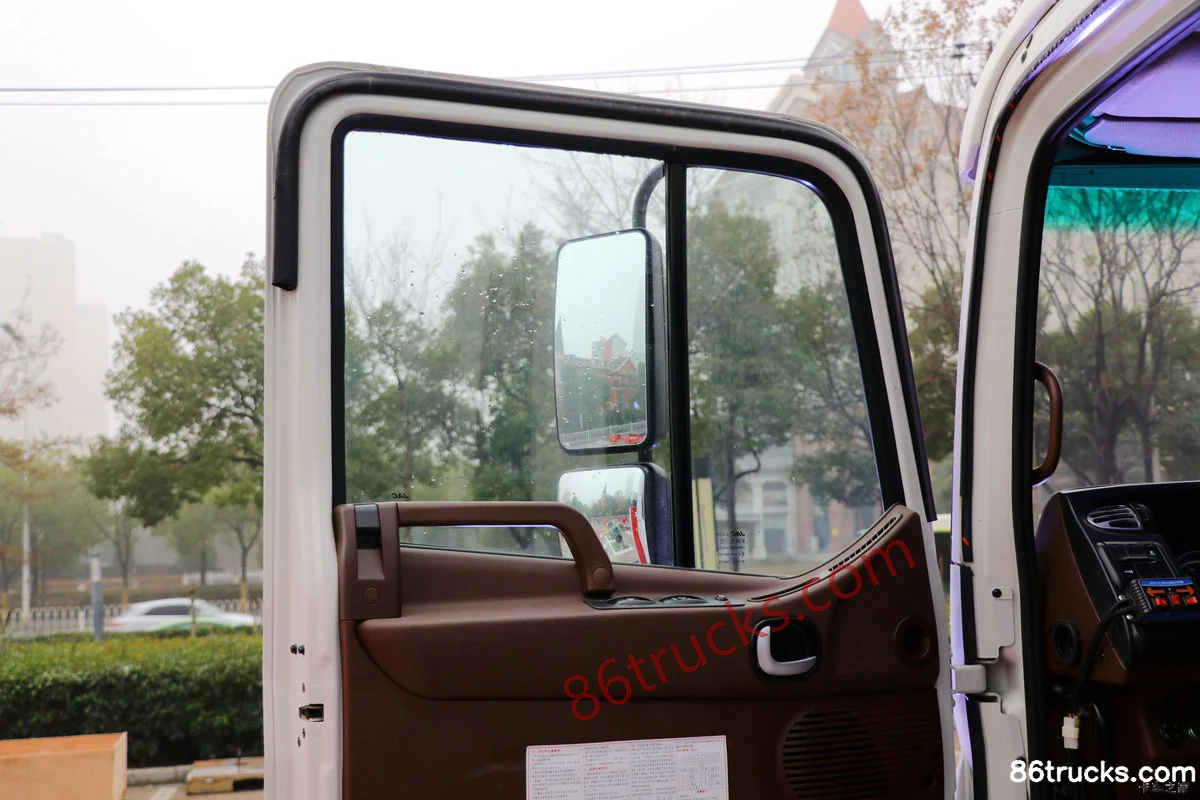

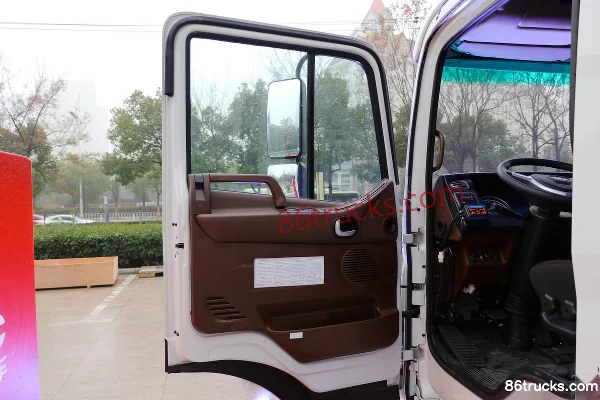

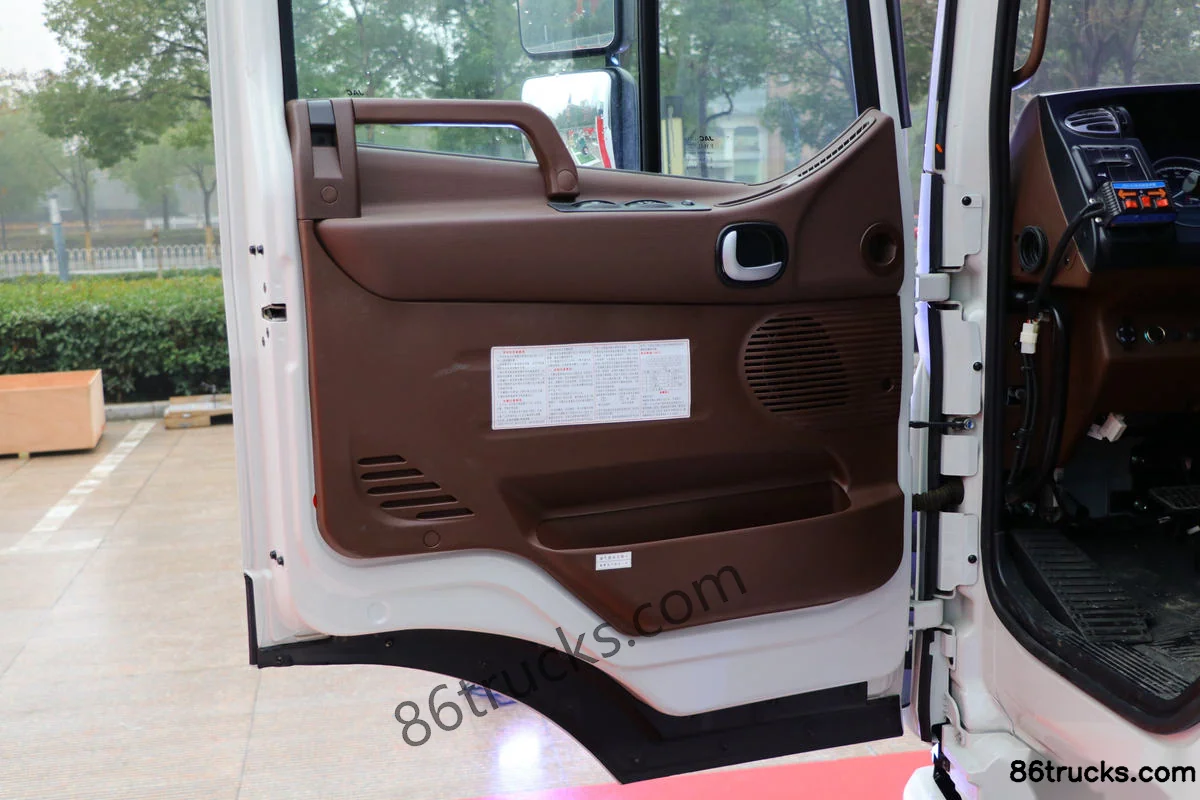

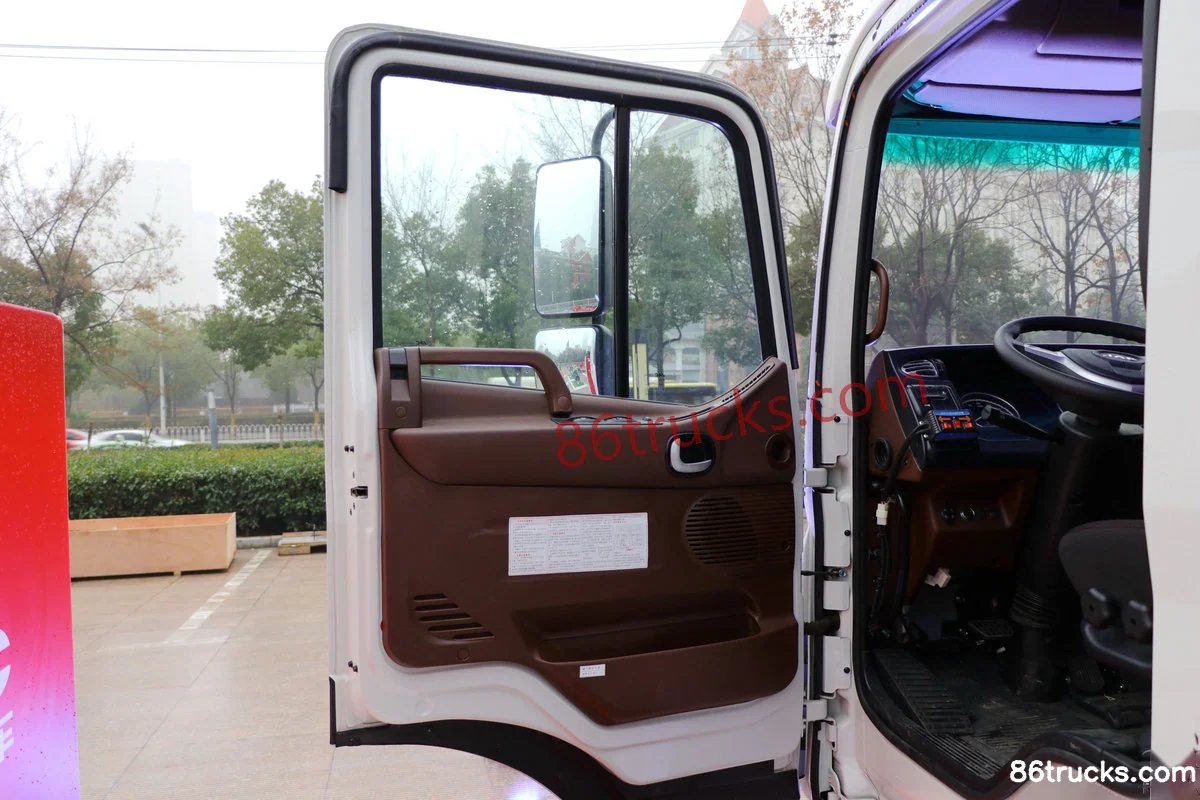

Cab3

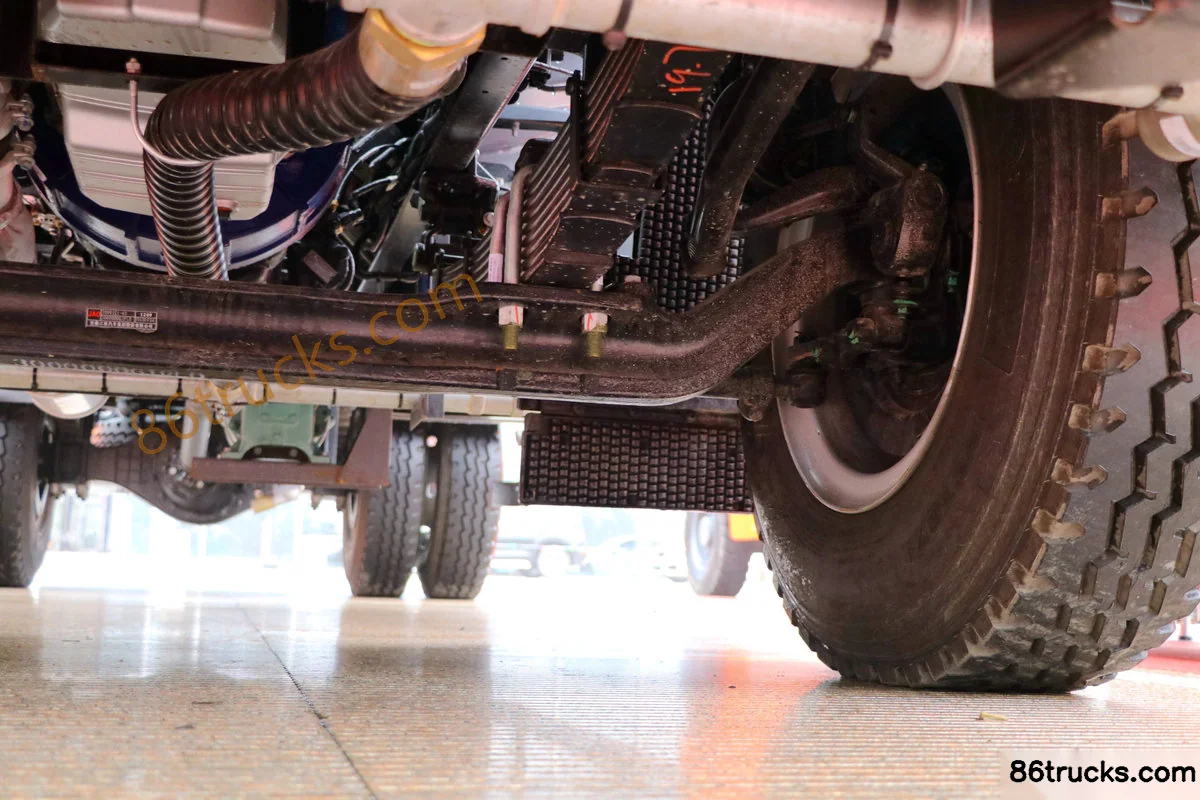

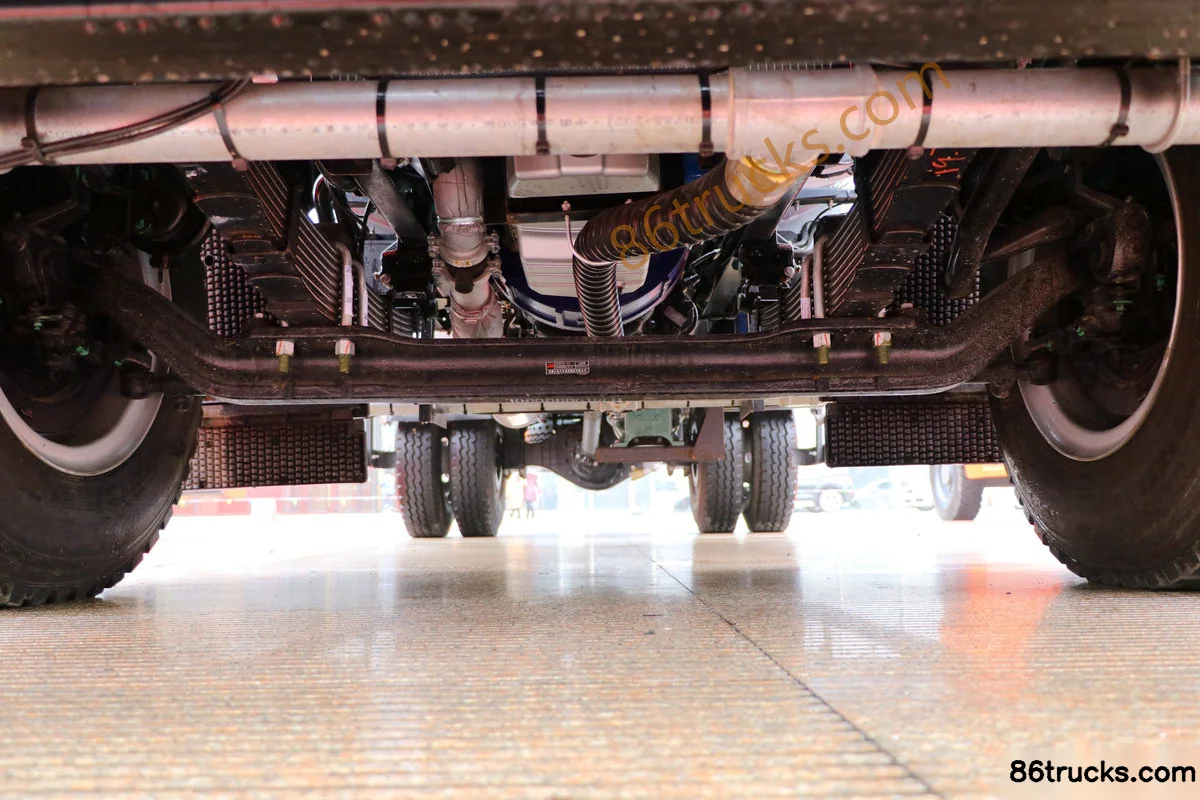

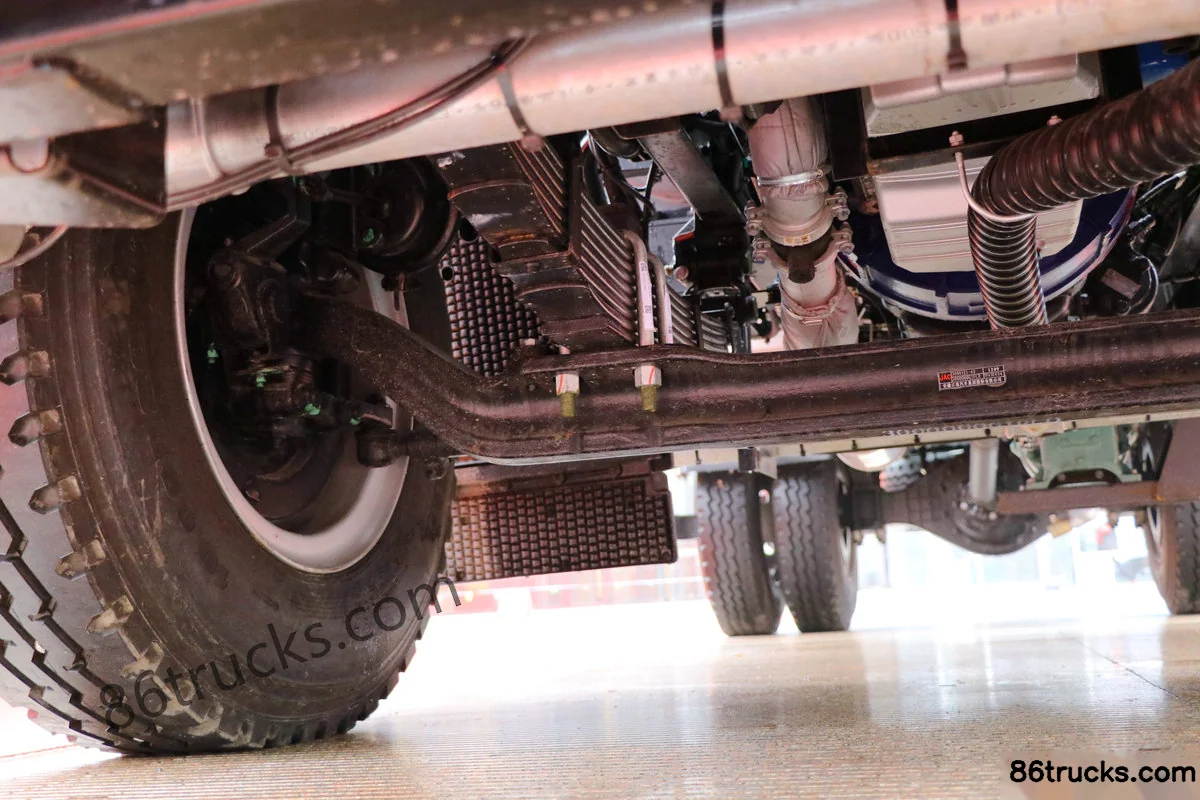

Chassis3

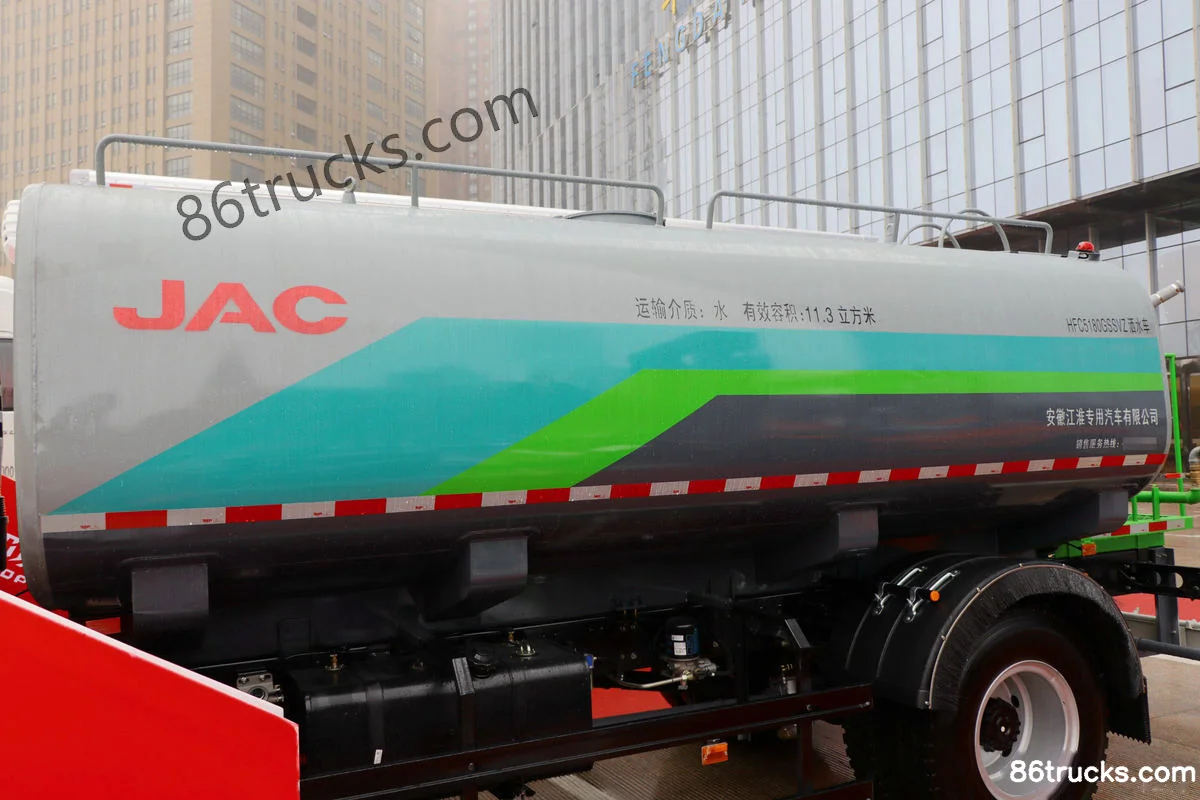

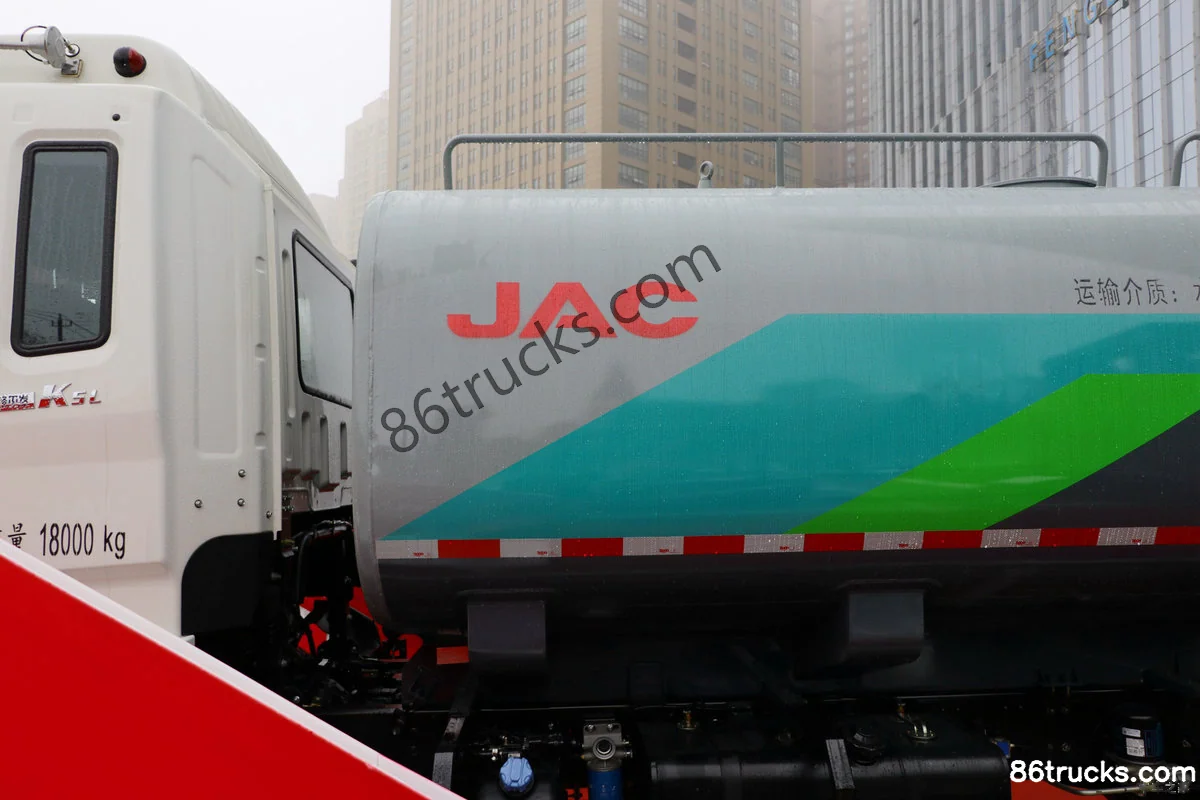

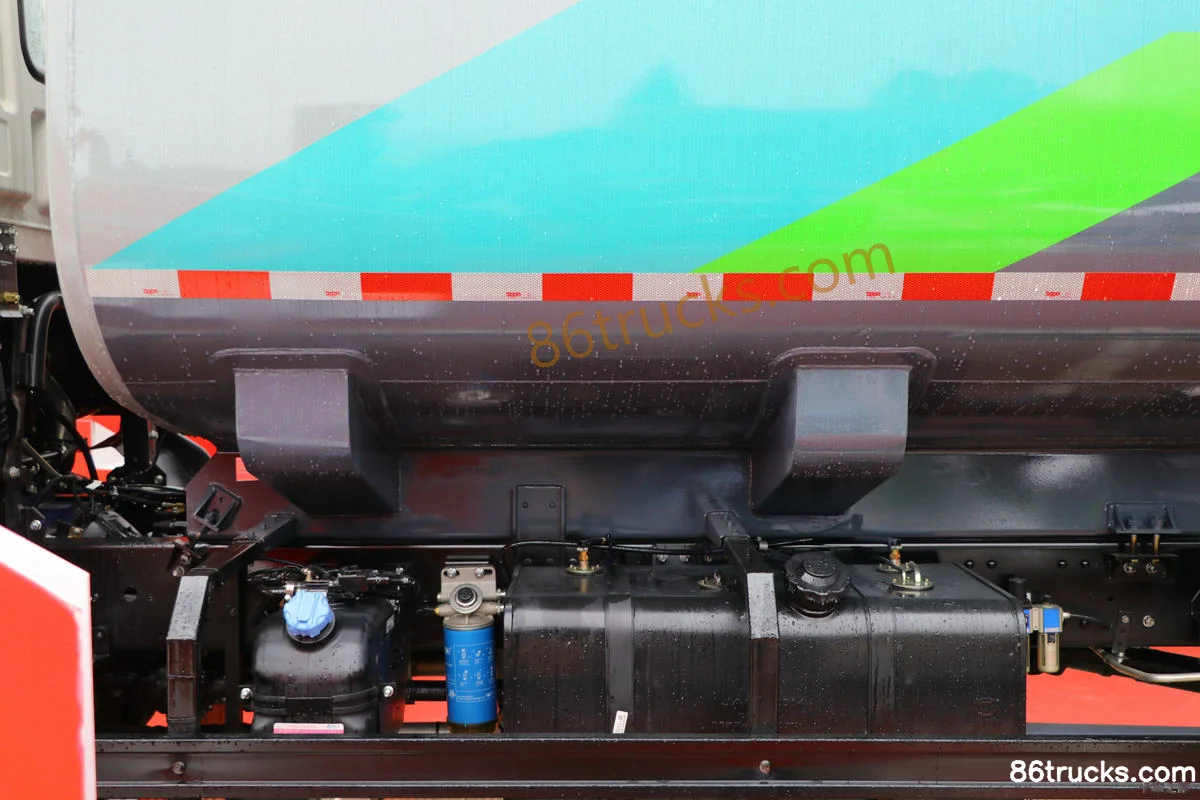

Body3

12 photos

FAQ

What is the export price of JAC Gallop K5L 220 hp 4X2(6 wheels) water sprinkler truck, and what does it include?

JAC Gallop K5L 220 hp 4X2(6 wheels) water sprinkler truck export reference is about From $33,333; MSRP is ¥24M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Gallop K5L 220 hp 4X2(6 wheels) water sprinkler truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K5L 220 hp 4X2(6 wheels) water sprinkler truck?

Key specs of JAC Gallop K5L 220 hp 4X2(6 wheels) water sprinkler truck: Drive: 4x2; Horsepower: 220 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K5L 220 hp 4X2(6 wheels) water sprinkler truck suited for?

JAC Gallop K5L 220 hp 4X2(6 wheels) water sprinkler truck is a water sprinkler truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does JAC Gallop K5L 220 hp 4X2(6 wheels) water sprinkler truck differ from other variants in the same series?

JAC Gallop K5L 220 hp 4X2(6 wheels) water sprinkler truck belongs to JAC Gallop K5 Heavy Truck (water sprinkler truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K5L 220 hp 4X2(6 wheels) water sprinkler truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K5L 220 hp 4X2(6 wheels) water sprinkler truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
