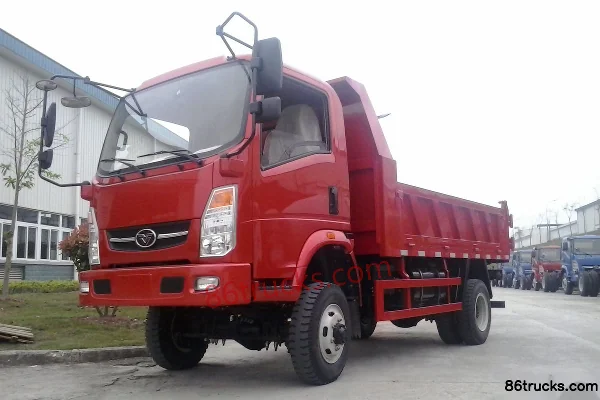

Sinotruk Howo MAN H3 Engineering Type 160hp 4X4(6 wheels) 3.85m Off-Road Dump Truck (153 Rear Axle)

Export reference
From $27,069
MSRP ¥19.49M CNY
Emission: China V
Fuel: Diesel
Transmission: Sinotruk
Curb Weight:: 2.96ton
Wheelbase:: 3650mm
Tire Size:: 9.00R20 off-road tread
Rated payload: 0.995ton
Drive 4X4 (6 wheels)
Horsepower 160
Cargo box type: Dump type

Overview

The Sinotruk Howo MAN H3 Engineering Type 160hp 4X4(6 wheels) 3.85m Off-Road Dump Truck (153 Rear Axle) is a Light Truck featuring 0.995t payload, 4.145t GVW, Dump type cargo body and 4X4 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4E160-56 engine, 160 hp, China V emissions and Sinotruk transmission.

China V 160 Diesel 4X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ2048F27EB1
Drive type: 4X4
Wheelbase: 3650mm
engine: YuchaiYC4E160-56
transmission: SinotrukHW90510C
Cab length: 5.995m
Cab width: 2.28m
Cab height: 2.85m
Front track width: 1750mm
rear track: 1720mm
Curb Weight: 2.96ton
Rated payload: 0.995ton
GVWR: 4.145ton
Origin: Yong'an, Fujian
tonnage class: Light Truck
Approach angle: 22°
departure angle: 16°
Remarks: Transmission with LS6523 transfer case
Version: Heavy-duty type
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4E160-56
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.26L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 600N·m
Max torque speed: 1300-1600rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: SinotrukHW90510C
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.85m
Cargo box width: 2.2m
Cargo box height: 0.8m
Body Parameters
Lifting type: 110 dual lift cylinders
Cab parameters
Cab: Sleeper cab
Cab width: 2080mm
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 150L
Chassis Specs
Front axle description: 2100 cast, 3.5T
Front axle allowable load: 1525kg
Frame Dimensions: 280/8+5 integrated main and auxiliarymm
rear axle description: 153、10T
rear axle allowable load: 2620kg
Leaf spring count: 9/11+8,11/9+7,9/12+9
Tire
Tire Size: 9.00R20 off-road tread
Number of tires: 6pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What is the export price of Sinotruk Howo MAN H3 Engineering Type 160hp 4X4(6 wheels) 3.85m Off-Road Dump Truck (153 Rear Axle), and what does it include?

Sinotruk Howo MAN H3 Engineering Type 160hp 4X4(6 wheels) 3.85m Off-Road Dump Truck (153 Rear Axle) export reference is about From $27,069; MSRP is ¥19.49M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Howo MAN H3 Engineering Type 160hp 4X4(6 wheels) 3.85m Off-Road Dump Truck (153 Rear Axle) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Howo MAN H3 Engineering Type 160hp 4X4(6 wheels) 3.85m Off-Road Dump Truck (153 Rear Axle)?

Key specs of Sinotruk Howo MAN H3 Engineering Type 160hp 4X4(6 wheels) 3.85m Off-Road Dump Truck (153 Rear Axle): Drive: 4x4; Horsepower: 160 hp; Emission: China V; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Howo MAN H3 Engineering Type 160hp 4X4(6 wheels) 3.85m Off-Road Dump Truck (153 Rear Axle) suited for?

Sinotruk Howo MAN H3 Engineering Type 160hp 4X4(6 wheels) 3.85m Off-Road Dump Truck (153 Rear Axle) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Howo MAN H3 Engineering Type 160hp 4X4(6 wheels) 3.85m Off-Road Dump Truck (153 Rear Axle) differ from other variants in the same series?

Sinotruk Howo MAN H3 Engineering Type 160hp 4X4(6 wheels) 3.85m Off-Road Dump Truck (153 Rear Axle) belongs to Sinotruk Pioneer Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Howo MAN H3 Engineering Type 160hp 4X4(6 wheels) 3.85m Off-Road Dump Truck (153 Rear Axle)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Howo MAN H3 Engineering Type 160hp 4X4(6 wheels) 3.85m Off-Road Dump Truck (153 Rear Axle)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
