Foton ES5 190 hp 4X2(6 wheels) water sprinkler truck (China VI) (Proloco)

Export reference
MSRP N/A
Curb Weight:: 5.2ton
Emission: China VI
Fuel: Diesel
Wheelbase:: 3800mm
Cab dimensions:: 7.15×2.46×2.66m
Truck Type:: Water Sprinkler Truck
Tank Dimensions (L×W×H): 1.98×1.228×4.16m
Rated payload: 6.6ton
Drive 4X2 (6 wheels)
Horsepower 190

Overview

The Foton ES5 190 hp 4X2(6 wheels) water sprinkler truck (China VI) (Proloco) is a water sprinkler truck featuring 1.98×1.228×4.16m tank capacity, 6.6t payload, 6.92m³ volume and 5.2ton GVW. On the powertrain side, it comes with 190 hp, 4X2 (6 wheels) drive, China VI emissions and Diesel fuel.

China VI 190 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.15×2.46×2.66m
Truck Type: Water Sprinkler Truck
Drive type: 4X2
Wheelbase: 3800mm
Vehicle origin: Changsha, Hunan
Front track width: 1775mm
rear track: 1800mm
Curb Weight: 5.2ton
Rated payload: 6.6ton
Max. speed: 90km/h
Front/rear suspension: 1.23/2.12m
Energy Type: Diesel
Body Parameters
Tank Dimensions (L×W×H): 1.98×1.228×4.16m
Sprinkling width: 14m
Vehicle certification code: BJ5124GSSKJFA-01
Body Brand: Proloco
Engine parameters
Engine Model: WeichaiWP4.1NQ190E61
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.088L
Emission standard: China VI
Max output power: 140kW
Max hp: 190Horsepower
Rated speed: 2600rpm
Engine Type: High-pressure common rail, EGR+DOC+DPF+SCR
Cargo box parameters
Box volume: 6.92m³
Chassis Specs
Chassis Brand: Foton
Chassis Series: Foton Ruiwo ES5
Chassis Model: BJ1124VKJFA-01
Leaf spring count: 8/10+6
Transmission Parameters
Number of gears: 6Gear
Transmission Model: 6-speed
Tire
Tire Size: 8.25R20 16PR
Number of tires: 6pcs

Photos

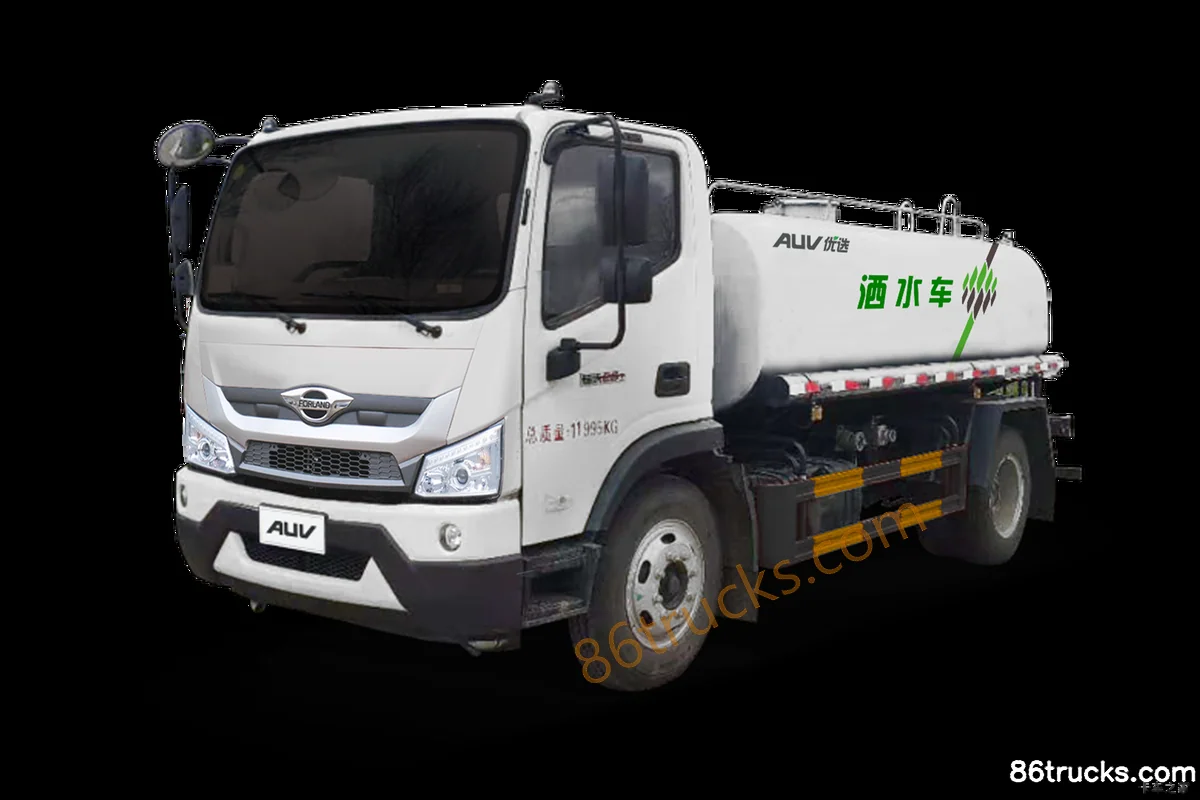

Exterior1

1 photos

FAQ

What emission standard does Foton ES5 190 hp 4X2(6 wheels) water sprinkler truck (China VI) (Proloco) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton ES5 190 hp 4X2(6 wheels) water sprinkler truck (China VI) (Proloco)?

Key specs of Foton ES5 190 hp 4X2(6 wheels) water sprinkler truck (China VI) (Proloco): Drive: 4x2; Horsepower: 190 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton ES5 190 hp 4X2(6 wheels) water sprinkler truck (China VI) (Proloco) suited for?

Foton ES5 190 hp 4X2(6 wheels) water sprinkler truck (China VI) (Proloco) is a water sprinkler truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Foton ES5 190 hp 4X2(6 wheels) water sprinkler truck (China VI) (Proloco) differ from other variants in the same series?

Foton ES5 190 hp 4X2(6 wheels) water sprinkler truck (China VI) (Proloco) belongs to Proloco Foton chassis (water sprinkler truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton ES5 190 hp 4X2(6 wheels) water sprinkler truck (China VI) (Proloco)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton ES5 190 hp 4X2(6 wheels) water sprinkler truck (China VI) (Proloco)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
