Foton ES7 220 hp 4X2(6 wheels) Water Sprinkler Truck (China VI) (Proloco)
EXW
Export quote
Proloco Foton chassis water sprinkler truck
Main model photos
5 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton ES7 220 hp 4X2(6 wheels) Water Sprinkler Truck (China VI) (Proloco) | 4x2 / 220hp / China VI | ||
| Foton ES7 270 hp 4X2(6 wheels) Water Sprinkler Truck (China VI) (Proloco) | 4x2 / 270hp / China VI | ||
| Foton ES7 220 hp 4X2(6 wheels) Water Sprinkler Truck (China VI) (Proloco) | 4x2 / 220hp / China VI | ||
| Foton ES7 190 hp 4X2(6 wheels) Water Sprinkler Truck (China VI) (Proloco) | 4x2 / 190hp / China VI | ||
| Foton ES5 190 hp 4X2(6 wheels) water sprinkler truck (China VI) (Proloco) | 4x2 / 190hp / China VI |
Foton ES7 270 hp 4X2(6 wheels) Water Sprinkler Truck (China VI) (Proloco)
EXW
Export quote
Foton ES7 220 hp 4X2(6 wheels) Water Sprinkler Truck (China VI) (Proloco)
EXW
Export quote
Foton ES7 190 hp 4X2(6 wheels) Water Sprinkler Truck (China VI) (Proloco)
EXW
Export quote

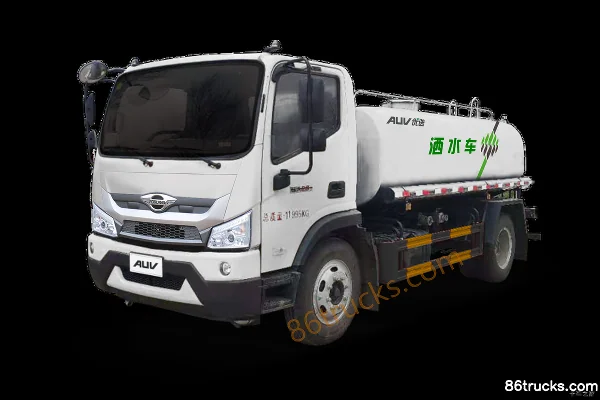

Foton ES5 190 hp 4X2(6 wheels) water sprinkler truck (China VI) (Proloco)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 7.9×2.5×3.2 / 8.17×2.42×3.2 / 7.15×2.46×2.66m
Truck Type: Water Sprinkler Truck
Drive type: 4X2
Wheelbase: 4500 / 3800mm
Vehicle origin: Changsha, Hunan
Front track width: 1900 / 1740 / 1775mm
rear track: 1810 / 1724 / 1800mm
Curb Weight: 6.6 / 6.275 / 5.2ton
Rated payload: 11.27 / 9.53 / 6.6ton
Max. speed: 90km/h
Front/rear suspension: 1.29/2.36 / 1.26/2.41 / 1.23/2.12m
Energy Type: Diesel
Body Parameters
Tank Dimensions (L×W×H): 2.3×1.45×0.53 / 2.2×1.4×4.8 / 1.98×1.228×4.16m
Sprinkling width: 14m
Vehicle certification code: BJ5184GQXKPFN-01 / BJ5164GSSKPFA-01 / BJ5124GSSKJFA-01
Body Brand: Proloco
Engine parameters
Engine Model: WeichaiWP4.6NQ220E61 / YuchaiYCS06270-60 / FotonF4.5NS6B220 / WeichaiWP4.1NQ190E61
Number of cylinders: 4 / 6cylinder
Displacement: 4.58 / 6.23 / 4.5 / 4.088L
Emission standard: China VI
Max output power: 162 / 199 / 140kW
Max hp: 220 / 270 / 190Horsepower
Rated speed: 2300 / 2600rpm
Engine Type: 4-valve, high-pressure common rail, turbocharged intercooled, EGR+DPF+DOC+SCR / High-pressure common rail + EGR + DOC + DPF + SCR + ASC / High-pressure common rail, EGR+DOC+DPF+SCR
Cargo box parameters
Box volume: 11.81 / 9.87 / 6.92m³
Chassis Specs
Chassis Brand: Foton
Chassis Series: Foton Ruiwo ES7 / Foton Ruiwo ES5
Chassis Model: BJ1184VKPFN-01 / BJ1164VKPFA-01 / BJ1124VKJFA-01
Leaf spring count: 10/12+9 / 8/10+6
Transmission Parameters
Number of gears: 8 / 6Gear
Transmission Model: 8-speed / 6-speed
Tire
Tire Size: 10.00R20 18PR / 9.00R20 16PR / 8.25R20 16PR
Number of tires: 6pcs
FAQ
What kind of truck is Proloco Proloco Foton chassis water sprinkler truck?
Proloco Proloco Foton chassis is an export-oriented water sprinkler truck lineup with about 5 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Proloco Foton chassis water sprinkler truck cover?
Proloco Foton chassis water sprinkler truck mainly covers: Drive: 4x2; Horsepower: 190 hp / 220 hp / 270 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Proloco Foton chassis water sprinkler truck?
For Proloco Foton chassis water sprinkler truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is water sprinkler truck typically used for?
water sprinkler truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Proloco Foton chassis water sprinkler truck include?
Proloco Foton chassis water sprinkler truck currently lists about 5 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Proloco Foton chassis water sprinkler truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
