Foton AumanEST 440 hp 6X4(10 wheels) L10 52m Concrete Pump Truck (Loxa Brand)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Drive: 6X4 (10 wheels)
Wheelbase:: 4600+1400mm
Model code (announced):: BJ5359THB-XF
Overall Dimensions: L×W×H:: 12.605x2.53x4m
Curb Weight: 35ton
Water tank capacity: 400L
Horsepower 440
Max output power: 324kW

Overview

The Loxa Heavy Machinery Foton AumanEST 440 hp 6X4(10 wheels) L10 52m Concrete Pump Truck (Loxa Brand) is a concrete pump truck featuring 35ton GVW, 400L tank capacity, 440 hp and 324kW power. On the powertrain side, it comes with 6X4 (10 wheels) drive, China VI emissions and Diesel fuel.

China VI 440 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5359THB-XF
Drive type: 6X4
Wheelbase: 4600+1400mm
Overall Dimensions: L×W×H: 12.605x2.53x4m
Max. travel speed: 89km/h
Curb Weight: 35ton
Body Parameters
Water tank capacity: 400L
Chassis Specs
Axle Count: 3
Chassis Series: AumanEST
Chassis Model: BJ5359Y6DPL-01
Pumping system
Pumping displacement (low/high): 180m³/h
Pumping pressure (low/high): 8.8
Pumping strokes (low/high): 29Times/min
Delivery cylinder: bore × stroke: 260mm
Oil pressure: 35Mpa
Delivery pipe diameter: 125mm
Boom Outriggers
Boom Vertical Height: 51.3m
Boom Horizontal Length: 46.3m
Boom Vertical Depth: 36.6m
Min unfolded length: 13m
Turntable Rotation Angle: 360°
Engine parameters
Engine Model: FotonX12NS6B440
fuel type: Diesel
Displacement: 11.8L
Emission standard: China VI
Max output power: 324kW
Max hp: 440Horsepower
Transmission Parameters
Number of gears: 16Gear
Transmission Model: ZFZF16S2230TO
Cab parameters
Cab: EST
Tire
Tire Size: 385/65R22.5 20PR/315/80R22.5 20PR

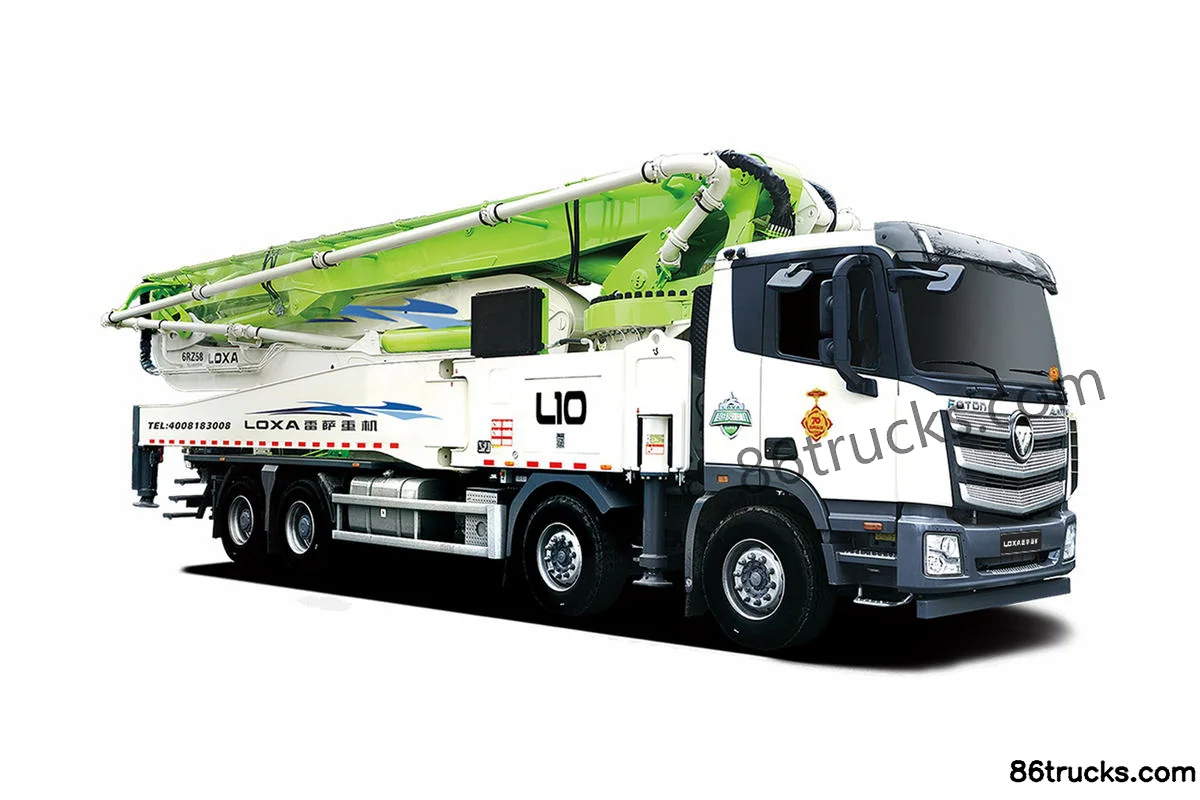

Photos

Exterior1

1 photos

FAQ

What emission standard does Foton AumanEST 440 hp 6X4(10 wheels) L10 52m Concrete Pump Truck (Loxa Brand) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton AumanEST 440 hp 6X4(10 wheels) L10 52m Concrete Pump Truck (Loxa Brand)?

Key specs of Foton AumanEST 440 hp 6X4(10 wheels) L10 52m Concrete Pump Truck (Loxa Brand): Drive: 6x4; Horsepower: 440 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton AumanEST 440 hp 6X4(10 wheels) L10 52m Concrete Pump Truck (Loxa Brand) suited for?

Foton AumanEST 440 hp 6X4(10 wheels) L10 52m Concrete Pump Truck (Loxa Brand) is a concrete pump truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Foton AumanEST 440 hp 6X4(10 wheels) L10 52m Concrete Pump Truck (Loxa Brand) differ from other variants in the same series?

Foton AumanEST 440 hp 6X4(10 wheels) L10 52m Concrete Pump Truck (Loxa Brand) belongs to Loxa Heavy Machinery Foton Auman Chassis (concrete pump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton AumanEST 440 hp 6X4(10 wheels) L10 52m Concrete Pump Truck (Loxa Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton AumanEST 440 hp 6X4(10 wheels) L10 52m Concrete Pump Truck (Loxa Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
