Proton Auto Charging Version 8X4(12 wheels) Pure Electric Concrete Mixer Truck Chassis 331.37kWh

Export reference
MSRP N/A
Tire Size:: 11.00R20 18PR,12R22.5 18PR,12.00R20 18PR
Cab dimensions:: 9.325×2.5×3.2m
Truck Type:: electric concrete mixer truck
Front/rear track width:: Front track: 2011/2011, Rear track: 1860/1860mm
Vehicle origin:: Xi'an, Shaanxi
Max. speed:: 89km/h
Drive 8X4 (12 wheels)
Fuel Electric
Curb Weight: 11.7ton
Wheelbase: 1800+3400+1400mm

Overview

The Proton Auto Charging Version 8X4(12 wheels) Pure Electric Concrete Mixer Truck Chassis 331.37kWh is a concrete mixer truck featuring 11.7ton GVW, 8X4 (12 wheels) drive and 9.325×2.5×3.2m cab. On the powertrain side, it comes with Electric fuel.

Electric 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.325×2.5×3.2m
Drive type: 8X4
Truck Type: electric concrete mixer truck
Wheelbase: 1800+3400+1400mm
Front/rear track width: Front track: 2011/2011, Rear track: 1860/1860mm
Vehicle origin: Xi'an, Shaanxi
Curb Weight: 11.7ton
Max. speed: 89km/h
Front/rear suspension: 1.525/1.2m
electric motor
Motor 1 Brand: Zhide Motor
Motor 1 Model: TZ400XS033
Motor Type: Permanent magnet synchronous motor
total rated power: 270kW
Peak power: 410kW
total peak torque: 2400N·m
total rated torque: 1400N·m
Engine parameters
fuel type: Electric
Transmission Parameters
Number of gears: 4Gear
Transmission Model: 4-speed AMT
Chassis Specs
Chassis Model: SX1311EV346N
Front axle description: 5.5T
Frame Dimensions: 850×300(8+5)mm
rear axle description: 16T
Leaf spring count: 3/3/5
Tire
Tire Size: 11.00R20 18PR,12R22.5 18PR,12.00R20 18PR
Number of tires: 12pcs

Photos

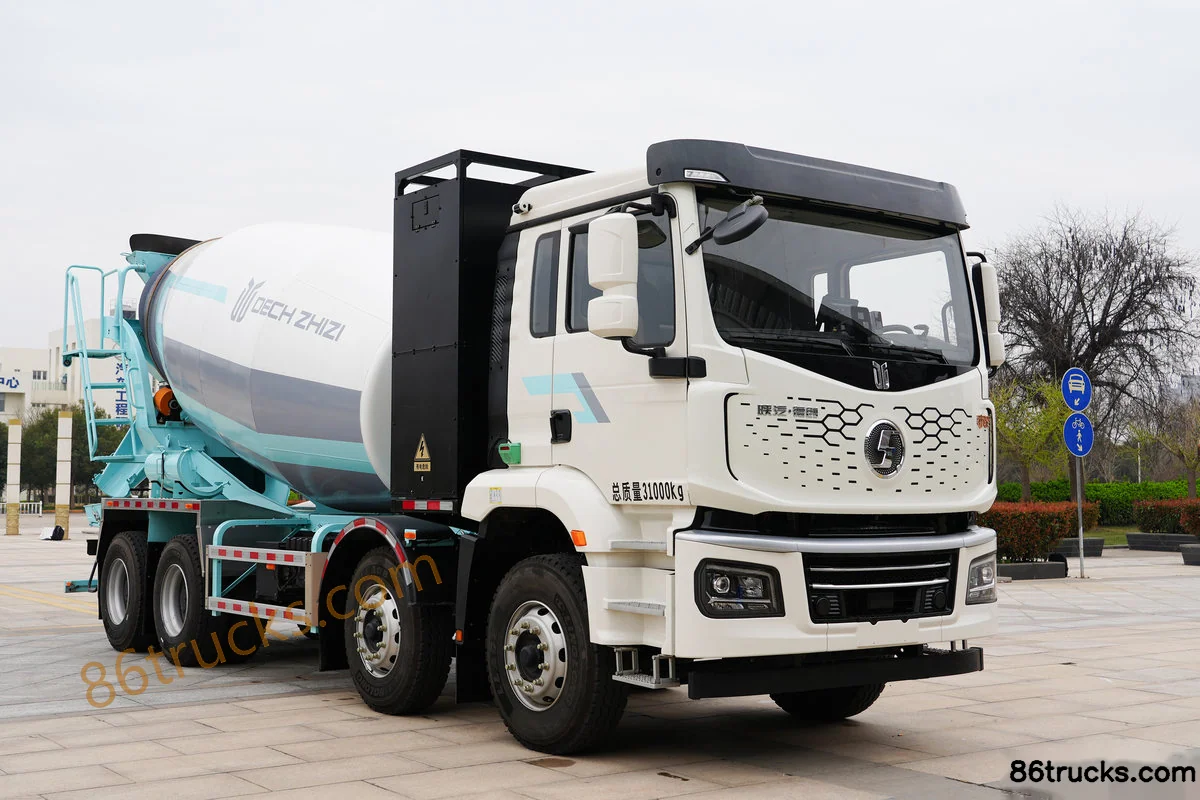

Exterior1

1 photos

FAQ

What are the key specs of Proton Auto Charging Version 8X4(12 wheels) Pure Electric Concrete Mixer Truck Chassis 331.37kWh?

Key specs of Proton Auto Charging Version 8X4(12 wheels) Pure Electric Concrete Mixer Truck Chassis 331.37kWh: Drive: 8x4; Fuel: Electric. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Proton Auto Charging Version 8X4(12 wheels) Pure Electric Concrete Mixer Truck Chassis 331.37kWh suited for?

Proton Auto Charging Version 8X4(12 wheels) Pure Electric Concrete Mixer Truck Chassis 331.37kWh is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Proton Auto Charging Version 8X4(12 wheels) Pure Electric Concrete Mixer Truck Chassis 331.37kWh differ from other variants in the same series?

Proton Auto Charging Version 8X4(12 wheels) Pure Electric Concrete Mixer Truck Chassis 331.37kWh belongs to Dechuang Battery-Electric Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Proton Auto Charging Version 8X4(12 wheels) Pure Electric Concrete Mixer Truck Chassis 331.37kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Proton Auto Charging Version 8X4(12 wheels) Pure Electric Concrete Mixer Truck Chassis 331.37kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
