Sitrak SITRAK G7S 6X4(10 wheels) 6.2m Electric Dump Truck CATL 600kWh

Export reference
MSRP N/A
Rated payload:: 4ton
Wheelbase:: 4625+1350mm
Cargo box type:: Dump type
Model code (announced):: ZZ3256Y464HZ1BEV6A
Cab length:: 9.492m
GVWR:: 25ton
Drive 6X4 (10 wheels)
CLTC range: 500km
Motor 1 Brand: Sinotruk
Curb Weight: 20.87ton

Overview

The Sitrak SITRAK G7S 6X4(10 wheels) 6.2m Electric Dump Truck CATL 600kWh is a Heavy truck featuring 500km battery/range, Sinotruk motor, 6X4 (10 wheels) drive and 4t payload.

6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3256Y464HZ1BEV6A
Drive type: 6X4
Wheelbase: 4625+1350mm
Cab length: 9.492m
Cab width: 2.55m
Cab height: 3.68m
CLTC range: 500km
Curb Weight: 20.87ton
Rated payload: 4ton
GVWR: 25ton
Max. speed: 88km/h
Origin: Shandong Zhangqiu
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: Sinotruk
Motor 1 Model: TZ445XS-ZQV26
Motor Type: Permanent magnet synchronous motor
total rated power: 400kW
Peak power: 600kW
Motor 1 Peak Power: 600kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 600kWh
Transmission Parameters
shift type: AMT manual/auto
Transmission Model: HW19709XA
Cargo box parameters
Cargo box type: Dump type
Cargo box length: 6.2m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 7000kg
rear axle description: MCP28ZG self-adjusting arm dual rear axle
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12.00R20 18PR
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:

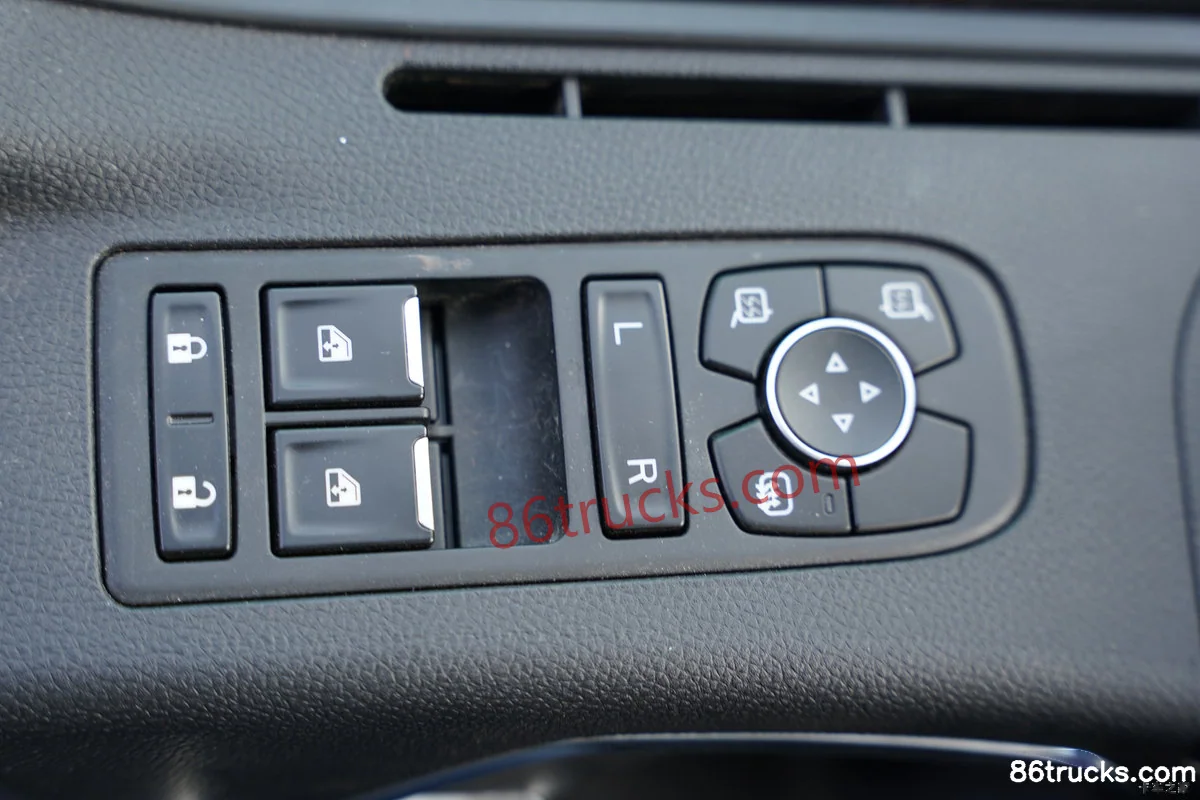

Power Windows:
Power Mirrors:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
Bluetooth / hands-free calling:

Photos

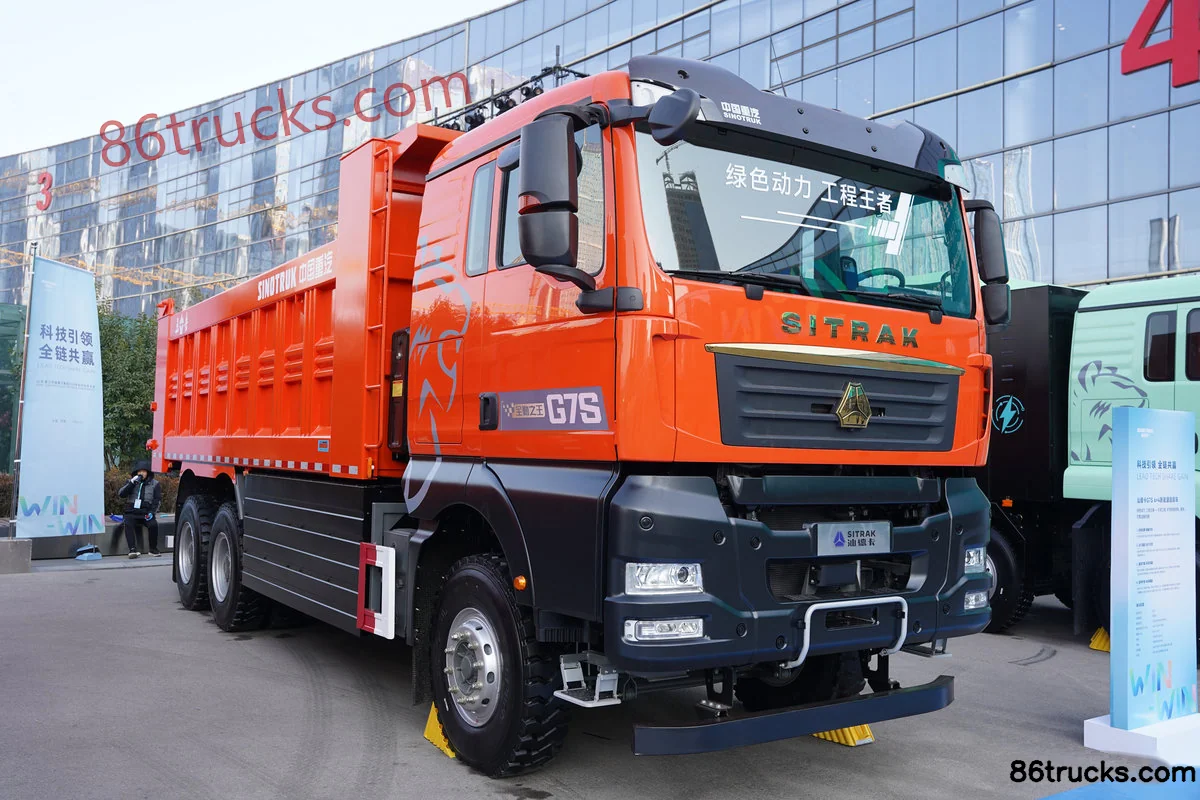

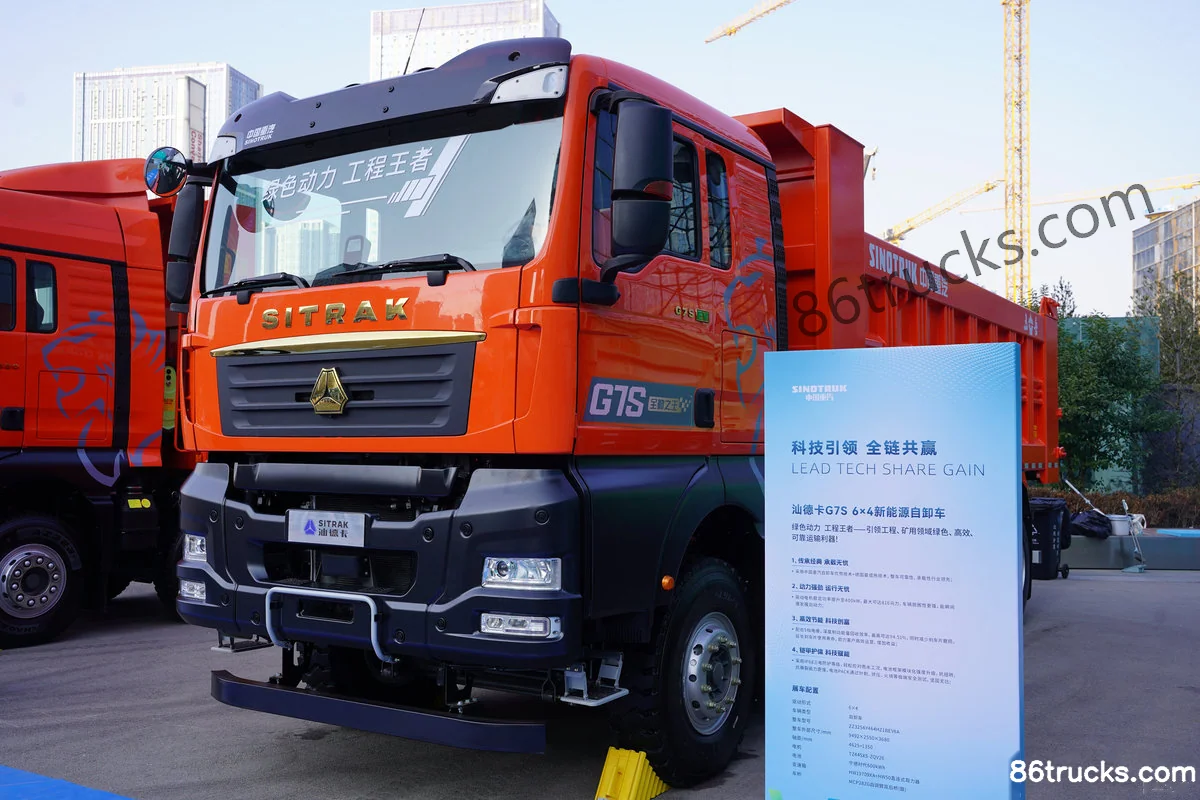

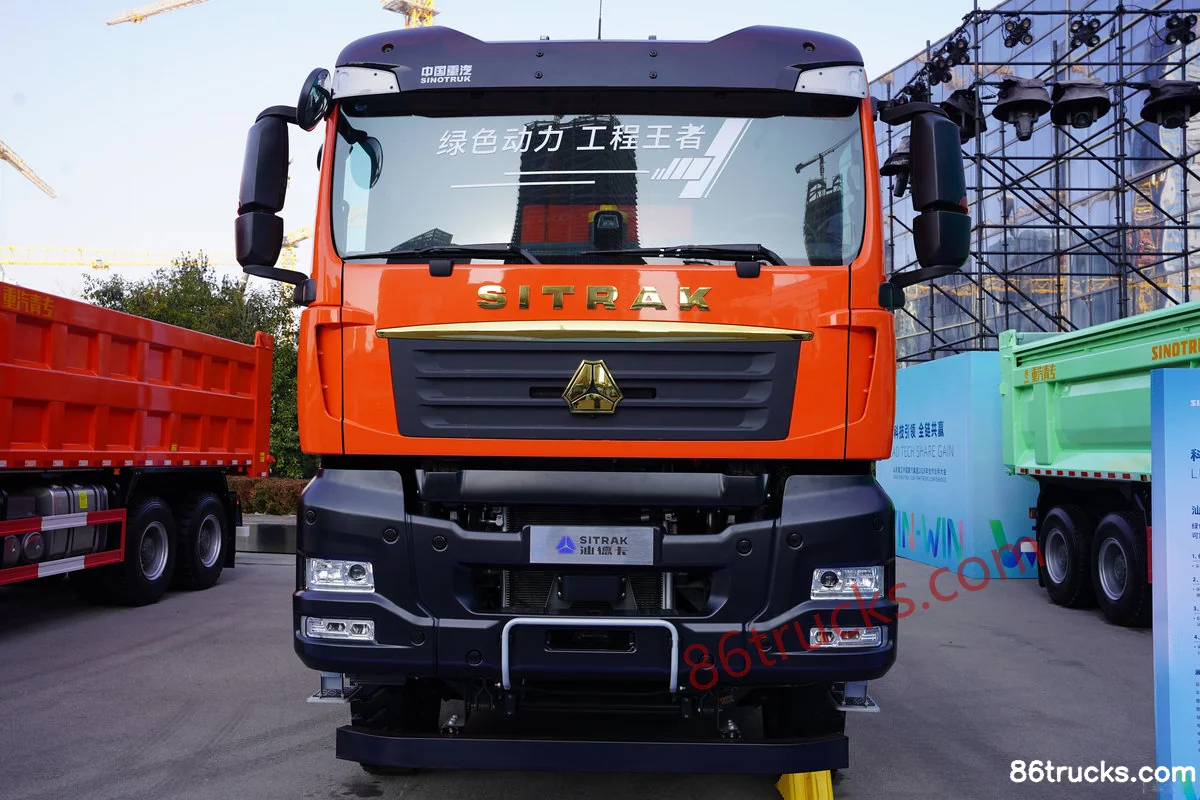

Exterior3

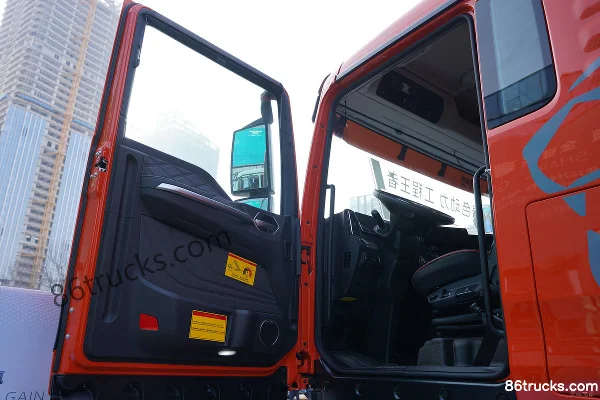

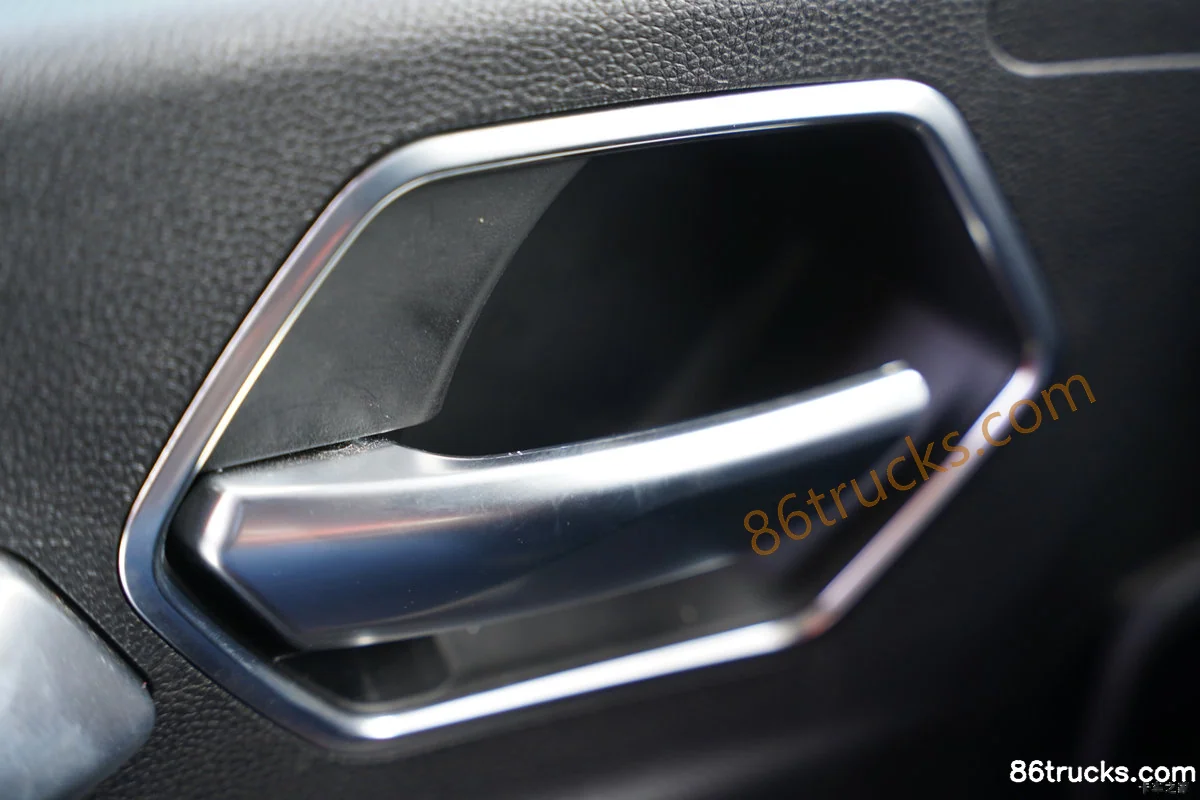

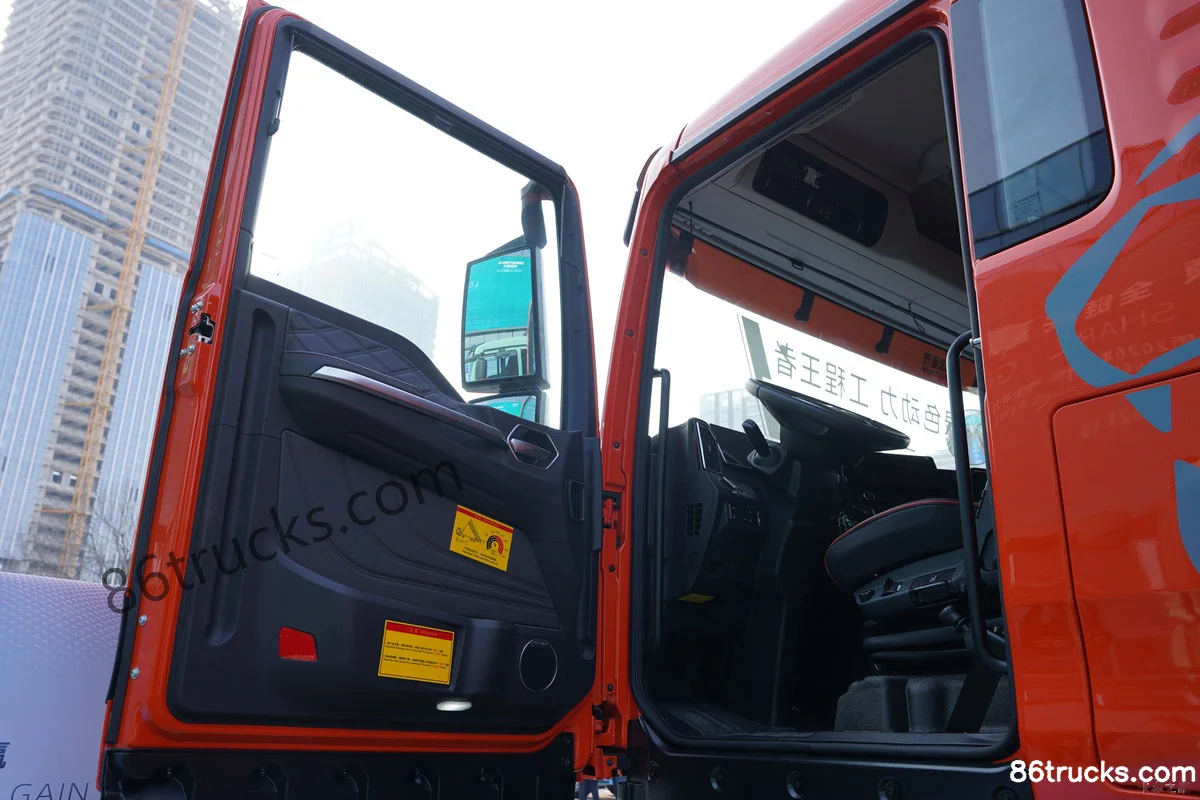

Cab3

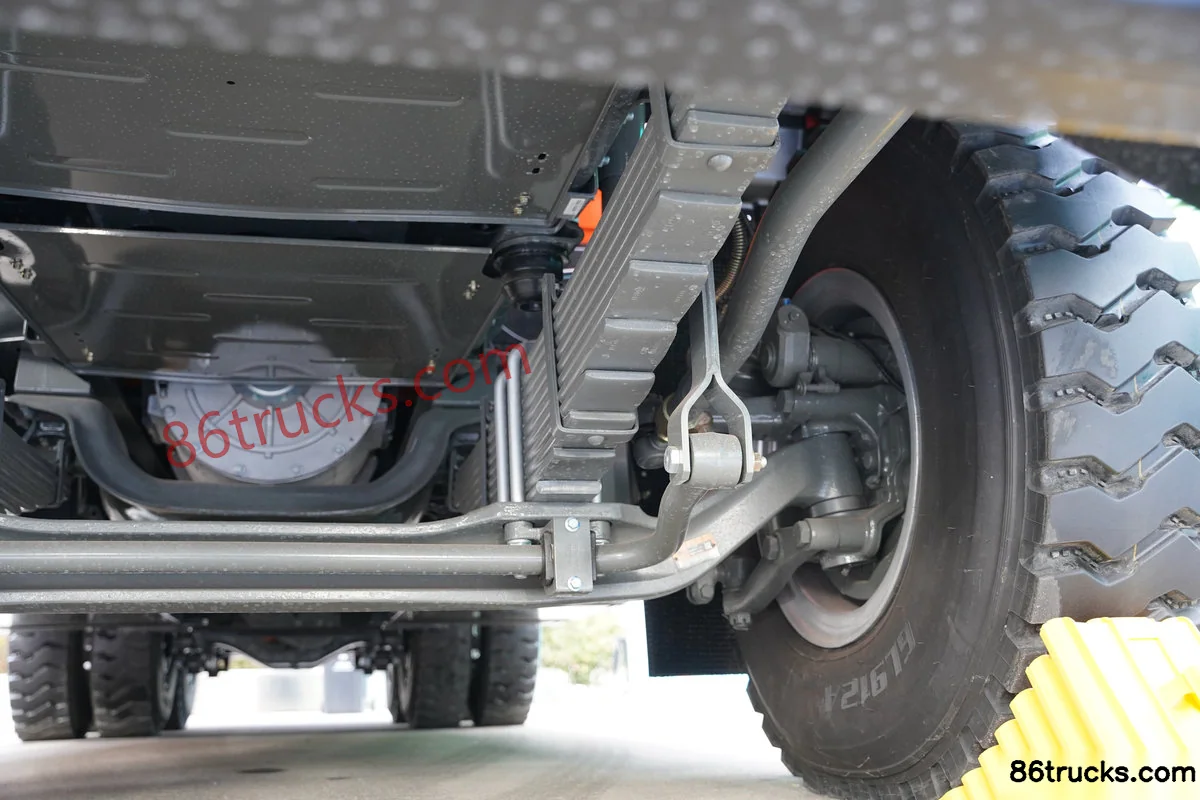

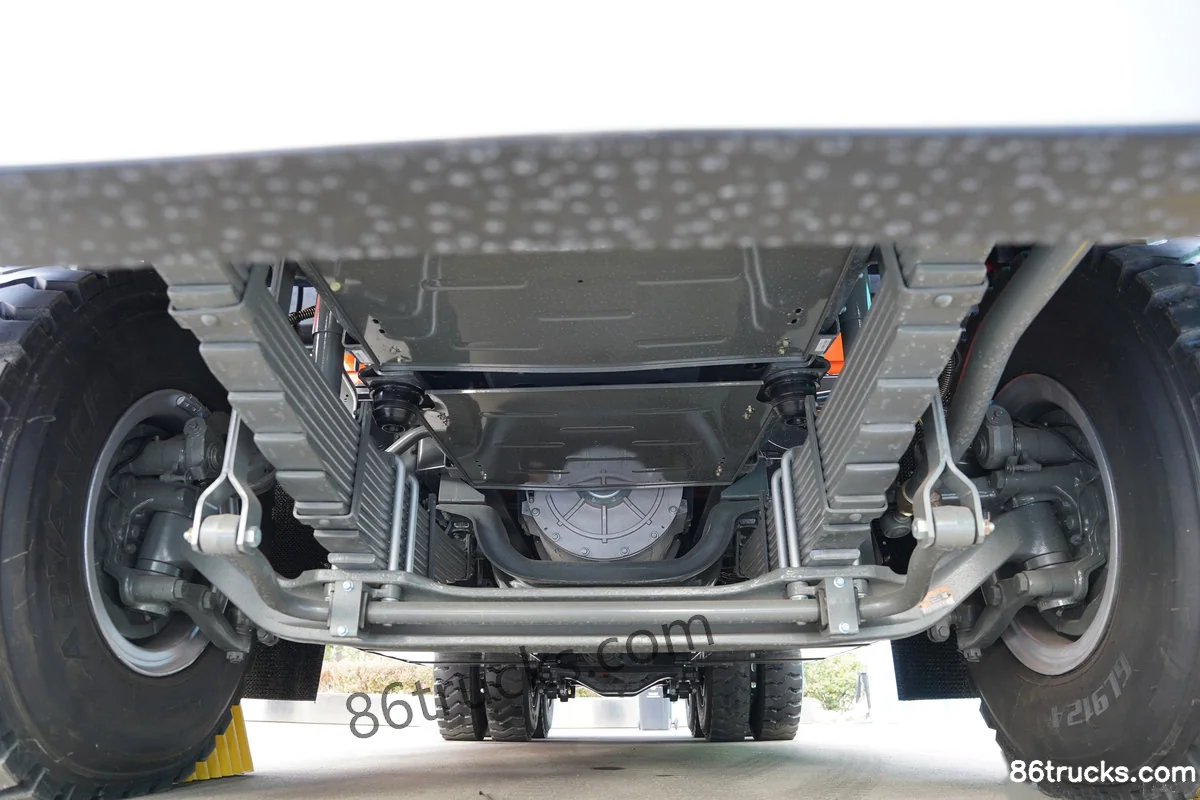

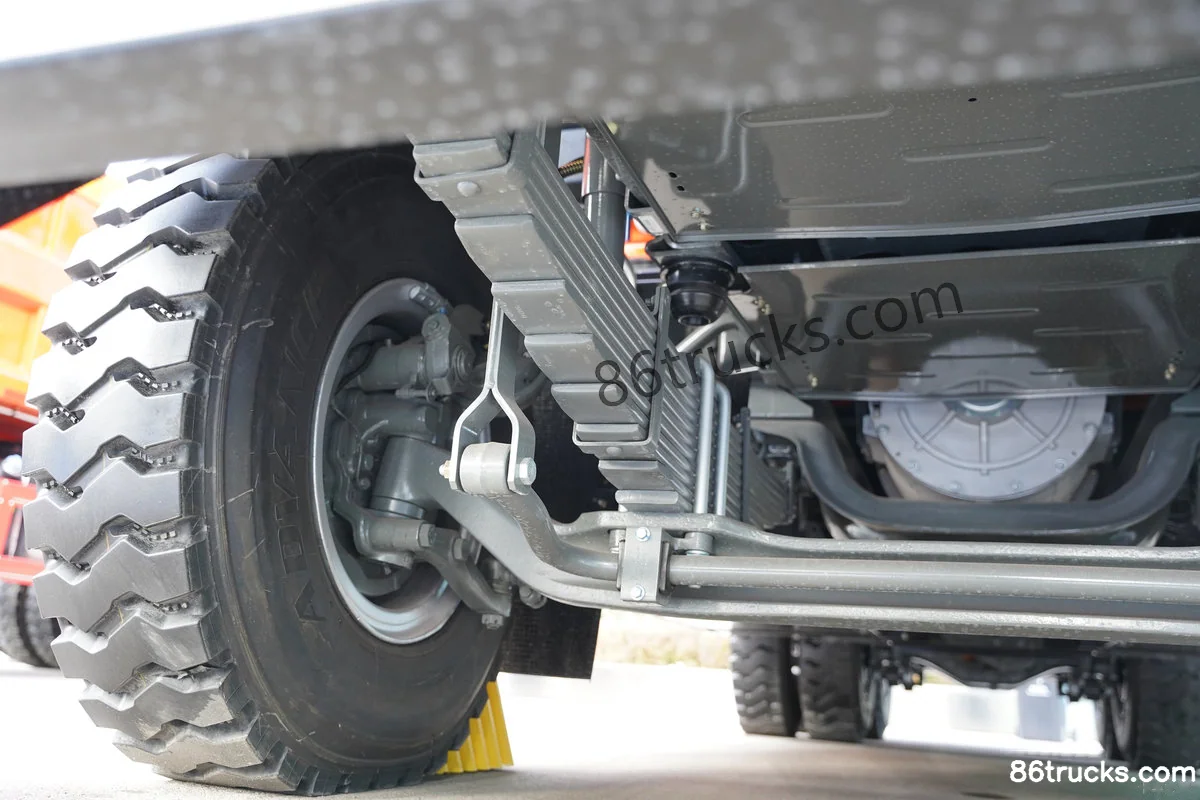

Chassis3

9 photos

FAQ

What are the key specs of Sitrak SITRAK G7S 6X4(10 wheels) 6.2m Electric Dump Truck CATL 600kWh?

Key specs of Sitrak SITRAK G7S 6X4(10 wheels) 6.2m Electric Dump Truck CATL 600kWh: Drive: 6x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sitrak SITRAK G7S 6X4(10 wheels) 6.2m Electric Dump Truck CATL 600kWh suited for?

Sitrak SITRAK G7S 6X4(10 wheels) 6.2m Electric Dump Truck CATL 600kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sitrak SITRAK G7S 6X4(10 wheels) 6.2m Electric Dump Truck CATL 600kWh differ from other variants in the same series?

Sitrak SITRAK G7S 6X4(10 wheels) 6.2m Electric Dump Truck CATL 600kWh belongs to Sitrak G7S heavy truck (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sitrak SITRAK G7S 6X4(10 wheels) 6.2m Electric Dump Truck CATL 600kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sitrak SITRAK G7S 6X4(10 wheels) 6.2m Electric Dump Truck CATL 600kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
