FAW Jiefang New J6P Heavy Truck 2020 350hp 8X4(12 wheels) 5.6m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: FAW Jiefang
Curb Weight:: 15.5ton
Wheelbase:: 1900+2250+1350mm
Tire Size:: 12.00R20 18PR
Rated payload: 15.37ton
Drive 8X4 (12 wheels)
Horsepower 350
Cargo box type: Rear-dump body

Overview

The FAW Jiefang New J6P Heavy Truck 2020 350hp 8X4(12 wheels) 5.6m Dump Truck is a Heavy truck featuring 15.37t payload, 31t GVW, Rear-dump body cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a XichaiCA6DL3-33E5 engine, 350 hp, China V emissions and FAW Jiefang transmission.

China V 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA3310P66K24L1T4E5
Drive type: 8X4
Wheelbase: 1900+2250+1350mm
engine: XichaiCA6DL3-33E5
transmission: FAW JiefangCA12TA160M
Rear Axle Ratio: 5.263
Cab length: 8.645m
Cab width: 2.55m
Cab height: 3.6m
Front track width: 2020/2020mm
rear track: 1847/1847mm
Curb Weight: 15.5ton
Rated payload: 15.37ton
GVWR: 31ton
Origin: Changchun/Qingdao/Chengdu
tonnage class: Heavy truck
Approach angle: 24°
departure angle: 22°
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DL3-33E5
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 8.6L
Emission standard: China V
Max output power: 261kW
Max hp: 350Horsepower
Max torque: 1650N·m
Max torque speed: 1200-1500rpm
Rated speed: 2100rpm
Engine Type: Inline 6-cylinder, direct injection, turbocharged intercooled, high-pressure common rail
Transmission Parameters
Transmission Model: FAW JiefangCA12TA160M
Transmission Brand: FAW Jiefang
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.6m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: New J6P High-Top Cab
fuel tank
Fuel tank material: Steel
Fuel tank capacity: 400L
Chassis Specs
Front axle description: 2020 front axle
Front axle allowable load: 6500/6500kg
Frame Dimensions: 300×80×(8+5)mm
rear axle description: φ300 wheel reduction axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.263
Leaf spring count: 9/9/10
Tire
Tire Size: 12.00R20 18PR
Tire Type: Steel-belted tire
Number of tires: 12pcs
Control configuration
ABS:

Photos

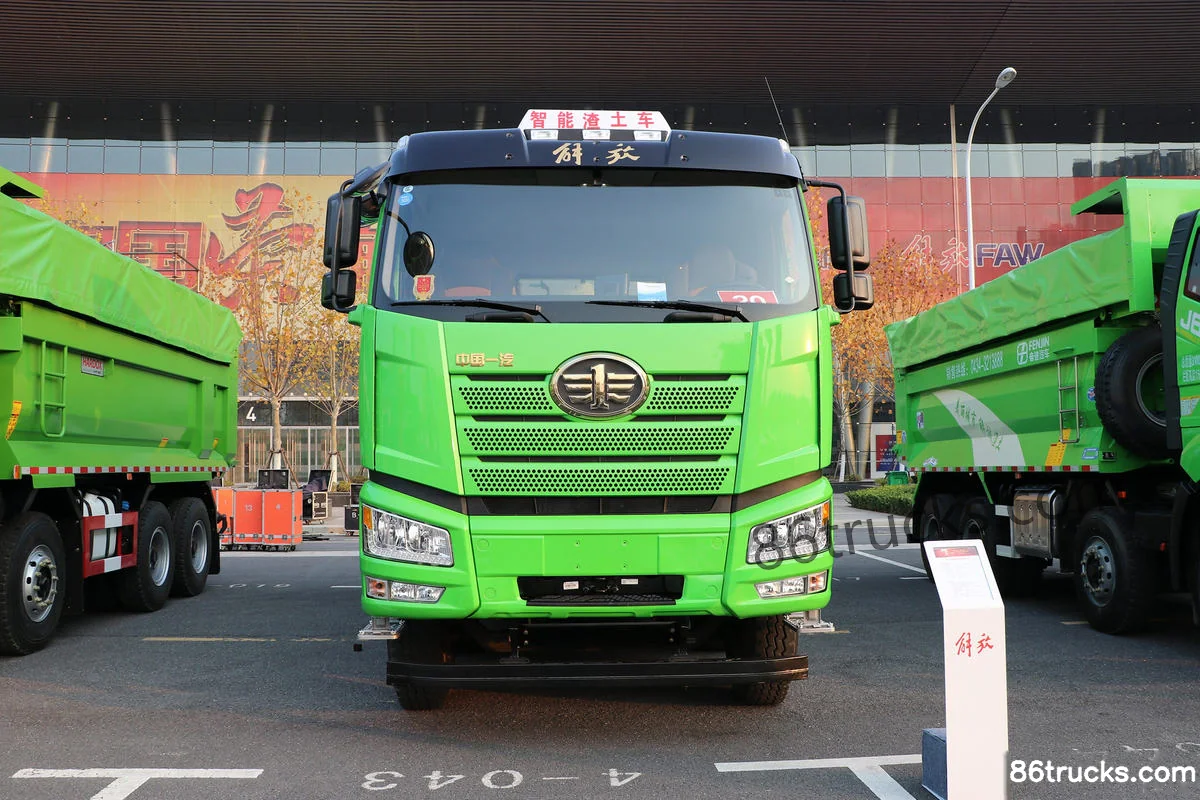

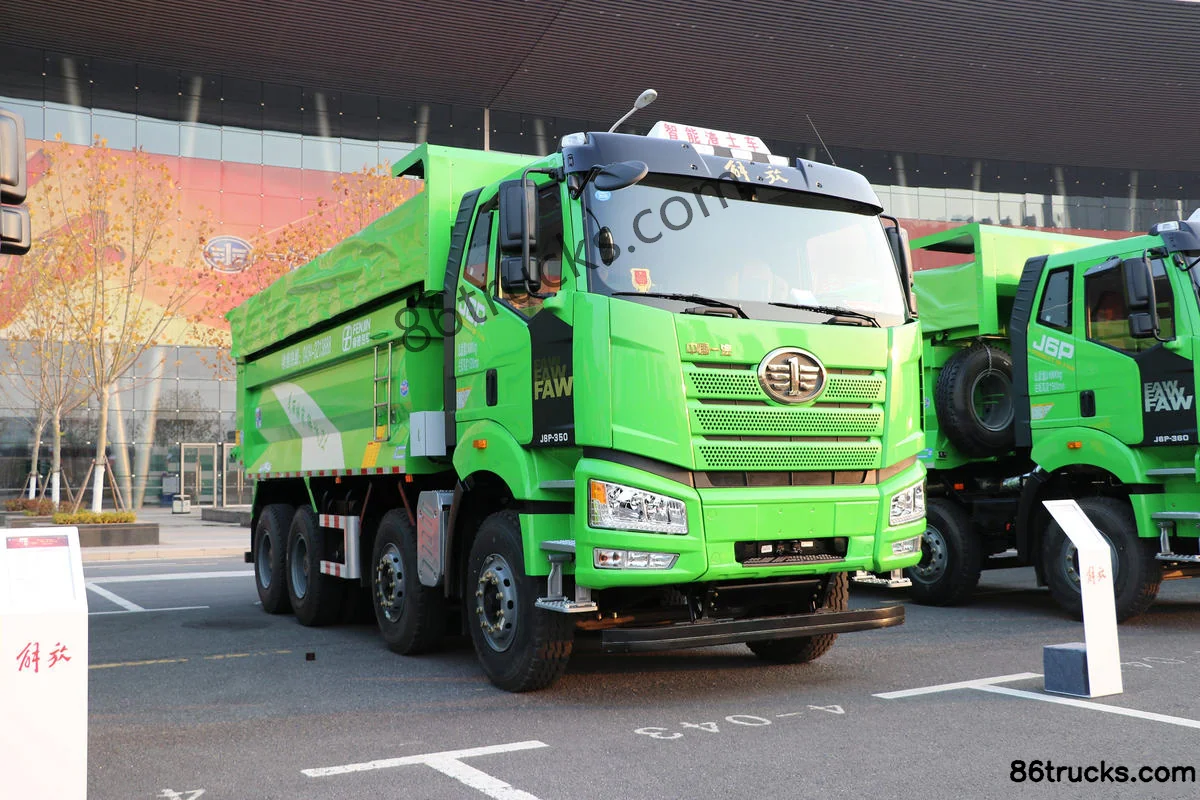

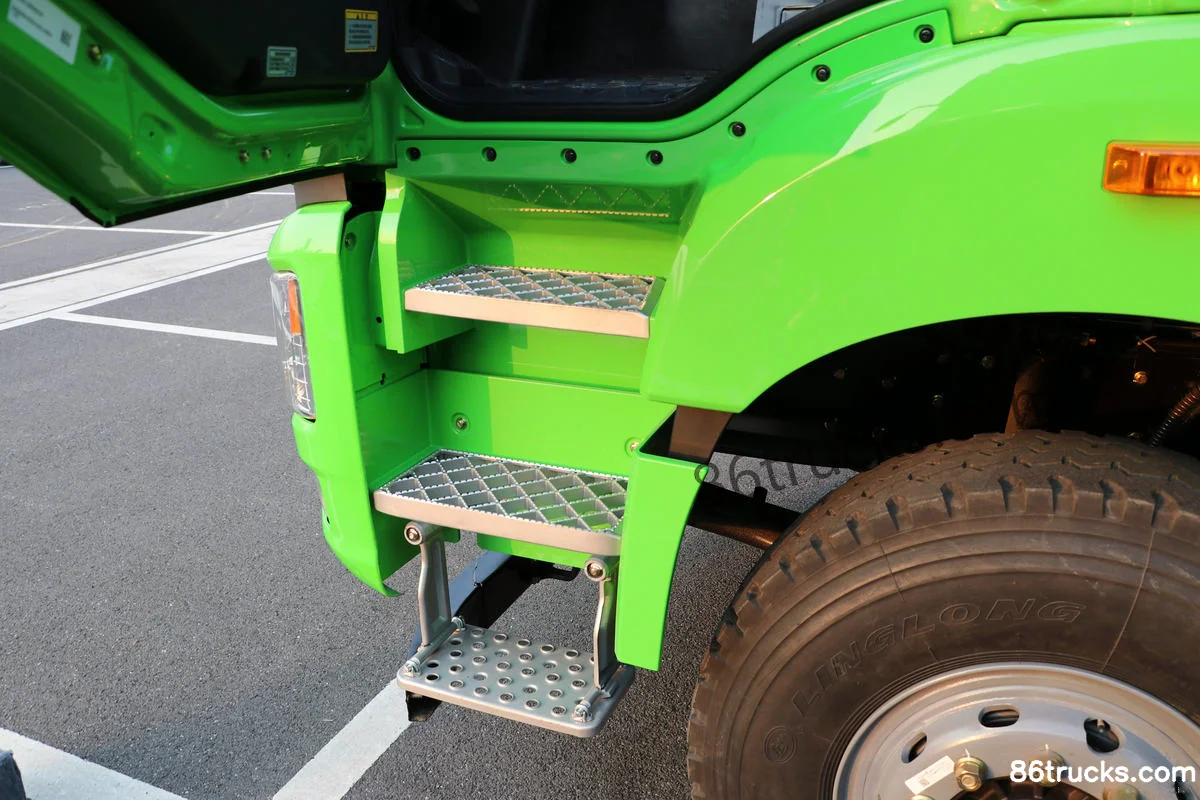

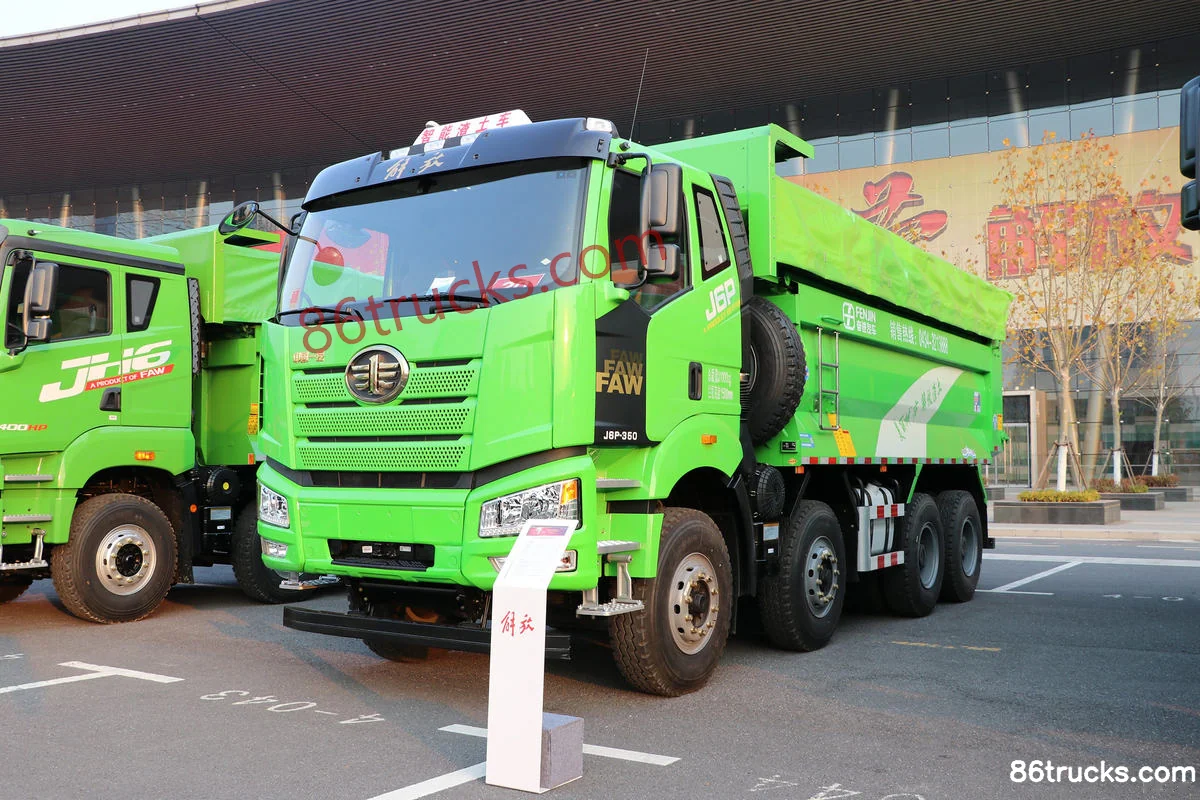

Exterior3

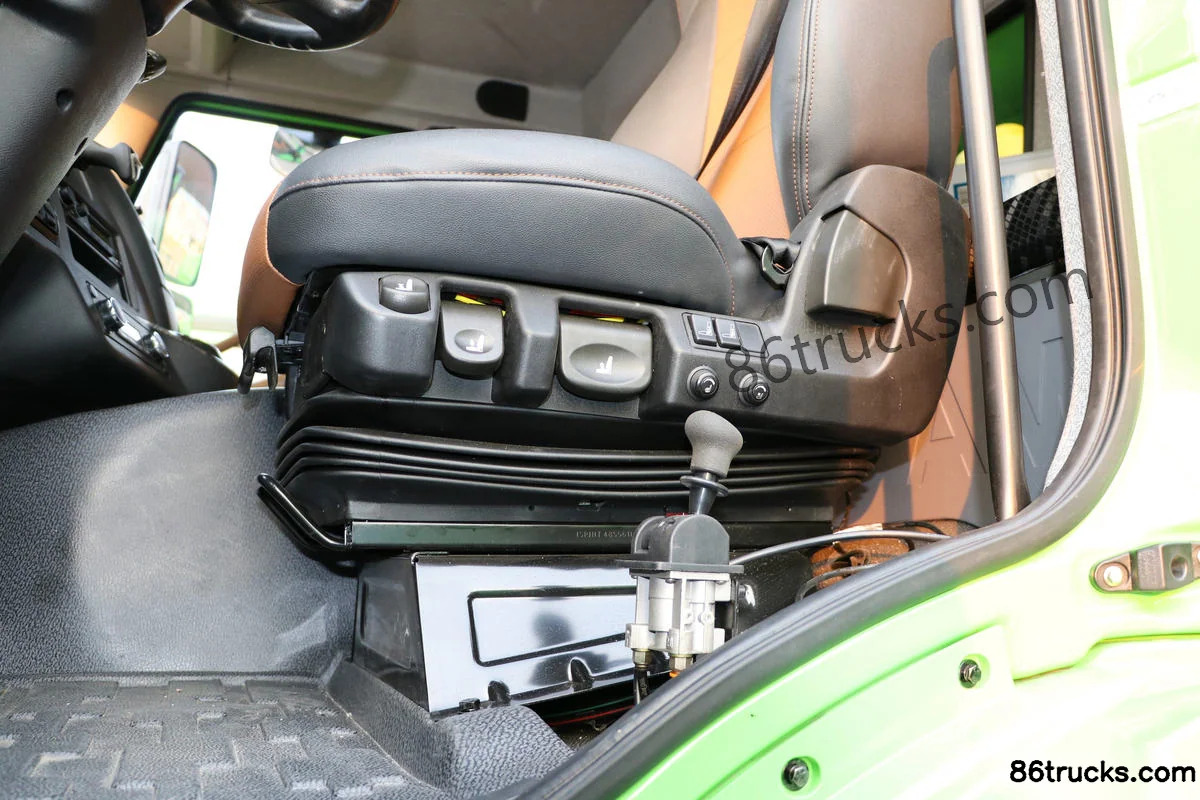

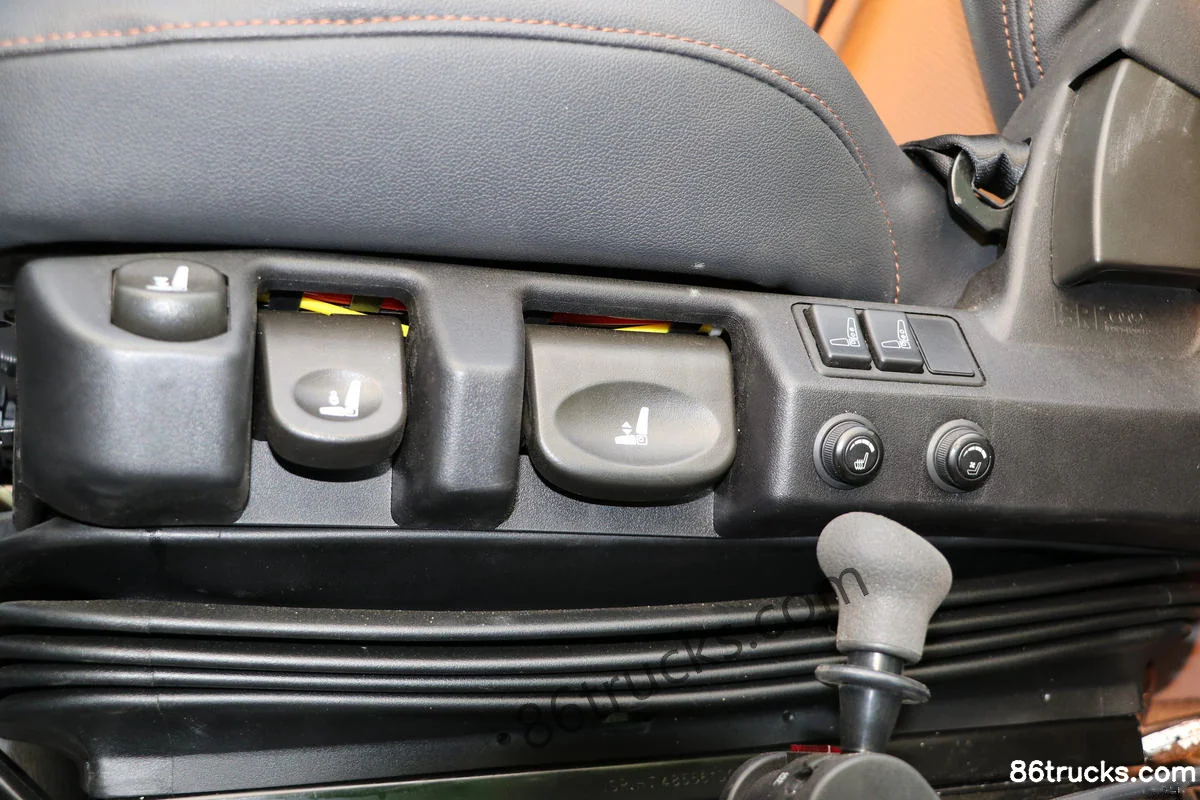

Cab3

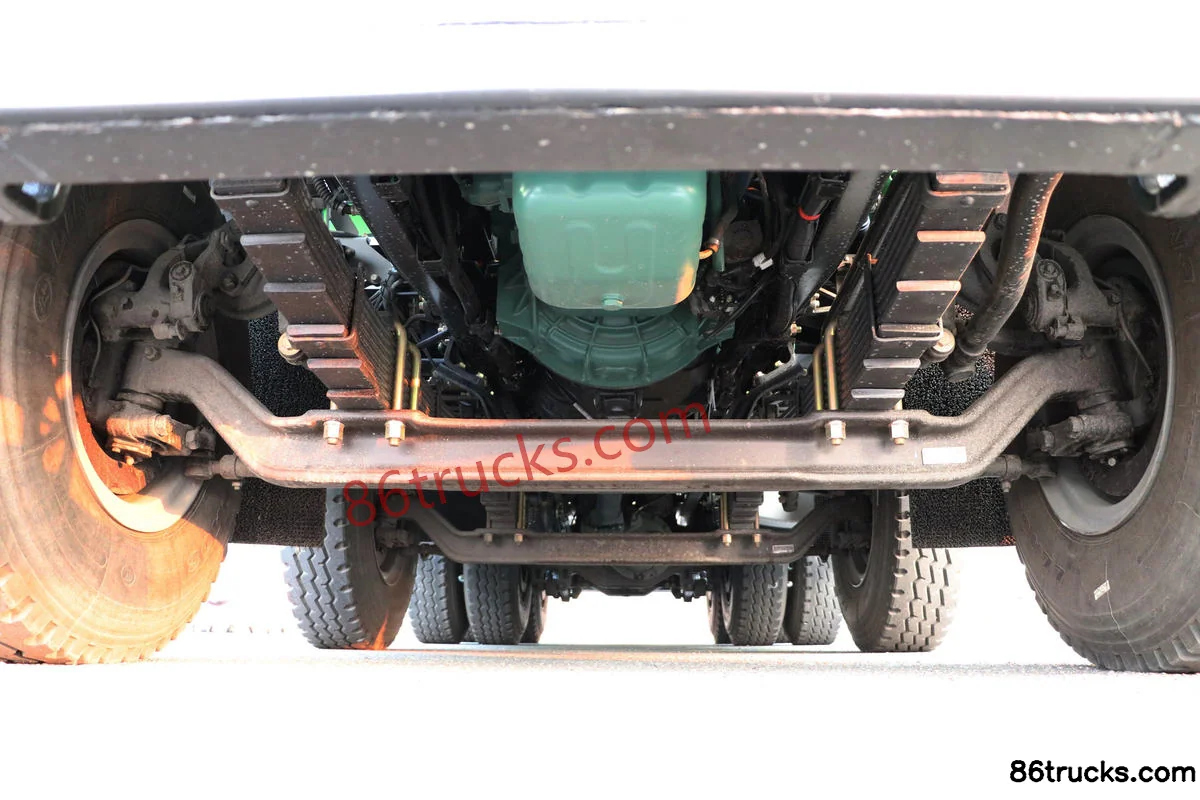

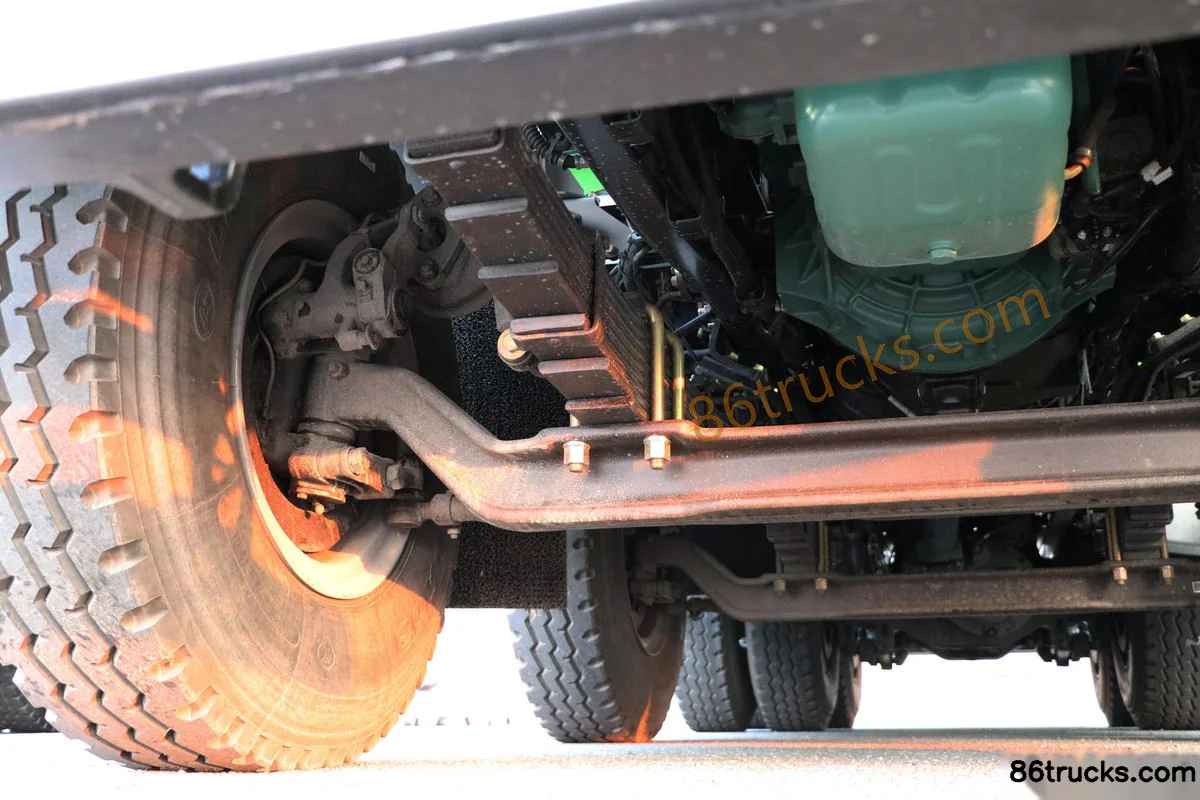

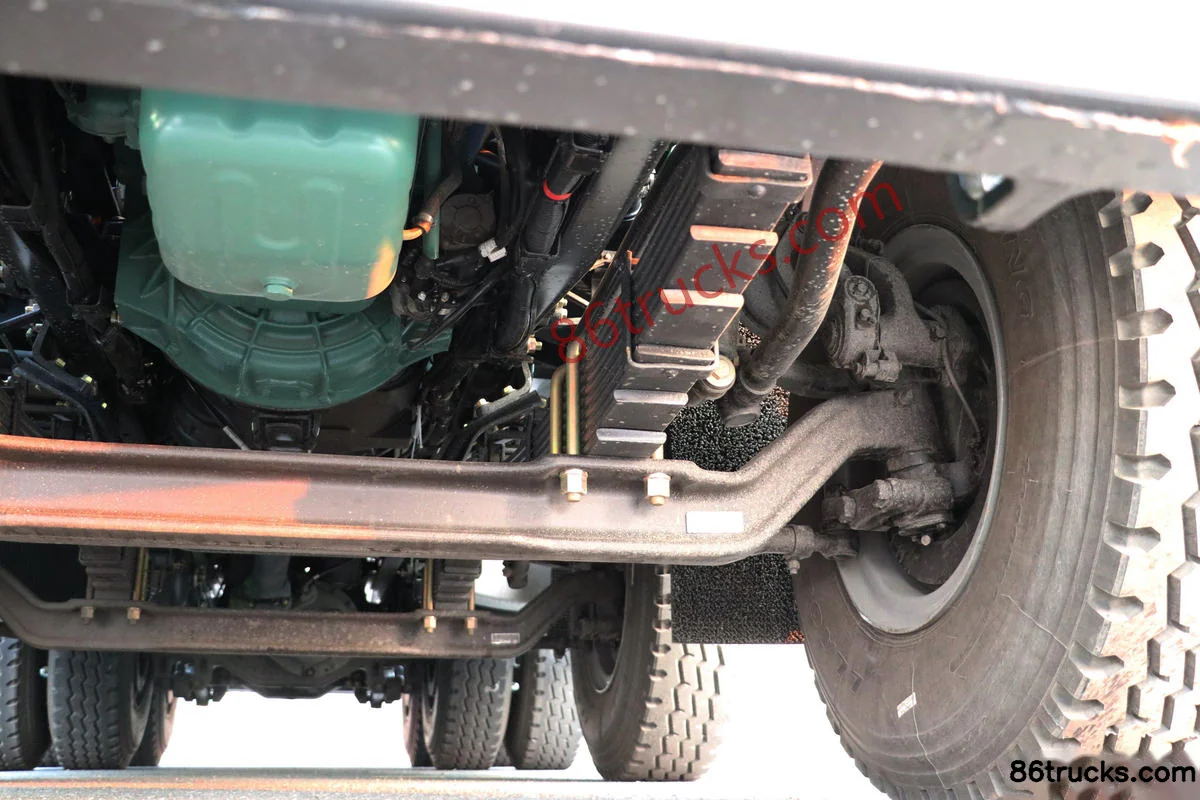

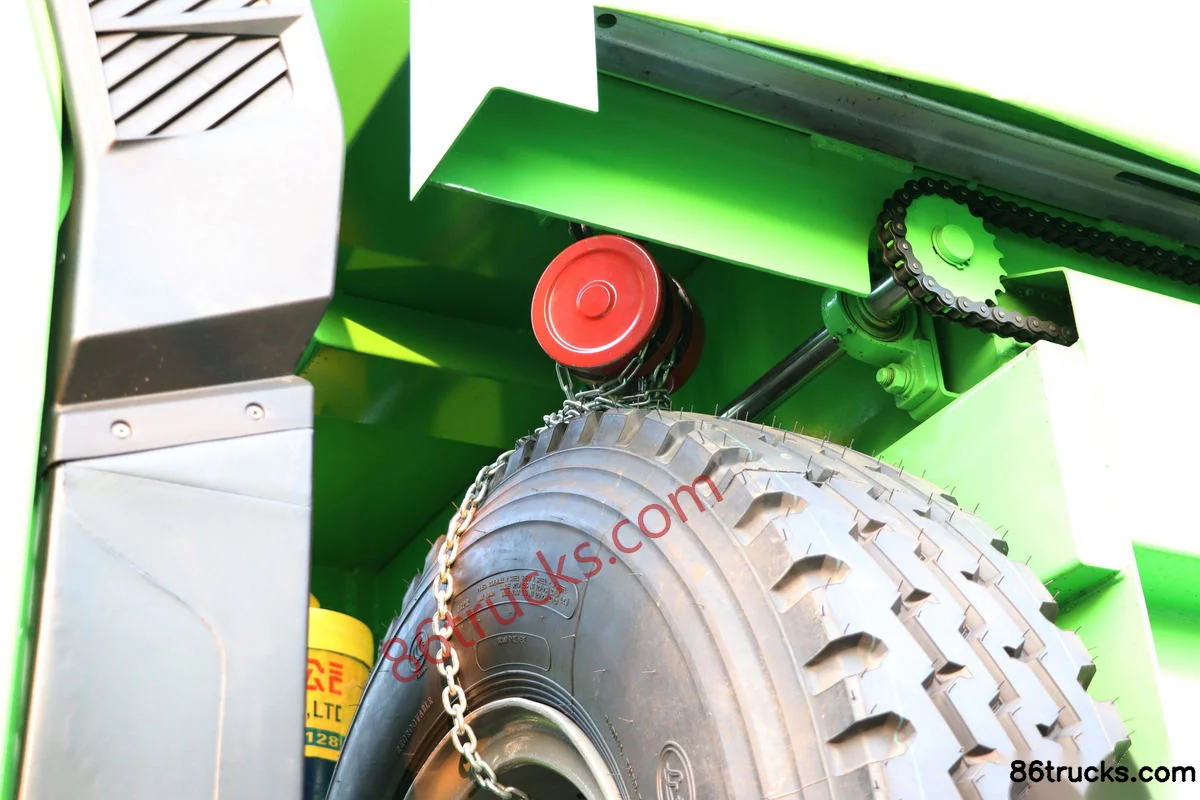

Chassis3

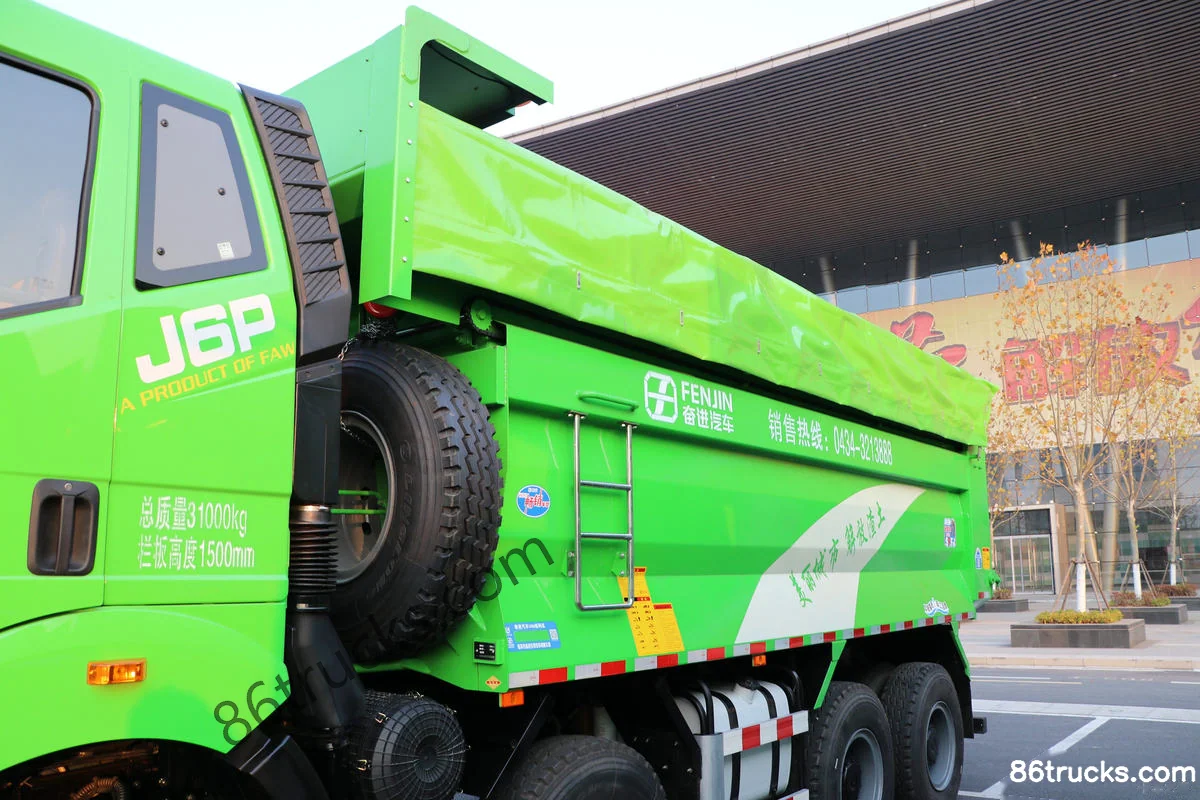

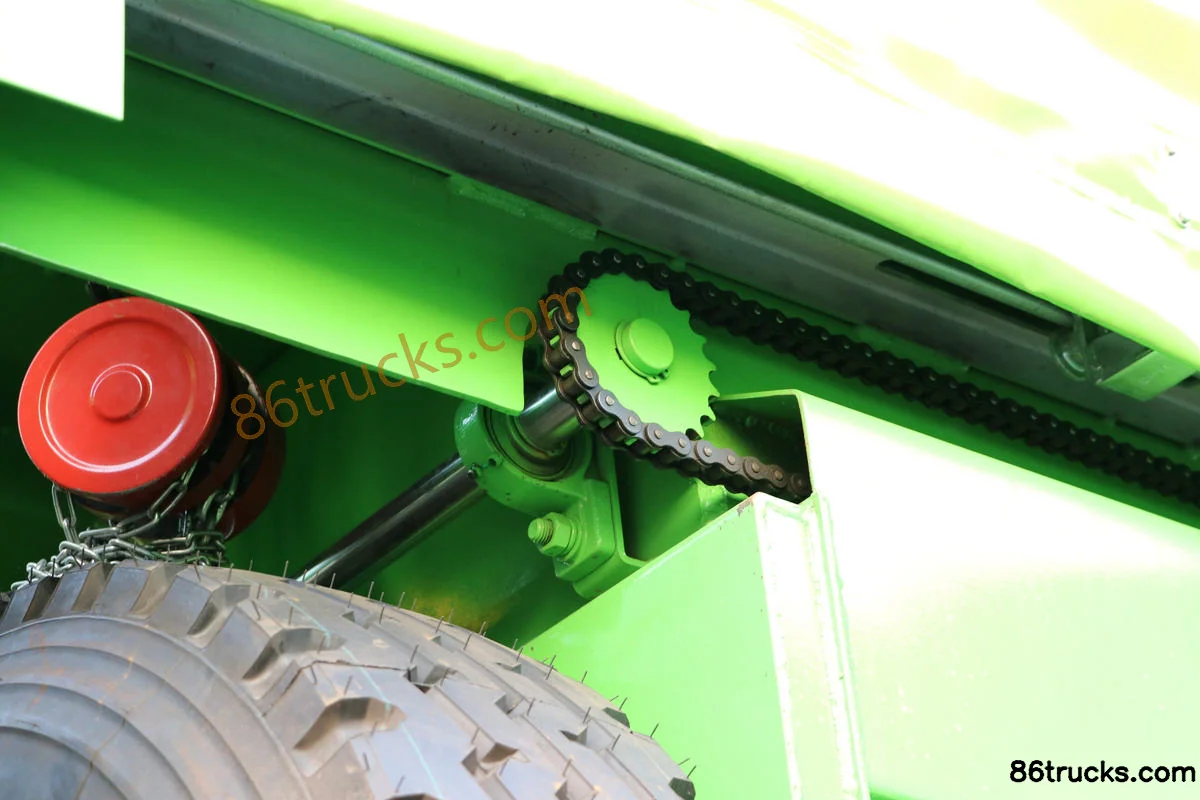

Body3

12 photos

FAQ

What emission standard does FAW Jiefang New J6P Heavy Truck 2020 350hp 8X4(12 wheels) 5.6m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang New J6P Heavy Truck 2020 350hp 8X4(12 wheels) 5.6m Dump Truck?

Key specs of FAW Jiefang New J6P Heavy Truck 2020 350hp 8X4(12 wheels) 5.6m Dump Truck: Drive: 8x4; Horsepower: 350 hp; Emission: China V; Fuel: Diesel; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang New J6P Heavy Truck 2020 350hp 8X4(12 wheels) 5.6m Dump Truck suited for?

FAW Jiefang New J6P Heavy Truck 2020 350hp 8X4(12 wheels) 5.6m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang New J6P Heavy Truck 2020 350hp 8X4(12 wheels) 5.6m Dump Truck differ from other variants in the same series?

FAW Jiefang New J6P Heavy Truck 2020 350hp 8X4(12 wheels) 5.6m Dump Truck belongs to FAW Jiefang J6P Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang New J6P Heavy Truck 2020 350hp 8X4(12 wheels) 5.6m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang New J6P Heavy Truck 2020 350hp 8X4(12 wheels) 5.6m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
