Sinotruk Sitrak SITRAK C6G Heavy Truck 400 hp 8X4(12 wheels) 5.8m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Sinotruk
Curb Weight:: 15.5ton
Wheelbase:: 1950+2525+1350mm
Tire Size:: 12.00R20
Rated payload: 15.37ton
Drive 8X4 (12 wheels)
Horsepower 400
Cargo box type: Rear-dump body

Overview

The Sinotruk Sitrak SITRAK C6G Heavy Truck 400 hp 8X4(12 wheels) 5.8m Dump Truck is a Heavy truck featuring 15.37t payload, 31t GVW, Rear-dump body cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a SinotrukMC11.40-50 engine, 400 hp, China V emissions and Sinotruk transmission.

China V 400 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3316N256ME1
Drive type: 8X4
Wheelbase: 1950+2525+1350mm
engine: SinotrukMC11.40-50
transmission: SinotrukHW19712
Rear Axle Ratio: 4.8
Cab length: 8.837m
Cab width: 2.55m
Cab height: 3.46m
Front track width: 2041/2041mm
rear track: 1830/1830mm
Curb Weight: 15.5ton
Rated payload: 15.37ton
GVWR: 31ton
Origin: Jinan, Shandong
tonnage class: Heavy truck
Approach angle: 19°
departure angle: 23°
Remarks: HW50 PTO
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC11.40-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 10.518L
Emission standard: China V
Max output power: 294kW
Max hp: 400Horsepower
Max torque: 1900N·m
Max torque speed: 1000-1400rpm
Rated speed: 1900rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: SinotrukHW19712
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.8m
Cargo box width: 2.35m
Cargo box height: 1.5m
fuel tank
Fuel tank material: aluminum alloy
Chassis Specs
Front axle allowable load: 6500/7000kg
rear axle description: MAT16ZG
rear axle allowable load: 17500kg
Axle ratio: 4.8
Leaf spring count: 4/4/5,4/4/10,11/11/10,11/11/12,14/14/12
Tire
Tire Size: 12.00R20
Tire Type: Steel-belted tire
Number of tires: 12pcs
Control configuration
ABS:

Photos

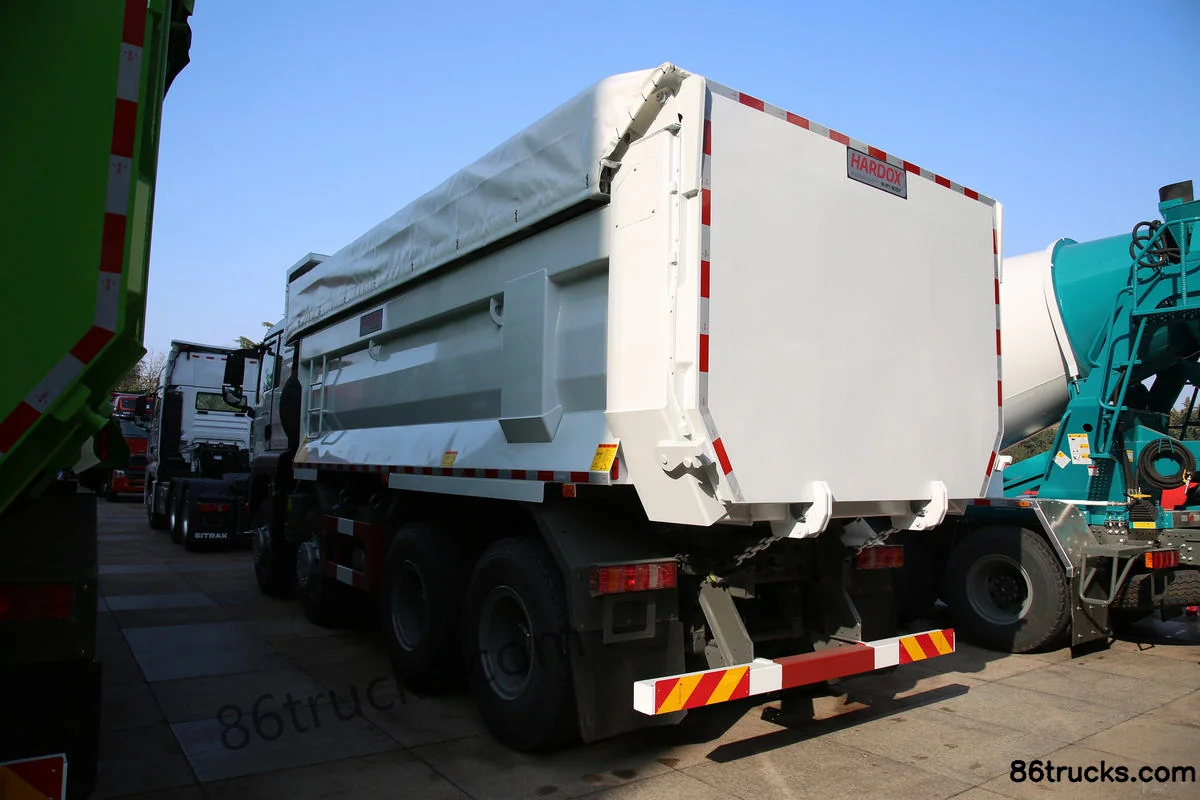

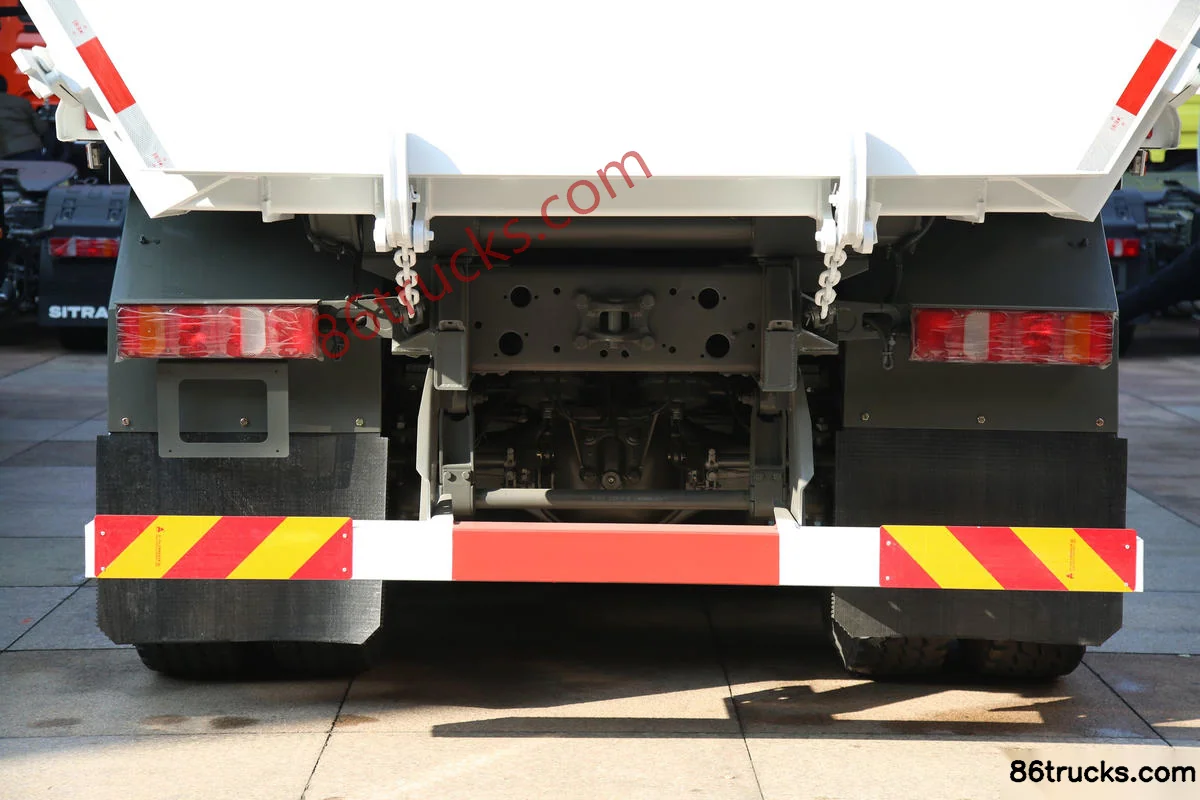

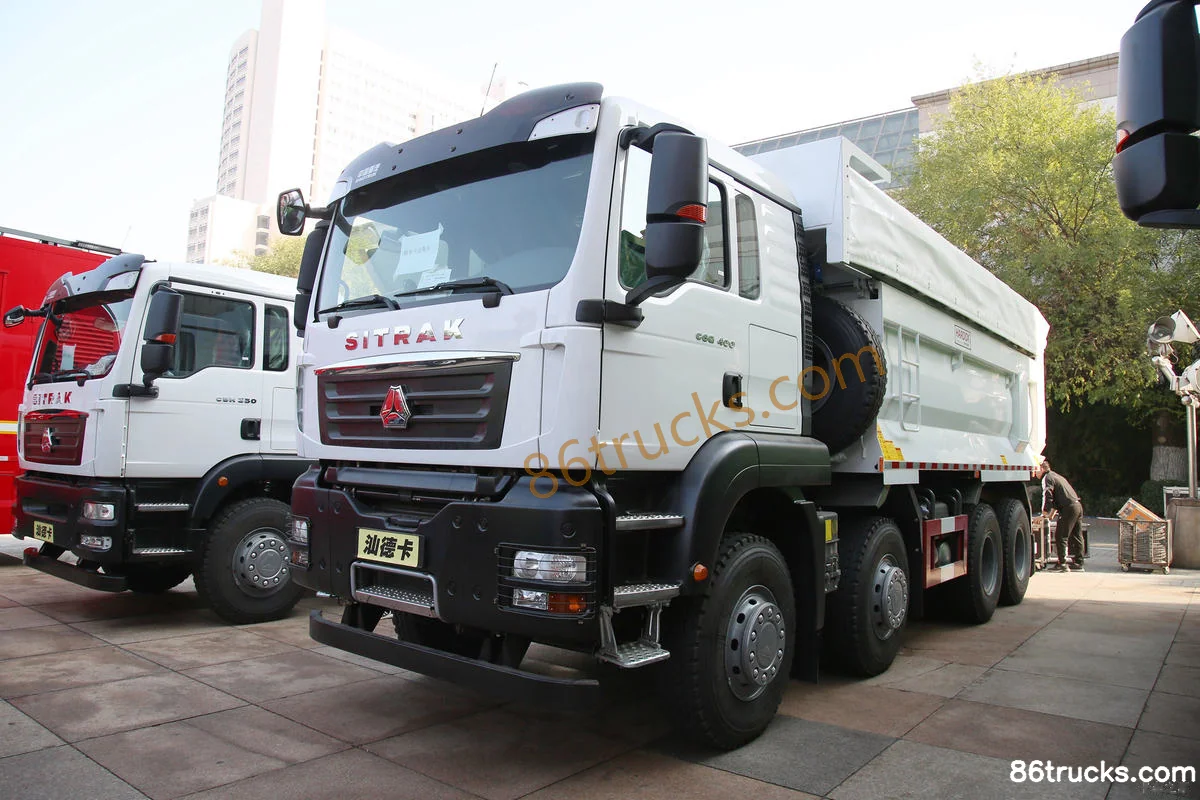

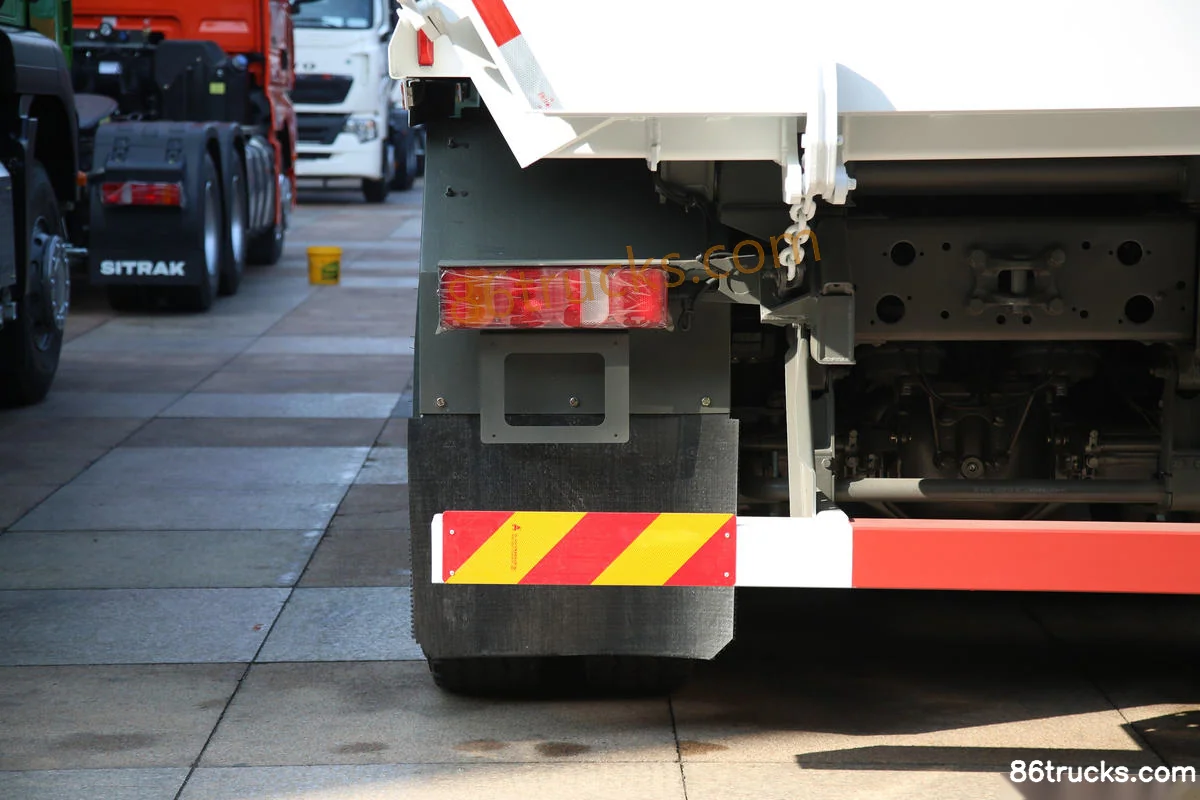

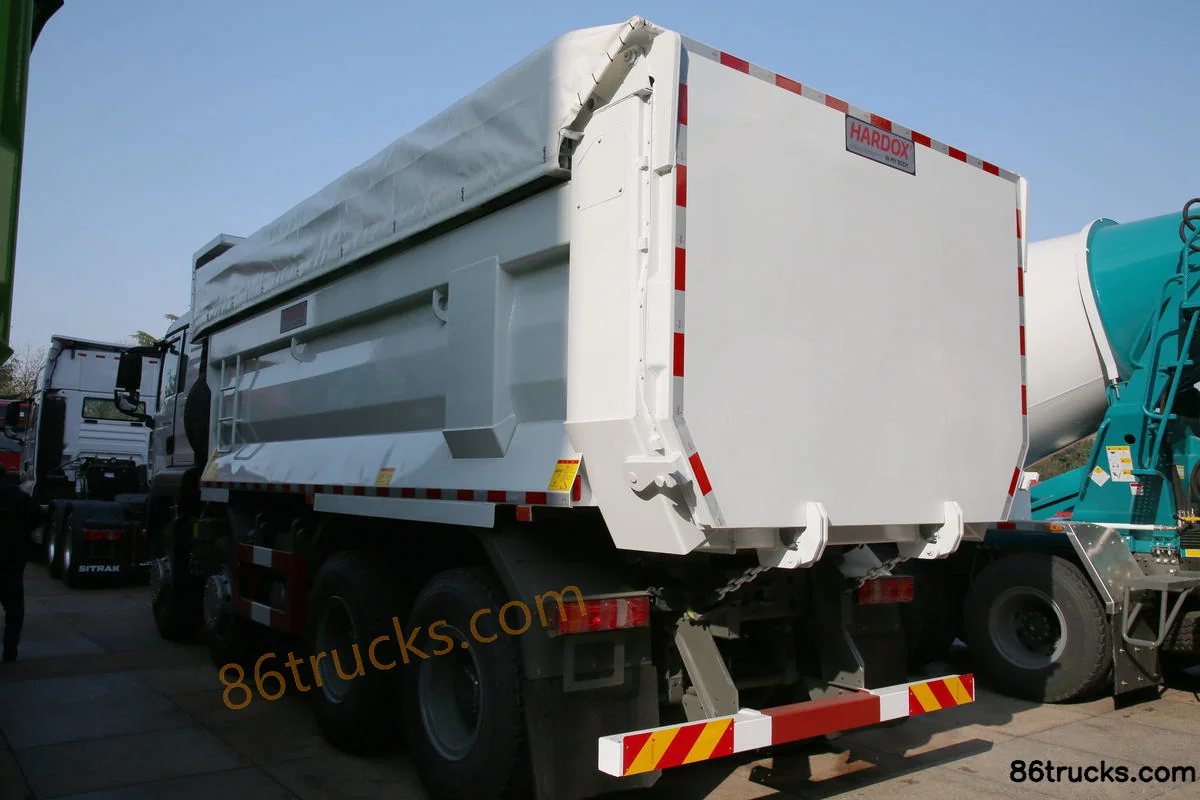

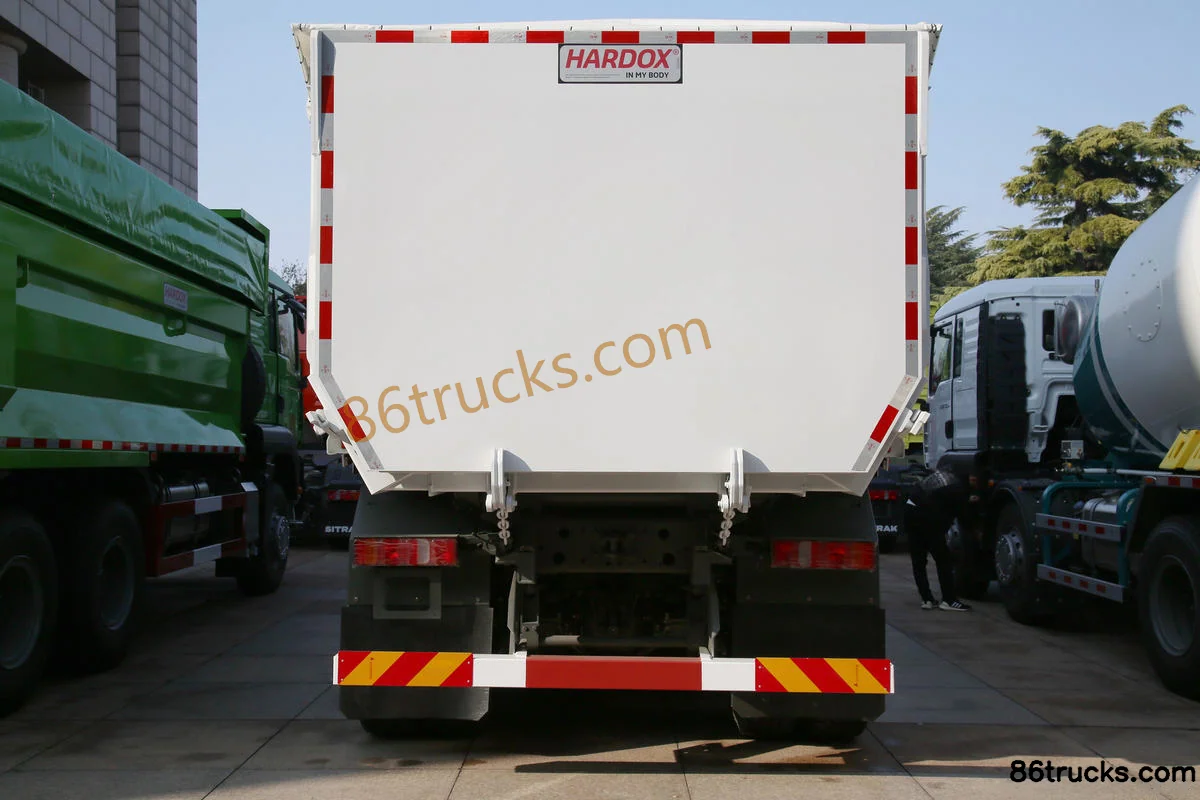

Exterior3

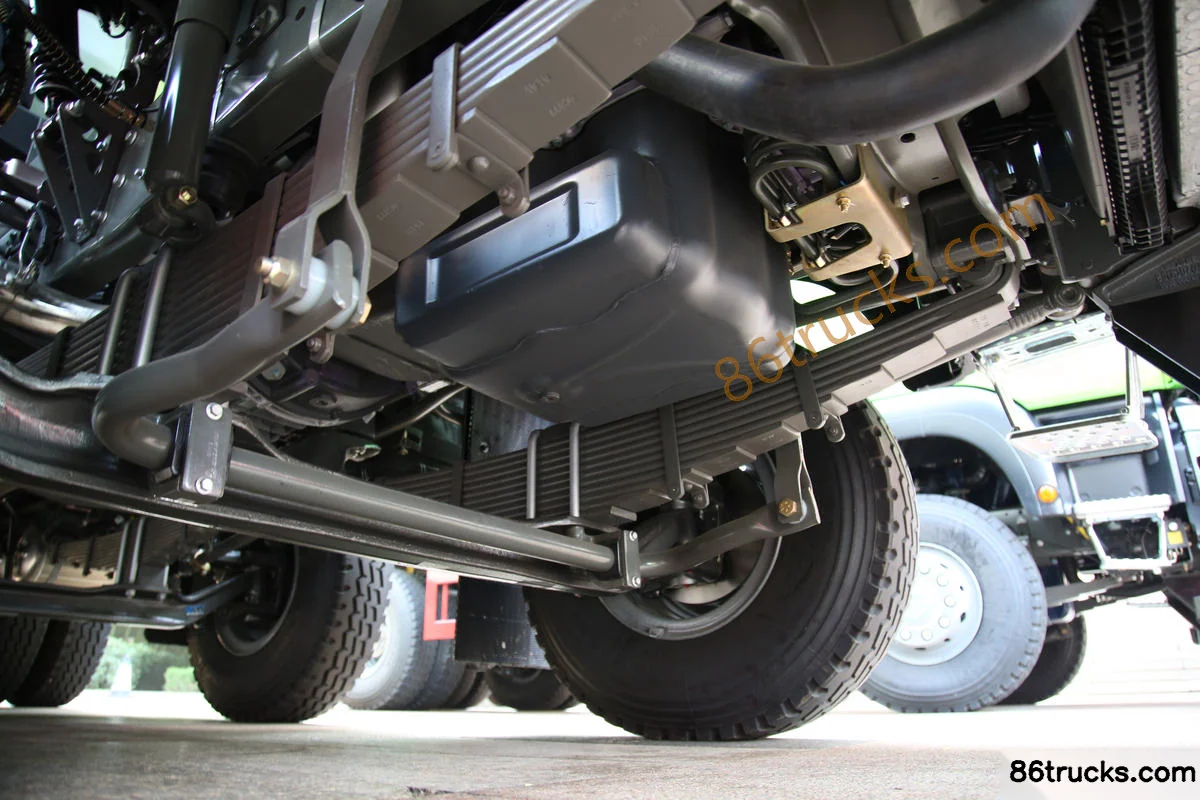

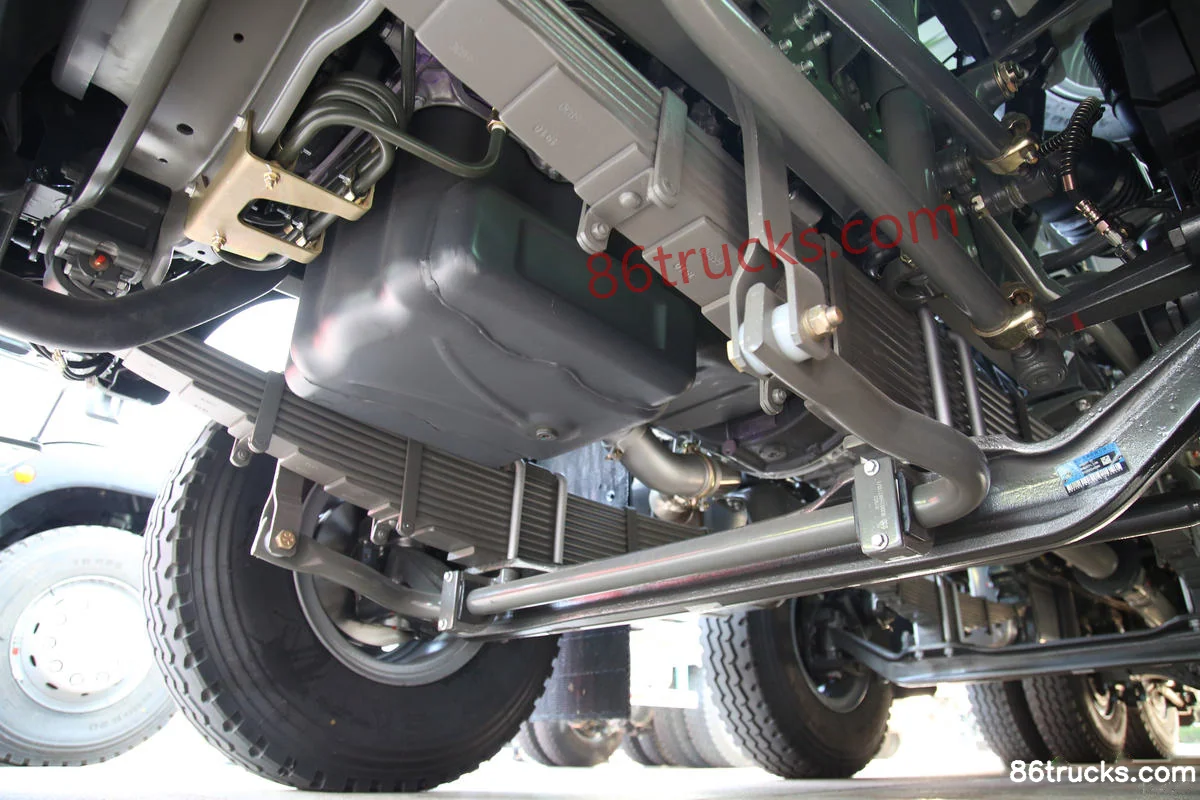

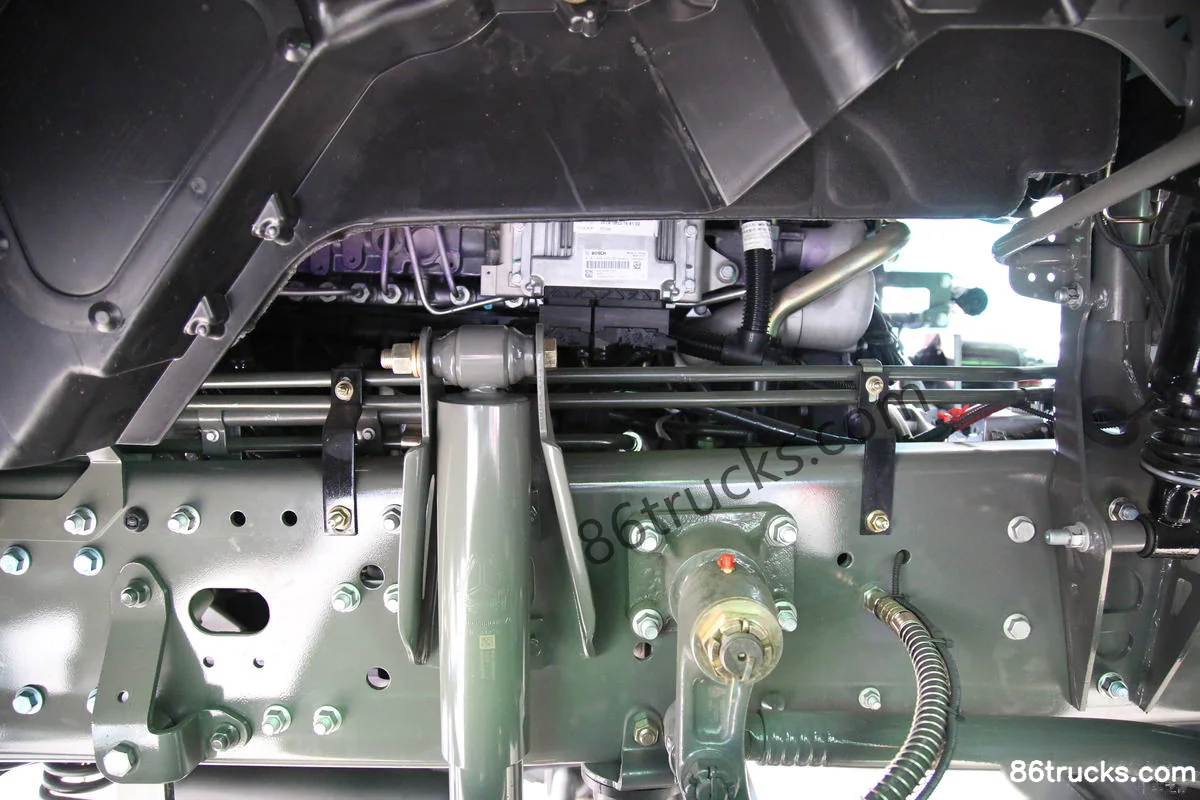

Chassis3

Chassis3

9 photos

FAQ

What emission standard does Sinotruk Sitrak SITRAK C6G Heavy Truck 400 hp 8X4(12 wheels) 5.8m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Sitrak SITRAK C6G Heavy Truck 400 hp 8X4(12 wheels) 5.8m Dump Truck?

Key specs of Sinotruk Sitrak SITRAK C6G Heavy Truck 400 hp 8X4(12 wheels) 5.8m Dump Truck: Drive: 8x4; Horsepower: 400 hp; Emission: China V; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Sitrak SITRAK C6G Heavy Truck 400 hp 8X4(12 wheels) 5.8m Dump Truck suited for?

Sinotruk Sitrak SITRAK C6G Heavy Truck 400 hp 8X4(12 wheels) 5.8m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Sitrak SITRAK C6G Heavy Truck 400 hp 8X4(12 wheels) 5.8m Dump Truck differ from other variants in the same series?

Sinotruk Sitrak SITRAK C6G Heavy Truck 400 hp 8X4(12 wheels) 5.8m Dump Truck belongs to SitrakSITRAK C6G (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Sitrak SITRAK C6G Heavy Truck 400 hp 8X4(12 wheels) 5.8m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Sitrak SITRAK C6G Heavy Truck 400 hp 8X4(12 wheels) 5.8m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
