NanJun Ruidi 82 hp 4X2(6 wheels) 2.8m dump truck

Export reference
From $9,583
MSRP ¥6.9M CNY
Emission: China V
Fuel: Diesel
Curb Weight:: 2.4ton
Wheelbase:: 2600mm
Number of tires:: 6pcs
Model code (announced):: NJA3040TD26V
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Horsepower 88
Cargo box type: Dump type

Overview

The NanJun Ruidi 82 hp 4X2(6 wheels) 2.8m dump truck is a mini truck featuring 1.495t payload, 2.4t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Quanchai4A2-88C50 engine, 88 hp, China V emissions and 5-speed transmission transmission.

China V 88 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJA3040TD26V
Drive type: 4X2
Wheelbase: 2600mm
engine: Quanchai4A2-88C50
transmission: 5-speed transmission
Rear Axle Ratio: 5.125
Cab length: 4.86m
Cab width: 1.82m
Cab height: 2.1m
Front track width: 1509mm
rear track: 1367mm
Curb Weight: 2.4ton
Rated payload: 1.495ton
GVWR: 2.4ton
Origin: Ziyang, Sichuan
tonnage class: mini truck
Approach angle: 19°
departure angle: 27°
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: Quanchai4A2-88C50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.27L
Emission standard: China V
Max output power: 65kW
Max hp: 88Horsepower
Max torque: 240N·m
Max torque speed: 2000rpm
Rated speed: 3200rpm
Transmission Parameters
Transmission Model: 5-speed transmission
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 2.8m
Cargo box width: 1.68m
Cargo box height: 0.4m
Chassis Specs
Front axle allowable load: 1440kg
rear axle description: 130
rear axle allowable load: 2585kg
Axle ratio: 5.125
Leaf spring count: 6/8+5
Tire
Number of tires: 6pcs
Control configuration
ABS:

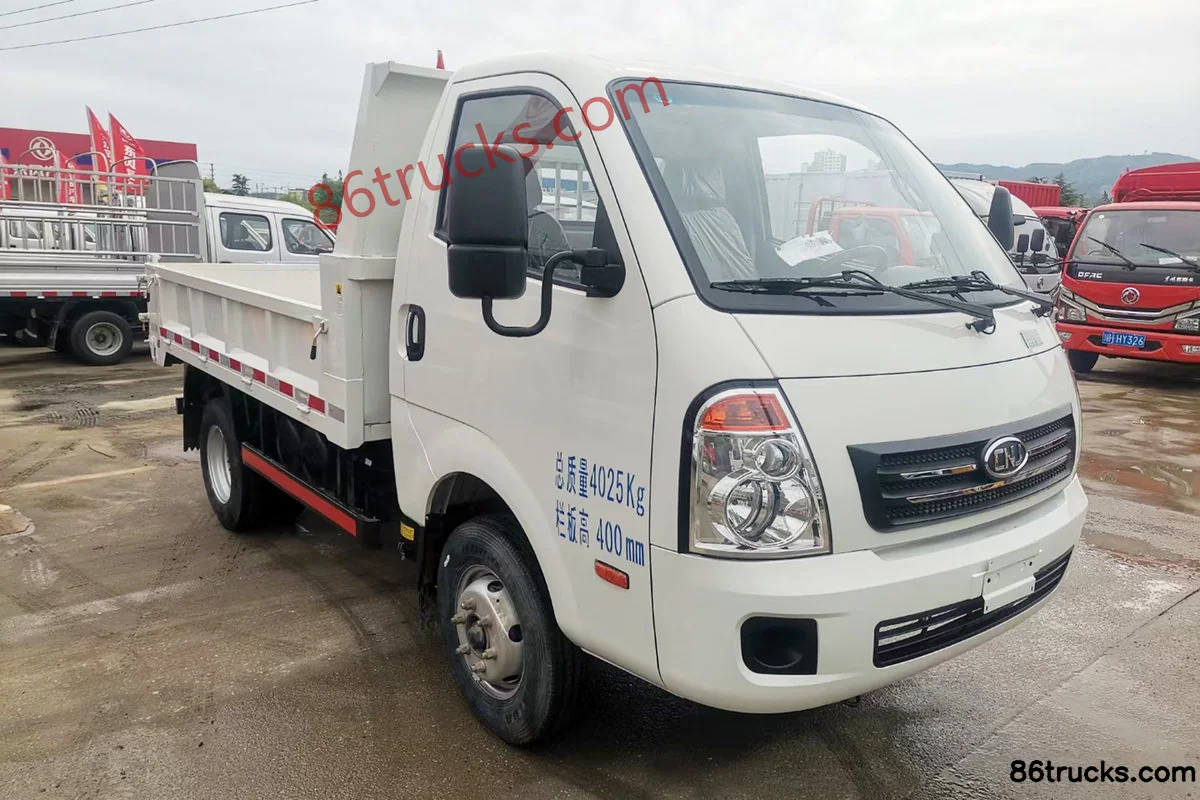

Photos

Exterior1

1 photos

FAQ

What is the export price of NanJun Ruidi 82 hp 4X2(6 wheels) 2.8m dump truck, and what does it include?

NanJun Ruidi 82 hp 4X2(6 wheels) 2.8m dump truck export reference is about From $9,583; MSRP is ¥6.9M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does NanJun Ruidi 82 hp 4X2(6 wheels) 2.8m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of NanJun Ruidi 82 hp 4X2(6 wheels) 2.8m dump truck?

Key specs of NanJun Ruidi 82 hp 4X2(6 wheels) 2.8m dump truck: Drive: 4x2; Horsepower: 88 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is NanJun Ruidi 82 hp 4X2(6 wheels) 2.8m dump truck suited for?

NanJun Ruidi 82 hp 4X2(6 wheels) 2.8m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does NanJun Ruidi 82 hp 4X2(6 wheels) 2.8m dump truck differ from other variants in the same series?

NanJun Ruidi 82 hp 4X2(6 wheels) 2.8m dump truck belongs to NanJun Ruidi Micro Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for NanJun Ruidi 82 hp 4X2(6 wheels) 2.8m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export NanJun Ruidi 82 hp 4X2(6 wheels) 2.8m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
