Dongfeng Liuqi Chenglong M5 310 hp 8X4(12 wheels) 7.6m Dump Truck
EXW
From $41,972
Export quote
Dongfeng M5 heavy truck Dump Trucks
Main model photos
532 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Liuqi Chenglong M5 310 hp 8X4(12 wheels) 7.6m Dump Truck | 8x4 / 310hp / China V | From $41,972 | |
| Dongfeng Liuqi Chenglong M5 350 hp 6X4(10 wheels) 6m Dump Truck | 6x4 / 350hp / China IV | From $49,167 | |
| Dongfeng Liuqi Chenglong M5 350 hp 6X4(10 wheels) 5.6m dump truck | 6x4 / 350hp / China IV | ||
| Dongfeng Liuqi Chenglong M5 385 hp 6X4(10 wheels) 6m Dump Truck | 6x4 / 385hp / China IV | From $50,528 | |
| Dongfeng Liuqi Chenglong M5 385hp 6X4(10 wheels) 5.6m Dump Truck | 6x4 / 385hp / China IV | From $44,444 |

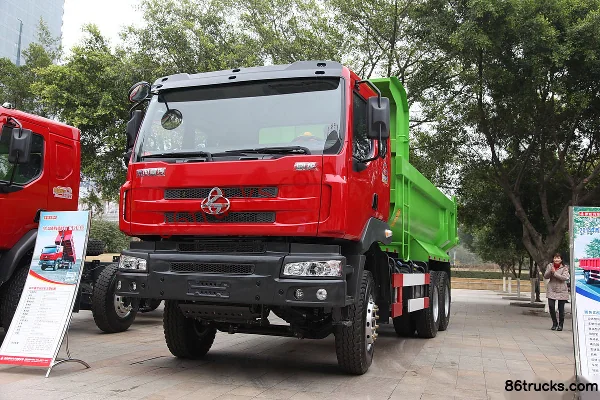

Dongfeng Liuqi Chenglong M5 350 hp 6X4(10 wheels) 6m Dump Truck
EXW
From $49,167
Export quote
Dongfeng Liuqi Chenglong M5 350 hp 6X4(10 wheels) 5.6m dump truck
EXW
Export quote
Dongfeng Liuqi Chenglong M5 385 hp 6X4(10 wheels) 6m Dump Truck
EXW
From $50,528
Export quote
Dongfeng Liuqi Chenglong M5 385hp 6X4(10 wheels) 5.6m Dump Truck
EXW
From $44,444
Export quote
Series Specs
Basic Info
Model code (announced): LZ3312M5FB / LZ3254M5DA / LZ3251QDJA / LZ3252M5DA2 / LZ3252M5DA5 / LZ3259M5DA / LZ3310QELA / LZ3310QEKA / LZ3310QEHA / LZ3318M5FA / LZ3315QEHA / LZ3122M3AA / LZ3250M5DA / LZ3254M5DA2 / LZ3317M5FA / LZ3252PDJ / LZ3258M5DA / LZ3310M5FA / LZ3311M5FA / LZ3315M5FA / LZ3250QDLA / LZ3252QDJA / LZ3256M5DA / LZ3255M5DA / LZ3160RALA / LZ3311QEL / LZ3301QEK / LZ3242QEK / LZ3313QEH / LZ3310QEL
Drive type: 8X4 / 6X4 / 4X2
Wheelbase: 1950+3750+1350 / 4050+1350 / 3800+1350 / 1800+4660+1350 / 1800+4260+1350 / 1950+3050+1300 / 1800+3200+1350 / 1800+3900+1350 / 4800 / 4825+1450 / 4500+1350 / 3800+1450 / 3650+1450 / 1800+3500+1350 / 1800+3500+1300 / 4500+1450 / 4000+1450 / 1800+4200+1350 / 1800+4425+1350mm
Engine Model: WeichaiWP10.310E53 / YuchaiYC6MK350-40 / YuchaiYC6MK385-40 / WeichaiWP10.310E41 / WeichaiWP12.375E40 / WeichaiWP10.336E40 / YuchaiYC6MK320-40 / YuchaiYC6A270-46 / WeichaiWP10.300E40 / WeichaiWP10.336E41 / WeichaiWP10.290E32 / WeichaiWP10.336E41(336PS) / YuchaiYC6MK350-42(350PS) / WeichaiWP10.310E40 / YuchaiYC6MK300-40 / YuchaiYC6A270-46(270PS) / YuchaiYC6MK320-42(320PS) / WeichaiWP10.310E41(310PS) / YuchaiYC6A240-46 / WeichaiWP10.340E32 / WeichaiWP12.375N / YuchaiYC6M340-33
Transmission Model: Fast Gear10JSD160B / Fast Gear12JSD160T / Fast Gear10JSD160 / Fast Gear12JSD180T / Fast Gear10JSD120 / Fast Gear12JSD160TA / Fast Gear9JS119 / Fast Gear10JSD120B / Fast Gear 10JSD160 Transmission / Fast Gear
Rear Axle Ratio: 5.286 / 5.262 / 5.45 / 5.73 / 4.875 / 5.143
Cab length: 10.66 / 8.862 / 8.512 / 9.615 / 8.445 / 8.412 / 11.622 / 10.872 / 10.642 / 7.995 / 9.687 / 9.662 / 8.557 / 8.362 / 11.112 / 10.362 / 9.862 / 9.987 / 9.562 / 8.712 / 6.2 / 10 / 11.995 / 11.672m
Cab width: 2.495m
Cab height: 3.45 / 3.52 / 3.27 / 3.15 / 3.58 / 3.3 / 3.5 / 3.6m
Front track width: 2060/2060 / 2045 / 2010/2010 / 2046 / 2045/2010 / 2020/2020 / 2030 / 2045/2045 / 2060 / 1988 / 2030/2030 / 2020mm
rear track: 1860/1860 / 1860 / 1874/1874 / 1860/1860，1874/1874 / 1860/1860,1874/1874 / 1847mm
Curb Weight: 15.475 / 12 / 11.9 / 12.5 / 14.77 / 14.72 / 6.695 / 12.07 / 24.9 / 7.99 / 14.88 / 14.99 / 12.03 / 14.8 / 14.82ton
Rated payload: 15.395 / 12.87 / 12.95 / 12.37 / 16.1 / 16.05 / 16 / 4.99 / 12.8 / 12.53 / 14.77 / 12.85 / 7.8 / 15.7 / 15.95 / 14.9 / 9.98 / 15.9ton
GVWR: 31 / 25 / 24.98 / 30.9 / 11.88 / 24.9 / 15.985 / 30.7 / 30.98 / 30.02 / 24.06 / 30.88 / 30.85ton
Origin: Liuzhou, Guangxi
tonnage class: Heavy truck
Approach angle: 20 / 30 / 21 / 19.5 / 26 / 25°
departure angle: 17 / 22 / 16 / 19.5 / 19 / 15 / 20 / 34 / 12 / 18°
Remarks: ZF steering gear, mechanical full-floating cab, electric-hydraulic tilt, Zhongben drive shaft, large connecting plate, European swirl dual-channel intake pipe, desert air filter, water separator heater, 1530mm long front leaf spring, laminated glass, WABCO valves (air processing unit, parking hand control valve, brake master cylinder) / Mechanical full-floating cab suspension, manual hydraulic tilt, M7 adjustable-height air-suspension driver seat, double U-bolts, Mercedes driveline, large connecting plate, European-style swirl dual-channel intake pipe, desert air filter, thickened steel rims, extended front leaf springs, front stabilizer bar, laminated glass, WABCO valves (air treatment unit, parking hand control valve, brake master cylinder), ABS, onboard terminal (tachograph + compatible with BeiDou/GPS), automatic A/C, electric windows / Frame: 306(8+8); mechanical full-floating cab suspension, manual hydraulic tilt, mechanical damping driver seat, European swirl dual-channel intake pipe, laminated glass, desert air filter, WABCO valves (air processing unit, parking hand control valve, brake master cylinder), reinforced leaf springs, 8.5-inch thickened steel wheels, AC, Steyr driveshaft, ABS, onboard terminal (tachograph + compatible with BeiDou GPS) / Mechanical full-floating cab suspension, manual hydraulic tilt, M7 adjustable-height air-suspension driver seat, double U-bolts, Mercedes driveline, extended large connecting plate, European-style swirl dual-channel intake pipe, desert air filter, thickened steel rims, laminated glass, no spare tire carrier, WABCO valves (air treatment unit, parking hand control valve, brake master cylinder), ABS, onboard terminal (tachograph + compatible with BeiDou/GPS) / Preferred heavy truck for weight-based tolling
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai / Yuchai
Number of cylinders: 6cylinder
Displacement: 9.726 / 10.338 / 11.596 / 7.255 / 7.225 / 10.388 / 8.4 / 9.839L
Emission standard: China V / China IV / China III / Euro III
Max output power: 228 / 258 / 285 / 276 / 247 / 236 / 199 / 221 / 213 / 177 / 250kW
Max hp: 310 / 350 / 385 / 375 / 336 / 320 / 270 / 300 / 290 / 240 / 340Horsepower
Max torque: 1500 / 1600 / 1800 / 1180 / 1000 / 1390 / 1300 / 1160 / 900 / 1250 / 1460N·m
Max torque speed: 1200-1500 / 1100-1500 / 1200-1600 / 1000-1400 / 1300-1600 / 1200-1700 / 1400-1600rpm
Rated speed: 1900 / 2200 / 2300 / 2100rpm
Engine Type: Inline 6-cylinder, electronically controlled high-pressure common rail + SCR / High-pressure common rail / Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled, electronic high-pressure common rail + SCR / Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled / Vertical, inline, water-cooled, four-stroke, electronically controlled direct injection / Electronic high-pressure common rail + SCR / BOSCH high-pressure common rail SCR / Water-cooled, 4-stroke, with exhaust brake, direct injection, turbocharged intercooled / Vertical, inline 6-cylinder, water-cooled, 4-stroke
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10 / 12 / 9Gear
Number of Reverse Gears: 2 / 1pcs
Cargo box parameters
Unloading Type: Dump type / Rear-dump body
Cargo box length: 7.6 / 6 / 5.6 / 8.6 / 8 / 7 / 7.2 / 6.8 / 5.8 / 7.8 / 8.2 / 5.4 / 9.4 / 8.5m
Cargo box width: 2.3 / 2.296m
Cargo box height: 1.07 / 1.13 / 1.2 / 1.16 / 1 / 1.04 / 1.11 / 0.8 / 1.1 / 0.95 / 1.15 / 1.09 / 0.9 / 0.97 / 1.03m
Cab parameters
Cab: M51S Cab
Cab suspension: Four-point air suspension
FAQ
What kind of truck is Dongfeng Dongfeng M5 heavy truck Dump Trucks?
Dongfeng Dongfeng M5 heavy truck is an export-oriented Dump Trucks lineup with about 68 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Dongfeng M5 heavy truck Dump Trucks?
Dongfeng M5 heavy truck Dump Trucks export reference is about $28,583 – $55,556. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Dongfeng M5 heavy truck Dump Trucks cover?
Dongfeng M5 heavy truck Dump Trucks mainly covers: Drive: 6x4 / 8x4; Horsepower: 310 hp / 350 hp / 385 hp; Emission: China IV / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dongfeng M5 heavy truck Dump Trucks?
For Dongfeng M5 heavy truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Dongfeng M5 heavy truck Dump Trucks include?
Dongfeng M5 heavy truck Dump Trucks currently lists about 68 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dongfeng M5 heavy truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
