Dongfeng Liuqi Chenglong M5 310 hp 6X4(10 wheels) 5.6m Dump Truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 12.5ton
Wheelbase:: 3800+1350mm
Tire Size:: 11.00R20
Dongfeng Liuqi Chenglong M5 310 hp 6X4(10 wheels) 5.6m Dump Truck exterior
View more photos (12)
Rated payload: 12.37ton
Drive 6X4 (10 wheels)
Horsepower 310
Cargo box type: Rear-dump body

Overview

The Dongfeng Liuqi Chenglong M5 310 hp 6X4(10 wheels) 5.6m Dump Truck is a Heavy truck featuring 12.37t payload, 25t GVW, Rear-dump body cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP10.310E41 engine, 310 hp, China IV emissions and Fast Gear transmission.

China IV 310 Diesel 6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): LZ3259M5DA
Drive type: 6X4
Wheelbase: 3800+1350mm
engine: WeichaiWP10.310E41
transmission: Fast Gear10JSD120
Rear Axle Ratio: 5.262
Cab length: 8.412m
Cab width: 2.495m
Cab height: 3.27m
Front track width: 2045mm
rear track: 1860/1860mm
Curb Weight: 12.5ton
Rated payload: 12.37ton
GVWR: 25ton
Origin: Liuzhou, Guangxi
tonnage class: Heavy truck
Approach angle: 20°
departure angle: 19°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.310E41
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China IV
Max output power: 228kW
Max hp: 310Horsepower
Max torque: 1180N·m
Max torque speed: 1200-1600rpm
Rated speed: 2200rpm
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled, electronic high-pressure common rail + SCR
Transmission Parameters
Transmission Model: Fast Gear10JSD120
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.6m
Cargo box width: 2.3m
Cargo box height: 1.16m
fuel tank
Fuel tank capacity: 250L
Chassis Specs
rear axle description: 2x16T Balong 300 stamped-welded
rear axle allowable load: 18000 (twin axle)kg
Axle ratio: 5.262
Leaf spring count: 11/13
clutch: Φ430
Tire
Tire Size: 11.00R20
Number of tires: 10pcs

Photos

Exterior3

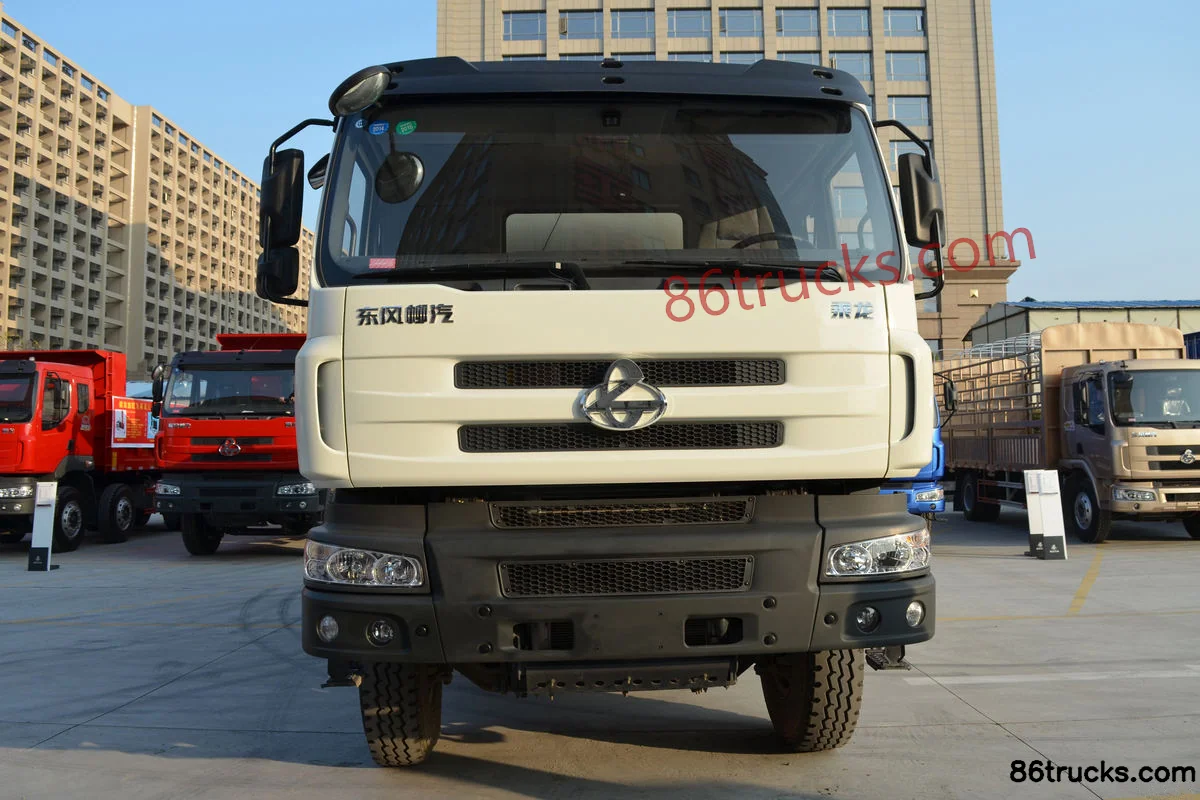

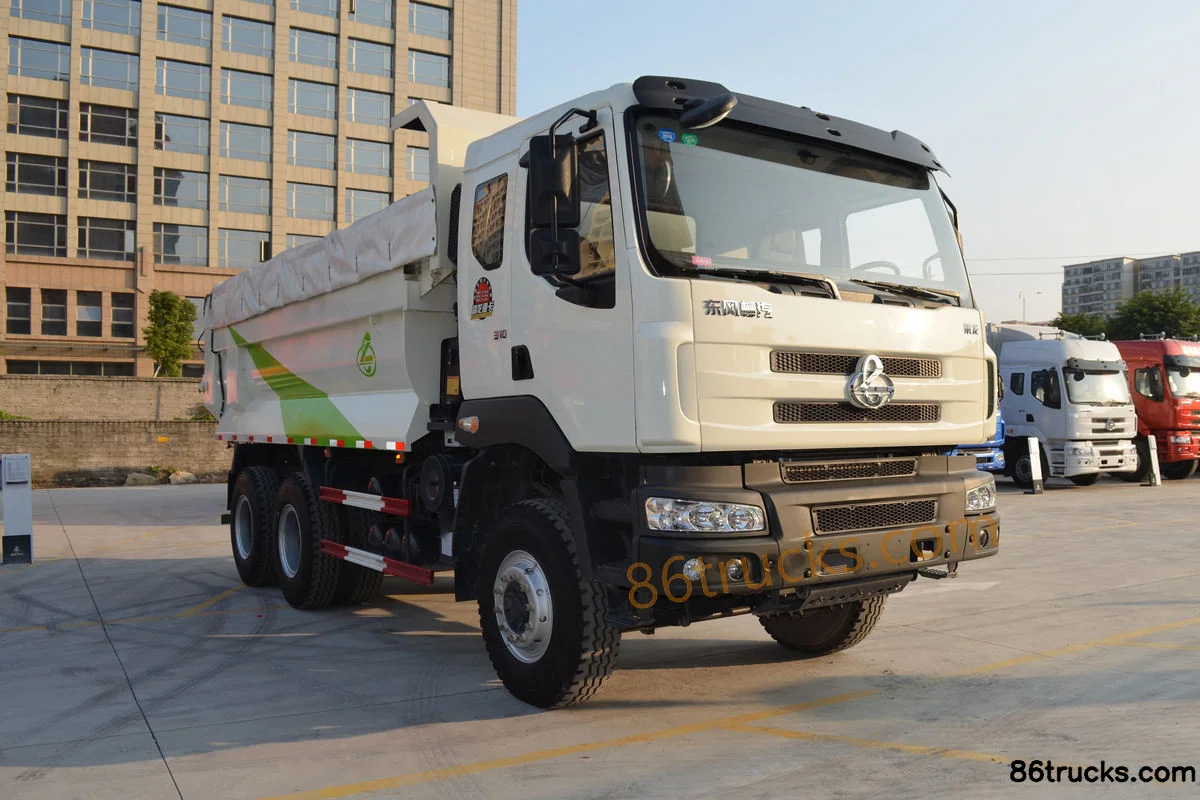

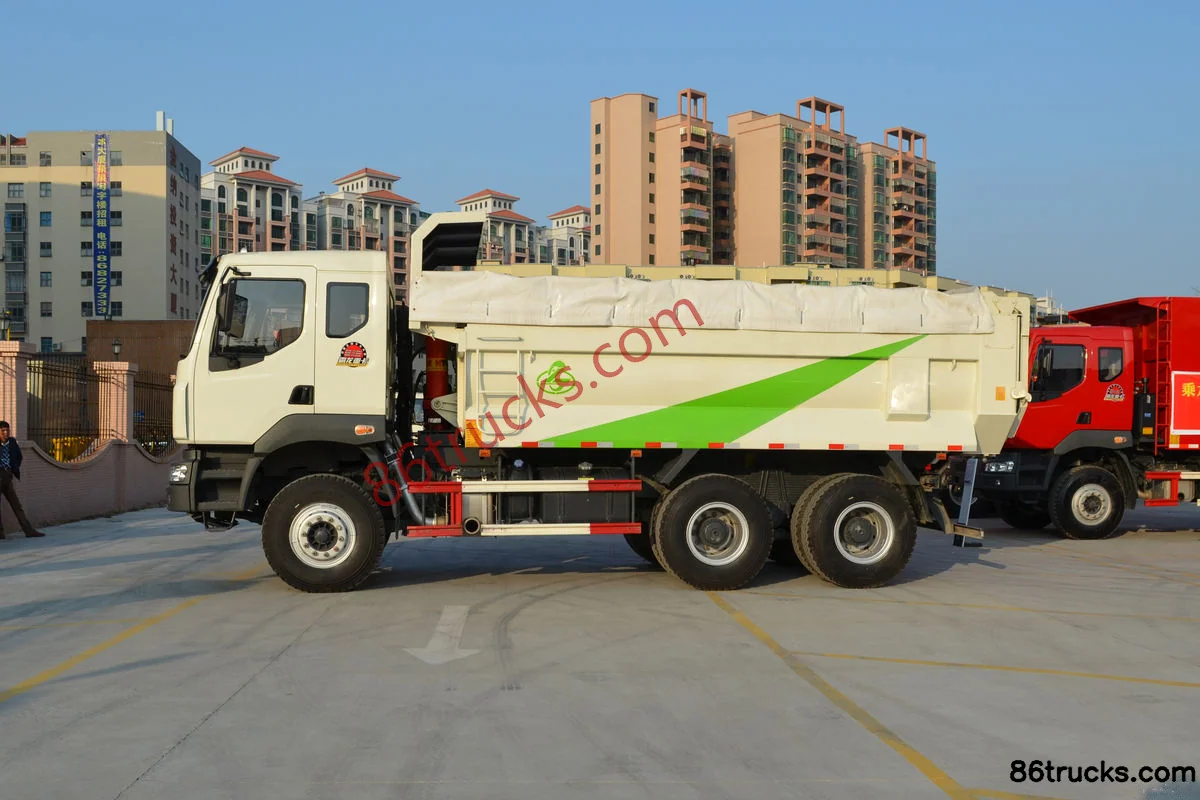

Dongfeng Liuqi Chenglong M5 310 hp 6X4(10 wheels) 5.6m Dump Truck Exterior (1) | 86Trucks Dongfeng Liuqi Chenglong M5 310 hp 6X4(10 wheels) 5.6m Dump Truck Exterior (2) | 86Trucks Dongfeng Liuqi Chenglong M5 310 hp 6X4(10 wheels) 5.6m Dump Truck Exterior (3) | 86Trucks

Cab3

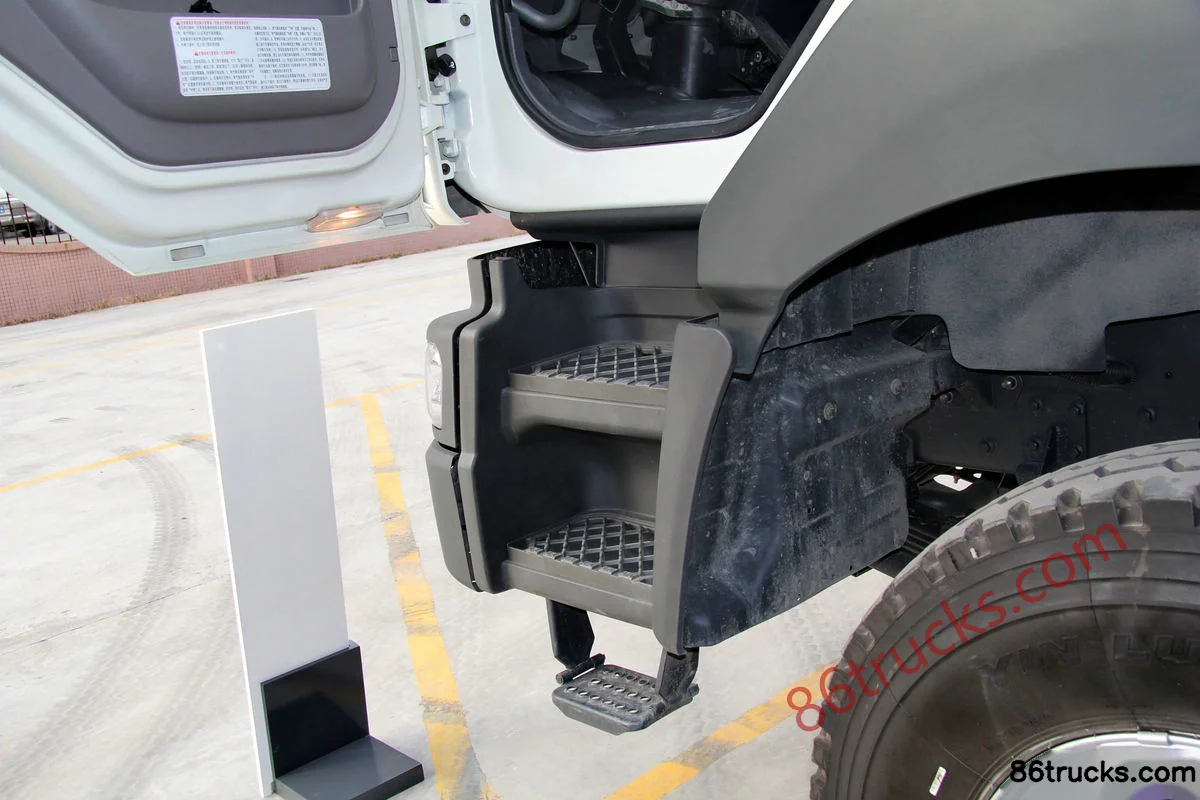

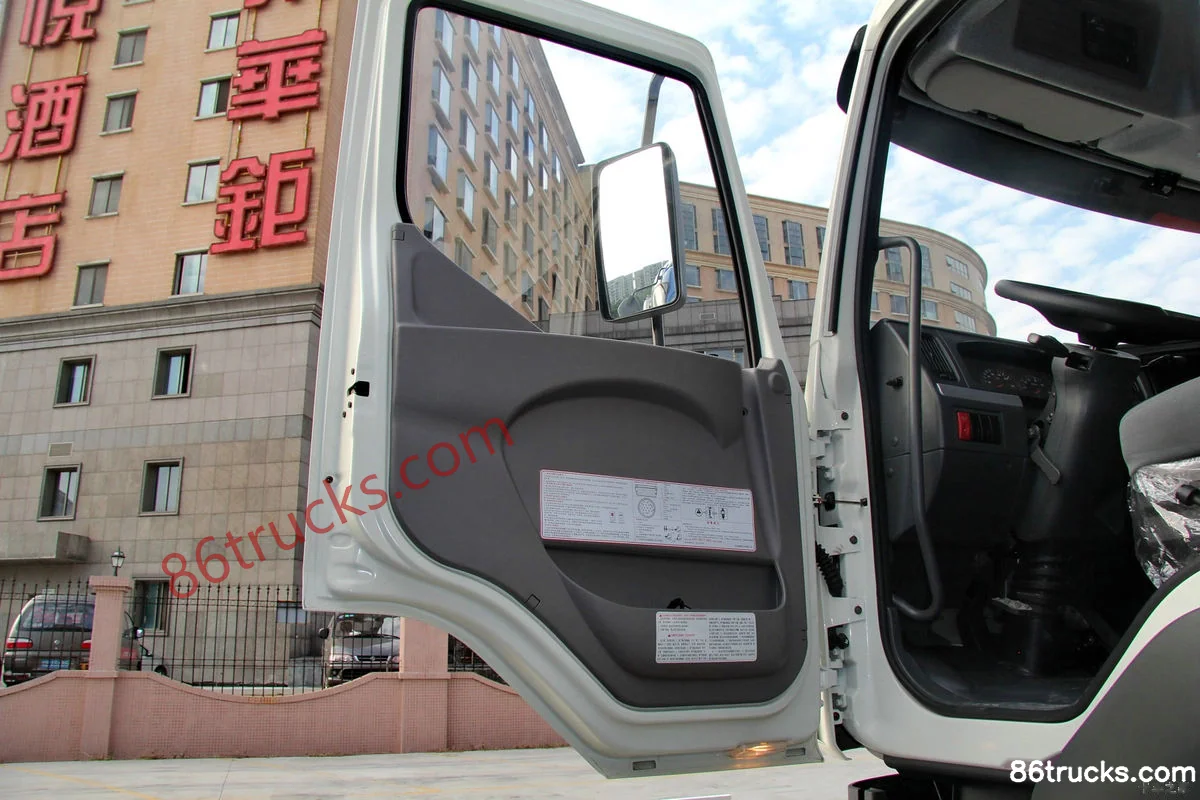

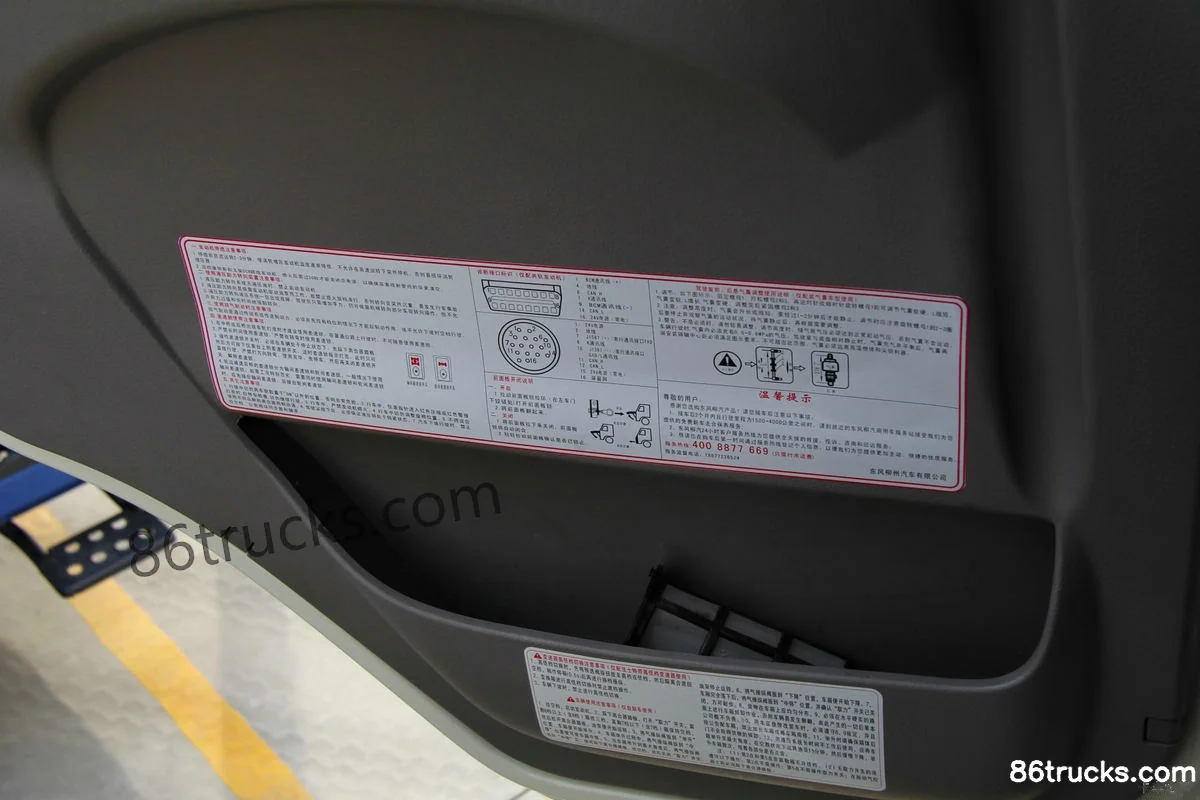

Dongfeng Liuqi Chenglong M5 310 hp 6X4(10 wheels) 5.6m Dump Truck Cab (1) | 86Trucks Dongfeng Liuqi Chenglong M5 310 hp 6X4(10 wheels) 5.6m Dump Truck Cab (2) | 86Trucks Dongfeng Liuqi Chenglong M5 310 hp 6X4(10 wheels) 5.6m Dump Truck Cab (3) | 86Trucks

Chassis3

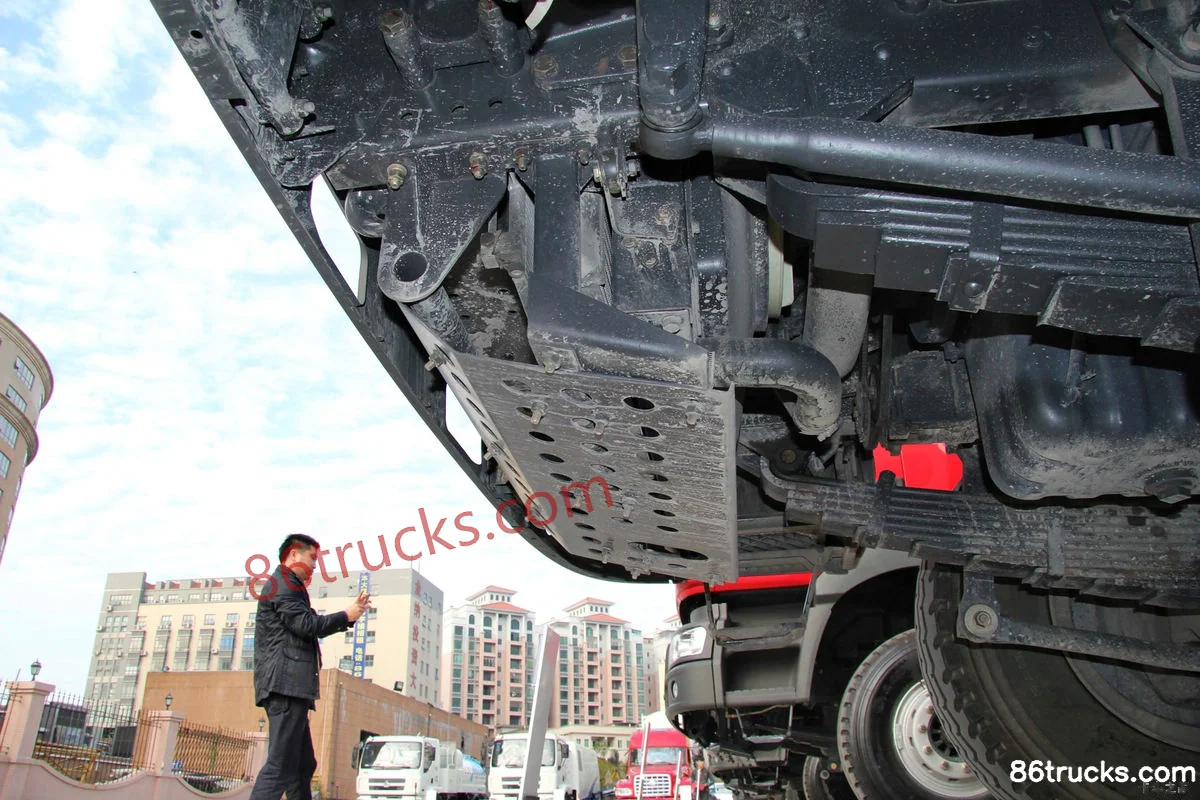

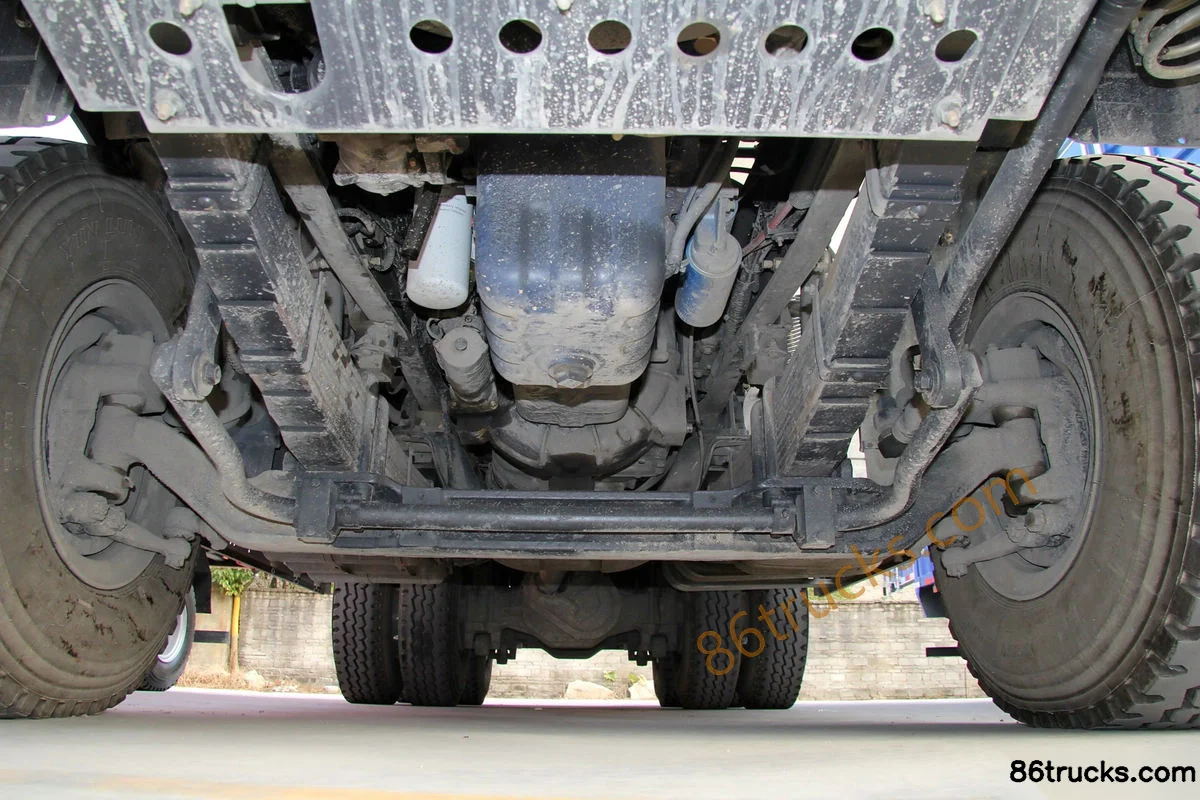

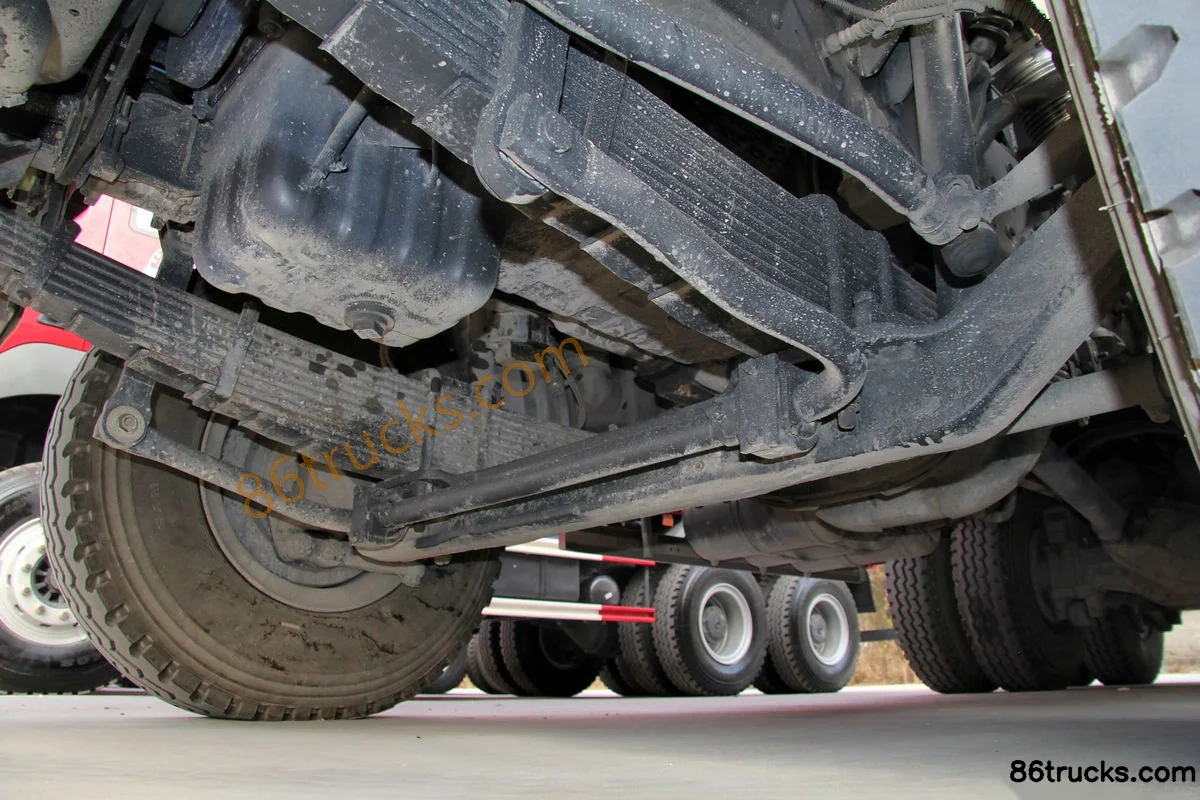

Dongfeng Liuqi Chenglong M5 310 hp 6X4(10 wheels) 5.6m Dump Truck Chassis (1) | 86Trucks Dongfeng Liuqi Chenglong M5 310 hp 6X4(10 wheels) 5.6m Dump Truck Chassis (2) | 86Trucks Dongfeng Liuqi Chenglong M5 310 hp 6X4(10 wheels) 5.6m Dump Truck Chassis (3) | 86Trucks

Body3

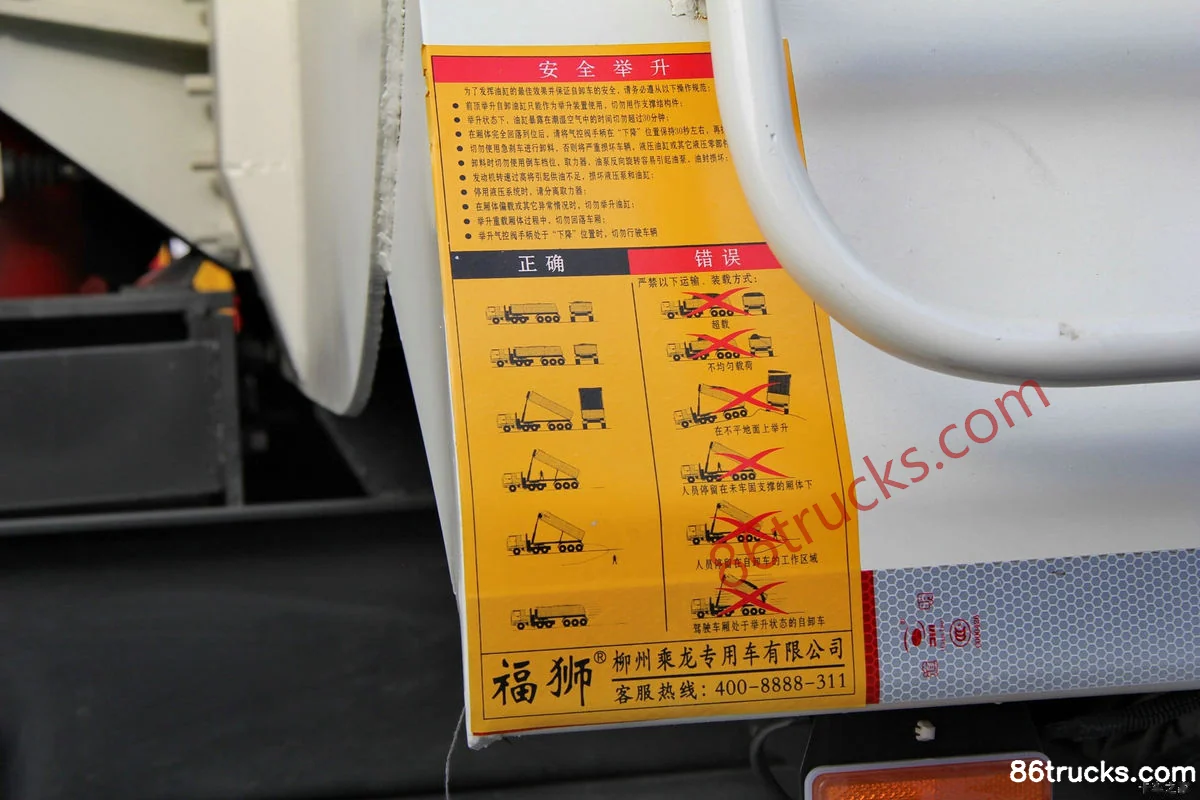

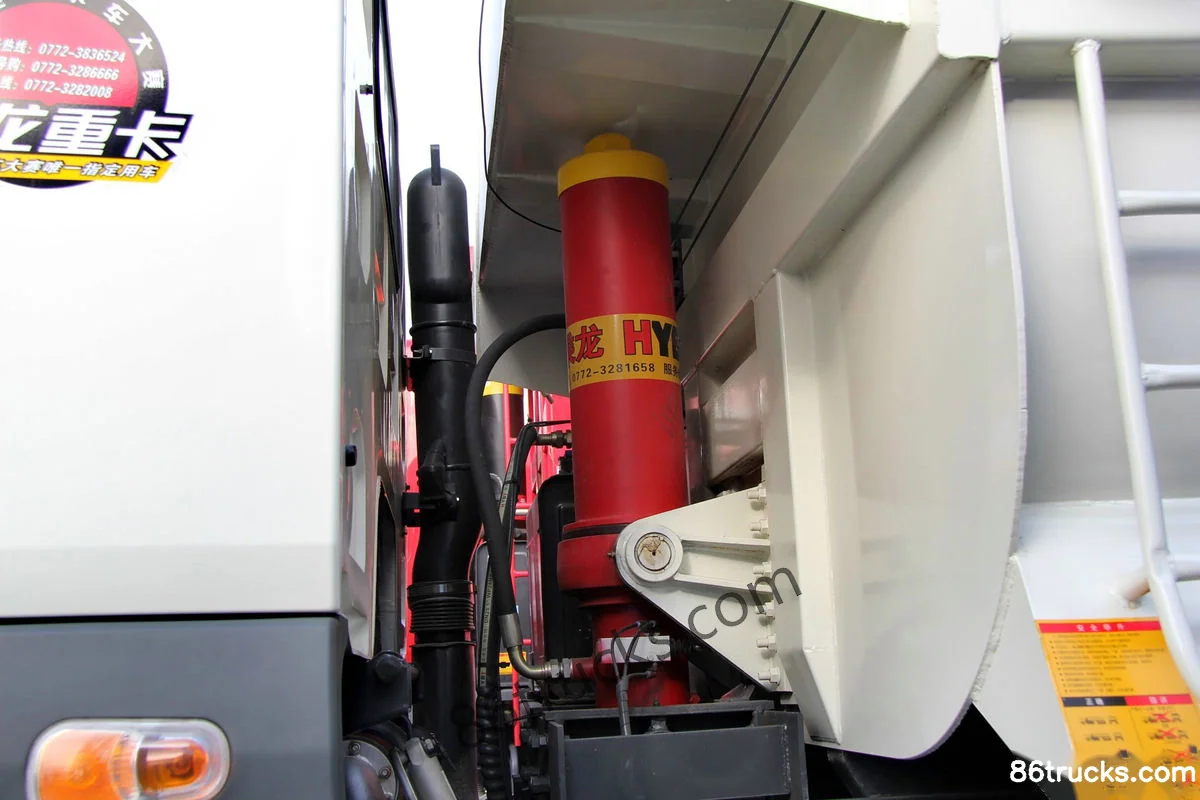

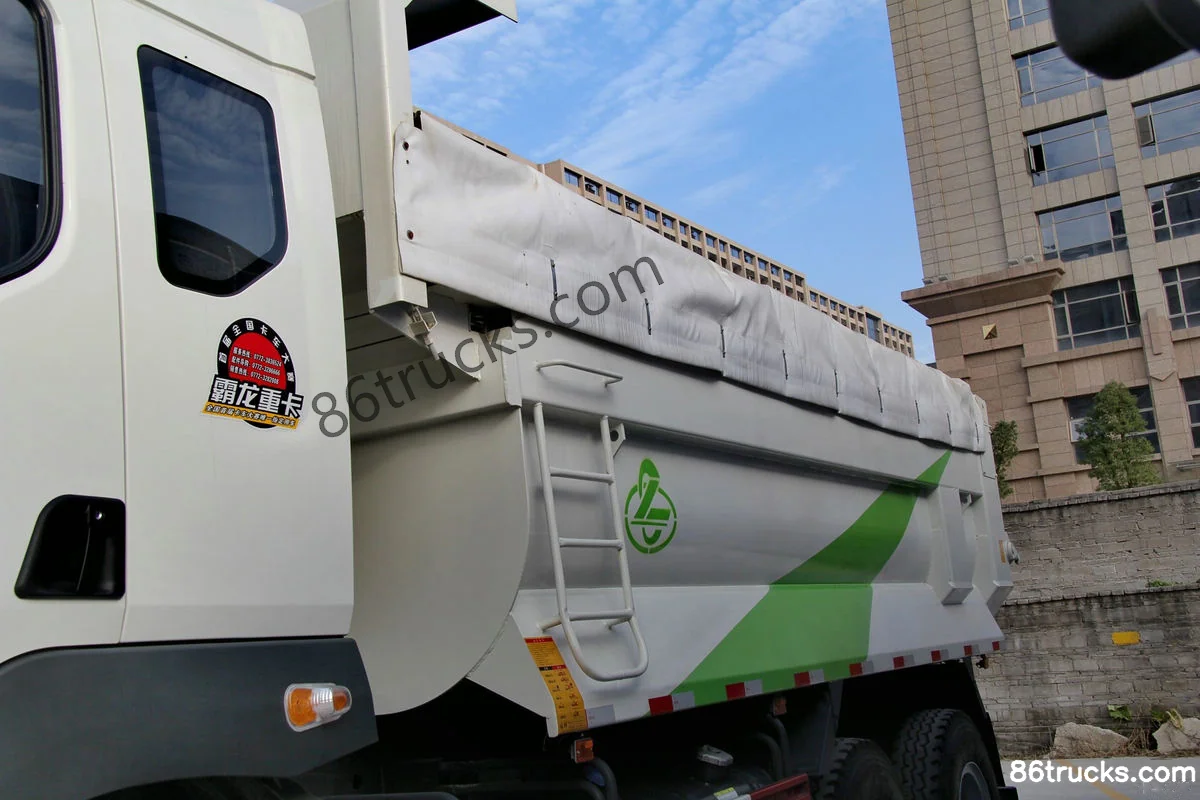

Dongfeng Liuqi Chenglong M5 310 hp 6X4(10 wheels) 5.6m Dump Truck Body (1) | 86Trucks Dongfeng Liuqi Chenglong M5 310 hp 6X4(10 wheels) 5.6m Dump Truck Body (2) | 86Trucks Dongfeng Liuqi Chenglong M5 310 hp 6X4(10 wheels) 5.6m Dump Truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Dongfeng Liuqi Chenglong M5 310 hp 6X4(10 wheels) 5.6m Dump Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi Chenglong M5 310 hp 6X4(10 wheels) 5.6m Dump Truck?

Key specs of Dongfeng Liuqi Chenglong M5 310 hp 6X4(10 wheels) 5.6m Dump Truck: Drive: 6x4; Horsepower: 310 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi Chenglong M5 310 hp 6X4(10 wheels) 5.6m Dump Truck suited for?

Dongfeng Liuqi Chenglong M5 310 hp 6X4(10 wheels) 5.6m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Liuqi Chenglong M5 310 hp 6X4(10 wheels) 5.6m Dump Truck differ from other variants in the same series?

Dongfeng Liuqi Chenglong M5 310 hp 6X4(10 wheels) 5.6m Dump Truck belongs to Dongfeng M5 heavy truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi Chenglong M5 310 hp 6X4(10 wheels) 5.6m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi Chenglong M5 310 hp 6X4(10 wheels) 5.6m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
