Sinotruk SITRAK C5H 350 hp 8X4(12 wheels) 7.58m³ Concrete Mixer Truck (Qingzhuan Brand)

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 13.72ton
Wheelbase:: 1800+3025+1400mm
Tire Size:: 11.00R20
Cab dimensions:: 10.15×2.525×3.999m
Truck Type:: Concrete mixer truck
Rated payload: 17.15ton
Drive 8X4 (12 wheels)
Horsepower 350
Emission China V

Overview

The Qingdao Heavy-Duty Truck (Qingzhuan) Sinotruk SITRAK C5H 350 hp 8X4(12 wheels) 7.58m³ Concrete Mixer Truck (Qingzhuan Brand) is a concrete mixer truck featuring 17.15t payload, 13.72ton GVW, 8X4 (12 wheels) drive and 10.15×2.525×3.999m cab. On the powertrain side, it comes with 350 hp, China V emissions and Diesel fuel.

China V 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.15×2.525×3.999m
Drive type: 8X4
Truck Type: Concrete mixer truck
Wheelbase: 1800+3025+1400mm
Vehicle origin: Qingdao, Shandong
Front/rear track width: Front: 2035/2035mm; Rear: 1850/1850
Curb Weight: 13.72ton
Rated payload: 17.15ton
Max. speed: 82km/h
Front/rear suspension: 1.43/2.52m
Body Parameters
Mixing drum capacity: 7.86m³
Vehicle certification code: QDZ5312GJBZDC5H30E1
Body Brand: Qingzhuan brand
Engine parameters
Engine Model: SinotrukMC07.35-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 254kW
Max hp: 350Horsepower
Rated speed: 2300rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke
Chassis Specs
Chassis Series: SITRAK C5H
Chassis Model: ZZ1316N306GE1
Leaf spring count: 11/11/10
Transmission Parameters
Number of gears: 9Gear
Transmission Model: 9-Speed
Tire
Tire Size: 11.00R20
Number of tires: 12pcs

Photos

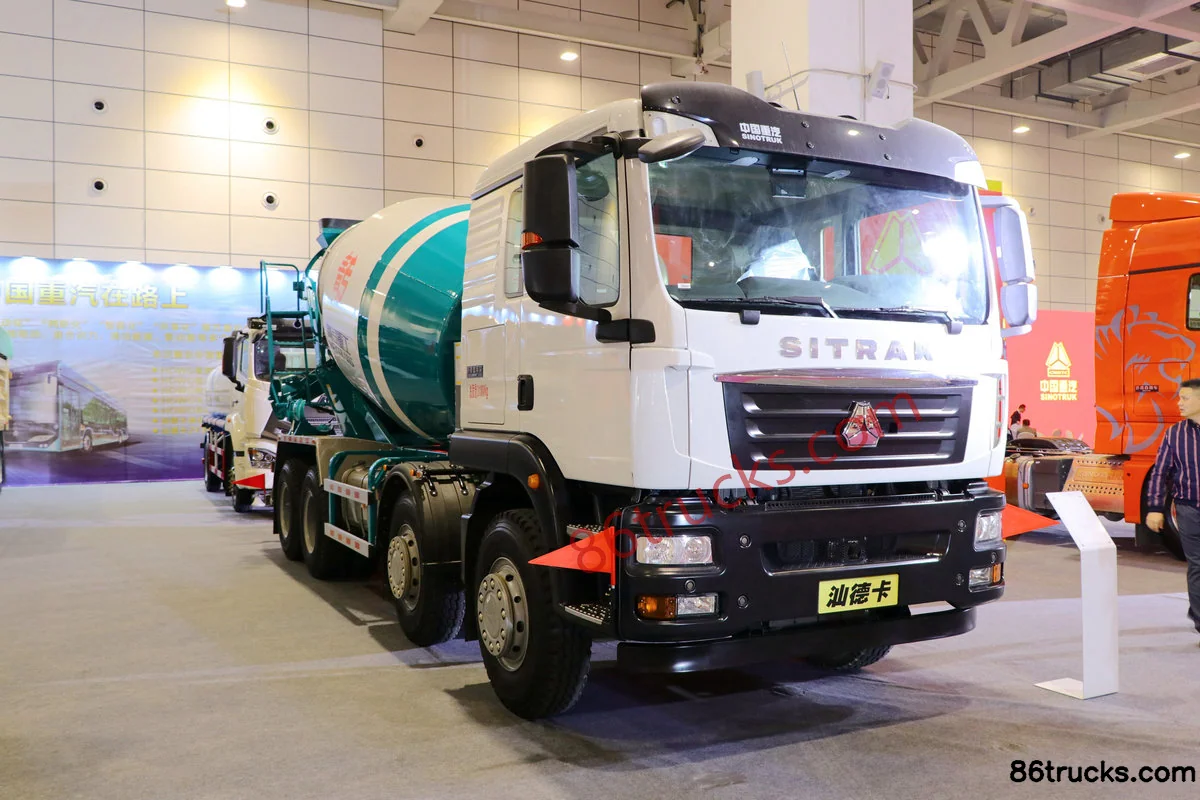

Exterior1

1 photos

FAQ

What emission standard does Sinotruk SITRAK C5H 350 hp 8X4(12 wheels) 7.58m³ Concrete Mixer Truck (Qingzhuan Brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk SITRAK C5H 350 hp 8X4(12 wheels) 7.58m³ Concrete Mixer Truck (Qingzhuan Brand)?

Key specs of Sinotruk SITRAK C5H 350 hp 8X4(12 wheels) 7.58m³ Concrete Mixer Truck (Qingzhuan Brand): Drive: 8x4; Horsepower: 350 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk SITRAK C5H 350 hp 8X4(12 wheels) 7.58m³ Concrete Mixer Truck (Qingzhuan Brand) suited for?

Sinotruk SITRAK C5H 350 hp 8X4(12 wheels) 7.58m³ Concrete Mixer Truck (Qingzhuan Brand) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk SITRAK C5H 350 hp 8X4(12 wheels) 7.58m³ Concrete Mixer Truck (Qingzhuan Brand) differ from other variants in the same series?

Sinotruk SITRAK C5H 350 hp 8X4(12 wheels) 7.58m³ Concrete Mixer Truck (Qingzhuan Brand) belongs to Qingdao Heavy-Duty Truck (Qingzhuan) Sitrak Chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk SITRAK C5H 350 hp 8X4(12 wheels) 7.58m³ Concrete Mixer Truck (Qingzhuan Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk SITRAK C5H 350 hp 8X4(12 wheels) 7.58m³ Concrete Mixer Truck (Qingzhuan Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
