GAC HINO 700 Series 350 hp 6X4(10 wheels) 4.7m³ Concrete Mixer Truck Chassis

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 14.3ton
Wheelbase:: 3640+1410mm
Tire Size:: 12R22.5,11.00R20,295/80R22.5
Cab dimensions:: 9.42×2.5×3.97m
Truck Type:: concrete mixer truck
Rated payload: 10.57ton
Drive 6X4 (10 wheels)
Horsepower 350
Emission China V

Overview

The GAC Leader GAC HINO 700 Series 350 hp 6X4(10 wheels) 4.7m³ Concrete Mixer Truck Chassis is a concrete mixer truck featuring 10.57t payload, 14.3ton GVW, 6X4 (10 wheels) drive and 9.42×2.5×3.97m cab. On the powertrain side, it comes with 350 hp, China V emissions and Diesel fuel.

China V 350 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.42×2.5×3.97m
Truck Type: concrete mixer truck
Drive type: 6X4
Wheelbase: 3640+1410mm
Front/rear track width: Front track: 2060mm; Rear track: 1855/1855mm
Curb Weight: 14.3ton
Rated payload: 10.57ton
Max. speed: 80km/h
Front/rear suspension: 1.46/1.59m
Body Parameters
Mixing drum capacity: 4.7m³
Body Brand: GAC HINO
Others: 280L iron fuel tank, cab four-point full floating, electro-hydraulic tiltable cab
Engine parameters
Engine Model: Shanghai HinoP11C-WC
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 10.52L
Emission standard: China V
Max output power: 259kW
Max hp: 350Horsepower
Rated speed: 1900rpm
Engine Type: SCR
Chassis Specs
Chassis Series: GAC HINO700 Series
Chassis Model: YC2250FS2PM5
Axle ratio: 4.875
Leaf spring count: 11/13,10/13
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast GearRT-11509C
Tire
Tire Size: 12R22.5,11.00R20,295/80R22.5
Number of tires: 10pcs

Photos

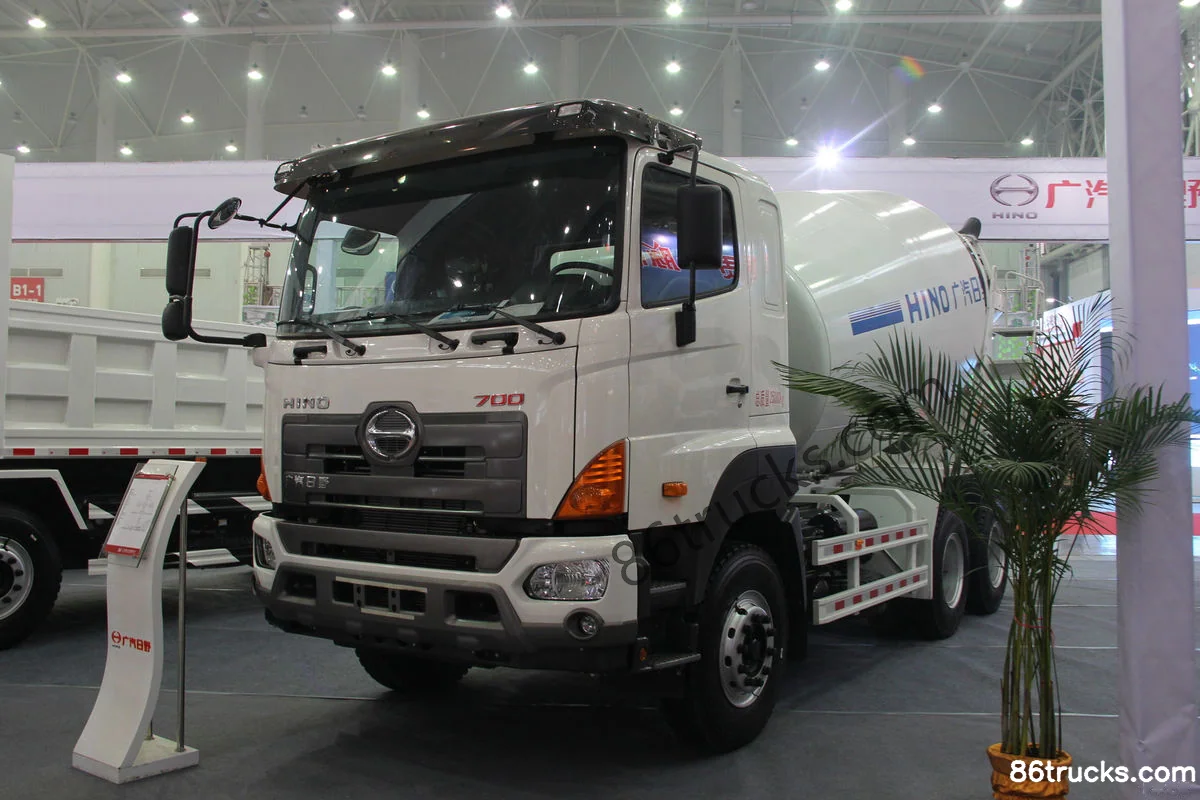

Exterior1

1 photos

FAQ

What emission standard does GAC HINO 700 Series 350 hp 6X4(10 wheels) 4.7m³ Concrete Mixer Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of GAC HINO 700 Series 350 hp 6X4(10 wheels) 4.7m³ Concrete Mixer Truck Chassis?

Key specs of GAC HINO 700 Series 350 hp 6X4(10 wheels) 4.7m³ Concrete Mixer Truck Chassis: Drive: 6x4; Horsepower: 350 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is GAC HINO 700 Series 350 hp 6X4(10 wheels) 4.7m³ Concrete Mixer Truck Chassis suited for?

GAC HINO 700 Series 350 hp 6X4(10 wheels) 4.7m³ Concrete Mixer Truck Chassis is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does GAC HINO 700 Series 350 hp 6X4(10 wheels) 4.7m³ Concrete Mixer Truck Chassis differ from other variants in the same series?

GAC HINO 700 Series 350 hp 6X4(10 wheels) 4.7m³ Concrete Mixer Truck Chassis belongs to GAC HINO700 Heavy Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for GAC HINO 700 Series 350 hp 6X4(10 wheels) 4.7m³ Concrete Mixer Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export GAC HINO 700 Series 350 hp 6X4(10 wheels) 4.7m³ Concrete Mixer Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
