Dongfeng Yiwei 5 Engineering Version 8X4(12 wheels) 5.8m Semi-row Pure Electric Dump Truck CATL 400.61kWh

Export reference
MSRP N/A
Rated payload:: 13.27ton
Wheelbase:: 2050+2950+1350mm
Cargo box length:: 5.8m
Model code (announced):: LZ3310H5FZBEV141
Cab length:: 9.715m
GVWR:: 31ton
Drive 8X4 (12 wheels)
Battery Brand: CATL
Motor 1 Brand: Fast Gear
Curb Weight: 17.6ton

Overview

The Dongfeng Yiwei 5 Engineering Version 8X4(12 wheels) 5.8m Semi-row Pure Electric Dump Truck CATL 400.61kWh is a Heavy truck featuring CATL battery/range, Fast Gear motor, 8X4 (12 wheels) drive and 13.27t payload. On the powertrain side, it comes with Fast Gear transmission.

8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ3310H5FZBEV141
Drive type: 8X4
Wheelbase: 2050+2950+1350mm
Cab length: 9.715m
Cab width: 2.5m
Cab height: 3.65m
Curb Weight: 17.6ton
Rated payload: 13.27ton
GVWR: 31ton
Max. speed: 89km/h
Origin: Liuzhou, Guangxi
tonnage class: Heavy truck
Remarks: Rear-mounted battery
Energy Type: Electric
electric motor
Motor 1 Brand: Fast Gear
Motor 1 Model: TZ375XSF60-FS01
Motor Type: Permanent magnet synchronous motor
total rated power: 330kW
Peak power: 460kW
Motor 1 Peak Power: 460kW
Battery/Charging
Charging method: Fast Charge
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 400.61kWh
Transmission Parameters
Number of gears: 6Gear
shift type: AMT manual/auto
Transmission Model: Fast Gear 6E240
Transmission Brand: Fast Gear
Forward gears: 6Gear
Cargo box parameters
Cargo box length: 5.8m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: 2x20T wheel reduction axle
rear axle allowable load: 18000 (tandem axle group)kg

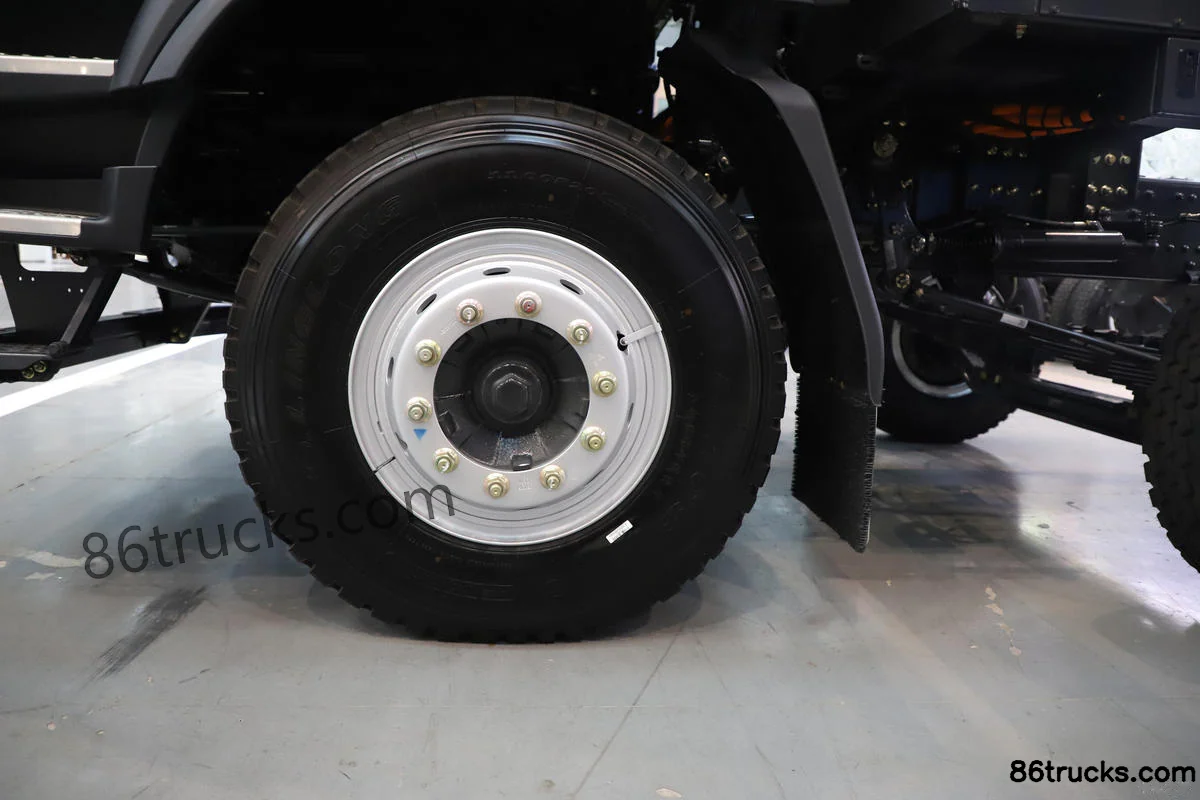

Tire
Tire Size: 11.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

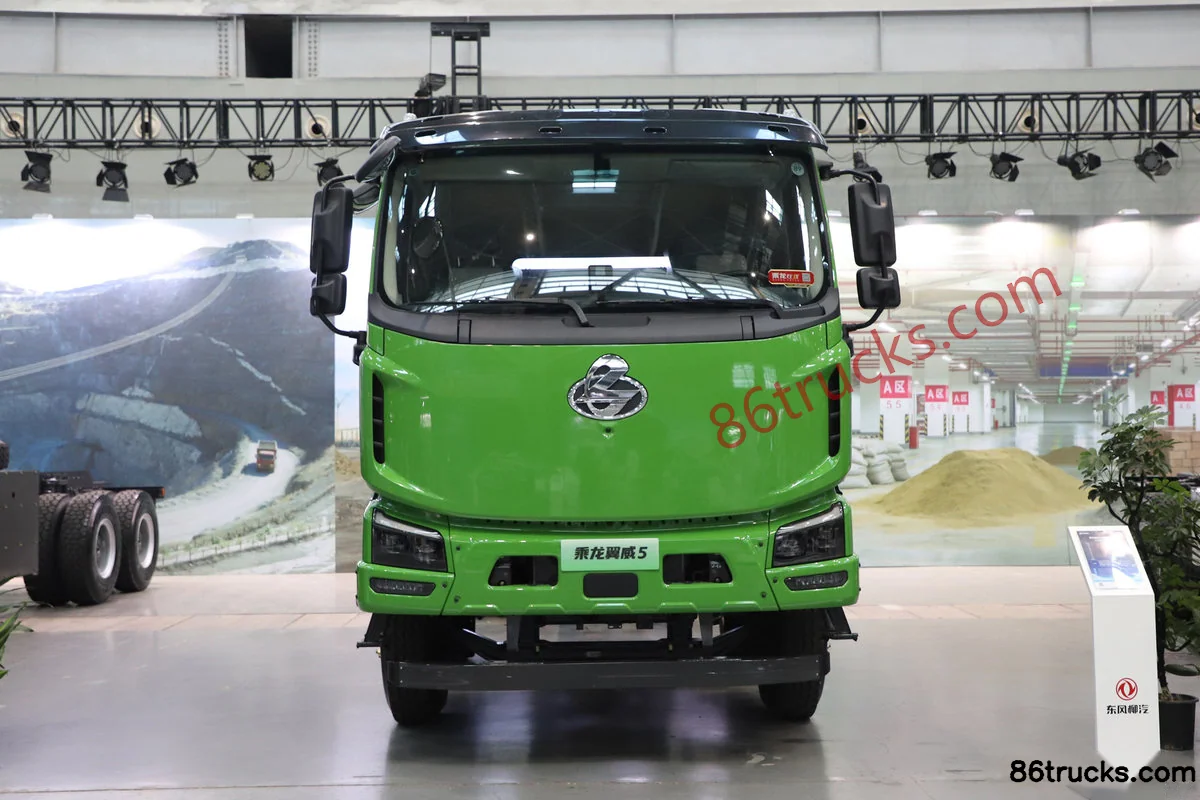

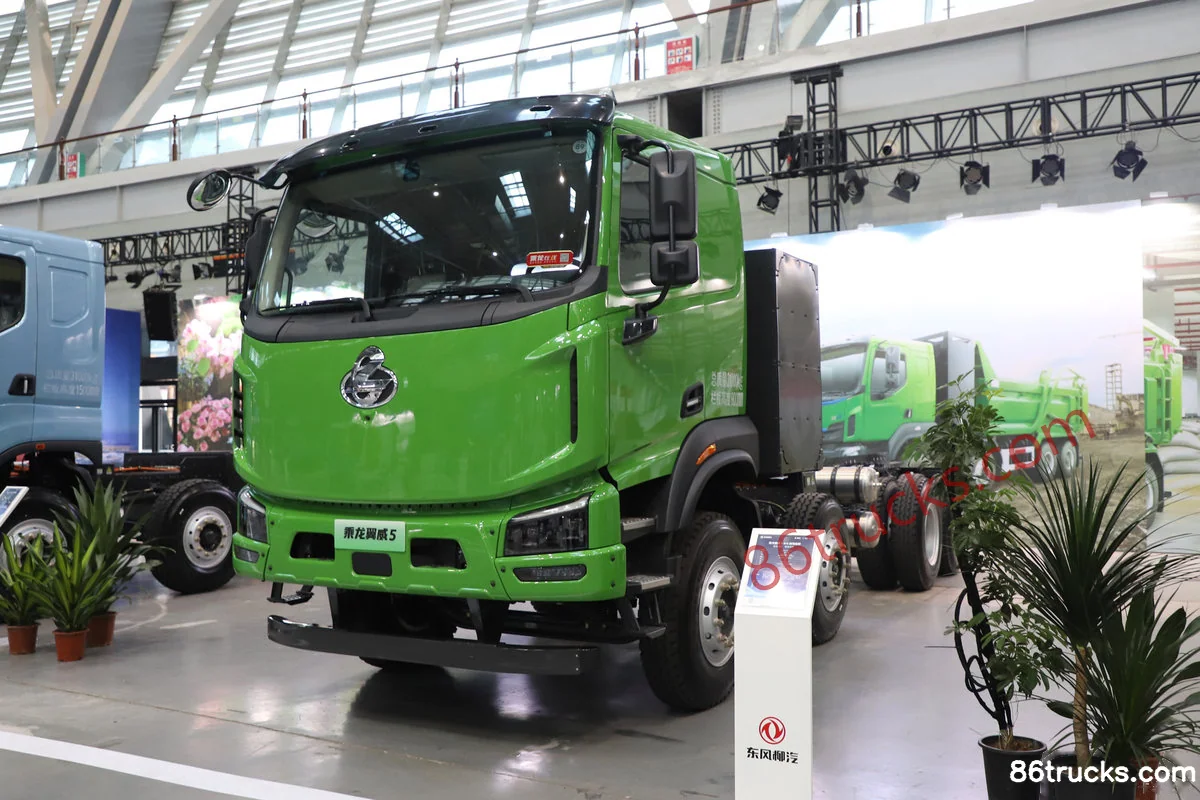

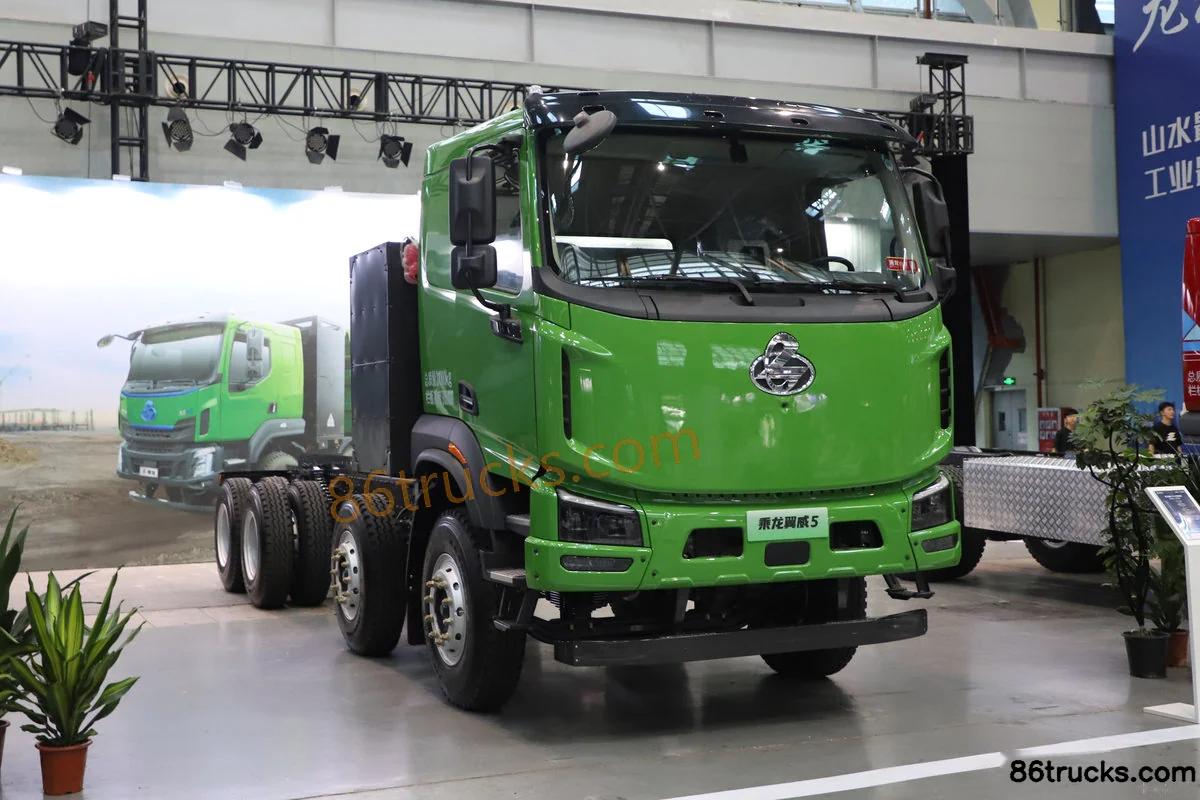

Exterior3

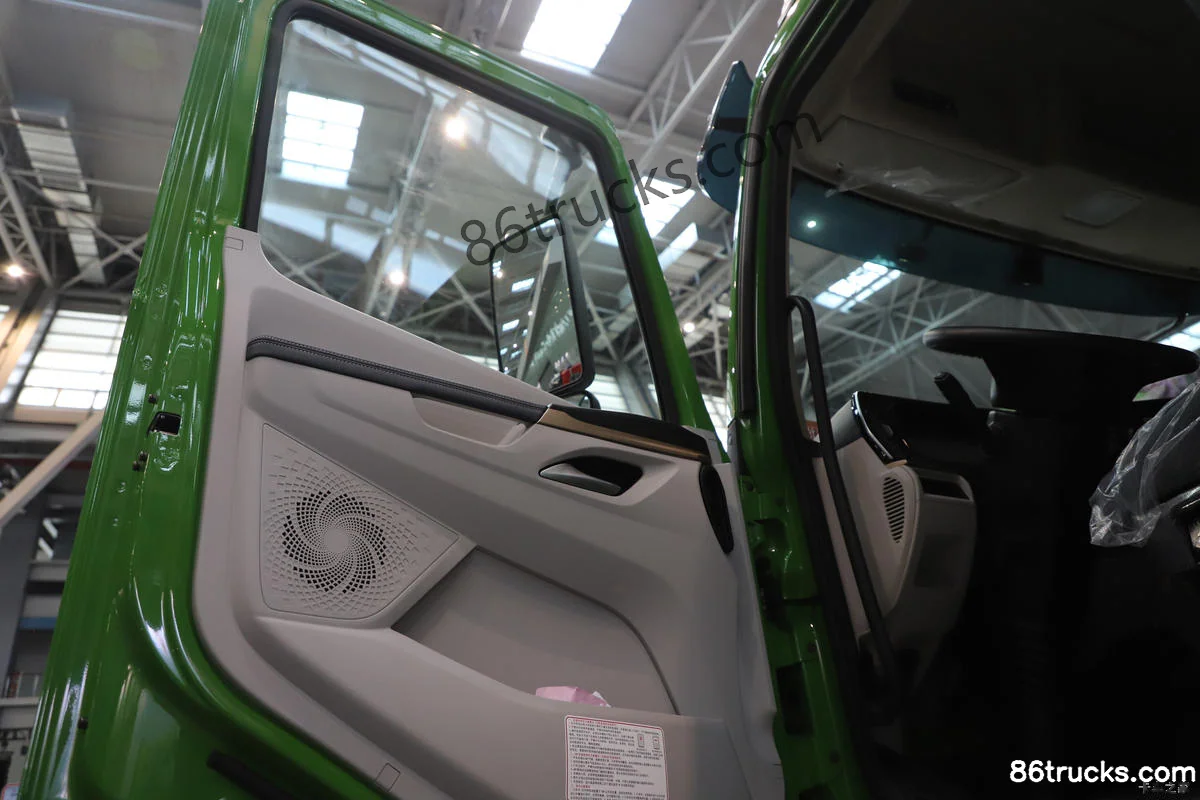

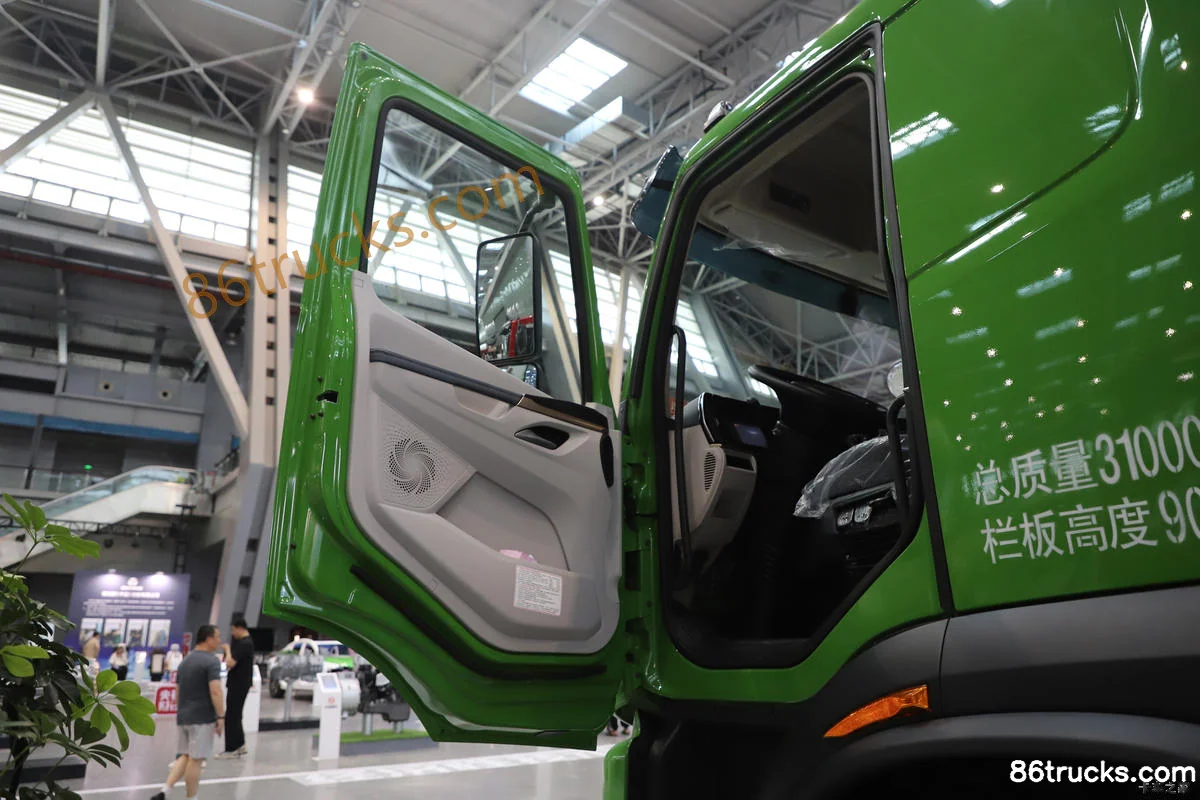

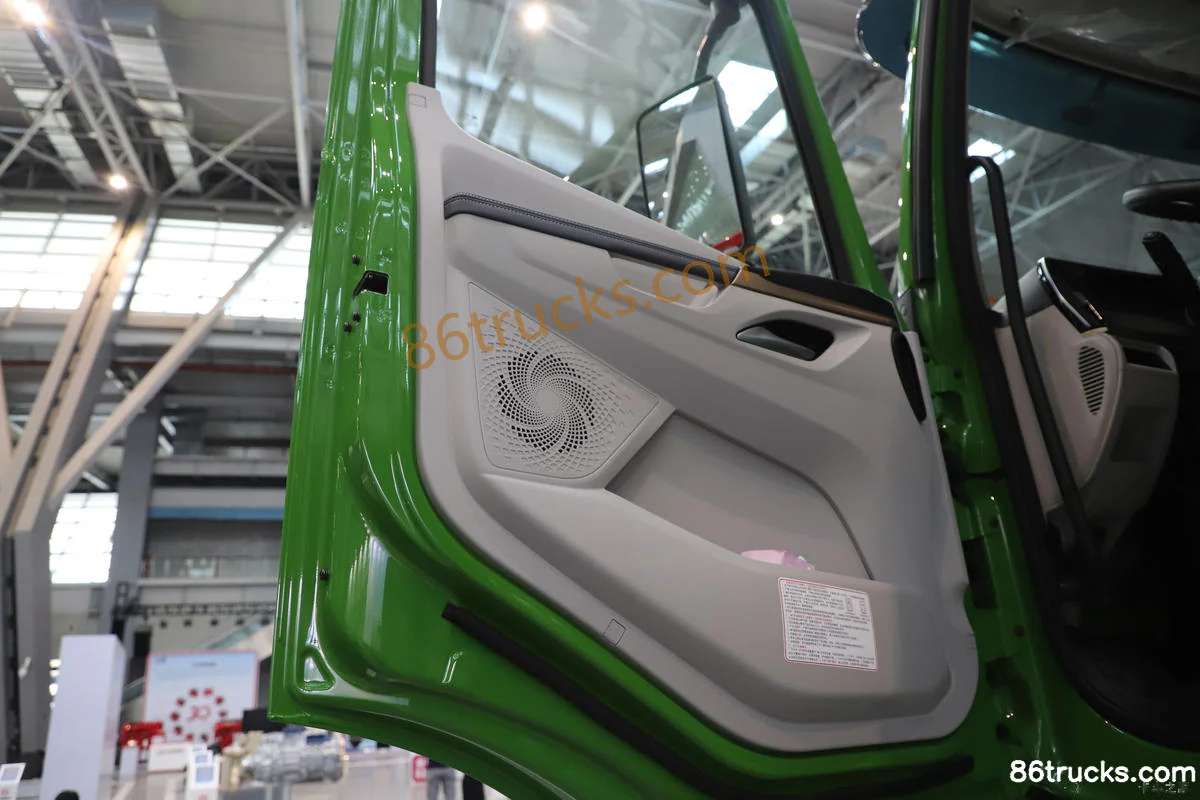

Cab3

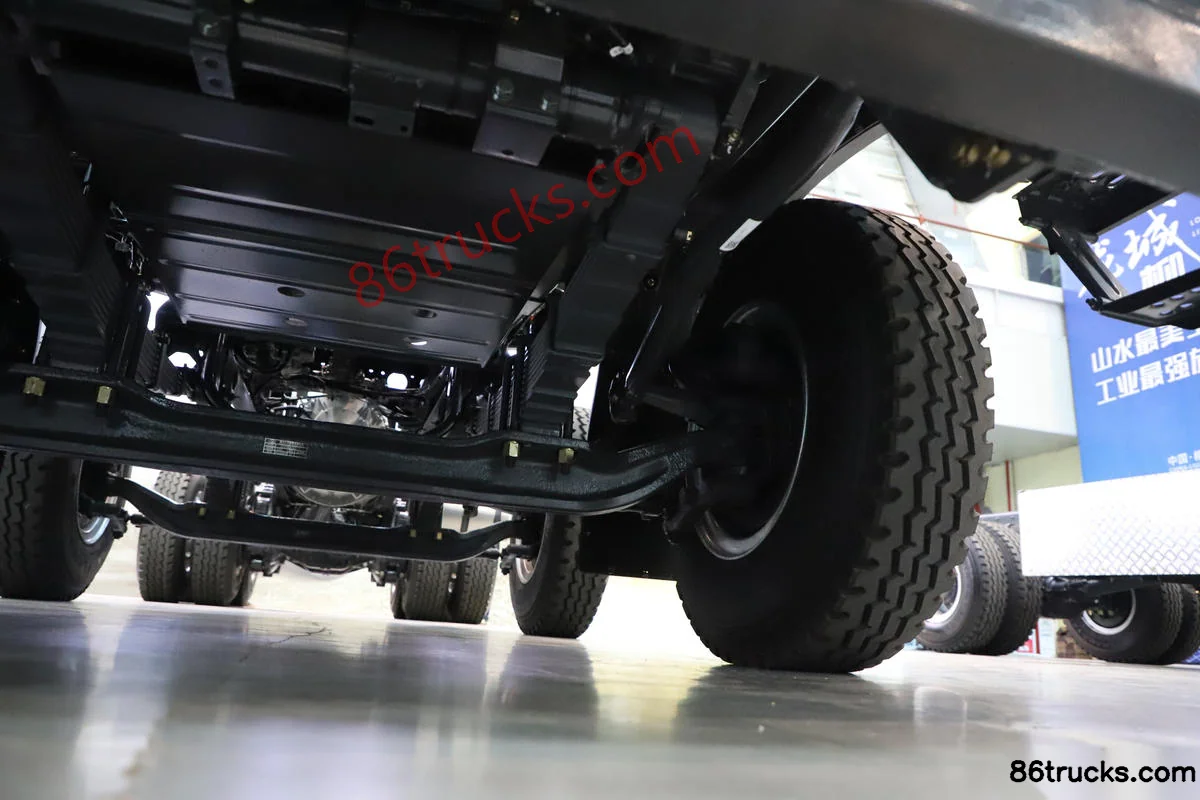

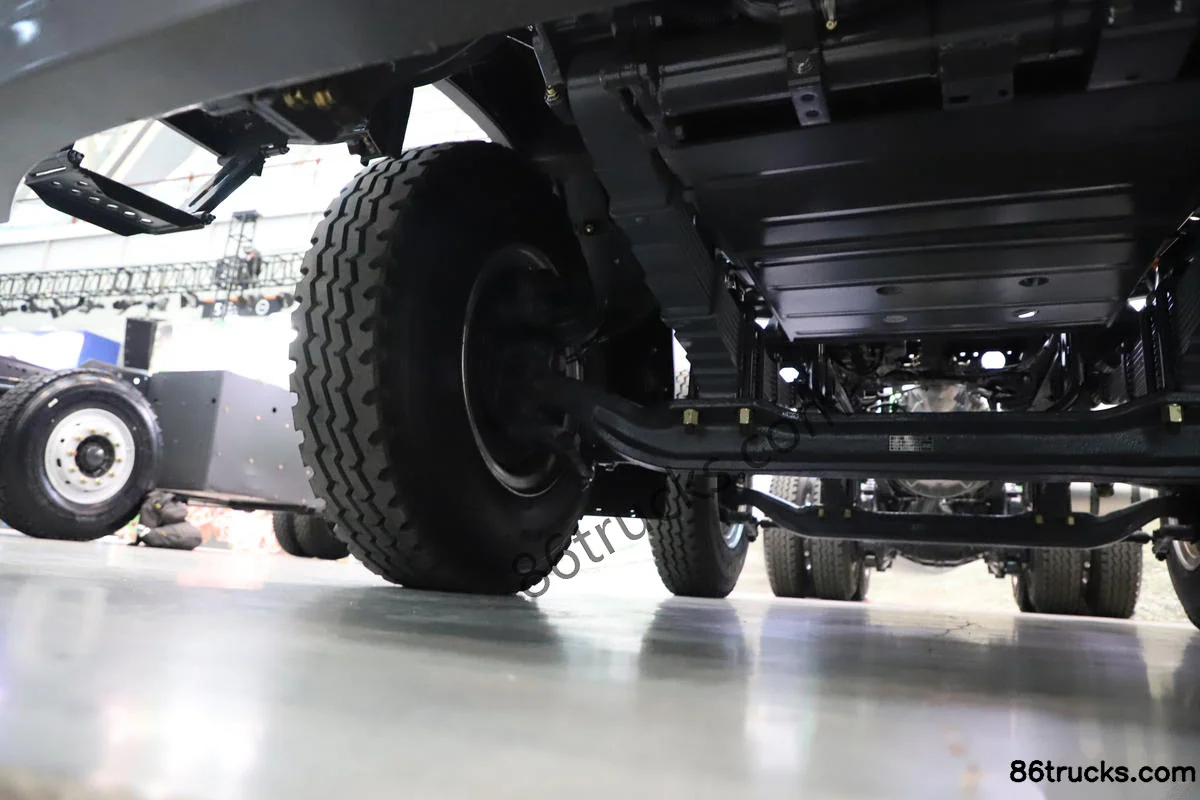

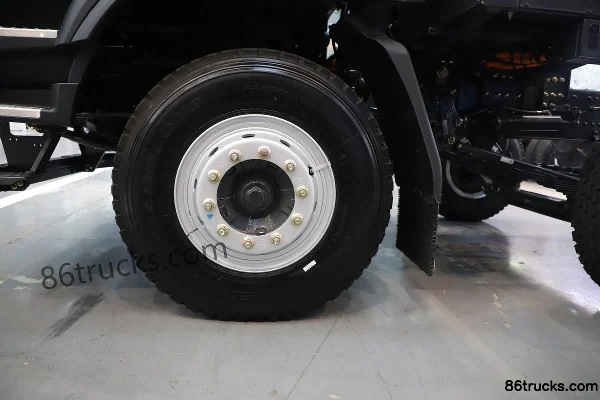

Chassis3

9 photos
