SHACMAN Delong New M3000 336hp 8X4(12 wheels) Folding Arm Truck-mounted Crane

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Wheelbase:: 2100+4575+1400mm
Cab dimensions:: 12×2.55×3.98m
Type:: Knuckle boom truck crane
GVWR:: 31ton
SHACMAN Delong New M3000 336hp 8X4(12 wheels) Folding Arm Truck-mounted Crane exterior
View more photos (12)
Lifting capacity: 23ton
Drive 8X4 (12 wheels)
Horsepower 336
Rated mass: 10.07ton

Overview

The SHACMAN Delong New M3000 336hp 8X4(12 wheels) Folding Arm Truck-mounted Crane is a truck-mounted crane featuring 23ton tank capacity, 31t GVW and 8X4 (12 wheels) drive. On the powertrain side, it comes with 336 hp, China V emissions and Diesel fuel.

China V 336 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Cab dimensions: 12×2.55×3.98m
Type: Knuckle boom truck crane
Drive type: 8X4
Wheelbase: 2100+4575+1400mm
Rated mass: 10.07ton
GVWR: 31ton
Front/rear suspension: 1.525/2.4m
Energy Type: Diesel
Body Parameters
Crane model: SPK7002
Lifting capacity: 23ton
Vehicle certification code: SX5310JSQHB466
Body Brand: SANY Brand
Engine parameters
Injection System: Common Rail
Engine Brand: Weichai
Engine Model: WeichaiWP10.336E53
fuel type: Diesel
Displacement: 9.726L
Emission standard: China V
Max output power: 247kW
Max hp: 336Horsepower
Max torque: 1550N·m
Max torque speed: 1200-1500rpm
Rated speed: 1900rpm
Chassis Specs
Chassis Brand: SHACMAN
Chassis Series: Delong New M3000
Chassis Model: SX1310MB6
Axle ratio: 4.111
Leaf spring count: Left 14 Right 13/Left 14 Right 13/12
Transmission Parameters
Number of gears: 12Gear
Transmission Model: Fast Gear12JSD160TA
Tire
Tire Size: 11.00R20，12.00R20 16PR
Number of tires: 12pcs

Photos

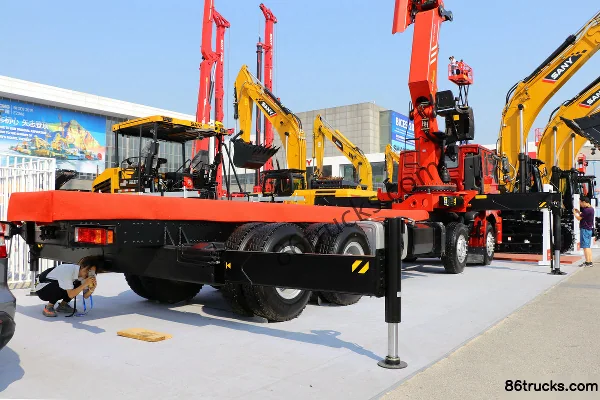

Exterior3

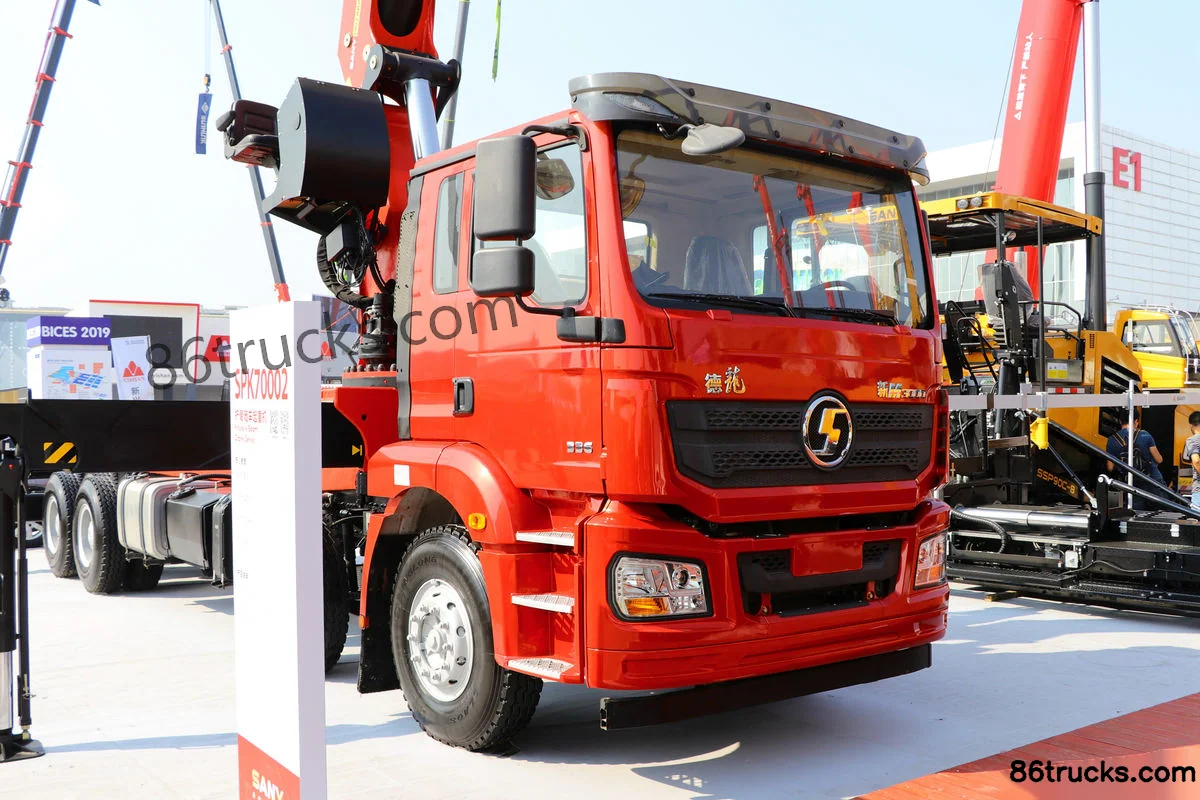

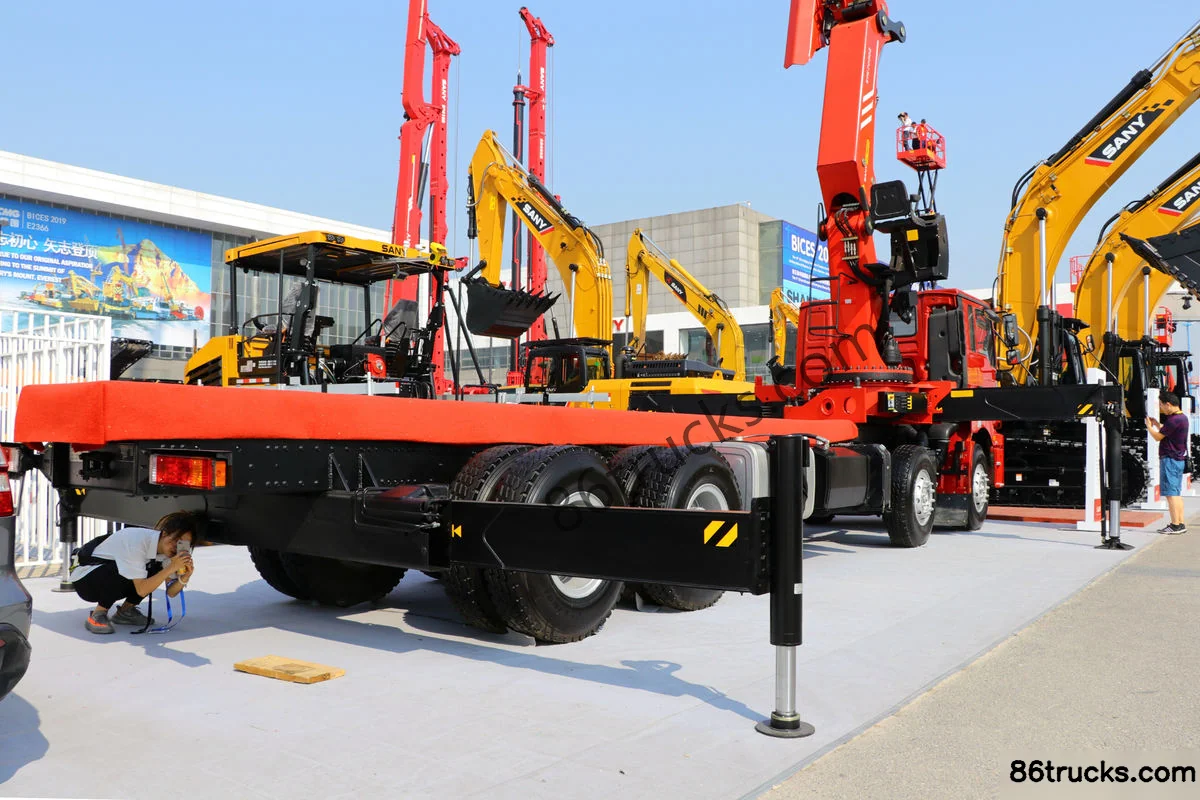

SHACMAN Delong New M3000 336hp 8X4(12 wheels) Folding Arm Truck-mounted Crane Exterior (1) | 86Trucks SHACMAN Delong New M3000 336hp 8X4(12 wheels) Folding Arm Truck-mounted Crane Exterior (2) | 86Trucks SHACMAN Delong New M3000 336hp 8X4(12 wheels) Folding Arm Truck-mounted Crane Exterior (3) | 86Trucks

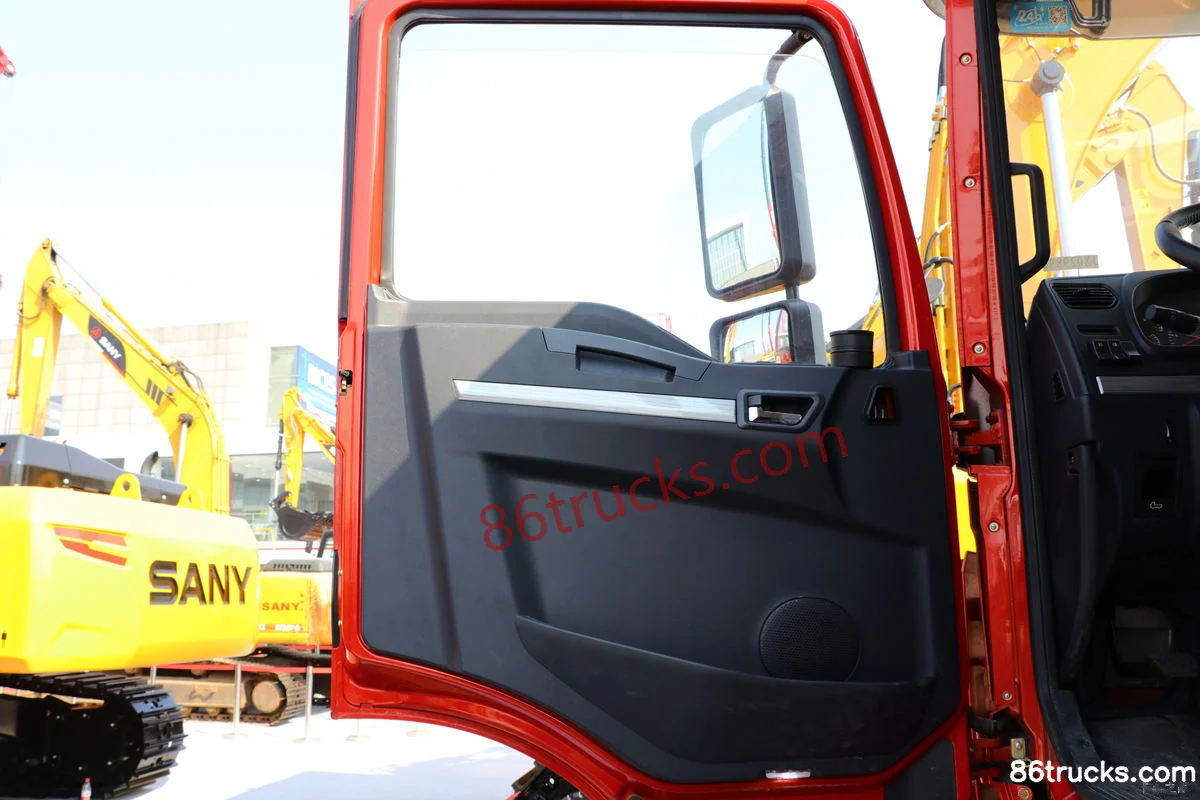

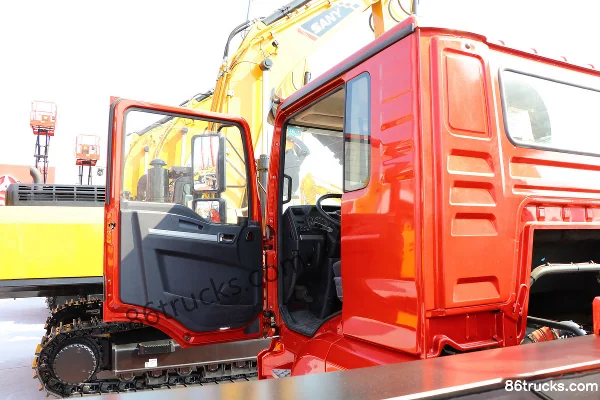

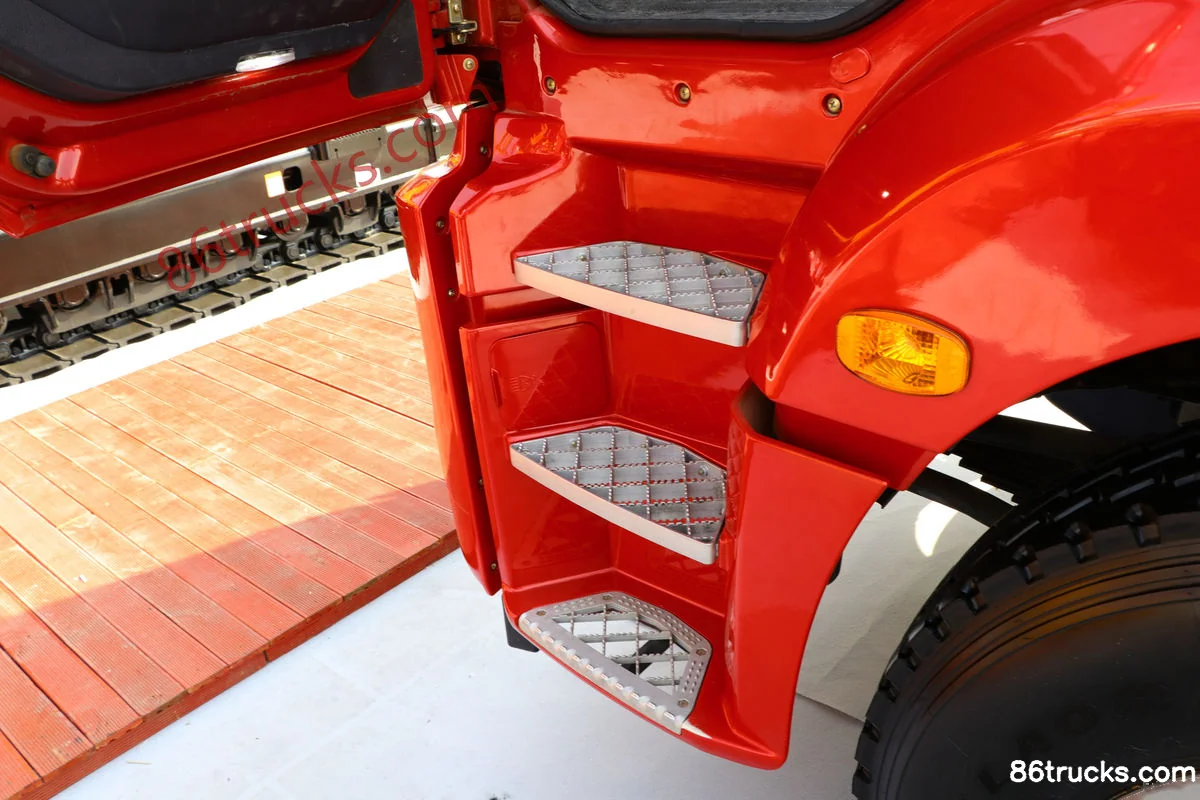

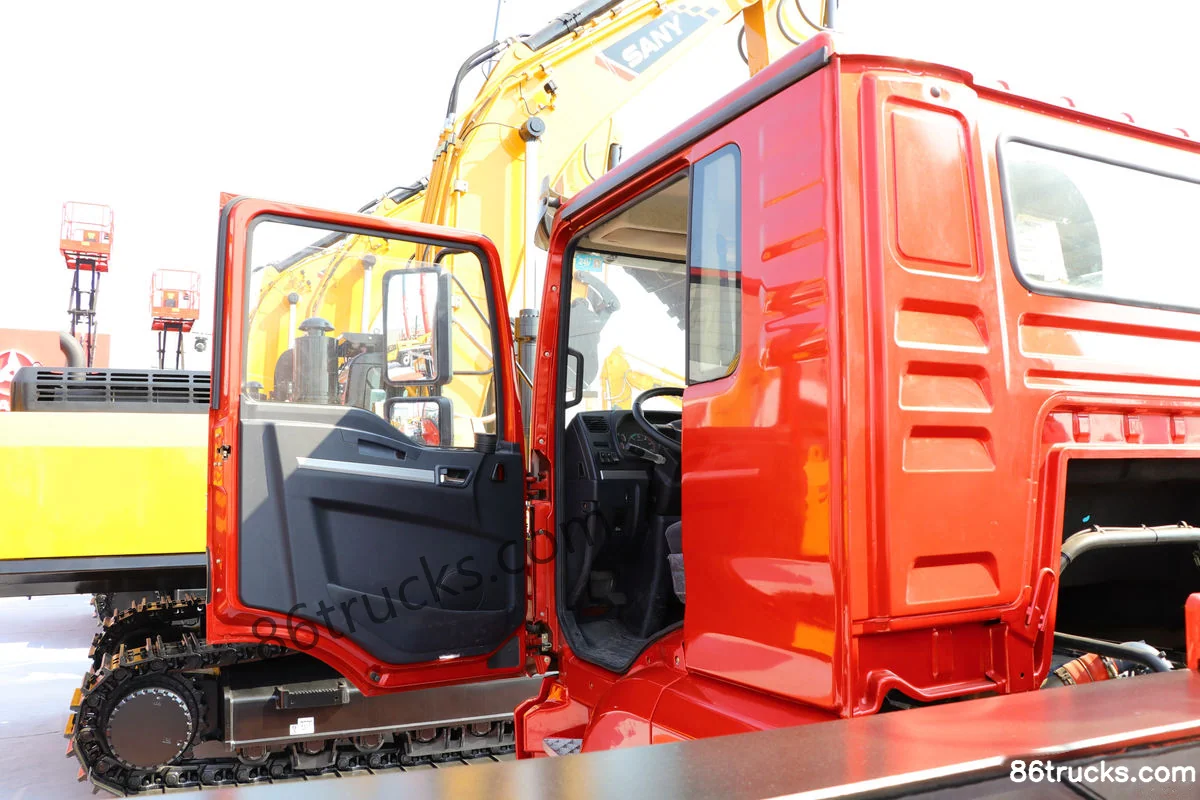

Cab3

SHACMAN Delong New M3000 336hp 8X4(12 wheels) Folding Arm Truck-mounted Crane Cab (1) | 86Trucks SHACMAN Delong New M3000 336hp 8X4(12 wheels) Folding Arm Truck-mounted Crane Cab (2) | 86Trucks SHACMAN Delong New M3000 336hp 8X4(12 wheels) Folding Arm Truck-mounted Crane Cab (3) | 86Trucks

Chassis3

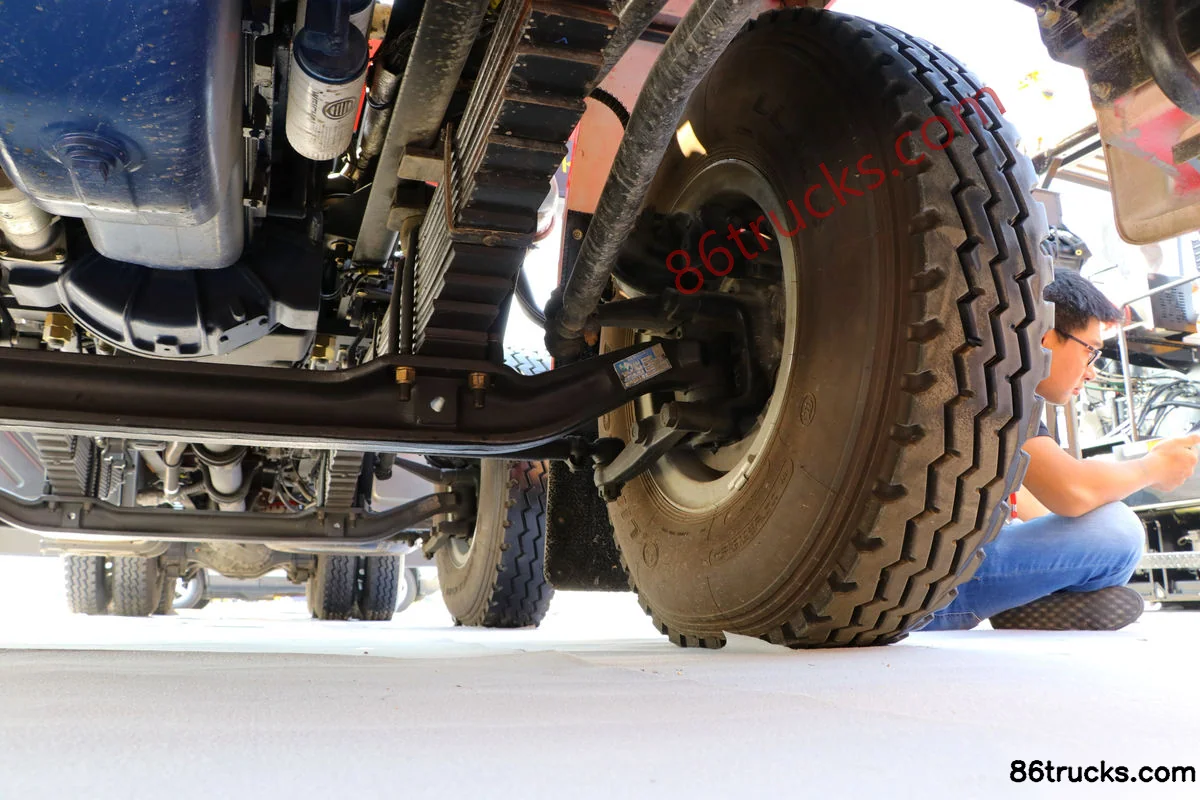

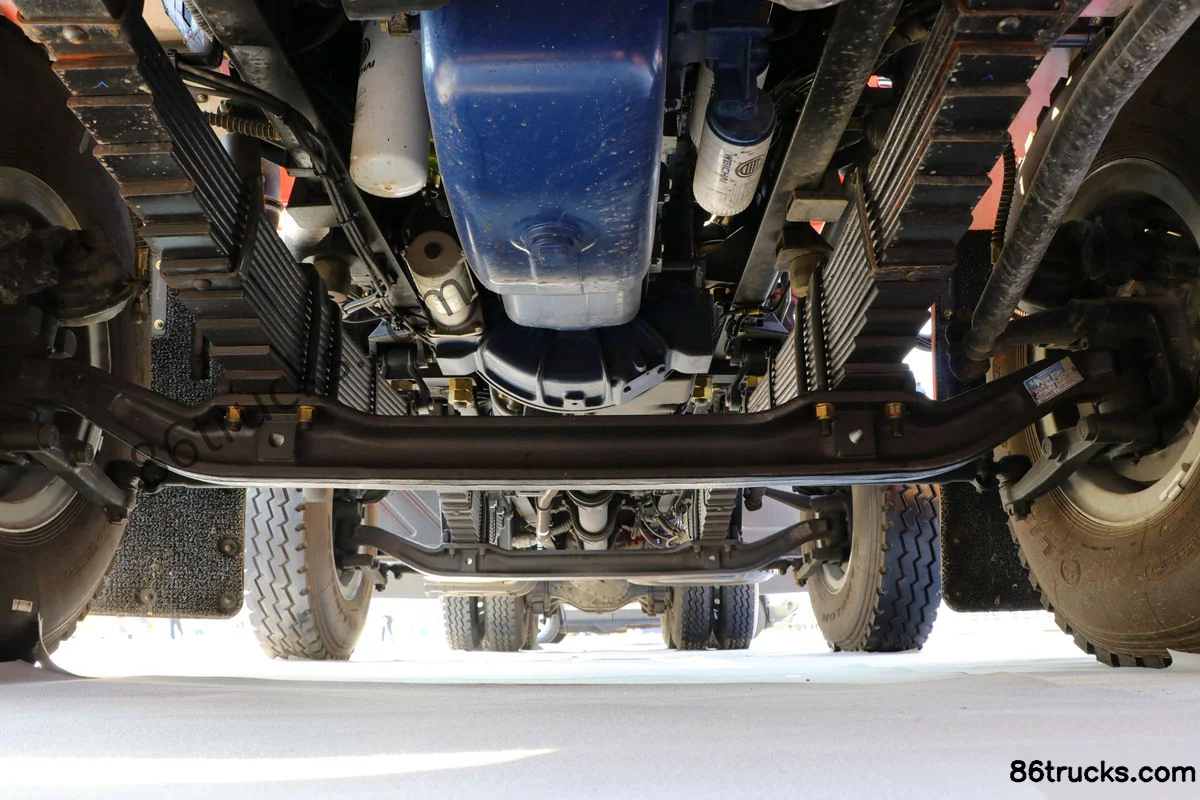

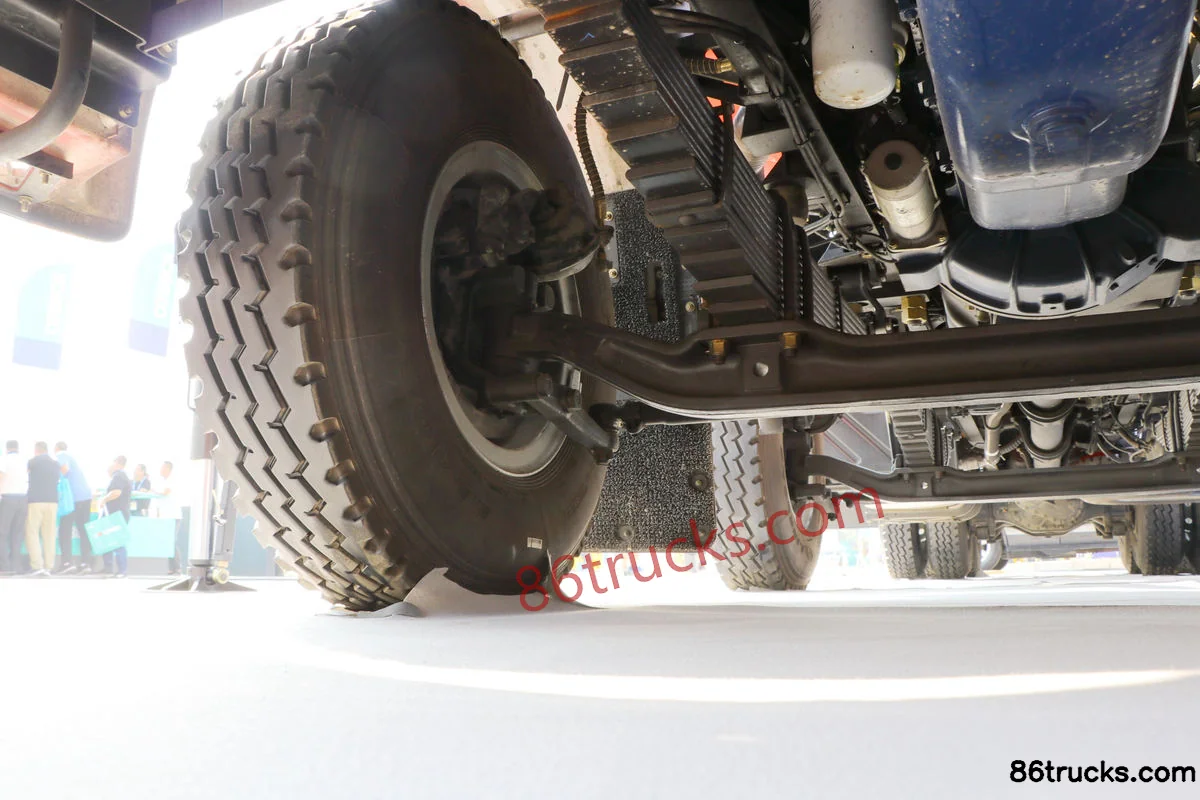

SHACMAN Delong New M3000 336hp 8X4(12 wheels) Folding Arm Truck-mounted Crane Chassis (1) | 86Trucks SHACMAN Delong New M3000 336hp 8X4(12 wheels) Folding Arm Truck-mounted Crane Chassis (2) | 86Trucks SHACMAN Delong New M3000 336hp 8X4(12 wheels) Folding Arm Truck-mounted Crane Chassis (3) | 86Trucks

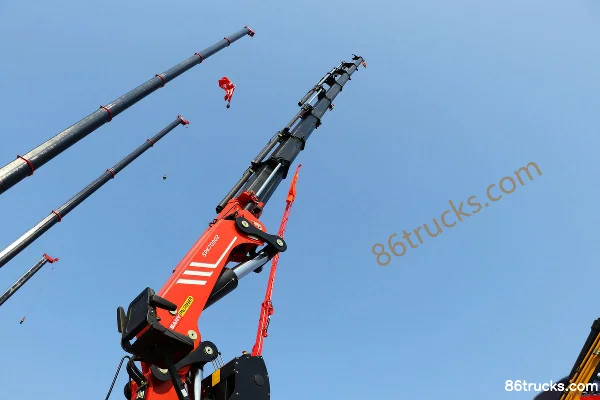

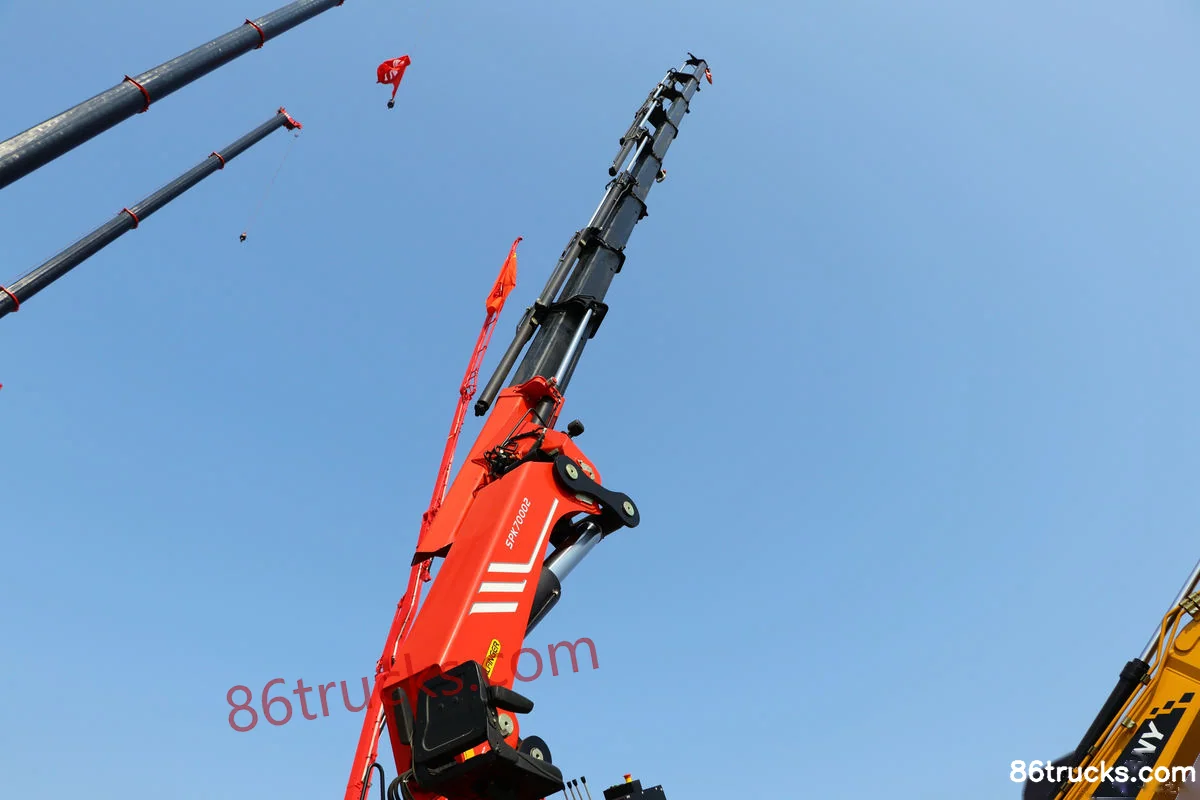

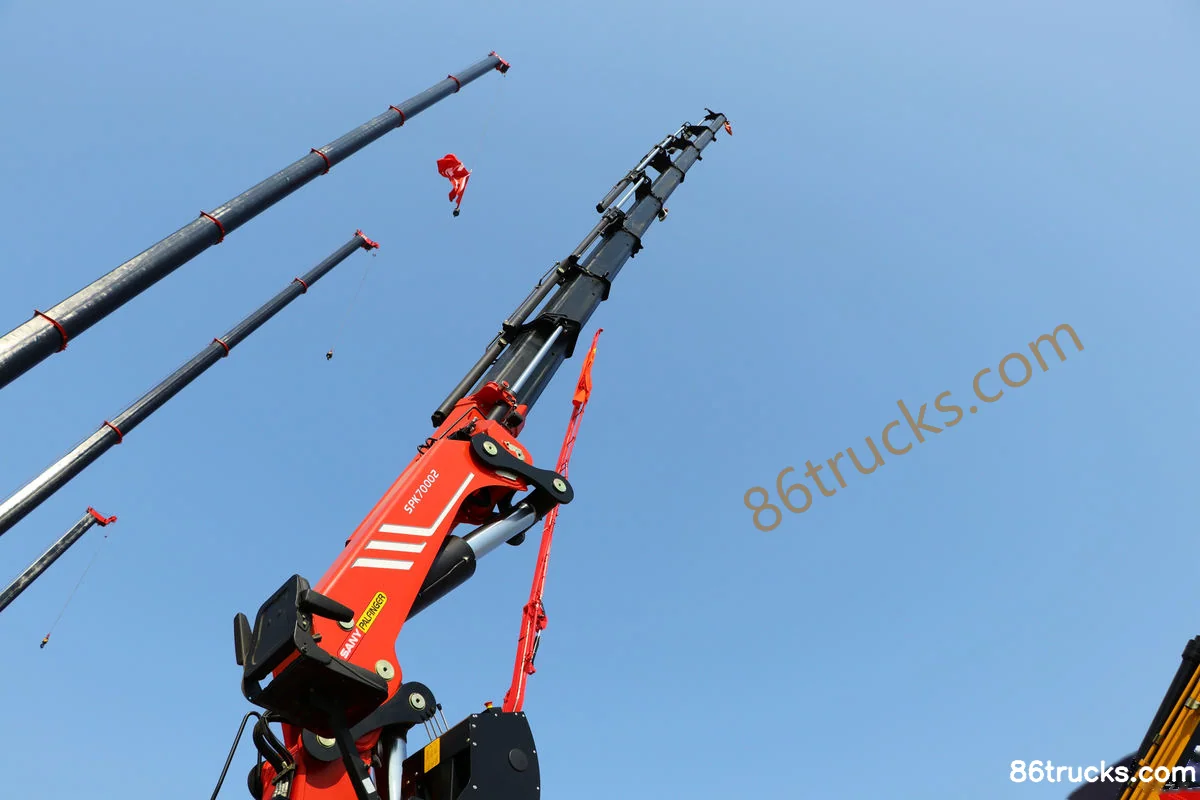

Body3

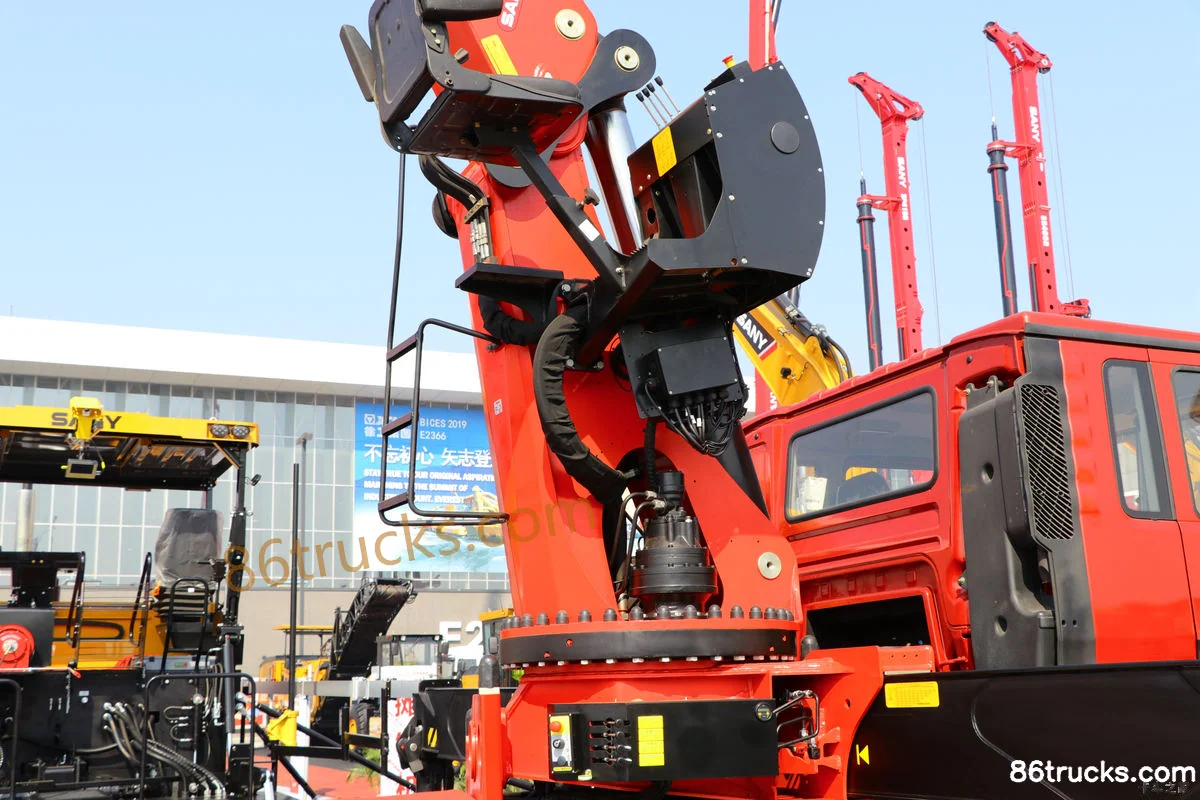

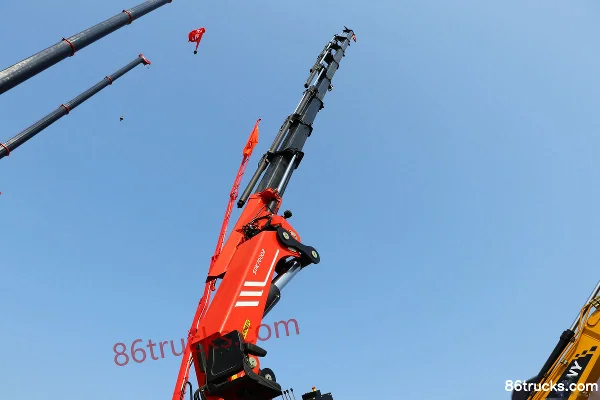

SHACMAN Delong New M3000 336hp 8X4(12 wheels) Folding Arm Truck-mounted Crane Body (1) | 86Trucks SHACMAN Delong New M3000 336hp 8X4(12 wheels) Folding Arm Truck-mounted Crane Body (2) | 86Trucks SHACMAN Delong New M3000 336hp 8X4(12 wheels) Folding Arm Truck-mounted Crane Body (3) | 86Trucks

12 photos

FAQ

What emission standard does SHACMAN Delong New M3000 336hp 8X4(12 wheels) Folding Arm Truck-mounted Crane use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong New M3000 336hp 8X4(12 wheels) Folding Arm Truck-mounted Crane?

Key specs of SHACMAN Delong New M3000 336hp 8X4(12 wheels) Folding Arm Truck-mounted Crane: Drive: 8x4; Horsepower: 336 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong New M3000 336hp 8X4(12 wheels) Folding Arm Truck-mounted Crane suited for?

SHACMAN Delong New M3000 336hp 8X4(12 wheels) Folding Arm Truck-mounted Crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does SHACMAN Delong New M3000 336hp 8X4(12 wheels) Folding Arm Truck-mounted Crane differ from other variants in the same series?

SHACMAN Delong New M3000 336hp 8X4(12 wheels) Folding Arm Truck-mounted Crane belongs to SHACMAN Delong New M3000 Heavy Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong New M3000 336hp 8X4(12 wheels) Folding Arm Truck-mounted Crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong New M3000 336hp 8X4(12 wheels) Folding Arm Truck-mounted Crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
