Hualing Heavy Truck 345 hp 8X4(12 wheels) 8 m Truck-Mounted Crane

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Wheelbase:: 2240+4215+1350mm
Cab dimensions:: 11.99×2.5×3.82m
Type:: truck-mounted crane
GVWR:: 31ton
Lifting capacity: 12ton
Drive 8X4 (12 wheels)
Horsepower 345
Rated mass: 11.5ton

Overview

The Hualing Heavy Truck 345 hp 8X4(12 wheels) 8 m Truck-Mounted Crane is a truck-mounted crane featuring 12ton tank capacity, 31t GVW and 8X4 (12 wheels) drive. On the powertrain side, it comes with 345 hp, China V emissions and Diesel fuel.

China V 345 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.99×2.5×3.82m
Type: truck-mounted crane
Drive type: 8X4
Wheelbase: 2240+4215+1350mm
Rated mass: 11.5ton
GVWR: 31ton
Front/rear suspension: 1.495/2.69m
Energy Type: Diesel
Body Parameters
Crane model: HSQ3004
Lifting capacity: 12ton
crane self-weight: 7ton
Vehicle certification code: AH5310JSQ0L5
Body Brand: Hualing
Engine parameters
Injection System: Common Rail
Engine Brand: Hanma
Engine Model: Hanma CM6D18.345 50
fuel type: Diesel
Displacement: 9.84L
Emission standard: China V
Max output power: 254kW
Max hp: 345Horsepower
Max torque: 1660N·m
Max torque speed: 1100-1400rpm
Rated speed: 1900rpm
Chassis Specs
Chassis Brand: Hualing
Chassis Series: Hualing Heavy Truck
Chassis Model: HN1310X34D6M5J
Frame Dimensions: 290(8+8)mm
rear axle description: HL300A
Axle ratio: 5.263
Leaf spring count: 9/9/12
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Hanma9SDB1851
Cab parameters
Cab: European-style flat top

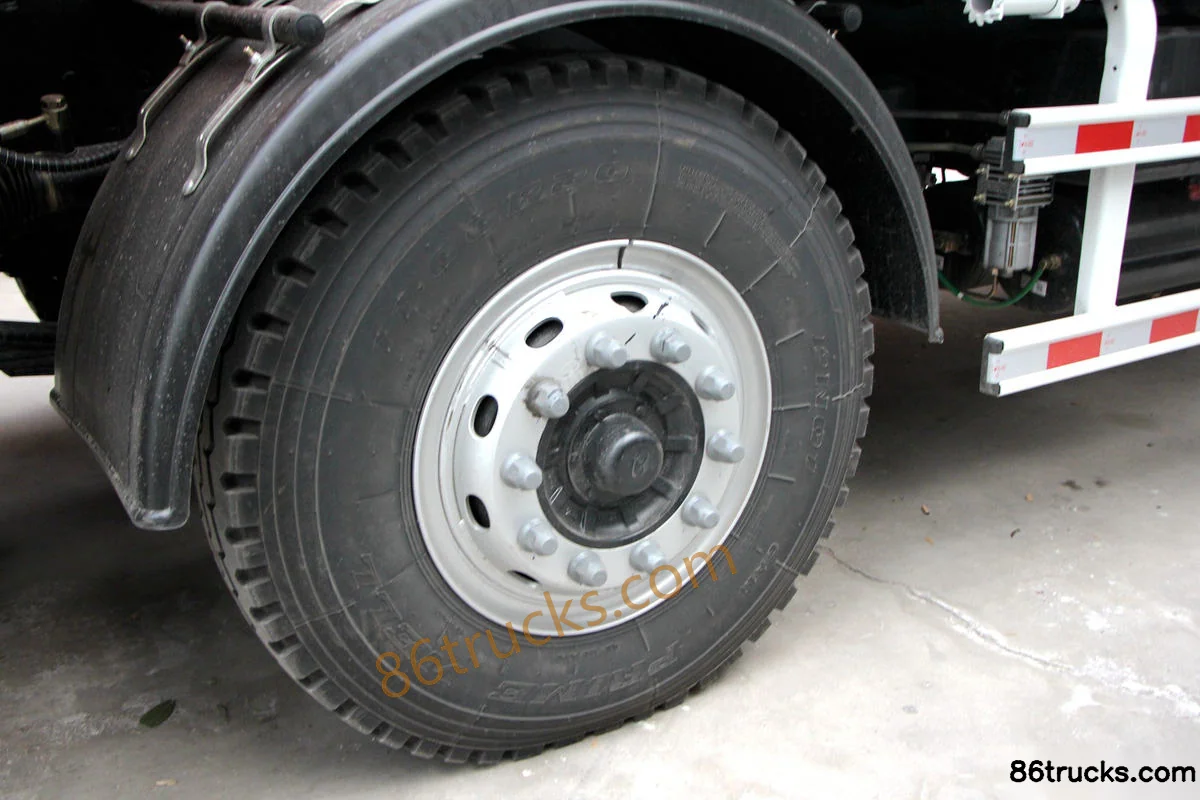

Tire
Tire Size: 11.00R20
Number of tires: 12pcs

Photos

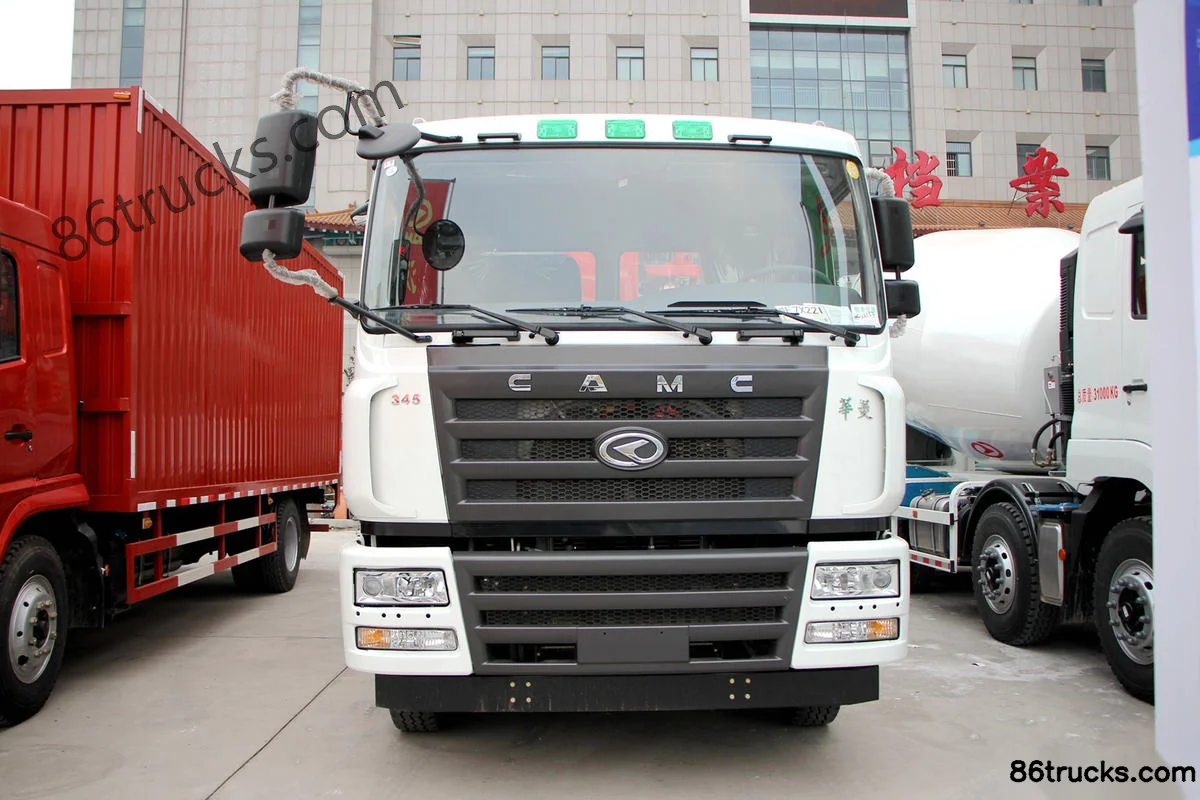

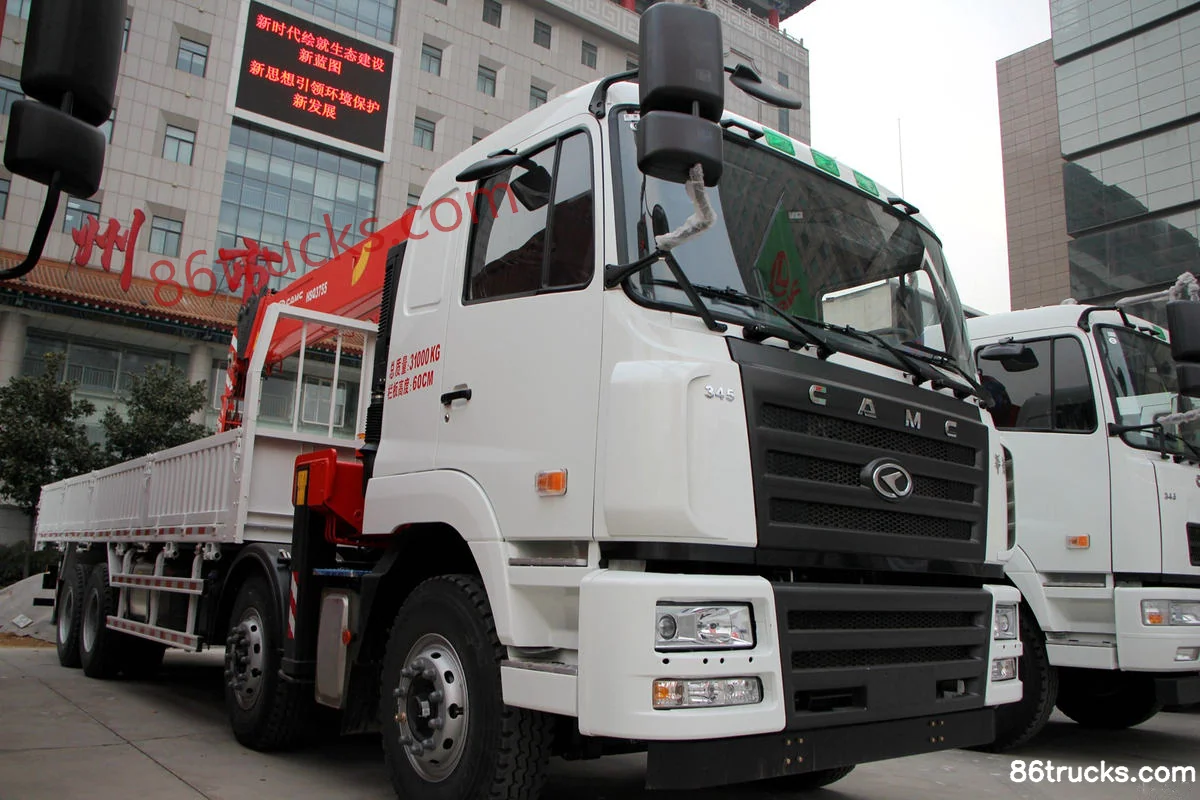

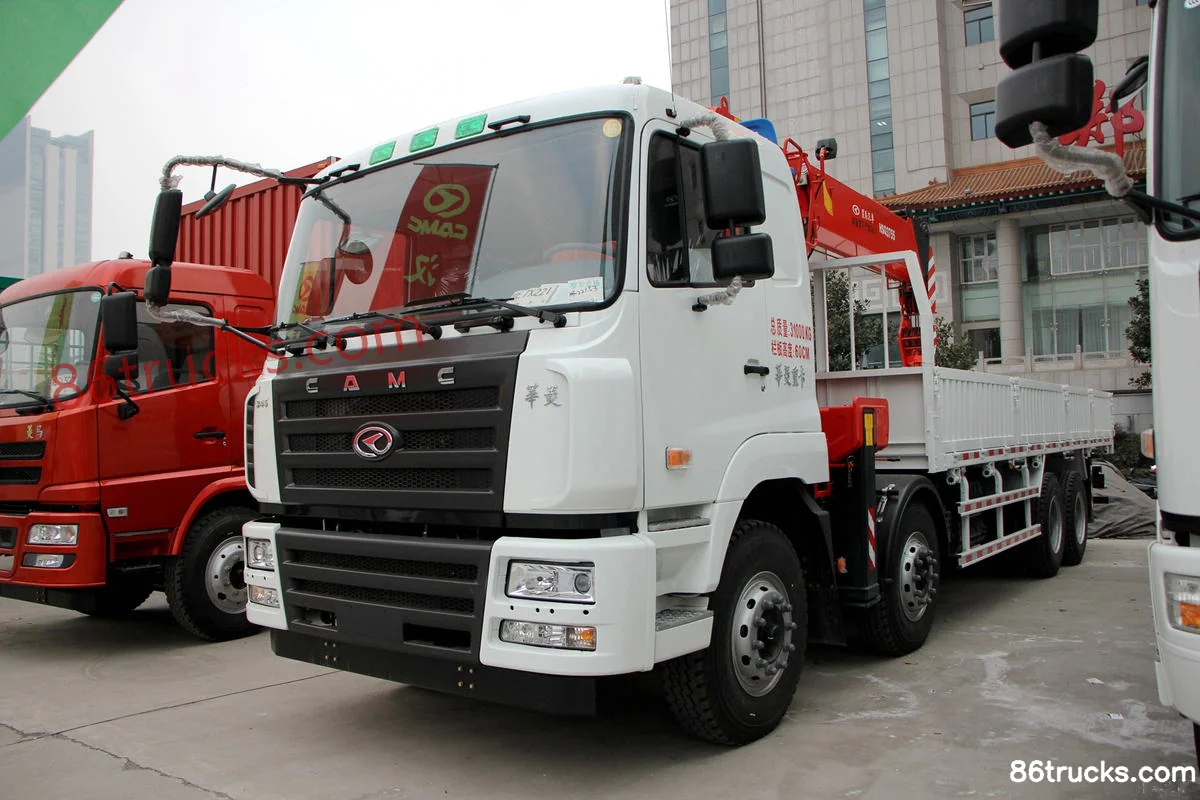

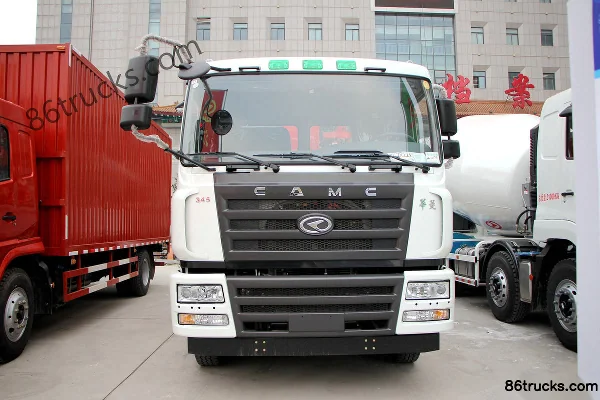

Exterior3

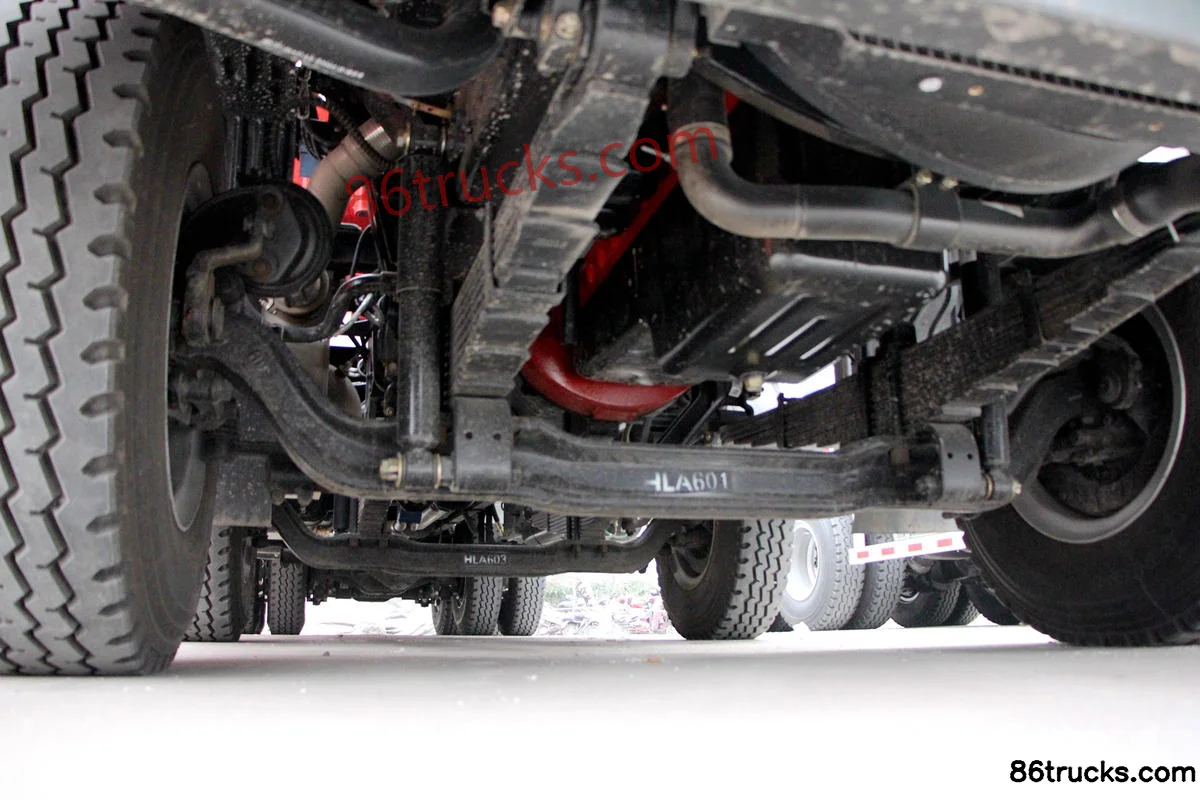

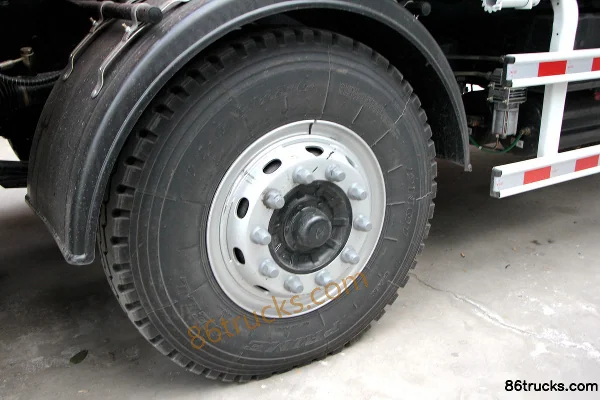

Chassis3

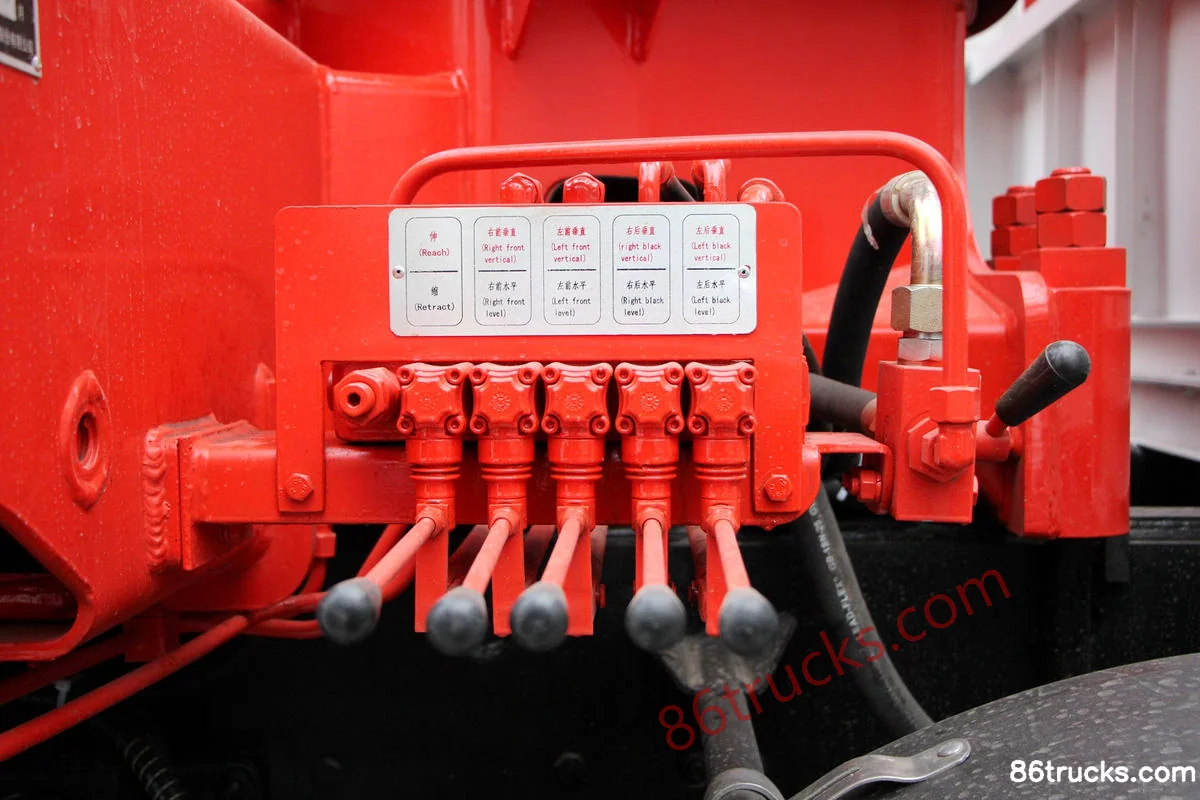

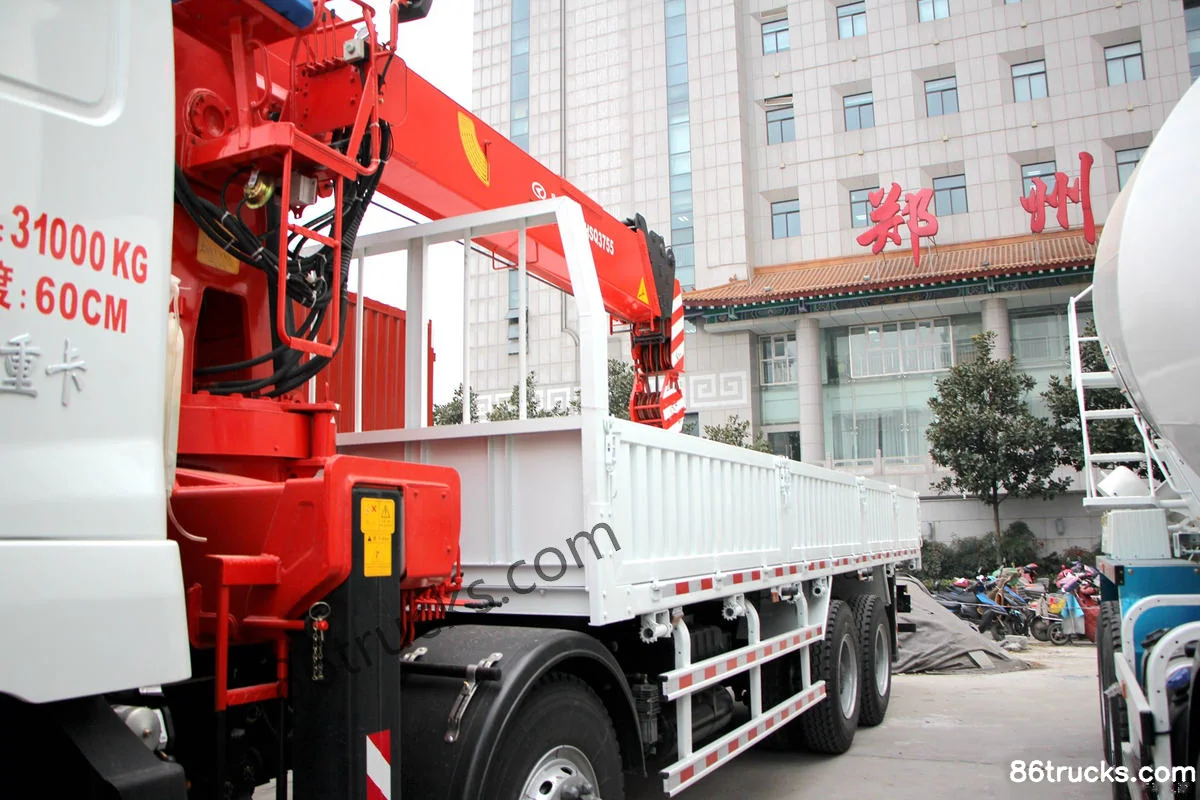

Body3

9 photos

FAQ

What emission standard does Hualing Heavy Truck 345 hp 8X4(12 wheels) 8 m Truck-Mounted Crane use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hualing Heavy Truck 345 hp 8X4(12 wheels) 8 m Truck-Mounted Crane?

Key specs of Hualing Heavy Truck 345 hp 8X4(12 wheels) 8 m Truck-Mounted Crane: Drive: 8x4; Horsepower: 345 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hualing Heavy Truck 345 hp 8X4(12 wheels) 8 m Truck-Mounted Crane suited for?

Hualing Heavy Truck 345 hp 8X4(12 wheels) 8 m Truck-Mounted Crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Hualing Heavy Truck 345 hp 8X4(12 wheels) 8 m Truck-Mounted Crane differ from other variants in the same series?

Hualing Heavy Truck 345 hp 8X4(12 wheels) 8 m Truck-Mounted Crane belongs to Hualing M5 Heavy Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hualing Heavy Truck 345 hp 8X4(12 wheels) 8 m Truck-Mounted Crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hualing Heavy Truck 345 hp 8X4(12 wheels) 8 m Truck-Mounted Crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
